INSTRUCTION MANUAL

Microwave Oven

SAVE THESE INSTRUCTIONS CAREFULLY

Read these instructions carefully before using your

microwave oven,and keep it carefully.

If you follow the instructions, your oven will provide you with

many years of good service.

MODEL:KM23EMB

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE

TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can

result in harmful exposure to microwave energy. It is important not to

break or tamper with the safety interlocks.

(b) Do not place any object between the oven front face and the door or allow

soil or cleaner residue to accumulate on sealing surfaces.

be operated until it has been repaired by a competent person.

Specifications

Model:

Rated Voltage:

Rated Input Power(Microwave):

Rated Output Power(Microwave):

Oven Capacity:

Turntable Diameter:

External Dimensions(LxWxH):

Net Weight:

230V~50Hz

1250W

800W

23L

270mm

485x410x287mm

Approx. 13.2 kg

If the apparatus is not maintained in a good state of cleanliness, its surface could

be degraded and affect the lifespan of the apparatus and lead to a dangerous

situation.

KM23EMB

IMPORTANT SAFETY INSTRUCTIONS

WARNING To reduce the risk of fire, electric shock, injury to persons

or exposure to excessive microwave oven energy when

using your appliance, follow basic precautions, including

the following:

1. Warning: Liquids and other foods must

not be heated in sealed containers since

they are liable to explode.

2. Warning: It is hazardous for anyone other

than a competent person to remove a

cover which gives protection against

exposure to microwave energy.

3. Warning: Only allow children to use the

oven without supervision when adequate

instructions have been given so that the

child is able to use the oven in a safe way

and understand the hazards of improper

use.

4. Warning: When the appliance is operated

in the combination mode, children should

only use the oven under adult supervision

due to the temperatures generated.

(only for grill series)

5. Only use utensils suitable for use in

microwave ovens.

6. The oven should be cleaned regularly and

any food deposits should be removed.

7. Read and follow the specific:"PRECAU-

TIONSTOAVOID POSSIBLE EXPOSURE

TO EXCESSIVE MICROWAVE ENERGY".

8. When heating food in plastic or paper

containers, keep an eye on the oven due

to the possibility of ignition.

9. If smoke is observed, switch off or unplug

the appliance and keep the door closed

in order to stifle any flames.

10. Do not overcook food.

11. Do not use the oven cavity for storage

purposes. Do not store items,

such as bread, cookies, etc. inside the

oven.

12. Remove wire twist-ties and metal handles

from paper or plastic containers/bags

before placing them in the oven.

13. Install or locate this oven only in

accordance with the installation

instructions provided.

14. Eggs in the shell and whole hard-boiled

eggs should not be heated in microwave

ovens since they may explode, even

after microwave heating has ended.

15. Use this appliance only for its intended

uses as described in manual. Do not

use corrosive chemicals or vapors

in this appliance. This oven is especially

designed to heat. It is not designed for

industrial or laboratory use.

16. If the supply cord is damaged, it must

be replaced by the manufacturer, its

service agent or similarly qualified

persons in order to avoid a hazard.

17. Do not store or use this appliance

outdoors.

18. Do not use this oven near water, in a

wet basement or near a swimming

pool.

19. The temperature of accessible surfaces

may be high when the appliance is

operating. The surfaces are liable to

get hot during use.Keep cord away

from heated surface, and do not cover

any vents on the oven.

20. Do not let cord hang over edge of table

or counter.

21. Failure to maintain the oven in a clean

condition could lead to deterioration

of the surface that could adversely

affect the life of the appliance and

possibly result in a hazardous situation.

22. The contents of feeding bottles and

baby food jars shall be stirred or shaken

and the temperature checked before

consumption, in order to avoid burns.

23. Microwave heating of beverages can

result in delayed eruptive boiling,

therefore take care when handling the

container.

24.The appliance is not intended for use by

persons (including children) with reduced

physical , sensory or mental capabilities,

or lack of experience and knowledge,

unless they have been given supervision

or instruction concerning use of the

appliance by a person responsible for their

safety.

25.Children should be supervised to ensure

that they do not play with the appliance.

DANGER

Electric Shock Hazard

Touching some of the internal

components can cause serious

personal injury or death. Do not

disassemble this appliance.

WARNING

Electric Shock Hazard

Improper use of the grounding

can result in electric shock. Do

not plug into an outlet until

appliance is properly installed

and grounded.

To Reduce the Risk of Injury to Persons

Grounding Installation

CLEANING

Be sure to unplug the

appliance from the power supply.

1. Clean the inside of the oven after using

with a slightly damp cloth.

2. Clean the accessories in the usual way

in soapy water.

3. The door frame and seal and

neighbouring parts must be cleaned

carefully with a damp cloth when they

are dirty.

1. A short power-supply cord is provided to

reduce the risks resulting from becoming

entangled in or tripping over a longer cord.

2. If a long cord set or extension cord is used:

1)The marked electrical rating of the cord set

or extension cord should be at least as great

as the electrical rating of the appliance.

2)The extension cord must be a grounding-

type 3-wire cord.

3)The long cord should be arranged so that it

will not drape over the counter top or tabletop

where it can be pulled on by children or tripped

over unintentionally.

This appliance must be grounded. In the event of

an electrical short circuit, grounding reduces the

risk of electric shock by providing an escape wire

for the electric current. This appliance is equipped

with a cord having a grounding wire with a

grounding plug. The plug must be plugged into an

outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the

grounding instructions are not completely

understood or if doubt exists as to whether the

appliance is properly grounded. If it is necessary

to use an extension cord , use only a 3-wire

extension cord.

27.Appliances are not intended to be operated by means of an external timer or separate

remote-control system.

28.The door or the outer surface may get hot when the appliance is operating.

26.The microwave oven shall not be placed in a cabinet unless it has been tested in

a cabinet.

29.The rear surface of appliance shall be placed against a wall.

CAUTION

Personal Injury Hazard

It is hazardous for anyone

other than a compentent person

to carry out any service or repair

operation that involves the removal

of a cover which gives protection

against exposure to microwave

energy.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold

water (250ml) along with the utensil in question.

2. Cook on maximum power for 1 minute.

3. Carefully feel the utensil. If the empty utensil is

warm, do not use it for microwave cooking.

4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils Remarks

Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of

meat or poultry to prevent overcooking. Arcing can occur if foil is too

close to oven walls. The foil should be at least 1 inch (2.5cm) away from

oven walls.

Follow manufacturer’s instructions. The bottom of browning dish must be

at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause

the turntable to break.

Microwave-safe only. Follow manufacturer's instructions. Do not use

cracked or chipped dishes.

Always remove lid. Use only to heat food until just warm. Most glass jars

are not heat resistant and may break.

Heat-resistant oven glassware only. Make sure there is no metallic trim.

Do not use cracked or chipped dishes.

Follow manufacturer’s instructions. Do not close with metal tie. Make

slits to allow steam to escape.

Use for short–term cooking/warming only. Do not leave oven unattended

while cooking.

Use to cover food for reheating and absorbing fat. Use with supervision

for a short-term cooking only.

Use as a cover to prevent splattering or a wrap for steaming.

Microwave-safe only. Follow the manufacturer’s instructions. Should be

labeled "Microwave Safe". Some plastic containers soften, as the food

inside gets hot. "Boiling bags" and tightly closed plastic bags should be

slit, pierced or vented as directed by package.

Microwave-safe only. Use to cover food during cooking to retain

moisture. Do not allow plastic wrap to touch food.

Thermometers Microwave-safe only (meat and candy thermometers).

Wax paper Use as a cover to prevent splattering and retain moisture.

Browning dish

Glass jars

Glassware

UTENSILS See the instructions on "Materials you can use in

microwave oven or to be avoided in microwave oven."

There may be certain non-metallic utensils that are not

safe to use for microwaving. If in doubt, you can test the

utensil in question following the procedure below.

Oven cooking

bags

Paper plates

and cups

Paper towels

Parchment

paper

Plastic

Plastic wrap

Dinnerware

A) Control panel

B) Turntable shaft

C) Turntable ring assembly

D) Glass tray

E) Observation window

F) Door assembly

G) Safety interlock system

Materials to be avoided in microwave oven

Utensils Remarks

Aluminum tray

Food carton with

metal handle

Metal or metal-

trimmed utensils

Metal twist ties

Paper bags

Plastic foam

Wood

C B

SETTING UP YOUR OVEN

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray 1

Turntable ring assembly 1

Instruction Manual 1

Metal shields the food from microwave energy. Metal trim may

cause arcing.

May cause a fire in the oven.

Plastic foam may melt or contaminate the liquid inside when exposed

to high temperature.

Wood will dry out when used in the microwave oven and may split

or crack.

May cause arcing. Transfer food into microwave-safe dish.

May cause arcing and could cause a fire in the oven.

Remove all packing material and accessories.

Examine the oven for any damage such as

dents or broken door. Do not install if oven is

damaged.

Countertop Installation Cabinet: Remove any protective film found

on the microwave oven cabinet surface.

Do not remove the light brown Mica cover

that is attached to the oven cavity to

protect the magnetron.

Installation

1. Select a level surface that provide

enough open space for the intake

and/or outlet vents.

A minimum clearance of 3.0 inches

(7.5cm) is required between the oven and

any adjacent walls. One side must be open.

(1) Leave a minimum clearance of 12

inches (30cm) above the oven.

(2) Do not remove the legs from the

bottom of the oven.

(3) Blocking the intake and/or outlet openings

can damage the oven.

(4) Place the oven as far away from

radios and TV as possible.

Operation of microwave oven may

cause interference to your radio or TV

reception.

2. Plug your oven into a standard household

outlet. Be sure the voltage and the

frequency is the same as the voltage

and the frequency on the rating label.

WARNING: Do not install oven over a

range cooktop or other heat-producing

appliance. If installed near or over a heat

source, the oven could be damaged and

the warranty would be void.

Hub (underside)

Glass tray

Turntable ring assembly

3.0 inch(7.5cm)

12 inch(30cm)

OPEN

a. Never place the

glass tray

upside down. The glass

tray should never be restricted.

b. Both

glass tray

and

turntable ring assembly

must

always be used during cooking.

c. All food and containers of food are always placed

on the

glass tray

for cooking.

d. If

glass tray

turntable ring assembly

cracks or

breaks, contact your nearest authorized service

center.

Turntable Installation

Turntable shaft

Operation Instructions

2) Turn " " to adjust the hour figures, the input time should be within 0--23 or 1-12.

3) Press " ", the minute figures will flash.

1. Clock Setting

When the microwave oven is electrified, the LED will display "0:00", buzzer will ring once.

1) Press " " once to choose 24 hour format,press twice to choose 12

hour format.

4) Turn " " to adjust the minute figures, the input time should be within 0--59.

5) Press " " to finish clock setting. ":" will flash, and the time will light.

Note: 1) If the clock is not set, it would not function when powered.

2) During the process of clock setting, if you press " ", the oven

will go back to the previous status automatically.

1) Turn " " right, the screen display "P100".

3) Press " " to confirm, and the screen displays "P 80".

4) Turn " " to adjust the cooking time until the oven displays "20:00".

5) Press " " to start cooking .

Note: the step quantities for the adjustment time of the coding switch are as follow:

0---1 min : 5 seconds

1---5 min : 10 seconds

5---10 min : 30 seconds

10---30 min : 1 minute

30---95 min : 5 minutes

2) Continue turning " " to choose 80% microwave power.

2. Microwave Cooking

Example: If you want to use 80% microwave power to cook for 20 minutes, you can

operate the oven as the following steps.

Clock/ Pre-Set

Stop/Pause

Turn " " right to choose microwave cooking, continue turn " " right or left to

choose the power you want. "P100","P80"....."C-1"or "C-2".The LED will display in

order. Then press" " to confirm, and turn " " to set cooking

time from 0:05to 95:00. Press " " again to start cooking.

Start/+30Sec./Confirm

Order Microwave

Power

Display

100%

80%

50%

30%

10%

Power instructions

P100

P80

P50

P30

P10

1) Press " " twice, and the oven will display "dEF2".

2) Turn " " to select the defrost time.The MAX.time is 95 minutes.

3) Press " " to start defrosting.

The defrost power is P30. It cannot be adjusted.

1) Press " " once, and the oven will display "dEF1".

2) Turn " " to select the weight of food from 100 to 2000 g.

3) Press " " to start defrosting.

1) In waiting state, Press " " to start cooking with 100% power,

each added press will increase 30 seconds cooking time up to 95 minutes.

2) In microwave cooking or time defrost state, each press of

" " can increase 30 seconds of cooking time.

3. Quick Start

5. Defrost By Time

4. Defrost By Weight

Start/+30Sec./Confirm

W.T/Time Defrost

1) Turn " " left to choose the menu, and "A-1" to "A-9" will display, which

means reheat, pizza, potato, meat, vegetable, fish, pasta, soup and porridge.

2) Press " " to confirm.

6. Auto Menu

Start/+30Sec./Confirm

1010

The menu chart:

Menu Weight Display

A-3

Potato

A-4

Meat

A-5

Vegetable

A-6

Fish

A-7

Pasta

A-8

Soup

A-9

Porridge

200g

400g

600g

200 g

400 g

200 g

400 g

600 g

250 g

350 g

450 g

200 g

300 g

400 g

250 g

350g

450 g

50g(with 450 cold water)

100g(with 800 cold water)

200ml

400ml

550g

1100g

A-2

Pizza

200g

400g

600g

200 g

400 g

200 g

400 g

600 g

250 g

350 g

450 g

200 g

300 g

400 g

250 g

350g

450 g

50g

100g

200ml

400ml

550g

1100g

A-1

Reheat

1) Turn " " left till "A-6" display.

Example: If you want to use "Auto Menu" to cook fish for 350g.

2) Press " " to confirm.

3) Turn " " to choose the default weight as the menu chart.

4) Press " " to start cooking.

3) Turn " " to select the weight of fish till "350" display.

4) Press " " to start cooking.

Start/+30Sec./Confirm

a. Turn " " right, the screen display "P100".

c. Press " " to confirm, and the screen displays "P 80".

b. Continue turning " " to choose 80% microwave power.

4) Turn " " to adjust the hour figures, the input time should be within 0--23 or 1-12.

5) Press " ", the minute figures will flash.

8. Inquiring Function

(1) In cooking state, press " " to inquire the time and the time will display

for 3 seconds.

(2) In preset state, press " " to inquire the preset time, and the preset time

will display for 3 seconds.

9. Lock-out Function for Children

Lock: In waiting state, press " " for 3 seconds, there will be a long beep

time has been set, otherwise, the LED will display " ".

Lock quitting: In locked state, press " " for 3 seconds, there will be a long

"beep" denoting that the lock is released.

d. Turn " " to adjust the cooking time until the oven displays "7:00".

1) Press " " once to choose 24 hour format,press twice to choose 12

hour format.

After the aboved steps, be careful not to press " " to start

cooking.

7. Program set in Advance

1) Set the clock first. (Consult the instruction of clock setting.)

2) Input the cooking program. Only one stage can be set.

Defrost should not be set as the cooking program.

Example: If you want to cook with 80% microwave power for 7 minutes, operate it as the

following:

Clock/ Pre-Set

6) Turn " " to adjust the minute figures, the input time should be within 0--59.

7) Press " " to finish setting. If the door is closed, buzzer will ring

twice when the time arrives, then cooking will start automatically.

Start/+30Sec./Confirm

Clock/ Pre-set

Stop/Pause

Start/+30Sec./Confirm

denoting entering the children-lock state and the current time will display if the

Trouble shooting

According to Waste of Electrical and Electronic Equipment

(WEEE) directive, WEEE should be separately collected and

treated. If at any time in future you need to dispose of this

product please do NOT dispose of this product with household

waste. Please send this product to WEEE collecting points

where available.

It is forbidden to run the unit without any food inside.

It is very dangerous.

Service and Spares

In the event of your appliance requiring service, or if you wish to purchase spare

parts, contact your local Kelvinator Service Centre by telephoning:

010 207 3000 (South African Customers)

+27-10-207-3000 (International Customers)

Help us to help you

Please determine your type of enquiry before writing or telephoning. When you

Your name

Telephone Number

Physical Address where appliance is located

Model and Serial Number of the appliance

Clear and concise details of the fault

Customer Care

For general enquiries or information regarding Kelvinator appliances contact:

Customer Care Department

Kelvinator

P.O. Box 3657

Johannesburg

2000

South African Customers: 010 207 3000

International Customers: +27-10-207-3000

E-mail: [email protected]

TOPSERVICE

Guarantee Conditions

1. The guarantee is valid for Twenty Four (24) months commencing when the appliance is

handed over to the first retail purchaser, which must be verified by purchase invoice or

Popular Microwave Oven manuals by other brands

Haier

Haier MWG100814TW-B - 03-06 user manual

GE JES1289 owner's manual

Whirlpool

Whirlpool JT 359 Instructions for use

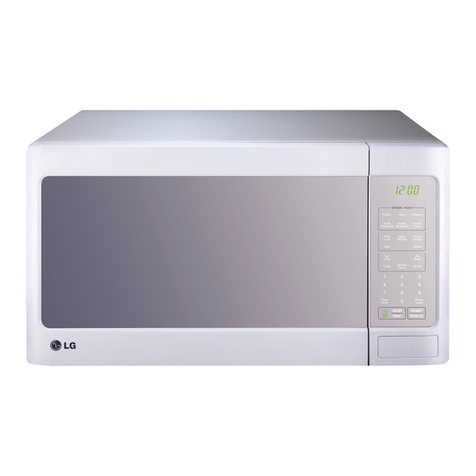

LG LCS1413SB owner's manual

Kuppersbusch

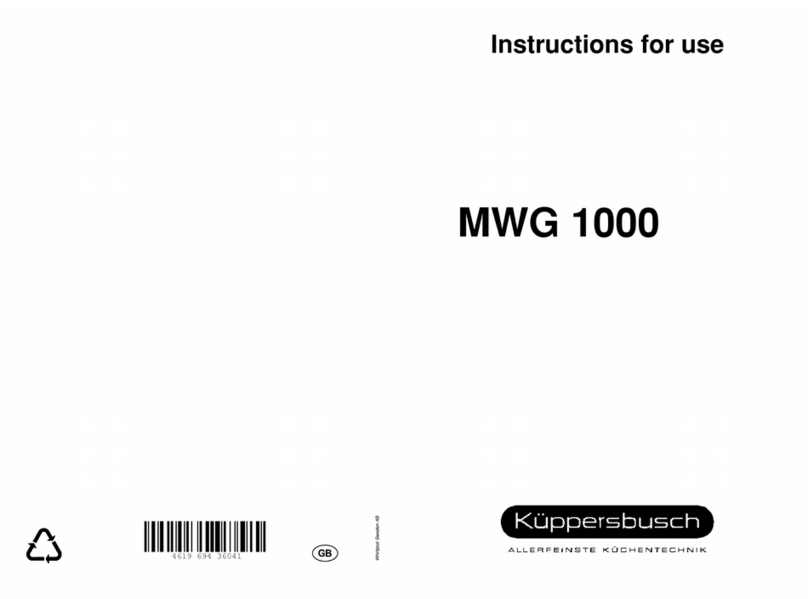

Kuppersbusch MWG 1000 Instructions for use

AEG

AEG MCC4061E user manual

Candy

Candy MIG25BNT User instructions

Zokop

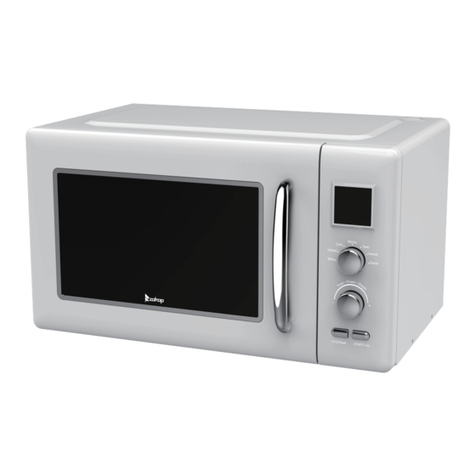

Zokop B25UXP45-A90 user manual

Daewoo

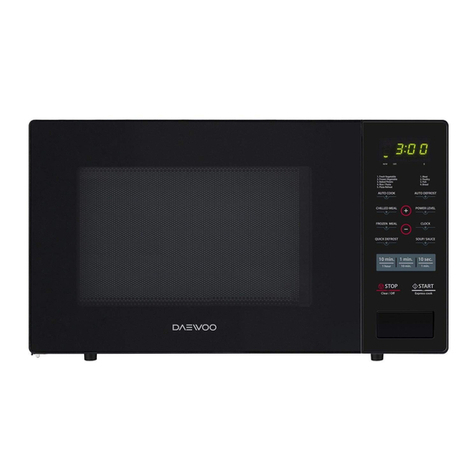

Daewoo KQG-9GPB Operating instructions & cook book

Orbegozo

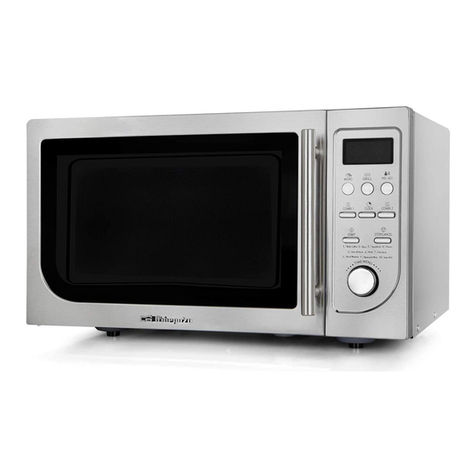

Orbegozo MIG 2525 instruction manual

Daewoo

Daewoo KOM-9P2CBS Service manual

Hamilton Beach

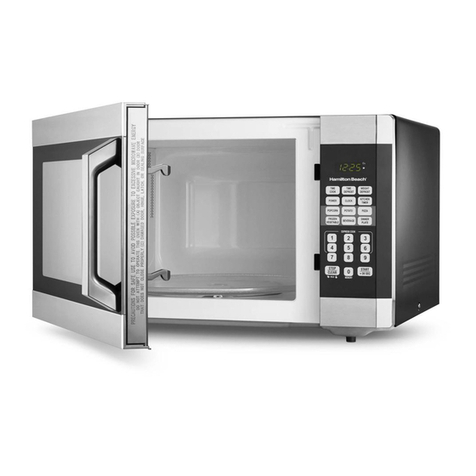

Hamilton Beach EM145AAK-P owner's manual

Burco

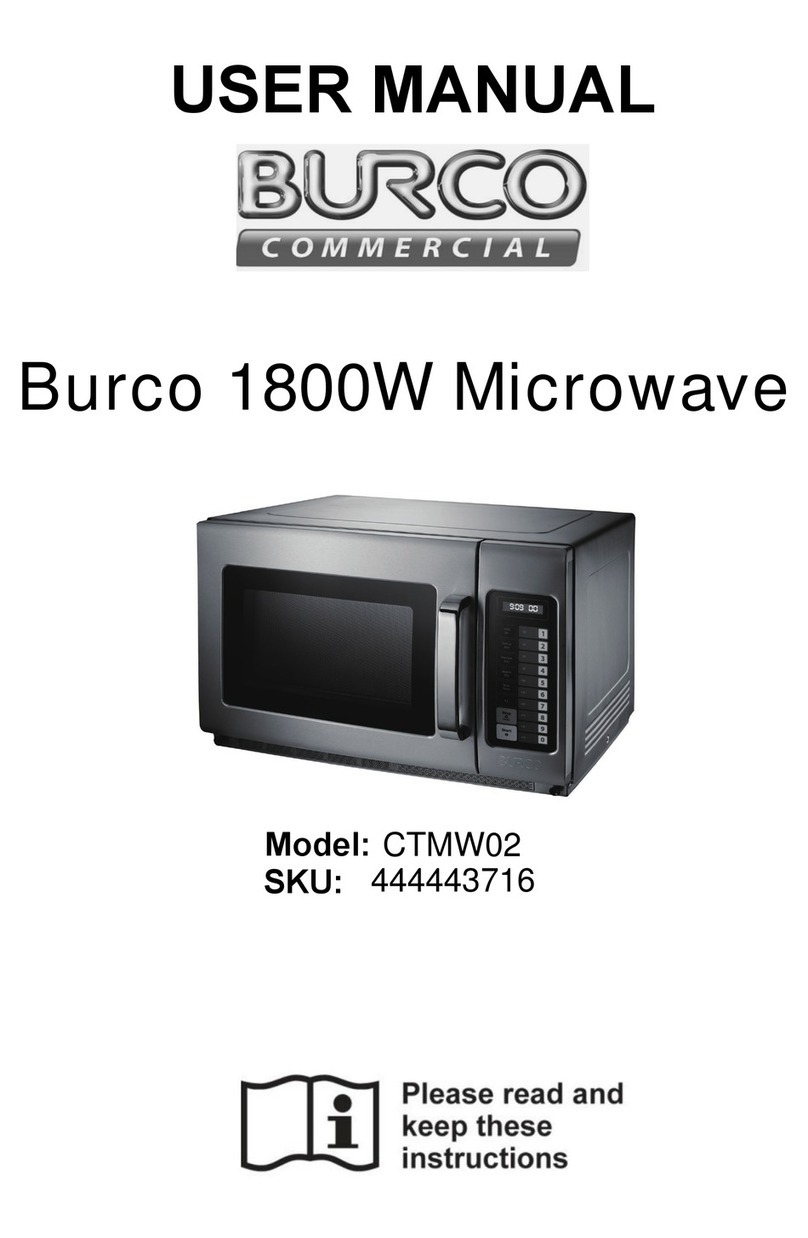

Burco CTMW02 user manual

Sanyo

Sanyo EM-G4750EES Service manual

Tsann Kuen Enterprise

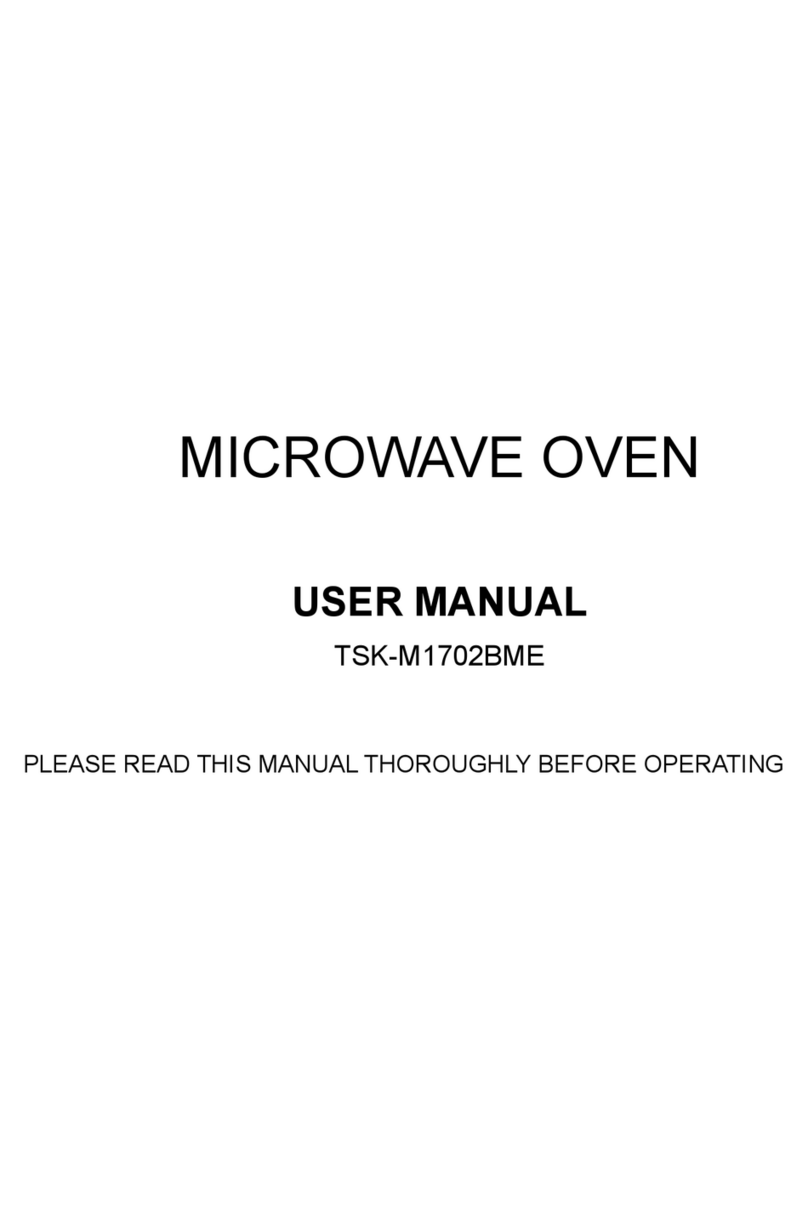

Tsann Kuen Enterprise TSKM1702AME user manual

Sharp

Sharp EBR-4800SL installation instructions

Whirlpool

Whirlpool MH6700XW Use & care guide

Electrolux

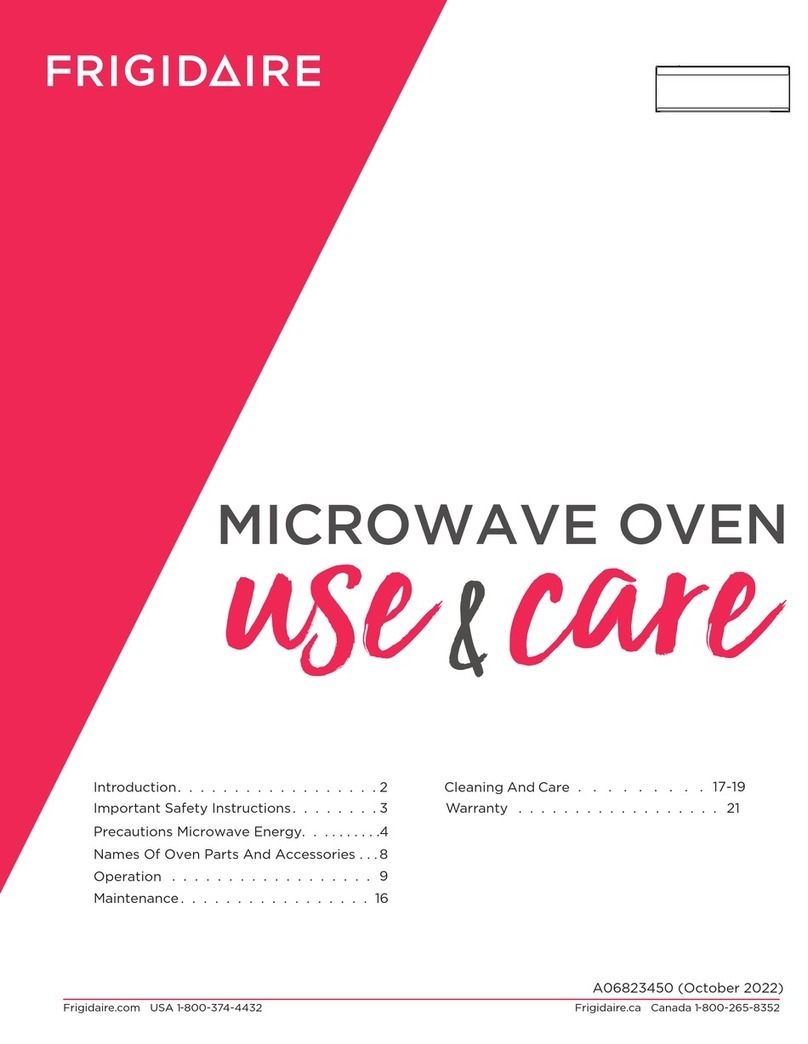

Electrolux Frigidaire GMOS1266AF use & care

Kelvinator KM23EMB User manual

Popular Microwave Oven manuals by other brands
