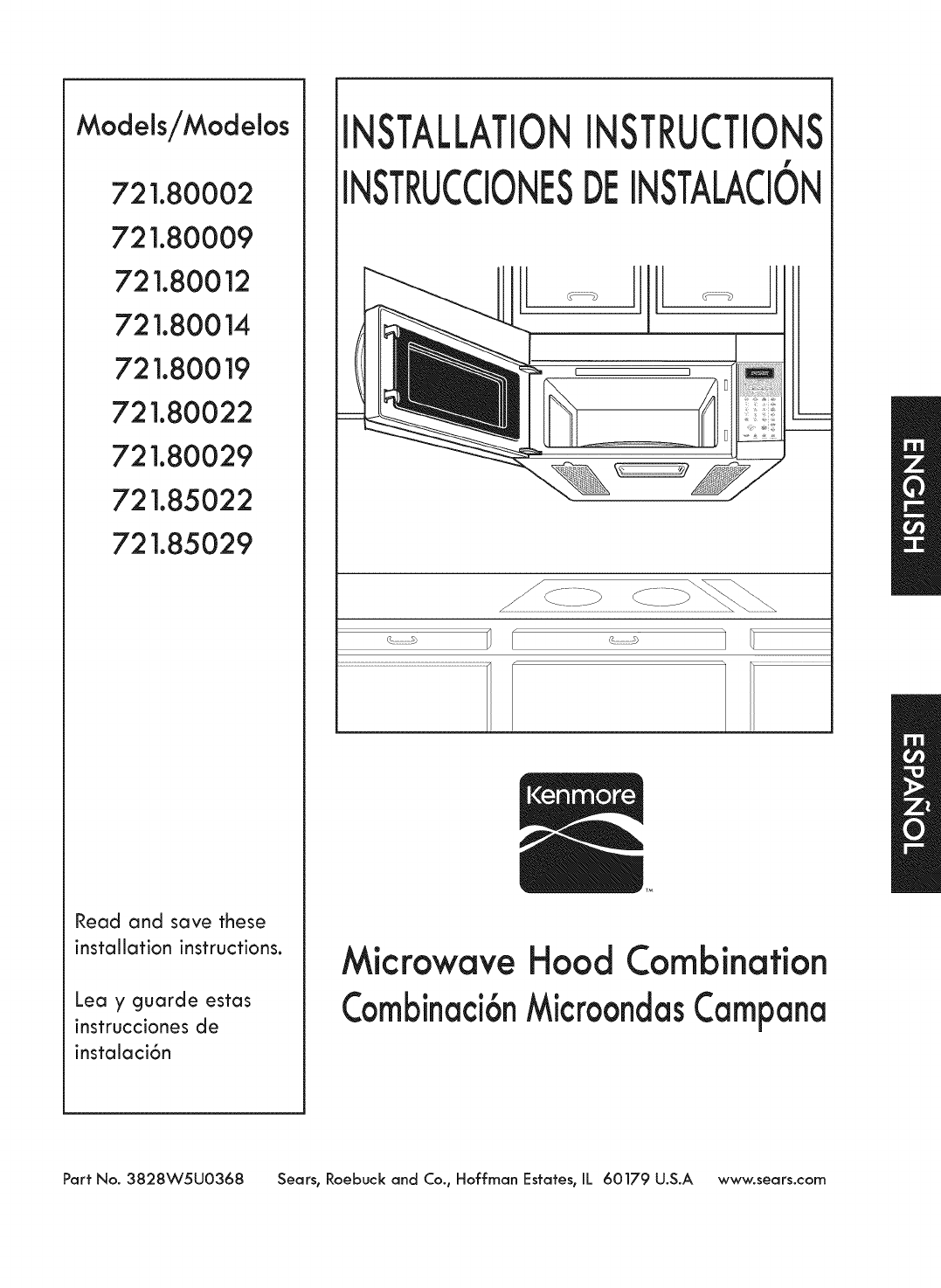

Kenmore 721.80002 User manual

Models/Modelos
|
||NSTALLATION
INSTRUCTIONS
72180002 | |INSTRUCCIONES DE INSTALACION
721.80009
721.80012 | ik — |
721.80014 .
721.80019 Ss
721.80022 S Wee
721.80029 ae ya
721.85022 \ ee _7 fH
72185029 =
Co COO RO
Cad 1 | C5 |
TONVdS4
Read and save these
installation instructions.
Microwave Hood Combination
a y quarde estas Combinacién Microondas Campana
instrucciones de
instalacién
Part No. 3828W5U0368 Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A = www.sears.com

Ae
2
aa
()
Z
ve
YOUR SAFETY FIRST
BEFORE YOU START
* Proper installation is the installer's responsibility!
- Read the entire manual before you begin.
- The model number label is located on the oven front. See Figure 1.
- Mounting plate is located on back side of microwave oven. See Figure 2.
BE SURE TO READ THE FOLLOWING SAFETY INSTRUCTIONS:
Model Number Label
{__
__ 0 ; (ge rere
= ie jMounting plate
a Mounting plate
screw (2 screws)
apis
jauNd
josjuoy
Figure | Figure 2
A
WARNING
&
FOR YOUR SAFETY:
* You will need TWO people to install this oven. lt is heavy and could cause personal injury if not
handled properly. The dimensions of the oven are as follows:
Height : 16-7A6 inches
Width : 29-156 inches
Depth : 15-% inches
Weight : 52 pounds
* AVOID ELECTRICAL SHOCK!
- Before you drill into the wall, note where electrical outlets are and where electrical wires might be con-
cealed behind the wall.
YOU COULD GET AN ELECTRIC SHOCK it you contact electrical wires with your drill bit.
- Locate and disconnect the power of any electrical circuits that could be affected by installing this oven.
IF YOU BDO NOT DISCONNECT THE POWER, YOU COULD GET AN ELECTRIC SHOCK.
* ELECTRICAL RATING OF THIS OVEN: 120V, 60Hz.
13 Amps(14 Amps applys 8002)/1500 Watts (Microwave oven + Cooktop Lamp + Ventilation Fan)
- You need a 120V, 6OHz, AC only, 15A or 20A, fused electrical supply (located in the cabinet above
the microwave as close as possible to the microwave circuit) serving only the microwave.

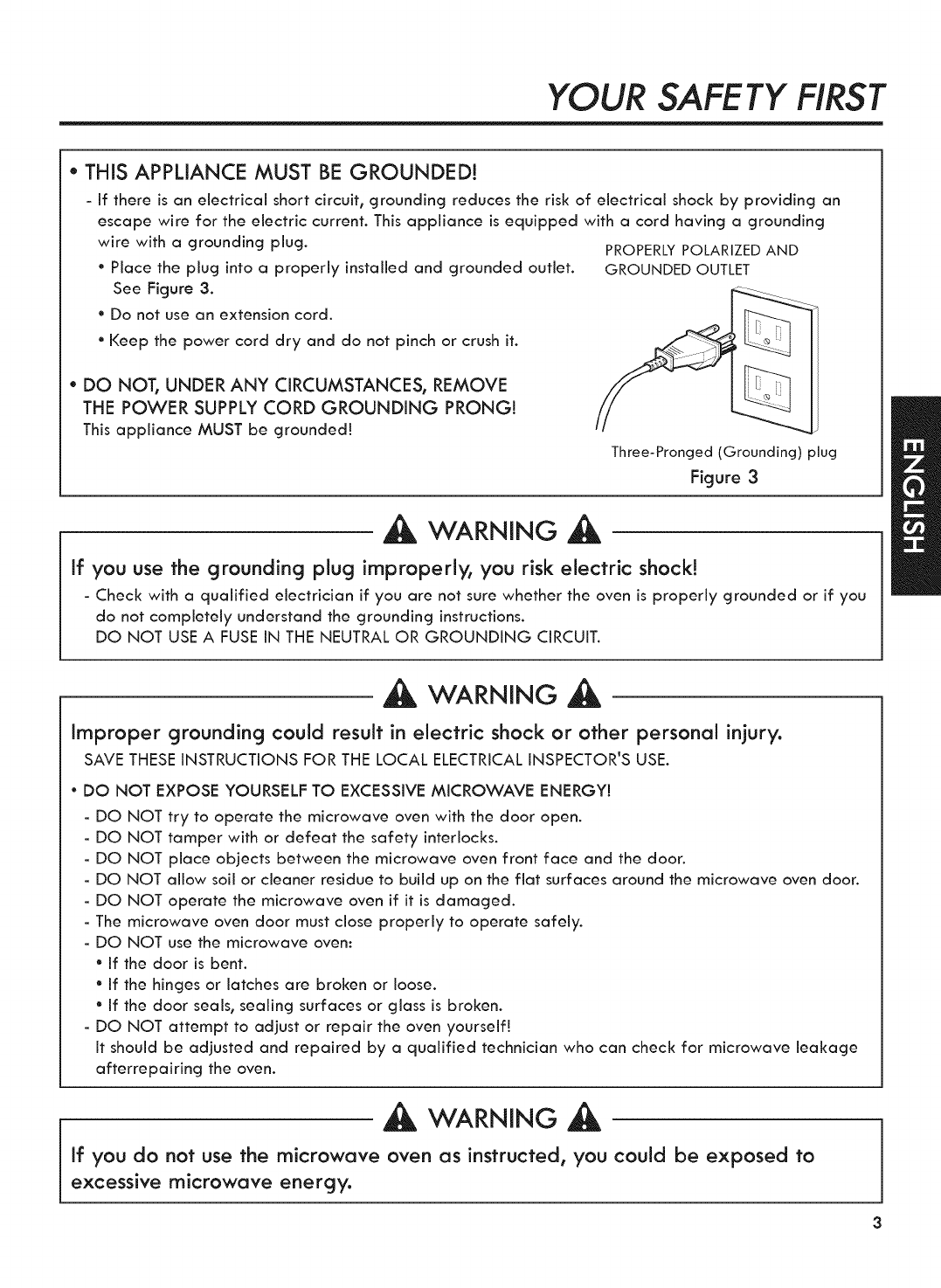

YOUR SAFETY FIRST
¢ THIS APPLIANCE MUST BE GROUNDED!
- If there is an electrical short circuit, grounding reduces the risk of electrical shock by providing an
escape wire for the electric current. This appliance is equipped with a cord having a grounding
wire with a grounding plug. PROPERLY POLARIZED AND
* Place the plug into a properly installed and grounded ouilet. ©£GROUNDED OUTLET
See Figure 3.
* Do not use an extension cord.
* Keep the power cord dry and do not pinch or crush ft.
¢ DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE
THE POWER SUPPLY CORD GROUNDING PRONG!
This appliance MUST be grounded!
Three-Pronged (Grounding) plug
Figure 3
A WARNING A
If you use the grounding plug improperly, you risk electric shock!
- Check with a qualified electrician if you are not sure whether the oven is properly grounded or if you
do not completely understand the grounding instructions.
DO NOT USE A FUSE IN THE NEUTRAL OR GROUNDING CIRCUIT.
A
WARNING
&
Improper grounding could result in electric shock or other personal injury.
SAVE THESE INSTRUCTIONS FOR THE LOCAL ELECTRICAL INSPECTOR'S USE.
* DO NOT EXPOSE YOURSELF TO EXCESSIVE MICROWAVE ENERGY!
- DO NOT try to operate the microwave oven with the door open.
- DO NOT tamper with or defeat the safety interlocks.
- DO NOT place objects between the microwave oven front face and the door.
- DO NOT allow soil or cleaner residue to build up on the flat surfaces around the microwave oven door.
- DO NOT operate the microwave oven if it is damaged.
- The microwave oven door must close properly to operate safely.
- DO NOT use the microwave oven:
* If the door is bent.
* If the hinges or latches are broken or loose.
* If the door seals, sealing surfaces or glass is broken.
- DO NOT attempt to adjust or repair the oven yourself!
lt should be adjusted and repaired by a qualified technician who can check for microwave leakage
afterrepairing the oven.
A WARNING A
If you do not use the microwave oven as instructed, you could be exposed to
excessive microwave energy.
aS)
ECO)
ye

Ae
2
aa
()
Z
ve

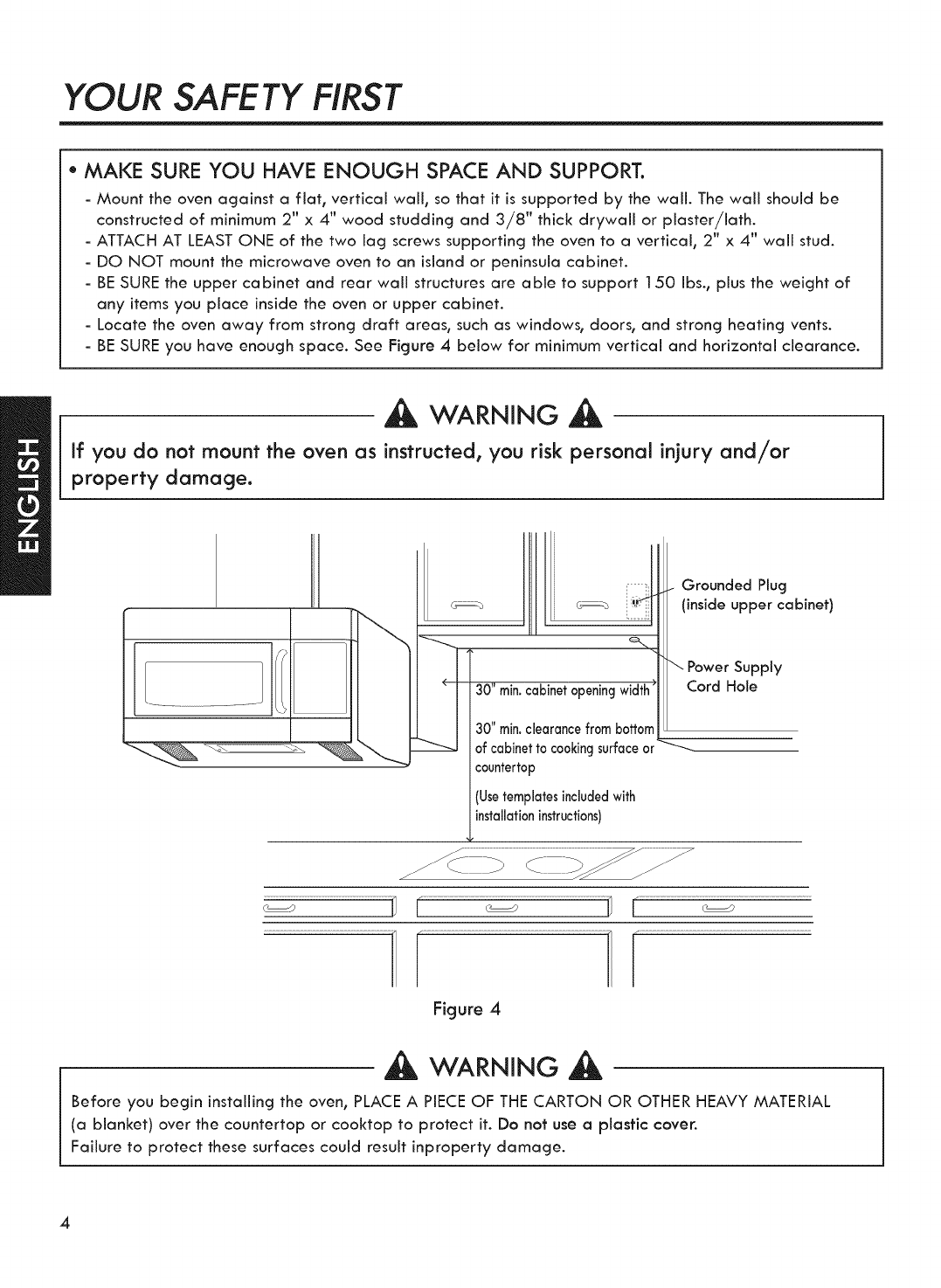

YOUR SAFETY FIRST
¢ MAKE SURE YOU HAVE ENOUGH SPACE AND SUPPORT.
- Mount the oven against a flat, vertical wall, so that it is supported by the wall. The wall should be
constructed of minimum 2" x 4" wood studding and 3/8" thick drywall or plaster /lath.
- ATTACH AT LEAST ONE of the two lag screws supporting the oven to a vertical, 2" x 4" wall stud.
- DO NOT mount the microwave oven to an island or peninsula cabinet.
- BE SURE the upper cabinet and rear wall structures are able to support 150 Ibs., plus the weight of
any items you place inside the oven or upper cabinet.
- Locate the oven away from strong draft areas, such as windows, doors, and strong heating vents.
- BE SURE you have enough space. See Figure 4 below for minimum vertical and horizontal clearance.
A
WARNING
&
If you do not mount the oven as instructed, you risk personal injury and/or
property damage.
UL Grounded Plug
(inside upper cabinet)
=
—
ew
Power Supply
30" min. cabinet opening width Cord Hole
||
30" min. clearance from bottom | | ——___________
of cabinet to cooking surface or ~--~~__
countertop
(Use templates included with
installation instructions)
CoO Cc >
oa) | | Cet) | | Come)
Figure 4
A
WARNING
&
Before you begin installing the oven, PLACE A PIECE OF THE CARTON OR OTHER HEAVY MATERIAL
(a blanket) over the countertop or cooktop fo protect it. Do net use a plastic cover.
Failure to protect these surfaces could result inproperty damage.

PARTS, TOOLS, MATERIALS
THE FOLLOWING PARTS ARE SUPPLIED WITH THE OVEN:
NOTE: Depending on your ventilation requirements, you may not use all of these parts.
Damper/duct connector One power cord clamp and
(for roof vented or wall vented installation). One dark-colored mounting screw
Not Actual Size (to hold the power cord).
Actual Size %,
One power cord clamp bushing - Actual Size
(for the cord hole in a metal upper cabinet). aL
6
Cc
n
=
Four 1/4" x 2" lag screws - Actual Size Four 1/4" x 3" toggle bolts - Actual Size
(for wall stud holes). (for drywall holes}.
(oa
Four 1/4" x 3" bolts - Actual Size Twe tapping screws - Actual Size
(for securing to the upper cabinet). (for attaching the damper duct connector)
Four spring toggle heads - Actual Size One upper cabinet template
(for the toggle bolts). - Not Actual Size
NOTE: You need to install at least one lag screw into a 2" x 4" stud and four anchor bolts into the wall,
and the mounting area must meet the 150 Ibs. weight requirement.

Ae
2
aa
()
Z
ve
PARTS, TOOLS, MATERIALS
YOU WILL NEED THE FOLLOWING TOOLS AND MATERIALS FOR THEINSTALLATION:
Carton or other heavy material for covering the counter top.
(for cutting vent holes for roof or wall venting).
Phillips screwdriver (for the screws).
Clear tape Stud finder or thin nail.
(for taping the templates to the wall).
SE
AE =
Saber saw Key hole saw (for the power cord hole).
—— eS) 3/8" and 3/4" wood drill bits
Pencil 1/2" and 3/16" sseeecsece
drill bits —_
Flat blade screwdriver (for the bolts). Plumb line
ee
Cc
re ES a BEE
Measuring tape (metal preferred). Duct Tape
Small side cutters or tin snips Caulking gun
* If you have brick or masonry walls, you need special hardware and tools.
* The ductwork you need for the installation is not included. All wall and roof caps must have a back-draft
damper.

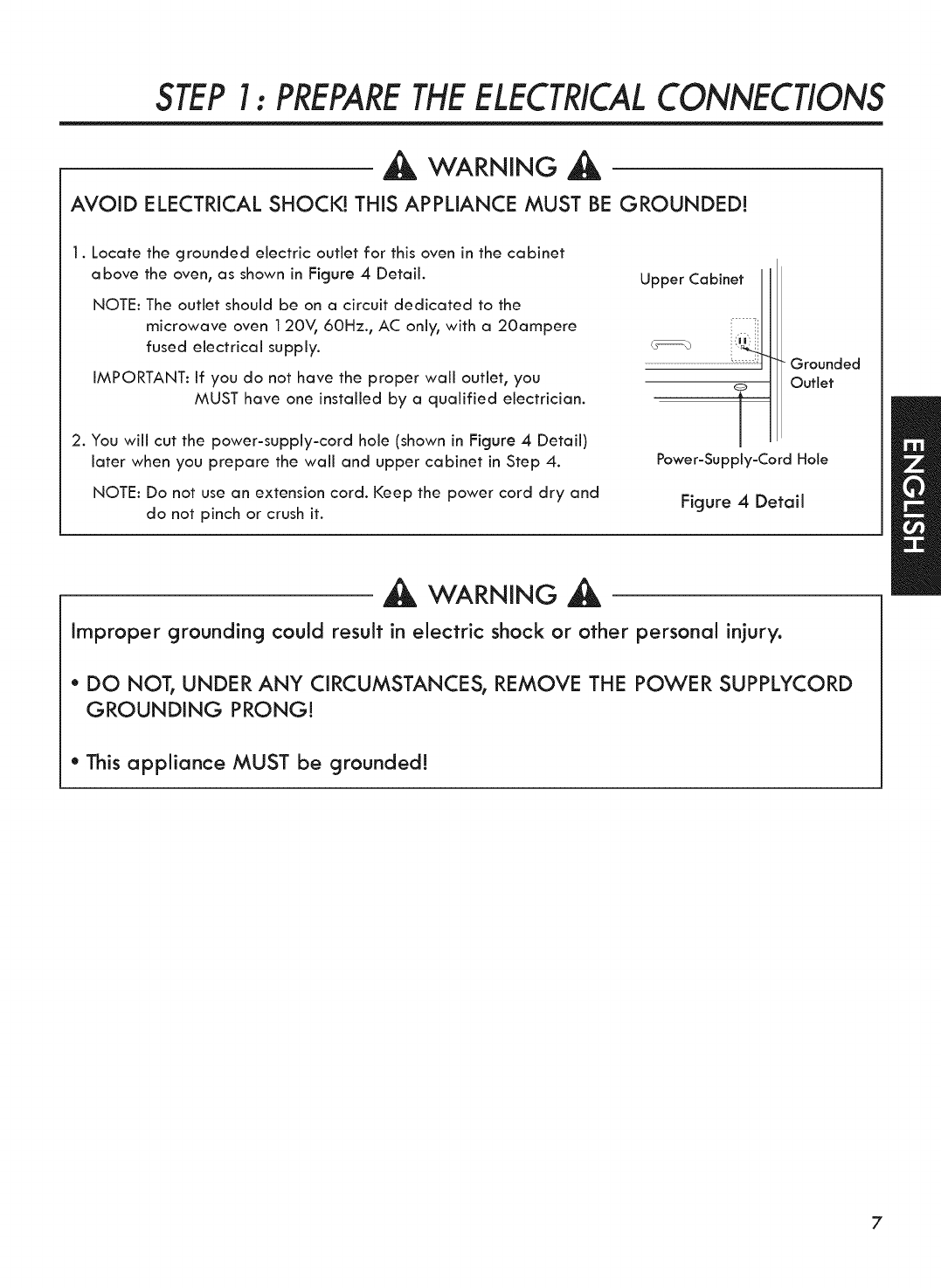

STEP 1: PREPARE THE ELECTRICAL CONNECTIONS
A WARNING &
AVOID ELECTRICAL SHOCK! THIS APPLIANCE MUST BE GROUNDED!
1. Locate the grounded electric outlet for this oven in the cabinet
above the oven, as shown in Figure 4 Detail. Upper Cabinet
NOTE: The outlet should be on a circuit dedicated to the
microwave oven | 20V, 60Hz., AC only, with a 20ampere
fused electrical supply.
Grounded
Qutlet
IMPORTANT: If you do not have the proper wall outlet, you
MUST have one installed by a qualified electrician.
2. You will cut the power-supply-cord hole (shown in Figure 4 Detail)
later when you prepare the wall and upper cabinet in Step 4. Power-Supply-Cord Hole
NOTE: Do not use an extension cord. Keep the power cord dry and
do not pinch or crush if.
Figure 4 Detail
aS)
ECO)
ye
A
WARNING
&
Improper grounding could result in electric shock or other personal injury.
¢ DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE THE POWER SUPPLYCORD
GROUNDING PRONG!
* This appliance MUST be grounded!

STEP 2: PREPARE THE VENTING SYSTEM
NOTE: The ductwork you need for outside ventilation is not included with your oven.
The standard ductwork fittings and length are shown in Figure 9, page 9.
Aw WARNING-FIRE HAZARD 4&
THIS OVEN MUST BE PROPERLY VENTED!
You may vent your oven in one of three ways:
Roof Venting: If your oven is located on an outside wall near the roof, as in Figure 6 (3-1 /4" x 10" duct)
and Figure 8 (6" round duct.)
Wail Venting: If your oven is located on an outside wail on the first floor of your house, as in Figure 5
(3-1/4" x 10" duct) and Figure 8 (6" round duct.)
a oe
(7g Room Venting: If your oven is located on an inside wall of your house, as in Figure 7.
a
ro) NOTE: If you choose the rear exhaust method (roof or wall venting), be sure there is enough
TA clearance within the wall for the exhaust duct.
Lu
Wall Venting Roof Venting
Ph Roof cap
Cabinet Cabinet :
\ 2
= We We ~
q
\
d
:
3-1
/4"x10
oe cap ; duct
(Li
fo
“Lf
Oven 5 3-1 /4"x1 o" Oven 8
* 4 Through-the-wall Through-the-wall
Wail venting vet Wall venting
Figure 5 Figure 6
REMEMBER AS YOU INSTALL THE VENTING:
* Keep the length of the ductwork and the number
of elbows to a minimum to ventilate your oven Room Venting
efficiently. See examples on page 9. Roof cap
* Keep the size of the ductwork the same. Cabinet
6" WE
* Do not install two elbows together. diameter
* Use duct tape to seal all joints in the duct system. round duct
Elbow
* Use caulking to seal the exterior wall or roof 3-1/4" to
opening around the cap. round duct
transition 3-1 /4" to round
ductwork transition
Figure 7 Figure 8

STEP 2: PREPARE THE VENTING SYSTEM
STANDARD FITTINGS
NOTE: If the existing duct is round, you must use a rectangular-to-round adapter, with a rectangular 3"
extension duct installed between the damper assembly and the adapter to prevent the exhaust
damper sticking.
DUCT LENGTH
The total length of the duct system, including straight duct, elbows, transitions, wall or roof caps must not
exceed the equivalent of 140 feet.
For best performance, do not use more than three 90 degree elbows.
Below are the standard fittings and their equivalent length in feet.
gu
Pa
<<) ©
Ce i
Qe
ry
+
3-1 /4"x10" to 6" = 5ft. 3-1/4"x10" roof cap = 24ft. 3-1/4"x10" 90° elbow = 25ft.
oS
Ss 2
90° elbow = 10ft. 3-1 /4"x10" wall cap = 40ft. 45° elbow = 5ft. 3-1/4"x10" flat elbow = 1 Off.
Figure 9
To calculate the equivalent length of each duct piece used, see the examples below.
I
Examples
For 3-1/4"x10" SYSTEMS For 6" ROUND SYSTEMS
je 6ff. ——»|_- Wall cap 90° elbows — fa—— ft, ——» /
“yf K Wall cap
3-1/4"x10" f 7
90° elbow ait Transition ain
13-1/4" x 10" 90° elbow == 25 ft. 1 transition = 5 ft.
1 wall cap = AO fi. 2 90° elbows = 20 ft.
8 feet straight duct = 8 ft. 1 wall cap = AO ft.
TOTAL LENGTH = 73 ft. 8 feet straight = 8 ft.
TOTAL LENGTH = 73 ft.

Ae
2
aa
()
Z
ve

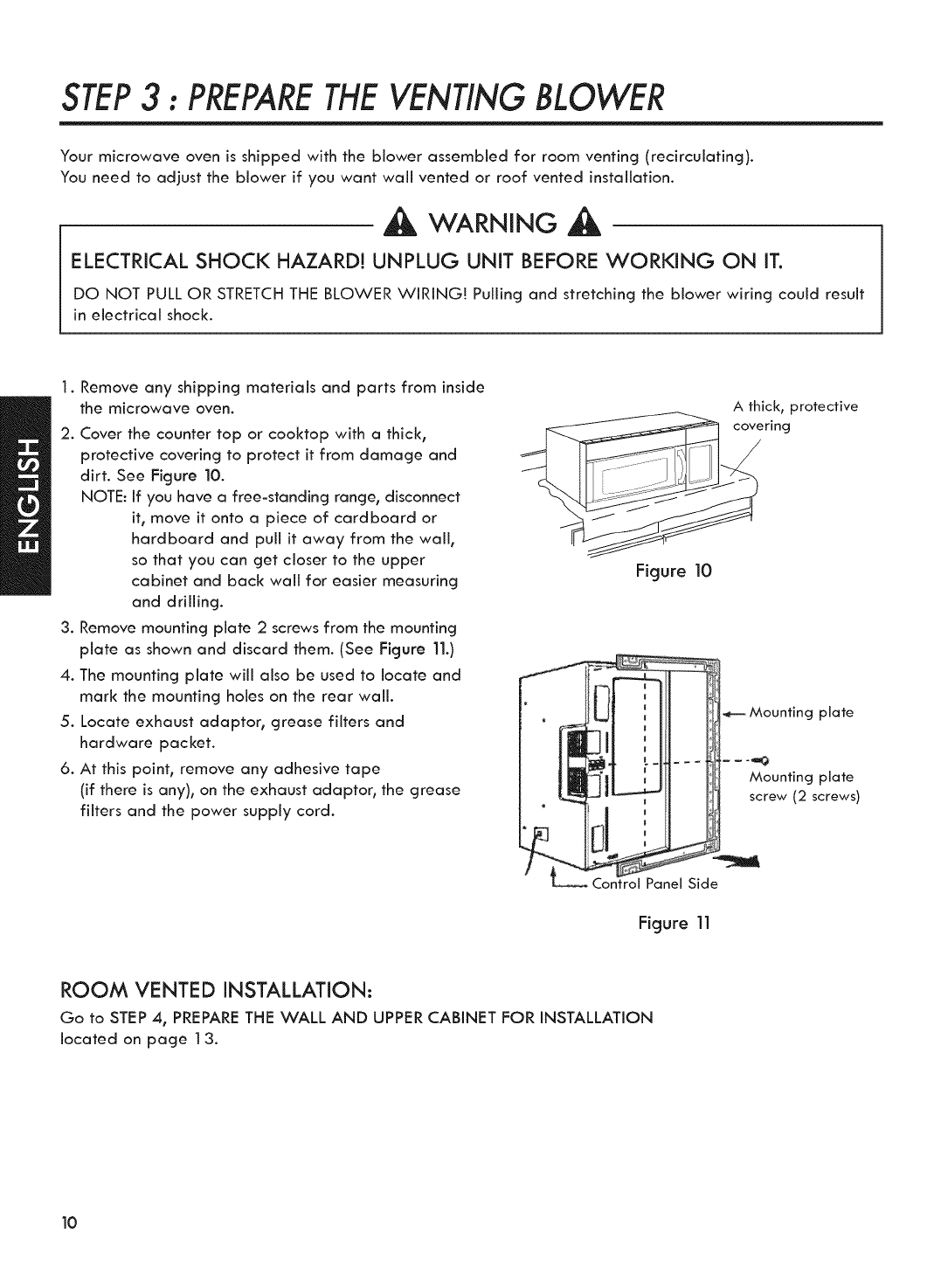

STEP 3: PREPARE THE VENTING BLOWER
Your microwave oven is shipped with the blower assembled for room venting (recirculating).
You need to adjust the blower if you want wall vented or roof vented installation.
A WARNING A
ELECTRICAL SHOCK HAZARD! UNPLUG UNIT BEFORE WORKING ON IT.
DO NOT PULL OR STRETCH THE BLOWER WIRING! Pulling and stretching the blower wiring could result
in electrical shock.
. Remove any shipping materials and parts from inside
the microwave oven. A thick, protective
=) covering
. Cover the counter top or cooktop with a thick,
protective covering to protect it from damage and
dirt. See Figure 10.
NOTE: If you have a free-standing range, disconnect
it, move it onto a piece of cardboard or
hardboard and pull it away from the wall,
so that you can get closer to the upper
cabinet and back wall for easier measuring
and drilling.
3. Remove mounting plate 2 screws from the mounting
plate as shown and discard them. (See Figure 11)
4. The mounting plate will also be used to locate and
mark the mounting holes on the rear wail. 2
. 1 ton MA ti lat
5. Locate exhaust adaptor, grease filters and ounting Plate
hardware packet.
6. At this point, remove any adhesive tape
(if there is any), on the exhaust adaptor, the grease
filters and the power supply cord.
Mounting plate
screw (2 screws)
Figure 1]
ROOM VENTED INSTALLATION:
Go to STEP 4, PREPARE THE WALL AND UPPER CABINET FOR INSTALLATION
located on page 13.
10

STEP 3: PREPARE THE VENTING BLOWER
WALL VENTED INSTALLATION
1. Remove one blower unit mounting screw and two
blower plate screws. Remove the blower plate Blower unit
from cabinet. See Figure 12.
Back plate
_- Blower plate
2. Carefully lift the blower unit out of the microwave i mounting screws
oven. Disconnect the blower wire from connector.
See Figure 13.
3. Use side cutters or tin snips to cut and remove Knockouts "B"
knockouts "B"from Back plate.
Discard knockouts. Be careful not to distort
the plate. See Figure 14.
Blower plate
P Blower unit
mounting screw
Figure 12
4. Rotate the unit so that the exhaust ports face the
rear of the cabinet. See Figure 15. Before you
insert blower unit, blower wire must be like
Figure 15.
5.
Reassemble
the
blower
wire
into
the
connector.
Blower
wire
6. Place blower unit back into cabinet. Check that
the exhaust ports face towards the rear of the
cabinet. See Figure 16.
aS)
ECO)
ye
7.
Reattach
the
blower
plate
to
the
top
of
the
cabinet
Connector
as it was originally assembled. Attach with one
blower unit mounting screw and then two blower
plate mounting screws. See Figure 17.
8. Go to STEP 4, PREPARE THE WALL AND UPPER
CABINET FOR INSTALLATION located on page 13.
Blower unit
Exhaust ports
Blower plate
mounting
screws
Blower unit ~
Exhaust ports exhaust ports “\
Blower unit
mounting screws
Figure 16 Figure 17
N

STEP 3: PREPARE THE VENTING BLOWER
ROOF VENTED INSTALLATION
1. Remove one blower unit mounting screw and two
blower plate screws. Remove the blower plate
from cabinet. See Figure 18.
(| Blower plate
2. Carefully lift the blower unit out of the microwave
oven.
3. Rotate blower unit 90° so the exhaust ports face
Blower plate i
the top of the cabinet. See Figure 19. P Blower unit
mounting screws
4. Place blower unit back into microwave oven. Figure 18
5. Use side cutters or tin snips to cut and remove
knockouts "A" from blower plate.
Discard knockouts. Be careful not to distort the
plate. See Figure 20.
Ae
2
aa
()
Z
ve
6. Reattach blower plate to microwave oven.
Attach with the one blower unit mounting screw
and then the two blower plate mounting screws.
See Figure 21.
Blower unit
Figure 19
Knockots "A"
Blower plate
Figure 20
Blower unit
Blower plate
mounting screws
Blower plate Blower unit
mounting screws
Figure 21
12

STEP 4: PREPARE THE WALL AND UPPER CABINET FOR INSTALLATION
MEASURE AND TACK / TAPE UP
THETEMPLATE
1. Using a plumb line and (metal) measuring tape,
find. and mark the vertical center line (Yon the
back wall, as in Figure 22.
2. Find and mark one or two points where the studs
are on the wall (Studs are normally 16 inches apart).
and then measure and mark the stud locations.
If you cannot find any wall stud, consult a local
building contractor.
DO NOT ATTEMPT TO INSTALL THE
MICROWAVE OVEN IF YOU CANNOT
FIND A WALL STUD.
—— £& CAUTION £4 ——
3. Line up the plumb line on the wall with the center
line on the mounting plate.
NOTE: Be sure the minimum width is 30 inches and
the distance from the top of the mounting
plate to the range or counter top is at least
30 inches. See Figure 4 on page 4.
4. Center mounting plate in opening by lining up the
plumb line on wall with centerline on mounting plate.
Make sure the minimum width is 30 inches and that
the top of the mounting plate is located a minimum
of 30 inches above the cooking surface.
See Figure 23.
NOTE: If the front edge of the cabinet is lower
than the back edge, adjust the mounting
plate tobe level with the cabinet front.
5. Measure the bottom of the upper cabinet frame.
Trim the edges "A", "B" and "C" on the upper
cabinet template so that the template will fit on
the bottom of the upper cabinet. If upper cabinet
has a recessed frame, trim template so that it fits
inside the recessed area. Align the centerline of
the upper cabinet template with the centerline of
the mounting plate; then securely tape or tack the
upper cabinet template in place. See Figure 23.
Figure 22
(3 pieces mounting plate)
Figure 23
aS)
ECO)
ye
13

STEP 4: PREPARE THE WALL AND UPPER CABINET FOR INSTALLATION
DRILL THE HOLES IN THE WALL AND UPPER CABINET.
A WARNING AA
BE VERY CAREFUL WHEN DRILLING HOLES INTO THE WALL.
Electrical wires could be concealed behind the wall covering and if the drill hits
them you could get an electric shock.
1. Find the points on the mounting plate labeled "A", "B","C"and "D". Drill a 3/16" diameter hole at any
of these points that are in front of a wall stud. Drill a 3/4" diameter hole at any of these points that are
over drywall.
. Drill a 3/8" hole at points "J" and "K" on the upper cabinet template.
NOTE: If the bottom of the upper cabinet is recessed 3/4" or more, you will need 2"x2" filler blocks
(not included) to provide additional support for the bolts. See Figure 24.
® Mark the center of each filler block and drill a 3/8" diameter hole at the mark.
* Align filler blocks over the two openings in the top of the microwave oven cabinet and attach to
cabinet with masking tape. See Figure 25.
Ae
2
aa
()
Z
ve
. Cut or drill a 2" diameter hole at the area marked "M", "power supply cord hole” on the upper cabinet
template. If the upper cabinet is metal, you will need to cover the edge of the hole with the power supply
cord bushing (supplied) to prevent damage to the cord from the rough metal edge.
—— £§ WARNING & ——
YOU MUST COVER THE EDGE OF
THE POWER SUPPLY CORD HOLE IN
A METAL CABINET WITH THE POWER
SUPPLY CORD BUSHING. FAILURE TO
DO SO COULD RESULT IN DAMAGE
TO THE CORD AND ELECTRIC SHOCK.
i
Filler
block
Cabinet
Cabinet
front
bottom
shelf
Figure 24
4, Cut out the venting areas (with the saber saw}:
* Roof Venting: cut out the shaded area marked ~
"L" on the upper cabinet template.
* Wall or Room Venting (Recirculating): go to
STEP 5, INSTALL THE MOUNTING PLATE,
located on page 15. Filler block
Ae
5. Use caulking compound to seal the exterior wall \
or roof opening around the wall cap or roof cap.
Figure 25
14

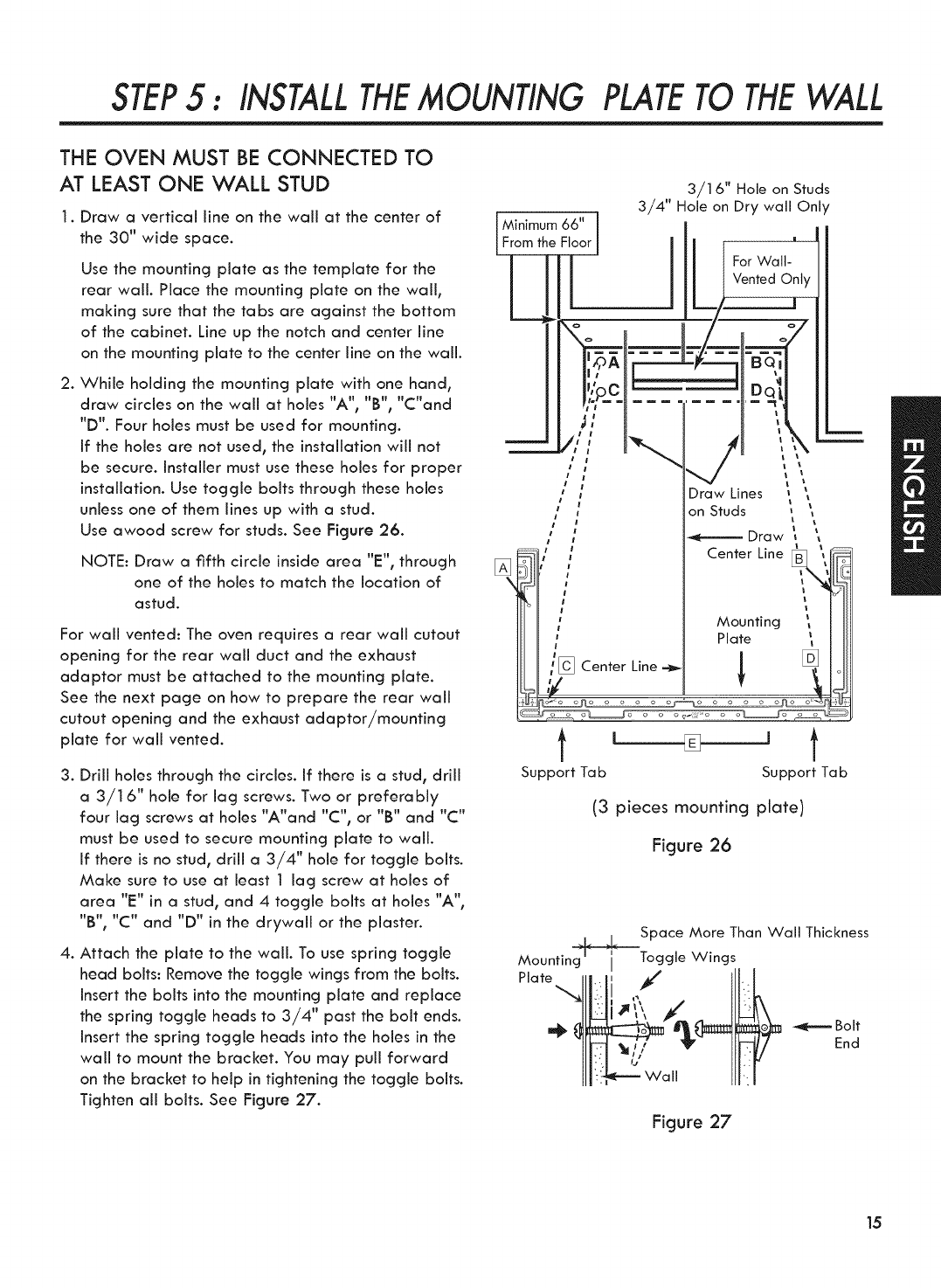

STEP 5: INSTALL THE MOUNTING PLATE TO THE WALL
THE OVEN MUST BE CONNECTED TO
AT LEAST ONE WALL STUD
]. Draw a vertical line on the wall at the center of
the 30" wide space.
Use the mounting plate as the template for the
rear wall. Place the mounting plate on the wall,
making sure that the tabs are against the bottom
of the cabinet. Line up the notch and center line
on the mounting plate to the center line on the wall.
2. While holding the mounting plate with one hand,
draw circles on the wall at holes "A", "B", "C"and
"D". Four holes must be used for mounting.
if the holes are not used, the installation will not
be secure. Installer must use these holes for proper
installation. Use toggle bolts through these holes
unless one of them lines up with a stud.
Use awood screw for studs. See Figure 26.
NOTE: Draw a fifth circle inside area “E", through
one of the holes to match the location of
astud.
For wall vented: The oven requires a rear wall cutout
opening for the rear wall duct and the exhaust
adaptor must be attached to the mounting plate.
See the next page on how to prepare the rear wall
cutout opening and the exhaust adaptor /mounting
plate for wall vented.
3. Drill holes through the circles. If there is a stud, drill
a 3/16" hole for lag screws. Two or preferably
four lag screws at holes "A"and "C", or "B" and "C"
must be used to secure mounting plate to wall.
If there is no stud, drill a 3/4" hole for toggle bolts.
Make sure to use at least 1 lag screw at holes of
area "E" in a stud, and 4 toggle bolts at holes "A",
"B", "C" and "D" in the drywall or the plaster.
4, Attach the plate to the wall. To use spring toggle
head bolts: Remove the toggle wings from the bolts.
Insert the bolts into the mounting plate and replace
the spring toggle heads to 3/4" past the bolt ends.
Insert the spring toggle heads into the holes in the
wall to mount the bracket. You may pull forward
on the bracket to help in tightening the toggle bolts.
Tighten all bolts. See Figure 27.
3/16" Hole on Studs
3/4" Hole on Dry wall Only
Minimum 66"
From the Floor
For Wall-
Vented Only
Draw Lines
on Studs
aS)
ECO)
ye
mens DW t
Center Line
[Al f5
Mounting
Plate
Support Tab Support Tab
(3 pieces mounting plate)
Figure 26
Space More Than Wall Thickness
.
Mounting
Plate
~tifjomme Bo |t
End
15

STEP 5: INSTALL THE MOUNTING PLATE TO THE WALL

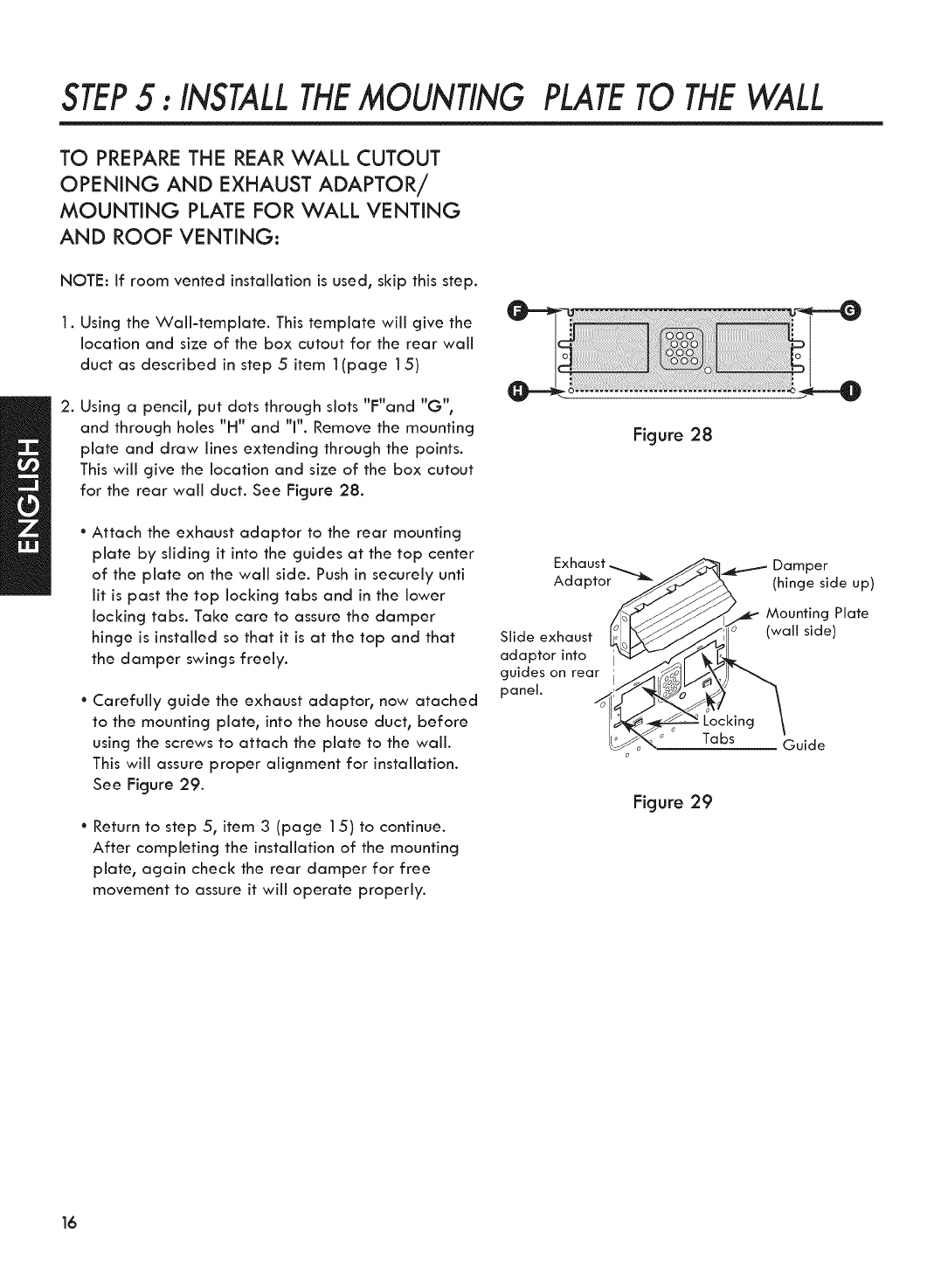

TO PREPARE THE REAR WALL CUTOUT
OPENING AND EXHAUST ADAPTOR/
MOUNTING PLATE FOR WALL VENTING
AND ROOF VENTING:
NOTE: If room vented installation is used, skip this step.
1. Using the Wall-template. This template will give the i :
location and size of the box cutout for the rear wall : Go ‘
duct as described in step 5 item I(page 15) OO. -
. Using a pencil, put dots through slots "F"and "G",
and through holes "H" and "I". Remove the mounting Figure 28
plate and draw lines extending through the points.
This will give the location and size of the box cutout
for the rear wall duct. See Figure 28.
if
i
* Attach the exhaust adaptor to the rear mounting
plate by sliding it into the guides at the top center
of the plate on the wall side. Push in securely unti Adapto
lit is past the top locking tabs and in the lower
locking tabs. Take care to assure the damper
hinge is installed so that it is at the top and that Slide exhaust
the damper swings freely. adaptor into
guides on rear |
Ae
2
aa
()
Z
ve
ge Damper
(hinge side up)
Mounting Plate
(wall side)
* Carefully guide the exhaust adaptor, now atached Panel. “A
to the mounting plate, into the house duct, before J
using the screws to attach the plate to the wall.
This will assure proper alignment for installation.
See Figure 29.
Guide
Figure 29
* Return to step 5, item 3 (page 15) to continue.
After completing the installation of the mounting
plate, again check the rear damper for free
movement to assure it will operate properly.
16

STEP 6 : ATTACH THE OVEN TO THE WALL
—_— £§ WARNING & ——
You will need two people to lift this
microwave. Failure to use more than
one person could result in personal
injury.
. Carefully lift microwave oven and hang if on
support tabs (See Figure 26) at the bottom of the
mounting plate. Reaching through upper cabinet,
thread power supply cord through the power supply
cord hole in the bottom of the upper cabinet.
See Figure 30.
. Rotate the microwave oven upward so the top of
even is against the bottom of the upper cabinet or
cabinet frame.
. Then insert a bolt down through each hole in the
upper cabinet bottom. See Figure 31.
Tighten the bolts until the gap between the upper
cabinet and microwave oven is closed.
. If wall vented or room vented installation is used,
go to No. 7 on the next page.
Power cord
Power cord
S
aS)
ECO)
ye
Figure 31
7

Ae
2
aa
()
Z
ve
STEP 6 : ATTACH THE OVEN TO THE WALL
18
. Roof vented installation: See Figure 32.
. Plug in the power supply cord.
. Read your Owner’s Manual, then check the
Install ductwork through the vent opening in the
upper cabinet. Complete the venting system through
the roof according to the method needed.
See “PREPARE THE VENTING SYSTEM,” STEP 2 on J
the page 8. Use caulking fo sealexterior roof EE |
opening around the exhaust cap. See Figure 6 on
page 8.
Damper
. Use power supply cord clamp to bundle the power Figure 32
supply cord. Install the power supply cord clamp,
using a screw as shown in Figure 33, to inside of
the cabinet.
. To install the grease filter: Slide it into the slide slot,
then push up and toward oven center to lock.
See Figure 34.
Power
supply
cord
clamp
operation of your microwave oven.
Figure 33
Figure 34

Printed in china
