Kenmore SPACEMASTER 85210 Service manual

R
INSTALLATION
INSTRUCTION
MANUAL
MODEL NO.'S
85210
Read and save these
installation instructions.
INSTALLATION
INSTRUCTIONS
SPACEMASTER
MICROWAVE OVEN
Part No. 3828W5U0269 Printed in Korea
SEARS. CANADA INC., TORONTO, M5B 2B8

BEFORE YOU START
Proper installation is the installer's responsibility!
Read the entire manual before you begin. Be sure to follow the installation clearances specified on the model
number label. The Model number label is located on the left side for the control panel. See Figure 1.
BE SURE TO READ THE FOLLOWING SAFETY INSTRUCTIONS:
FOR YOUR SAFETY:
●You will need TWO people to install this oven. It is heavy and could cause personal injury if not
handled properly. The dimensions of the oven are as follows:
Height : 16 inches
Width : 29 7/8inches
Depth : 14 inches
Net Weight : 69 pounds
●Avoid Electrical Shock!
– Before you drill into the wall, note where electrical outlets are and where electrical wires might be concealed
behind the wall. YOU COULD GET AN ELECTRIC SHOCK if you contact electrical wires with your drill bit.
– Locate and disconnect the power of any electrical circuits that could be affected by installing this oven.
IF YOU DO NOT DISCONNECT THE POWER, YOU COULD GET AN ELECTRIC SHOCK.
●ELECTRICAL RATING OF THIS OVEN : 120 V AC. 60 Hz.
1300 Watts 12 Amperes (Microwave oven only).
1500 Watts 14 Amperes (Microwave oven + Cooktop Lamps + Ventilation fan).
– You need a 120-volt, 60 Hz, AC only, 15- or 20-ampere, fused electrical supply (located in the cabinet above
the microwave as close as possible to the microwave circuit) serving only the microwave.
YOUR SAFETY FIRST
- 2 -
Model Number Label
Figure 1
wwWARNING ww

●THIS APPLIANCE MUST BE GROUNDED!
– If there is an electrical short circuit, grounding reduces the risk of electrical shock by providing an escape wire
for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug.
• Place the plug into a properly installed and grounded outlet.
See Figure 2.
• Do not use an extension cord.
• Keep the power cord dry and do not pinch or crush it.
●DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE
THE POWER SUPPLY CORD GROUNDING PRONG!
This appliance MUST be grounded!
If you use the grounding plug improperly, you risk electric shock!
– Check with a qualified electrician if you are not sure whether the oven is properly grounded or if you do not
completely understand the grounding instructions.
DO NOT USE A FUSE IN THE NEUTRAL OR GROUNDING CIRCUIT.
Improper grounding could result in electric shock or other personal injury.
SAVE THESE INSTRUCTIONS FOR THE LOCAL ELECTRICAL INSPECTOR'S USE.
●DO NOT EXPOSE YOURSELF TO EXCESSIVE MICROWAVE ENERGY!
– DO NOT try to operate the microwave oven with the door open.
– DO NOT tamper with or defeat the safety interlocks.
– DO NOT place objects between the microwave oven front face and the door.
– DO NOT allow soil or cleaner residue to build up on the flat surfaces around the microwave oven door.
– DO NOT operate the microwave oven if it is damaged.
– The microwave oven door must close properly to operate safely.
DO NOT USE THE MICROWAVE OVEN:
• If the door is bent.
• If the hinges or latches are broken or loose.
• If the door seals, sealing surfaces or glass is broken.
– DO NOT ATTEMPT TO ADJUST OR REPAIR THE OVEN YOURSELF!
It should be adjusted and repaired by a qualified technician who can check for microwave leakage after
repairing the oven.
If you do not use the microwave oven as instructed, you could
be exposed to excessive microwave energy.
- 3 -
YOUR SAFETY FIRST
PROPERLY POLARIZED AND
GROUNDED OUTLET
Three-Pronged (Grounding) plug
Figure 2
wwWARNING ww
wwWARNING ww
wwWARNING ww

●MAKE SURE YOU HAVE ENOUGH SPACE AND SUPPORT.
–Mount the oven against a flat, vertical wall, so that it is supported by the wall. The wall should be constructed
of minimum 2" x 4" wood studding and 3/8" thick drywall or plaster/lath.
–ATTACH AT LEAST ONE of the two lag screws supporting the oven to a vertical, 2" x 4" wall stud.
–DO NOT mount the microwave oven to an island or peninsula cabinet.
–BE SURE the upper cabinet and rear wall structures are able to support 150 lbs., plus the weight of any
items you place inside the oven or upper cabinet.
–Locate the oven away from strong draft areas, such as windows, doors, and strong heating vents.
–BE SURE you have enough space. See Figure 3 below for minimum vertical and horizontal clearance.
●Before you begin installing the oven, PLACE A PIECE OF THE CARTON OR OTHER HEAVY MATERIAL (a
blanket) over the countertop or cooktop to protect it. Do not use a plastic cover.
Failure to protect these surfaces could result in property damage.
NOTE: Do not use this microwave oven for commercial purposes.
This oven is designed for household use only.
- 4 -
YOUR SAFETY FIRST
If you do not mount the oven as instructed,
you risk personal injury and/or property damage.
wwWARNING ww
wwCAUTION ww
30" min. cabinet opening width
30" min. clearance from bottom
of cabinet to cooking surface
or countertop
14" min. microwave
oven to cooking surface
or countertop
(Use templates included
with installation instructions)
Grounded Plug
(inside upper cabinet)
Power Supply
Cord Hole
15" max. upper cabinet
Figure 3

- 5 -
THE FOLLOWING PARTS ARE SUPPLIED WITH THE OVEN:
NOTE: You may not use all of these parts.
NOTE: You need to install at least one lag screw into a 2" x 4" stud and four anchor bolts into the wall and the
mounting area must meet the 150+ lbs. weight requirement.
PARTS, TOOLS, MATERIALS
Damper/duct connector
(for roof-venting or wall -venting installation)
Two tapping screws
(for attaching the damper duct connector)
Four 1/4" x 2" lag screws
(for wall stud holes)
Four 1/4" x 3" toggle bolts
(for drywall holes)
Two 1/4" x 2" bolts
(for securing to the upper cabinet)
Two washers
(for the two upper cabinet bolts)
Four spring toggle heads
(for the toggle bolts)
One power cord bushing (for the cord hole in a metal upper cabinet)
One lock pin and one washer
One power cord clamp and
One dark-colored mounting screw
(to hold the power cord)

PARTS, TOOLS, MATERIALS
- 6 -

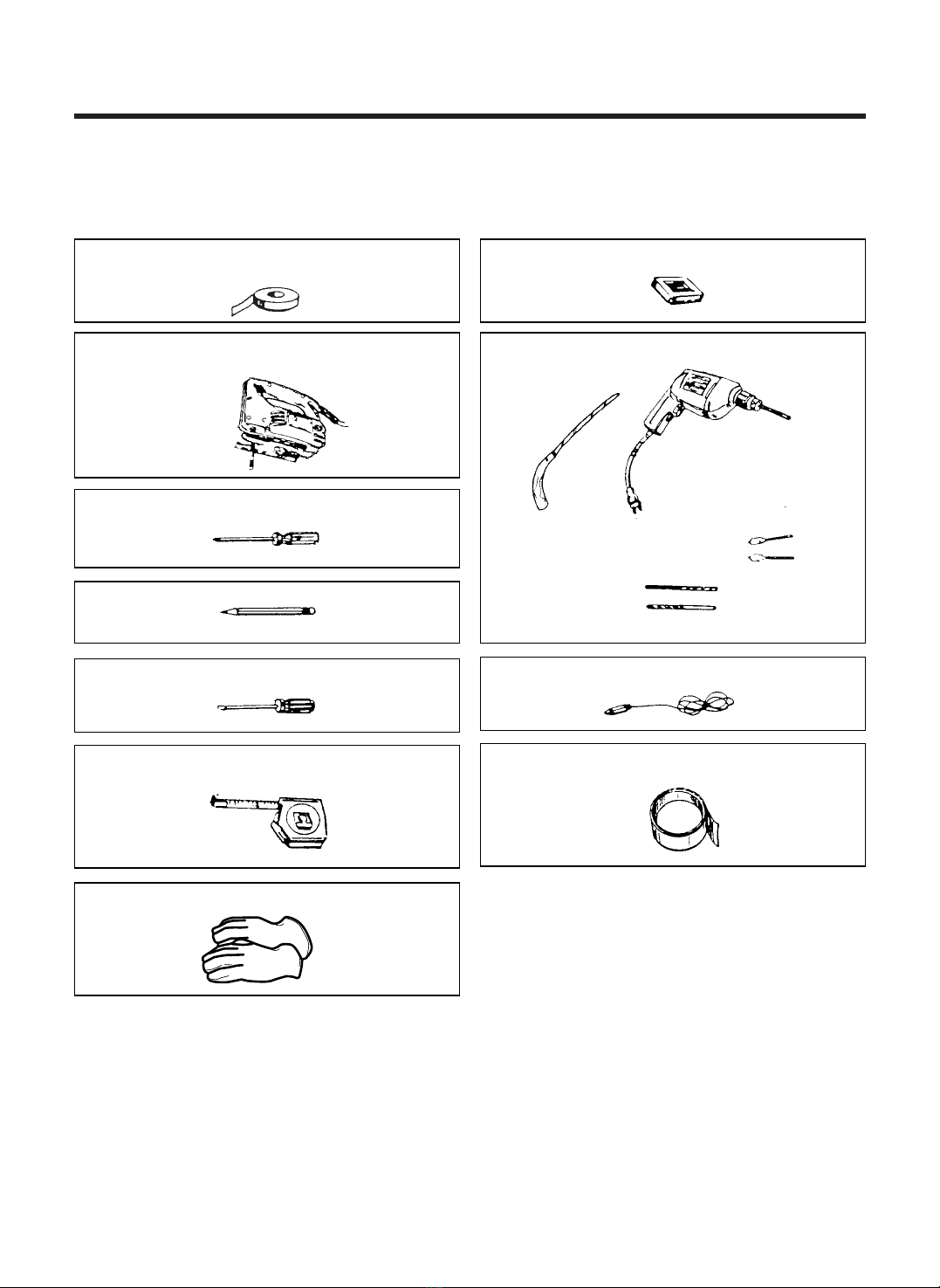

YOU WILL NEED THE FOLLOWING TOOLS AND MATERIALS FOR THE
INSTALLATION:
Carton or other heavy material for covering the counter top.
If you have brick or masonry walls, you need special hardware and tools. Call the Sears Service Center for
instructions.
The ductwork you need for the installation is not included. All wall and roof caps must have a back-draft damper.
Clear tape
(for taping the templates to the wall)
Stud finder or thin nail.
Saber saw (for cutting vent holes for roof
or wall venting)
Phillips screwdriver (for the screws)
Pencil
Flat blade screwdriver (for the bolts)
Measuring tape (metal preferred)
Gloves
Key hole saw (for the power cord hole)
Electric drill
3/8" and 3/4" wood drill bits
1/2" and 3/16"
drill bits
Plumb line
Duct Tape

AVOID ELECTRICAL SHOCK! THIS APPLIANCE MUST BE GROUNDED!

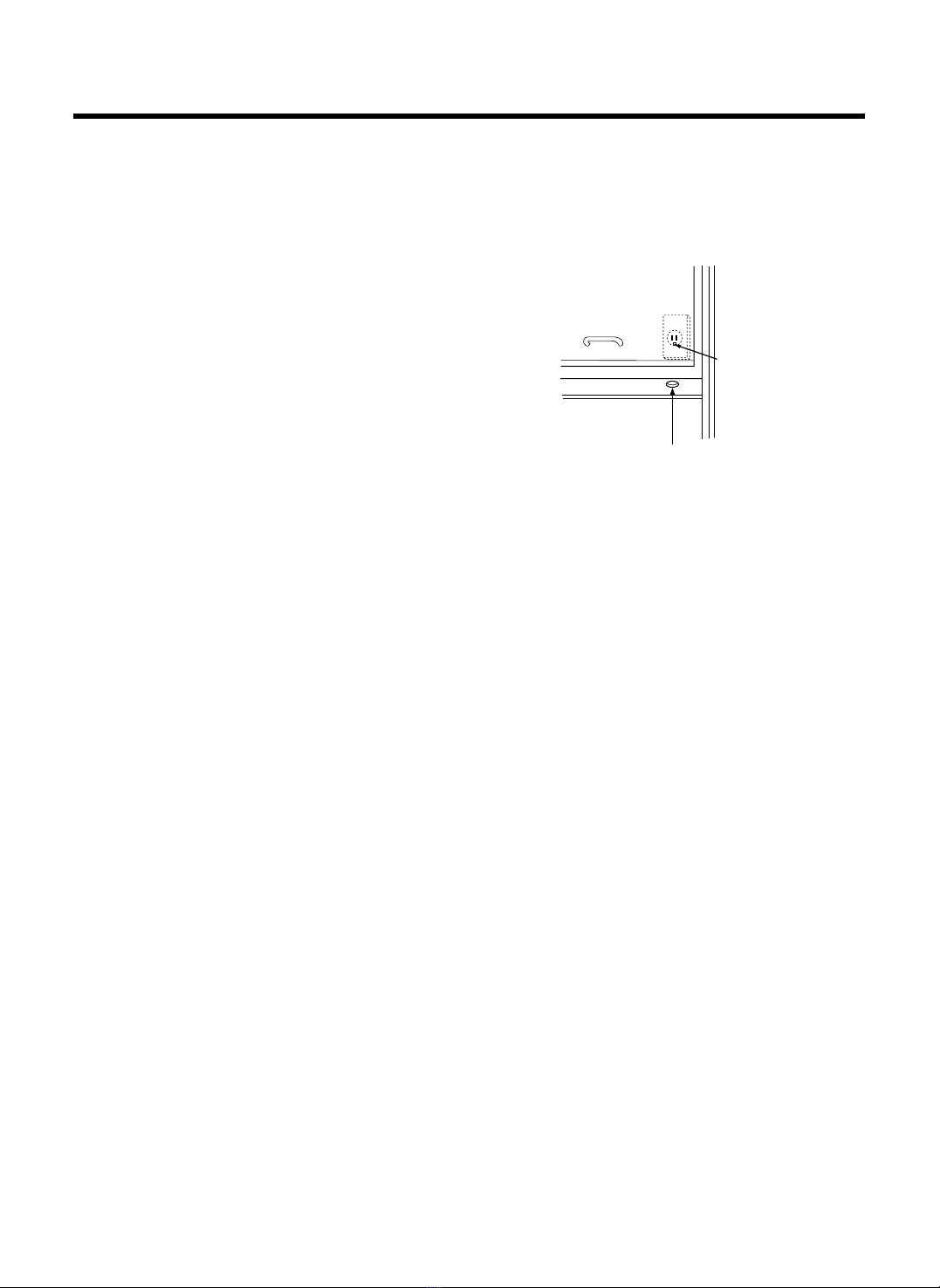

1. Locate the grounded electric outlet for this oven in the
cabinet above the oven, as shown in Figure 3 Detail.
NOTE: The outlet should be on a circuit dedicated to the
microwave oven 120-volt, 60 Hz., AC only, with a
15- or 20-ampere fused electrical supply.
IMPORTANT: If you do not have the proper wall outlet, you
MUST have one installed by a qualified
electrician.
2. You will cut the power-supply-cord hole (shown in
Figure 3 Detail) later when you prepare the wall and upper
cabinet in Step 4.
NOTE: Do not use an extension cord.
Keep the power cord dry and do not pinch or crush it.
Improper grounding could result in
electric shock or other personal injury.
●DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE THE POWER SUPPLY
CORD GROUNDING PRONG! This appliance MUST be grounded!
- 7 -
STEP 1: PREPARE THE
ELECTRICAL CONNECTIONS
wwWARNING ww
wwWARNING ww
Grounded Outlet
Upper
Cabinet
Power-Supply-Cord Hole
Figure 3 Detail

NOTE: The ductwork you need for outside ventilation is not included with your oven. The standard ductwork
fittings and length Sears recommends are shown in Figure 7, page 9.
You may vent your oven in one of three ways:
Roof-venting If your oven is located on an outside wall near the roof, as in Figures 5 (3 1/4" x 10" duct)
and 6 (6" round duct.)
Wall-venting If your oven is located on an outside wall on the first floor of your house, as in
Figures 4 (3 1/4" x 10" duct) and 6 (6" round duct.)
Room-venting If your oven is located on an inside wall on the first floor of your house.
NOTE: If you choose the rear exhaust method (roof- or wall-venting), be sure there is enough clearance within
the wall for the exhaust duct.
REMEMBER AS YOU INSTALL THE VENTING:
●Keep the length of the ductwork and the number of elbows to a minimum to
ventilate your oven efficiently. See examples on page 9.
●Keep the size of the ductwork the same.
●Do not install two elbows together.
●Use duct tape to seal all joints in the duct system.
●Use caulking to seal the exterior wall or roof opening around the cap.
STEP 2:
PREPARE THE VENTING SYSTEM
- 8 -

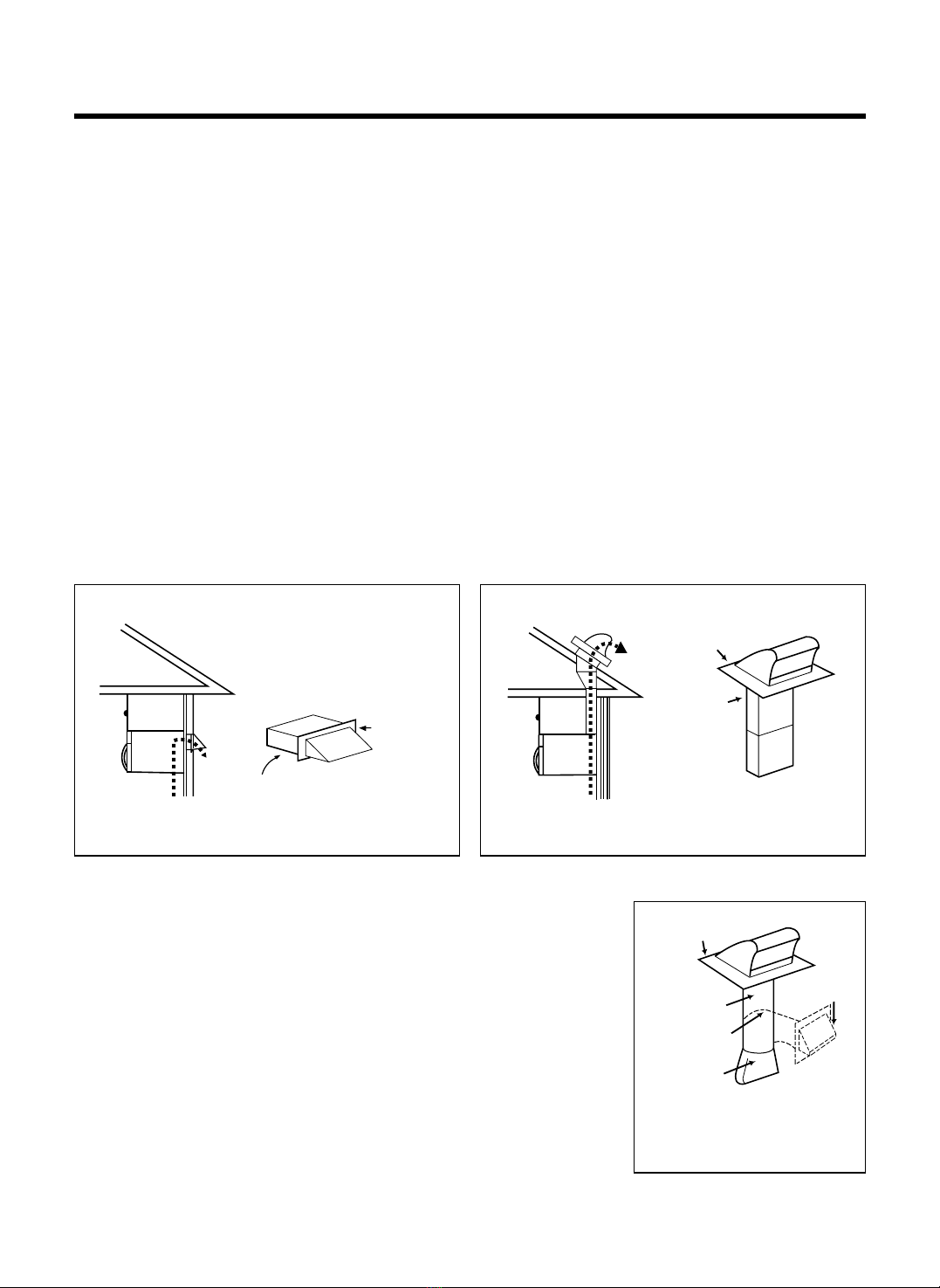

THIS OVEN MUST BE PROPERLY VENTED!
wwWARNING - FIRE HAZARD ww
Wall Venting
Wall venting
through-the-wall
wall cap
3 1/4"x10"
Roof Venting
through-the-roof
3 1/4"x10"
duct
roof cap
Roof venting
6" min.
diameter
round duct
3 1/4" to round
duct transition
3 1/4"x10" to round
ductwork transition
roof cap
wall cap
elbow
Figure 4 Figure 5
Figure 6

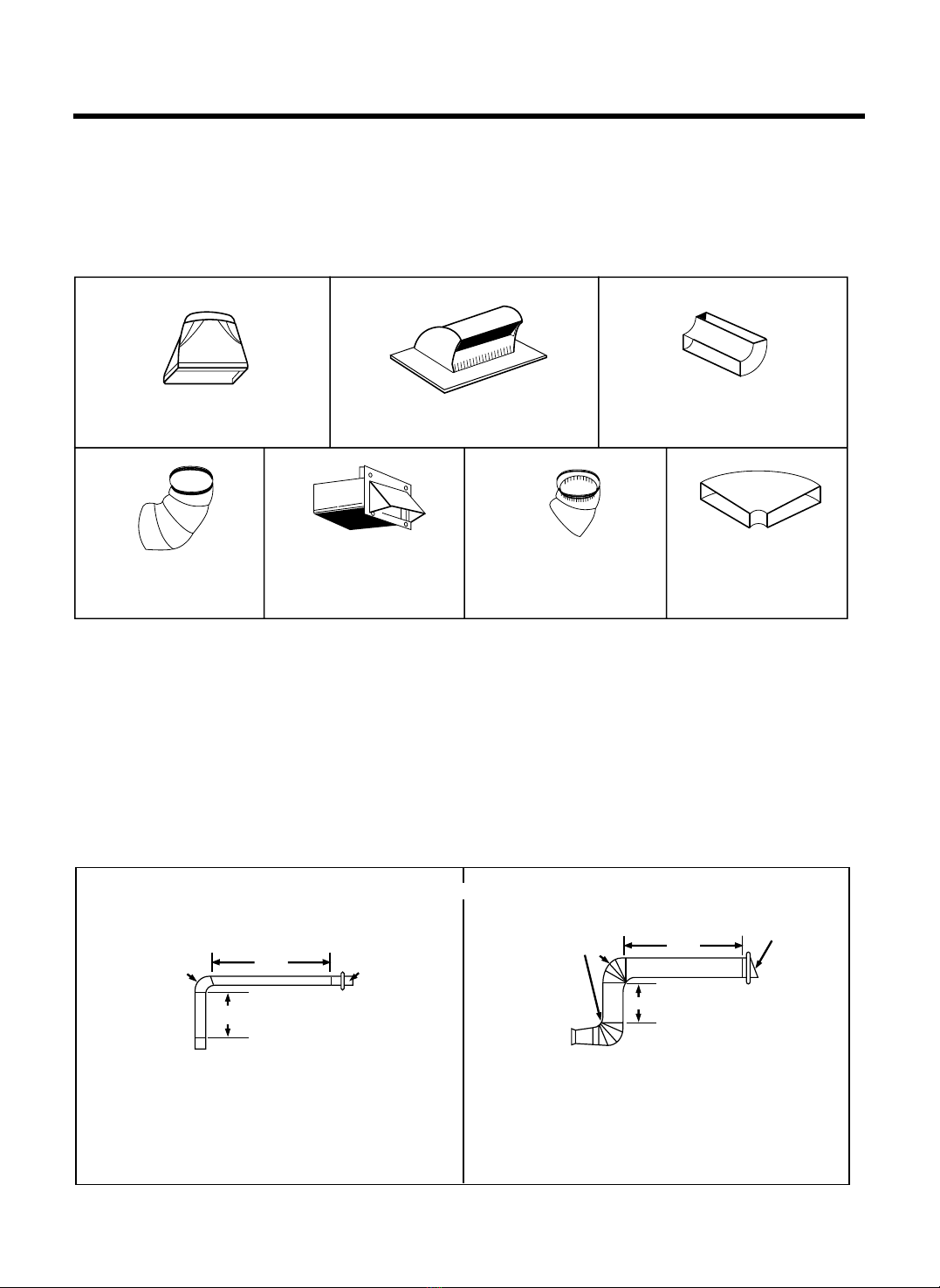

STANDARD FITTINGS
NOTE: If the existing duct is round, you must use a rectangular-to-round adapter, with a rectangular 3" extension
duct installed between the damper assembly and the adapter to prevent the exhaust damper sticking.
Below are the standard fittings and their equivalent length in feet.
DUCT LENGTH
The total length of the duct system, including straight duct, elbows, transitions, wall or roof caps must not
exceed the equivalent of 140 feet.
For best performance, do not use more than three 90 degree elbows.
To calculate the equivalent length of each duct piece used, see the examples below.
- 9 -
FOR PROPER VENTING SEARS
RECOMMENDS
Examples
FOR 3 1/4"x10" SYSTEMS
6" to 3 1/4" x 10" transition
1-90˚ elbow
Wall cap
8 feet straight duct
TOTAL LENGTH
3 1/4" x 10" to 6" transition
2-90 degree elbows
Wall cap
8 feet straight
TOTAL LENGTH
FOR 6" ROUND SYSTEMS
6ft.
2ft. 2ft.
3 1/4"x10"
90˚elbow wall cap
6ft.
90˚elbows wall cap
= 25 ft.
= 40 ft.
= 8 ft.
= 73 ft.
= 5 ft.
= 20 ft.
= 40 ft.
= 8 ft.
= 73 ft.
3 1/4"x10" to 6" = 5ft.
90˚elbow = 10ft. 45˚elbow = 5ft.3 1/4"x10" wall cap
= 40ft.
3 1/4"x10" flat elbow
= 10ft.
3 1/4"x10" roof cap = 24ft. 3 1/4"x10" 90˚elbow = 25ft.
1
4567
23
Figure 7

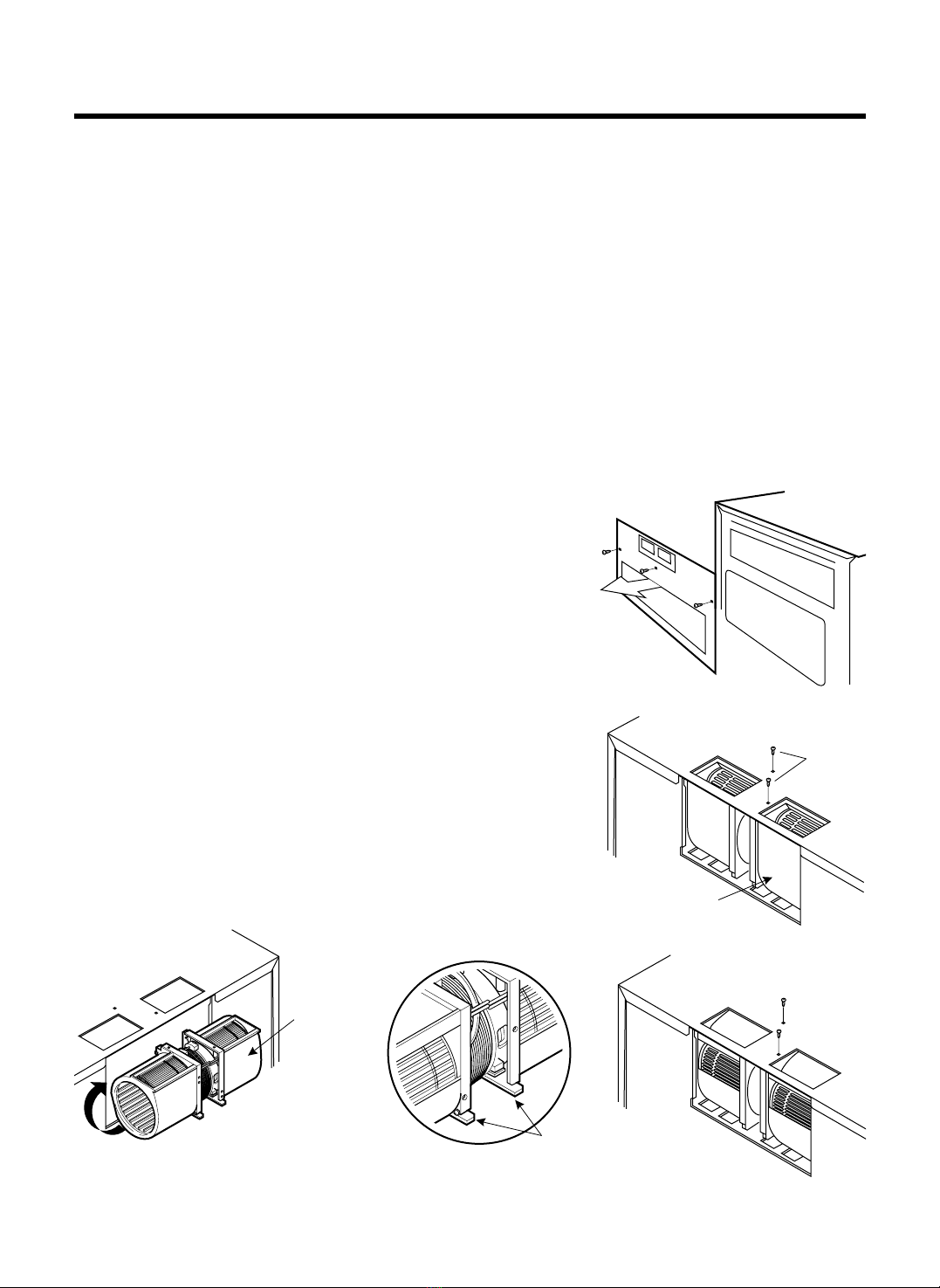

Your microwave oven is shipped with the blower assembled for roof venting. You need to adjust the blower if you
want wall-venting or room-venting installation.
ELECTRICAL SHOCK HAZARD!
●DO NOT PULL OR STRETCH THE BLOWER WIRING! Pulling and stretching the blower wiring could result
in electrical shock.
●REINSERT THE WIRES INTO THE WIRE CLIPS BEFORE YOU PUT THE BLOWER UNIT BACK INTO
THE MICROWAVE OVEN.
Failure to do so could result in electrical shock.
Remove three screws that attach mounting plate to microwave
oven cabinet. See Figure 8.
Remove mounting plate and set aside.
ROOF-VENTED INSTALLATION:
Go to STEP 4 on page 12.
WALL-VENTED INSTALLATION:

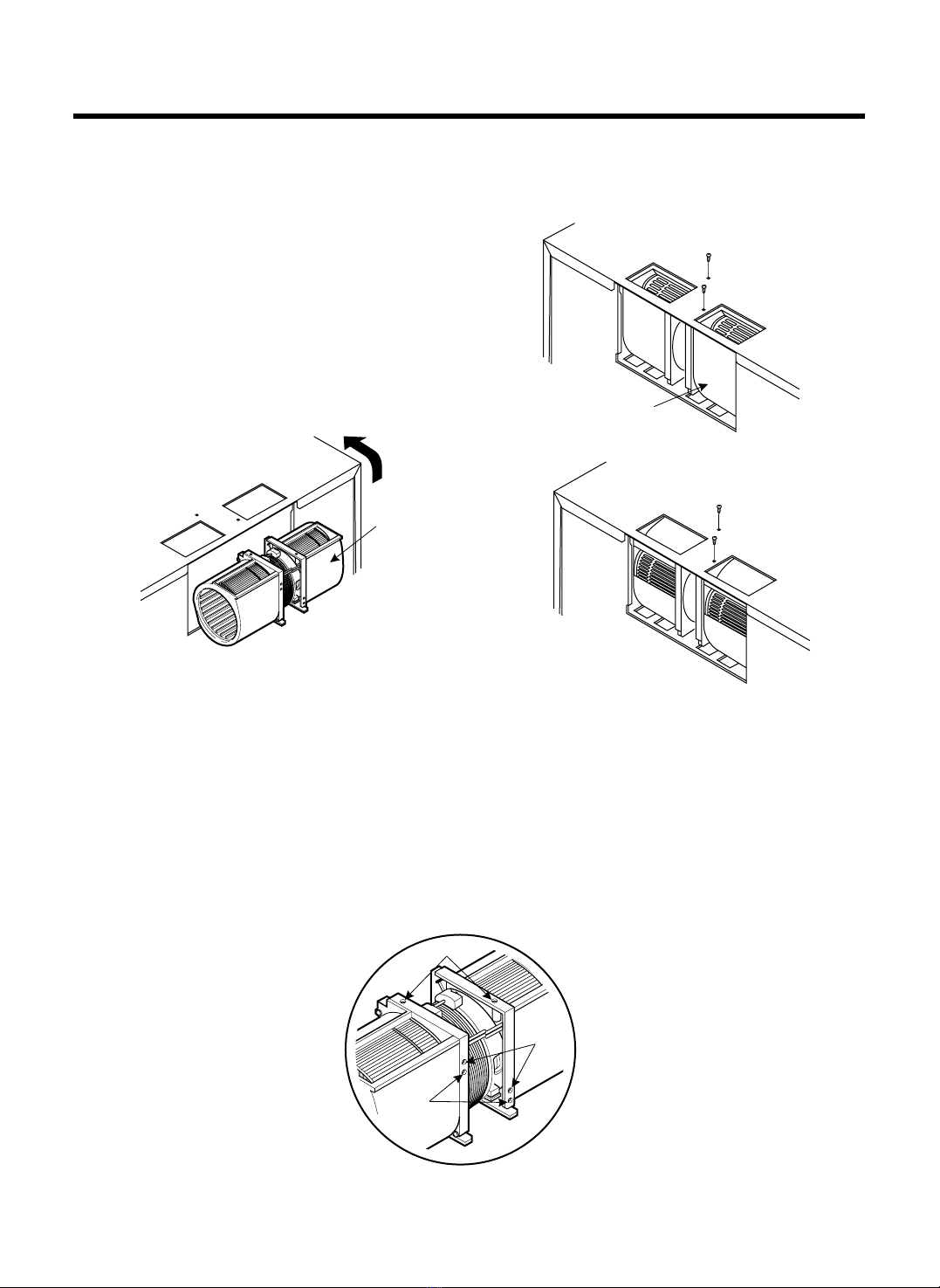

1. Remove and save the two blower screws. See Figure 9.
2. Carefully lift the blower unit out of the microwave oven,
slipping wires out of clips.
3. Rotate blower unit end over end. Rotate the unit 90°so that
the exhaust ports face the rear of the unit. See Figure 10.
Slip wires into clips at the upper left hand corner of blower
unit. See Figure 11.
4. Place blower unit back into microwave oven.
5. Tighten the two blower screws.
NOTE: If you want to install this microwave oven properly,
you should be careful to tighten the blower screws.
For a wall-vented installation, use the screw holes
labeled "B" in figure 16 on page 11.
STEP 3: PREPARE THE VENT BLOWER
- 10 -
wwWARNING ww
blower
unit
blower unit
blower
screw
wire clips
Remove
wall mounting
plate.
Figure 8
Figure 9
Figure 10 Figure 11 Figure 12

- 11 -
ROOM-VENTED(recirculating)
INSTALLATION:
1. Remove and save the two blower screws.
See Figure 13.
2. Carefully lift the blower unit out of the microwave
oven.
3. Rotate blower unit 90˚turn so that the exhaust
ports face the front of the unit. See Figure 14.
4. Place blower unit back into microwave oven.
5. Tighten the two blower screws. See Figure 15.
NOTE: If you want to install this microwave oven
properly, you should be careful to tighten
the blower screws. For a room-vented
installation, use the screw holes labeled "C"
in figure 16 below.
: Roof-Vented installation - use "A" holes
: Wall-Vented installation - use "B" holes
: Room-Vented installation - use "C" holes
STEP 3: PREPARE THE VENT BLOWER
blower
unit
blower unit
A
B
C
Figure 13
Figure 15Figure 14
Figure 16

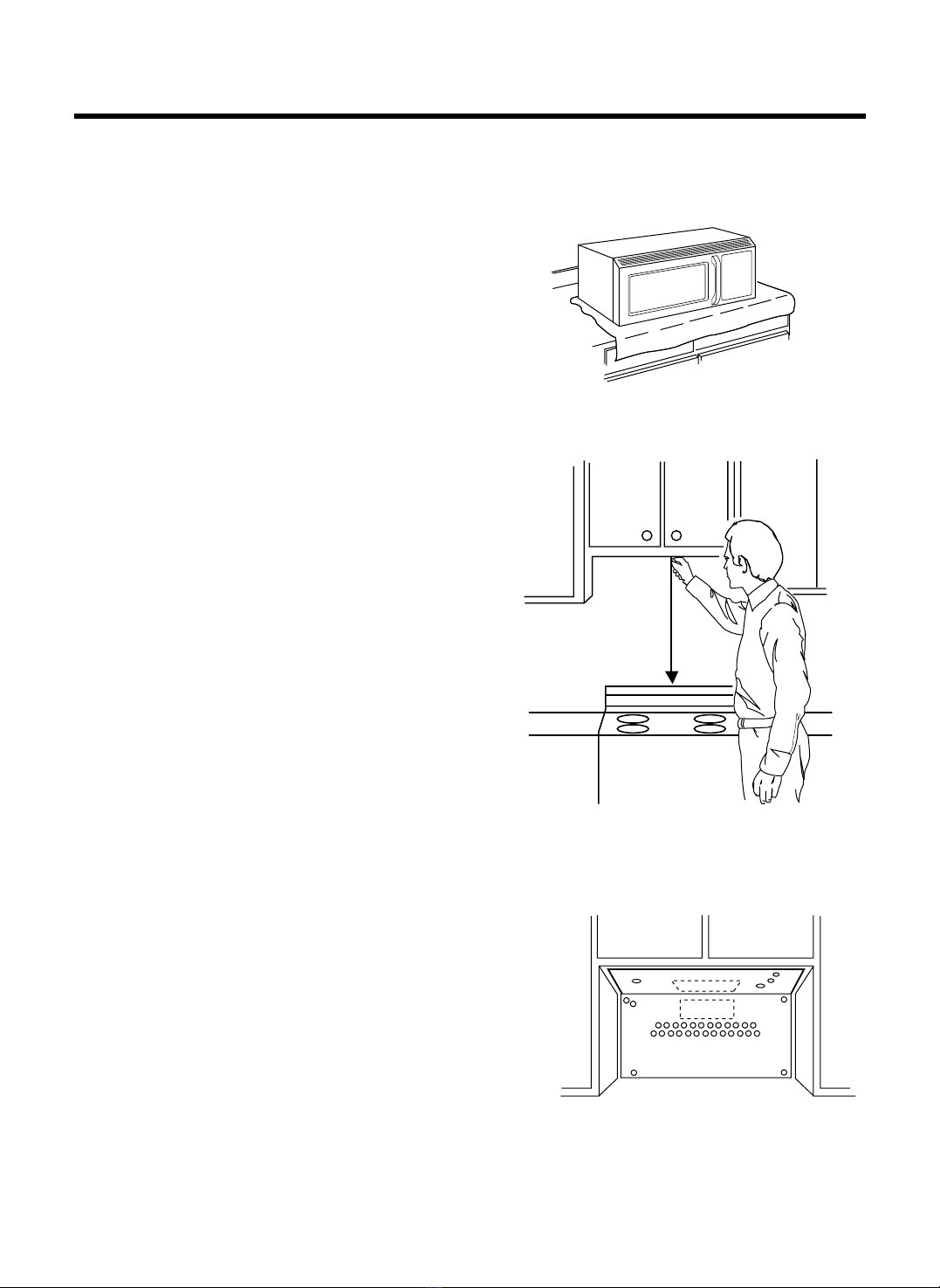

BEFORE YOU START —
1. Remove any shipping materials and parts from inside the
microwave oven.
2. Cover the counter top or cooktop with a thick, protective
covering to protect it from damage and dirt. See Figure 17.
NOTE: If you have a free-standing range, disconnect it,
move it onto a piece of cardboard or hardboard,
and pull it away from the wall, so that you can get
closer to the upper cabinet and back wall for easier
measuring and drilling.
MEASURE AND TACK / TAPE UP THE
TEMPLATES
1. Using a plumb line and (metal) measuring tape, find and
mark the vertical center line on the back wall, as
in Figure 18.
2. Find and mark one or two points where the studs are on
the wall (Studs are normally 16 inches apart.) and then
measure and mark the stud locations within the area
marked "H" on the wall template. If you cannot find any
wall stud, consult a local building contractor.
CAUTION
DO NOT ATTEMPT TO INSTALL THE MICROWAVE
OVEN IF YOU CANNOT FIND A WALL STUD.
3. Line up the plumb line on the wall with the center line on
the wall template.
NOTE: Be sure the minimum width is 30 inches and the
distance from the top of the wall template to the
range or counter top at least 30 inches.
See Figure 3 on page 4.
4. Securely tape or tack the wall template to the wall.
See Figure 19.
NOTE: If the cabinets are not plumb, adjust the wall
template to the cabinets.
If the front edge of the cabinet is lower than the
back edge, adjust the wall template to be level with
the cabinet front.
5. Measure the bottom of the upper cabinet frame. Trim the
edges "A" "B" and "C" on the upper cabinet template so
that the template will fit on the bottom of the upper
cabinet. If upper cabinet has a recessed frame, trim
template so that it fits inside the recessed area. Align the
centerline of the upper cabinet template with the
centerline of the wall template; then securely tape or tack
the upper cabinet template in place. See Figure 19.
STEP 4: PREPARE THE WALL AND
UPPER CABINET FOR INSTALLATION
- 12 -
upper cabinet template
wall template
Figure 19
Figure 18
Figure 17

DRILL THE HOLES IN THE WALL AND UPPER CABINET.
1. Find the points on the wall template labeled "D", "E", "F", and "G". Drill a 3/16" diameter hole at any points that
are over a wall stud. Drill a 3/4" diameter hole at any points over drywall.
2. Locate the wall stud closest to the center of the areas marked "H" and "I" on the wall template. Drill 3/16" holes
into the wall stud in each of the areas. If a wall stud is not located within these areas, drill 3/4" diameter holes
nearest to the center of the areas as possible.
If there is not a wall stud within the areas marked "H" and "I" and not behind points marked "D", "E", "F" and
"G", DO NOT install microwave oven. (Consult building inspector.)
3. Drill a 3/8" hole at points "J", "K" and "N" on the upper cabinet template.
NOTE: If the bottom of the upper cabinet is recessed 3/4" or more, you may use 2"x2" filler blocks (not
included) to provide additional support for the bolts. See Figure 20.
•Mark the center of each filler block and drill a 3/8" diameter hole at the marks.
•Align filler blocks over the two openings in the top of the microwave oven cabinet and attach to
cabinet with masking tape. See Figere 21.
4. Cut or drill a "2" diameter hole at the area marked "M", "Power-supply-cord-hole" on the upper cabinet
template. If the upper cabinet is metal, you will need to cover the edge of the hole with the power-supply-cord
bushing (supplied) to prevent damage to the cord from the rough metal edge.
YOU MUST COVER THE EDGE OF THE
POWER-SUPPLY-CORD-HOLE IN A METAL
CABINET WITH THE POWER-SUPPLY-CORD
BUSHING. FAILURE TO DO SO COULD
RESULT IN DAMAGE TO THE CORD AND
ELECTRIC SHOCK.
5. Cut out the venting areas (with the saber saw):
•Roof-Vented - cut out the shaded area marked "L"
on the upper cabinet template.
•Wall-Vented - cut out the shaded area marked "O"
on the wall template.
•Room-Vented - go to STEP 5, INSTALLING THE
MOUNTING PLATE, located on the next page.
6. Complete whichever venting system you have
chosen. Use caulking compound to seal the exterior
wall or roof opening around the wall cap or roof cap.
STEP 4: PREPARE THE WALL AND
UPPER CABINET FOR INSTALLATION
- 13 -
BE VERY CAREFUL WHEN DRILLING HOLES INTO THE WALL.
Electrical wires could be concealed behind the wall covering
and if the drill hits them you could get an electric shock.
wwWARNING ww
wwWARNING ww
cabinet front filler block cabinet
bottom shelf
filler
block
Figure 20
Figure 21

- 14 -
1. Remove the upper cabinet and wall templates.
NOTE: If you are venting the oven through the wall,
be sure you align the damper/connector on
the rear of the mounting plate with the
3 1/4"x10" duct. Be sure the damper moves
freely. See Figure 22.
2. Place the mounting plate against the wall and match
the screw holes.
3. Prepare the toggle bolts by attaching a spring toggle
head to the end of each toggle bolt as shown in
Figure 23.
NOTE: Be sure to leave at least one wall-thickness of
space between the head of the toggle bolt
and the spring toggle head so that the spring
toggle can open on the other side of the wall,
as shown in Figure 24.
4. Locate the stud holes (3/16") and insert the lag
screws through the mounting plate and into the holes.
See Figure 25.
5. Insert the toggle bolts through the dry wall holes
(3/4"). Tighten the toggle bolts.
6. Slide washer onto lock pin and place inside upper
cabinet for future use as directed on the next page.
See Figure 26.
STEP 5:
INSTALL THE MOUNTING PLATE
wall mounting plate
toggle bolt
lag screw
mounting pate
lock pin
washer
wall
mounting plate
toggle bolt spring
toggle head
mounting plate
spring
toggle head
Figure 22
Figure 23
Figure 24
Figure 25
Figure 26

- 15 -
You will need two people to lift this
microwave. Failure to use more than
one person could result in personal
injury.
1. Carefully lift microwave oven and hang it on support
tabs at the bottom of the mounting plate reaching
through upper cabinet. Thread power supply cord
through the power supply cord hole in the bottom of
the upper cabinet.
2. Rotate microwave upward so that top of oven is
against bottom of upper cabinet or cabinet frame.
See Figure27.
3. Drop the lock pin and washer assembly into hole
"N" and push pin down as far as it will go.
See Figure 28.
4. Place washers over two, 1/4"x3" bolts. Then insert a
bolt down through each hole in the upper cabinet
bottom.
Tighten the bolts until the gap between the upper
cabinet and microwave oven is closed.
See Figure 29.
5. If wall-vented or room-vented installation is used, go
to #8 on the next page.
STEP 6:
ATTACH THE OVEN TO THE WALL
wwWARNING ww
support tabs
washer lock pin
Figure 27
Figure 28
Figure 29

STEP 6:
ATTACH THE OVEN TO THE WALL
- 16 -
6. Roof-vented installation: Align the damper/duct
connector with the vent on top of the microwave
oven. Damper should be on top of tab. Use two
tapping screws(bright-colored) to attach
damper/duct connector to the microwave oven.
See Figure 30.
NOTE: Damper/duct connector must be attached to
microwave oven after microwave oven is
installed.
7. Roof venting installation: Install ductwork through
the vent opening in the upper cabinet. Complete the
venting system through the roof according to the
method needed. See "Venting requirements," STEP
3 on the page 10. Use caulking to seal exterior roof
opening around exhaust cap. See Figure 31.
8. Use power supply cord clamp to bundle the power
supply cord. Install power supply cord clamp, using
screw as shown in Figure 31, to inside of the
cabinet.
9. Grasp filter screen with one hand holding the ring
and the other hand holding the opposite end. Insert
the end of the filter screen without ring into the
opening and slide towards the center of the
microwave oven. Insert ring end of filter screen into
the opening and slide entire screen towards the
side of the microwave until screen is securely in
position. Repeat for other filter screen.
See Figure 32.
10. Plug in the power supply cord.
11. Read your Use and Care Manual, then check the
operation of your microwave oven.
power
supply
cord
clamp
damper
bolts
Figure 30
Figure 31
Figure 32
