— 2 —
English
Contents
Safety precautions......................3
About CDs...................................5
General features .........................6
Power
Selecting the Source
Volume
Attenuator
Loudness
System Q
Audio Control
Speaker Setting
Clock Display
Adjusting Clock
DSI (Disabled System Indicator)
Theft Deterrent Faceplate
Tuner features .............................9
Tuning Mode
Tuning
Monaural Reception
Station Preset Memory
Auto Memory Entry
Preset Tuning
CD player features....................11
Playing CD
Fast Forwarding and Reversing
Track Search
Track Repeat
Track Scan
Random Play
Accessories ...............................13
Installation Procedure ..............13
Connecting Wires
to Terminals ...........................14
Installation ................................15
Troubleshooting Guide .............17
Specifications ...........................19
KDC-2027S_U.S 2003.09.22 10:12 AM Page 2

— 3 —
To prevent injury and/or fire, take the
following precautions:
•Insert the unit all the way until it is fully
locked in place. Otherwise it may fly out of
place during collisions and other jolts.
•When extending the ignition, battery or
ground wires, make sure to use automotive-
grade wires or other wires with an area of
0.75mm2(AWG18) or more to prevent wire
deterioration and damage to the wire
coating.
•To prevent short circuits, never put or leave
any metallic objects (e.g., coins or metal
tools) inside the unit.
•If the unit starts to emit smoke or strange
smells, turn off the power immediately and
consult your Kenwood dealer.
•Make sure not to get your fingers caught
between the faceplate and the unit.
•Be careful not to drop the unit or subject it to
strong shock.
The unit may break or crack because it
contains glass parts.
•Do not touch the liquid crystal fluid if the
LCD is damaged or broken due to shock. The
liquid crystal fluid may be dangerous to your
health or even fatal.
If the liquid crystal fluid from the LCD
contacts your body or clothing, wash it off
with soap immediately.
2WARNING
To prevent damage to the machine,
take the following precautions:
•Make sure to ground the unit to a negative
12V DC power supply.
•Do not open the top or bottom covers of the
unit.
•Do not install the unit in a spot exposed to
direct sunlight or excessive heat or humidity.
Also avoid places with too much dust or the
possibility of water splashing.
•Do not set the removed faceplate or the
faceplate case in areas exposed to direct
sunlight, excessive heat or humidity. Also
avoid places with too much dust or the
possibility of water splashing.
•To prevent deterioration, do not touch the
terminals of the unit or faceplate with your
fingers.
•Do not subject the faceplate to excessive
shock, as it is a piece of precision equipment.
•When replacing a fuse, only use a new one
with the prescribed rating. Using a fuse with
the wrong rating may cause your unit to
malfunction.
•To prevent short circuits when replacing a
fuse, first disconnect the wiring harness.
•Do not place any object between the
faceplate and the unit.
•During installation, do not use any screws
except for the ones provided. The use of
improper screws might result in damage to
the main unit.
2CAUTION Do Not Load 8-cm (3-in.) CDs in the CD
slot
If you try to load an 8-cm CD with its adapter
into the unit, the adapter might separate from
the CD and damage the unit.
Safety precautions
KDC-2027S_U.S 2003.09.22 10:12 AM Page 3

— 4 —
English
•If you experience problems during
installation, consult your Kenwood dealer.
•If the unit does not seem to be working
right, try pressing the reset button first. If
that does not solve the problem, consult
your Kenwood dealer.
•Characters in the LCD may become difficult
to read in temperatures below 41 ˚F (5 ˚C).
•The illustrations of the display and the panel
appearing in this manual are examples used to
explain more clearly how the controls are used.
Therefore, what appears on the display in the
illustrations may differ from what appears on
the display on the actual equipment, and some
of the illustrations on the display may represent
something impossible in actual operation.
Lens Fogging
Right after you turn on the car heater in cold
weather, dew or condensation may form on
the lens in the CD player of the unit. Called
lens fogging, CDs may be impossible to play.
In such a situation, remove the disc and wait
for the condensation to evaporate. If the unit
still does not operate normally after a whilst,
consult your Kenwood dealer.
NOTE Cleaning the Faceplate Terminals
If the terminals on the unit or faceplate get
dirty, wipe them with a dry, soft cloth.
Cleaning the Unit
If the faceplate of this unit is stained, wipe it
with a dry soft cloth such as a silicon cloth.
If the faceplate is stained badly, wipe the stain
off with a cloth moistened with neutral
cleaner, then wipe neutral detergent off.
Applying spray cleaner directly to the unit may
affect its mechanical parts. Wiping the
faceplate with a hard cloth or using a volatile
liquid such as thinner or alcohol may scratch
the surface or erases characters.
Cleaning the CD Slot
As dust can accumulate in the CD slot, clean it
occasionally. Your CDs can get scratched if
you put them in a dusty CD slot.
Safety precautions
The marking of products using lasers
(Except for some areas)
The label is attached to the chassis/case and
says that the component uses laser beams
that have been classified as Class 1. It means
that the unit is utilizing laser beams that are of
a weaker class. There is no danger of
hazardous radiation outside the unit.
This Product is not installed by the
manufacturer of a vehicle on the production
line, nor by the professional importer of a
vehicle into an EU Member State.
CLASS 1
LASER PRODUCT
CLK ADJ
AUTO
AME
SCAN
AUD RDM REP
OFF
LOUD
MONO

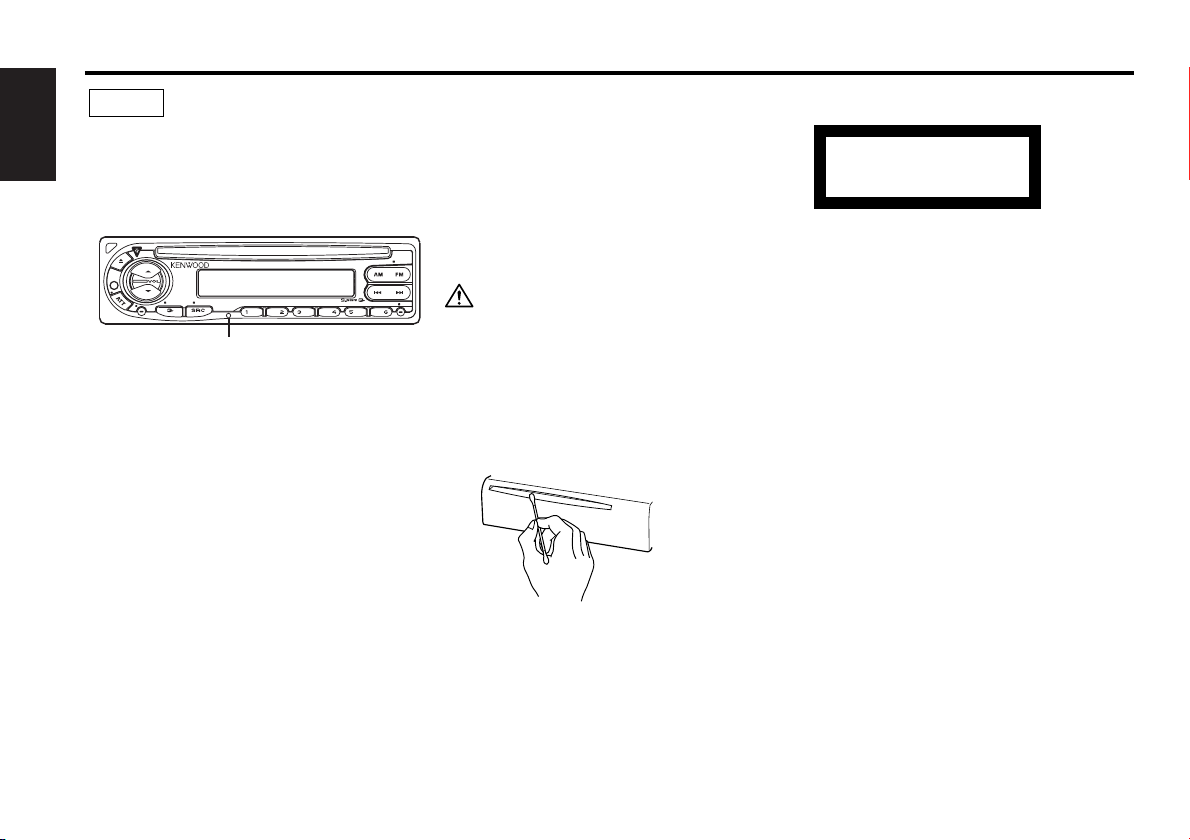

Reset button
KDC-2027S_U.S 2003.09.22 10:12 AM Page 4

— 5 —

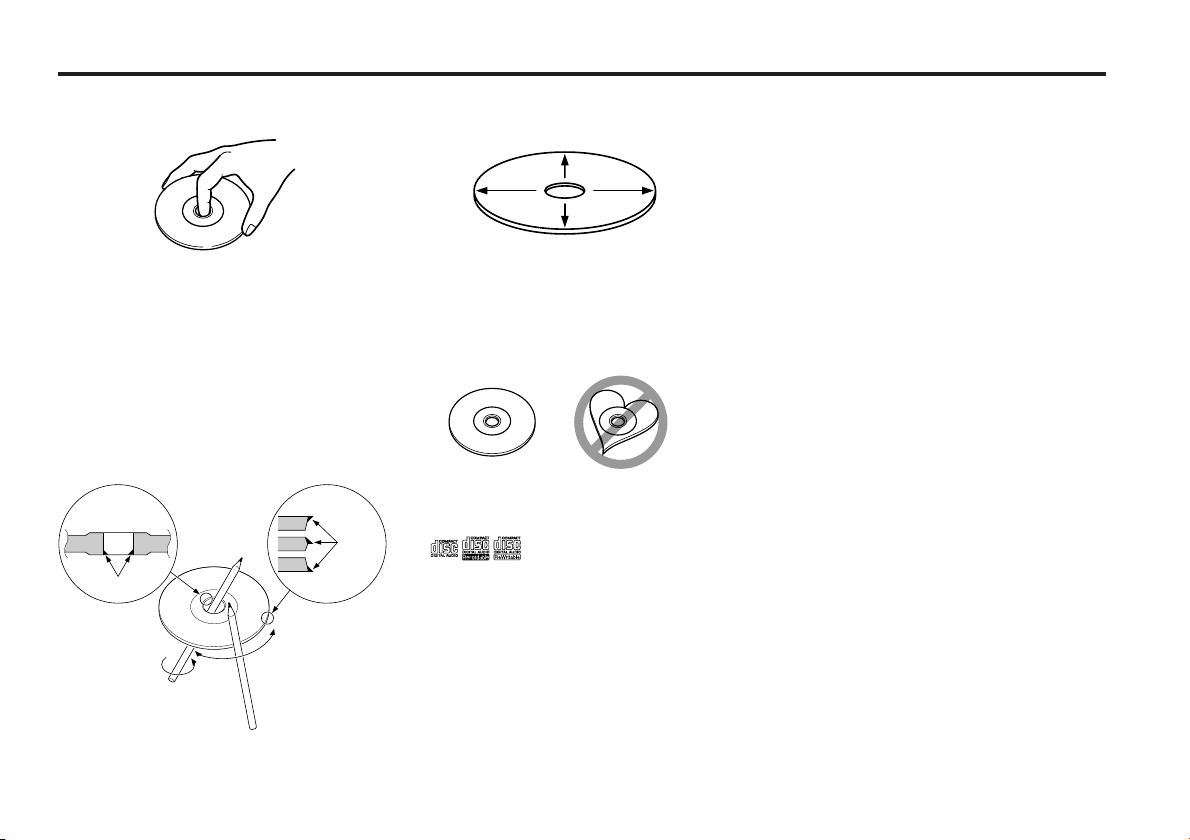

About CDs
Handling CDs
•Don’t touch the recording surface of the CD.
•CD-R and CD-RW are easier to damage than
a normal music CD. Use a CD-R or a CD-RW
after reading the caution items on the
package etc.
•Don’t stick tape etc. on the CD.
Also, don’t use a CD with tape stuck on it.
When using a new CD
If the CD center hole or outside rim has burrs,
use it after removing them with a ball pen etc.
CD accessories
Don’t use disc type accessories.
CD cleaning
Clean from the center of the disc and move
outward.
Removing CDs
When removing CDs from this unit pull them
out horizontally.
CDs that can’t be used
•CDs that aren’t round can’t be used.
•CDs with coloring on the recording surface
or that are dirty can’t be used.
•This unit can only play the CDs with
.
It may not correctly play discs which do not
have the mark.
•ACD-R or CD-RW that hasn’t been finalized
can’t be played. (For the finalization process
refer to your CD-R/CD-RW writing software,
and your CD-R/CD-RW recorder instruction
manual.)
CD storage
•Don’t place them in direct sunlight (On the
seat or dashboard etc.) and where the
temperature is high.
•Store CDs in their cases.
Burrs
Burrs
KDC-2027S_U.S 2003.09.22 10:12 AM Page 5

Turning the volume down quickly.
Press the [ATT] button.
Each time the button is pressed the Attenuator turns ON or OFF.
When it’s ON, the "ATT" indicator blinks.
Attenuator
Increasing Volume
Press the [u] button.
Decreasing Volume
Press the [d] button.
Volume
Press the [SRC] button.
Source required Display
Tuner "TUnE"
CD "CD"
Standby (Illumination only mode) "STBY"
Selecting the Source
Turning ON the Power
Press the [SRC] button.
Turning OFF the Power
Press the [SRC] button for at least 1 second.
Power

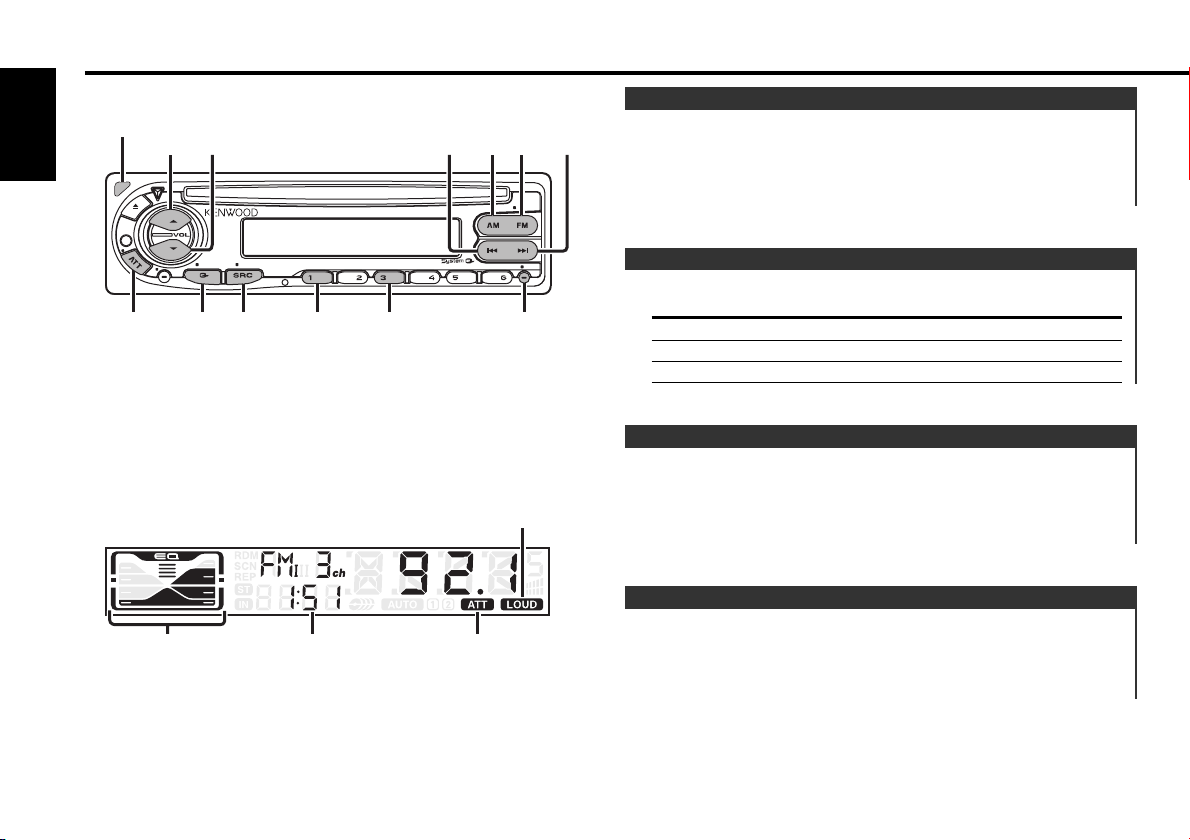

General features
— 6 —
English
CLK ADJ
AUTO
AME
SCAN
AUD RDM REP
OFF
LOUD
AM FM ¢4
Q/
AUD
SRC
ATT/
LOUD
13
ud
CLK/
ADJ
MONO
Release button
ATT indicator
LOUD indicator
SYSTEM Q indicator Clock display
KDC-2027S_U.S 2003.09.22 10:12 AM Page 6

1Select the source for adjustment
Press the [SRC] button.
2Enter Audio Control mode
Press the [AUD] button for at least 1 second.
3Select the Audio item for adjustment
Press the [FM] or [AM] button.
Each time the button is pressed the items that can be adjusted
switch as shown below.
4Adjust the Audio item
Press the [4] or [¢] button.
Adjustment Item Display Range
Bass level "BAS" –8 — +8
Middle level "MID" –8 — +8
Treble level "TRE" –8 — +8
Balance "BL" Left 15 — Right 15
Fader "FD" Rear 15 — Front 15
5Exit Audio Control mode
Press the [AUD] button.
Audio Control
You can recall the best sound setting preset for different types of
the music.
1Select the source to set
Press the [SRC] button.
2Select the Sound type
Press the [Q] button.
Each time the button is pressed the sound setting switches.
Sound setting Display
Flat "FLAT"
Rock "ROCK"
Top 40 "TP40"
Pops "POPS"
Jazz "JAZZ"
Easy "EASY"
•Each setting value is changed with the <Speaker setting> (page
8).
First, select the speaker type with the Speaker setting.
•When the System Q setting is changed, the Bass, Middle, and
Treble set in audio control replace the System Q values.
System Q
Compensating for low and high tones during low volume.
Press the [LOUD] button for at least 1 second.
Each time the button is pressed for at least 1 second the
Loudness turns ON or OFF.
When it’s ON, "LOUD" indicator is ON.
Loudness
— 7 —
KDC-2027S_U.S 2003.09.22 10:12 AM Page 7

A red indicator will blink on the unit after the faceplate is
removed, warning potential thieves.
1Turn the power OFF
Press the [SRC] button for at least 1 second.
2Set the DSI
While pressing the [1] and [3] button, press the [SRC] button.
Each time the step 1 and 2 operation is done the DSI turns ON or
OFF.
DSI (Disabled System Indicator)
1Select the clock display
Press the [CLK] button.
2Enter clock adjustment mode
Press the [ADJ] button for at least 2 seconds.
The clock display blinks.
3Adjust the hours
Press the [FM] or [AM] button.
Adjust the minutes
Press the [4] or [¢] button.
4Exit clock adjustment mode
Press the [CLK] button.
Adjusting Clock
Press the [CLK] button.
Each time the button is pressed the clock display turns ON or
OFF.
Clock Display
Fine-tuning so that the System Q value is optimal when setting
the speaker type.
1Enter Standby
Press the [SRC] button.
Select the "STBY" display.
2Enter Speaker Setting mode
Press the [Q] button.
3Select the Speaker type
Press the [4] or [¢] button.
Each time the button is pressed the setting switches as shown
below.
Speaker type Display
OFF "SP-F"
For the OEM speaker "SP-O"
For 6 & 6x9 in. speaker "SP-6"
For 5 & 4 in. speaker "SP-5"
4Exit Speaker Setting mode
Press the [Q] button.
Speaker Setting
General features
— 8 —
English
KDC-2027S_U.S 2003.09.22 10:12 AM Page 8

Tuner features
— 9 —

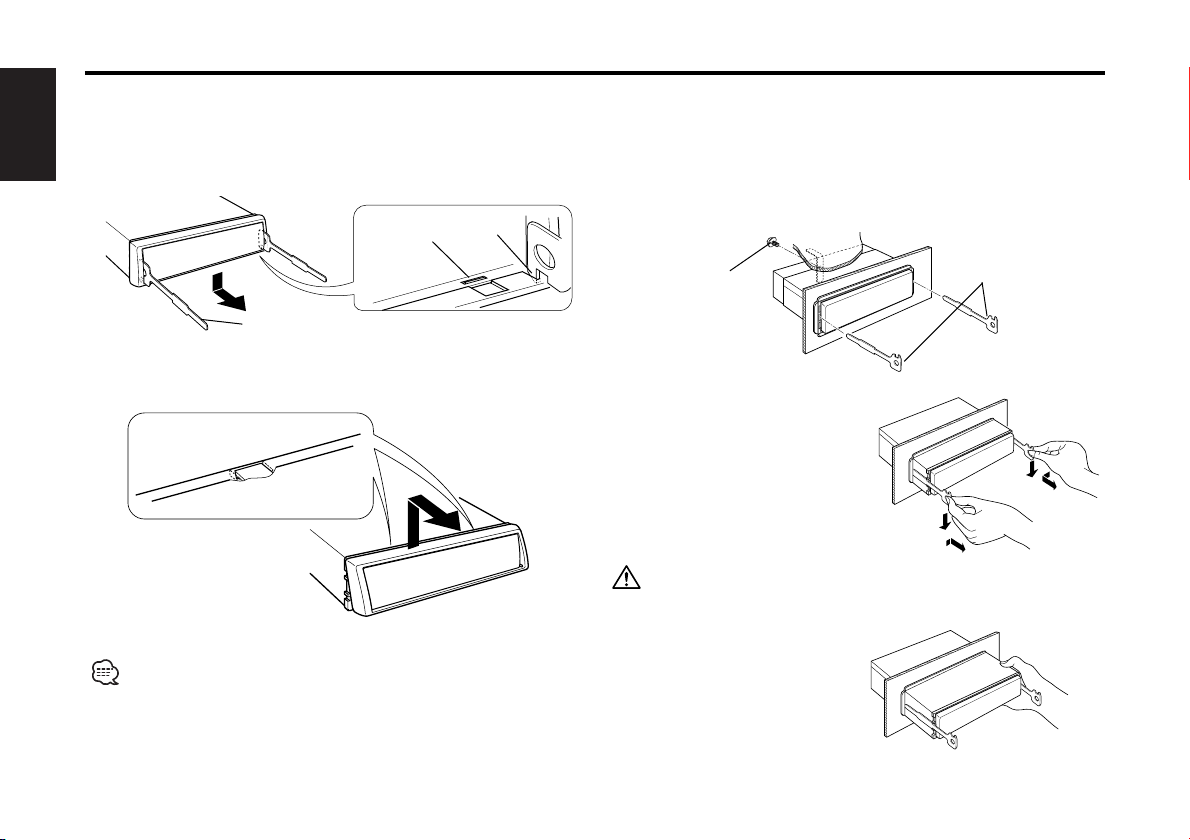

The faceplate of the unit can be detached and taken with you,
helping to deter theft.
Removing the Faceplate
Press the Release button.
The faceplate is unlocked, allowing you to detach it.
•The faceplate is a precision piece of equipment and can be
damaged by shocks or jolts. For that reason, keep the faceplate in
its special storage case while detached.
•Do not expose the faceplate or its storage case to direct sunlight
or excessive heat or humidity. Also avoid places with too much
dust or the possibility of water splashing.
Reattaching the Faceplate
1Align the projections on the unit with the grooves on the
faceplate.
2Push the faceplate in until it clicks.
The faceplate is locked in place, allowing you to use the unit.
Theft Deterrent Faceplate
MONO
CLK ADJ
AUTO
AME
SCAN
AUD RDM REP
OFF
LOUD
AM
FM/
MONO ¢4
SRC 1 - 6
AUTO/
AME
Monaural indicatorST indicator
Band display Preset station number Frequency display
AUTO indicator
KDC-2027S_U.S 2003.09.22 10:12 AM Page 9

Putting the station in the memory.
1Select the band
Press the [FM] or [AM] button.
2Select the frequency to put in the memory
Press the [4] or [¢] button.
3Put the frequency in the memory
Press the [1] — [6] button for at least 2 seconds.
The preset number display blinks 1 time.
On each band, 1 station can be put in the memory on each [1] —
[6] button.
Station Preset Memory
Noise can be reduced when stereo broadcasts are received as
monaural.
Press the [MONO] button for at least 1 second.
Each time the button is pressed for at least 1 second the
Monaural Reception turns ON or OFF.
When it's ON, the Monaural indicator is ON.
Monaural Reception
Selecting the station.
1Select tuner source
Press the [SRC] button.
Select the "TUnE" display.
2Select the band
Press the [FM] or [AM] button.
Each time the [FM] button is pressed it switches between the
FM1, FM2, and FM3 bands.
3Tune up or down band
Press the [4] or [¢] button.
During reception of stereo stations the "ST" indicator is ON.
Tuning
Choose the tuning mode.
Press the [AUTO] button.
Each time the button is pressed the Tuning mode switches as
shown below.
Tuning mode Display Operation
Auto seek "AUTO 1" Automatic search for a station.
indicator
Preset station "AUTO 2" Search in order of the stations
seek indicator in the Preset memory.
Manual — Normal manual tuning control.
Tuning Mode
Tuner features
— 10 —
English
KDC-2027S_U.S 2003.09.22 10:12 AM Page 10

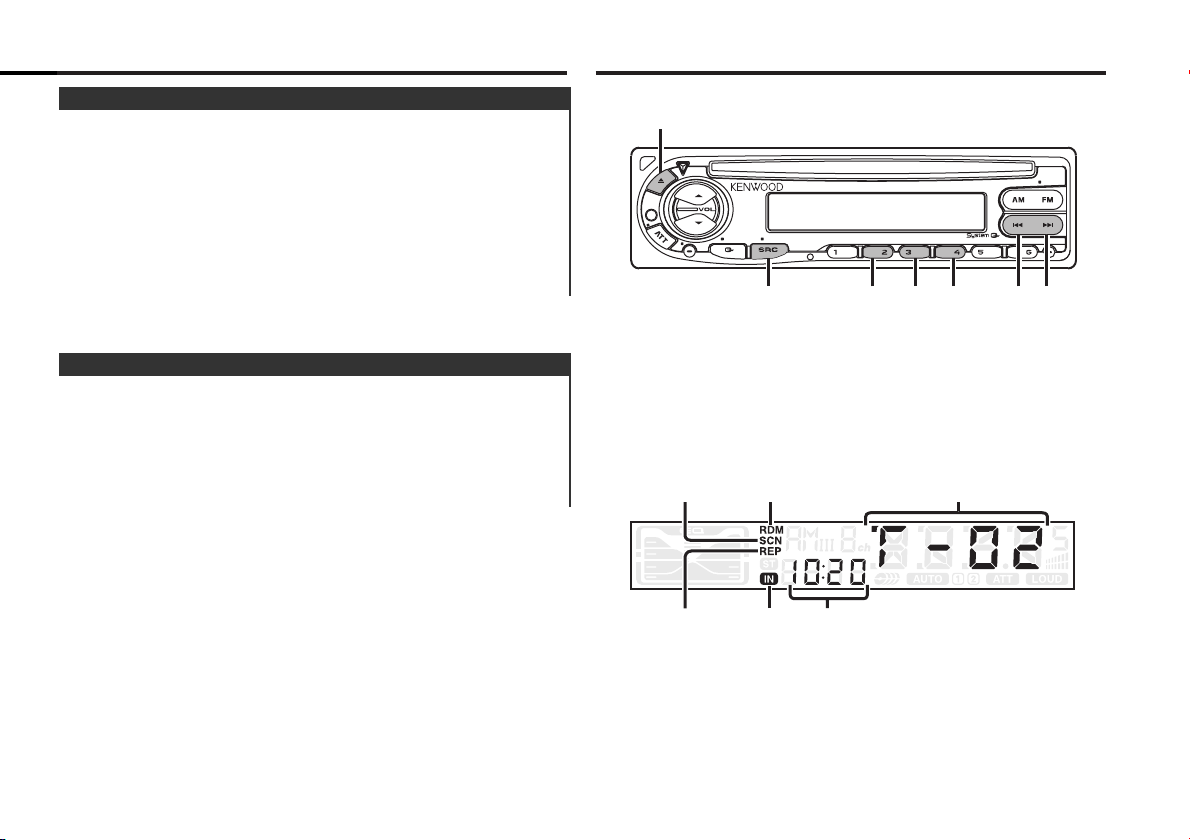

CD player features
— 11 —
Calling up the stations in the memory.
1Select the band
Press the [FM] or [AM] button.
2Call up the station
Press the [1] —[6] button.
Preset Tuning
Putting stations with good reception in the memory
automatically.
1Select the band for Auto Memory Entry
Press the [FM] or [AM] button.
2Open Auto Memory Entry
Press the [AME] button for at least 2 seconds.
When 6 stations that can be received are put in the memory
Auto Memory Entry closes.
Auto Memory Entry
MONO
CLK ADJ
AUTO
AME
SCAN
AUD RDM REP
OFF
LOUD
¢4
SCAN
0
RDM REP
SRC
RDM
indicator
SCN
indicator
REP indicator Track time
Track number
IN indicator
KDC-2027S_U.S 2003.09.22 10:12 AM Page 11

Playing all the songs on the disc in random order.
Press the [RDM] button.
Each time the button is pressed Random Play turns ON or OFF.
When it's ON, the "RDM" indicator is ON and the track number
blinks.
When the [¢] button is pressed, the next song select starts.
Random Play
Playing the first part of each song on the disc you are listening
to and searching for the song you want to listen to.
1Start Track Scan
Press the [SCAN] button.
"SCN" indicator is ON.
2Release it when the song you want to listen to is played
Press the [SCAN] button.
Track Scan
Replaying the song you're listening to.
Press the [REP] button.
Each time the button is pressed the Track Repeat turns ON or
OFF.
When it's ON, the "REP" indicator is ON.
Track Repeat
Selecting the song you want to hear.
Press the [4] or [¢] button.
Track Search
Fast Forwarding
Hold down on the [¢] button.
Release your finger to play the disc at that point.
Reversing
Hold down on the [4] button.
Release your finger to play the disc at that point.
Fast Forwarding and Reversing
When a CD is inserted
Press the [SRC] button.
Select the "CD" display.
When a CD is inserted, the "IN" indicator is ON.
Eject the CD
Press the [0] button.
3 in. (8cm) CD cannot be played. Using an adapter and inserting
them into this unit can cause damage.
Playing CD
CD player features
— 12 —
English
KDC-2027S_U.S 2003.09.22 10:12 AM Page 12

— 13 —
The use of any accessories except for those provided might result in
damage to the unit. Make sure only to use the accessories shipped with
the unit, as shown above.
..........................................1
..........................................2
..........................................1
1
2
3
External view Number of items
1. To prevent short circuits, remove the key from the ignition and
disconnect the - terminal of the battery.
2. Make the proper input and output wire connections for each unit.
3. Connect the wire on the wiring harness.
4. Take Connector B on the wiring harness and connect it to the
speaker connector in your vehicle.
5. Take Connector A on the wiring harness and connect it to the
external power connector on your vehicle.
6. Connect the wiring harness connector to the unit.
7. Install the unit in your car.
8. Reconnect the -terminal of the battery.
9. Press the reset button.
•If your car is not prepared for this special connection-system,
consult your Kenwood dealer.
•Only use antenna conversion adapters (ISO-JASO) when the
antenna cord has an ISO plug.
•Make sure that all wire connections are securely made by
inserting jacks until they lock completely.
•If your vehicle's ignition does not have an ACC position, or if the
ignition wire is connected to a power source with constant
voltage such as a battery wire, the power will not be linked with
the ignition (i.e., it will not turn on and off along with the
ignition). If you want to link the unit's power with the ignition,
connect the ignition wire to a power source that can be turned
on and off with the ignition key.
•If the fuse blows, first make sure that the wires have not caused
a short circuit, then replace the old fuse with one with the same
rating.
•Insulate unconnected wires with vinyl tape or other similar
material. To prevent short circuits, also do not remove the caps
on the ends of the unconnected wires or the terminals.
•Connect the speaker wires correctly to the terminals to which
they correspond. The unit may receive damage or fail to work if
you share the -wires and/or ground them to any metal part in
the car.
•After the unit is installed, check whether the brake lamps,
indicators, wipers, etc. on the car are working properly.
•If the console has a lid, make sure to install the unit so that the
faceplate does not hit the lid when closing and opening.
•Mount the unit so that the mounting angle is 30° or less.
2CAUTION
Accessories
Installation Procedure
KDC-2027S_U.S 2003.09.22 10:12 AM Page 13

English
— 14 —
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
TEL MUTE
P.CONT
ANT.CONT
REAR
L
R
Rear right output (Red)4
10
Rear left output (White)
Connector Function Guide
Pin Numbers for
ISO Connectors
Wire Color Functions
External Power
Connector
A–4
A–5
A–7
A–8
Speaker
Connector
B–1
B–2
B–3
B–4
B–5
B–6
B–7
B–8
Yellow
Blue/White
Red
Black
Purple
Purple/Black
Gray
Gray/Black
White
White/Black
Green
Green/Black
Battery
Power Control
Ignition (ACC)
Earth (Ground)
Connection
Rear Right (+)
Rear Right (–)
Front Right (+)
Front Right (–)
Front Left (+)
Front Left (–)
Rear Left (+)
Rear Left (–)
Battery wire (Yellow) 6
Ignition wire (Red) 7
FM/AM antenna
input 3
Antenna Cord (ISO) 1
Antenna Conversion Adaptor
(ISO–JASO) (Accessory3) 2
Wiring harness
(Accessory1) 16
If no connections are
made, do not let the wire
come out from the tab. 18
Power control/ Motor
antenna control wire
(Blue/White) 20 Connect either to the power
control terminal when using
the optional power amplifier,
or to the antenna control
terminal in the vehicle. 23
A–7 Pin (Red) 8
A–4 Pin (Yellow) 9
Connector A
Connector B
Fuse (10A) 13
Connecting Wires to Terminals
Not Used 19
Do not let the wire
come out from the
tab. 4b
See page 15
KDC-2027S_U.S 2003.09.22 10:12 AM Page 14

— 15 —— 15 —
Make sure that the unit is installed securely in place. If the unit is
unstable, it may malfunction (eg, the sound may skip).
Bend the tabs of the
mounting sleeve
with a screwdriver or
similar utensil and
attach it in place.
Metal mounting
strap
(commercially
available)
Self-tapping
screw
(commercially
available)
Firewall or metal support
■Installation
Screw (M4X8)
(commercially
available)
Installation

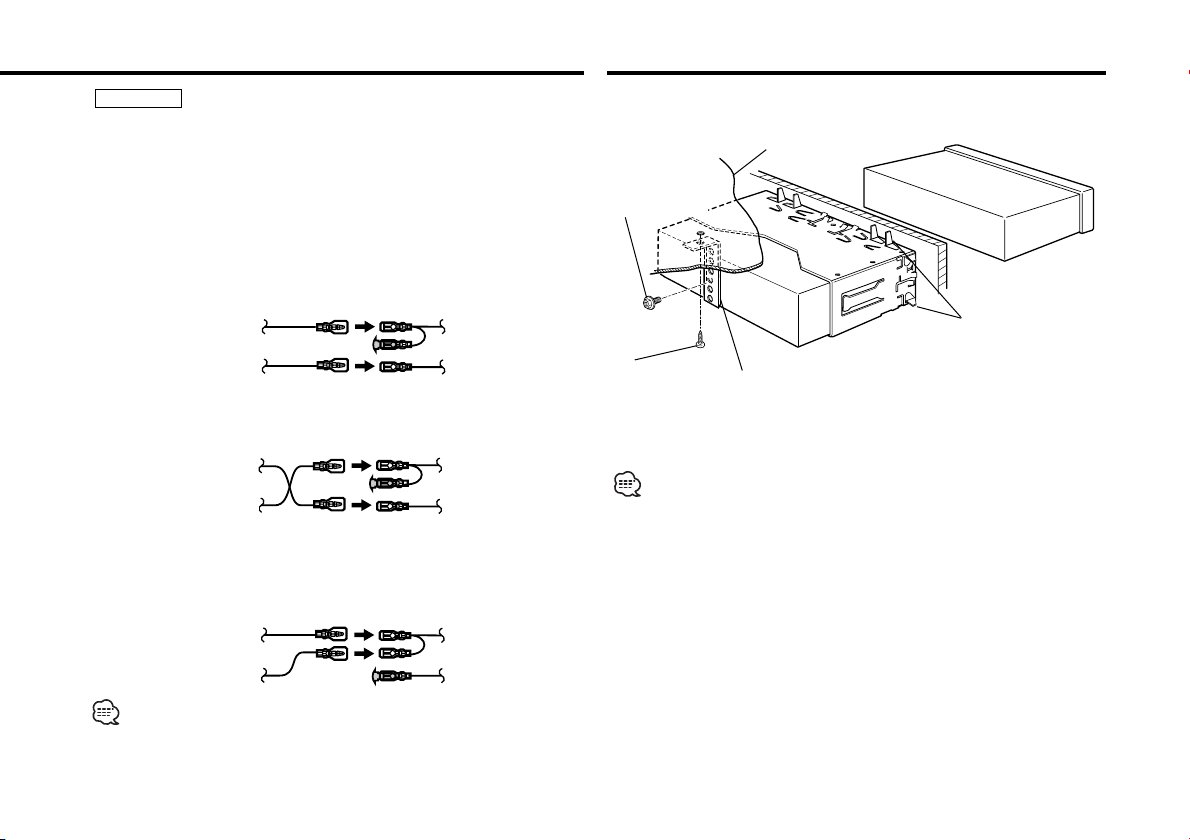

Connecting the ISO Connector (see p.14)
The pin arrangement for the ISO connectors depends on the type of
vehicle you drive. Make sure to make the proper connections to
prevent damage to the unit.
The default connection for the wiring harness is described in 1below.
If the ISO connector pins are set as described in 2or 3, make the
connection as illustrated.
Please be sure to reconnect the cable as shown 2below to
install this unit to the Volkswagen vehicles etc.
2WARNING
Unit Vehicle
Ignition cable (Red)
Battery cable (Yellow)
A–7 Pin (Red)
A–4 Pin (Yellow)
Unit Vehicle
Ignition cable (Red)
Battery cable (Yellow)
A–7 Pin (Red)
A–4 Pin (Yellow)
Unit Vehicle
Ignition cable (Red)
Battery cable (Yellow)
A–7 Pin (Red)
A–4 Pin (Yellow)
When the connection is made as in 3above, the unit's power will not
be linked to the ignition key. For that reason, always make sure to turn
off the unit's power when the ignition is turned off.
To link the unit's power to the ignition, connect the ignition cable
(ACC...red) to a power source that can be turned on and off with the
ignition key.
1(Default setting) The A-7 pin (red) of the vehicle's ISO connector
is linked with the ignition, and the A-4 pin (yellow) is connected to
the constant power supply.
2The A-7 pin (red) of the vehicle's ISO connector is connected to
the constant power supply, and the A-4 pin (yellow) is linked to
the ignition.
3The A-4 pin (yellow) of the vehicle's ISO connector is not
connected to anything, while the A-7 pin (red) is connected to the
constant power supply (or both the A-7 (red) and A-4 (yellow) pins
are connected to the constant power supply).
KDC-2027S_U.S 2003.09.22 10:12 AM Page 15

English
— 16 —— 16 —
■Removing the hard rubber frame
2When the lower level is removed, remove the upper two
locations.
The frame can be removed from the top side in the same manner.
Catch
Lock
1Engage the catch pins on the removal tool and remove the two
locks on the lower level.
Lower the frame and pull it forward as shown in the figure.
■Removing the Unit
4Lower the removal tool
toward the bottom, and pull
out the unit halfway while
pressing towards the inside.
5Pull the unit all the way out
with your hands, being
careful not to drop it.
Be careful to avoid injury from the catch pins on the removal tool.
1Refer to the section “Removing the hard rubber frame” and then
remove the hard rubber frame.
2Remove the screw (M4×8) on the back panel.
3Insert the two removal tools deeply into the slots on each side,
as shown.
Accessory2Removal tool
Accessory2Removal tool
Screw (M4X8)
(commercially
available)
Installation
KDC-2027S_U.S 2003.09.22 10:12 AM Page 16

— 17 —
What might seem to be a malfunction in your unit may
just be the result of slight misoperation or miswiring.
Before calling service, first check the following table
for possible problems.
General
?The power does not turn ON.01
✔The fuse has blown.
☞After checking for short circuits in the wires, replace the fuse with
one with the same rating.
✔No ACC position on vehicle ignition.02
☞Connect the same wire to the ignition as the battery wire.
?Nothing happens when the buttons are pressed.04
✔The computer chip in the unit is not functioning normally.
☞Press the reset button on the unit (page 4).
?There’s a source you can’t switch.06
✔There’s no CD inserted.
☞Set the media you want to listen to. If there’s no media in this
unit, you can't swhich to each source.
?The memory is erased when the ignition is turned OFF.10
✔The battery wire has not been connected to the proper terminal.
☞Connect the wire correctly, referring to the section on
<Connecting Wires to Terminals> (page 14).
✔The ignition and battery wire are incorrectly connected.11
☞Connect the wire correctly, referring to the section on
<Connecting Wires to Terminals> (page 14).
?Even if Loudness is turned ON, high-pitched tone isn't compensated
for. 17
✔Tuner source is selected.
☞High-pitched tone isn't compensated for when in Tuner source.
?No sound can be heard, or the volume is low.
✔The fader or balance settings are set all the way to one side.21
☞Center the fader and balance settings.
✔The input/output wires or wiring harness are connected incorrectly.22
☞Reconnect the input/output wires or the wiring harness correctly.
See the section on <Connecting Wires to Terminals> (page 14).
?The sound quality is poor or distorted.25
✔One of the speaker wires is being pinched by a screw in the car.
☞Check the speaker wiring.
✔The speakers are not wired correctly.27
☞Reconnect the speaker wires so that each output terminal is
connected to a different speaker.
?The Touch Sensor Tone doesn’t sound.34
✔The preout jack is being used.
☞The Touch Sensor Tone can’t be output from the preout jack.
Tuner source
?Radio reception is poor.39
✔The car antenna is not extended.
☞Pull the antenna out all the way.
✔The antenna control wire is not connected.40
☞Connect the wire correctly, referring to the section on
<Connecting Wires to Terminals> (page 14).
Troubleshooting Guide
KDC-2027S_U.S 2003.09.22 10:12 AM Page 17

— 18 —
English
?Track Search can't be done.66-2
✔For the albums first or last song.
☞For each album, Track Search can't be done in the backward
direction for the first song or in the forward direction for the last
song.
The messages shown below display your systems
condition.
E-04: The CD is quite dirty. The CD is upside-down. The CD
is scratched a lot.
➪Clean the CD and load it correctly.
IN (Blink): The CD player section is not operating properly.E59
➪Reinsert the CD. If the CD cannot be ejected or the
display continues to flash even when the CD has
been properly reinserted, please switch off the
power and consult your nearest service center.
Troubleshooting Guide
Disc source
?The specified disc does not play, but another one plays instead.52
✔The specified CD is quite dirty.
☞Clean the CD.
✔The CD is upside-down.53
☞Load the CD with the labeled side up.
✔The disc is severely scratched.55
☞Try another disc instead.
?The specified track will not play.58-a
✔Random play has been selected.
☞Turn off random play.
?Track repeat, track scan, and random play start by themselves.59-a
✔The setting is not canceled.
☞The settings for these functions remain on until the setting to off
or the disc ejected, even if the power is turned off or the source
changed.
?Cannot play CD-R or CD-RW.60
✔Finalization processing is not being conducted for CD-R/CD-RW.
☞Conduct finalization processing with CD recorder.
?A CD ejects as soon as it is loaded.62
✔The CD is upside-down.
☞Load the CD with the labeled side up.
✔The CD is quite dirty.63
☞Clean the CD, referring to the section on <CD cleaning> (page 5).
?Can’t remove disc.64
✔The cause is that more than 10 minutes has elapsed since the vehicle
ACC switch was turned OFF.
☞The disc can only be removed within 10 minutes of the ACC
switch being turned OFF. If more than 10 minutes has elapsed,
turn the ACC switch ON again and press the Eject button.
?The disc won’t insert.65
✔There’s already another disc inserted.
☞Press the [0] button and remove the disc.
KDC-2027S_U.S 2003.09.22 10:12 AM Page 18

— 19 —
Specifications
Specifications subject to change without notice.
FM tuner section
Frequency range (50 kHz space) ..............87.5 MHz – 108.0 MHz
Usable sensitivity (S/N = 26dB) .................................0.7 µV/75 Ω
Quieting Sensitivity (S/N = 46dB) ..............................1.6 µV/75 Ω
Frequency response (±3 dB).................................30 Hz – 15 kHz
Signal to Noise ratio (MONO)..............................................65 dB
Selectivity (DIN) (±400 kHz)..............................................≥80 dB
Stereo separation (1 kHz) ....................................................35 dB
MW tuner section
Frequency range (9 kHz space) .....................531 kHz – 1611 kHz
Usable sensitivity (S/N = 20dB) ...........................................25 µV
LW tuner section
Frequency range .............................................153 kHz – 281 kHz
Usable sensitivity (S/N = 20dB) ...........................................45 µV
CD player section
Laser diode .......................................................................GaAlAs
Digital filter (D/A)......................................8 Times Over Sampling
D/A Converter .......................................................................1 Bit
Spindle speed...............................................500 – 200 rpm (CLV)
Wow & Flutter........................................Below Measurable Limit
Frequency response (±1 dB).................................10 Hz – 20 kHz
Total harmonic distortion (1 kHz) ......................................0.01 %
Signal to Noise ratio (1 kHz) ................................................93 dB
Dynamic range ....................................................................93 dB
Channel separation..............................................................85 dB
Audio section
Maximum output power.................................................45 W x 4
Output power (DIN 45324, +B=14.4V)...........................28 W x 4
Tone action
Bass : ...............................................................100 Hz ±10 dB
Middle : ..............................................................1 kHz ±10 dB
Treble : .............................................................10 kHz ±10 dB
Preout level / Load (during disc play)....................2000 mV/10 kΩ
Preout impedance............................................................≤600 Ω
General
Operating voltage (11 – 16V allowable) ..............................14.4 V
Current consumption.............................................................10 A
Installation Size (W x H x D) ..........................182 x 53 x 155 mm
7-3/16 x 2-1/16 x 6-1/10 inch
Weight...................................................................3.1 lbs (1.4 kg)
KDC-2027S_U.S 2003.09.22 10:12 AM Page 19

— 20 —
Français
Table des matiéres
Précautions de sécurité............21
Au sujet des CD .......................23
Caractéristiques générales.......24
Alimentation
Sélectionner la source
Volume
Atténuateur
Bruit
System Q
Commande du son
Réglage des enceintes
Affichage de l'horloge
Régler l'horloge
DSI (Disabled System Indicator)
Façade antivol
Fonctions du tuner ...................27
Mode d'accord
Accord
Réception monaurale
Mémoire de station pré-réglée
Entrée en mémoire automatique
Accord pré-réglé
Caractéristiques du
lecteur CD ..............................29
Lire un CD
Avance rapide et retour
Recherche de plages
Répétition de plage
Balayage des plages
Lecture aléatoire
Accessoires...............................31
Procédure d’installation ...........31
Connexion des câbles sur les
prises......................................32
Installation ................................33
Guide de depannage .................35
Spécifications ...........................37
KDC-2027S_French 03.9.19 0:19 PM Page 20
