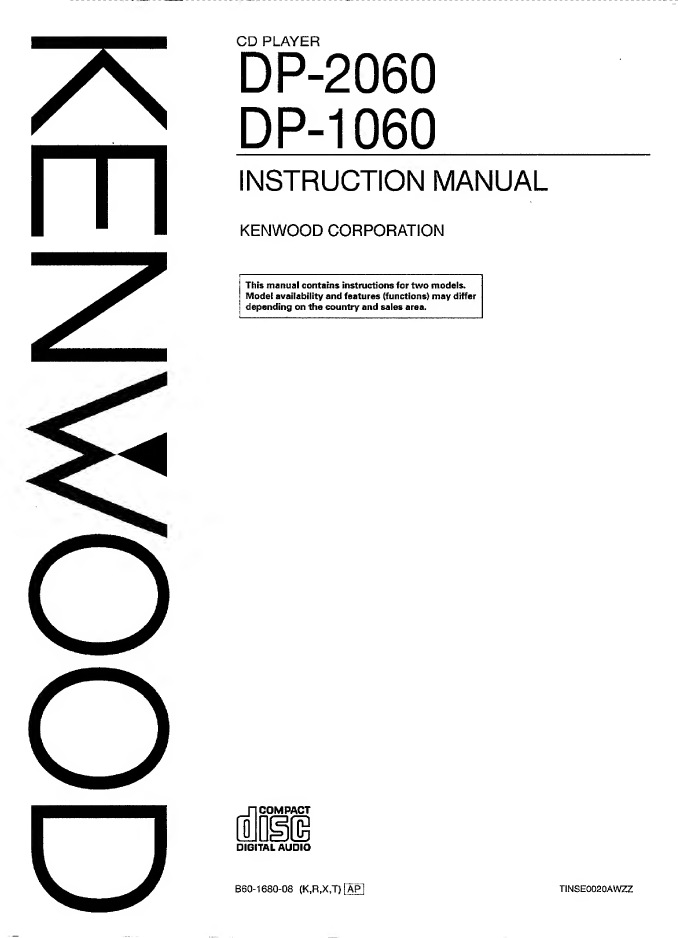

Kenwood Dp-2060 User manual

KENWOOD

CD

PLAYER

DP-2060

DP-1060

INSTRUCTION

MANUAL

KENWOOD

CORPORATION

This

manual

contains

instructions

for

two

models.

Model

availability

and

features

(functions)

may

differ

depending

on

the

country

and

sales

area.

lolnai^

DIGITAL

AUDIO

B60-1680-08

(K.R,X.T)

IXP

TINSE0020AWZZ

Introduction

Your

choice

of

this

product

indicates

that

you

are

a

devotee

to

excellence

in

sound

reproduction.

We

appreciate

your

patronage

and

take

pride

in

the

long

tradi¬

tion

of

quality

components

that

our

company

represents.

So

that

you

can

get

the

most

out

of

your

unit,

we

suggest

that

you

take

the

time

to

read

through

this

manual

before

you

hook

up

and

operate

your

system.

This

will

acquaint

you

with

oper¬

ating

features

and

system-connection

considerations

so

that

your

listening

pleasure

will

be

enhanced

right

from

the

start.

You

will

notice

that

in

all

aspects

of

planning,

engineering,

styling,

operating

convenience

and

adaptability

we

have

sought

to

anticipate

your

needs

and

desires.

Keep

this

manual

handy

for

future

reference.

For

your

records

Record

the

serial

number,

found

on

the

back

of

the

unit,

in

the

spaces

designated

on

the

warranty

card,

and

in

the

space

provided

below.

Refer

to

the

model

and

serial

numbers

whenever

you

call

upon

your

dealer

for

information

or

service

on

this

product.

Model_

Serial

Number_

Unpacking

Unpack

the

unit

carefully

and

make

sure

that

all

accessories

are

put

aside

so

they

will

not

be

lost.

Examine

the

unit

for

any

possibility

of

shipping

damage.

If

your

unit

is

damaged

or

fails

to

operate,

notify

your

dealer

immediately.

If

your

unit

was

shipped

to

you

directly,

notify

the

shipping

company

without

delay.

Only

the

consignee

(the

person

or

company

receiving

the

unit!

can

file

a

claim

against

the

carrier

for

shipping

damage.

We

recommend

that

you

retain

the

original

carton

and

pack¬

ing

materials

for

use

should

you

transport

or

ship

the

unit

in

the

future.

The

marking

of

products

using

lasers

(Except

for

some

areas.)

I

CLASS

1

LASER

PRODUCT

The

label

is

attached

to

the

rear

panel

and

says

that

the

com-ponent

uses

laser

beams

that

have

been

classified

as

Class

1.

It

means

that

the

unit

is

utilizing

laser

beams

that

are

of

a

weaker

class.

There

is

no

danger

of

hazardous

radiation

outside

the

unit.

For

the

U.S.A.

_

CAUTION:

Use

of

controls

or

adjustments

or

performance

of

procedures

other

than

those

specified

herein

may

result

in

hazardous

radiation

exposure.

In

compliance

with

Federal

Regulations,

following

are

reproductions

of

labels

on,

or

inside

the

product

relating

to

laser

product

safety.

PKENWOOD

CORPORATION

I

2967-3,

ISHIKAWA-CHO,

I

I

HACHIOJI-SHI,

I

[

TOKYO,

JAPAN

j

f

(ENWOOD

CORP.

CERTIFIES

THIS

EQUIPMENT^

j

I

CONFORMSTODHHS

REGULATIONS

NO.

21

I

II

CFR

1040.10,

CHAPTER

I,

SUBCHAPTER

J.

Jj

lP

_-_p

j

Location;

Back

Pane!

Contents

Caution:

Read

the

pages

marked

A

carefully

to

ensure

safe

operation.

Introduction......

Special

features.

3

A

Before

applying

power...3

A

Safety

precautions........3

A

IMPORTANT

SAFEGUARDS..

4

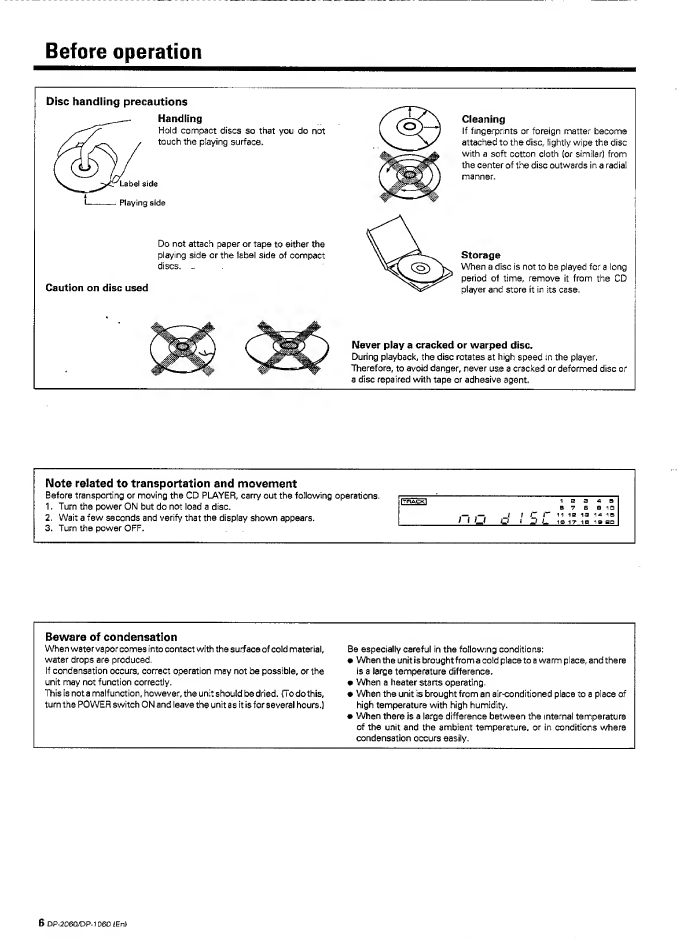

Before

operation.

6

System

connections.

...7

Controls

and

indicators.......

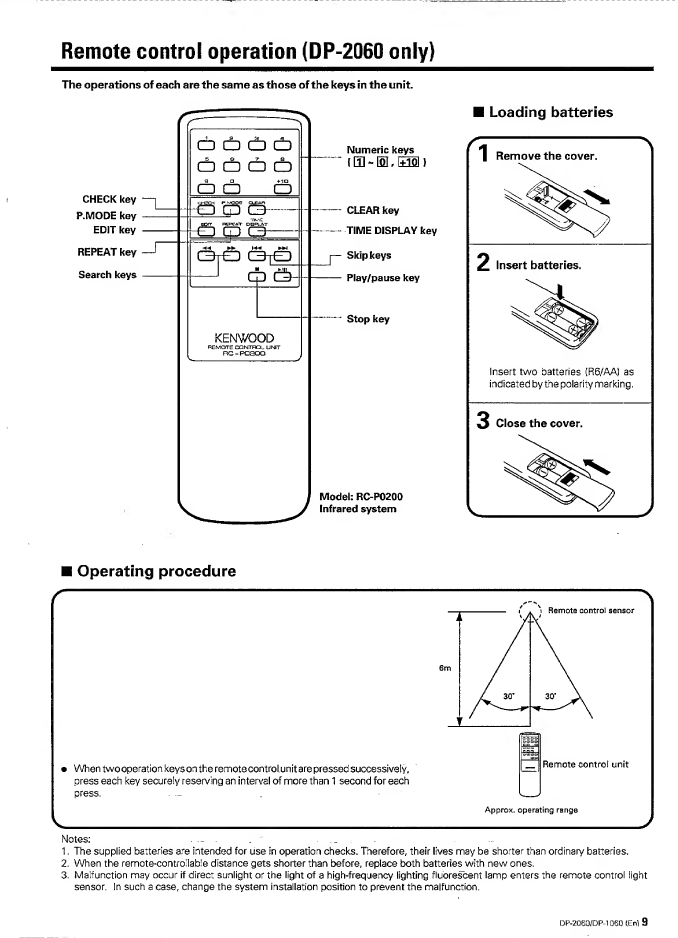

Remote

control

operation

(DP-2060

only].9

Normal

playback

(TRACK

mode)...10

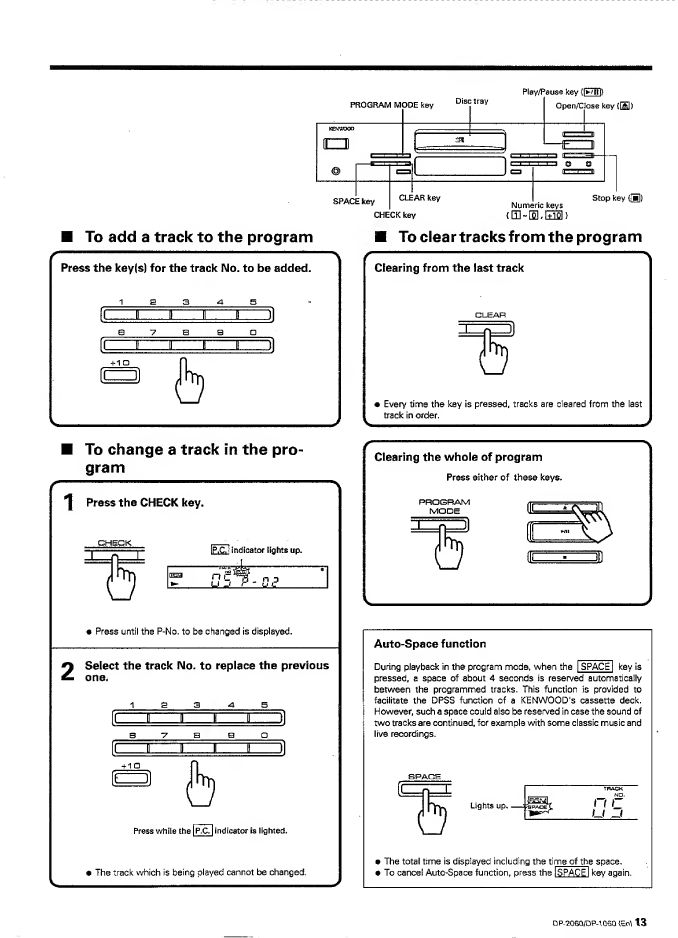

Programmed

playback

(PGM

mode).12

Editing

(CCRS)...

...14

Repeated

playback...

...16

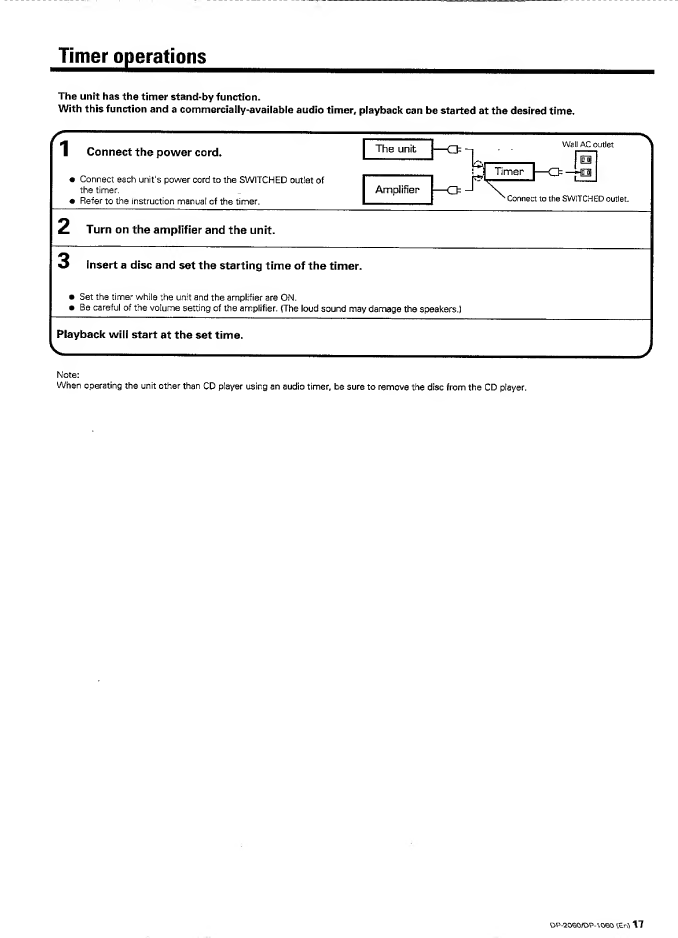

Timer

operations.

...

17

In

case

of

difficulty.

...18.

Specifications.19

2

DP-20eWDP.W60

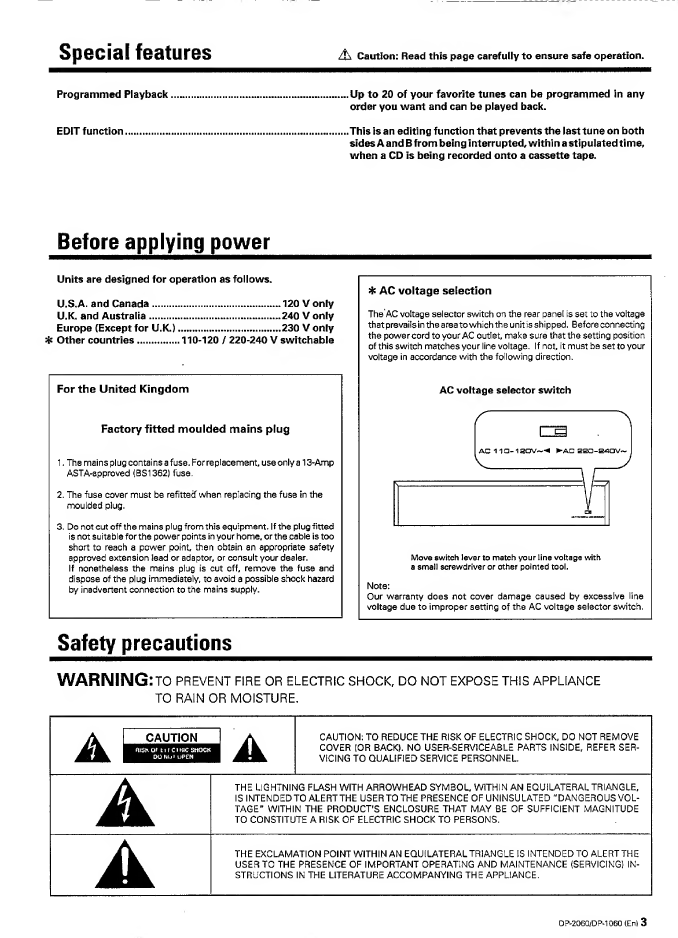

Special

features

zti

Caution:

Read

this

page

carefully

to

ensure

safe

operation.

Programmed

Playback.Up

to

20

of

your

favorite

tunes

can

be

programmed

in

any

order

you

want

and

can

be

played

back.

EDIT

function...This

is

an

editing

function

that

prevents

the

last

tune

on

both

sides

A

and

B

from

being

interrupted,

within

a

stipulated

time,

when

a

CD

is

being

recorded

onto

a

cassette

tape.

Before

applying

power

Units

are

designed

for

operation

as

follows.

U.S.A.

and

Canada.120

V

only

U.K.

and

Australia.240

V

only

Europe

(Except

for

U.K.).230

V

only

^

Other

countries.110-120

/

220-240

V

switchable

For

the

United

Kingdom

Factory

fitted

moulded

mains

plug

1.

The

mains

plug

contains

a

fuse.

For

replacement,

use

only

a

13-Amp

ASTA-approved

(BS1362)

fuse.

2.

The

fuse

cover

must

be

refitted"

when

replacing

the

fuse

in

the

moulded

plug,

3.

Do

not

cut

off

the

mains

plug

from

this

equipment.

If

the

plug

fitted

is

not

suitable

for

the

power

points

in

your

home,

or

the

cable

is

too

short

to

reach

a

power

point,

then

obtain

an

appropriate

safety

approved

extension

lead

or

adaptor,

or

consult

your

dealer.

If

nonetheless

the

mains

plug

is

cut

off,

remove

the

fuse

and

dispose

of

the

plug

immediately,

to

avoid

a

possible

shock

hazard

by

inadvertent

connection

to

the

mains

supply.

4:

AC

voltage

selection

The'AC

voltage

selector

switch

on

the

rear

panel

is

set

to

the

voltage

that

prevails

in

the

area

to

which

the

unit

is

shipped.

Before

connecting

the

powercord

to

your

AC

outlet,

make

sure

that

the

setting

position

of

this

switch

matches

your

line

voltage.

If

not,

it

must

be

set

to

your

voltage

in

accordance

with

the

following

direction.

AC

voltage

selector

switch

Move

switch

lever

to

match

your

line

voltage

with

a

small

screwdriver

or

other

pointed

tool.

Note:

Our

warranty

does

not

cover

damage

caused

by

excessive

line

voltage

due

to

improper

setting

of

the

AC

voltage

selector

switch,

Safety

precautions

WARNING:

TO

prevent

fire

or

electric

shock,

do

not

expose

this

appliance

TO

RAIN

OR

MOISTURE.

A

CAUTION:

TO

REDUCE

THE

RISK

OF

ELECTRIC

SHOCK,

DO

NOT

REMOVE

COVER

(OR

BACK).

NO

USER-SERVICEABLE

PARTS

INSIDE,

REFER

SER¬

VICING

TO

QUALIFIED

SERVICE

PERSONNEL,

A

THE

LIGHTNING

FLASH

WITH

ARROWHEAD

SYMBOL,

WITHIN

AN

EQUILATERAL

TRIANGLE,

IS

INTENDED

TO

ALERT

THE

USER

TO

THE

PRESENCE

OF

UNINSULATED

"DANGEROUS

VOL¬

TAGE"

WITHIN

THE

PRODUCT'S

ENCLOSURE

THAT

MAY

BE

OF

SUFFICIENT

MAGNITUDE

TO

CONSTITUTE

A

RISK

OF

ELECTRIC

SHOCK

TO

PERSONS.

i

k

THE

EXCLAMATION

POINTWITHINAN

EQUILATERAL

TRIANGLE

IS

INTENDED

TO

ALERT

THE

USER

TO

THE

PRESENCE

OF

IMPORTANT

OPERATING

AND

MAINTENANCE

(SERVICING)

IN¬

STRUCTIONS

IN

THE

LITERATURE

ACCOMPANYING

THE

APPLIANCE.

DP-2060/OP-1060

tEn)

3

Caution:

Read

this

page

carefully

to

ensure

safe

operation.

Please

read

all

of

the

safety

and

operating

instructions

before

operating

this

appliance.

Adhere

to

all

warnings

on

the

appliance

and

in

the

instruction

manual.

Follow

ali

the

safety

and

operating

instructions.These

safety

and

operating

instructions

should

be

retained

for

future

reference.

1.

Power

sources

-

The

appliance

should

be

connected

to

a

power

supply

only

of

the

type

described

in

the

instruction

manual

or

as

marked

on

the

appliance.

If

you

are

not

sure

of

the

type

of

power

supply

to

your

home,

consult

your

appliance

dealer

or

local

power

company.

For

appliances

intended

to

operate

from

battery

power,

or

other

sources,

refer

to

the

instruction

manual.

2.

Power-cord

protection

-

Power-supply

cords

should

be

routed

so

that

they

are

not

likely

to

be

walked

on

or

pinched

by

items

placed

upon

or

against

them,

paying

particular

attention

to

cords

at

plugs,

convenience

receptacles,

and

the

point

where

they

exit

from

the

appliance.

Never

pull

or

stretch

the

cord.

3.

CAUTION

-

Polarization

-

This

appliance

may

be

equipped

with

a

polarized

alternating-current

line

plug

(a

plug

having

one

blade

wider

than

the

other).

This

plug

will

fit

into

the

power

outlet

only

one

way.

This

is

a

safety

feature.

If

you

are

unable

to

insert

the

plug

fully

into

the

outlet,

try

reversing

the

plug.

If

the

plug

should

still

fail

to

fit,

contact

your

electrician

to

replace

your

obsolete

outlet.

Do

not

defeat

the

safety

purpose

of

the

polarized

plug.

4.

Ventilation

-

Slots

and

openings

in

the

cabinet

are

provided

for

ventilation

and

to

ensure

reliable

operation

of

the

appliance

and

to

protect

it

from

overheating,

and

these

openings

must

not

be

blocked

or

covered.

Th.e

appliance

should

be

situated

so

that

its

location

or

position

does

not

interfere

with

its

proper

ventilation.

To

maintain

good

ventilation,

do

not

put

records

or

a

table¬

cloth

on

the

appliance.

Place

the

appliance

at

least

10

cm

away

from

the

wails.

Do

not

use

the

appliance

on

a

bed,

sofa,

rug

or

similar

surface

that

may

block

the

ventilation

openings.

This

appliance

should

not

be

placed

in

a

built-in

installation

such

as

a

bookcase

or

rack

unless

proper

ventilation

is

provided

or

the

manufacturer's

instructions

have

been

adhered

to.

5.

Water

and

moisture

-

The

appliance

should

not

be

used

near

water

-

for

example,

near

a

bathtub,

washbowl,

kitchen

sink,

laundry

tub,

in

a

wet

basement,

or

near

a

swimming

pool,

etc.

6.

Temperature

-

The

appliance

may

not

function

properly

if

used

at

extremely

low,

or

freezing

temperatures.

The

ideal

ambient

temperature

is

above

+5°C

(41

“F).

7.

Heat

-

The

appliance

should

be

situated

away

from

heat

sources

such

as

radiators,

heat

registers,

stoves,

or

other

appliances

{including

amplifiers)

that

produce

heat.

8.

Electric

shock-

Care

should

be

taken

so

that

objects

do

not

fall

and

liquid

is

not

spilled

into

the

enclosure

through

openings,

if

a

metal

objects,

such

as

a

hair

pin

ora

needie,

comes

fnto

contact

with

the

inside

of

this

appliance,

a

dangerous

electric

shock

may

result.

For

families

with

children,

never

permit

children

to

put

anything,

especially

metal,

inside

this

appliance.

9.

Enclosure

removal

-

Never

remove

the

enclosure.

If

the

internal

parts

are

touched

accidentally,

a

serious

electric

shock

might

occur.

10.

M

a

gnetic

fields

-

Keep

the

appliance

away

from

sources

of

magnetic

fields

such

as

TV

sets,

speaker

systems,

radios,

motorized

toys

or

magnetized

objects.

11.

C

leaning

-

Unplug

this

appliance

from

the

wall

outlet

before

cleaning.

Do

not

use

volatile

solvents

such

as

alcohol,

paint

thinner,

gasoline,

or

benzine,

etc.

to

clean

the

cabinet.

Use

a

clean

dry

cloth.

12.

Accessories

-

Do

not

place

this

appliance

on

an

unstable

cart,

stand,

tripod,

bracket,

or

table.

The

appliance

mayfall,

causing

serious

injury

to

a

child

or

adult,

and

serious

damage

to

the

appliance.

Use

only

with

a

cart,

stand,

tripod,

bracket,

or

table

recommended

by

the

manufacturer,

or

sold

with

the

appliance.

Any

mounting

of

the

appliance

should

follow

the

manufacturer's

instructions,

and

should

use

a

mounting

accessory

recommended

by

the

manufacturer.

An

appliance

and

cart

combination

should

be

moved

with

care.

Quick

stops,

excessive

force,

and

uneven

surfaces

may

cause

the

appliance

and

cart

combination

to

overturn.

4

DP-206G'DP-7060

(En)

ZK

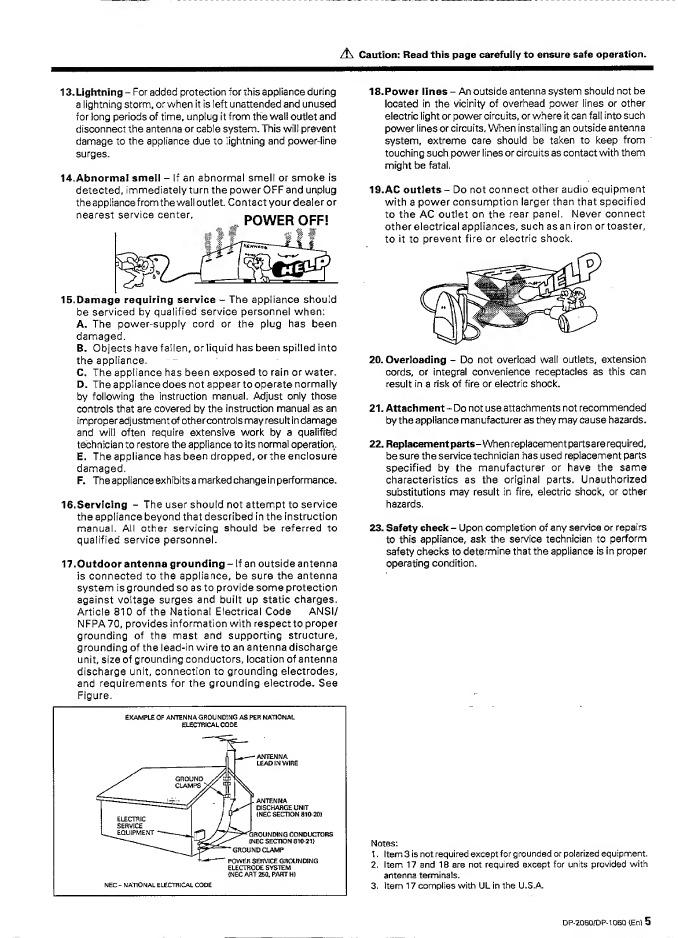

Caution:

Read

this

page

carefully

to

ensure

safe

operation.

13.

Lightning

-

For

added

protection

for

this

appliance

during

a

lightning

storm,

or

when

it

is

left

unattended

and

unused

for

long

periods

of

time,

unplug

it

from

the

wall

outlet

and

disconnect

the

antenna

or

cable

system.

This

will

prevent

damage

to

the

appliance

due

to

lightning

and

power-line

surges.

14.

A

bnormal

smell

-

If

an

abnormal

smell

or

smoke

is

detected,

immediately

turn

the

power

OFF

and

unplug

theappliance

from

the

wall

outlet.

Contact

your

dealer

or

nearest

service

center.

POWER

OFF*

15.Damage

requiring

service

-

The

appliance

should

be

serviced

by

qualified

service

personnel

when:

A.

The

power-supply

cord

or

the

plug

has

been

damaged.

B.

Objects

have

fallen,

or

liquid

has

been

spilled

into

theappliance.

C.

The

appliance

has

been

exposed

to

rain

or

water.

D.

The

appliance

does

not

appear

to

operate

normally

by

following

the

instruction

manual.

Adjust

only

those

controls

that

are

covered

by

the

instruction

manual

as

an

improper

adjustment

of

othercontrols

may

result

in

damage

and

will

often

require

extensive

work

by

a

qualified

technician

to

restore

the

appliance

to

its

normal

operation.

E.

The

appliance

has

been

dropped,

or

the

enclosure

damaged.

F.

The

appliance

exhibits

a

marked

change

in

performance.

le.Servicing

-

The

user

should

not

attempt

to

service

the

appliance

beyond

that

described

in

the

instruction

manual.

All

other

servicing

should

be

referred

to

qualified

service

personnel.

17.Outdoor

antenna

grounding

-

If

an

outside

antenna

is

connected

to

the

appliance,

be

sure

the

antenna

system

is

grounded

so

as

to

provide

some

protection

against

voltage

surges

and

built

up

static

charges.

Article

810

of

the

National

Electrical

Code

ANSI/

NFPA70,

provides

information

with

respect

to

proper

grounding

of

the

mast

and

supporting

structure,

grounding

of

the

lead-in

wire

to

an

antenna

discharge

unit,

size

of

grounding

conductors,

location

of

antenna

discharge

unit,

connection

to

grounding

electrodes,

and

requirements

for

the

grounding

electrode.

See

Figure.

18.

P

o

wer

lines

-

An

outside

antenna

system

should

not

be

located

in

the

vicinity

of

overhead

power

lines

or

other

electric

light

or

power

circuits,

or

where

it

can

fall

into

such

power

lines

or

circuits,

When

installing

an

outside

antenna

system,

extreme

care

should

be

taken

to

keep

from

touching

such

power

lines

or

circuits

as

contact

with

them

might

be

fatal.

19.

A

C

outlets

-

Do

not

connect

other

audio

equipment

with

a

power

consumption

larger

than

that

specified

to

the

AC

outlet

on

the

rear

panel.

Never

connect

other

electrical

appliances,

such

asan

iron

or

toaster,

to

it

to

prevent

fire

or

electric

shock.

20.

Overloading

-

Do

not

overload

wall

outlets,

extension

cords,

or

integral

convenience

receptacles

as

this

can

result

in

a

risk

of

fire

or

electric

shock.

21.

Attachment

-

Do

not

use

attachments

not

recommended

by

theappliance

manufacturer

as

they

may

cause

hazards.

22.

Replacementparts-When

replacement

partsare

required,

be

sure

the

service

technician

has

used

replacement

parts

specified

by

the

manufacturer

or

have

the

same

characteristics

as

the

original

parts.

Unauthorized

substitutions

may

result

in

fire,

electric

shock,

or

other

hazards.

23.

Safety

check

-

Upon

completion

of

any

service

or

repairs

to

this

appliance,

ask

the

service

technician

to

perform

safety

checks

to

determine

that

the

appliance

is

in

proper

operating

condition.

Notes:

1.

Item

3

is

not

required

except

for

grounded

or

polarized

equipment.

2.

Item

17

and

18

are

not

required

except

for

units

provided

with

antenna

terminals.

3.

Item

17

complies

with

UL

in

the

U.S.A.

DP-2060rDP-toeQ

tEnl

5

Before

operation

Disc

handling

precautions

Handling

Hold

compact

discs

so

that

you

do

not

touch

the

playing

surface.

Do

not

attach

paper

or

tape

to

either

the

playing

side

or

the

label

side

of

compact

discs,

Caution

on

disc

used

Cleaning

If

fingerprints

or

foreign

matter

become

attached

to

the

disc,

lightly

wipe

the

disc

with

a

soft

cotton

cloth

(or

similar)

from

the

center

of

the

disc

outwards

in

a

radial

Storage

When

a

disc

is

not

to

be

played

for

a

long

period

of

time,

remove

it

from

the

CD

player

and

store

it

in

its

case.

Never

play

a

cracked

or

warped

disc.

During

playback,

the

disc

rotates

at

high

speed

in

the

player.

Therefore,

to

avoid

danger,

never

use

a

cracked

or

deformed

disc

or

a

disc

repaired

with

tape

or

adhesive

agent.

Note

related

to

transportation

and

movement

Before

transporting

or

moving

the

CD

PLAYER,

carry

out

the

following

operations.

1.

Turn

the

power

ON

but

do

not

load

a

disc.

2.

Wait

a

few

seconds

and

verify

that

the

display

shown

appears.

3.

Turn

the

power

OFF.

2

L

Beware

of

condensation

When

water

vapor

comes

into

contact

with

the

surface

of

cold

material,

water

drops

are

produced.

If

condensation

occurs,

correct

operation

may

not

be

possible,

or

the

unit

may

not

function

correctly.

This

is

nota

malfunction,

however,

the

unit

should

be

dried.

(Todothis,

turn

the

POWER

switch

ON

and

leave

the

unit

a

s

it

is

for

several

hours.)

Be

especially

careful

in

the

following

conditions:

•

When

the

unit

is

brought

from

a

cold

place

to

a

warm

place,

and

there

is

a

large

temperature

difference.

•

When

a

heater

starts

operating.

•

When

the

unit

is

brought

from

an

air-conditioned

place

to

a

place

of

high

temperature

with

high

humidity.

•

When

there

is

a

large

difference

between

the

internal

temperature

of

the

unit

and

the

ambient

temperature,

or

in

conditions

where

condensation

occurs

easily.

6

DP-206Q/DP-1060

(En)

System

connections

Make

connections

as

shown

below.

When

connecting

the

related

system

components,

refer

also

to

the

instruction

manuals

of

the

related

components.

Do

not

plug

in

the

power

lead

until

all

connections

are

completed.

CCRS

By

connecting

the

SYSTEM

CONTROL

terminal

of

this

unit

with

the

‘

rxs],rxs:81

"

system

control

terminal

of

a

KENWOOD

cassete

deck,

CCRS

recording

can

be

carried

out.

The

CCRS

function

is

used

when

recording

from

a

CD

to

a

tape

in

a

’

cassette

deck,

and

operates

to

adjust

the

cassette

deck's

recording

level

to

the

optimum

setting

according

to

the

playing

level

of

the

CD.

For

details

on

the

CCRS

function,

refer

to

the

instruction

manual

provided

with

your

cassette

deck.

System

control

connection

When

connected

to

an

amplifier

or

receiver

having

KENWOOD

SYSTEM

CONTROL

terminals,

system

operation

such

as

remote

control

is

made

possible.

For

details,

refer

to

the

instruction

manual

of

the

amplifier

or

receiver.

If

your

amplif

er

or

receiver

is

not

equipped

with

the

SYSTEM

CON¬

TROL

terminals,

do

not

connect

anything

to

any

SYSTEM

CONTROL

terminals.

Do

not

connect

the

unit

in

any

system

configuration

other

than

specified.

I

X

lO_

m

1113

1110=

p

llp

MDzz

•

Be

sure

to

insert

the

system

control

cord

plugs

fully

into

the

SYSTEM

CONTROL

terminals.

•

If

the

system

control

cord

and

audio

cords

are

not

connected

properly,

the

automatic

system

governing

remote

control

and

system

functions

will

not

operate.

Notes:

1.

Connect

all

cords

firmly,

If

connections

are

loose,

there

could

be

loss

of

sound

or

noise

produced.

2.

When

plugging

and

unplugging

connection

cords,

be

sure

to

first

remove

the

power

cord

from

the

AC

outlet.

Plugging/unplugging

connection

cords

without

removal

of

the

power

cord

can

cause

malfunctions

or

damage

to

the

unit.

DP-2060/DP-tC60

7

Controls

and

indicators

8

£)P-20SOyDP-)060

lEn)

Remote

control

operation

(DP-2060

only)

The

operations

of

each

are

the

same

as

those

of

the

keys

in

the

unit.

CHECK

key

P.MODE

key

EDIT

key

REPEAT

key

Search

keys

■

Loading

batteries

■

Operating

procedure

Notes;

.

.

.

■

,

.

1.

The

supplied

batteries

are

intended

for

use

in

operation

checks.

Therefore,

their

lives

may

be

shorter

than

ordinary

batteries.

2.

When

the

remote-controllable

distance

gets

shorter

than

before,

replace

both

batteries

with

new

ones.

3.

Malfunction

may

occur

if

direct

sunlight

or

the

light

of

a

high-frequency

lighting

fluorescent

lamp

enters

the

remote

control

light

sensor.

In

such

a

case,

change

the

system

installation

position

to

prevent

the

malfunction.

DP-2Q60/DP-1060

tEnl

9

Normal

playback

(TRACK

mode)

■

Playing

a

CD

from

the

beginning

(TRACK

mode)

TIME

DISPLAY

key

^^

Press

the

ITIME

DISPLAYl

key

when

you

want

to

check

the

elapsed

time

and

remaining

time

of

the

track

being

played.

Every

time

the

lTIMEDISPLAYl

key

is

pressed,

the

displayed

time

changes

as

shown

below.

The

time

information

display

may

not

appear

when

playing

a

CD

containing

44

or

more

tracks.

In

such

a

case,

the

display

(remaining

SINGLE

TIME)

will

show

"—:—

1

SINGLE/TOTAL

TIME

display

Elapsed

time

Remaining

time

Elapsed

time

Remaining

time

liTh

”’°l

f

being

played

being

played

CD

CD

1

1

Time

display

examples

..

1D

DP-206CVDP-1060

(£n)

■

Listening

from

the

desired

track

Notes:

1.

If

a

track

No.

which

is

not

present

on

the

CD

is

selected

while

the

tray

is

open,

the

last

track

on

the

CD

will

be

played.

2.

Such

a

selection

is

not

accepted

after

the

tray

has

been

closed

or

playback

has

started.

Select

with

the

search

key.

Press

the

forward

([^3)

or

reverse

{search

key

according

to

the

direction

to

search.

^

e

The

track

will

start

to

play

from

where

you

release

the

key.

J

Select

with

the

numeric

keys.

1

Ensure

that

the

CD

player

is

in

the

TRACK

mode.

I

TRACK

I

indicator

Lights

up.

*

If

the

|PGM

l

indicators

is

lighted,

press

the

FrOGRAM

MODEl

k

ey.

2

Select

the

desired

track.

ir.ir.

II.

T

.)l

B

V

e

0

O

(|__1J-L_

.

c

;

:

j)

+TU

n

a

K

Examples

of

input

\_./

Track

No.

23:

Eifll

SS

I

Track

No.

40:

01

BQE

ElS

S®

M

I

Play

starts

from

the

selected

tune

and

after.

r

Select

with

the

skip

key.

^

Press

one

of

the

skip

(

|h»s|

,

keys

according

to

the

direction

to

skip.

•

The

tunes

are

skipped

in

the

direction

of

the

key

and

the

play

starts

at

the

begi

nning

of

the

selected

tune.

•

When

the

\i

«\

k

ey

is

pressed

once

during

play,

the

track

starts

again

from

the

beginning.

To

use

the

headphone

Connect

commercially-available

stereo

headphones

to

the

PHONES

jack

for

private

listening.

DP-206CI/DP-tQ60

tErt

11

Programmed

playback

(PGM

mode)

Up

to

20

tunes

can

be

programmed

in

the

desired

order

and

can

be

played.

■

Playing

desired

tracks

in

desired

order

(PGM

mode)

’I

Enter

the

PGM

mode.

|

|

To

check

the

programmed

contents

Press

the

|

PROGRAM

MODE|

key.

I

1

IPGMI

indicator

lights

up.

The

SINGLE

TIME

display

.changes

to

TOTAL

TIME

display.

2

Program

desired

tracks

in

desired

order.

rP.C.I

indicator

lights

up.

■

1

»

Every

time

the

lOHECKi

key

is

pressed,

the

track

No.

and

the

contents

which

were

programmed

(P-No.)

are

displayed

in

the

order

off

programming.

»

The

previous

display

will

resume

in

a

few

seconds.

To

resume

normal

playback

Example

—

To

program

track

Nos.

2,

5

and

25:

l2lli

M

E32SI

The

number

of

tiie

I

selected

track

in

the

program

{P-No.>

is

J

displayed

for

a

few

seconds.

I

The

total

time

of

the

selected

track

I

will

be

displayed.

»

Up

to

20

tracks

can

be

programmed.

FULL

is

displayed

if

you

attempt

to

program

the

21

at

track.

»

If

you

made

a

mistake,

press

the

I

C

LEARI

key

and

select

the

correct

track.

•

Tracks

can

be

also

programmed

by

reading

the

disc

label

while

the

disc

tray

is

open.

•

The

time

information

is

not

displayed

if

a

track

No.

of

44

or

more

is

programmed.

iPGMl

indicator

goes

off.

•

The

playback

in

the

order

of

the

track

Nos.

on

CD

will

start

after

the

track

which

is

being

played.

To

stop

programmed

playback

Start

playback.

•

Tracks

are

played

in

the

o

rder

th

ey

are

pr

ogrammed

(P-No.).

•

If

one

of

the

skip

keys

(

|

»

»H|

o

r

|

T^

]

is

pressed

during

programmed

playback,

the

track

being

played

is

skipped

in

the

forward

or

reverse

direction.

Play/Pause

key

{FTiTI)

■

To

add

a

track

to

the

program

Press

the

key(s)

for

the

track

No.

to

be

added.

1

S

3

A

5

[L.-.-U.i.

['

■■■

„

.

■

"

!

:

.

)

]

B

7

a

9

a

[1

«

u

1--

.J.)|

a

1

<_

■

To

clear

tracks

from

the

program

■

To

change

a

track

in

the

pro¬

gram

Auto-Space

function

During

playback

in

the

program

mode,

vyhen

the

|

SPACE

|

key

is

pressed,

a

space

of

about

4

seconds

is

reserved

automatically

between

the

programmed

tracks.

This

function

is

provided

to

facilitate

the

DPSS

function

of

a

KENWOOD'S

cassette

deck.

However,

such

a

space

could

also

be

reserved

in

case

the

sound

of

two

tracks

are

continued,

for

example

with

some

classic

music

and

live

recordings.

SPACE

•

The

total

time

is

displayed

including

the

ti

me

of

th

e

space.

•

To

cancel

Auto-Space

function,

press

the

I

SPACE

I

key

again.

DP-2060/DP--\OSO

tErt

t3

Editing

(CCRS)

This

function

is

for

editing

when

you

are

recording

the

contents

of

a

CD

onto

a

tape.

It

is

to

ensure

that

the

final

track

on

each

side

of

the

tape

is

fully

recorded

and

that

the

possible

recording

time

on

the

tape

will

be

fully

used.

Open/Close

key

(IS)

EDIT

Operate

in

the

stop

mode.

1

Select

the

EDIT

mode.

•

Proceed

to

the

step

2

while

the

[

EDIT|

indicator

is

lighted,

2

While

the

lEPITl

i

n

dicator

is

lighted,

input

the

two-way

recording

time

of

the

tape.

12

3

4

5

i

r

:

II

.

II

I

I

I

i

l

B

-7

S

S

O

•

Recording

within

99

minutes

can

be

specified

in

minutes

(2

digits).

The

CD

contents

are

edited

as

follows.

1

The

input

tape

recording

time

is

divided

by

two,

and

tracks

that

can

be

accommodated

in

file

A

(which

refers

to

tracks

on

tape

side

A)

are

selected

in

order

of

their

track

Nos.

2

In

a

few

seconds,

the

time

left

on

tape

side

A

is

displayed,

then

file

B

(tracks

on

tape

side

B)

is

edited

in

the

same

manner.

•

Editing

will

be

interrupted

if

the[¥]

or

@

key

is

pressed

during

editing.

Completion

of

editing

Blinks

-

Stops

blinking

ISSa

EOT

T<2r„.

_

Tl^^=

i

B

-r

O

B

E

U

1

.1.

Total

time

of

selected

uacks.

-1

Track

Nos.

selected

from

disc

|

Recording

edited

data

Connecting

the

CO

player

via

a

system

control

cable

to

a

KENWOOD

cassette

deck

with

an

"IT6J,rXS8r

designation

will

enable

"CCRS

recording".

1

For

details,

see

"How

to

Record

CD"

in

the

instruction

manual

of

the

cassette

deck.

J

During

editing

iPcaMi

.

_IT

n_n'

/

f

u

EDIT

indicator

Blinks

Remaining

time

in

file

A

i

(ms

b

-G

Remaining

time

in

file

B

Example

ForC-46

:[TlO][IlSCl!S[±IBE’

ForC-30

:iol

•

When

the

EDIT

operation

is

carried

out

after

a

designated

tune

is

programmed,

the

programmed

tune

is

given

priority

and

then

other

tunes

are

added

to

the

program

in

the

order

of

their

track

numbers

according

to

the

amount

of

time

remaining.

[EDITi

indicator

lights

up.

14

DP-2OBD/DP-101

CHECK

key

■

To

check

the

edited

contents

■

To

clear

the

edited

contents

■

To

play

an

edited

program

■

Activating

EDIT

SHUFFLE

When

the

lEDlTI

key

is

pressed

again

after

the

editing

has

been

completed,

"SHUFFLE"

will

ap¬

pear

on

the

display,

and

the

change

of

track

Nos.

is

done

only

once

so

that

the

remaining

time

of

A

and

B

files

Is

minimized.

When

the

|EDIT|

key

rs

pressed

again

•

The

EDIT

SHUFFLE

function

cannot

be

activated

without

the

correct

time

input.

Notes;

_

1.

While

you

can

edit

with

a

different

time

setting

to

that

of

the

tape

you

are

using,

part

of

the

tape

may

be

left

with

nothing

recorded

on

it,

or

the

last

track

on

side

A

or

side

B

may

be

cut

short.

2.

Up

to

a

maximum

of

20

tracks

can

be

edited

using

this

function.

3.

The

EDIT

function

may

not

operate

properly

for

discs

having

only

one

track

or

having

tracks

of

long

duration

such

as

classical

music.

DP-ioeoMP-'voeo

Repeated

playback

REPEAT

key

I

PROGRAM

MODE

key

Play/Pause

key

([Fni])

Numeric

keys

■

Repeated

playback

Repeated

playback

of

programmed

tracks

^

Enter

the

PGM

mode.

I

PGM

I

indicator

lights

up.

2

Select

the

desired

track{s).

•

All

of

the

selected

tracks

will

be

played

repeatedly.

»

If

only

one

track

is

selected,

that

track

will

be

played

repeatedly.

3

Press

the

REPEAT

key.

iREPEATl

indicator

lights

up.

Start

playback.

To

resume

normal

playback

IREPEATl

indicator

goes

off.

»

The

playback

will

be

resumed

under

the

CD

player

mode

:

before

the

repeat.

Timer

operations

The

unit

has

the

timer

stand-by

function.

With

this

function

and

a

commercially-available

audio

timer,

playback

can

be

started

at

the

desired

time.

I

Connect

the

power

cord.

•

Connect

each

unit's

power

cord

to

the

SWITCHED

outlet

of

the

timer.

•

Refer

to

the

instruction

manual

of

the

timer.

Amplifier

^

Timer

^

Connect

to

the

SWITCHED

outlet.

2

3

Turn

on

the

amplifier

and

the

unit.

Insert

a

disc

and

set

the

starting

time

of

the

timer.

•

Set

the

timer

while

the

unit

and

the

amplifier

are

ON.

•

Be

careful

of

the

volume

setting

of

the

amplifier.

(The

loud

sound

may

damage

the

speakers.)

Playback

will

start

at

the

set

time.

Note:

When

operating

the

unit

other

than

CD

player

using

an

audio

timer,

be

sure

to

remove

the

disc

from

the

CD

player.

DP-20S0/DP-^O6O

17

In

case

of

difficulty

What

appears

to

be

a

malfunction

may

not

always

be

serious.

If

your

unit

should

not

perform

as

expected,

consult

the

table

below

to

see

if

the

problem

can

be

corrected

before

seeking

help

from

your

dealer

or

service

representative.

Symptom

Cause

Remedy

Disc

is

loaded,

player

does

not

play.

e

Disc

is

loaded

upside

down,

e

Disc

is

loose,

e

Disc

is

dirty.

e

Disc

is

cracked.

e

Condensation

occured

on

the

optical

lens

unit.

e

Load

the

disc

again

with

its

label

side

up.

e

Insert

the

disc

properly.

•

Wipe

off

the

dust

on

the

surface

of

the

disc

referring

to

"Disc

handling

precau¬

tions”

.

•

Replace

the

disc

with

a

new

one.

e

Leave

the

player

for

about

1

hour

so

that

the

condensation

is

removed.

No

sound.

e

Disc

is

not

loaded,

e

Disc

is

too

dirty.

e

Disc

is

cracked.

e

The

connection

cords

are

inserted

loosely.

•

Load

a

disc.

•

Wipe

off

the

dust

on

the

disc

surface

referring

to

"Disc

handling

precautions".

•

Replace

the

disc

with

a

new

one.

•

Connect

all

connection

cords

firmly.

Music

is

interrupted.

(Sound

is

skipped.)

#

Disc

is

too

dirty.

•

Disc

is

cracked.

e

Oscillation

is

applied

to

this

unit.

•

Wipe

off

the

dust

on

the

disc

surface

referring

to

"Disc

handling

precautions",

•

Replace

the

disc

with

a

new

one.

•

Try

selecting

a

place

where

no

strong

vibrations

occur

by

changing

the

installa¬

tion

place,

etc.

Notes;

1.

This

system

is

microprocessor-coritrolled,

so

malfunction

may

occur

due

to

external

noise

or

interference

noise.

In

such

a

case,

unplug

the

power

cord,

plug

it

and

turn

power

on

again.

2.

Do

not

usecontactcleaners

because

it

could

cause

amalfunction,

Be

speciailycareful

againstcontactdeaners

containing

oil,

forthey

may

deform

the

plastic

components.

18

DP-2O60/DP-1O6C

(En>

Specifications

[Format

I

System

..Compact

disc

digital

audio

system

Laser.Semiconductor

laser

Number

of

channels.2

channels

playing

rotation.

200

rpm

-

500

rpm

(CLV)

[D/A

Convertors]

D/A

Conversion

.....1

Bit

Oversampling.8

fs

(352.8

kHz)

[Audio]

Frequency

response.8

Hz

-

20

kHz

±

1.0

dB

Signal

to

noise

ratio.More

than

94

dB

Dynamic

range..

More

than

92

dB

Total

harmonic

distortion.Less

than

0.0(^%

Channel

separation.More

than

83

dB

Wow

&

flutter.Unmeasurable

limit

Output

levet/impedance

Fixed

.

..2.0V/3.3kC!

Headphone

output...6mW

{32Q)

[General]

Power

consumption.12W

Dimensions.W:

440

mm

(17

-

5/16")

H:

106

mm

(4-3/16")

D:

310

mm

(12-3/16")

Weight

(Net)...3.8

kg

(8.4

lb)

Note:

KENWOOD

follows

a

policy

of

continuous

advancements

in

development.

For

this

reason

specifications

may

be

changed

without

notice.

For

the

U.S.A.

FCC

WARNING

This

equipment

may

generate

or

use

radio

frequency

energy.

Changes

ormodifications

to

this

equipment

may

cause

harmful

interference

unless

the

modifications

are

expressly

approved

in

the

instruction

manual.

The

user

could

lose

the

authority

to

operate

this

equipment

if

an

unauthorized

change

or

modification

is

made.

NOTE

This

equipment

has

been

tested

and

found

to

comply

with

the

limits

for

a

Class

B

digital

device,

pursuant

to

Part

15

of

the

FCC

Rules.

These

limits

are

designed

to

provide

reasonable

protection

against

harmful

interference

in

a

residential

installation.

This

equipment

may

cause

harmful

interference

to

radio

communications,

if

it

is

not

installed

and

used

in

accordance

with

the

instructions.

However,

there

is

no

guarantee

that

interference

will

not

occur

in

a

particular

installation.

If

this

equipment

does

cause

harmful

interference

to

radio

or

television

reception,

which

can

be

determined

by

turning

the

equipment

off

andon,

the

user

is

encouraged

to

try

to

correct

the

interference

by

one

or

more

of

thefollowing

measures;

—

Reorient

or

relocate

the

receiving

antenna.

—

Increase

the

separation

between

the

equipment

and

receiver.

—

Connect

the

equipment

into

an

outlet

on

a

circuit

different

from

that

to

which

the

receiver

is

connected,

—

Consult

the

dealer

or

an

experienced

radio/TV

technician

for

help.

DP-zoeo/op-Aoeo

tft

KENWOOD
