Kenwood DDX635WBT User manual

LVT2515-001A (MN/M2N/XN)© 2014 JVC KENWOOD Corporation
DDX635WBT
DDX635WBTM
MONITOR WITH DVD RECEIVER
INSTRUCTION MANUAL
This instruction manual is used to describe models listed below. Model availability and features (functions)
may differ depending on the country and sales area.
• Region 2 (DVD Region Code 2 area)
• Region 3 (DVD Region Code 3 area)
• Region 4 (DVD Region Code 4 area)
DDXMidM200mm.indb1 2014/01/2919:30

2
CONTENTS
BEFORE USE............................................................ 2
How to reset your unit.................................................... 3
INITIAL SETTINGS .................................................. 4
BASICS .................................................................... 6
Component names and functions............................. 6
Common operations....................................................... 7
Common screen operations......................................... 8
Selecting the playback source..................................... 9
DISCS .................................................................... 10
USB........................................................................ 15
iPod/iPhone ......................................................... 16
APPs...................................................................... 19
Pandora® (Only for DDX635WBT Region 4)....... 20
TUNER................................................................... 22
OTHER EXTERNAL COMPONENTS ...................... 26
Using external audio/video players—AV-IN ........26
Using a rear view camera ............................................26
Using a smartphone—HDMI/MHL...........................27
Watching a TV..................................................................27
Using the external navigation unit..........................28
BLUETOOTH ......................................................... 29
SETTINGS.............................................................. 37
Settings for using applications of the iPod/
iPhone/Android ..............................................................37
Sound adjustment .........................................................38
Adjustment for video playback.................................40
Changing display design.............................................42
Customizing the <TOP MENU> screen ..................43
Customizing the system settings .............................43
Setting menu items.......................................................45
REMOTE CONTROLLER ........................................ 48
CONNECTION/INSTALLATION ............................ 53
REFERENCES......................................................... 58
Maintenance....................................................................58
More information...........................................................58
Error message list...........................................................62
Troubleshooting.............................................................63
Specifications...................................................................65
How to read this manual:
• Illustrations of DDX635WBT Region 3 are mainly used for explanation. The displays and panels shown in
this manual are examples used to provide clear explanations of the operations. For this reason, they may
be different from the actual displays or panels.
• This manual mainly explains operations using the buttons on the monitor panel and touch panel.
Foroperations using the remote controller (RC-DV340: supplied only for DDX635WBT Region3/
DDX635WBTM), see page48.
• < > indicates the various screens/menus/operations/settings that appear on the touch panel.
• [ ] indicates the buttons on the touch panel.
• Indication language: English indications are used for the purpose of explanation. You can select the
indication language from the <Setup> menu. (Page47)
BEFORE USE
VWARNINGS: (To prevent accidents and
damage)
• DO NOT install any unit or wire any cable in a
location where;
– it may obstruct the steering wheel and gearshift
lever operations.
– it may obstruct the operation of safety devices
such as air bags.
– it may obstruct visibility.
• DO NOT operate the unit while driving.
If you need to operate the unit while driving, be
sure to look around carefully.
• The driver must not watch the monitor while
driving.
The marking of products using lasers
The label is attached to the chassis/case and says
that the component uses laser beams that have
been classified as Class 1. It means that the unit is
utilizing laser beams that are of a weaker class. There
is no danger of hazardous radiation outside the unit.
For Kazakhstan (DDX635WBTM)
Дата изготовления (месяц/год)
находится на этикетке устройства.
DDXMidM200mm.indb2 2014/01/2919:30

ENGLISH 3
For DDX635WBTM
Declaration of Conformity with regard to the
EMC Directive 2004/108/EC
Declaration of Conformity with regard to the
R&TTE Directive 1999/5/EC
Declaration of Conformity with regard to the
RoHS Directive 2011/65/EU
Manufacturer:
JVC KENWOOD Corporation
3-12 Moriya-cho, Kanagawa-ku, Yokohama-shi,
Kanagawa, 221-0022, Japan
EU Representative:
JVCKENWOOD NEDERLAND B.V.
Amsterdamseweg 37, 1422 AC UITHOORN, The
Netherlands
English
Hereby, JVC KENWOOD declares that this unit
“DDX635WBTM” is in compliance with the essential
requirements and other relevant provisions of
Directive 1999/5/EC.
Türkçe
Bu vesileyle JVC KENWOOD, “DDX635WBTM”
ünitesinin,1999/5/EC Direktifinin başlıca
gereksinimleri ve diğer ilgili
hükümleri ile uyumlu olduğunu beyan eder.
For Turkey
Bu ürün 28300 sayılı Resmi Gazete’de yayımlanan
Atik Elektrikli ve Elektronik Eşyalarin Kontrolü
Yönetmeliğe uygun olarak üretilmiştir.
Eski Elektrik ve Elektronik Ekipmanların İmha
Edilmesi Hakkında Bilgi (ayrı atık toplama
sistemlerini kullanan ülkeleri için uygulanabilir)
Sembollü (üzerinde çarpı işareti olan çöp
kutusu) ürünler ev atıkları olarak atılamaz.
Eski elektrik ve elektronik ekipmanlar,
bu ürünleri ve ürün atıklarını
geri dönüştürebilecek bir tesiste
değerlendirilmelidir. Yaşadığınız bölgeye
en yakın geri dönüşüm tesisinin yerini
öğrenmek için yerel makamlara müracaat
edin. Uygun geri dönüşüm ve atık
imha yöntemi sağlığımız ve çevremiz
üzerindeki zararlı etkileri önlerken
kaynakların korunmasına da yardımcı
olacaktır.
V Cautions on the monitor:
• The monitor built into this unit has been
produced with high precision, but it may have
some ineffective dots. This is inevitable and is not
considered defective.
• Do not expose the monitor to direct sunlight.
• Do not operate the touch panel using a ball-point
pen or similar tool with a sharp tip.
Touch the buttons on the touch panel with your
finger directly (if you are wearing a glove, take it
off).
• When the temperature is very cold or very hot...
– Chemical changes occur inside, causing
malfunction.
– Pictures may not appear clearly or may move
slowly. Pictures may not be synchronized with
the sound or picture quality may decline in such
environments.
Fors afety...
• Do not raise the volume level too much, as this
will make driving dangerous by blocking outside
sounds, and may cause hearing loss.
• Stop the car before performing any complicated
operations.
Temperature inside the car...
If you have parked the car for a long time in hot or
cold weather, wait until the temperature in the car
becomes normal before operating the unit.
❏How to reset your unit
If the unit fails to operate properly, press the Reset
button. The unit returns to factory settings when
the Reset button is pressed (except the registered
Bluetooth devices).
BEFORE USE
DDXMidM200mm.indb3 2014/01/2919:30

4
INITIAL SETTINGS
Initials etup
When you power on the unit for the first time or
reset the unit, the initial setting screen appears.
• You can also change the settings on the <Setup>
screen. (Page45)
1
<Language>
(Page47)
Select the text language used for
on-screen information.
• Set <GUI Language> to
display the operation buttons
and menu items in the
selected language ([Local]:
initially selected) or English
([English]).
<Angle>
(Page7)
Adjust the panel angle.
<R-CAM
Interrupt>
(Page46)
Select [ON] when connecting
the rear view camera.
<Panel
Color>
(Page42)
Select the color of the buttons
on the monitor panel.
2Finish the procedure.
The <TOP MENU> screen is displayed.
Setting the security function
You can set a security code to protect your receiver
system against theft.
❏Registering the security code
1Display the <TOP MENU> screen.
On the source control screen:
2Display the <System> setting screen.
3Display the <Security Code Set> screen.
• Press [K] repeatedly to change the page on
the <System> menu screen.
• To clear the registered security code, perform
steps 1and 2, then press [CLR] in <Security
Code>.
4Enter a four-digit number (1), then
confirm the entry (2).
• Press [Clear] to delete the last entry.
• Press [Cancel] to cancel the setting.
5Repeat step 4to confirm your security
code.
Now, your security code is registered.
• When the unit is being reset or disconnected from
the battery, you are required to enter the security
code. Enter the correct security code, then press
[Enter].
DDXMidM200mm.indb4 2014/01/2919:30

ENGLISH 5
INITIAL SETTINGS
❏Activating the security function
You can activate the security function to protect
your receiver system against theft.
1Display the <System> setting screen.
On the <TOP MENU> screen:
• Press [K] repeatedly to change the page on
the <System> menu screen.
2
The security indicator on the monitor panel
flashes when the vehicle ignition is off.
To deactivate the security function: Select [OFF]
for <SI>.
Clock settings
1Display the <TOP MENU> screen.
On the source control screen:
2Display the <Setup> screen.
3Display the <Clock> screen.
4Set the clock time.
<NAV>* Synchronizes the clock time with
the connected navigation unit.
<Radio Data
System>
Synchronizes the clock time with
FM Radio Data System.
<OFF> Sets the clock manually. (See
below.)
When selecting <OFF>:
Adjust the hour (1), then adjust the minute (2).
• Press [Reset] to set the minute to “00”.
5Finish the procedure.
* Appears only when the navigation unit is connected.
DDXMidM200mm.indb5 2014/01/2919:30

6
BASICS

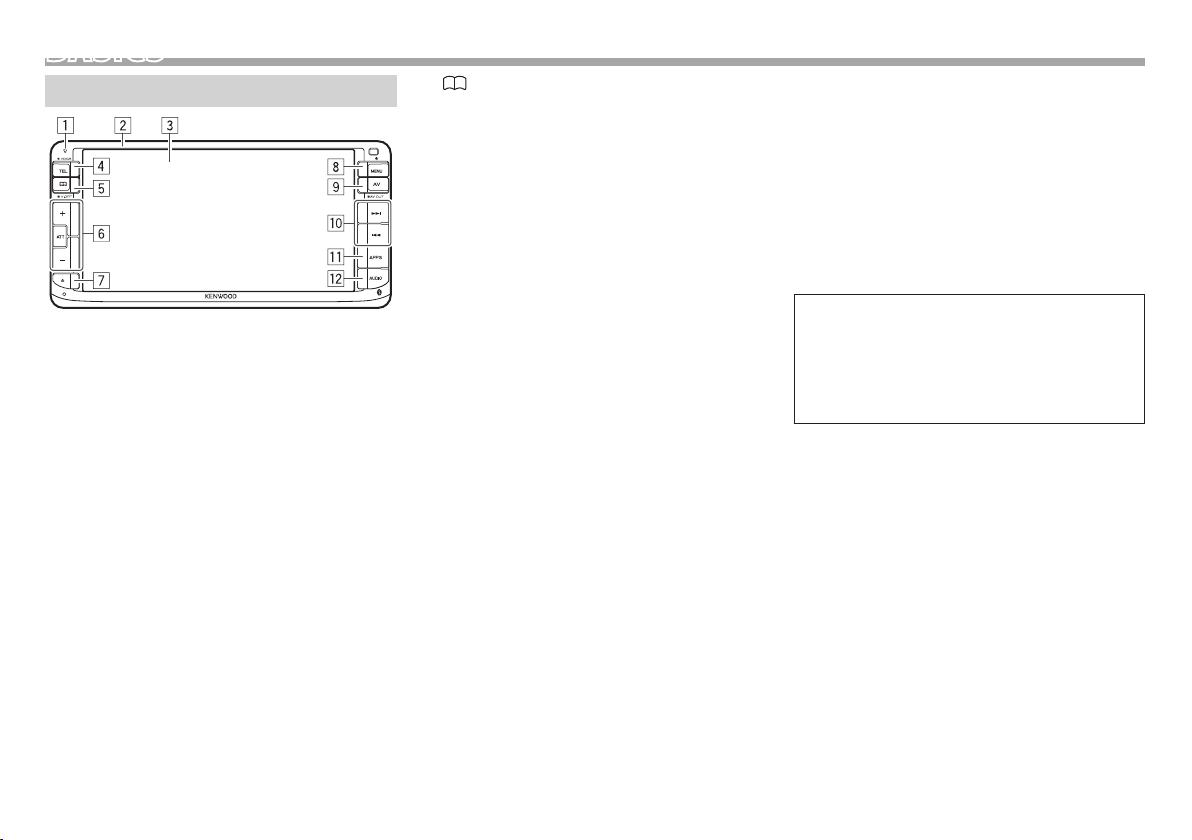

Component names and functions
1Power indicator/Security indicator
• Lights up while the unit is turned on.
• Flashes when the security function is activated.
(Page 5)
2Monitor panel*
3Screen (touch panel)
4TEL/VOICE button
• Displays the phone control screen. (Press)
(Page 33)
• Activates voice dialing. (Hold) (Page 34)
5/ V.OFF button
• Displays the phone book. (Press) (Page33)
• The function of the button when held varies
depending on the <Phonebook Key Long
Press> setting. (Page 47)
6Volume +/−button
Adjusts the audio volume. (Page 7)
ATT button
Attenuates the sound. (Page 7)
7M(Eject) button
• Ejects the disc. (Tilts the monitor panel fully.)
• Opens/closes the monitor panel.
8MENU/Bbutton
• Displays the <TOP MENU> screen. (Press)
(Page 8)
• Turns off the power. (Hold) (Page 7)
• Turns on the power. (Press) (Page 7)
9AV/AV OUT button
• Displays the current source screen. (Press)
• Displays the screen of the external component
connected to the AV-OUT terminal. (Hold)
(Page57)
pS/Tbutton
Functions same as [S]/[T] on the touch
panel during playing a source.
qAPPS button
Displays the App screen. (Page19)
wAUDIO button
• Displays the <Equalizer> screen. (Press)
(Page 38)
* You can change the color of the buttons on the monitor panel.
(Page 42)
VCaution on the volume setting:
Digital devices produce very little noise
compared with other sources. Lower the
volume before playing these digital sources
to avoid damaging the speakers by sudden
increase of the output level.
DDXMidM200mm.indb6 2014/01/2919:30

ENGLISH 7
BASICS

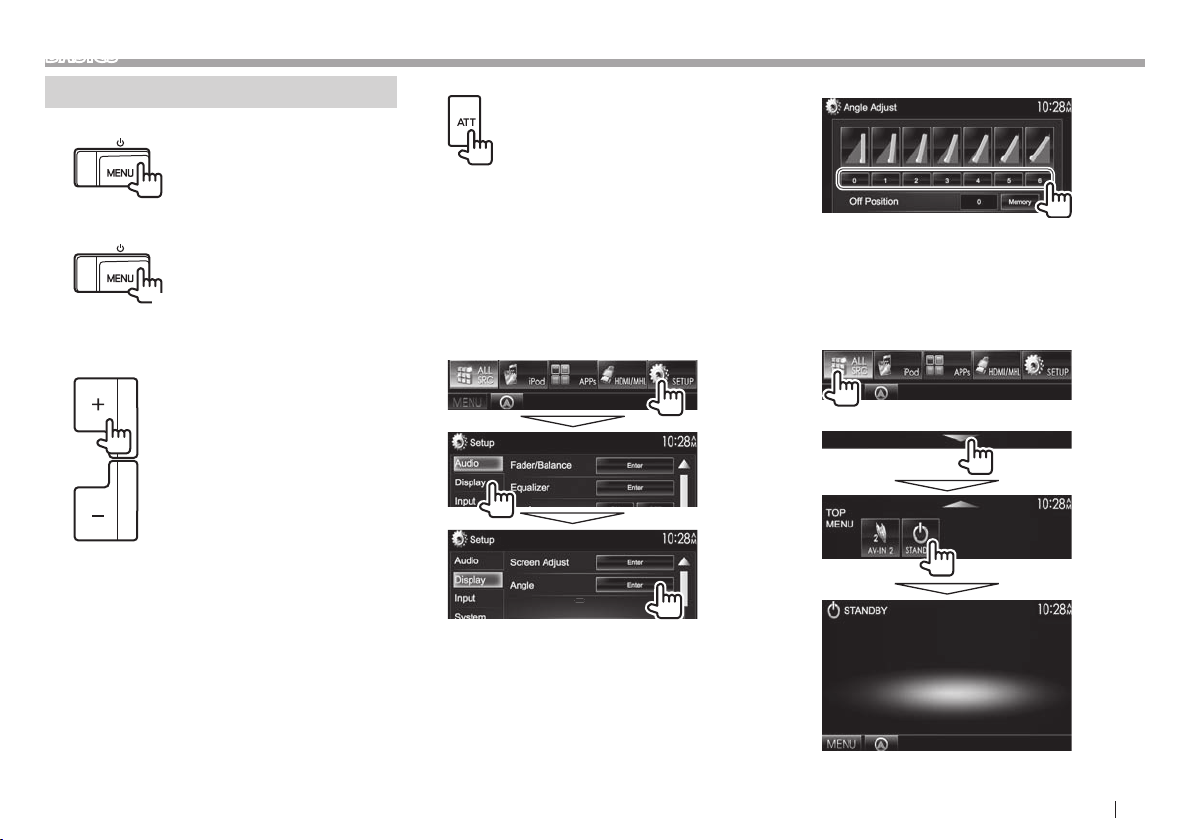

Common operations
❏Turning on the power
❏Turning off the power
(Hold)
❏Adjusting the volume
To adjust the volume (00 to 35)
Press +to increase, and press −to decrease.
• Holding the button increases/decreases the
volume continuously.
Toat tenuatet hes ound
The ATT indicator lights up.
To cancel the attenuation: Press the same button
again.
❏Adjusting the panel angle
1Display the <Angle Adjust> screen.
On the <TOP MENU> screen:
• Press [K] repeatedly to change the page on
the <Display> menu screen.
2Select an angle (0 – 6).
• To set the current position as the power off
position, select [Memory].
❏Putting the unit in standby
1Display all <TOP MENU> items.
On the <TOP MENU> screen:
2
DDXMidM200mm.indb7 2014/01/2919:30

8
BASICS
❏Turning off the screen
(Hold)
• This operation works only when <Phonebook Key
Long Press> is set to [V-OFF]. (Page47)
To turn on the screen: Press MENU/Bon the
monitor panel, or touch the display.
Common screen operations

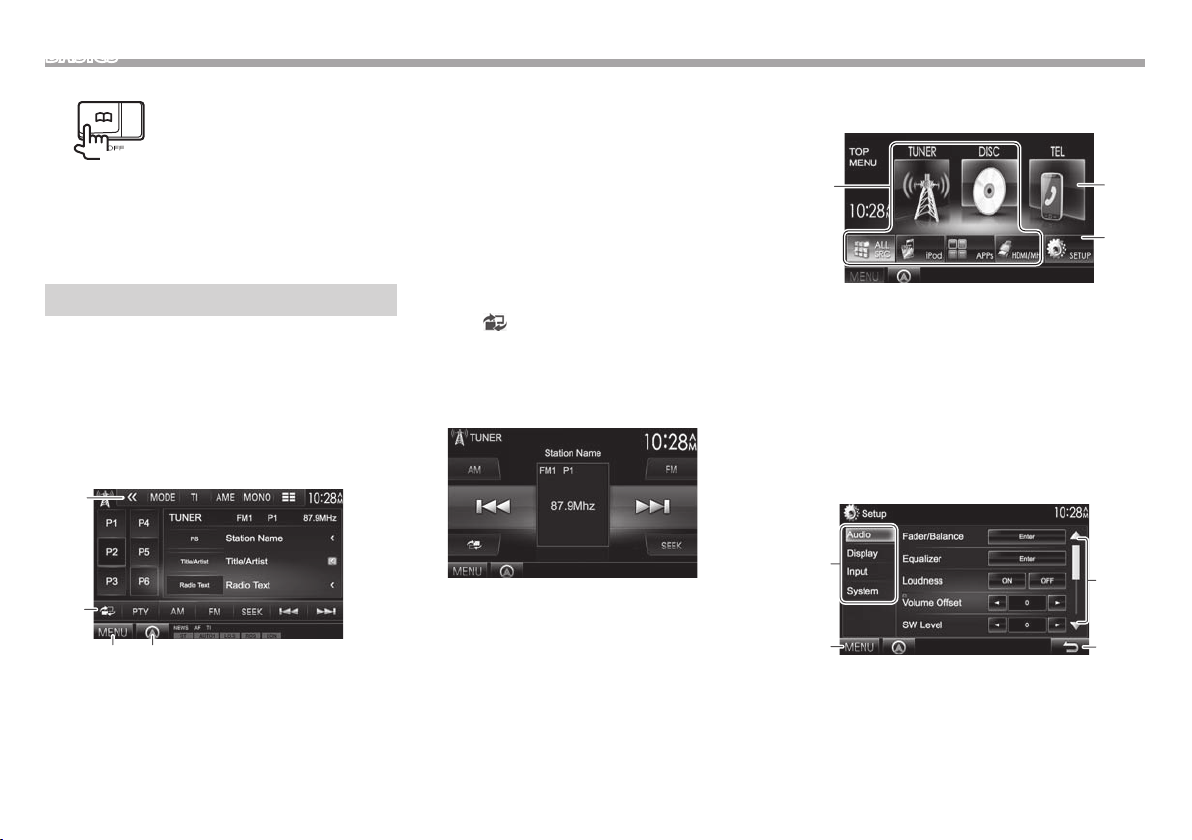

❏Common screen descriptions
You can display other screens any time to change
the source, show the information, or change the
settings, etc.
Source control screen
Performs source playback operations.
• The operation buttons vary depending on the
selected source.
2
1
43
Common operation buttons:
1Displays other operation buttons.
• Disabled when there are no other buttons.
2Switches between the normal source control
screen and easy control screen. (See below.)
3Displays the <TOP MENU> screen. (See the right
column.)
• Pressing MENU/Bon the monitor panel also
displays the <TOP MENU> screen.
4Displays the screen of the connected navigation
unit.* (Page28)
Easy control screen
Pressing [ ] switches between the normal source
control screen and easy control screen.
The easy control screen allows you to control the
source easily with simple buttons.
• The displayed buttons vary depending on the
selected source.
<TOP MENU> screen
Displays the source control screen and settings
screen.
3
2
1
Common operating buttons:
1Changes the playback source. (Page 9)
• Press [ALL SRC] to display all <TOP MENU>
items. (Page 9)
• You can arrange the items to display on the
<TOP MENU> screen.(Page 43)
2Displays the phone control screen. (Page 33)
3Displays the <Setup> screen. (See below.)
<Setup> screen
Changes the detailed settings. (Page 45)
3
1
24
Common operating buttons:
1Selects the menu category.
2Displays the <TOP MENU> screen.
3Changes the page.
4Returns to the previous screen.
* Appears only when a navigation unit is connected.
DDXMidM200mm.indb8 2014/01/2919:30

ENGLISH 9
BASICS
❏Touch screen operations
1
3
2
4
1Displays the video control menu while playing a
video.
2Displays the source control screen while playing
a video.
• The operation buttons disappear when the
screen is touched or when no operation is
done for about 5 seconds.
3Goes to the previous chapter/track.*
4Goes to the next chapter/track.*
* Not available for video from an external component.
Selecting the playback source
On the <TOP MENU> screen:
• You can change the items (other than [SETUP]) to
display on the <TOP MENU> screen. (Page43)
[NAV]*1 Displays the navigation screen
when a navigation unit is
connected. (Page28)
[DISC] Plays a disc. (Page 10)
[TUNER]
Switches to the radio broadcast.
(Page 22)
[iPod] Plays an iPod/iPhone. (Page 16)
[USB] Plays files on a USB device.
(Page 15)
[HDMI/MHL] Plays a device connected to
the HDMI/MHL input terminal.
(Page 27)
[PANDORA]*2 Switches to the Pandora
broadcast. (Page 20)
[Bluetooth] Plays a Bluetooth audio player.
(Page 35)
[APPs] Switches to the screen of App
from the connected iPod touch/
iPhone. (Page 19)
[TEL] Displays the phone control screen.
(Page 33)
[AV-IN1][AV-IN2]
Switches to an external
component connected to the AV-
IN1 or iPod/AV-IN2 input terminal.
(Page 26)
*1When no navigation unit is connected, “No Navigation” appears.
*2Only for DDX635WBT Region 4.
❏To display all sources and items on the
<TOP MENU> screen
• You can change the page to display more
items by pressing [J]/[K].
DDXMidM200mm.indb9 2014/01/2919:30

10
DISCS
Playing a disc
• If a disc does not have a disc menu, all tracks on
it will be played repeatedly until you change the
source or eject the disc.
• For playable disc types/file types, see page 59.
❏Inserting a disc
Insert a disc with the label side facing up.
The source changes to “DISC” and playback starts.
• The IN indicator lights up while a disc is inserted.
• If “ ” appears on the screen, the unit cannot
accept the operation you have tried to do.
– In some cases, without showing “ ,”
operations will not be accepted.
• When playing back a multi-channel encoded
disc, the multi-channel signals are downmixed
to stereo.
❏Ejecting a disc
• When removing a disc, pull it horizontally.
• You can eject a disc when playing another AV
source.
• If the ejected disc is not removed within
60 seconds, the disc is automatically inserted
again into the loading slot to protect it from dust.
Closingt hem onitorp anel
After removing the disc, press Mon the monitor
panel. The monitor panel closes.
Playback operations
When the operation buttons are
not displayed on the screen, touch
the area shown on the illustration.
• To change settings for video
playback, see page 40.
❏Indications and buttons on the source
control screen
For DVD/DVD-VR/VCD/DivX/MPEG1/MPEG2
1
54 6
32
Playback information
1Media type
2Current playback item information
• DVD Video: Title no./Chapter no.
• DVD-VR: Program no. (or Playlist no.)/Chapter
no.*
• DivX/MPEG1/MPEG2: Folder no./Track no.
• VCD: Scene no. (with PBC) or Track no. (without
PBC)
3Playing time
4Playback mode (Page13)
5File type (for DivX/MPEG1/MPEG2)
6IN indicator
* To display the Original Program/Playlist screen, see page 11.
DDXMidM200mm.indb10 2014/01/2919:30

ENGLISH 11
DISCS
Operation buttons
[ ] Displays the easy control screen.
(Page8)
[]*1Displays the folder/track list.
(Page12)
[O] [N]• Reverse/forward search during
playback.*2
[S] [T]• Selects a chapter/track. (Press)
• Reverse/forward search.*2(Hold)
[IW]Starts/pauses playback.
[o]Stops playback.
[]Displays other operation buttons.
• Disabled when there are no other
buttons.
[MODE] Changes the settings for disc
playback on the <DISC Mode>
screen. (Page14)
[] [ ]*3Selects playback mode. (Page13)
[Playlist]*4Displays an Original Program/Playlist
screen.
[ ] [ ]*5Plays in frame-by-frame.
[] [ ]*1Selects a folder.
[PBC]*6Activates or deactivates the VCD PBC
(Playback Control) function.
[MENU] Displays the <TOP MENU> screen.
*1Does not appear for DVD/DVD-VR/VCD.
*2Search speed varies depending on the type of disc or file.
*3Does not appear for DVD/DVD-VR.
*4Appears only for DVD-VR.
*5Appears only for DVD/DVD-VR.
*6Appears only for VCD.

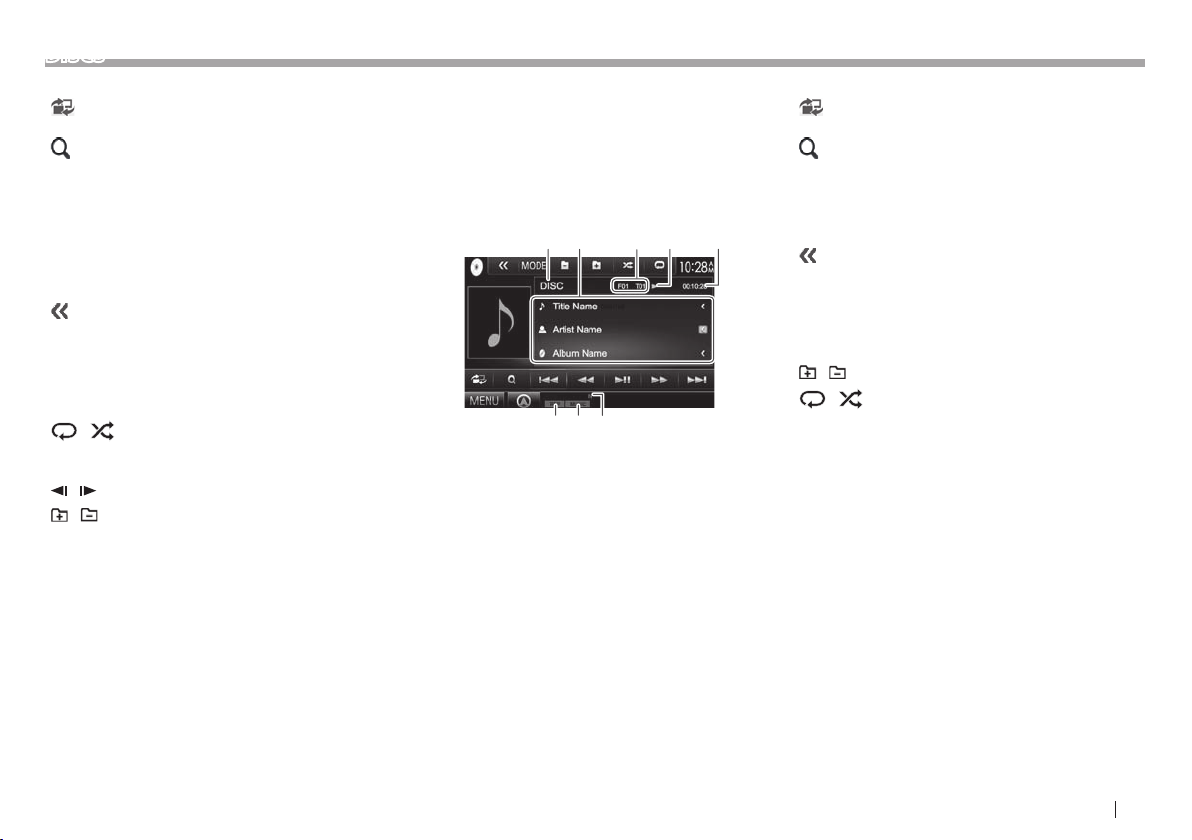

ForC D/MP3/WMA/AAC
12
876
54
3
Playback information
1Media type
2Track/file information
• Pressing [<] scrolls the text if not all of the text
is shown.
3Current playback item information
• MP3/WMA/AAC: Folder no./Track no.
• CD: Track no.
4Playback status
5Playing time
6Playback mode (Page13)
7File type
8IN indicator
Operation buttons
[ ] Displays the easy control screen.
(Page8)
[]*1Displays the folder/track list.
(Page12)
[S] [T]Selects a track.
[O] [N]Reverse/forward search.*2
[IW]Starts/pauses playback.
[ ] Displays other operation buttons.
• Disabled when there are no other
buttons.
[MODE] Changes the settings for disc
playback on the <DISC Mode>
screen. (Page14)
[] [ ]*1Selects a folder.
[] [ ] Selects playback mode. (Page13)
[o]Stops playback.
[MENU] Displays the <TOP MENU> screen.
*1Does not appear for CDs.
*2Search speed varies depending on the type of disc or file.
DDXMidM200mm.indb11 2014/01/2919:30

12
DISCS

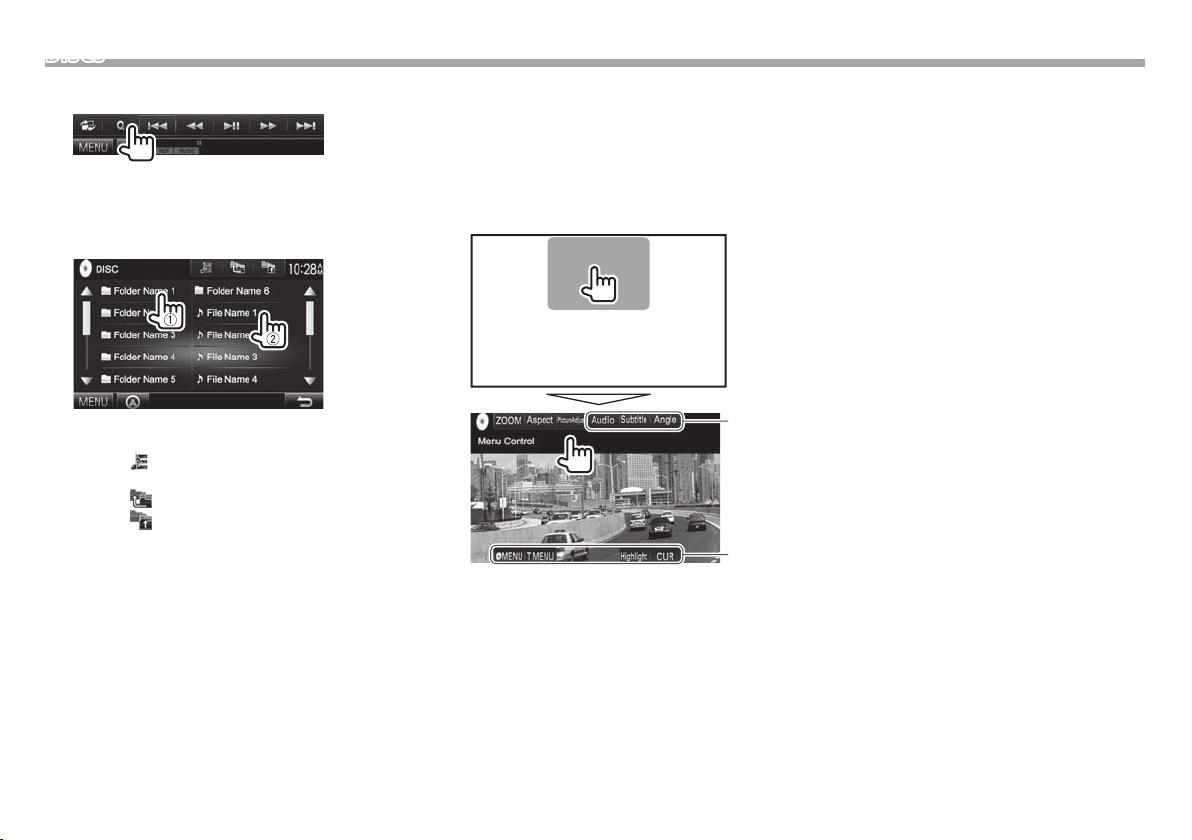

❏Selecting a folder/track on the list
1
2Select the folder (1), then the item in the
selected folder (2).
• Repeat the procedure until you select the
desired track.
• You can change the page to display more
items by pressing [J]/[K].
• Press [ ] to open the folder containing the
current track.
• Press [ ] to return to the root folder.
• Press [ ] to return to the upper layer.
❏Video menu operations
You can display the video menu screen during video
playback.
• Available items on the screen differ depending on
the types of the loaded disc and playback files.
• The operation buttons disappear when the screen
is touched or when no operation is done for about
5 seconds.
*
*
[ZOOM]* Displays the picture size selecting
screen. (Page41)
[Aspect] Selects the aspect ratio.
(Page41)
[PictureAdjust] Displays the picture adjustment
screen. (Page40)
[Audio]* Selects the audio type (or channel
for DVD-VR).
[Subtitle]* Selects the subtitle type.
[Angle]* Selects the view angle.
[MENU]* Displays the disc menu.
[T MENU]* Displays the disc menu (DVD).
[CUR]* Displays the menu/scene
selecting screen.
• [J] [K] [H] [I]: Selects an item.
• [Enter]: Confirms the selection.
• [Return]: Returns to the
previous screen.
[Highlight]* Switches to the direct disc menu
mode. Touch the target item to
select.
• To restore the screen, press AV
on the monitor panel.
* May not appear depending on the media/file etc.
DDXMidM200mm.indb12 2014/01/2919:30

ENGLISH 13
DISCS
For VCD
1
2
[ZOOM] Displays the picture size selecting
screen. (Page41)
[Aspect] Selects the aspect ratio.
(Page41)
[PictureAdjust] Displays the picture adjustment
screen. (Page40)
[Audio] Selects the audio channel (ST:
stereo, LL: left, RR: right).
[Return] Displays the previous screen or
menu.
[Direct] Displays/hides the direct selecting
buttons. (See the right column.)
• To select a track directly, press [Direct] to display
the direct selecting buttons, then...
– When you enter a wrong number, press [CLR] to
delete the last entry.
❏Selecting playback mode
[ ] Selects Repeat playback mode.
[]Selects Random playback mode.
• For DVD/DVD-VR: Repeat play is available.
For VCD (without PBC)/CD/DivX/MPEG1/MPEG2/
MP3/WMA/AAC: Repeat and Random play are
available.
– You cannot activate the repeat mode and the
random mode at the same time.
• Each time you press the button, the playback
mode changes. (The corresponding indicator
lights up.)
– Available items differ depending on the types of
loaded disc and playback file.
C-REP Repeats current chapter.
T-REP Repeats current title/program.
REP Repeats current track.
FO-REP Repeats all tracks of the
current folder.
FO-RDM Randomly plays all tracks of
the current folder, then tracks
of the next folders.
RDM Randomly plays all tracks.
To cancel Repeat/Random playback: Press the
button repeatedly until the indicator disappears.
DDXMidM200mm.indb13 2014/01/2919:30

14
DISCS
Settings for disc playback
• The items available on the <DISC Mode> screen
are different depending on the discs/files played
back.
❏Setting items
<Menu
Language>*
Select the initial disc menu language.
(Initial: English) (Page61)
<Audio
Language>*
Select the initial audio language.
(Initial: Original) (Page61)
<Subtitle
Language>*
Select the initial subtitle language
or turn subtitles off (Off). (Initial:
English) (Page61)
<Dynamic
Range
Control>*
You can change the dynamic range
while playing Dolby Digital software.
• Wide: Select this to enjoy a
powerful sound at a low volume
level with its full dynamic range.
• Normal: Select this to reduce the
dynamic range a little.
• Dialog (initial): Select this to
reproduce movie dialog more
clearly.
<Angle
Mark>
Select whether to display the angle
mark.
• ON (initial): Select this to display
the angle mark.
• OFF: Select this to hide the angle
mark.
<Screen
Ratio>*
Select the monitor type to watch a
wide screen picture on the external
monitor.
16:9 (Initial) 4:3 LB 4:3 PS
<Parental
Level>*
Set the parental level.
(See below.)
<CD Read> Select the files to play back a disc
containing music files. You cannot
change the setting when a disc is
inserted.
• 1 (initial): Automatically
distinguishes between audio file
discs and music CDs.
• 2: Forcesto play as a music CD. No
sound can be heard if an audio file
disc is played.
* You can change these settings only while playback is stopped.
Setting the parental lock
The parental lock cannot be set during DVD
playback.
1Display the <Parental Pass> screen.
On the <DISC Mode> screen:
• Press [K] repeatedly to change the page on
the <DISC Mode> screen.
2Enter the 4-digit parental pass code (1),
and press [Enter] (2).
• To clear the entry, press [Clear].
• To cancel setting the code, press [Cancel].
3Adjust the parental level (OFF, Level 1 to
Level 8).
To deactivate the parental lock: Select [OFF] for
<Parental Level>.
DDXMidM200mm.indb14 2014/01/2919:30

ENGLISH 15
USB
Connecting a USB device
You can connect a USB mass storage class device
such as a USB memory, Digital Audio Player etc. to
the unit.
• For details about connecting USB devices, see
page 56.
• You cannot connect a computer or portable HDD
to the USB input terminal.
• For playable file types and notes on using USB
devices, see page 60.
When a USB device is connected...
The source changes to “USB” and playback starts.
• All tracks in the USB device will be played
repeatedly until you change the source.
To disconnect the USB device safely:
Press [M], then disconnect the USB device after “No
Device” appears.
Playback operations
When the operation buttons are
not displayed on the screen, touch
the area shown on the illustration.
• To change settings for video
playback, see page 40.
❏Indications and buttons on the source
control screen
12
765
4
3
Playback information
1Track/file information (for MP3/WMA/WAV/AAC/
FLAC)
• Pressing [<] scrolls the text if not all of the text
is shown.
2Current playback item information
• MPEG1/MPEG2/H.264/WMV:
Folder no., Track no., etc.
• MP3/WMA/WAV/AAC/FLAC:
Folder no., Track no., etc.
• JPEG/BMP/PNG: Folder no./File no.
3Playback status
4Playing time
5Jacket picture (Shown while playing if the file has
tag data that includes the jacket picture)
6Playback mode (See the right column.)
7File type
Operation buttons
[ ] Displays the easy control screen.
(Page8)
[]Displays the list selection screen.
(Page16)
[S] [T]Selects a track.
[O] [N]Reverse/forward search.*1
[IW]Starts/pauses playback.
[ ] Displays other operation buttons.
• Disabled when there are no other
buttons.
[MODE] Changes the picture display time
setting on the <USB Mode> screen.
(Page16)
[] [ ] Selects a folder.
[]Selects repeat playback mode.*2 *3
• REP: Repeats the current track/file.
• FO-REP: Repeats all tracks/files
in the current folder or specified
category.
[]Selects random playback mode.*2 *3
• RDM:
– When selecting the track/file from
the folder, randomly plays all
tracks/files of the current folder,
then the tracks/files of the next
folder.
– When selecting the track/file from
the category, randomly plays
all tracks/files of the specified
category.
[M]Disconnects the USB device safely.
[MENU] Displays the <TOP MENU> screen.
*1Search speed varies depending on the file type.
*2To cancel random or repeat mode, press the button repeatedly until
the indicator disappears.
*3You cannot activate the repeat mode and the random mode at the
same time.
DDXMidM200mm.indb15 2014/01/2919:30

16
USB
❏Setting <Picture Display Time>
Set the interval between slides during slide-shows of
the picture files.
❏Selecting a track in a list
1
2Select the list.
3Select the track.
• You can change the page to display more
items by pressing [J]/[K].
• Press [ ] to return to the root folder.
• Press [ ] to return to the upper layer.
• Press [ ] to open the folder containing the
current track.
• If you want to play all tracks in the folder,
press [I] on the right of the desired folder.
• On the <Category List>/<Folder List>: You
can switch the file type to list: Press [ ] to list
audio files, [ ] to list video files, or [ ] to
list still picture files.
• On the <Category List>/<Link Search>: To
list the items in alphabetical order, press [A-Z],
then select the first character.
From <Category List>:
Select the category (1), then the item in the
selected category (2).
From <Link Search>:
Select the tag type to display the list of contents
containing the same tag as the track/file
currently played back (1), then the item (2).
From <Folder List>:
Select the folder (1), then the item in the
selected folder (2).
iPod/iPhone
Preparation
❏Connecting iPod/iPhone
• For details about connecting iPod/iPhone, see
page 56.
• For playable iPod/iPhone types, see page 61.
Connect your iPod/iPhone according to your
purpose or the type of the iPod/iPhone.
Wired connection
• To listen to music:
– For iPod/iPhone except for iPhone 5/iPod touch
(5th Generation)/iPod nano (7th Generation),
use USB Audio cable for iPod/iPhone—
KCA-iP102 (optional accessory)
– For iPhone 5/iPod touch (5th Generation)/
iPod nano (7th Generation), use USB 2.0 cable
(accessory of the iPod/iPhone)
• To watch video and listen to music:
– For iPod/iPhone except for iPhone 5/iPod touch
(5th Generation)/iPod nano (7th Generation),
use USB Audio and Video cable for iPod/
iPhone—KCA-iP202 (optional accessory)
– For iPhone 5/iPod touch (5th Generation)/iPod
nano (7th Generation), use the HDMI cable
KCA-HD100 (optional accessory) and USB 2.0
cable (accessory of the iPod/iPhone) through
Lightning-Digital AV adapter (accessory of the
iPod/iPhone)
DDXMidM200mm.indb16 2014/01/2919:30

ENGLISH 17
iPod/iPhone
Bluetooth connection
Pair the iPod/iPhone through Bluetooth. (Page29)
• For iPhone 5/iPod touch (5th Generation)/iPod
nano (7th Generation): To watch the video,
connect your iPod/iPhone to HDMI/MHL input
terminal using KCA-HD100 (optional accessory).
(Page56)
• For iPod/iPhone except for iPhone 5/iPod touch
(5th Generation)/iPod nano (7th Generation):
You cannot watch the video with Bluetooth
connection.

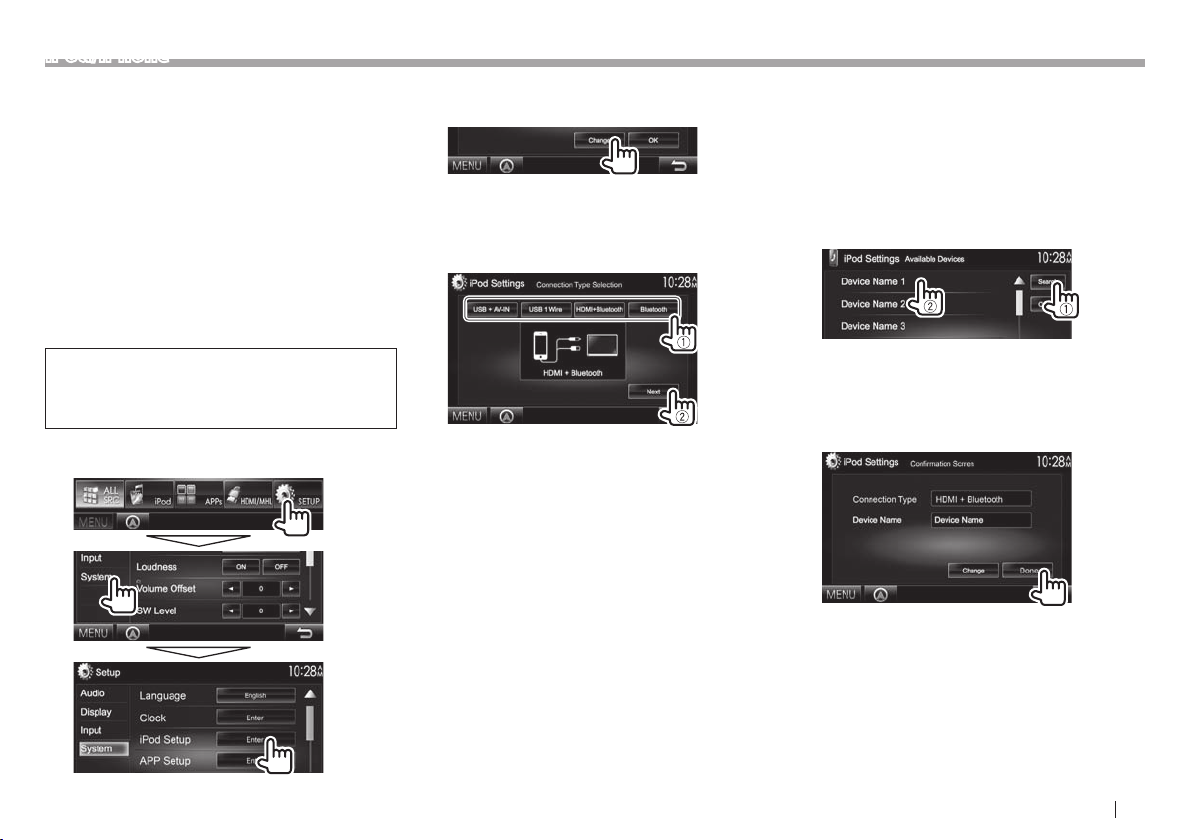

❏Selecting the iPod/iPhone device to
play and connection method
When connecting the iPod/iPhone device for
first time, the setup screen (for connection, etc.)
appears. Follow the procedure on the setup screen
to configure the settings.
1Display the <iPod Settings> screen.
On the <TOP MENU> screen:
• If [Enter] for <iPod Setup> cannot be
selected, put the unit in standby. (Page7)
2
• If you do not need to change the setting,
press [OK] to exit from the setup screen.
3Select the connection method (1), then
press [Next] (2).
<USB +
AV-IN>
Select this when the iPod/
iPhone is connected using
KCA-iP202 (optional accessory).
<USB 1 Wire> Select this when the iPod/
iPhone is connected using
KCA-iP102 or USB 2.0 cable
(accessory of the iPod/iPhone).
<HDMI +
Bluetooth>
Select this when the iPod/
iPhone is connected using
HDMI cable KCA-HD100
(optional accessory) and USB
2.0 cable (accessory of the iPod/
iPhone) through Lightning-
Digital AV adapter (accessory of
the iPod/iPhone).
<Bluetooth> Select this when the iPod/
iPhone is connected via
Bluetooth.
• When selecting <USB + AV-IN> or <USB 1
Wire>, go to step 5.
4When selecting <HDMI + Bluetooth> or
<Bluetooth> as the connection method,
the device selection screen appears.
Search for the available iPod/iPhone
devices (1), then select the target device
from the list (2).
• You can change the page to display more
items by pressing [J]/[K].
• If the device is already listed, skip the step 1.
• To stop searching, press [Cancel].
5Confirm the settings.
DDXMidM200mm.indb17 2014/01/2919:30

18
iPod/iPhone

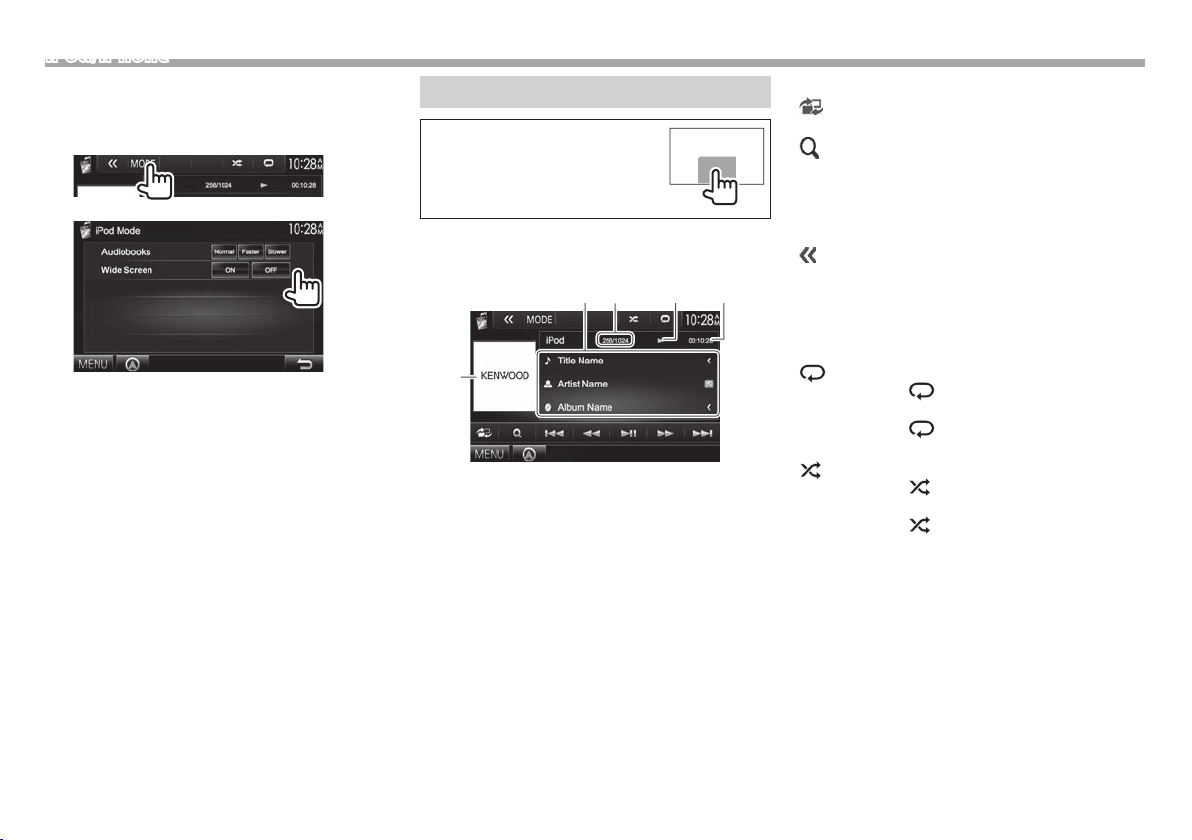

❏Selecting preference settings for iPod/
iPhone playback
When the source is “iPod”...
1
2
<Audiobooks> Select the speed of audio
books.
<Wide
Screen>*
• [ON]: Select this to display
the video compatible with
wide-screen display in wide-
screen.
• [OFF]: Select this to
deactivate.
* You cannot change the setting when iPod/iPhone is connected.
Playback operations
When the operation buttons are
not displayed on the screen, touch
the area shown on the illustration.
• To change settings for video
playback, see page 40.
❏Indications and buttons on the source
control screen
12 43
5
Playback information
1Song/video information
• Pressing [<] scrolls the text if not all of the text
is shown.
2Track no./Total track number
3Playback status
4Playing time
5Artwork (Shown if the song contains artwork)
Operation buttons
[ ] Displays the easy control screen.
(Page8)
[ ] Displays the audio/video file list.
(Page19)
[S] [T]Selects an audio/video file.
[O] [N]Reverse/forward search.
[IW]Starts/pauses playback.
[ ] Displays other operation buttons.
• Disabled when there are no other
buttons.
[MODE] Changes the settings for iPod/iPhone
playback on the <iPod Mode>
screen. (See the far left column.)
[]Selects repeat playback mode.
• 1: Functions the same as
“Repeat One.”
• All: Functions the same as
“Repeat All.”
[]Selects random playback mode.*
• : Functions the same as “Shuffle
Songs.”
• Album: Functions the same as
“Shuffle Albums.”
[MENU] Displays the <TOP MENU> screen.
* To cancel random mode, press the button repeatedly until the
indicator disappears.
DDXMidM200mm.indb18 2014/01/2919:30

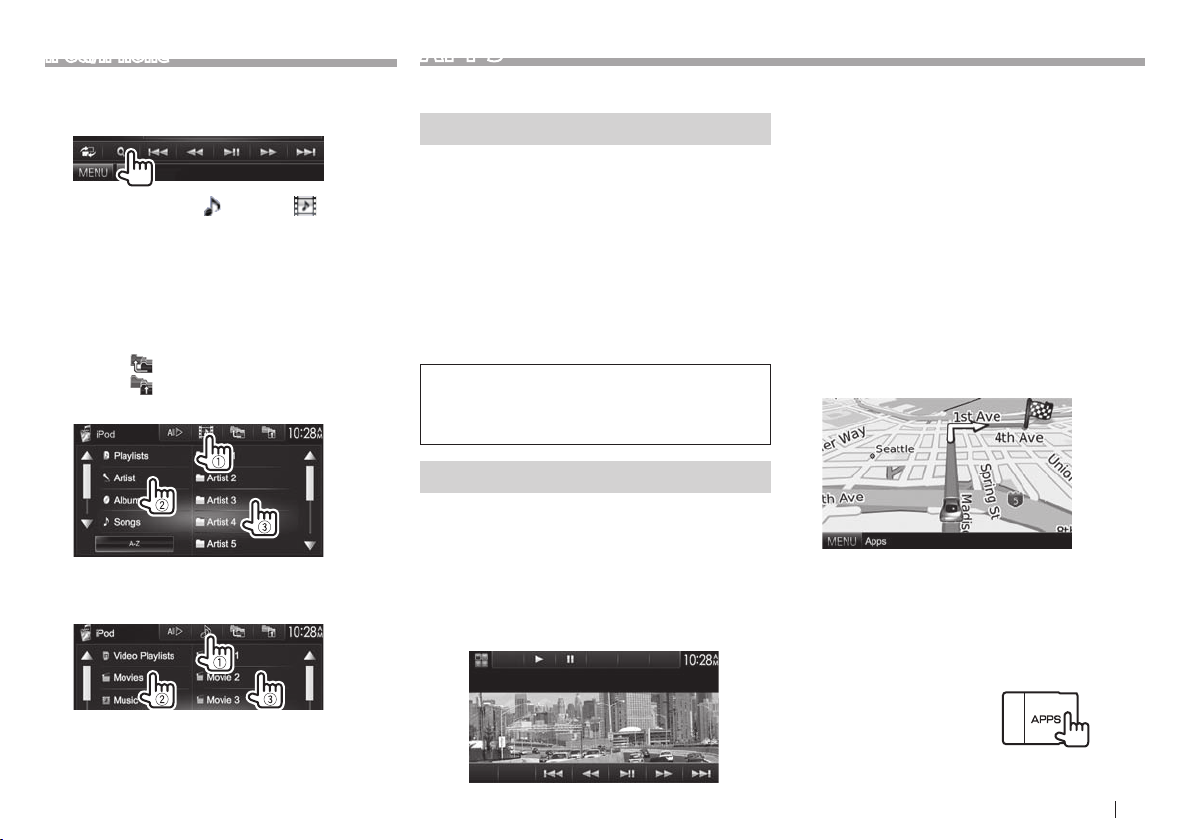

ENGLISH 19
iPod/iPhone
❏Selecting an audio/video file from the
menu
1
2Select the menu ( : audio or : video)
(1), a category (2), then a desired item
(3).
• Select the item in the selected layer until the
desired file starts playing.
• You can change the page to display more
items by pressing [J]/[K].
• Press [All E] to play all songs/videos.
• Press []to return to the top layer.
• Press []to return to the upper layer.
Audio menu:
• Press [A-Z] to sort the list in alphabetical
order.
Video menu:
• Available categories differ depending on the type
of your iPod/iPhone.
APPs
You can use an App of the connected iPod touch/
iPhone/Android on this unit.
Preparation
1Connect the iPod touch/iPhone/Android.
• For wired connection, see page56 for iPod
touch/iPhone or page57 for Android.
– To view the video, connect the device by
using KCA-iP202 or KCA-HD100 (optional
accessory).
• For Bluetooth connection, see page 31.
2Select the iPod touch/iPhone/Android
device to use and connection method on
the <APP Setup> screen. (Page 37)
When connecting the device for first time, the
setup screen (for connection, etc.) appears. Follow
the procedure on the setup screen to configure
the settings.
Using an App
❏Playback operations
1Start the App on your iPod touch/iPhone/
Android.
2Select “APPs” as the source. (Page9)
❏Operation buttons on the source
control screen
[S] [T]Selects an audio/video file.
[O] [N]Reverse/forward search.
[IW]Starts/pauses playback.
[MENU] Displays the <TOP MENU> screen.
For some applications such as navigation
applications, the operating buttons and information
are not shown. You can perform the operations on
the touch panel, such as scrolling the map.
You can also play back the audio/video using iPod/
iPhone instead of the unit.
• When you are using Garmin StreetPilot® Onboard,
the screen appears. For Garmin StreetPilot®
Onboard for iPhone, visit the Garmin web site:
www.garmin.com
Garmin App:
• The current position of your vehicle appears on
the map. When the vehicle moves, the map scrolls.
• The screens of the iPhone and unit are not the
same.
❏Switching to the App screen while
listening to another source
On the monitor panel:
DDXMidM200mm.indb19 2014/01/2919:30

20
Pandora® (Only for DDX635WBT Region 4)
You can stream Pandora from iPod touch/iPhone,
Android or BlackBerry devices.
• Install the latest version of the Pandora
application on your iPod touch/iPhone/Android/
BlackBerry.
Preparation
Connect the device, then start the Pandora
application.
For Android/BlackBerry
1Pair the Android/BlackBerry device
through Bluetooth. (Page29)
2Select the device to use and connection
method on the <APP Setup> screen.
(Page37)
3Select “PANDORA” as the source.
On the <TOP MENU> screen:
The Pandora application is started.
For iPod touch/iPhone
1Connect the iPod touch/iPhone.
(Page16)
2Select the iPod touch/iPhone device to
use and connection method on the <APP
Setup> screen. (Page37)
3Start the Pandora application on the
connected iPod touch/iPhone.
The “PANDORA” source control screen is
displayed.
• You can also display the “PANDORA” source
control screen by connecting the iPod touch/
iPhone using KCA-iP202 or KCA-HD100 after
starting the Pandora application.
Playback operations
You can operate Pandora using the remote
controller. Only playing, pausing, and skipping are
available.
❏Indications and buttons on the source
control screen
21 43
Playback information
1Picture data
2Track information
• Pressing [<] scrolls the text if not all of the text
is shown.
3Playback status
4Playing time
Operation buttons
[ ] Displays the easy control screen.
(Page8)
[ ] Displays the list selecting screen.
(Page 21)
[]Thumbs down to the current track
and skips to the next track.
[]Registers the current track as a
favorite.
[IW]Starts/pauses playback.
[T]Skips the current track.
• Not available when the Pandora
skip reaches its limit.
[]Displays other operation buttons.
• Disabled when there are no other
buttons.
[]Bookmarks the artist.
[]Bookmarks the current track.
[]Adds the current artist to the Station
List.
[]Adds the current track to the Station
List.
DDXMidM200mm.indb20 2014/01/2919:30
