Kenwood KNFD60B17 Service manual

60cm Total Frost Free Fridge
Freezer with Water Dispenser
KNFD60B17 / KNFD60X17
installation / instructions manual
KNFD60X_B17_IB_RC_170726_grace.indd 1 26/7/17 2:36 pm

KNFD60X_B17_IB_RC_170726_grace.indd 2 26/7/17 2:36 pm

Contents
safety warnings .................................................................................................................. 4
unpacking............................................................................................................................ 6
installation........................................................................................................................... 7
location ............................................................................................................................ 7
levelling the unit............................................................................................................... 7
free space requirements.................................................................................................. 7
installing the door handles............................................................................................... 7
reversing the door swing ................................................................................................. 8
cleaning before use ........................................................................................................11
before using your unit.....................................................................................................11
product overview.............................................................................................................. 12
main unit........................................................................................................................ 12
operation ........................................................................................................................... 13
switching on your unit.................................................................................................... 13
super freeze mode ........................................................................................................ 13
holiday mode ................................................................................................................. 13
before using the water dispenser .................................................................................. 14
lling the water tank....................................................................................................... 15
receiving water from the water dispenser...................................................................... 15
noises inside the unit!.................................................................................................... 16
tips for keeping food in the unit ..................................................................................... 16

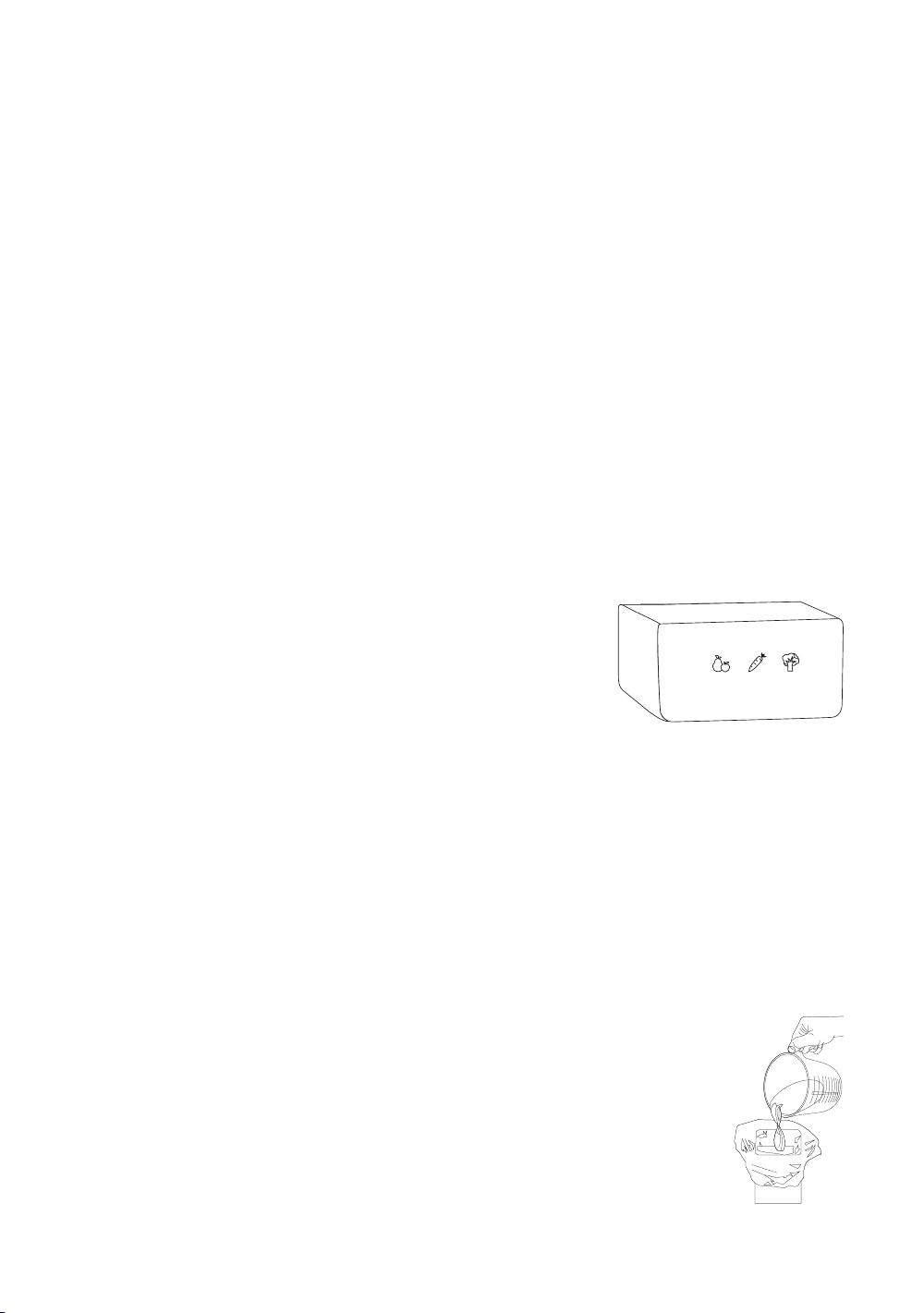

salad bin ........................................................................................................................ 16
preparations for freezing ............................................................................................... 16
defrosting frozen food.................................................................................................... 17
cleaning the interior and the exterior of the unit........................................................... 17
cleaning the water tank and water dispenser ................................................................ 17
maintenance...................................................................................................................... 18
changing the internal LED light ..................................................................................... 18
care when handling / moving your unit.......................................................................... 18
servicing ........................................................................................................................ 18
switching off for long periods of time ............................................................................. 18
condensation ................................................................................................................. 18
disposal............................................................................................................................. 18
specications.................................................................................................................... 19
product che..................................................................................................................... 19
KNFD60X_B17_IB_RC_170726_grace.indd 3 26/7/17 2:36 pm

4
safety warnings
For your continued safety and to reduce the risk of injury or electric
shock, please follow all the safety precautions listed below.
• Read all instructions carefully before using the unit and keep them
for future reference.
• Retain the manual. If you pass the unit onto a third party, make
sure to include this manual.
• This appliance is intended for indoor household use and similar
applications such as:
– farm houses and by clients in hotels, motels and other residential
type environment;
– bed and breakfast type environment;
– staff kitchen areas in shops, offices and other working
environment;
– catering and similar non-retail applications.
• Ensure that the plug is easily accessible to enable disconnection
from the mains supply.
• If the mains cable is damaged, it must be replaced by the
manufacturer, its service agent or a qualified technician in order to
avoid a hazard.
• Choose a location for your unit away from heat sources such as
radiators or fires as refrigerant and vesicant are burnable.
• The unit must be manoeuvred by a minimum of 2 persons.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved. Children shall
not play with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
• Children should be supervised to ensure that they do not play with
the unit.
• If your unit is fitted with a lock to prevent children being trapped
inside, keep the key out of reach and not in the vicinity of the unit.
KNFD60X_B17_IB_RC_170726_grace.indd 4 26/7/17 2:36 pm

5
WARNING
IT IS HAZARDOUS FOR ANYONE OTHER THAN
AUTHORISED SERVICE PERSONNEL TO CARRY OUT
SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL
OF COVERS.
TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT
ATTEMPT REPAIRS YOURSELF.
WARNING
• Keep ventilation openings in the unit enclosure or in the built-
in structure clear of obstructions.
• Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by the
manufacturer.
• Do not use electrical appliances inside the food storage
compartments of the unit, unless they are of the type
recommended by the manufacturer.
• Do not damage the refrigerant circuit (The refrigerant is a
very environmental-friendly gas but is also combustible. Take
care when transporting or moving the unit to ensure that the
refrigeration circuit is not damaged. In the event of damage
avoid naked flames or ignition sources and ventilate the room
in which the unit is placed for a few minutes.)
• When positioning the appliance, ensure the supply cord is not
trapped or damaged.
• Do not locate multiple portable socket-outlets or portable
power supplies at the rear of the appliance.
• Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
• Do not store bottles or glass containers in the freezer
compartment. Contents can expand when frozen (fizzy
drinks) which may break the bottle and damage your freezer
compartment. (If applicable)
KNFD60X_B17_IB_RC_170726_grace.indd 5 26/7/17 2:36 pm

6
unpacking
Remove all items from the packaging. Retain the packaging. If you dispose of it please do so
according to local regulations.
The following items are included:
Thank you for purchasing your new Kenwood Fridge Freezer.
These operating instructions will help you use it properly and safely.
We recommend that you spend some time reading this installation/instruction
manual in order that you fully understand all the operational features it offers.
Read all the safety instructions carefully before use and keep this installation/
instruction manual for future reference.
If items are missing or damaged please contact Partmaster (UK only).
Tel: [phone] for assistance.
Main Unit
Bin Cover Shelf x 1
Wine Rack x 1
Fridge Glass Shelf x 3
Salad Bin x 1 Small Freezer Drawer x 2 Large Freezer Drawer x 1
Upper Fridge Door Shelf
(one of them has a cover)
x 2
Egg Tray x 2
Bottle Stopper x 1
Instruction Manual
Ice Tray
x 1
Lower Fridge Door Shelf
x 1
Instruction
Manual
Door Handle (with 2
handle screw hole
covers) x 2
Screw Hole Cover x
1 (right side)
Freezer Glass Shelf x 2
Door Stopper x 2
(left side)
KNFD60X_B17_IB_RC_170726_grace.indd 6 26/7/17 2:36 pm

7
installation
installation
location
When selecting a position for your unit you should make sure the floor is flat and firm, and the
room is well ventilated with an average room temperature of between 10°C and 43°C. Avoid
locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight
as it may increase the electrical consumption. Extreme cold ambient temperatures may also
cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor
installation. Do not drape the unit with any covering.
Y mm
X mm
levelling the unit
To do this adjust the two levelling feet at the front of the unit.
If the unit is not level, the doors and magnetic seal alignments
will not be covered properly.
free space requirements
When installing the unit, ensure that 25 mm of
free space is left at both sides, 50 mm at the
rear of the unit and 25 mm at the top of the unit.
The door can be opened to the right or the left,
depending on which best suits the location.
Please ensure there is more than twice the width
and depth distance space of the unit to fully open
the door.
installing the door handles
1. Remove the screws from the doors.
2. Take the door handles and remove the 2 handle screw hole
covers from the door handles. Align the door handles with
the screw holes on the doors and screw tightly. Replace
the 2 handle screw hole covers on the door handles.
KNFD60X_B17_IB_RC_170726_grace.indd 7 26/7/17 2:36 pm

8
installation
• Ensure the unit is unplugged and empty.
• To take the door off it is necessary to tilt the unit backwards. You should rest the unit
on something solid, e.g. a chair just below the top panel.
• All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit flat as this may damage the coolant system.
• We recommend that 2 people handle the unit during assembly.
• If you want to have the door swing reversed, we recommend that you contact a
qualified technician. You should only try to reverse the door yourself if you believe that
you are qualified to do so.
reversing the door swing
tools required: Philips style screwdriver / Flat bladed screwdriver / Hexagonal spanner
1. Remove the upper hinge cover, screws
and upper hinge. Lift the upper door and
place it on a padded surface to prevent
from being scratched. Remove the screw
hole cover from the opposite side and keep
it for future use. For the right side, use the
screw hole cover from the plastic bag.
2. Remove the screw and stop block from the
bottom of the upper door and move it to
the opposite side. Remove also the door
stopper and keep it for future use. For the
opposite side, use the door stopper for left
side. Screw tightly.
Door stopper has left and right side.
The door stopper packed as an
accessory is for the left side.
Screw hole cover has left and right
side. The screw hole cover packed
as an accessory is for the right side.
After lifting the hinge cover, be sure to
disconnect electrical connectors before
fully removing the hinge cover.
KNFD60X_B17_IB_RC_170726_grace.indd 8 26/7/17 2:36 pm

9
installation
3. Remove the middle hinge. Lift the lower
door and place it on a padded surface to
prevent from being scratched.
4. Remove the screw and stop block from the
bottom of the lower door and move it to
the opposite side. Remove also the door
stopper and keep it for future use. For the
opposite side, use the door stopper for left
side. Screw tightly.
5. Lay down the unit. Remove both levelling
feet, levelling feet fix board and bottom
hinge. Swap the position of the levelling feet
fix board with the bottom hinge.
6. On the bottom hinge, move the position
of the bottom hinge pin to the other hole.
Tighten the pin securely.
Door stopper has left and right side.
The door stopper packed as an
accessory is for the left side.
KNFD60X_B17_IB_RC_170726_grace.indd 9 26/7/17 2:36 pm

10
installation
8. Stand the unit. Remove the middle hinge
hole covers and swap their position with the
middle hinge. Reverse the middle hinge.
9. Place the bottom hole of the lower door onto
the bottom hinge pin. Insert the middle hinge
pin into the upper hole of the lower door.
Tighten the pin securely. Screw the middle
hinge tightly. Cover the remaining holes with
the hole covers.
10. Place the bottom hole of the upper door onto
the middle hinge pin. Reverse the upper
hinge and pin position. Insert the upper
hinge pin into the upper hole of the upper
door. Tighten the pin securely. Screw the
upper hinge tightly.
• Ensure the upper door is aligned
horizontally and vertically, so that the
seals are closed on all sides before
finally tightening the pin.
7. Screw the levelling feet fix board, bottom
hinge and levelling feet tightly on their new
position.
• Ensure the lower door is aligned
horizontally and vertically, so that the
seals are closed on all sides before
finally tightening the pin.
KNFD60X_B17_IB_RC_170726_grace.indd 10 26/7/17 2:36 pm
