Kenwood HTB-405 Assembly instructions

Congratulations!
The HTB-405 Home Theatre System will make watching
movies at home more fun than ever. To connect your speak-
ers to the receiver follow the instructions on this sheet. To
learn how to operate your receiver please read and follow the
instruction manual included in the receiver’s box. If you’re
also connecting other equipment, such as a TV, VCR, DVD
player, CD player or other source component, use the receiv-
er’s manual in combination with the manuals that came with
those components.
Placing Your Speakers
Place the speakers as shown in the diagram below. While
you’re setting the speakers up, keep these points in mind:
• If the subwoofer causes discoloration of the TV picture,
move it away from the TV until the discoloration disap-
pears.
• Since the center speaker is magnetically shielded, you
can place it right on top of the TV without worrying about
picture discoloration.
• You can hang the speakers on the wall using heavy-duty
picture hangers.
• Placing the subwoofer next to a wall yields more deep
bass output than placing it away from a wall. Placing the
subwoofer in a corner yields the deepest bass output
overall.
Connecting Your Speakers
IImmppoorrttaanntt::DDoonnoottpplluuggtthheerreecceeiivveerr’’ssppoowweerrccoorrddiinnttooAACCoouutt-
lleettssuunnttiillyyoouuhhaavveepprrooppeerrllyyccoonnnneecctteeddaalllloofftthheessppeeaakkeerrss..
Connect the speakers as shown in the main diagram.
In each case, connect the colored speaker wire to corre-
sponding terminals on the speaker and receiver.
To make connecting the speakers easier, we have color-
coded the speaker wire and the terminals on the speakers,
labeled the terminals on the receiver, and pre-stripped the
insulation from the ends of the wire. DO NOT PUSH THE
WIRE TOO FAR INTO THE SPEAKER TERMINALS AS THIS WILL
NOT ALLOW THE WIRE TO MAKE PROPER CONTACT.
Setting Up Your Receiver
The receiver has a Quick Setup procedure that makes this
easy. After you’ve made all of the connections, follow these
steps. (You’ll be using the remote control):
Quick Connect Guide
HTB-405
Balancing the Speakers
Your receiver comes with the speaker volume settings pre-
balanced. If you have positioned the speakers as shown in
the diagram your system will create a spacious surround
sound environment right out of the box with no further
adjustment required.
If your room is arranged differently than shown in the dia-
gram, or if you simply want to fine-tune your system’s perfor-
mance, you can easily change the volumes of the individual
speakers to get a better balance:
1. Press the SETUP button 8 times. The display will read
“AUTO”.
2. Rock the MULTI CONTROL joystick forward once. The display
will change to “MANUAL”.
3. Press the SETUP button repeatedly until the speaker you
want to adjust appears on the display. You will hear test
noise through the speaker.
4. Rock the MULTI CONTROL joystick forward to increase the
speaker’s volume, rock it backward to decrease the
speaker’s volume.
5. Do not be concerned with the volume level readout on
the display while you’re adjusting the speakers—this is for
reference purposes only. However, once you have bal-
anced all the speakers you should write each speaker’s
volume setting down here for reference:
6. Press the SETUP button on the remote 5 times to exit the
setup mode.
Setting the Speaker Distances
This last step adjusts the timing of all the speakers so that
their sound arrives at the listening location at the proper time.
1. Measure the distance from each speaker to your seat.
Write the distances down.
2. Press the SETUP button on the remote 11 times. The dis-
play will read “10FT 3.0M”, and the left and right speaker
icons will flash.
3. Rock the MULTI CONTROL joystick forward or backward until
the display matches the distance from your left and right
speakers to your listening position.
4. Press the SETUP button again and repeat step 3 for the
center speaker, and again for the surround speakers.
5. When you’ve finished setting the speaker distances,
press the SETUP button 2 times to exit the setup mode.
If you have any questions about your new system, please contact our Customer Service Department at (800) KENWOOD or visit our Web site at www.kenwoodusa.com
((HHTTBB-550055QQuuiicckk-CCoonnnneeccttGGuuiiddeeoonnootthheerrssiiddee))
LLEEFFTT
FFRROONNTT
SSUUBB-
WWOOOOFFEERR
RRIIGGHHTT
SSUURRRROOUUNNDD
LLEEFFTT
SSUURRRROOUUNNDD
CCEENNTTEERRRRIIGGHHTT
FFRROONNTT
Congratulations!
The HTB-505 Home Theatre System will make watching
movies at home more fun than ever. To connect your speakers
to the receiver follow the instructions on this sheet. To learn
how to operate your receiver please read and follow the
instruction manual included in the receiver’s box. If you’re also
connecting other equipment, such as a TV, VCR, DVD player,
CD player or other source component, use the receiver’s man-
ual in combination with the manuals that came with those
components.
Placing Your Speakers
Place the speakers as shown in the diagram below. While
you’re setting the speakers up, keep these points in mind:
• If the subwoofer causes discoloration of the TV picture,
move it away from the TV until the discoloration disap-
pears.
• Since the center speaker is magnetically shielded, you can
place it right on top of the TV without worrying about pic-
ture discoloration.
• You can hang the speakers on the wall using heavy-duty
picture hangers.
• Placing the subwoofer next to a wall yields more deep bass
output than placing it away from a wall. Placing the sub-
woofer in a corner yields the deepest bass output overall.
Connecting Your Speakers
IImmppoorrttaanntt::DDoonnoottpplluuggtthheerreecceeiivveerr’’ssppoowweerrccoorrddiinnttooAACCoouutt-
lleettssuunnttiillyyoouuhhaavveepprrooppeerrllyyccoonnnneecctteeddaalllloofftthheessppeeaakkeerrss..
Connect the speakers as shown in the main diagram.
In each case, connect the colored speaker wire to correspond-
ing terminals on the speaker and receiver.
To make connecting the speakers easier, we have color-coded
the speaker wire and the terminals on the speakers, labeled
the terminals on the receiver, and pre-stripped the insulation
from the ends of the wire. DO NOT PUSH THE WIRE TOO FAR
INTO THE SPEAKER TERMINALS AS THIS WILL NOT ALLOW THE
WIRE TO MAKE PROPER CONTACT.
The subwoofer connects to the receiver using the audio cable:
• Connect one end of the audio cable to the input connector
on the subwoofer labeled L/MONO, and connect the other end
to the connector on the receiver labeled SUB WOOFER PRE OUT.
Using Your Subwoofer
Your SW-36HT subwoofer has features that make it easy to set
up and use:
AAuuttooPPoowweerrOOnn//OOffff
After you turn the subwoofer’s power switch On for the first
time, the subwoofer’s Auto Power On/Off feature will put it into
Quick Connect Guide
HTB-505
Standby when you’re not using it and turn it On again when you use your
system. (When the subwoofer is On the indicator on its rear panel glows
green. When it is in Standby the indicator glows red.) If you will not be
using your system for an extended period of time we recommend that
you turn the subwoofer’s power switch Off.
CCrroossssoovveerrFFiilltteerrSSwwiittcchh
Since your system’s receiver has a built-in crossover (circuitry that sepa-
rates the bass from the rest of the sound) on its subwoofer output, set
the subwoofer’s Crossover Filter Switch to Off.
VVoolluummeeCCoonnttrrooll
Initially, set the subwoofer’s volume knob to the 11 o’clock position.
During normal operation you will use the receiver’s subwoofer volume
control to adjust the subwoofer volume. (This is much more convenient
than having to reach behind the subwoofer to turn its volume knob every
time you want to adjust its volume.) If the receiver’s subwoofer volume
control won’t go loud or soft enough, re-adjust the subwoofer’s volume
knob to compensate. See the receiver’s instruction manual for details on
using the receiver’s subwoofer volume control.
Balancing the Speakers
Your receiver comes with the speaker volume settings pre-balanced. If
you have positioned the speakers as shown in the diagram your system
will create a spacious surround sound environment right out of the box
with no further adjustment required.
If your room is arranged differently than shown in the diagram, or if you
simply want to fine-tune your system’s performance, you can easily
change the volumes of the individual speakers to get a better balance:
1. Press the SETUP button 8 times. The display will read to “AUTO”.
2. Rock the MULTI CONTROL joystick forward once. The display will change
to “MANUAL”.
3. Press the SETUP button repeatedly until the speaker you want to adjust
appears on the display. You will hear test noise through the speaker.
4. Rock the MULTI CONTROL joystick forward to increase the speaker’s vol-
ume, rock it backward to decrease the speaker’s volume.
5. Do not be concerned with the volume level readout on the display
while you’re adjusting the speakers—this is for reference purposes
only. However, once you have balanced all the speakers you should
write each speaker’s volume setting down here for reference:
6. Press the SETUP button on the remote 5 times to exit the setup
mode.
Setting the Speaker Distances
This last step adjusts the timing of all the speakers so that their sound
arrives at the listening location at the proper time.
1. Measure the distance from each speaker to your seat. Write the dis-
tances down.
2. Press the SETUP button on the remote 11 times. The display will read
“10FT 3.0M”, and the left and right speaker icons will flash.
3. Rock the MULTI CONTROL joystick forward or backward until the display
matches the distance from your left and right speakers to your listen-
ing position.
4. Press the SETUP button again and repeat step 3 for the center speaker,
and again for the surround speakers.
5. When you’ve finished setting the speaker distances, press the SETUP
button 2 times to exit the setup mode.
If you have any questions about your new system, please contact our Customer Service Department at (800) KENWOOD or visit our Web site at www.kenwoodusa.com
((HHTTBB-440055QQuuiicckk-CCoonnnneeccttGGuuiiddeeoonnootthheerrssiiddee))
LLEEFFTT
FFRROONNTT
SSUUBB-
WWOOOOFFEERR
RRIIGGHHTT
SSUURRRROOUUNNDD
LLEEFFTT
SSUURRRROOUUNNDD
CCEENNTTEERRRRIIGGHHTT
FFRROONNTT

Other Kenwood Home Theater System manuals

Kenwood CD-223M Instruction Manual

Kenwood

Kenwood CD-223M Instruction Manual

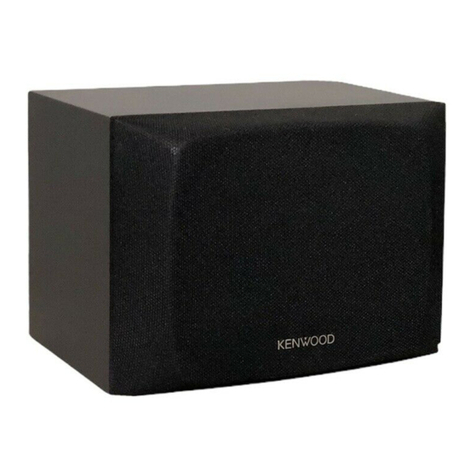

Kenwood Spectrum 550 AV User manual

Kenwood

Kenwood Spectrum 550 AV User manual

Kenwood HTB-506 User manual

Kenwood

Kenwood HTB-506 User manual

Kenwood HTB-201 Assembly instructions

Kenwood

Kenwood HTB-201 Assembly instructions

Kenwood HTB-303 Assembly instructions

Kenwood

Kenwood HTB-303 Assembly instructions

Kenwood HTB-S715DV User manual

Kenwood

Kenwood HTB-S715DV User manual

Kenwood HTB-404DV Assembly instructions

Kenwood

Kenwood HTB-404DV Assembly instructions

Kenwood Spectrum 855 AV User manual

Kenwood

Kenwood Spectrum 855 AV User manual

Kenwood SPECTRUM 755 AV User manual

Kenwood

Kenwood SPECTRUM 755 AV User manual

Kenwood Spectrum 550 AV User manual

Kenwood

Kenwood Spectrum 550 AV User manual

Kenwood SPECTRUM 755 AV User manual

Kenwood

Kenwood SPECTRUM 755 AV User manual

Kenwood Spectrum 850 AV Installation and operating instructions

Kenwood

Kenwood Spectrum 850 AV Installation and operating instructions

Kenwood Spectrum 460 AV User manual

Kenwood

Kenwood Spectrum 460 AV User manual

Kenwood SPECTRUM 1050 AV User manual

Kenwood

Kenwood SPECTRUM 1050 AV User manual

Kenwood CD-223M Instruction Manual

Kenwood

Kenwood CD-223M Instruction Manual

Kenwood HTB-504DV Assembly instructions

Kenwood

Kenwood HTB-504DV Assembly instructions

Kenwood HTB-504 Assembly instructions

Kenwood

Kenwood HTB-504 Assembly instructions

Kenwood DVR-5070 User manual

Kenwood

Kenwood DVR-5070 User manual

Kenwood Spectrum 860AV User manual

Kenwood

Kenwood Spectrum 860AV User manual

Kenwood CD-203 Instruction Manual

Kenwood

Kenwood CD-203 Instruction Manual

Kenwood HTB-401 User manual

Kenwood

Kenwood HTB-401 User manual

Kenwood Spectrum 360 User manual

Kenwood

Kenwood Spectrum 360 User manual

Kenwood HTB-454 Assembly instructions

Kenwood

Kenwood HTB-454 Assembly instructions

Kenwood DVT-505 Assembly instructions

Kenwood

Kenwood DVT-505 Assembly instructions

Popular Home Theater System manuals by other brands

Samsung HT-TWZ415 user manual

Samsung

Samsung HT-TWZ415 user manual

Bose LS28IIIBLK operating guide

Bose

Bose LS28IIIBLK operating guide

Sony HT-RT40 Startup guide

Sony

Sony HT-RT40 Startup guide

Denon DHT-591BA Product sheet

Denon

Denon DHT-591BA Product sheet

Sharp SD-AT50 Service manual

Sharp

Sharp SD-AT50 Service manual

Sony BDV-NF720 installation guide

Sony

Sony BDV-NF720 installation guide

Philips HTS6520/55 Service manual

Philips

Philips HTS6520/55 Service manual

Philips HTS3011-Mk2 Service manual

Philips

Philips HTS3011-Mk2 Service manual

LG LHD427B Simple manual

LG

LG LHD427B Simple manual

LG LHB645N Simple manual

LG

LG LHB645N Simple manual

Philips HTS3270 user manual

Philips

Philips HTS3270 user manual

Samsung HT-D4500 Firmware upgrade guide

Samsung

Samsung HT-D4500 Firmware upgrade guide

Sony SA-SS888 Service manual

Sony

Sony SA-SS888 Service manual

Harman Kardon BDS 335 owner's manual

Harman Kardon

Harman Kardon BDS 335 owner's manual

Bose Lifestyle 235 operating guide

Bose

Bose Lifestyle 235 operating guide

Sony BDV-HZ970W  (UWA-BR100) operating instructions

Sony

Sony BDV-HZ970W (UWA-BR100) operating instructions

Nuvo NV-P2100 Connection guide

Nuvo

Nuvo NV-P2100 Connection guide

JVC TH-A9 instructions

JVC

JVC TH-A9 instructions

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
