know your Kenwood microwave
before using your Kenwood microwave
●Read these instructions carefully and retain for future
reference.
●Remove all packaging labels and dispose of them properly.
before calling for service
●Review this section on Troubleshooting. This will help you to
solve general problems yourself.
safety information
general safety
●Switch off and unplug before fitting or removing tools/
attachments, after use and before cleaning.
●Keep your fingers away from moving parts and fitted
attachments.
●Never use a damaged machine.
●Never operate the machine when it is empty.
●Keep mains cable out of reach from children.
●Keep power unit, mains cable and plug away from water.
●Never exceed the maximum capacities.
●When using an attachment, read the safety instructions.
●Take care when lifting this appliance as it is heavy.
●This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
●Children should be supervised to ensure that they do not play
with the appliance.
●Only use the appliance for its intended domestic use.
The company responsible for this product, DSG Retail Limited,
will not accept any liability if the appliance is subject to
improper use, or failure to comply with these instructions.
Kenwood K23GSS10_IB_GB_100315.indd 4 3/15/10 4:05 PM

before use
GB-5
safety information
please read carefully and keep for future
reference
maintenance of your microwave
WARNING : It is hazardous for anyone other than a
qualified technician to carry out any service or repair operation
which involves the removal of a cover that gives protection
against exposure to microwave energy.
WARNING : If the door or door seals are damaged, the
oven must not be operated until it has been
repaired by a qualified technician.
●If smoke is observed, switch off and unplug the appliance and
keep the door closed in order to contain the flames.
●If the mains cable is damaged, it must be replaced by a service
agent or similar qualified technician.
●If you have a pacemaker, please contact your doctor before
using a microwave oven.
microwave use
●This microwave is not intended for commercial use.
●It should never be used for drying clothes or other non-food
purposes.
●The appliance is not intended to be operated by means of an
external timer or separate remote-control system.
●The microwave should not be left unattended when in use.
●The temperature of accessible surfaces may be high when the
appliance is operating.
●To prevent high moisture content gathering inside the oven
cavity, open the door immediately after the cooking function
has stopped to allow steam to escape.
●Only use utensils that are suitable for microwave use.
●Care should be taken so metal objects are not used in the
microwave.
These include :
¨ Metal cooking utensils
¨ Metal plates or trays
¨ Wire twist ties
¨ Crockery with metal trims
¨ Meat thermometer
●Care should be taken when using paper, plastic, wooden or
other combustible materials in the oven as they can catch fire.
●Oil & fat for deep frying should not be heated in the microwave.
●Only use cling film designed for microwave use & take extra
care when removing the film to avoid steam burns.
●Only heat popcorn that has been designed for microwave use.
Kenwood K23GSS10_IB_GB_100315.indd 5 3/15/10 4:05 PM

GB-6
safety information
cooking use
As the power of different microwave ovens can vary
considerably, care must be taken when first using this appliance
as it may cook faster than expected.
●Do not leave the appliance unattended during use.
WARNING : Only allow children to use the oven without
supervision when adequate instructions have
been given so that the child is able to use the
oven in a safe way and understands the
hazards of improper use; DO NOT assume
that because a child has mastered one
cooking skill he/she can cook everything
without close supervision. The microwave
MUST NOT be treated nor used like a toy.
●Take care when cooking food with a high sugar or fat content,
such as Christmas pudding or fruitcake. The sugar or fat can
overheat and in some cases catch fire.
fire!
In the event of fire:
●Keep the oven door closed.
●Turn off the power.
●Unplug the appliance from the mains power.
first aid
Treat scalding by:
●Quickly placing the scald under cold running water for at least
10 minutes.
●Cover with a clean dry dressing. Do not us creams, oils or
lotions.
cleaning your microwave
The microwave should be cleaned regularly and food deposits
removed. Failure to maintain the oven in a clean condition can
affect the life of the appliance and possibly result in a hazardous
situation. (See cleaning your microwave)
Kenwood K23GSS10_IB_GB_100315.indd 6 3/15/10 4:05 PM

before use
GB-7
safety information
do not use these in your microwave
●Never use equipment made of metal, except foil in your
microwave. The microwave energy cannot pass through the
metal so it bounces off and sparks against the inside of the
oven.
●Stop the microwave straight away if any equipment does cause
sparks.
●Remember that some crockery has a metal trim around the
edge. Even this trim can cause sparks.
Containers / Certain Foods
WARNING : Pressure will build up in sealed containers and
cause them to explode. Therefore, do not use
the following in your microwave:
¨ Sealed containers
¨ Capped bottles
¨ Vacuum containers
¨ Sealed jars
¨ Hard-boiled eggs
¨ Eggs in their shells
¨ Nuts
●Always pierce the skin of fruit and vegetables, such as
potatoes.
●Never use scratched, cracked or damaged glass in a
microwave. Damaged glass can explode.
delayed boiling
Liquids heated in a microwave can boil up when removing them
from the microwave.
Take the following precautions :
●Always stir liquids before and after cooking.
●Allow them to stand.
●Use containers that are wider at the top than the bottom.
preparing food for babies
Extra care must be taken when preparing food or drink for babies
and small children.
●Always test the food or liquid temperature before giving it to a
baby.
●When using a baby bottle, ensure the teat is removed before
heating.
●When warming milk, ensure the bottle is shaken.
caution!
During cooking, the outer surface will become hot, do not touch
the outer casing of the microwave. Care should be taken not to
store any items on top of your microwave.
Kenwood K23GSS10_IB_GB_100315.indd 7 3/15/10 4:05 PM

GB-8
earthing instructions
●WARNING: THIS APPLIANCE MUST BE
EARTHED.
●This appliance is equipped with a mains cable
having an equipment-earthing conductor and an
earthing plug.
●The plug must be plugged into an appropriate mains socket that
is installed and earthed in accordance with all local standards
and requirements.
warning!
●Improper connection of the equipment-earthing conductor can
result in a risk of electric shock.
●The wires in the cord are coloured as follows:
Green and Yellow = Earth,
Blue = Neutral,
Brown = Live.
● Check with a qualified electrician or service representative if
you are in doubt whether the appliance is properly earthed.
● Never modify the plug provided with the appliance.
● If the plug does not fit properly in the outlet, have a qualified
electrician install the correct one.
safety information
Kenwood K23GSS10_IB_GB_100315.indd 8 3/15/10 4:05 PM

before use
GB-9
using aluminium foil in your microwave
It is safe to use aluminium foil in your microwave as long as you
follow these safety guidelines.
As with all metal, microwave energy cannot pass through foil, but
provided that you keep the foil away from the side of the oven it
will not cause sparks and there will not be any damage to
your oven.
Using foil is a good way of shielding parts of food that you do not
want to cook as quickly as others – perhaps where the food is
thinner and would otherwise overcook.
Place the foil over the area you want to shield, taking care that
the foil will not touch the sides of the oven when the turntable
rotates. Only use one piece of foil at a time so that you do not
get sparks between the separate pieces.
Follow these guidelines when using foil in your microwave:
●Remove foil lids from containers before using in the
microwave. Some lids are made of card with a foil covering
– these should be removed too. Use a microwave safe
transparent lid if possible.
●Stir food during cooking if the container has a lid or film cover.
●Always use the glass turntable.
●Use shallow containers with a large surface area. Do not use
containers that are more than 1.25in (3.5cm) deep.
●Use oven gloves when handling hot foil containers.
●Do not completely cover food with foil. The microwave energy
cannot pass through the foil so the food will not cook.
●Do not let aluminium foil touch the inside of the oven.
●Do not use more than one piece of foil in the oven at the same
time.
Kenwood K23GSS10_IB_GB_100315.indd 9 3/15/10 4:05 PM

GB-10
unpacking and getting ready
This microwave is designed for home use. It
should not be used for commercial catering.
1. After unpacking your microwave, check that it
has not been damaged whilst in the box. Make
sure there are no dents on the oven, and the
door closes properly. A dented or damaged
oven could allow microwave energy to escape.
Make sure that you have taken all the
packaging from inside the microwave. Please
dispose of the plastic wrappings or bags safely
and keep out of the reach of babies and young
children.
2. Choose a flat work surface for your microwave
away from heat sources such as radiators or
fires and away from cold areas.
You should allow a 10cm space all around the
oven and 30cm above so that warm air can
escape from the vents during cooking – This
microwave is not designed to be built in.
3. Plug your microwave into a standard
household electrical socket (230-240 volt, 13
amp rated). Avoid using a socket that also has
an adaptor and other equipment plugged in.
Do not use a multi-adaptor.
4. Put the turntable ring inside the microwave
and place the glass turntable on top of the
ring. The turntable is shaped to sit
securely on the spindle. You must always use
the turntable and ring whenever you use the
microwave.
1
30cm
10cm10cm
2
1
2
Kenwood K23GSS10_IB_GB_100315.indd 10 3/15/10 4:05 PM

before use
GB-11
introducing microwave cooking
Always remember the basic safeguards you would follow when
using any cooking equipment or handling hot food.
See below for basic guidelines in microwave cooking.
If you are unfamiliar with using a microwave, refer to the back of
this instruction booklet for more information.
cooking with a microwave
●Cooking with a microwave is much faster than
conventional cooking and, whilst you should make
sure that food is fully cooked, you should be careful not to
overcook it.
●Microwave energy can heat unevenly so stirring to distribute
heat is very important. Always stir from the outside, inwards.
●If you are cooking a number of individual foods at the same
time, such as baked potatoes or small cakes, arrange them
evenly on the turntable so that they cook evenly. Never stack
food in your microwave.
●Turn larger foods such as meat roasts and poultry during
cooking so that the top and bottom cook evenly. It is also
recommended to turn pieces of meat or poultry, especially if
they contain a bone.
●Meat and poultry which is cooked for 15 minutes or more will
brown lightly in its own fat. Anything cooked for a shorter time
can be brushed with a browning sauce to give an appetising
colour.
●Strips of aluminium foil can be used to cover the thinner pieces
of food to stop them overcooking before the thicker parts of
the food have had a chance to cook. Use the foil sparingly and
wrap around the food or container carefully to stop it touching
the inside of the oven which could cause sparks.
NOTE: You should always have your microwave checked by a
qualified technician if it has been dropped or damaged to
ensure it is safe to use.
Kenwood K23GSS10_IB_GB_100315.indd 11 3/15/10 4:05 PM

GB-12
●Microwave ovens cook food using microwave
energy that is similar to naturally occurring radio
waves. Normally, these “waves” would fade as
they dispersed into the atmosphere but in a
microwave oven they are concentrated onto
food causing it to heat up.
●Microwave energy cannot pass through metal
– so it cannot escape from inside your
microwave oven – but it can pass through
materials like glass, porcelain, plastic and paper.
These materials are used in the manufacture of
microwave safe cooking equipment.
●Microwave safe cooking equipment will still get
hot as the food it contains heats up.
The microwave energy focuses on the moisture in
the food causing lots of tiny vibrations. The
vibrations get so great that the moisture, and the
food heats up. (Fig 1)
checking your cooking utensils
Most heat-resistant, non-metallic cooking utensils
are safe to use in your microwave. If you are not
sure if you can use a utensil in your microwave,
follow this simple test:
1. Put the utensil into the microwave next to a
cup of water – use a cup that you know is
microwave-safe. Close the door.
2. Turn the microwave on for 30 seconds only.
3. After 30 seconds, carefully check to see if
the water has warmed up.
If the water has not warmed up but the utensil
has, the utensil is not microwave-safe and
should not be used in the microwave.
4. Do not use your hands to touch the utensils
as it may already be hot.
NOTE: Your microwave comes with a microwave
safe grill rack. If you want to use another
grill rack, please carry out this test to
ensure that it is microwave safe.
1
Kenwood K23GSS10_IB_GB_100315.indd 12 3/15/10 4:05 PM

before use
GB-13
800W
E
microwave heating categories
Your microwave oven has been tested and labelled to meet the government’s voluntary
agreement on the reheating of pre-cooked food.
The heating characteristics and output power levels of microwave ovens are usually
calculated using a relatively large portion of food (a 1000 gram load, IEC 705) but many
packs of pre-cooked food are sold in smaller packs, often about 350 grams.
The government, in partnership with food companies and microwave manufacturers,
have set up a system of heating categories to help you choose the reheating time for
pre-cooked food.
800W is the output power of the microwave
oven.
E is the heating category for your microwave
oven.
Check the cooking times for category Eon
the food’s packaging to see how long it should
be cooked for. Please see below example for
reference.
To Microwave:
Remove outer packaging.
Pierce film lid SEVERAL TIMES.
Place on a microwaveable plate.
Heat on full power.
Stir or turn halfway through heating.
Heating
Category
Wattage
(IEC 705)
B D 650W 750W
Full power
(in minutes) 2 2 2 2
Stir / Turn Stir / Turn Stir / Turn
Full power
(in minutes) 2 1.5 2 1.5
Standing time
(in minutes) 1 1 1 1
To Microwave from frozen:
Remove outer packaging.
Pierce film lid SEVERAL TIMES.
Place on a microwaveable plate.
Heat on full power.
Stir or turn halfway through heating.
Heating
Category
Wattage
(IEC 705)
B D 650W 750W
Full power
(in minutes) 3 2.5 3 2.5
Stir / Turn Stir / Turn Stir / Turn
Full power
(in minutes) 4 3.5 4 3.5
Standing time
(in minutes) 1 1 1 1
Kenwood K23GSS10_IB_GB_100315.indd 13 3/15/10 4:05 PM

GB-14

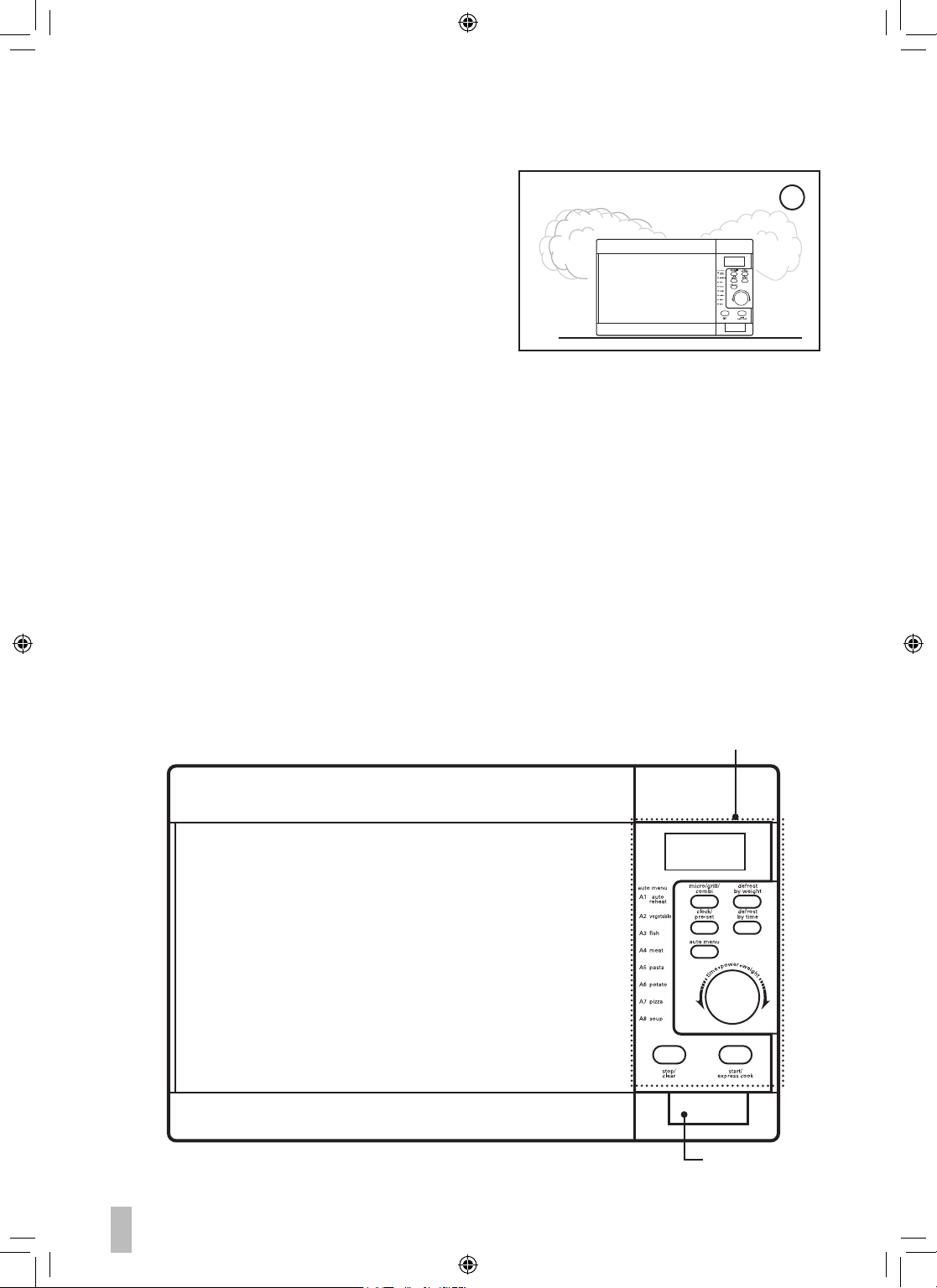

steam
When you microwave food, steam is created as
water in the food heats up and evaporates.
The steam formed during microwave cooking is
entirely safe. It has to escape from the
microwave to prevent pressure from building up
inside the oven. It does this through the vents
on the back of the microwave and from around
the door.
condensation
As the steam cools, you may find the
condensation gathers in small pools inside your
microwave and on the work surface beneath the
door and vents.
Always dry the microwave after cooking foods
with a high moisture content.
Your microwave is designed to let steam escape
from the vents and around the door without
microwave energy escaping. (Fig 1)
There is no danger of microwave energy
escaping with the steam.
product overview
1
control panel
door button
Kenwood K23GSS10_IB_GB_100315.indd 14 3/15/10 4:05 PM

before use
GB-15
Accessories
part numbers 252100500498
and 252200200008
part number 256511700002 part number 261800304771
Glass Turntable
x 1
Turntable Ring
x 1
Grill Rack
x 1
Instruction Manual
x 1
microwave/grill/
combination button
Use this button to select
the function of microwave,
grill, microwave and grill
combination.
auto menu button
Use this button to choose the
auto menu programs.
defrost by time button
Use this button to defrost
food by time.
LED display
Shows the clock,
cooking time
and setting.
clock/pre-set button
Use this button to set
the clock and to preset
cooking time.
stop/clear button
Use this button to stop
cooking and clear
cooking settings.
time/power/weight
dial
Use this dial to set time,
cooking power and food
weight.
control panel overview
defrost by weight button
Use this button to defrost
food by weight.
start/ express cook
button
Use this button to
quick start cooking by
increments of 1 minute.
Each press adds 1 minute.
Use this button to also
start/restart cooking.
Microwave / Combination
Oven
K23GSS10
DSGRetail Limited is responsible for after sales service.
Ifyou have a query about the product please contact our product support line
0844561 6263 (Currys) and 08700 118 117 (Pixmania).
Kenwood K23GSS10_IB_GB_100315.indd 15 3/15/10 4:05 PM

GB-16
checking your microwave
Check your microwave after unpacking.
NOTE: For your safety, the microwave stops if
the oven door is opened during cooking.
Close the door and press the start/
express cook to continue the cooking
cycle.
1. Push the button to open the oven door.
Put the turntable ring inside the oven and
place the glass turntable on top of the ring.
The turntable is shaped to sit securely on the
spindle. (Fig 1)
You must always use the glass turntable
and turntable ring whenever you use the
microwave.
Place a cup of water on the glass turntable.
Make sure the cup is microwave safe - it
should not have any decorative metal trim.
2. Close the oven door.
3. Press the stop/clear button to clear any
settings that have already been made. (Fig 2)
4. Press the start/express cook once
to start a simple 1-minute microwave
cooking cycle and that allows you to check
the operation of the microwave oven.
5. When the cooking cycle has finished, the
water should be hot (be careful when you
take the cup out of the microwave). Press
the stop/clear button to clear any settings.
3, 5
4
1
2
Kenwood K23GSS10_IB_GB_100315.indd 16 3/15/10 4:05 PM

before use
GB-17
clock setting
When the microwave is connected to the mains power, the LED display will show
0:00, and it will sound once. Please ensure you have set the clock prior to use.
Please follow the steps below to set the clock.
1. Press the clock/pre-set and the hour
figures will flash.
2. Turn the time/power/weight
dial to adjust the hour figures. The
input time has to be within 0-23.
3. Press the clock/pre-set and the
minute figures will flash.
4. Turn the time/power/weight
dial to adjust the minute figures, the
input time has to be within 0-59.
5. Press the clock/pre-set again to
complete the clock setting.
:will start flashing and the time will
illuminate.
1, 3, 5
2, 4
Kenwood K23GSS10_IB_GB_100315.indd 17 3/15/10 4:05 PM

GB-18
setting the child lock
This feature prevents the electronic operation of the microwave by locking the
operation of the control panel until you have cancelled it.
Please follow the steps below to set the child lock.
1. Press the stop/clear button for 3
seconds and a long tone will sound.
The LED display will also show
to indicate the microwave has set the
child lock.
2. To release the child lock, press the
stop/clear button again for 3 seconds
and a long tone will sound to indicate
that the microwave has released the
child lock.
1, 2
Kenwood K23GSS10_IB_GB_100315.indd 18 3/15/10 4:05 PM

operating instructions
GB-19
microwave cooking
For simple Microwave Cooking, follow the steps below.
For instance: If you want to use 80% microwave power to cook for 20 minutes.
1. Press the micro/grill/combi button once
and the LED display will show P100.
2. Turn the time/power/weight dial to
change the power level to P80.
3. Press the micro/grill/combi
button again to confirm the microwave
power level.
4. Turn the time/power/weight dial
to adjust the cooking time until the LED
display shows 20:00.
5. Press the start/express cook
button to confirm and start cooking.
6. Press the stop/clear button once to stop
and hold the cooking. Press again to cancel
the setting.
Microwave/Grill/Combination Button
Control (For Microwave Cooking)
Order LED Display Microwave
Power
1 P100 100%
2 P80 80%
3 P50 50%
4 P30 30%
5 P10 10%
1, 3
5
2, 4
6
Kenwood K23GSS10_IB_GB_100315.indd 19 3/15/10 4:05 PM

GB-20
grill or combination cooking
1, 3
5
2, 4
6
For Grilling, follow the steps below.
1. Press the micro/grill/combi button once
and the LED display will show P100.
2. Turn the time/power/weight dial to change
the cooking setting to G.
3. Press the micro/grill/combi button
again to confirm the grill cooking setting.
4. Turn the time/power/weight dial
to adjust the cooking time.
5. Press the start/express cook
button to confirm and start cooking.
6. Press the stop/clear button once to stop
and hold the cooking. Press again to cancel the
setting.
For Combination Cooking, follow the steps
below.
1. Press the micro/grill/combi button once
and the LED display will show P100.
2. Turn the time/power/weight dial to change
the cooking setting to C-1 or C-2.
3. Press the micro/grill/combi button
again to confirm the cooking setting.
4. Turn the time/power/weight dial
to adjust the cooking time.
5. Press the start/express cook
button to confirm and start cooking.
6. Press the stop/clear button once to stop
and hold the cooking. Press again to cancel
the setting.
Kenwood K23GSS10_IB_GB_100315.indd 20 3/15/10 4:05 PM
