Kenyon International 120 User manual

KENYON®
Custom
Alcohol/Electric Combination Cooktops
1 and 2 Burner Units
Use & Care Guide - Installation Manual
120 and 240 V Models
Kenyon International, Inc.
P.O. Box 925
8 Heritage Park Road
Clinton, CT 06413
Phone: [phone]
Fax: [phone]
www.kenyonappliances.com
Part # 141358
Revised: December 14, 2010

Table of Contents
Section Page
Important Safeguards ................................................................................................................
Product Specications .............................................................................................................
Installation Instructions
Step # 1 - Unpacking the Cooktop ....................................................................................
Step # 2 - Checking the Electrical Supply Requirements .................................................
Step # 3 - Countertop Preparation ....................................................................................
Step # 4 - Installing the Cooktop .......................................................................................
Step # 5 - Electrical Connection ........................................................................................
Step # 6 - Final Preparations Prior to Use .......................................................................
Alcohol Operation
Alcohol Burner ..................................................................................................................
Operating Components.....................................................................................................
Alcohol Burner Fueling Instructions ..................................................................................
Burner Operating Instructions .........................................................................................
Electric Operation
Operation of Electric Elements.........................................................................................
Closing The Glass Lid.......................................................................................................
Using The Adjustable Glass Lid ......................................................................................
Stove Replacement Parts................................................................................................
Warranty Information ...............................................................................................................
1
3
4
5
5
7
7
7
8
8
9
10
11
12
12
13
14

This cooktop, like all appliances, has the potential to create safety problems
through careless and improper use. Please observe all of the following safety
precautions.
Please read these instructions in their entirety before
installation and use. The following information applies to all
KENYON Alcohol/Electric Cooktops.
Proper Installation.
Be sure your appliance is properly installed and grounded by a qualied technician.
Never use your appliance for warming or heating the room.
CAUTION
Do not leave children alone.
Children should never be left alone or unattended in the area where the appliance is in use. They
should never be allowed to sit or stand on any part of the appliance. Do not let children play with
cooktop. Do not store items of interest to a child in cabinets above the cooktop, children
climbing on the cooktop to reach such items could be seriously injured.
Wear proper clothing/apparel.
Loose tting or hanging garments should never be worn while using the appliance. Fabric or other
ammable materials may contact hot surfaces during operation and may ignite and result in personal
injury.
User Servicing
Do not repair or replace any part of the appliance. If service ever becomes necessary, this
appliance should be serviced by AUTHORIZED PERSONNEL ONLY or call KENYON Customer
Care at [phone].
Storage in or on Appliance
Flammable materials should not be stored above, under or near surface cooking units.
Keep ammable materials away from cooktop.
Do not store plastic material (such as plastic utensils) in storage areas beneath cooktop.
Plastic items with low melting temperatures should not be stored under/over or near the cooktop.
Do not use water on grease res.
Smother re or ame or use dry chemical or foam-type extinguisher.
IMPORTANT SAFEGUARDS
1

Use only dry pot holders.
Moist or damp pot holders on hot surfaces may result in burns from steam. Do not let pot holders
touch the elements on the appliance. Do not use a towel or other bulky cloth in place of a pot holder.
Do not cook on broken cooktop.
If cooktop should break, cleaning solutions and spillovers may penetrate the broken cooktop and
create a risk of electric shock. Contact an authorized service center or KENYON Customer Care
immediately at [phone].
Clean cooktop with caution.
Do not clean the cooktop while it is still hot. If a wet sponge or cloth is used to wipe spills on a hot
cooking surface, be careful to avoid steam burns. Some cleaners produce noxious fumes if applied to
a hot surface. Read the cleaner label for details prior to using.
Use proper pan size.
This appliance is equipped with one or more surface units of different size. Select cookware
having at bottoms large enough to cover the surface unit heating element. Proper relationship of
cookware to burner size will also improve efciency.
Never leave surface units unattended at high heat settings.
Boilover may cause smoking and greasy spillovers may ignite.
Glazed cooking utensils
Only certain types of glass, glass/ceramic, ceramic, earthenware, or other glazed utensils are suitable
for range-top service without breaking due to sudden change in temperature.
Utensil handles should be turned inward and not extend over adjacent surface units.
To reduce the risk of burns, ignition of ammable materials, and spillage due to unintentional
contact with the utensil, the handle of a utensil should be positioned so that it is turned inward, and
does not extend over adjacent surface units.
Never heat an empty pan.
It may damage the cooktop or cookware and overheat the unit.
Do not use aluminum foil on the surface of the cooktop.
Cookware should always be dry.
Do not heat cookware with excess water droplets on the outside of the pan. The droplets may begin
to boil and splatter.
Do not touch surface units or areas near units.
Surface units may be hot even though they are dark in color. Areas near surface may become hot
enough to cause burns. During and after use, do not touch, or let clothing or other ammable
materials contact surface units or areas near units until they have had sufcient time to cool. Among
these areas are the heating elements and surrounding glass surface.
DO NOT DISCARD THESE INSTRUCTIONS, KEEP THEM
WITH THE KENYON COOKTOP FOR FUTURE REFERENCE.
2

PRODUCT SPECIFICATIONS
Alcohol Electric Cooktop
Two Burner Units
B61148 - 120V AC - two 8” (200mm) @ 2200 watts
B61149 - 240V AC - two 8” (200mm) @ 2200 watts
Overall dimensions: 22 1/2” x 13 1/2” x 5 3/4”
571.5mm x 342.9mm x 146mm
Cutout dimensions: 21 3/4” x 12 3/4” with 3” radius
552.5mm x 323.9mm with 76.2mm radius
Single Burner Units
B61144 - 120V AC - one 8” (200mm) @ 1100 watts
B61145 - 240V AC - one 8” (200mm) @ 1100 watts
Overall dimensions: 12 3/4” x 12 3/4” x 5 3/4”
323.9mm x 323.9mm x 146mm
Cutout dimensions: 12 1/4” x 12 1/4” with 3” radius
311.2mm x 311.2mm with 76.2mm radius

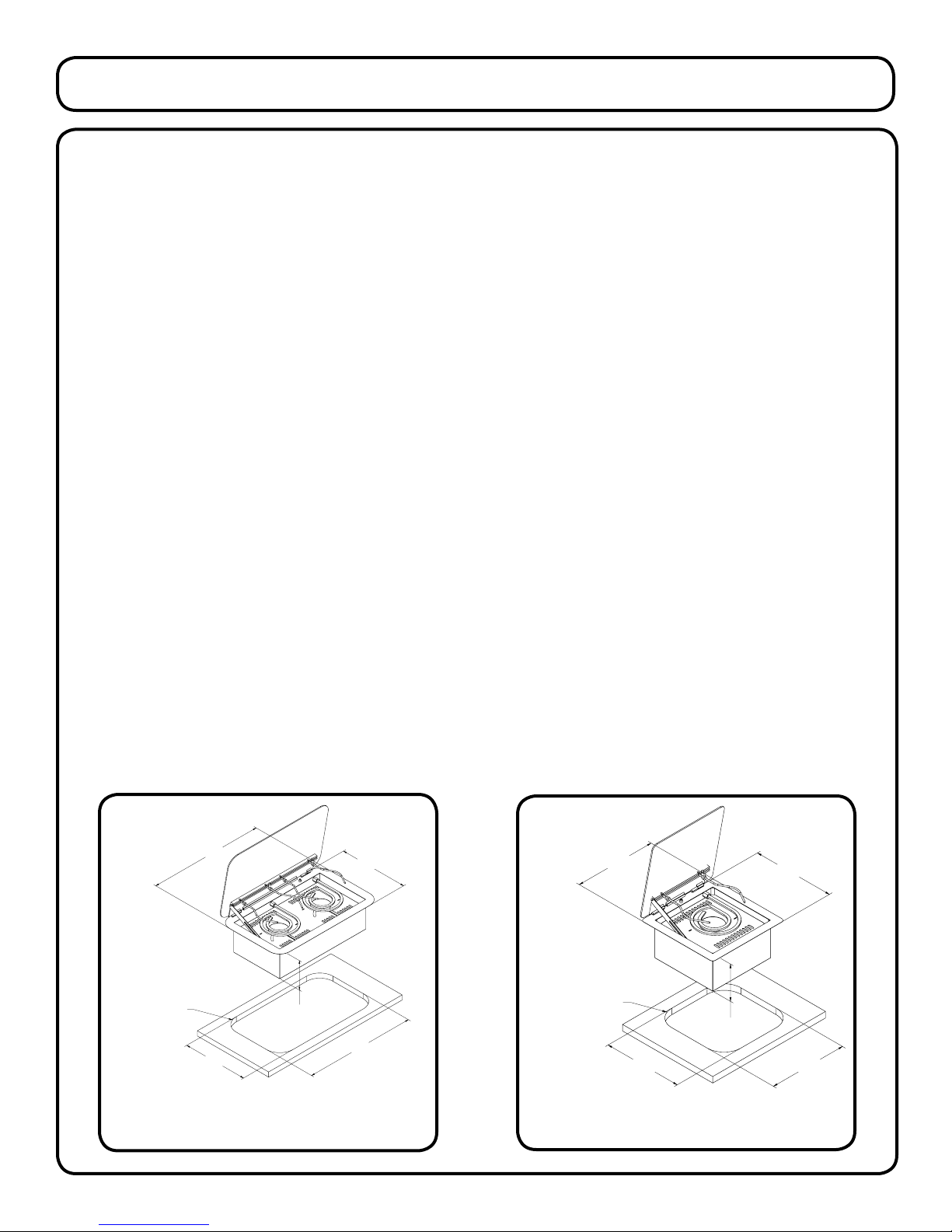

12 3/4"
21 3/4"
3" Radius required
13 1/2"
22 1/2"
5 3/4"
B61148 & B61149
12 1/4"12 1/4"
3" Radius required
12 3/4" 12 3/4"
5 3/4"
B61144 & B61145
3

INSTALLATION GUIDE
IMPORTANT: Please read these instructions completely before
installation and operation of the appliance.
!
STEP # 1
Unpacking the Cooktop
Carefully unpack the cooktop from its shipping container. If possible, retain the original shipping
carton and protective packaging in the event the unit ever has to be returned for service
Verify and identify the package contents. The following items should be included in the carton. If
any components are missing or damaged, call KENYON immediately.
Alcohol/Electric Cooktop • (1) Fill Bottle • (1) Use and Care Guide Installation Manual
For future reference, please record the serial number of your
cooktop here:
IMPORTANT: This appliance must be properly installed and
grounded by a qualied technician.
!
4

STEP #2
Check the Electrical Supply Requirements
This product must be installed in accordance with ABYC standard A-3, “Recommended Practices
and Standards Covering Galley Stoves,” and/or the “Fire Protection Standards for Motorcraft”
NFPA #302. The following table provides the correct voltage, amperage and frequency that must
be supplied to the cooktop.
The supply must be from an individual grounded circuit that is protected by a circuit breaker and
rated per the specications for the various models as shown in the table above.
WARNING: If the electric power supply does not meet the product
specications, consult with a marine technician before proceeding
with installation.
!
STEP #3
Countertop Preparation
Please read this section prior to making cutout for cooktop.
It is important to plan ahead for installation of the cooktop, keeping the following dimensions in
mind. The cooktop must be located in an area with adequate ventilation for occupants’ safety and
efcient cooktop operation. It should be installed with adequate clearances between the
cooktop and all surrounding surfaces (i.e. curtains, cabinets, etc) in order to minimize heat
transfer to these surfaces. Also re resistant materials should be attached to any surrounding
surfaces, especially overhead.
Once a location for the cooktop has been chosen, it is important to check clearances underneath
the counter for the bottom portion of the stove and its moving parts. The stove extends about 6
inches (152 mm) below the countertop. If drawers or cabinets are located under the cooktop, a
rigid barrier must be installed to prevent combustible items, (i.e. rags, paper, etc.) from coming in
contact with the hot cooktop. The barrier must be ventilated.

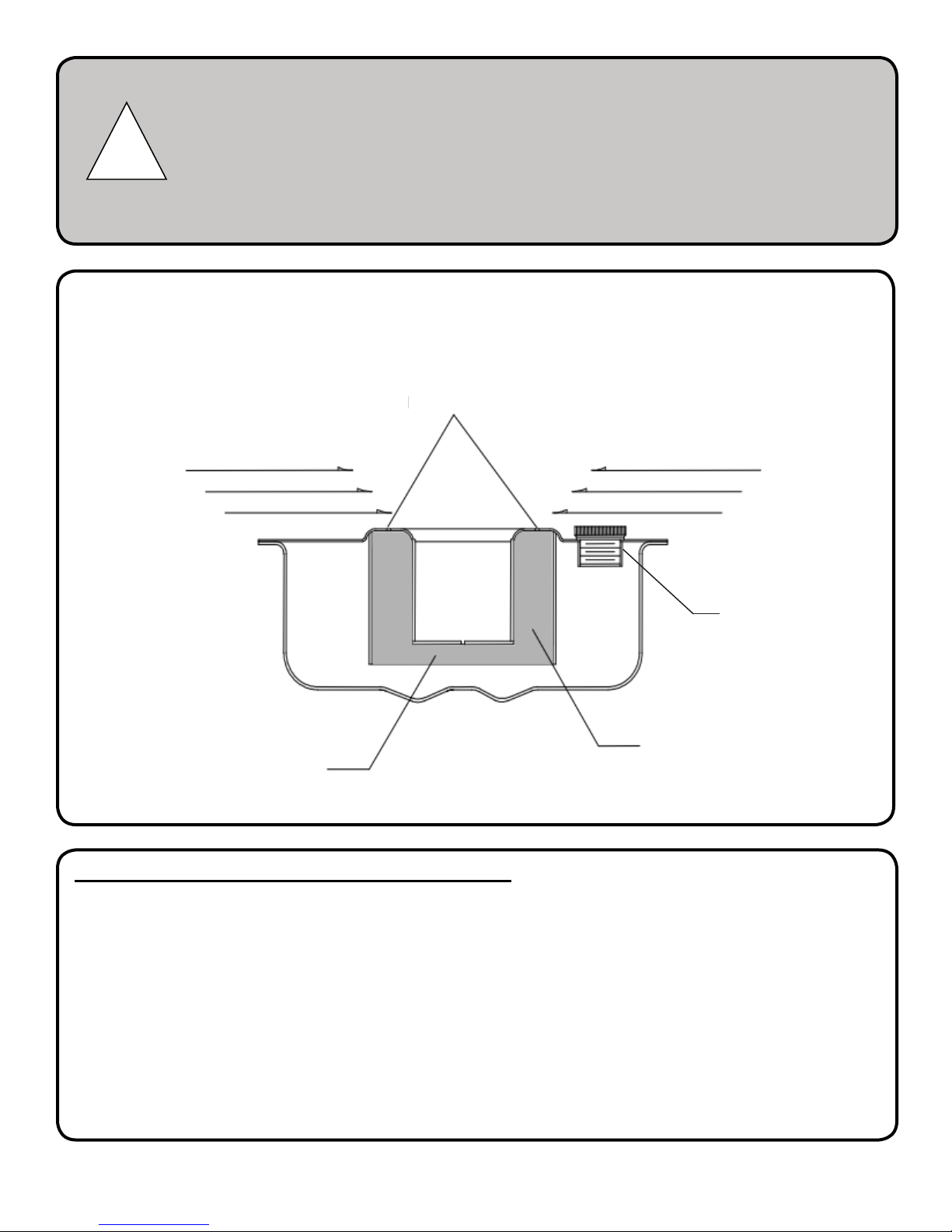

Adequate ventilation of the space below the stove must be provided to ensure proper operation of
the stove. Heat transferred from the cooktop bottom pan during operation will overheat an
improperly ventilated area. 5
Kenyon Part # Model # Max Connected
Load
Required Power
Supply Input
Suggested Wire Size Based
On Wire Run Length - d (feet)
One Way
B61144 213 1100Watts 120VAC/10A/50/60Hz d < 35 feet: 14 AWG
35 < d < 80 feet: 12 AWG
B61145 213 1100Watts 240VAC/5A/50/60Hz d < 125 feet: 14 AWG
B61148 436 2200 Watts 120VAC/20A/50/60Hz d < 20 feet: 14AWG
20 < d < 45 feet: 12AWG
45 < d < 70 feet: 10 AWG
B61149 436 2200 Watts 240VAC/10A/50/60Hz d < 90 feet: 14 AWG

CAUTION: Do not cut the opening in your countertop until you
ensure there will be adequate horizontal and vertical clearances
from the cooktop to the nearest ammable materials - fabric, plastic,
wood - (except the countertop itself).
!
It is the installer’s and/or purchaser’s responsibility to ensure that the Cooktop is installed
in a location such that a re hazard is not created.
IN EUROPE:
Contact the authorities appointed by the government in each separate country
IN USA:
Contact ABYC, 3069 Solomons Island Road, Edgewater, Maryland 21037-1416
tel. [phone] fax [phone] internet [email protected]
Minimum Distances are:
40cm (16”) Horizontally 1M (39”) Vertically
12 3/4"
21 3/4"
3" Radius required
13 1/2"
22 1/2"
5 3/4"
B61148 & B61149
12 1/4"12 1/4"
3" Radius required
12 3/4" 12 3/4"
5 3/4"
B61144 & B61145
6
WARNING: FAILURE TO PROVIDE PROPER CLEARANCES AND
VENTILATION MAY RESULT IN A FIRE HAZARD.
!

STEP #4
Installing the Cooktop

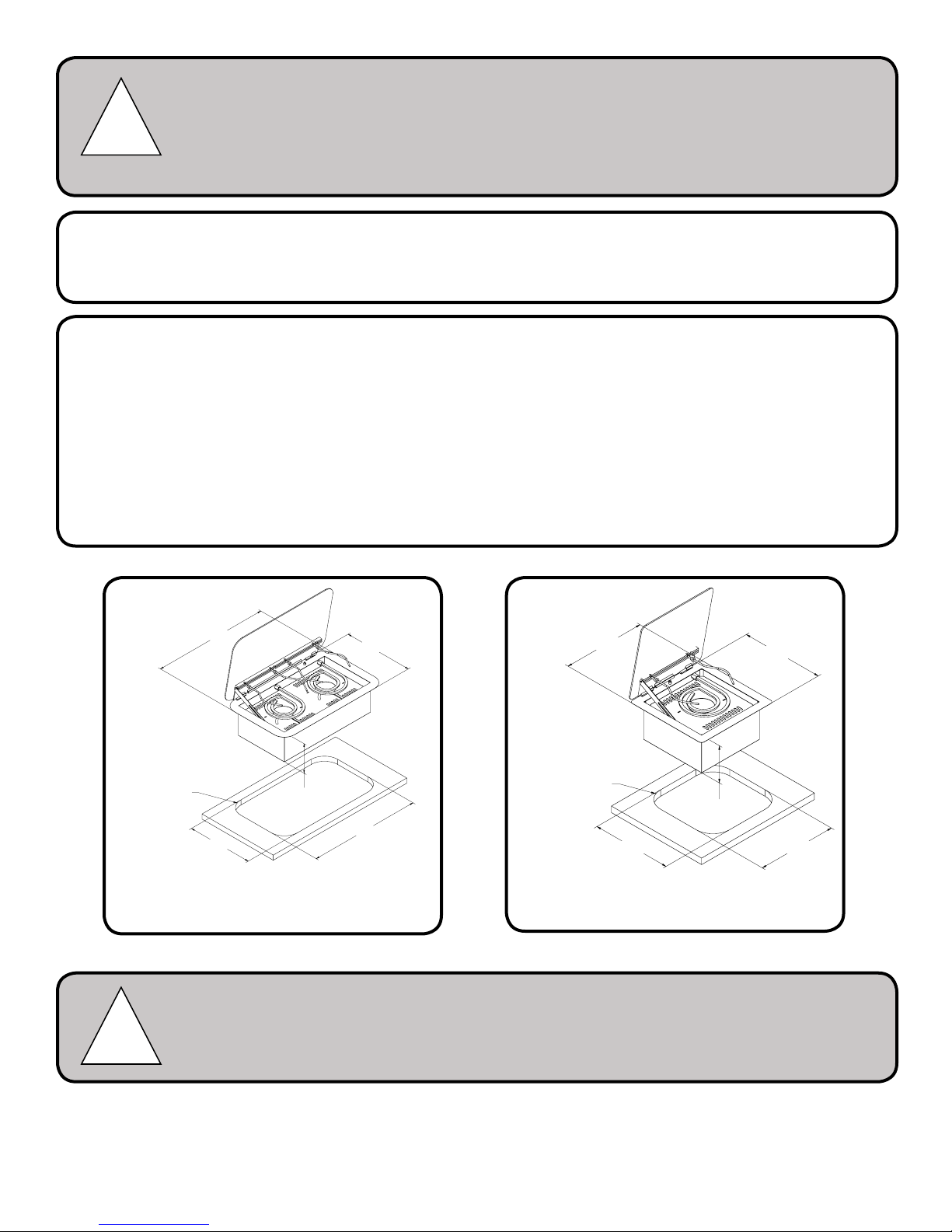

Once the cutout has been prepared as shown on page 3, pre-t the stove into the cutout to mark
drill locations. Tilt and insert the front portion of the stove rst. Care should be exercised so as
not to damage or bend any moving parts. Next, lower the stove into the cut out. Using a pencil
mark the location of mounting holes onto the counter. Carefully remove the stove from the
cutout. Using a 1/8” drill and the pencil marks as a guide, drill four (4) mounting holes. Replace
the stove into the counter. Mount the stove in place by using (4) #8 x 5/8” oval head stainless
steel wood screws (not supplied).
STEP #5
Electrical Connection
It is recommended that the supply conductors be protected with a double pole simultaneous trip
circuit breaker per the specications for the various models and voltages as shown in the
Electrical Requirements Table on page 5. Use SO rubber-insulated cable to connect the boat
shore power electrical circuit to the terminal board behind the stove.
NOTE: ONLY QUALIFIED INSTALLERS SHOULD CONNECT THIS APPLIANCE TO THE
ELECTRICAL SERVICE.
Remove the back cover on the stove; push the cable through 7/8” (22 mm) hole below the
terminal board, using the black plastic grommet to protect the supply cable. Connect the
ungrounded current carrying conductor to terminal marked L1. Connect the other ungrounded
current carrying conductor for 240V units or neutral carrying conductor for 120V units to the
terminal marked L2. Connect the ground wire (green) to the left terminal marked G. A cable
clamp is provided to secure cable. Replace the back cover after all connections have been
made.
STEP #6
Final Preparations Prior to Use
Remove any protective or packaging material from the cooktop. Clean the cooktop before you
use it for the rst time.
The next section of the manual covers cooktop use, maintenance and service information.
Please keep these instructions with the
KENYON cooktop for future reference.
7

ALCOHOL OPERATION
READ SAFETY INSTRUCTIONS BEFORE OPERATING YOUR APPLIANCE
The cooking surface and control areas of your Alcohol Electric cooktop are identied by
coil burner(s) in the cooktop. The appliance is easy to maintain and easy to clean.
Keeping the cooktop in top performance can be achieved by following the simple guidelines for
use and cleaning below:
ALCOHOL BURNER
Before attempting to operate the stove, please read the theory and operating instructions
carefully and become thoroughly familiar with the various parts of the stove and how they
operate. An internal parts diagram has been provided below to illustrate burner functions and
characteristics under normal operating conditions.
Theory
This patented burner system incorporates an internal tank in the burner assembly that does not
require any external pressurization. This burner system uses ethyl alcohol. The “center
chimney” contains a ber wick, which is lit to start the burner. The ame from the wick,
vaporizing and pressurizing the alcohol inside rapidly heats a separate surrounding chamber,
within the burner. A ring of holes (burner jets) in the top of this vaporization chamber allows the
escape of the alcohol vapor which is ignited by the central ame. The central ame then
diminishes and the burner functions in the normal manner.
ALCOHOL OPERATING COMPONENTS
A Fill Cap is located on each burner with a rubber washer (gasket) underneath each ll cap. Be
sure the washer is in place and the ll cap is reasonably tight when operating the stove. If either
are lost or damaged replace at once. DO NOT ATTEMPT TO OPERATE THE BURNER
WITHOUT A CAP OR WITH ANY NON COMPATIBLE REPLACEMENT. The alcohol burner
control wheel(s) are located in the front ange of the stove. The purpose of the control wheel is
to regulate the burner ame. With the control wheel positioned to the extreme right, the ame
control cap (snuffer) will completely cover the burner ports (jets). With the control wheel
positioned to the extreme left, the burner ports will be completely exposed. Other variations of
the control wheel position will allow for ame adjustment between maximum and minimum heat
output.
8
WARNING: OPEN FLAME COOKING APPLIANCES CONSUME
OXYGEN AND PRODUCE CARBON MONOXIDE.
TO AVOID ASPHYXIATION OR INJURY OR DEATH FROM EXPOSURE
TO CARBON MONOXIDE, MAINTAIN OPEN VENTILATION WHEN
USING THIS APPLIANCE.
!

9
ALCOHOL BURNER FUELING INSTRUCTIONS
1. The burners are designed exclusively for denatured ethyl alcohol which is readily available
as “alcohol stove fuel” at marine stores. DO NOT SUBSTITUTE ANY OTHER FUEL AS
FIRE OR EXPLOSION COULD RESULT. A denatured ethyl alcohol re is readily
extinguished by water, or by smothering it with a non-combustible material.
2. Before attempting to fuel the stove, be sure that the burners are not in operation and that
all ame and other sources of ignition in the galley area are extinguished. Make sure the
stove is cool before fueling.
3. The alcohol control wheel(s) located in the front of the appliance must be in the off
position (rotate completely to the right) which places the ame control cap completely over
the burner ports. The air deector assembly is equipped with an interlock. If the control
cap is not over the burner ports, the deector can not be removed to access the ll cap.
4. Carefully rotate electric element assembly up and remove the air deector assembly to
access the ll cap. If the electric element was operated recently, DO NOT PROCEED
UNTIL THE ELEMENT HAS COOLED. Failure to do so could result in severe burns or
injury.
5. Be aware that an alcohol ame is invisible in sunlight. If the stove has been operated
recently, be particularly careful to make sure that all burner ames are extinguished and
the burner is cool. DO NOT PROCEED UNTIL FLAMES ARE EXTINGUISHED AND THE
BURNER HAS COOLED.
6. Remove the ll cap and ll the burner(s) slowly with denatured ethyl alcohol, six (6)
ounces only. The burner fuel storage tank is designed to readily accept the proper amount
of fuel and discourage overlling. Do not attempt to ll with more fuel that can be readily
poured in. Six (6) ounces will be enough to moisten the primary wick and provide the ideal
conditions for proper function of the alcohol burner. More than six ounces may cause the
chimney to ood. A ooded chimney will cool the surrounding chamber and the burner will
not operate as intended. (Refer to Theory of Operation)
With this stove, a six ounce ll bottle is supplied. Using the supplied ll bottle each time
will prevent overlling since the ll bottle’s volume is the same size as burner’s storage
tank.
7. Replace the ll cap, making sure the rubber washer (gasket) is in place and that the ll cap
is securely tightened.
8. Wipe any alcohol spills and replace the air deector assembly into the pan and return the
electric element back into place. Note that the electric element serves as a grate when
using the alcohol burner to cook.

ALCOHOL BURNER OPERATING INSTRUCTIONS
1. Completely open the ame control cap by rotating the control wheel to the left.
2. Ignite the small ber wick located in the center chimney. A match may be used or a
Bar-B-Que grill-igniting wand is ideal. Do not leave matches in the center chimney, they
will inhibit the efciency of the burner.
3. Allow for approximately two minutes to ve minutes for ames to appear in the burner jets
(see Theory of operation on page 8). Cooking may be initiated immediately after ignition of
the center chimney. This will not effect the preheating of the main burner and automatic
switch over to normal full operation.
10
Fill Cap
Center Chimney
Wick
Surrounding
Chamber
Air Flow Air Flow
Burner Jets
SELF-PRIMING / SELF PRESSURIZED BURNER
Cross Sectional View
WARNING: Improper stove fueling practices can result in re and/or
explosion.
To avoid severe injury or death from re or explosion, follow the
manufacturer’s refueling instructions that are printed in your
manual as well as on the stove.
!

ELECTRICAL OPERATION
Controls are located in the rim of the frame: for alcohol burners, the controls are located in the
front of the appliance; for electric elements, the controls are located in the sides as shown below
in the gure.
WARNING: NEVER OPERATE ALCOHOL BURNER(S) AND ELECTRIC ELEMENT(S)
SIMULTANEOUSLY. THIS CAN CAUSE FIRE OR SEVERE INJURY.
OPERATION OF ELECTRIC ELEMENTS
Turn the electric control in either direction to HIGH, LOW, or any intermediate position for exact
heat desired. A Pilot Indicator Light, one for each element, stays ON until the electric control is
turned to the OFF position. When nished cooking, make sure both pilot lights are out and that
the electric controls are in the OFF position.

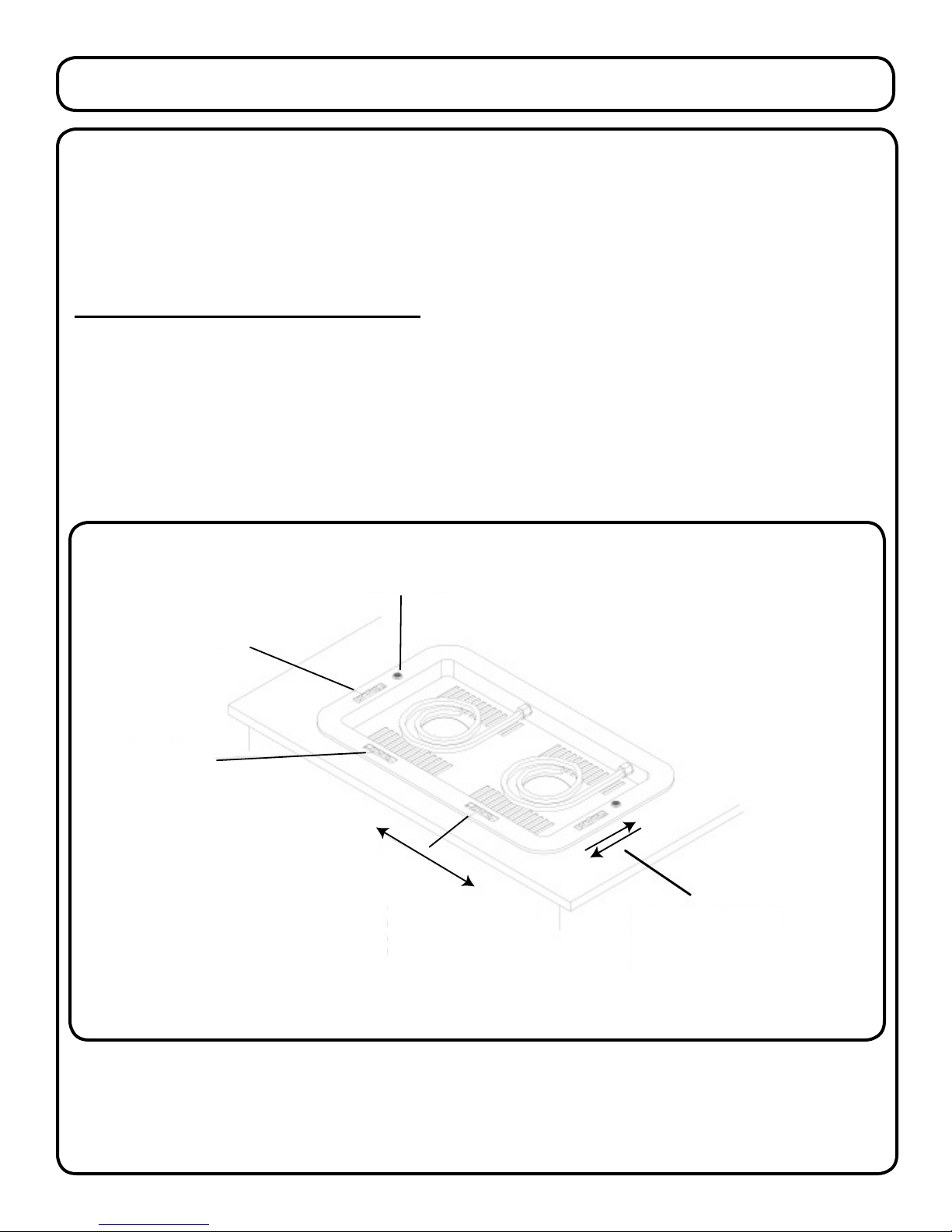

Pilot Indicator Light
Electric Element Control Wheel
Alcohol Burner
Control Wheel
Turning alcohol control
wheel to the left will
provide maximum flame
output Turning alcohol control
wheel to the right will lower flame
output or extinguish (”snuff”)
flame
Turn Electric Control Wheel in
either direction to HIGH, LOW. or
any intermediate position for
electric element operation.
11

CLOSING THE GLASS LID
If your Kenyon Custom Cooktop is equipped with a glass lid, care should be followed when
lowering the lid onto the stove. NEVER CLOSE THE LID ON AN OPEN FLAME OR AN
ELECTRIC ELEMENT THAT IS HOT OR TURNED “ON”. Make sure that the appliance is cool
before lowering the glass lid onto the frame.
When the lid is in an open position, the “lid-stay” arm that is attached to the glass “locks” onto
the large lock screw. In order to lower the glass lid onto the stove frame, the “lid-stay” must be
unlocked from the mounting screw. DO NOT TRY TO LOWER THE LID WITH THE “LID-STAY”
IN THE LOCK POSITION. FAILURE TO UNLOCK THE “LID-STAY” WHEN ATTEMPTING TO
LOWER THE GLASS LID CAN CAUSE DAMAGE TO THE APPLIANCE WHICH IS NOT
COVERED UNDER WARRANTY.
12
USING THE ADJUSTABLE POT HOLDERS
To deploy: Loosen the two knurled nuts and swing the pot holders down to the horizontal. Slide
to t pot snugly, tighten knurled nuts securely.
To Stow: Wait until cool, reverse above. Carefully, align the pot holders with their respective
notches in the black hinge before swinging up - DO NOT FORCE!
CAUTION: Pot holders and lidstay get extremely hot during use.
Allow to cool to the touch before readjusting or stowing pot holders
or closing glass lid.
!
"LID-STAY"
LOCK SCREW
Gently lift "LID-STAY" up as shown
to disengage "LID-STAY" from lock position.
Carefully lower the glass lid once "LID-STAY"
is desengaged from the lock position.
To disengage lid from the
lock position, fully extend
(rotate lid back) lid back
and gently lift
“lid-stay” up as shown
to disengage from the
lock position. Once the
“lid-stay” is in the unlock
position, the lid can be
lowered to the close
position.
Pot Holders
Deployed
Pot Holders
Stowed
Gently lift “lid-stay” up as
shown to disengage
“lid-stay” from lock
position. Carefully lower
the glass lid once
“lid-stay” is disengaged
from the lock position.

13
PART # Description USED ON
AB93077 Air Deector Assembly All 436 Models
B93075 Air Deector Assembly All 213 Models
B240360 Electric Element Assembly - 120 Volts 120 Volt Models
H2003-1 Electric Element Assembly 240 Volts 240 Volt Models
CH1950 Indicator Light - 120 Volts 120 Volt Models
240385 Indicator Light - 240 Volts 240 Volt Models
DB93090 Fill Cap w/ Rubber Washer Gasket 213 & 436 Models
E240342 Non Pressurized Burner Assembly 213 & 436 Models
FB93086 Electric Control Switch - Innite Control - 120 Volts 120 Volt Models
B93087 Electric Control Switch - Innite Control - 240 Volts 240 Volt Models
G043200 Lid Safety Switch 213 & 436 Models
H240338 Snuffer Control Arm Assembly 213 & 436 Models
I240400 Control Bafe Assembly - 213 213 Models
240407 Control Bafe Assembly 436 Models
J141585 Electric Thermostat 213 & 436 Models
K141580 Alcohol (NP) Control Wheel 213 & 436 Models
LH1947-1 Electric Control Wheel - Left 213 & 436 Models
H1947-2 Electric Control Wheel - Right 436 Models
Not Shown 240881 213 Black Glass Assembly w/ Pot Holders 213 Models
Not Shown 240882 436 Black Glass Assembly w/ Pot Holders 436 Models

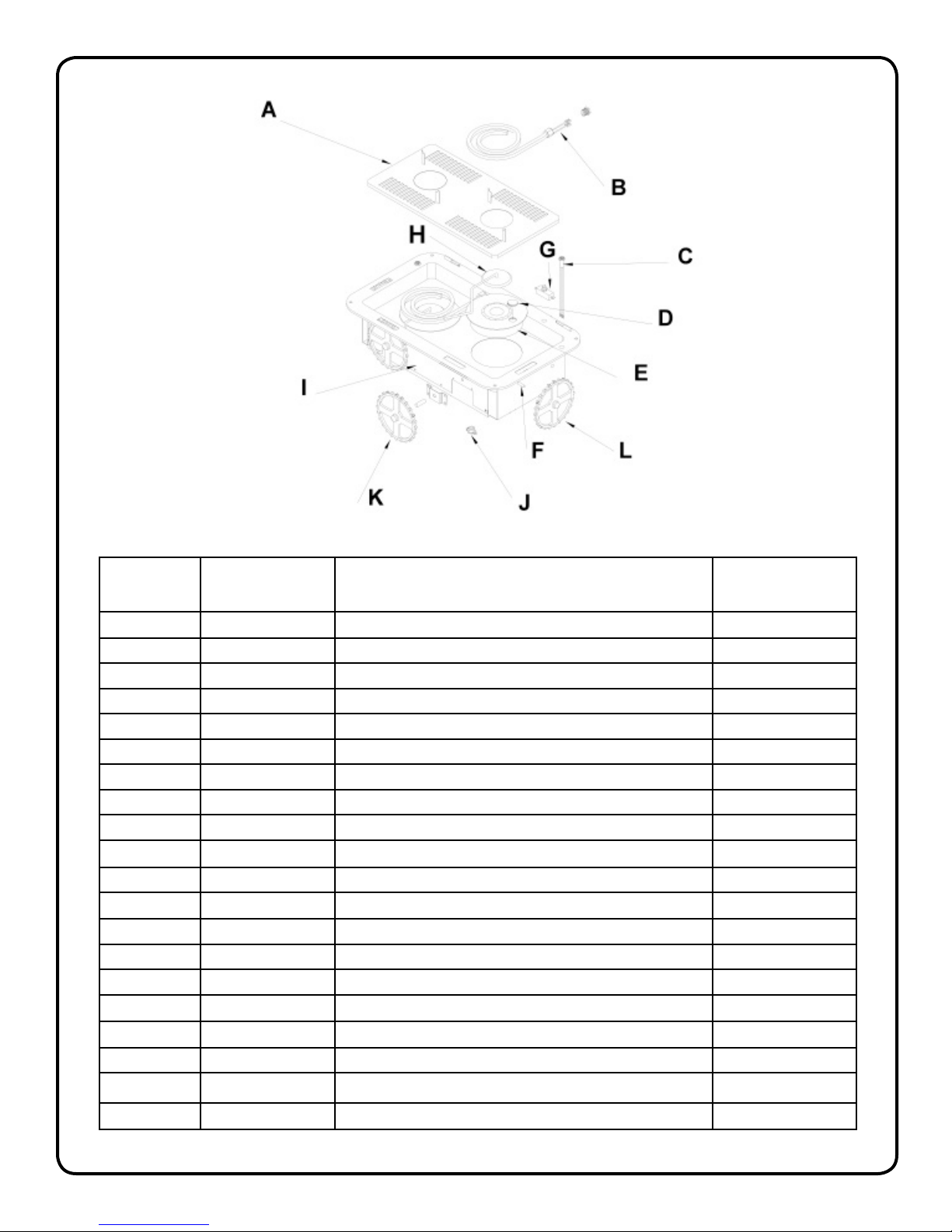

STOVE REPLACEMENT PARTS
436 Model Shown

Warranty
Kenyon International, Inc (the “Company”) warrants its products in normal usage to be free of defects in
materials and workmanship subject to the conditions and limitations below.
Any part, which proves to be defective in normal usage during the warranty period will be repaired or replaced
by the Company.
This warranty covers certain products built by the Company and is subject to the following conditions and
limitations:
1. The Company’s liability shall be limited to repair or replacement (choice of remedy at Company’s
option) of goods or parts as may be defective in materials or workmanship. This liability is limited to
three years from the date of original installation or 42 months from invoice date, whichever comes rst;
this warranty covers parts and labor at approved Company rates, $75 per hour.
2. Determination of suitability of the product for the use contemplated by the buyer is the sole
responsibility of the Buyer and the Company shall have no responsibility in connection with such
suitability.
3. The Company shall not be liable for any damage resulting from:
• failures due to use of the product in applications for which they are not intended;
• failures due to corrosion, wear and tear, abuse or improper installation or maintenance.
4. The Company shall be responsible for ground shipping charges to the location of the appliance (home)
within the Continental United States and Canada. Any duties, express or special shipping charges are
at the expense of the Buyer.
5. All labor allowed by the Company under this warranty must be performed by an Authorized Kenyon
International Service Center, unless otherwise specied in writing by the Company.
6. This warranty does not cover the cost of repair or replacement due to damage of any glass surface,
cooking grates or cooking griddles.
THERE ARE NO OTHER WARRANTIES OF MERCHANTABILITY, FITNESS FOR PURPOSE OR ANY
OTHER KIND, EXPRESSED OR IMPLIED AND NONE SHALL BE IMPLIED BY LAW. The duration of any
such warranties that are nevertheless implied by law for the benet of a consumer, shall be limited to a period
of three years from original purchase by the user. Some countries do not allow limitations on how long an
implied warranty lasts, so this limitation may not apply to you.
THE COMPANY SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING
FROM THE BREACH OF THIS WARRANTY, WHETHER EXPRESSED, IMPLIED OR STATUTORY. Some
countries or states do not allow exclusion or limitation of consequential or incidental damages so this limitation
or exclusion may not apply to you.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER LEGAL
RIGHTS THAT MAY VARY FROM COUNTRY TO COUNTRY AND STATE TO STATE.
Kenyon International, Inc.
P.O. Box 925 • 8 Heritage Park Road • Clinton, CT 06413 USA
Phone [phone] FAX: [phone]
