KERONG KWD-18T2 User manual

Thermoelectric wine cooler
Model number:
KWD-18T2
Service Manual
Please read carefully and follow all safety rules and operating instructions.

Index
Ⅰ. Important safety instructions …………..........................1
II, Technical data …………………………………..…….1
III. Illustrated Structure……………………......... ............2
IV. Electric Diagram……………………………………… 2
V. Installation instruction………………………………… 3
VI. Electric connection……………………………………..3
VII. Disassemble diagram and part list..………………….4
VIII. Care and maintenance………………………………5
IX. Problems Disposal………………………………………..6
X. Service and notice…………………………………………6
XI.Disposal ……………………………………………………7
XII. Notice...............................................................................7

1
Ⅰ.Important Safety Instructions
Read all instructions before using the wine cooler.
DANGER or WARNING:risk of child entrapment.
Junked or abandoned appliances are dangerous …even if they “just sit in the garage a few days.”
Before you throw away your old wine cooler: take of the door .leave the shelves in place
so that children may not easily climb inside.
Never allow children to operate, play with, or crawl inside the appliance.
Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or
explosion.
Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or
any other appliance. The fumes can create a fire hazard or explosion.
Does not store food in wine cooler, as interior temperature may not get cool enough to prevent
spoilage
This appliance is not intended for use by persons(including children) with reduced physical
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Ⅱ.Technical Data
Model no.
KWD-18T2
Capacity
55L
Voltage
220-240V/50Hz
Current
1.8A
Protection class
Ⅰ
Climate class
SN;N
Input power
140W
Power Consumption(KW.h/24h)
0.852
Max working temperature
32℃
Max Temperature Difference
﹥18℃
Temperature Control Range
7-18℃/11-18℃
Net weight
17.5kg
Gross weight
19.5kg
To reduce the risk of fire, electrical shock, or injury when
using your appliance, follows these basic precautions;

2

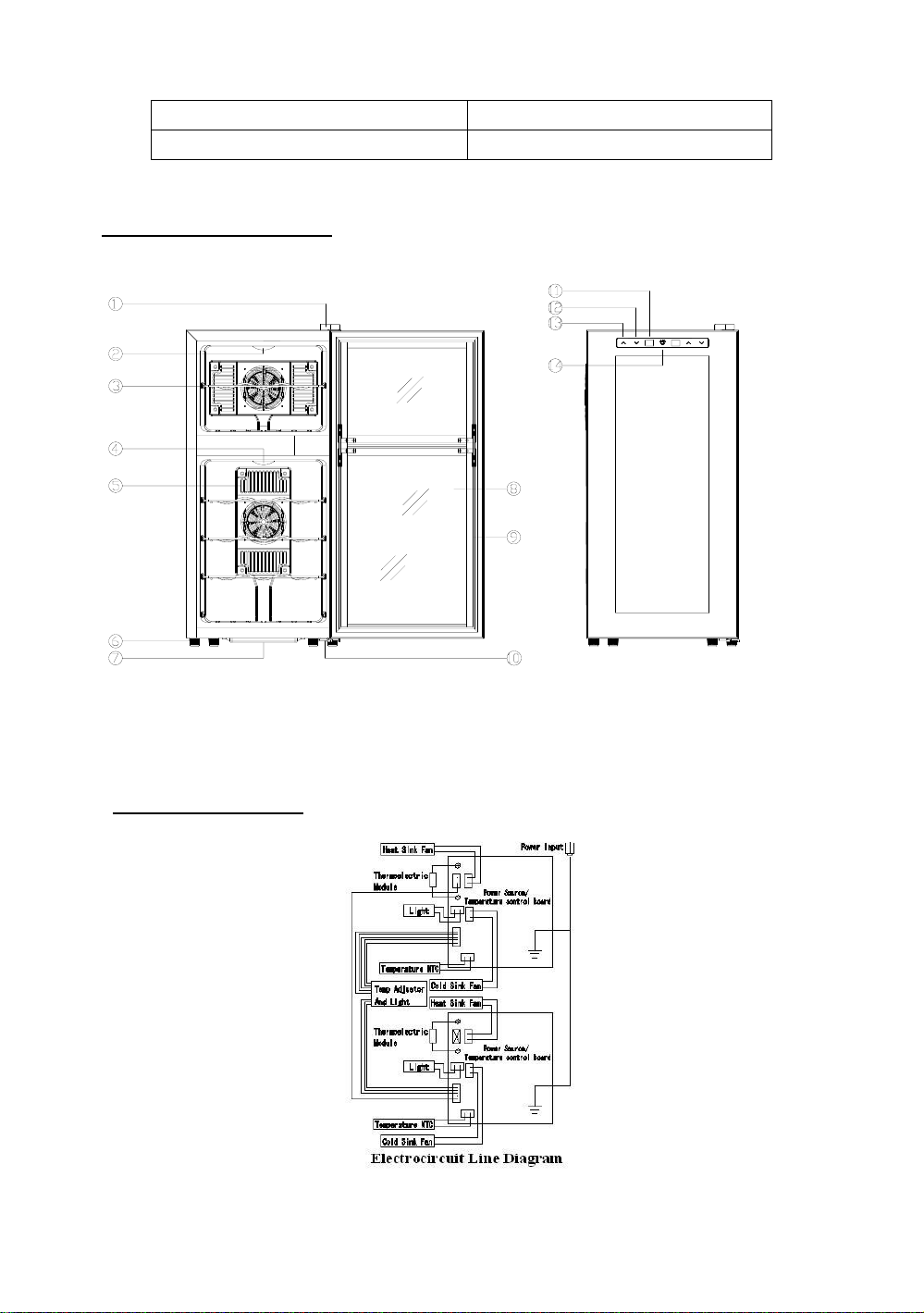

III.Illustrated structure
1. Upper door hinge 2. Light cover 3. Shelf 4 Light cover 5.Cold fan mask 6.Foot 7.Water
tray 8 Glass 9 Door seal 10.Lower hinge 11.Display window 12.Temperature down key
13.Temperature up key 14.Light switch
IV. Electric Diagram
Shape size(W×H×D)
34.5×71.8×51.4 CM
Packing size(W×H×D)
39.0×75.0×56.0 CM

3
V.Installation Instructions
Before using your wine cooler
Remove the exterior and interior packing
Check to be sure the following parts are included:
For KWD-18T2 5 slide out shelves
1 Instruction manual.
Before connecting the appliance to the power source, let it stand upright for approximately 2 hours.
This will reduce the possibility of a malfunction in the cooling system from handling during
transportation.
Clean the interior surface with lukewarm water using a soft cloth.
Place your appliance on a floor that is strong enough to support the appliance when it is fully
loaded. To level your appliance, adjust the front legs at the bottom of the appliance.
Foe recedes installation away from direct sunlight and sources of heat (stove, heater, radiator,
etc.).Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption. Extreme cold or hot ambient temperatures may also cause the appliances not to
perform properly.
Not designed for placement in adage or basement.
The appliance is for indoor use only.
Caution: Please keep the appliance away from substance, which can cause ignition.
VI. Electrical Connection
This unit should be properly grounded for your safety. The power cord of this unit is equipped with a
2-pin plug which mates with 2-pin wall outlets to minimize the possibility of electrical shock. Do not
under any circumstances cut or remove the ground wine from the power cord supplied.
Use of extension cords is not recommended.
The cord should be secured behind the wine cooler and not let exposed or dangling to prevent accidental
injury.
Warning
Improper use of the grounded plug can result in the risk of electrical shock. If the power
cord is damaged, have it replaced by an authorized Products service center.

4
VII.Disassemble diagram and part list

5
VIII. Care And Maintenance
Cleaning your wine cooler
Unplug the wine cooler and remove the bottles.
Wash the inside with a warm water and baking soda solution. The solution should be about 2
tablespoons of baking soda to a quart of water.
The outside of wine cooler should be cleaned with mild detergent and warm water.
Draw out the water box at the bottom, and wash.
Moving your wine cooler
Remove all the bottles.
Securely tape down all loose items inside your wine cooler.
Turn the leveling legs up to the base to avoid damage.
Tape the door.
Be sure the wine refrigerates stays in the upright position during transportation.

6
IX.Problems Disposal
You can solve many common wine cooler problems easily, saving you the cost of a possible service call.
Try the suggestion below to see if you can solve the problem before calling service center.
PROBLEM
POSSIBLE CAUSE
Wine cooler do not operate.
Not plugged in using different voltage. The circuit
breaker tripped or a blown fuse.
Wine cooler is not cold enough.
Check the temperature control setting.
External environment may require a higher setting.
The door is open too often.
The door is not closed completely.
The door seal does not seal properly.
The wine cooler does not have the correct clearance.
The light does not work.
Check the service center.
Vibrations.
Check to assure that the wine cooler is level.
The wine cooler seems to make to
much noise
The wine cooler is not level.
Check the fan.
The door will not close properly.
The wine cooler is not level.
The doors were reversed and not properly installed.
The seal is weak.
The shaves out of position.
LED could not display.
Main control board does not work.
PCB Problem.
There is some problem with the plug.
LED display error.
Weak quality of display.
Temperature point is out off.
Bottoms are not functional.
Temperature controller panel is damaged.
X. Service and Notice
1, This machine is designed to be only used in “N”and “SN”climate.
2, Upon receipt and inspection of the unit, if supply cord is damaged, If the supply cord is damaged, it
must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid
a hazard”
It must be replaced. For any additional information or questions, please contact the service center.

7
WARNING: please do not uses where children can touch the unit, nor let children use the unit by
themselves.
XI. Disposal
1, Please remove the door before you dispose your cooler
2, Do not dispose this product as unsorted municipal waste. Collection of such waste separately for
special treatment is necessary.
3，Information regarding disposal of the appliance
Flammable insulation blowing gases should be disposed appropriately. Take the cabinet to a
recycling plant for flammable insulation blowing gases.
XII. Notice
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
The appliance shall not be exposed to rain.
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
This appliance is intended to be used in household and similar applications such as
–staff kitchen areas in shops, offices and other working environments;
–farm houses and by clients in hotels, motels and other residential type environments;
–bed and breakfast type environments;
–catering and similar non-retail applications.
