U6786/U 6787

Trainings- und Bedienungsanleitung

UM 678x

07628-,07648-_Comp-UM678x_3074-0212.de,e ,fr, l,es,it,pl,pt,da,cs_Layout 1 23.02.13 14:59 Seite 1

Training and Operating Instructions

Safety instructions

Please observe the following instructions for your own

safety:

• The training device must be set up on an appropriate and

firm surface.

• Inspect the connections for firm fitting before initial operation

and additionally after approximately six operation days.

• In order to prevent injuries caused by wrong stress or over-

stress, the training device may only be used in accordance

with the instructions.

• It is not recommended to permanently set up the device in

humid rooms due to the resulting corrosion development.

• Assure yourself regularly that the training device functions

properly and that it is in duly condition.

• The operator is responsible for the safety controls, which

have to be carried out on a regular and proper basis.

• Defective or damaged parts must be exchanged immediately.

Only use original KETTLER spare parts.

• The device may not be used until after repairs are comple-

ted.

• The safety level of the device can only be maintained provi-

ded that it is regularly inspected for damage and wear and

tear.

For Your Safety:

• Before starting the training, check with your GP that you are

fit for training with this device. The doctor's findings should

form the basis for the setup of your training programme.

Incorrect or excessive training may damage your health.

• Systems to monitor your heart rate can be imprecise. Excessi-

ve training may result in serious damage to your health or

death. Should you feel dizzy or weak, stop the training

immediately.

Table of Contents

Safety Information 14

• Service 14

•Your Safety 14

Brief Description 15

• Display Area / Display 15

• Area of Operation / Buttons 15

• Functions of the Electronics 15

• Explanation of the Buttons 16

• Explanation of the Display 17

Quick Start (For Familiarising) 18

Quick Start

• Start of Training 18

• End of Training 18

• Standby Mode 18

Program Selection 19

ANUAL Training Area 19

• Training with Manual

Load Adjustment

PROGRA Training Area 20

• Training with Default Profiles

PERSONAL Training Area 21

• Training with Own Profile

H.R.C. Training Area 22

• Training with Pulse-Controlled

Program

RECOVERY Function 23

• Recovery Pulse Measurement

with Fitness Mark

End of Training and Standby 23

General Information 24

• System Tones 24

• Calculating the Fitness Mark 24

• Information about Pulse 24

Measurement

With Hand Pulse 24

With Ear Clip 24

With Chest Strap 24

• Faults in the Computer 24

Training Instructions 25

• Stamina training 25

• Load intensity 25

• Extent of load 25

Performance table 122

07628-,07648-_Comp-UM678x_3074-0212.de,e ,fr, l,es,it,pl,pt,da,cs_Layout 1 23.02.13 15:00 Seite 14

U 6786/U 6787

Display Area

Display

Area of Operation

Buttons,

Rotary Switch (Encoder)

Brief Description

The electronics has an area of operation with buttons and a display

area (display) with changeable icons and graphics

The electronics features the following functions:

• Memory and defaults for 4 people

• 4 training areas:

MANUAL = manual load adjustment,

PRO RAM = default profiles,

PERSONAL = own profile,

H.R.C. = pulse-controlled program

• Training defaults for saveable time, distance, energy consumption, pulse value monitoring

• Monitoring with visual and acoustic information

• Age-dependent target pulse

• Display of a fitness mark from 1 to 6, calculated with the recovery pulse value after 1 minute

• Motor-driven brake stage adjustment

• Own load profile can be saved

• Calculation of the energy consumption according to brake stage and cadence

• Selection of the display for energy consumption [Kjoule or Kcal]

• Temperature display in standby [°C]

• Integrated pulse receiver for uncoded chest strap e.g. T34 from POLAR

07628-,07648-_Comp-UM678x_3074-0212.de,e ,fr, l,es,it,pl,pt,da,cs_Layout 1 23.02.13 15:00 Seite 15

Trainings- und Bedienungsanleitung

Training and Operating Instructions

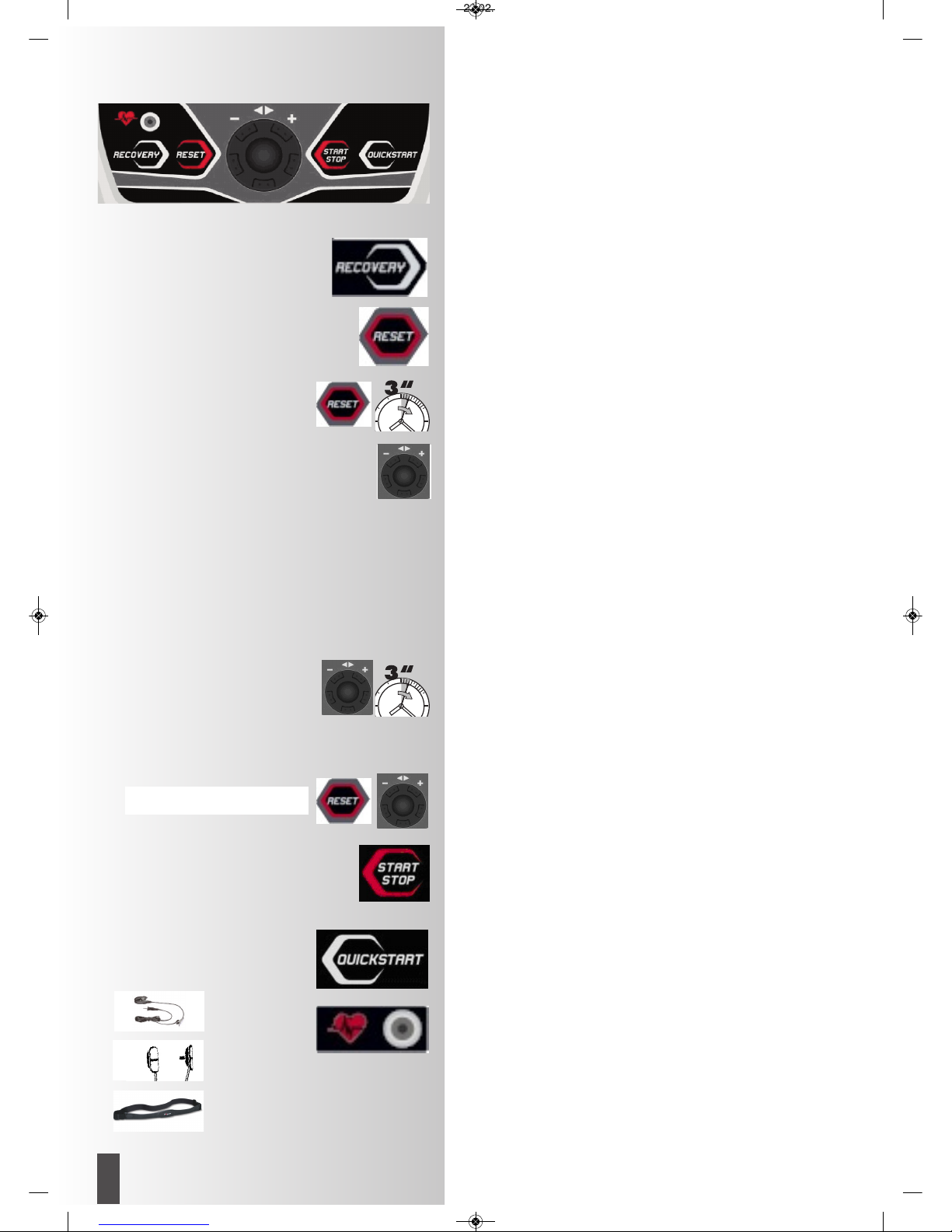

Brief Instructions

Area of Operation

The 5 buttons are briefly explained below.

All Buttons

• Display wakes up from standby mode

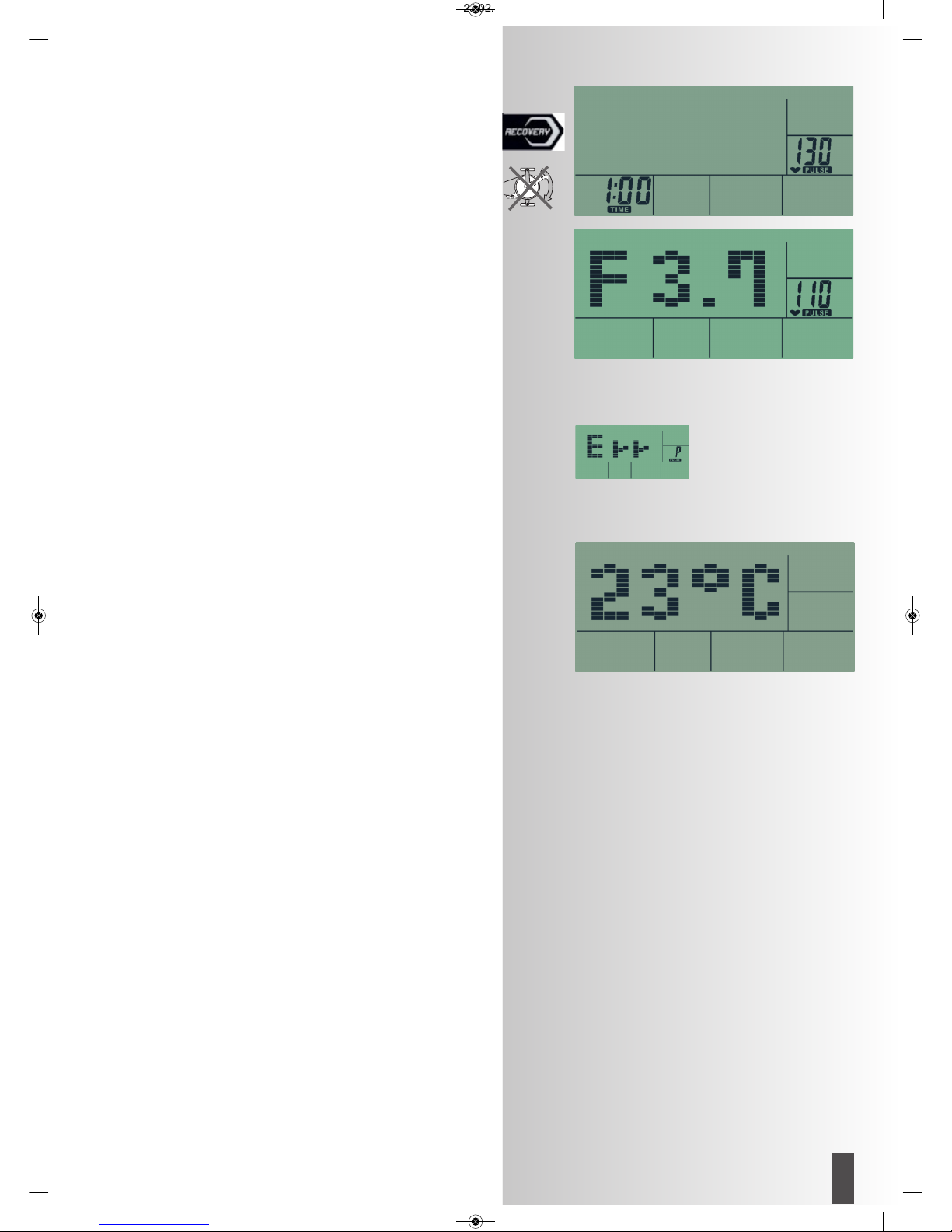

RECOVERY (recovery pulse with fitness mark)

With this function button, in the case of active pulse measure-

ment, the recovery pulse function is started and a fitness

mark determined.

RESET (press briefly) before the training

With this function button, the current display is cleared.

RESET (press for longer)

• Clear the display for a restart.

Encoder (turn right)

• In the case of selection: jumps one menu item further

• In the case of inputs: increases the input

Encoder (turn left)

• In the case of selection: jumps one menu item further

• In the case of inputs: reduces the input

Encoder (press briefly)

• The selection or input is adopted.

The next menu item is called up.

Encoder (press for longer)

• The training selection of the current person is displayed

again.

• The display is cleared with subsequent program or person

selection.

RESET + Encoder (at the same time)

• Conversion of the energy consumption from Kilojoules to Kilo-

calories

START STOP

• Start of training. The training time counts upwards.

• Training stop with STOP display. The training time is paused.

The average Ø of the brake stages is briefly displayed.

QUICK START

• “MANUAL” program is started. The training time counts

upwards.

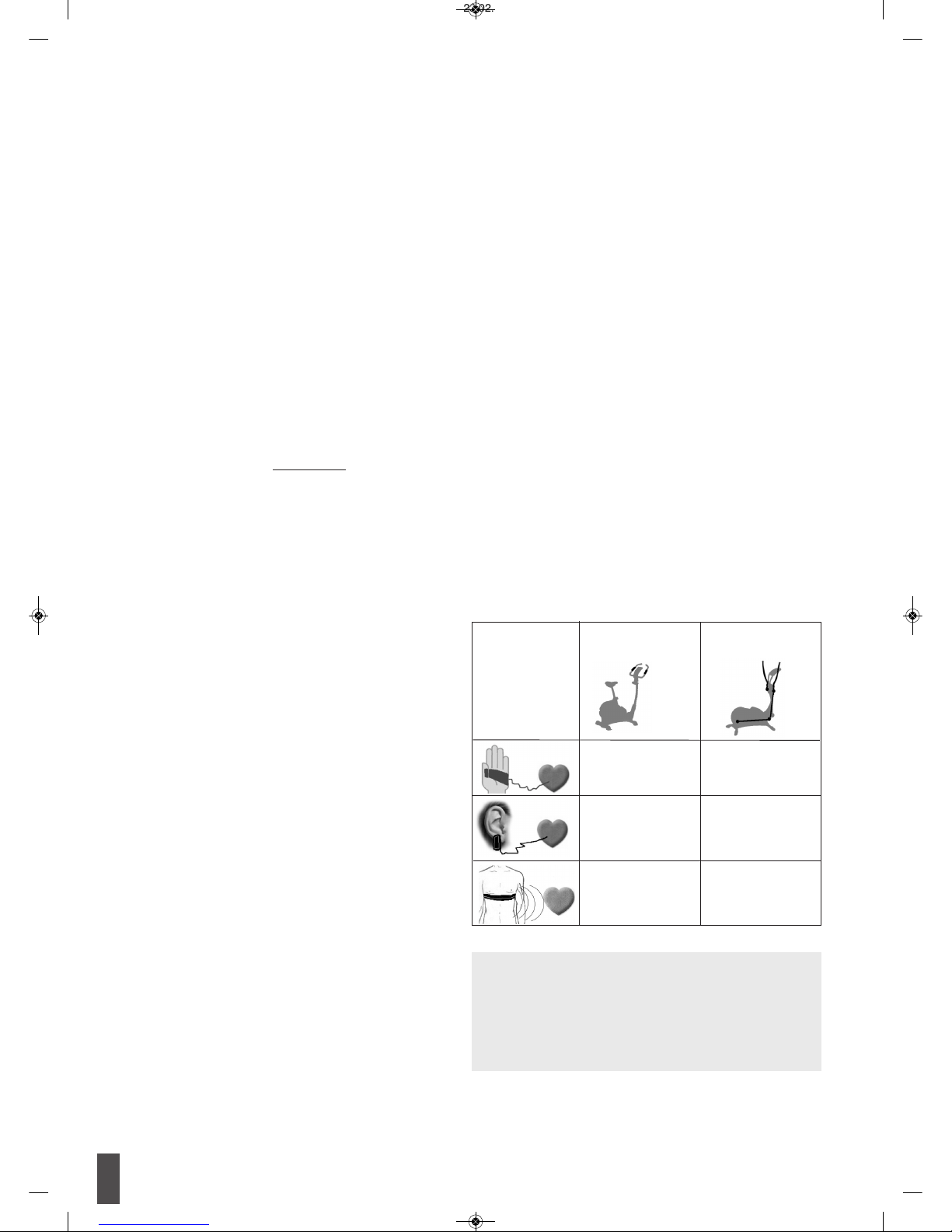

Pulse Measurement

Your pulse can be measured using 3 sources:

1. Ear clip

2. Hand pulse sensors

3. Chest strap

Kjoule > Kcal > Kjoule

07628-,07648-_Comp-UM678x_3074-0212.de,e ,fr, l,es,it,pl,pt,da,cs_Layout 1 23.02.13 15:00 Seite 16

U 6786/U 6787

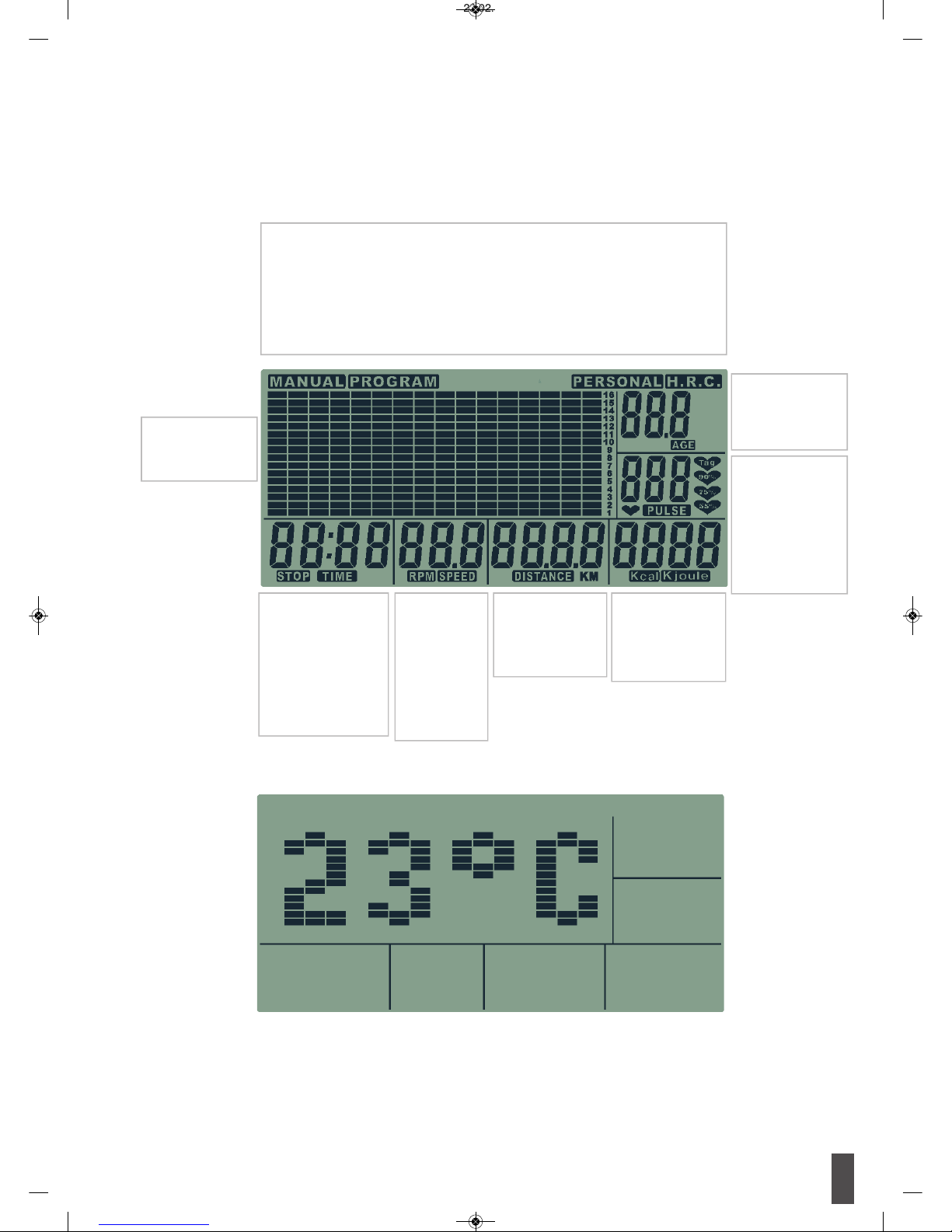

Display Area /Display

The display informs about the different functi-

ons.

TIME

Training time

Display

0:00 > 99:59

99:00 > 0:00

STOP

Break

Interruption to training

Program selection from 4 training areas

MANUAL: The load stages are adjusted manually by the person training.

PROGRAM: 12 programs (profiles) adjust the load stages.

PERSONAL: Own profile adjusts the load stages

H.R.C.: The program for pulse training with the default of a training pulse

Load profile

Level = stage1-16

Start position = left

RPM

Cadence

Display

14 – 199

SPEED

Speed

Display

- 99,9 km/h

DISTANCE

Distance

Display

0:00 > 99:59

99:00 > 0:00

Kcal Kjoule

Energy consumption

Display

0 > 9999

9990 > 0

Person (USER)

U0 = guest, U1-U4

AGE

Age: 10-99

PULSE

Pulse Display

40 - 220

55%, 75%,

90%, Tag

Calculated pulse

values according to

age

Standby mode with temperature display

The cadence in the instructions refers to a home trainer

60 rpm = 21.3 km/h.

In the case of a crosstrainer, the assignment is

60 rpm = 9.5 km/h

07628-,07648-_Comp-UM678x_3074-0212.de,e ,fr, l,es,it,pl,pt,da,cs_Layout 1 23.02.13 15:00 Seite 17

Training and Operating Instructions

Quick Start (For Familiarising)

Quick Start:

Without Particular Settings

• Press “QUICKSTART”.

Last user is displayed

Select person

“MANUAL” programme is started. The training time

counts upwards.

• Pedal

Cadence, speed, distance and energy consumption count

upwards. Pulse, if a pulse measurement is active.

The current bar changes every 15 seconds.

Changing Load

• “Encoder right”

Load is increased in single steps.

• “Encoder left”

Load is decreased in single steps.

Interruption to Training

• Press “START STOP”

The average value (Ø) of the load is briefly displayed.

Cadence and speed display “0 values”

The training time TIME and STOP are displayed as flas-

hing.

Continuing Training

• Press “START STOP”

• Pedal

End of Training and Standby Mode

The display switches to standby mode with temperature

display 4 minutes after training has ended.

It is possible to continue the last training session if the dis-

play is reactivated by pressing a button or pedalling.

07628-,07648-_Comp-UM678x_3074-0212.de,e ,fr, l,es,it,pl,pt,da,cs_Layout 1 23.02.13 15:00 Seite 18

U 6786/U 6787

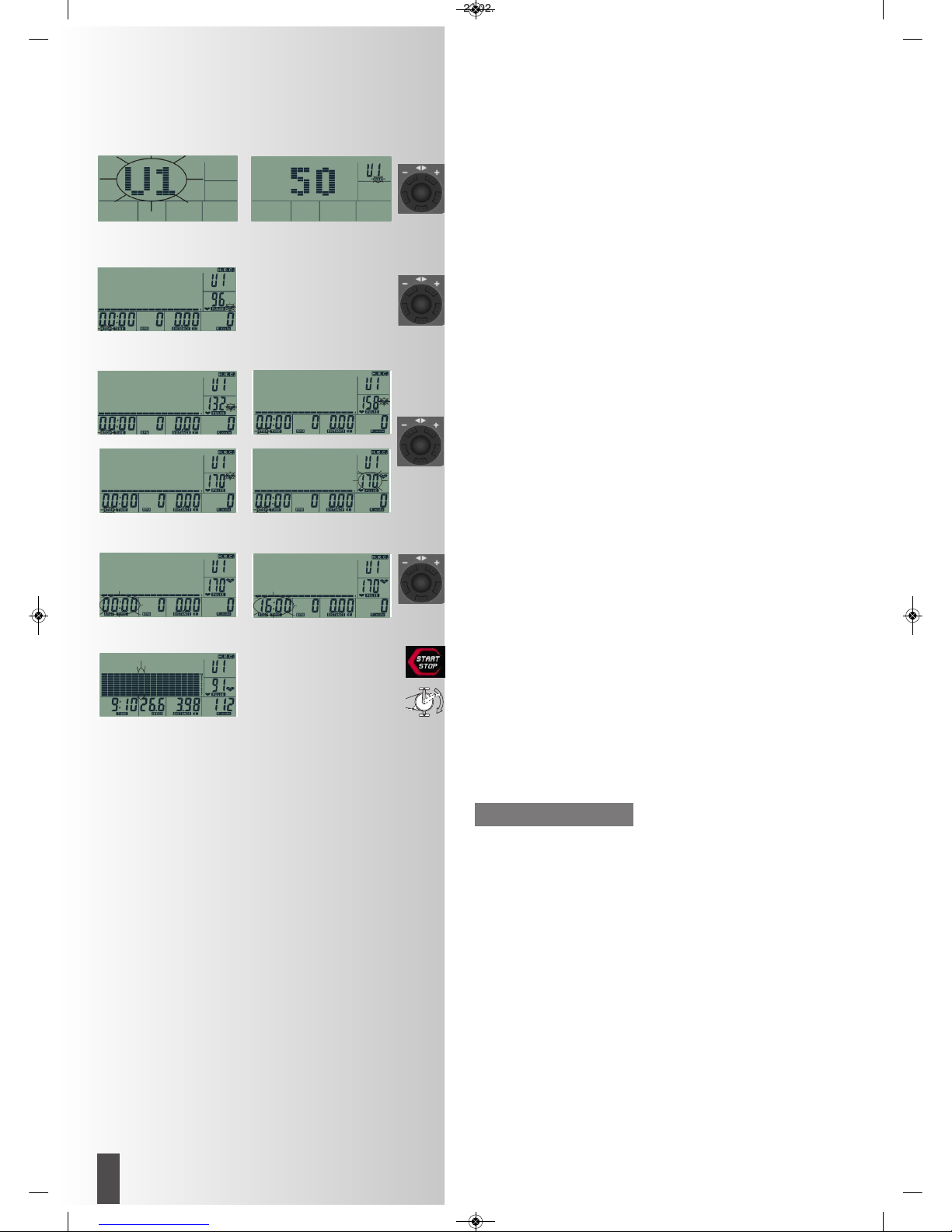

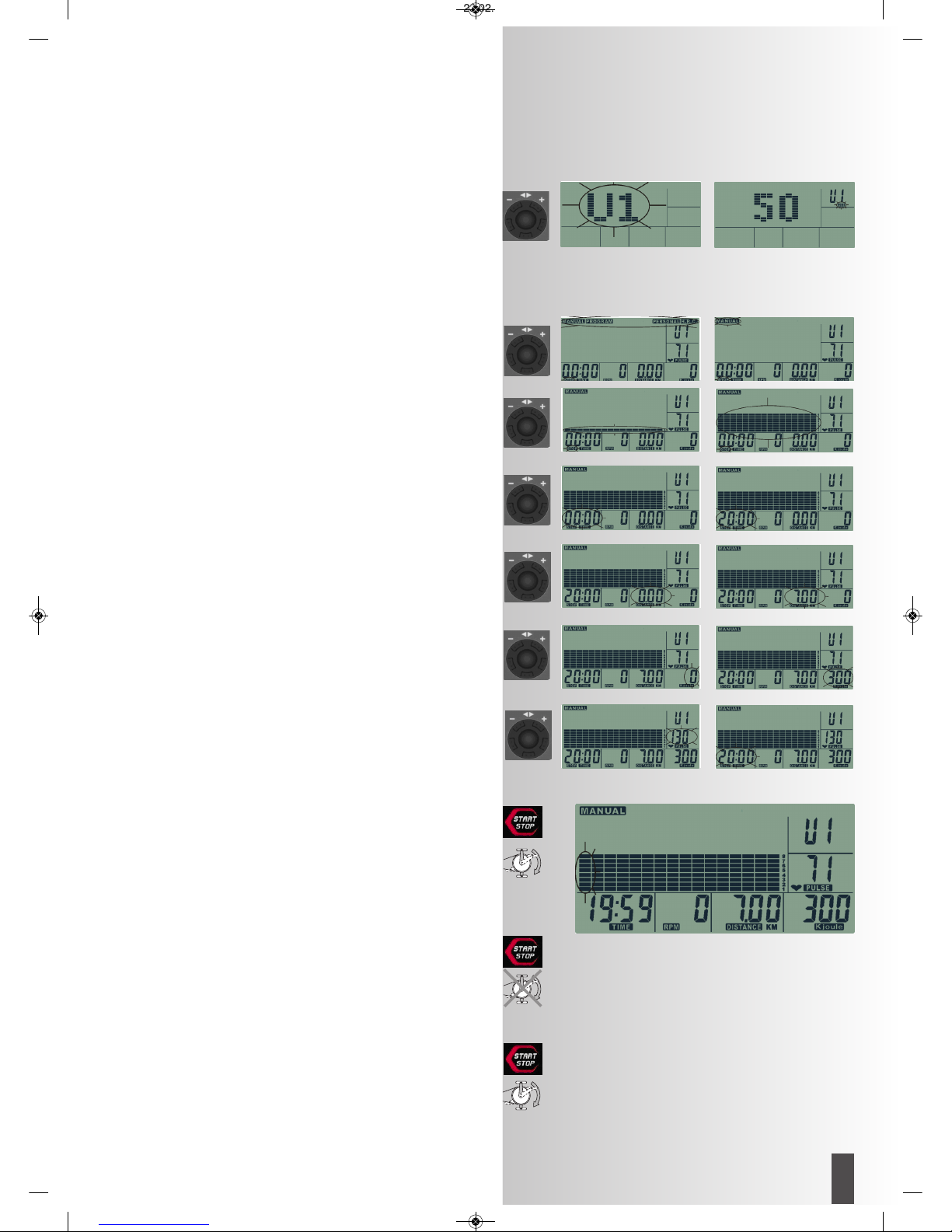

MANUAL Training Area

(Manual Load Adjustment)

Flashing areas can be changed.

• Turn “Encoder” to change.

• Press “Encoder” to adopt.

Inputting Personal Data

• Actuate “Button” or “Encoder”.

Last user is displayed as flashing.

Determine person

Adopt person (here, Person1)

Input age

From the age input, the target pulse value is calculated in

the H.R.C program according to the relationship of 220

minus age.

Adopt age (here, 50)

Training Selection

Set MANUAL training area

Adopt MANUAL

Specifying Training Values

Skip load (brake stage) or determine and adopt load

(here; stage 8)

Skip training time or determine and adopt training time

(here, stage of 20:00 minutes)

The set training time is converted to 16 profile bars. If no

time is specified, the current bar changes every 15

seconds.

Skip distance or determine and adopt distance

(here, 7.00 km)

Skip energy consumption or determine and adopt energy

consumption

(here, 300 Kjoules)

Skip pulse value or determine and adopt pulse value

Again, training time, etc. (here, 130 strokes/min)

Training

• Press “START STOP”

• Pedal

Defaults for time, distance, energy consumption count

downwards. In the case of active pulse measurement, the

pulse is monitored and the value flashes if it is exceeded

as a warning.

Changing Load

• “Turn Encoder right or left”

Load is increased or reduced

Interruption to Training

• Press “START STOP”

The average value (Ø) of the load is briefly displayed.

Cadence and speed display “0 values”.

The training time and STOP are displayed as flashing.

Continuing Training

• Press “START STOP”

• Pedal

07628-,07648-_Comp-UM678x_3074-0212.de,e ,fr, l,es,it,pl,pt,da,cs_Layout 1 23.02.13 15:00 Seite 19

Training and Operating Instructions

If a default is reached (0 value flashes, 8 signal tones), the dis-

play shows interruption to training with flashing time display

and STOP. The default values are displayed again. With the

“START STOP” button and pedalling, the display is active again

until the next default is reached.

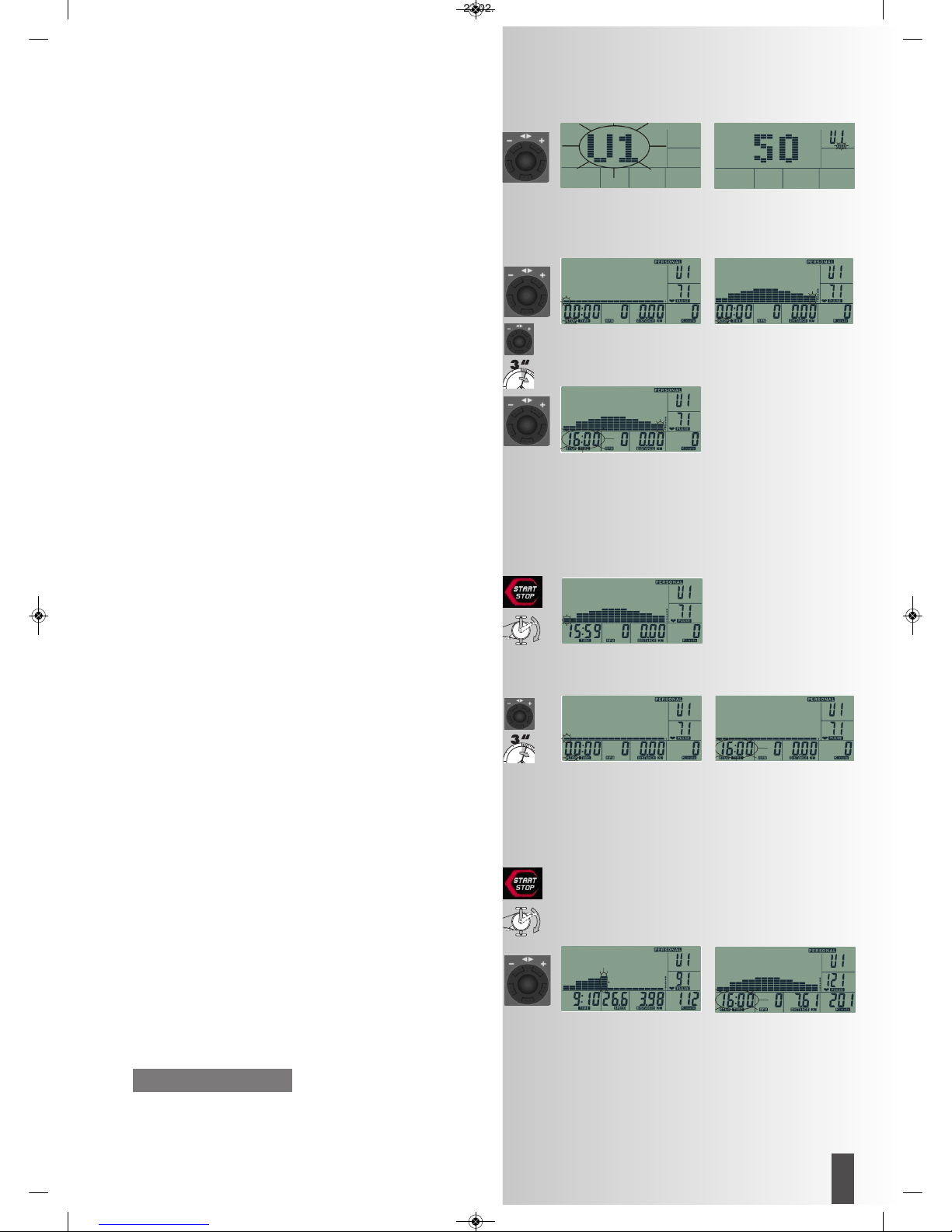

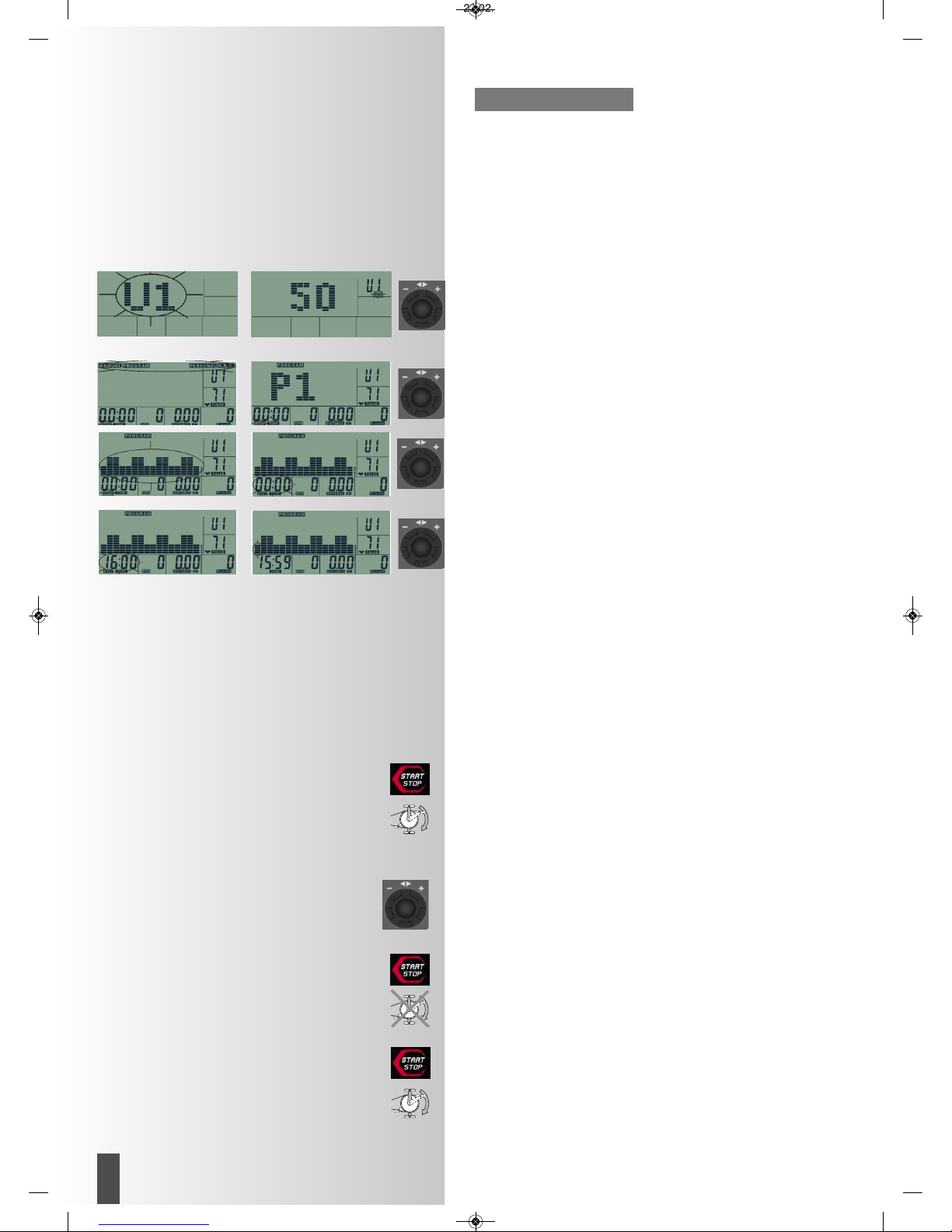

PROGRAM Training Area

Selection from 12 programs (profiles) which automatically adjust

the load stages.

Input or confirm personal data

Select PROGRAM

Selection from 12 programs

(Here, P1)

Specifying Training Values

Skip training time or determine and adopt training time

(Here, 16:00 minutes)

The set training time is converted to 16 profile bars. In the case

of 16 minutes, one bar corresponds to 1 minute. If no time is

specified, the current bar changes every 15 seconds.

Skip distance or determine and adopt distance

Skip energy consumption or determine and adopt energy con-

sumption

Skip pulse value or determine and adopt pulse value

Again, training time, etc.

Training

• Press “START STOP”

• Pedal

Defaults for time, distance, energy consumption count

downwards. In the case of active pulse measurement, the pulse

is monitored and the value flashes if it is exceeded as a war-

ning.

Changing Load

• “Turn Encoder right or left”

Load is increased or reduced

Interruption to Training

• Press “START STOP”

The average value (Ø) of the load is briefly displayed.

Cadence and speed display “0 values”.

The training time and STOP are displayed as flashing.

Continuing Training

• Press “START STOP”

• Pedal

Comment:

07628-,07648-_Comp-UM678x_3074-0212.de,e ,fr, l,es,it,pl,pt,da,cs_Layout 1 23.02.13 15:00 Seite 20

U 6786/U 6787

PERSONAL Training Area

Create and train own profile

Input or confirm personal data

Select PERSONAL

There are 2 options: Creating the profile before training or

during training.

Creating Profile Before Training

The first profile bar flashes and can be changed.

• Turn “Encoder” to change.

• Press “Encoder” to adopt the load and jump to the next bar

• Press “Encoder” for longer (doing this saves the profile)

Training time flashes and can be changed. (Here, 16:00 minu-

tes). The set training time is converted to 16 profile bars. In the

case of 16 minutes, one bar corresponds to 1 minute. If no time

is specified, the current bar changes every 15 seconds.

Skip distance or determine and adopt distance

Skip energy consumption or determine and adopt energy con-

sumption

Skip pulse value or determine and adopt pulse value

Again, training time, etc.

Training

• Press “START STOP”

• Pedal

Defaults for time, distance, energy consumption count

downwards. In the case of active pulse measurement, the pulse

is monitored and the value flashes as a warning if it is excee-

ded.

Creating Profile During Training

The first profile bar flashes and can be changed.

• Press “Encoder” for longer

Training time flashes and can be changed. (Here, 16:00 minu-

tes)

Training

• Press “START STOP”

• Pedal

• “Turn Encoder right or left”

Load is increased or reduced

When jumping to the next bar, the stage is saved. If the time

default is reached (0 value flashes, 8 signal tones), the display

shows interruption to training with flashing time display and

STOP. The default values are displayed again. The profile is

saved.

With the “START STOP“ button and pedalling, the display is acti-

ve again.

When the PERSONAL training area is called up, the own profile

is displayed.

Comment:

07628-,07648-_Comp-UM678x_3074-0212.de,e ,fr, l,es,it,pl,pt,da,cs_Layout 1 23.02.13 15:00 Seite 21

H.R.C Training Area

Pulse-Controlled Program

If the current pulse is lower than the target pulse, the load is

increased by one stage following 30 seconds. If it is higher, the

load is reduced by one stage following 15 seconds.

Input or confirm personal data

Select H.R.C.

Specifying Target Pulse

There are 4 target pulse values, with 55%, 75%, 90% and Tag,

to choose from. The pulse values to be displayed are calculated

from the relationship of 220 minus the input age. In the case of

50 years, in the case of 55% = 96, 75% = 132, 90% = 158,

Tag = 170 is displayed.

The “Tag” value can be changed.

55% flashes and can be changed.

• Turn “Encoder” to select the target pulse.

• Press “Encoder” to adopt the target pulse.

In the case of Tag, the value flashes and can be changed.

After specifying the target pulse, the pulse selection icon is dis-

played together with the current pulse.

Training time TIME flashes and can be changed. (Here, 16:00

minutes).

Skip distance or determine and adopt distance

Skip energy consumption or determine and adopt energy con-

sumption

Again, training time, etc.

Training

• Press “START STOP”

• Pedal

The first profile bar flashes and moves to the right during trai-

ning.

Defaults for time, distance, energy consumption count

downwards.

The load stages are increased until the target pulse is reached.

If the pulse measurement fails during the H.R.C. program, the

load is reduced to stage 1 within 60 seconds.

If the stage 1 remains unchanged for 30 seconds, brief signal

tones are output and the display shows interruption to training

with flashing STOP

Comment:

Training and Operating Instructions

07628-,07648-_Comp-UM678x_3074-0212.de,e ,fr, l,es,it,pl,pt,da,cs_Layout 1 23.02.13 15:00 Seite 22

RECOVERY Recovery pulse stage

The RECOVERY function can be used after each exercise

program.

The RECOVERY button is used to initiate recovery pulse

measurement at the end of exercising. Initial and final pulse

during one minute are used to calculate deviation and a fit-

ness score. In case of equal exercising, improvement of such

score is a measurement for increase of fitness.

When reaching the target values, end exercising and press

the RECOVERY button; then, leave your hands at the hand

pulse sensors. In case of previous pulse measurement, the

display shows 00:60 for time, and the PULSE display shows

the current pulse value (flashing). The countdown starts at

00:60. Leave your hands at the hand pulse sensors until the

countdown reaches >0<. The display will show on its right a

value between F1 and F6. F1 is the best status; F6 is the

worst status. The function can be ended by pressing again

RECOVERY.

If no pulse is recorded during the time delay, the error message

“Err” appears.

End of Training and Standby Mode

The display switches to standby mode with temperature display

4 minutes after training if there are no longer any buttons being

pressed, no pulses arise owing to pedalling and no pulse is acti-

ve.

It is possible to continue the last training session if the display is

reactivated by pressing a button or pedalling.

U 6786/U 6787

07628-,07648-_Comp-UM678x_3074-0212.de,e ,fr, l,es,it,pl,pt,da,cs_Layout 1 23.02.13 15:00 Seite 23

Training and Operating Instructions

• Attach the ear clip properly to your earlobe and look

for the best point for the measurement (heart symbol

blinks without interruption).

• Do not train directly under strong incidence of light,

e.g. neon light, halogen light, spotlight, sun light.

• Completely eliminate any shocks or bounces of the ear

sensor and the cable. Always attach the cable with a

clip at your clothing or, even better, at your headband.

With breast lip

The internal pulse receiver is compatible to un-coded

POLAR chest strap transmitters. For coded systems, wrong

pulse values may be displayed. We recommend T34 by

POLAR. Please observe the corresponding instructions.

A plug-in receiver is not necessary and should not be used

for technical reasons.

Comment:

Only one way of pulse measurement is possible: either

with ear clip or with hand pulse or with breast belt. If no

ear clip is located in the pulse plug, hand pulse measure-

ment is activated. If you insert an ear clip in the pulse

plug, hand pulse measurement is automatically deactivat-

ed. It is not necessary to disconnect the plug of the hand

pulse measurement.

Faults in the Training Computer

If the computer display is not functioning correctly, please

remove the power supply and switch off the machine.

General information

System signals

Activation of the device

If you activate the device, a signal is emitted during the seg-

ment test.

Presetting

A short signal is emitted, if you reach a presetting like time,

distance and KJoule/kcal.

Exceeding of maximum pulse

If the set maximum pulse is exceeded by one pulse beat, two

short signals are emitted for the time of exceedance.

Calculation of fitness score

The computer calculates and assess the difference bet-

ween the training and recovery heart rate and the resul-

ting "fitness score" according to the following formula:

P1 = Training pulse P2 = Recovery pulse

Score 1 = very good Score 6 = poor

A comparison of the training and recovery heart rate is a

quick and easy way in which to determine physical fit-

ness. The fitness score is an orientation value to asses

your recovering ability after physical exercise. Before

pressing the recovery heart rate button and determining

your fitness score, you should train at your own level of

intensity for a significant period of time e.g. 10 minutes.

For regular cardiovascular training you will discover that

your "fitness score" improves.

Possibilities for Pulse Measurement

The pulse measurement starts as soon as the heart in the

display blinks in time with your pulse beat.

With hand pulse

An extra-low voltage caused by the contractions of your

heart is registered by the hand sensors and evaluated by

the electronics assembly of the device.

• Always grab the contact faces with both hands.

• Avoid jerky grasping.

• Hold your hands calmly and avoid contractions and

rubbing on the contact faces.

With ear lip

The pulse sensor works with infrared light and measures

the variations in translucence in your skin, which are pro-

duced by your pulse beat. Rub your ear ten times strongly

to activate the blood circulation before attaching the

pulse sensor to your earlobe.

Avoid disturbing pulses.

Score (F) = 6 – (10 x (P1 – P2))2

✓✓

optional ✓

optional optional

For Your Safety:

Before beginning your program of exercise, consult your

doctor to ensure that you are fit enough to use the equip-

ment. Base your program of exercise on the advice given

by your doctor. Incorrect or excessive exercise may dama-

ge your health.

07628-,07648-_Comp-UM678x_3074-0212.de,e ,fr, l,es,it,pl,pt,da,cs_Layout 1 23.02.13 15:00 Seite 24

U 6786/U 6787

Beginners should not start with training units of 30 to 60

minutes.

A beginner training could be organised as follows during the

first four weeks:

In order to have a personal training documentation, you can

enter the training values achieved in the performance table.

Prior to and after every training unit gymnastic exercises

lasting approx. 5 minutes serve the warming up and/or coo-

ling down. There should be a day without training between

two training units, if you later on prefer to train three times a

week for 20 - 30 minutes each. Otherwise nothing can be

said against a daily training.

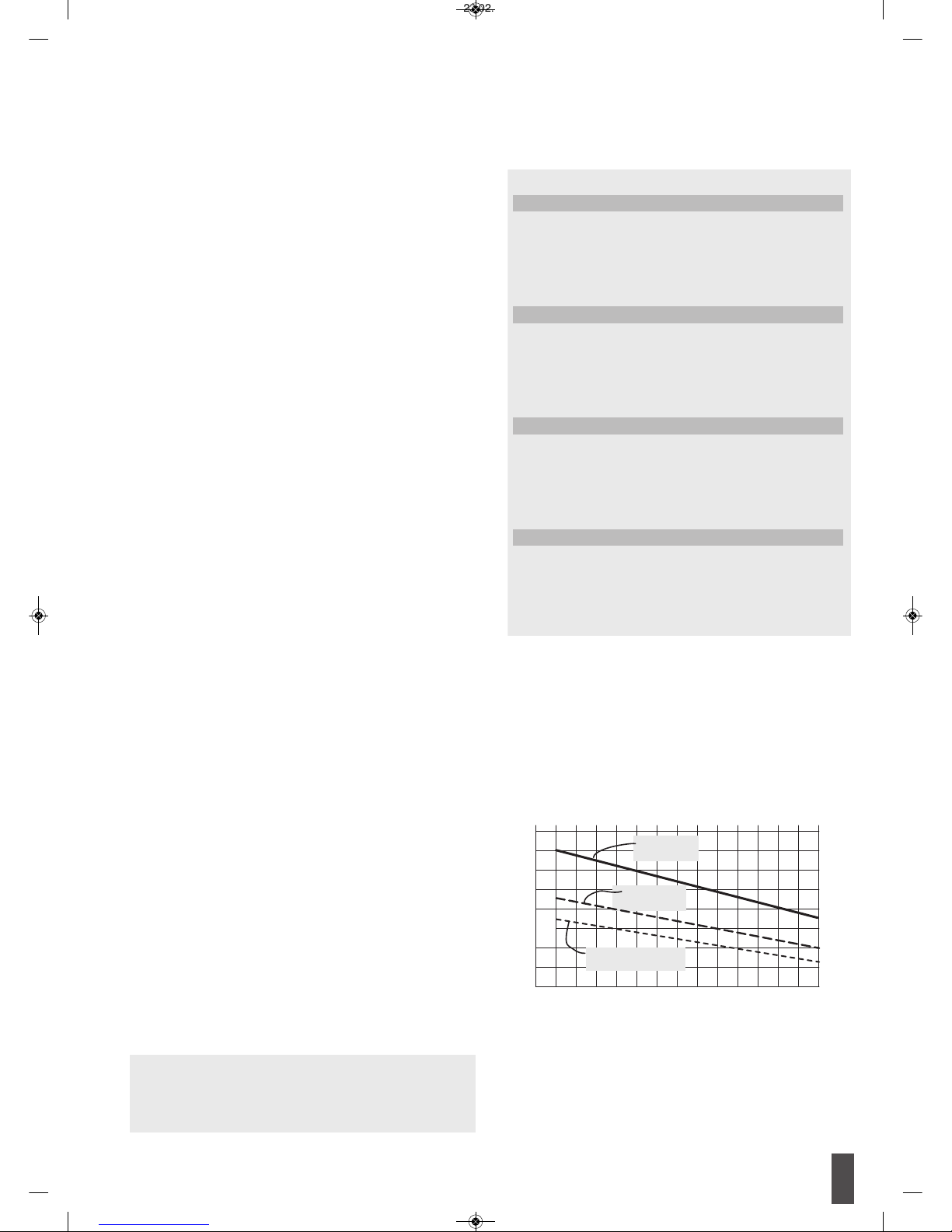

Pulsediagramm

Fitness and Fat Burner

220

200

180

160

140

120

100

Pulse

Age

20 25 30 35 40 45 50 55 60 65 70 75 80

Maximalpulse

(220 minus Age)

Fitnesspulse

(75% of Max.Pulse)

Fat combustion pulse

(65% of Max.Pulse)

Training Instructions

This device has particularly been designed and developed

for leisure time sportsmen. It is excellently suited for cardio-

vascular training.

The training methodically has to be organised on the princi-

ples of stamina training. This will predominantly cause

changes and adaptations of the cardiovascular system. This

includes the reduction of the resting pulse frequency and of

the load pulse.

This gives the heart more time for filling the ventricles and for

the blood circulation of the cardiac musculature (through the

coronary vessels . Moreover, depth of breathing and the

volume of air that can be breathed in (vital capacity) are

increased. Further positive changes take place in the metabo-

lic system. In order to achieve these positive changes, the

training has to be planned according to certain guidelines.

Planning and ontrol of your training

The basis for your training planning is your current physical

fitness condition. Your family doctor can diagnose your per-

sonal fitness by means of an exercise tolerance test, which

will constitute the basis for your training planning. If you

have not undergone an exercise tolerance test, high training

exertion and/or overstraining must be avoided in all cases.

The following rule should be considered in your planning:

stamina training is controlled via the scope of exertion as

well as via the level / intensity of exertion.

Regarding exertion intensity

The intensity of exertion should preferably be checked in

your fitness training via your heart’s pulse rate. The maximum

heart rate per minute of > 220 minus age must not be excee-

ded. The optimum training pulse is determined by age and

training target.

Training target: fat burning/weight redu tion

The optimum pulse frequency is calculated using the empi-

rical formula (220 – age) x 0.65.

Advice: fat burning for energy supply only gains signifi-

cance after a minimum training period of 30 minutes.

Training target ardio-vas ular fitness:

The optimum pulse frequency is calculated using the empiri-

cal formula (220 – age) x 0.75.

The intensity is predetermined in your training by means of

the braking levels, ranging from 1-16. As a beginner, you

should avoid too high braking level settings for your training,

as this will quickly lead to exceeding the recommended pulse

rate range. Start by using a low braking level setting and

then approach your optimum training pulse step by step. Do

not forget to regularly check during your fitness training whet-

her you still range within the intensity area according to the

above stated recommendations.

Sports physicians consider the following load factors to be

positive for fitness:

Frequency Duration

daily 10 min

2-3 times weekly 20-30 min

1-2 times weekly 30-60 min

Training frequency Extent of training session

3 times a week 2 minutes of training
