Keyline 884 DECRYPTOR ULTEGRA User manual

GETTING STARTED 1
*IMPORTANT* PRODUCT REGISTRATION FORM
Complete enclosed form and fax to 216-803-0202 or
e-mail to [e-mail]. This information is
required to activate your warranty and inform you of
software updates and new products. Product serial
number can be located on the bottom of the tool.
884 DECRYPTOR ULTEGRA PRODUCT DIAGRAM
WRITE button
READ button
Power connection Serial RS232 interface
ON/OFF switch
USB interface
Key slot/transponder antenna
Display
Keypad

2
INSTALLING KEYLINE SOFTWARE
884 software updates are done via Keyline Cloning Tool program for the PC
(requires Windows 7 or higher). To download the software, visit the Keyline USA
website, www.keyline-usa.com, then enter the GKM & GK100 product page.
Follow the guided installation wizard to complete the setup. Once complete, the
Keyline Cloning Tool Software icon will appear on your desktop. Double click the
icon. For Login and Registration instructions, see page 3.
Once on the product page, double-click the ‘DOWNLOAD SOFTWARE’ button.
When prompted, select ‘RUN’ to start the installation process.

* IMPORTANT *
REGISTERING YOUR 884 ULTEGRA
If you do not have an existing Keyline account, you must register your
cloning tool and confirm the account via the e-mail link you will receive
after registering before gaining access to the Keyline Cloning Tool
software program and software updates. Registration procedure is as
follows;
3

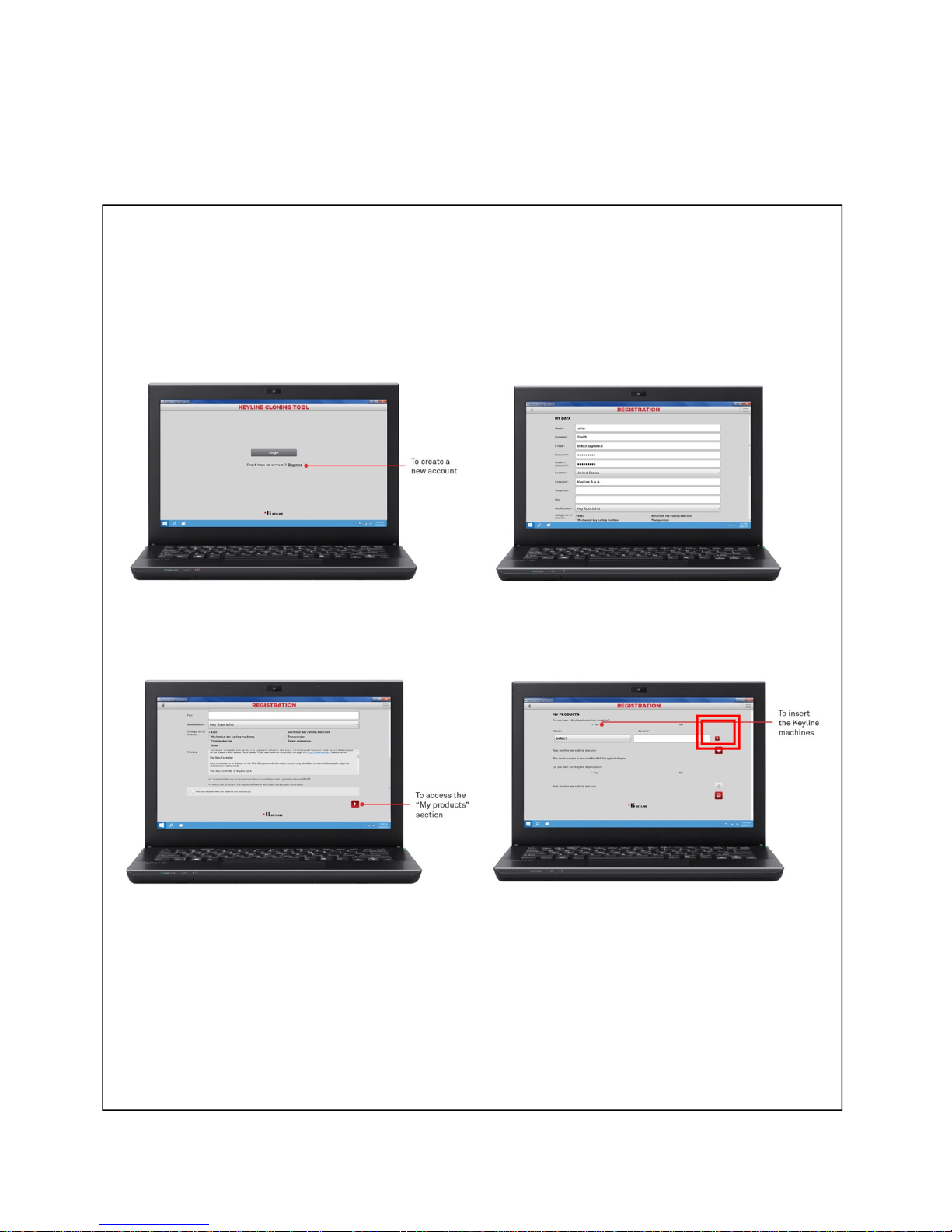

Select Register, then complete each registration field.
In the My Products section, make sure to select the correct product
and serial number, then select the disk icon to save. Once, complete,
you will receive an e-mail from Keyline service to confirm the account.
Once confirmed, you will be able to login for future software updates.

4
CLONING KEYS:
FIXED CODE
When prompted, insert the original
key into the reader and press
READ button.
Chip type displays with ‘Can
Duplicate’. Leave the original key in
the reader and press WRITE button.
Insert the clonable key (i.e. T5, T2
or TK100 key) into the reader.
Press WRITE button.
Writing in progress.
INSERT COPY TK5/100
PRESS WRITE
TRANSP. MEGAMOS MG00 (13)
CAN DUPLICATE WRITE
WRITING IN PROGRESS
PLEASE WAIT
SUCCESSFUL WRITING
PRESS WRITE
Key clone is complete.

5CLONING KEYS:
TI® ENCRYPTED CODE
When prompted, insert the original
key into the reader and press
READ button.
Chip type displays with ‘Can
Duplicate’. Leave the original key in
the reader and press WRITE button.
Continue to leave the original key
in the reader. Select the WRITE
button to indicate YES.
Calculation procedure begins.
(NOTE: no data is being written or
changed to the original key)
PROG. CRYPTO KEY?
RD=NO WR=YES
TEXAS CRYPTO 2 TPXX-64
CAN DUPLICATE WRITE
CALCULATING . . . .
PLEASE WAIT
INSERT TK40/100
PRESS WRITE
Insert the clonable key (i.e. TK40,
TK100 or GK100 key) into the
reader. Press WRITE button.
Writing in progress.
WRITING IN PROGRESS
PLEASE WAIT
SUCCESSFUL WRITING
PRESS WRITE
Key clone is complete.

6CLONING KEYS:
PHILIPS® ENCRYPTED CODE
When prompted, insert the original
key into the reader and press
READ button.
Chip type displays with ‘Can
Duplicate’. Leave the original key in
the reader and press WRITE button.
Insert the clonable key (i.e. TK60,
TK100 or GK100 key) into the
reader. Press WRITE button.
Remove the key and proceed to
the Vehicle Ignition Procedure
(Step 2).
INSERT TK60/TK100
PRESS WRITE
CRYPTO PHIL. PH2 0 (46)
CAN DUPLICATE WRITE
STEP 1 COMPLETE
PROCEED TO STEP 2
STEP 1
STEP 2 (VEHICLE IGNITION PROCEDURE)
1) Select the correct horseshoe blade or POD key for the original key and
successfully duplicate/cut the blade.
2) Insert the TK60/TK100/GK100 into
the cut horseshoe blade or POD key.
Take the key to the vehicle and turn in
the vehicle’s ignition to the ‘ON’
position for 5 seconds, turn to ‘OFF’
then remove the key from the
ignition for 2 seconds.
Repeat this step 4 more times.

7CLONING KEYS:
PHILIPS® ENCRYPTED CODE, cont
Display will read Insert the Key
and Press Read. Insert the
TK60/TK100/GK100 key into the
884 and press READ button.
Step 2 will be confirmed. Leave the
TK60/TK100/GK100 key in the
reader and press WRITE button.
Continue to leave the
TK60/TK100/GK100 key in the
reader. Select the WRITE button
to indicate YES.
Insert the original key.
(NOTE: no data is being written or
changed to the original key)
PROG. CRYPTO KEY?
RD=NO WR=YES
ST EP 2 RE AD CO MP LE TE
CAN DUPLICATE WRITE
INSERT ORIGINAL KEY
PRESS WRITE
RE-INSERT TK60/100
PRESS WRITE
Re-insert the clonable key (i.e.
TK60, TK100 or GK100 key) into
the reader. Press WRITE button.
Writing in progress.
WRITING IN PROGRESS
PLEASE WAIT
SUCCESSFUL WRITING
PRESS WRITE
Key clone is complete.
INSERT THE KEY
AND PRESS READ
STEP 3
Calculation procedure begins.
CALCULATING . . . .
PLEASE WAIT
To make additional keys for the same vehicle, insert a new
TK60/TK100/GK100 key immediately after the first one and select WRITE again.

8CLONING KEYLESS KITS:
PHILIPS® ENCRYPTED CODE
When prompted, insert the original
fob into the reader and press
READ.
Chip type displays with ‘Can
Duplicate’. Leave the original fob in
the reader and press WRITE button.
Insert the Keyline clonable fob (BM100,
NS100, etc) into the reader. Press
WRITE button.
Remove the Keyline fob and
proceed to the Vehicle Ignition
Procedure (Step 2).
INSERT TK60/TK100
PRESS WRITE
CRYPTO PHIL. PH2 0 (46)
CAN DUPLICATE WRITE
STEP 1 COMPLETE
PROCEED TO STEP 2
STEP 1
STEP 2 (VEHICLE IGNITION PROCEDURE)
1) Select the correct keyless kit fob for the original key and successfully
duplicate/cut the emergency blade.
2) Take the keyless fob to the vehicle and
locate the emergency slot (can be in center
console, to right of dash, to left of steering
column etc. and varies based on the vehicle
make)
Insert keyless fob into slot, press the brake
pedal and push the start button. Leave fob in
for 5 seconds, push start button again, then
remove the fob from the slot for 2 seconds.
Repeat this complete step 2 more times.

9CLONING KEYLESS KITS:
PHILIPS® ENCRYPTED CODE, cont
Display will read Insert the Key
and Press Read. Insert the
Keyline fob into the 884 and press
READ button.
Step 2 will be confirmed. Leave the
Keyline fob in the reader and press
WRITE button.
Continue to leave the Keyline fob
in the reader. Select the WRITE
button to indicate YES.
Insert the original fob.
(NOTE: no data is being written or
changed to the original key)
PROG. CRYPTO KEY?
RD=NO WR=YES
ST EP 2 RE AD CO MP LE TE
CAN DUPLICATE WRITE
INSERT ORIGINAL KEY
PRESS WRITE
RE-INSERT TK60/100
PRESS WRITE
Re-insert the clonable key (i.e.
Keyline fob) into the reader. Press
WRITE button.
Writing in progress.
WRITING IN PROGRESS
PLEASE WAIT
SUCCESSFUL WRITING
PRESS WRITE
Key clone is complete.
INSERT THE KEY
AND PRESS READ
STEP 3
Calculation procedure begins.
CALCULATING . . . .
PLEASE WAIT
To make additional keys for the same vehicle, insert a new Keyline keyless kit
fob immediately after the first one and select WRITE again.

10
TKM XTREME ACTIVATION
OPTIONAL SOFTWARE UPGRADE
At the main screen insert the TKM
activation head included in the
package (marked with Xtreme).
TKM activation begins; DO NOT
remove the TKM head
Enabling procedure begins Enabling process completes.
Once prompted, remove the TKM
head; it can now be used as a key
TKM.XTREME KIT is a paid,
optional software update and
includes one activation head
(marked with ‘Xtreme’) that can
be re-used as a standard TKM
head after activation.
NOTE: Before activating the TKM.XTREME to your 884 Decryptor Ultegra,
make sure your unit is updated to the latest software (see SOFTWARE
UPDATE INSTRUCTIONS) and has the latest version of the Keyline
Cloning Tool software for the PC. The Keyline Cloning Tool software is
required when cloning Megamos® Crypto ID48 keys.

11
CLONING KEYS: TKM XTREME
MEGAMOS® CRYPTO (ID48)
Insert original key Once prompted, insert TKM/GKM
Leave TKM/GKM inside reader
during initial writing phase
When prompted, take TKM/GKM
key to vehicle to cycle into ignition 8
times (sniffing) as instructed
Use the TKM/GKM key to turn the
vehicle’s ignition to the ON
position for 5 seconds, then OFF
for 2 seconds, then remove the
key. Repeat this step for a total of
8 times.
Once vehicle procedure is
complete, insert the TKM/GKM
into the reader

12
CLONING KEYS:
MEGAMOS® CRYPTO (ID48), cont
When prompted, insert original key Calculation phase begins
Once prompted, re-insert TKM head Copying phase begins
Copying writing Key copy is complete; take the new
TKM/GKM key to the vehicle and
confirm vehicle starts.

13
At the main screen insert the TKG
activation head included in the
package
TKG activation begins; DO NOT
remove the TKG head
Enabling procedure begins Enabling process completes.
Once prompted, remove the TKG
head; it can now be used as a key
TKG.KIT is a paid, optional software update and
includes one activation head that can be re-used
as a standard TKG head after activation.
NOTE: Before activating the TKG.KIT to your 884 Decryptor Ultegra, make
sure your unit is updated to the latest software (see SOFTWARE UPDATE
INSTRUCTIONS) and has the latest Keyline Cloning Tool software for the PC.
The Keyline Cloning Tool software is required when cloning Toyota® ‘G’ keys.
TKG KIT ACTIVATION
OPTIONAL SOFTWARE UPGRADE

14CLONING KEYS:
TOYOTA®‘G’ 80-BIT ENCRYPTED
At the main screen insert the
original key into the reader
Preparation phase begins; leave
original key in the reader
Insert TKG/CKG when prompted
Copying phase completes When ‘Key copy completed’
displays, key is complete
Copying phase begins; leave
TKG/CKG in reader

15OTHER FEATURES:
LANGUAGE, CODE GENERATION
At the Main Screen, hold down the
F1 button until the Select
Language screen appears.
Current language will display. Use the read
button to scroll through the languages until
you find the desired one. Then press
WRITE button to confirm.
CHANGE THE LANGUAGE
Press the F3 function to access
the Code Generation screen.
Use the arrow button to scroll through
different chip types. Once you have
desired chip type press the WRITE button
to confirm.
CODE GENERATION
To manually enter a code or generate a random value for a fixed code key,
follow these steps;
Code can now be manually entered (if
known) using the keypad or for a random
value select the arrow button, then press
WRITE button.

16
SOFTWARE UPDATE
INSTRUCTIONS
884 DECRYPTOR ULTEGRA & KEYLINE CLONING TOOL SOFTWARE UPDATE
NOTE: 884 Decryptor Ultegra software updates are needed periodically and must be done through the PC.
To check your current firmware version, select ‘Diagnostics’ from the drop down menu or turn the unit off and
turn it back on and the Release number will appear after the Keyline logo.
Select the Settings tab from the
Main Menu.
Select ‘Install Updates’.
Update process will begin
automatically.
Once complete, select OK.
884 Decryptor Ultegra is now
updated and ready to use.
WHAT YOU WILL NEED:
©2017 Keyline USA. All Rights Reserved.
Make sure you have the latest version of the Keyline Cloning Tool program.
The version is located in the upper left hand corner of the program

17
TROUBLESHOOTING
‘NO TRANSPONDER DETECTED’ – displayed when READING
Make sure transponder key is fully inserted into the cloning tool reader and that the key has a
transponder value. Also, if it is a newer vehicle, it may be a chip type that is not able to be read
(and therefore cloned) yet.
‘BLANK TK60/TK100’
This message occurs in step 3 if step 2 is not completed correctly (vehicle ignition procedure).
Start the cloning process again from step 1 and confirm the vehicle ignition procedure is being
completed correctly. In addition, cycle the vehicle ignition an additional 3 times (for a total of 8)
to make sure you are getting the information from the immobilizer onto the key.
‘STEP 2 WRONG’
This message occurs in step 3 if step 2 is not completed correctly (vehicle ignition procedure).
Start the cloning process again from step 1 and confirm the vehicle ignition procedure is being
completed correctly. In addition, cycle the vehicle ignition an additional 3 times (for a total of 8)
to make sure you are getting the information from the immobilizer onto the key.
‘ERROR XX’
This message occurs when there is an error in the calculation. Start again from Step 1.
‘ERROR 62’
This message occurs when the secret key found at the end of the calculation does not match
the original key. Start again from Step 1.
‘ERROR 63’
This message occurs when the ID of the original key at the end of the calculation is different
from the one expected. Start again from Step 1.
‘MY CLONING TOOL READS THE CHIP, BUT SAYS CANNOT DUPLICATE’
This message occurs when it is a chip type that can be read (i.e. Texas Instruments 80-bit
encrypted code), but is not able to be cloned.
‘HOW CAN I TELL WHAT SOFTWARE VERSION I HAVE ON MY CLONING TOOL’
Turn the 884 Ultegra off and then back on. After the Keyline logo, the software release number
will display.
For additional information, visit our website at www.keyline-usa.com, e-mail support@keyline-
usa.com or 800-891-2118 for technical support.
©2017 Keyline USA. All Rights Reserved.
