Keysight Technologies UXG X Series Installation and operation manual

Kit Part Number:
N5191-60230

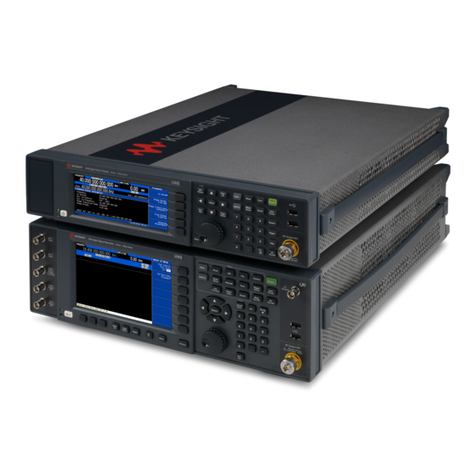

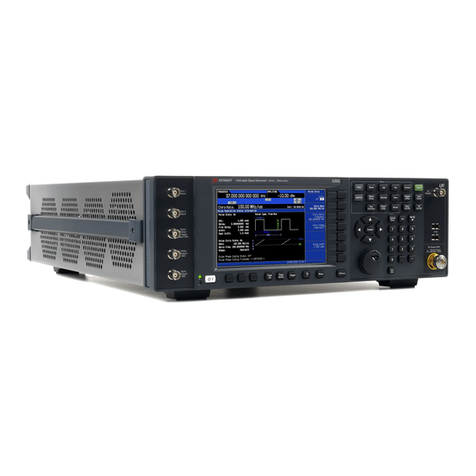

Keysight UXG X-Series
Agile Signal Generators
Add Option SS4 (Switching Speed)
Installation Note

Notices
© Copyright 2017 Keysight Technologies, Inc.
The information contained in this document is subject to change without notice.
Keysight Technologies makes no warranty of any kind with regard to this material, including but
not limited to, the implied warranties of merchantability and fitness for a particular purpose.
Keysight Technologies shall not be liable for errors contained herein or for incidental or
consequential damages in connection with the furnishing, performance, or use of this material.
Manual Part Number
N5191-90021
Edition
Edition 1, June 2017
Supersedes January 2017
Printed in USA/Malaysia
Published by:
Keysight Technologies, Inc.
1400 Fountaingrove Parkway
Santa Rosa, CA 95403

Installation Note N5191-90021 3
Add Option SS4 (Switching Speed) Kit Part Numbers: N5191-60230
Add Option SS4 (Switching Speed)
Kit Part Numbers: N5191-60230
Introduction
This upgrade kit adds Option SS4 (Switching Speed) to the UXG X-Series Agile Signal Generators.
Installation includes the following major steps:
1. Check signal generator functionality, page 5.
2. Check the instrument firmware and update if it is < A.01.60, page 5.
3. Remove the outer and inner signal generator covers, starting on page 7.
4. Install Option SS4, page 8.
5. Activate Option SS4, page 9.
6. Verify proper installation of Option SS4, page 9
7. Re-assemble the signal generator, page 9.
8. Verify signal generator calibration, page 10.
Product Affected: . . . . . . . . . . . . . . . . . . . . . . . . . N5193A
Serial Numbers: . . . . . . . . . . . . . . . . . . . . . . . . . . <MY/SG/US 5646xxxx
Options: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 540
To Be Performed By: . . . . . . . . . . . . . . . . . . . . . . (X) Keysight Technologies Service Center
(X) Personnel Qualified by Keysight Technologies
( ) Customer
Estimated Installation Time: . . . . . . . . . . . . . . . 1.0 hours
Estimated Verification Time: . . . . . . . . . . . . . . . Option 540 = 15 hours

4Installation Note N5191-90021
Add Option SS4 (Switching Speed) Kit Part Numbers: N5191-60230
Installation Kit Parts List
Tools Required
— TORX T-10 driver
— TORX T-15 driver
— TORX T-20 driver
— 5/16” open-ended wrench
— Needle-nose pliers
—Scissors
Safety Considerations
Table 1 N5191-60230, for Option 540
Quantity Description Part Number
1 UXG X-Series Agile Signal Generators Add SS4 to Option 540
Installation Note
this note
1 Assembly, 40 GHz Doubler, Tested N5191-60335
1 Entitlement Certificate n/a
Before you disassemble the instrument, turn the power switch off and unplug the signal
generator. Failure to unplug the signal generator can result in personal injury.
Electrostatic discharge (ESD) can damage or destroy electronic components. All work on
electronic assemblies should be performed at a static-safe workstation.

Installation Note N5191-90021 5
Add Option SS4 (Switching Speed) Kit Part Numbers: N5191-60230
Check Signal Generator Functionality
Use the following procedure to confirm that the signal generator powers up and the internal check
identifies no errors. The internal check evaluates the operation of the signal generator and returns
an error message if it detects a problem.
1. Turn on the signal generator and let it warm up for at least five minutes.
2. Run the signal generator self-test by pressing System > Instrument Info/Help Mode > Self
Test > Run Complete Self Test. Upon completion, a summary of the self-test will be
displayed. Use the N5191A N5193A Service Guide to troubleshoot any failures detected by the
test.
3. Check to see if the ERR annunciator is on.
—If the ERR annunciator is on, review the error messages in the error queue by pressing
System > Error Info. The first page of error messages in the error queue appears in the
display text area. (Refer to the signal generator error messages document for information
about each error message.)
After resolving all problems causing errors, press Clear Error Queue(s).
—If the ERR annunciator is off, the signal generator functionality check has passed.
Update Instrument Firmware
Updating the instrument firmware before installing the new hardware will help ensure that the
hardware installation is successful.
Go to the following website to update instrument firmware:
http://www.keysight.com/main/software.jspx?ckey=2548533&lc=eng&cc=US&nid=-32491.1150
339&id=2548533
When the signal generator is first connected to ac line power, Reference Oven Cold
occurs which causes the OVEN COLD annunciator to turn on.
After approximately five minutes, the OVEN COLD annunciator automatically clears.
Some circuits may require up to 50 minutes to warm up before passing the
self-test. If self-tests continue to fail after 50 minutes of warm up, troubleshoot
the instrument.

6Installation Note N5191-90021
Remove the Outer and Inner Bottom Rear Cover
Remove the Outer and Inner Bottom Rear Cover
Remove the Outer Cover
Refer to Figure 1.
1. Disconnect the power cord.
2. Using a T-20 driver, loosen the screws (1) and remove the strap handles (2) from both sides
of the instrument.
3. Remove the four bottom feet (6) from the cover by lifting the tab and sliding the foot toward
the tab.
4. Using a T-20 driver, remove the center screws (3) on the four rear-panel feet (4).
5. Place the signal generator on its side.
6. Slide the outer cover (5) back to remove it from the frame.
Figure 1 Outer Cover Removal
The RF connector can be easily damaged. Use extreme caution to not damage the RF connector
when lifting the rear of the signal generator.

Installation Note N5191-90021 7
Remove the Outer and Inner Bottom Rear Cover
Remove the Inner Bottom Rear Cover
Refer to Figure 2.
1. Place the signal generator upside down.
2. To remove from the rear bottom cover (1), use a T-10 driver to remove the twelve screws (2)
(including two on the rear panel).
Figure 2 Inner Bottom Rear Cover Removal

8Installation Note N5191-90021
Install Option SS4 (Instruments with Front Panel RF Output)
Install Option SS4 (Instruments with Front Panel RF Output)
Remove Existing A19 40 GHz Doubler
1. Refer to Figure 3. Remove cables W23 and W25. Also disconnect the cable at the location
indicated.
Figure 3 A19 40 GHz Doubler Cables and Screws
2. Remove the four screws (1) (0515-0372) that attach the A19 40 GHz Doubler to the deck. The
40 GHz Doubler can now be lifted from the deck.
Install A19 40 GHz Doubler
1. Reverse the order of the removal procedure.
2. Recommended torque for all screws is 9 in–lbs.
3. Recommended torque for all cable connectors is 9 in–lbs.

Installation Note N5191-90021 9
Activate Option SS4
Activate Option SS4
1. Turn the signal generator on and allow it to warm up for 5 minutes.
2. Follow the instructions on the Entitlement Certificate to redeem Option SS4.
3. Connect the instrument to the LAN and write down the IP address.
4. Get the IP address from the instrument by pressing System, I/O Config, LAN Setup, IP
Address: xxx.xxx.xxx.xxx.
Verify Proper Installation of Option SS4
1. Press: System > Instrument Info > Options Info.
2. Make sure Option SS4 is listed.
Re-Assembling the Instrument
Refer to Figure 1 and Figure 2.
1. Reinstall the inner bottom rear cover and outer instrument cover by reversing the order for
removal.
2. Torque all T-10 screws to 9 in-lbs.
3. Torque all T-20 screws to 21 in-lbs.
4. Cut out an Option SS4 label and attach it to the rear panel, near the original serial number
label.
If you enable an option that does not have the required hardware installed, the
menus for that option will be activated but the option cannot operate.

10 Installation Note N5191-90021
Verify Signal Generator Calibration
Verify Signal Generator Calibration
1. Turn the signal generator on and allow it to warm up for 45 minutes.
2. Perform the following adjustment and performance tests, in the order listed, to verify signal
generator calibration. Refer to the UXG Family Signal Generators Service Software.
Adjustments
— Calibration Array Restore
— M40X Cal Array Port Calibrations (Option 540/54E)
— Open Loop Relative Amplitude Calibration
— ALC Detector Flatness Calibration
— Open Loop Absolute Amplitude Calibration
— Output Attenuator Reference States Calibration (Option AT1)
— Output Attenuator Amplitude Calibration (Option AT1)
— Output Attenuator Amplitude Low Freq Calibration (Option AT1)
—SavePowerFactoryDefaults
— Path Delay Calibration
— Output Attenuator Delay Calibration (Option AT1)
Performance Tests
— Run all performance tests
