KFE KF-HP12-M User manual

1
INSTALLATION & OPERATION MANUAL

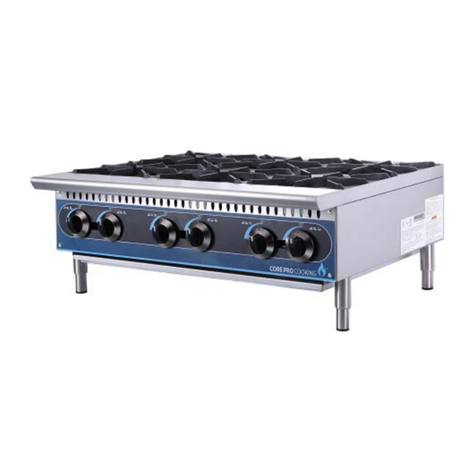

Gas Countertop Hot Plate
MODELS: KF-HP12-M, KF-HP24-M & KF-HP36-M
(12”-2 burners) (24”-4 burners) (36”-6 burners)
For Service on Your Gas Hot Plate:
Please call the Service Department and ask for contact information for your local service company.

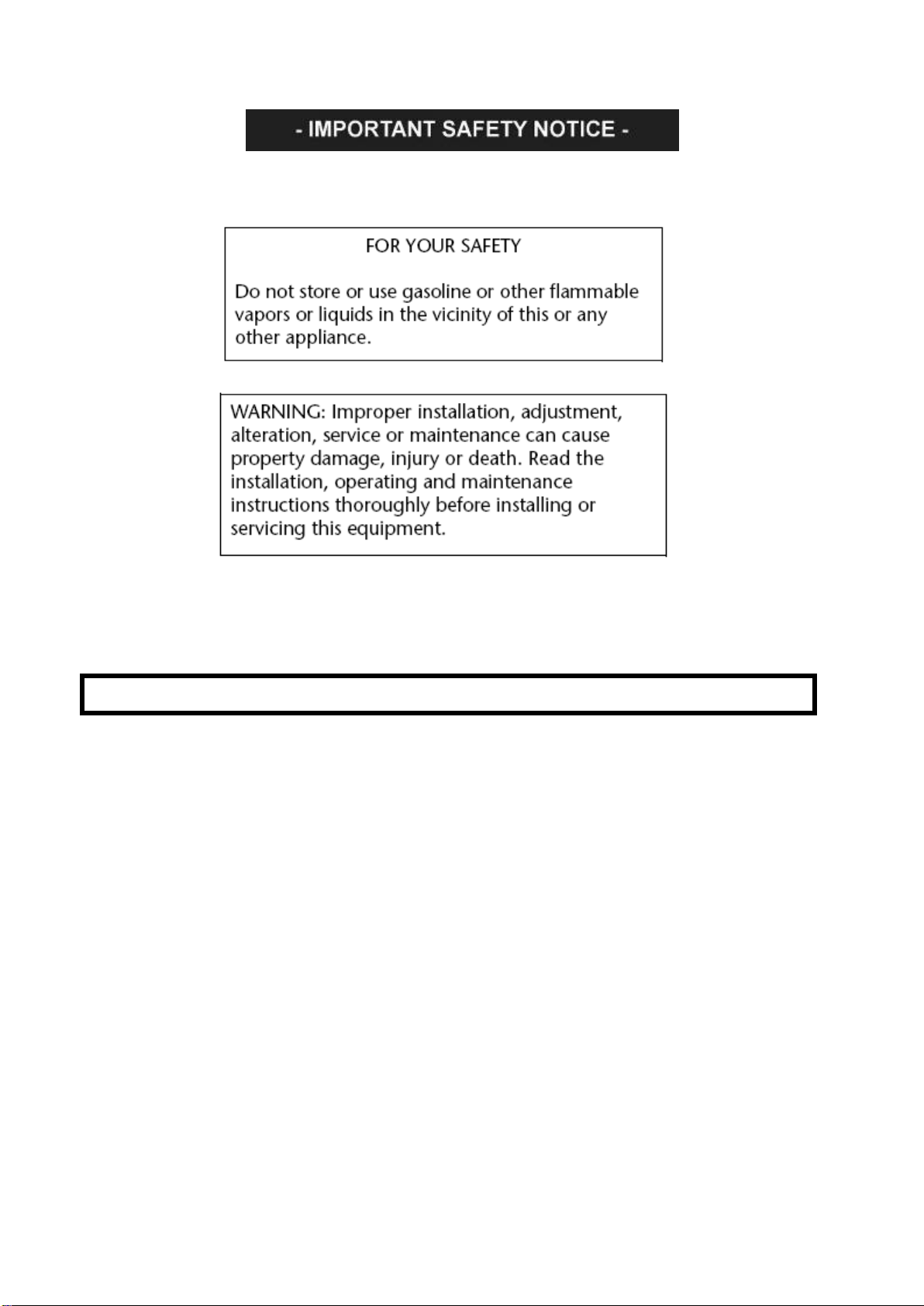

WARNING:
IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION,SERVICE OR
MAINTENANCE CAN CAUSE PROPERTY DAMAGE, INJURY OR DEATH. READ THE
INSTALLATION, OPERATING AND MAINTENANCE INSTRUCTIONS THOROUGHLY
BEFORE INSTALLING OR SERVICING THIS EQUIPMENT.

2
This manual contains important safety instructions which must be strictly followed when using this
equipment. Please retain this manual for future reference.
Index
ATTENTION OWNERS AND OPERATORS........................................................................................3
UNPACKING & INSTALLATION…………………………………………………………………….……….4-5
WARNINGS & SAFEGUARDS FOR OPERATION .............................................................................6
OPERATINGINSTRUCTIONS………………………………………………………………….……….……7
CLEANING INSTRUCTIONS …………………………………………………………………………….…..8
TROUBLESHOOTING .........................................................................................................................9
LIMITED WARRANTY………………………………………………………………………………………....10

3
Attention Owners and Operators
The equipment is designed to provide safe and productive processing, cooking and warming of food products
as long as the equipment is used in accordance with the instructions in this manual and is properly maintained.
Unless the operator is adequately trained and supervised there is a possibility of serious injury. Owners of this
equipment bear the responsibility to make certain that this equipment is used properly and safely, and to
strictly follow all of the instructions contained in this manual and the requirements of local, state or federal law.
Owners should not permit anyone to touch this equipment unless they are over 18 years old, are adequately
trained and supervised, and have read and understood this manual. Do not attempt to repair or convert any
gas types on your own. Repairs and conversions are to be made solely by an authorized local servicer.
Owners should also ensure that no customers, visitors or other unauthorized personnel come in contact with
this equipment. Please remember that supplier cannot anticipate every circumstance or environment in which
its equipment will be operated. It is the responsibility of the owner and the operator to remain alert to any
hazards posed by the function of this equipment. If you are ever uncertain about a particular task or the proper
method of operating this equipment, ask your supervisor.
This manual contains a number of precautions to follow to help promote safe use of this equipment.
Throughout the manual you will see additional warnings to help alert you to potential hazards.
Warnings affecting your personal safety indicated by:
Warnings affecting your possible damage to the equipment and property are indicated by:
If any warning labels or this manual are misplaced, damaged, or illegible, or if you require additional copies,
please contact your nearest representative or vender directly for these items at no charge.
Please remember that this manual or the warning labels do not replace the need to be alert,
to properly train and supervise operators, and to use sense when using this equipment.
Please remember that this manual or the warning labels do not replace the need to be alert,
to properly train and supervise operators, and to use sense when using this equipment.
Model
GAS
Number Of Burners
BTU/hr Input Rating
12”-2 burners
Natural
2
50,000
24”-4 burners
Natural
4
100,000
36”-6 burners
Natural
6
150,000

4
TO AVOID SERIOUS PERSONAL INJURY AND PROPERTY DAMAGE:
·ALWAYS install equipment in a work area with adequate light and space.
·ONLY operate on a solid, level, nonskid surface that is nonflammable and away from sinks and water
hazards.
·NEVER bypass, alter or modify this equipment in any way from its original condition. Doing so may create
hazards and will void warranty.
GAS and GAS PRESSURE
Unit installation must conform with the National Fuel Gas Code, ANSI Z223.1/NFPA 54, the National Gas
Installation Code, CSA-B149.1, or the Propane Installation Code, CSA-B149.2 as applicable and in
accordance with local codes.
The appliance and it’s individual shutoff valve (to be supplied by user) must be disconnected from the gas
supply piping system during any pressure testing of that system at test pressures in excess of ½ psi (3.45
kPa).
These models are designed, built, and sold for commercial use only.
Instructions must be posted in a prominent location. All safety precautions must be taken in the event the user
smells gas. Safety information can be obtained from your local gas supplier.
UNPACKING
Unpack the hot plate immediately after receipt. Remove the gas hot plate from the crate; remove all packaging
on and surrounding the unit and be certain to remove all protective plastics and residues from all surfaces.
Make sure that all parts provided including the L.P. gas conversion kit are located.
If the machine is found to be damaged, save the packaging material and contact the carrier within fifteen (15)
days of delivery. Immediately contact KFE or your local dealer of the equipment. You have no recourse for
damage after fifteen (15) days.

5
Unpacking & Installation
INSTALLATION
1. Read this manual thoroughly before installation and operation. DO NOT
proceed with installation and operation if you have any questions or do not
understand anything in this manual. Contact your local representative.
2. Select a location for the hot plate that has a level, solid, nonskid surface that is
nonflammable and away from water hazards or sinks, and is in a well-lighted work area
away from children and visitors.
3. Equipment must be installed under proper ventilation as required per local code.
NOTICE: Local codes regarding installation and ventilation vary greatly by area. The
National Fire Protection Association, Inc, states in its NFPA 96 latest edition (see NFPA
page at the beginning of this manual) that local codes are “authority having jurisdiction”
when it comes to requirements for installation of equipment. Therefore, installation
should comply with all local codes.
4. This appliance is equipped for Natural gas, for conversion to LP gas please see another
conversion kits instruction.
5. Screw legs into the permanently fastened nuts on the four corners of the unit and tighten
by hand. Legs must be installed to adequately provide proper ventilation to the unit.
6. Level unit by adjusting the four feet and tighten securely. The adjustable feet have an
adjustment of one inch for lineup with other countertop lines. Do not slide unit with legs
mounted, lift if necessary to move unit.
7. The supplied gas pressure regulator is factory set at 4'' Natural gas W.C. or 10'' for L.P.
8. THESE UNITS ARE SUITABLE FOR INSTALLATION ON NON-COMBUSTIBLE
SURFACES ONLY.
Noncombustible clearances: 0'' sides (0 mm) 6'' rear (152 mm) 4'' floor (102 mm)
9. Do not obstruct the flow of combustion and ventilation air, under the unit by the legs or
behind the unit by the flue. Do not place objects between the bottom of the unit and the
counter top.
10.There must be adequate clearance for removal of the front panel. All major parts
except the burners are removable thru the front if the gas line is disconnected.
11. It may be necessary to adjust the balance of gas volume and air supply to each burner.
This must be done by an authorized service technician.
12. Pipe threading compound must be resistant to the action of liquefied petroleum gases.
DO NOT use an open flame to check for leaks. Check all gas piping for
leaks with a soap and water solution before operating unit.
COMMISSIONING:
Commissioning of your new hot plate is of the utmost importance. Commissioning is the
thorough and methodical testing of the equipment, sub systems, and systems to ensure that
the final product functions properly and safely at the work site. By identifying any potential
problems (i.e.: equipment location, ventilation, local fire/electrical codes, installation,
operator training and certification) prior to equipment being placed into service, costly
outages and potential damages may be avoided.
SAFETY ALWAYS.

6
TO AVOID SERIOUS PERSONAL INJURY AND PROPERTY DAMAGE:
For your safety, do not store or use gasoline or other flammable vapors or liquids
in the vicinity of this or any other appliances. Keep the area free and clear of
combustible. ( See ANSI Z83. 14B, 1991).
Improper installation, adjustment, alteration, service or maintenance of this
equipment can cause property damage, personal injury, or death and voids
warranty. Read the installation operating and maintenance instructions
thoroughly before installing, or operating this equipment.
Instructions must be posted in a prominent location. All safety precautions must
be taken in the event the user smells gas. If you smell gas, immediately shut off
the main gas valve, extinguish all heat and flames, and call 911. Safety
information can be obtained from your local gas supplier.
IMPORTANT SAFEGUARDS & SAFETY INSTRUCTIONS
When using gas cooking equipment, basic safety precautions should always be
followed, including the following:
The hot plate burners, cooking grates and outside surfaces may become HOT after use. Use caution when
touching the unit.
·Never directly touch the burners or cooking grates while the hot plate is on.
·Always turn off the unit when not in use, servicing or adjusting any parts or attachments, and before
cleaning.
·Never leave the hot plate on overnight.
·Do not operate any equipment with a damaged or leaking gas line, ignitor or valves or if the unit is dropped
or damaged in any manner. Call for service.
·The use of attachments not recommended or sold by the manufacturer may cause fire, injury or even
death.
·Do not use outdoors.
·Do not use this equipment for any use other than the use intended by the manufacturer.
·Never use the hot plate as a heating source
·The hot plate does not contain any user-serviceable parts. Dealers or recommended qualified technicians
should carry out repairs. Do not remove any components or service panels on this product.
·Never bypass, alter, modify or attach any unauthorized parts to this equipment. Doing so may create
hazards and will void warranty
·Supplier takes every care to ensure that all products are safe. Steel cutting procedures used to
manufacture these items result in sharp edges. These sharp edges are removed to the best of our ability;
however, we insist the operator take care when in contact with this piece of equipment.
·Always keep hands, hair and clothing away from heating source.
·Allow the hot plate to cool down after use and before dismantling for cleaning; the unit will be too hot to
handle immediately after use.

7
Operating Instructions
Operating the Hot Plate - Pilot Lighting Instructions
Before operating hot plate, it should be checked to see that it is sitting level. Adjust the feet to level the hot
plate. Be sure the catch tray has been properly placed.
The pilot lights on the appliance have been set at the factory. Each burner has a pilot light.
1. Make sure all knobs are in the “OFF” position.
2. The main gas valve should be “CLOSED/OFF” for five (5) minutes prior to lighting pilots to clear
any existing gas. (Main gas valve is supplied by others.)
3. Turn “ON/OPEN” the main gas valve to the unit.
4. Light and hold an ignition source (match) at the pilots. When the flame is
established, remove the ignition source. Repeat this step for each burner as each burner has its own
individual pilot. The pilot can be reached through the holes in the front of the unit.
5, Adjust the pilot valve, make sure the pilot flame at 1/2 inch height.
6, Turn each burner knob “ON”. If the burners do not ignite promptly, turn the knobs “OFF”. From the
opening in the front panel, use a screwdriver and turn the pilot valve screw counterclockwise which
will increase the flame height and repeat step 4.
The pilot flame should be as small as possible but large enough to guarantee reliable ignition of the
burners when the knobs are turned to “ON”. The holes located in the front panel are pilot valve
adjustments. Use a screwdriver to turn the valve to adjust the flame height to your desired level.
Igniting the Burner
To ignite the burner, turn knob to the “ON” position. Then back off to the desired flame level. The range of
adjustment is virtually infinite between “ON” and “OFF”.
The space between the legs at the bottom admits combustion air. DO NOT BLOCK THIS SPACE.
All burners are lit from constantly burning pilots. Turning the valve to the desired flame height is all that is
required to put the unit in service.
Do not permit fans to blow directly at the unit. Wherever possible, avoid open windows next to the unit’s sides
or back. Avoid wall type fans which create air cross-currents within a room.
It is also necessary that sufficient air should be allowed to enter the room to compensate for the amount of air
removed by any ventilating system. Otherwise, a subnormal atmospheric pressure will occur, affecting
operation and causing undesirable working conditions.
A properly designed and installed hood will act as the heart of the ventilating system for the room or area in
which the unit is installed, and will leave the unit independent of changing draft conditions.
NOTE: It may be necessary to adjust the balance of gas, volume and air supply to each burner. This
must be done by an authorized service technician.
Shutdown burner
To turn 'OFF' the appliance completely, turn the gas control knob completely clockwise to the 'O' position, the
pilot burner will extinguish.

8
·DO NOT use any abrasive or flammable cleaning fluids.
·DO NOT hose down, immerse or pressure wash any part of the hot plate, excluding the catch tray.
·NEVER use a scrubber pad, steel wool or abrasive material, or cleaners containing chlorine, iodine and
ammonia or bromine chemicals as these will deteriorate the stainless steel and shorten the life of the unit.
IF CLEANING THE BURNER OF THE HOT PLATE, THE MAIN GAS VALVE MUST BE SWITCHED
TO THE CLOSED POSITION. AFTER CLEANING, THE GAS LINE CAN BE SWITCHED BACK TO
THE OPEN POSITION. PLEASE FOLLOW THE LIGHTING INSTRUCTIONS IN THIS MANUAL TO
RELIGHT
THE HOT PLATE’S PILOT LIGHTS.
RECOMMENDED CLEANING
It takes very little time and effort to keep the hot plate attractive and performing at top efficiency. Please follow
the cleaning steps below:
PART
REQUIRED ACTION
FREQUENCY
Grates
Wash with soap and water.
Daily
Body
Use a clean cloth and a non-abrasive cleaner to clean the stainless
steel body of the hot plate. Wipe the polished areas with a soft cloth.
Daily
Controls
Unit should be turned off when not in use. It is recommended that
the unit be disconnected from the gas supply by closing the main
gas valve. Use a clean cloth to wipe any down controls and/or knobs
Daily
Catch Tray
Once the unit has cooled, remove the catch tray and discard the
waste, debris and crumbs. CAUTION: If the catch tray is permitted to
fill too high, debris is likely to accumulate under the unit. The catch
tray/drawer is removed by pulling forward. USE CAUTION WHEN
REMOVING!
per Use or at least
Daily
Burner Air
Shutter
Openings
Main burner ports must be kept clean. Close the gas valve to the unit
shutting of the gas and extinguishing the pilot light. Clean in place
with a wire brush or clean gas ports with a sharp-pointed metal
instrument to insure open ports or the burners may be removed and
washed in soapy water for 15-20 minutes.
As needed
Regulator
Make sure the vent opening is open and not blocked in any way.
Failure to do so will cause variations in pressure. Your unit will not
function as well and it could shorten the life of the product.
Monthly

9
Troubleshooting
ISSUE
CAUSE
SOLUTION
Hot plate not lighting
Main gas line is closed
Open valve
Pilot light is not lit
Ignite pilot light
Cause unknown
Call for service
Flame is too high or too low
Adjustment knob is turned up or
down
Adjust flame with control knob
Pilot light not staying lit
Flame is too low
Adjust pilot light flame height
Pilot tube clogged
Replace pilot tube. Call for service
Strong smell of gas in cooking
area
Main gas line leak
Turn off main gas valve. DO NOT
LIGHT FLAME, ignite anything, or
turn/switch on anything electrical
Call fire department if needed and
call for service
Cooking surface is heating up
slowly
Carbon build up
Ensure that the burners are kept
clean and free from carbon build
up/ debris
Gas type of Unit needs to be
converted
Unit ships from the factory Natural
gas. Conversion from Natural Gas
to L.P. is possible for this unit
Contact an authorized servicer.
Do not attempt conversion on
your own
If problems persist and the assigned solution does not remedy the issue, please call
Service Department or your local service company.

10

11
Conversion Kit Instructions for
Gas Countertop Hot Plate
Models: 12”-2 burners 24”-4 burners 36”-6 burners
E -
These conversion instructions are for conversion of the HOT PLATE. The instructions provide in this kit are for
the conversion of Natural Gas to L.P. gas and refer to the conversion of the unit and kit provided. An
authorized licensed technician must be called to perform the complete conversion of the unit. Failure to
properly convert this unit, can result in serious injury, property damage or death and will void warranty.
Hot plate Conversion Kit Instructions
Do not attempt gas conversion by yourself. Gas conversion of your unit is to
be made by a certified/licensed technician.
CONVERSION
Instructions are for conversion from Natural Gas to Propane (L.P.) on all models. The conversion should be
done before connecting the unit to the gas supply. Units are shipped from the factory equipped for use on
natural gas. Parts necessary for L.P. (liquid propane) are provided with the unit. Turn off the main gas
supply before doing any maintenance.
1. Remove the knobs and front panel. 2. Unscrew bolts and pilot valve, then remove
the manifold.
3. Replace the orifice fittings into the valve.
Note: Unit Number on side of orifice fittings.
4. Replace the front panel and knobs

12
6. Continue with installation.
Pictured is the plastic insert. Pull off insert from
octagon cap and reverse the plastic insert
position so that the L.P. position is attached to
the octagon cap head.
5. Before installing the included convertible
regulator, unscrew the octagon cap. You can read
(NAT) on the plastic insert attached to the head of
the cap; flip it over and snap back in place.
L.P. Position of
insert. Regulator
is now converted
to L.P.
