SLOPE CEILING ADAPTER
READ AND SAVE THESE INSTRUCTIONS
337005
U.S. Patent Pending

A
D
C
F
B
E
G
A. Mounting plate............................................. (1 PCs.)
B. Hanger bracket (located inside canopy)...... (1 PCs.)
C. Hanger ball.................................................. (1 PCs.)
D. Canopy........................................................ (1 PCs.)
E. #14 X 3.5" Wood screws............................. (2 PCs.)
1/4" Star washers........................................ (2 PCs.)
Wire nuts..................................................... (3 PCs. )
Washers...................................................... (2 PCs.)
Lock washers.............................................. (2 PCs.)
F. 3/16” X 65 mm Safety pin........................... (1 PCs.)
G. #8-32W X 1" Mounting screws.................... (2 PCs.)
washer........................................................ (2 PCs.)
6.4 mm star washer.................................... (2 PCs.)
This carton contains the following parts. Please make sure you have everything.
1
Philips screw driver
Blade screw driver
11 mm wrench
Step ladder
Wire cutters
TOOLS AND MATERIALS REQUIRED

2
SLOPE CEILING ADAPTER
Fig. 1
Fig. 2
Fig. 4
Fig. 3
Ceiling joist
Ceiling joist
ANGLED CEILING
MAXIMUM 60°ANGLE
MOUNTING OPTIONS
Make sure the outlet box you've selected
for mounting your ceiling fan is UL listed
and rated for ceiling fan use.
NOTE: Make sure the electrical power is
turned off before starting. Disconnect at
the main circuit box.
It's very important that the outlet box is
securely installed and will not move or
your ceiling fan will wobble after
installation.
If you need to install a new outlet box,
secure it directly to the building structure
using appropriate fasteners and building
materials.
The outlet box and its support must be
able to fully support the moving weight of
the fan (at least 50 lbs.). Do not use
plastic outlet boxes.

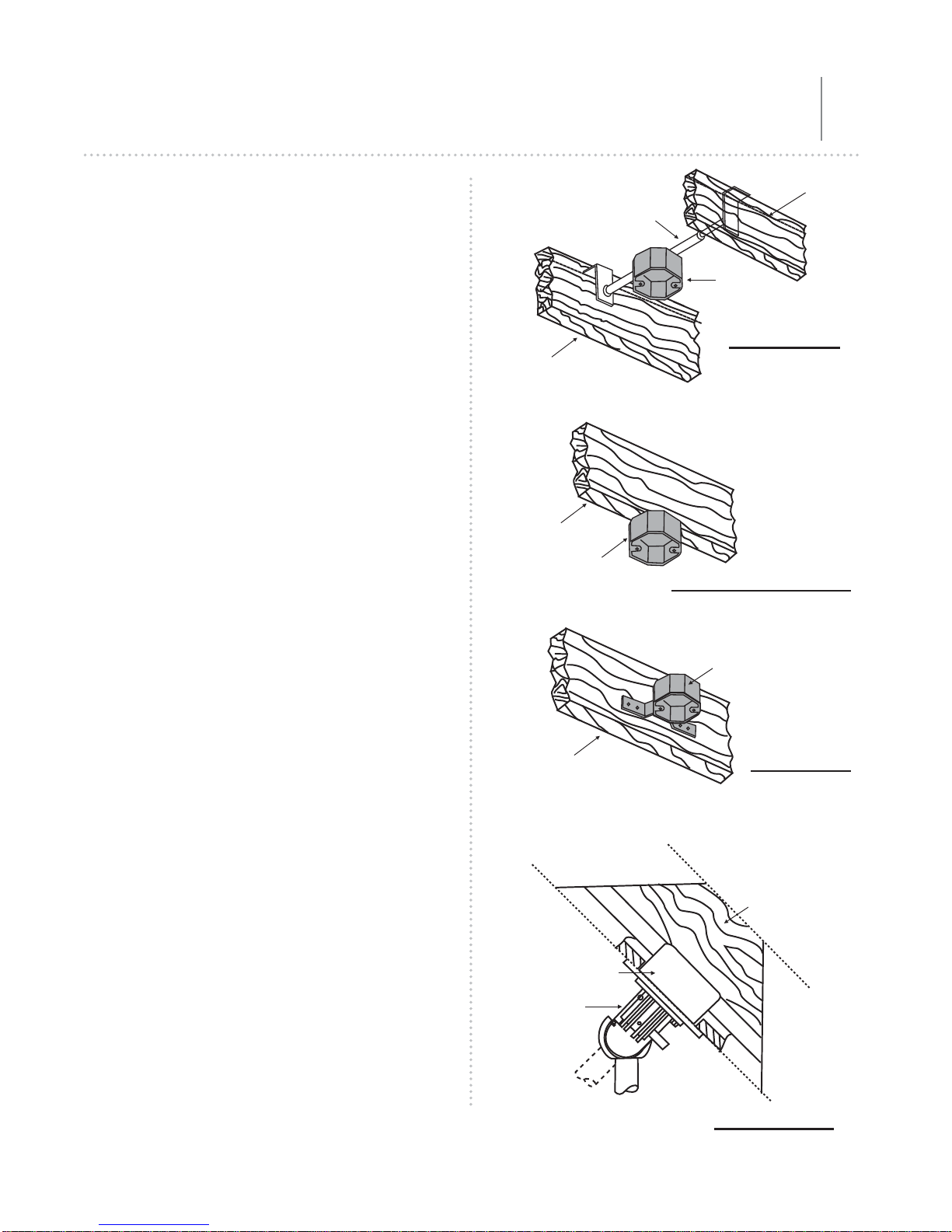

Figures 1, 2, 3 and 4 at the right are
examples of different outlet boxes and
mounting methods.
Outlet box
W/Bracket
Ceiling joist
Outlet box
Expandable
joist hanger
Ceiling joist
Outlet box
Hanger
bracket
Outlet box
Ceiling joist
JOIST MOUNT
BOTTOM FACE MOUNT
SIDE MOUNT
SLOPE MOUNT

Fig. 5
A. INSTALLING THE MOUNTING
PLATE TO A OUTLET BOX
(MOUNTED DIRECTLY TO A
CEILING JOIST)
1. Remove two knock-outs from the
outlet box to expose the joist. (Fig. 5)
2. Use the two #14 X 3.5" wood screws
and washers to secure the mounting plate
directly to the building joist via the
knockout holes from the outlet box. (Fig. 6)
3. Use the mounting plate as a guide to
mark the hole position in the joist.
4. Predrill the holes using a 5/32" drill bit
3
B. INSTALLING THE
MOUNTING PLATE DIRECTLY
TO AN OUTLET BOX
Use the two #8-32W X 1" screws and
washers to secure the mounting plate
directly to the outlet box. (Fig. 7)
Outlet box
Mounting
plate
Flat washers
#14 X 3.5"
Wood screws
Lock washers
Star washers
Fig. 6
Fig. 7
Knockout
Outlet box
Flat washers
#8-32W X 1"
Mounting screws
Star washers
Outlet box
Mounting
plate
Ceiling

4
SLOPE CEILING ADAPTER
Fig. 8
Fig. 9
Fig. 10

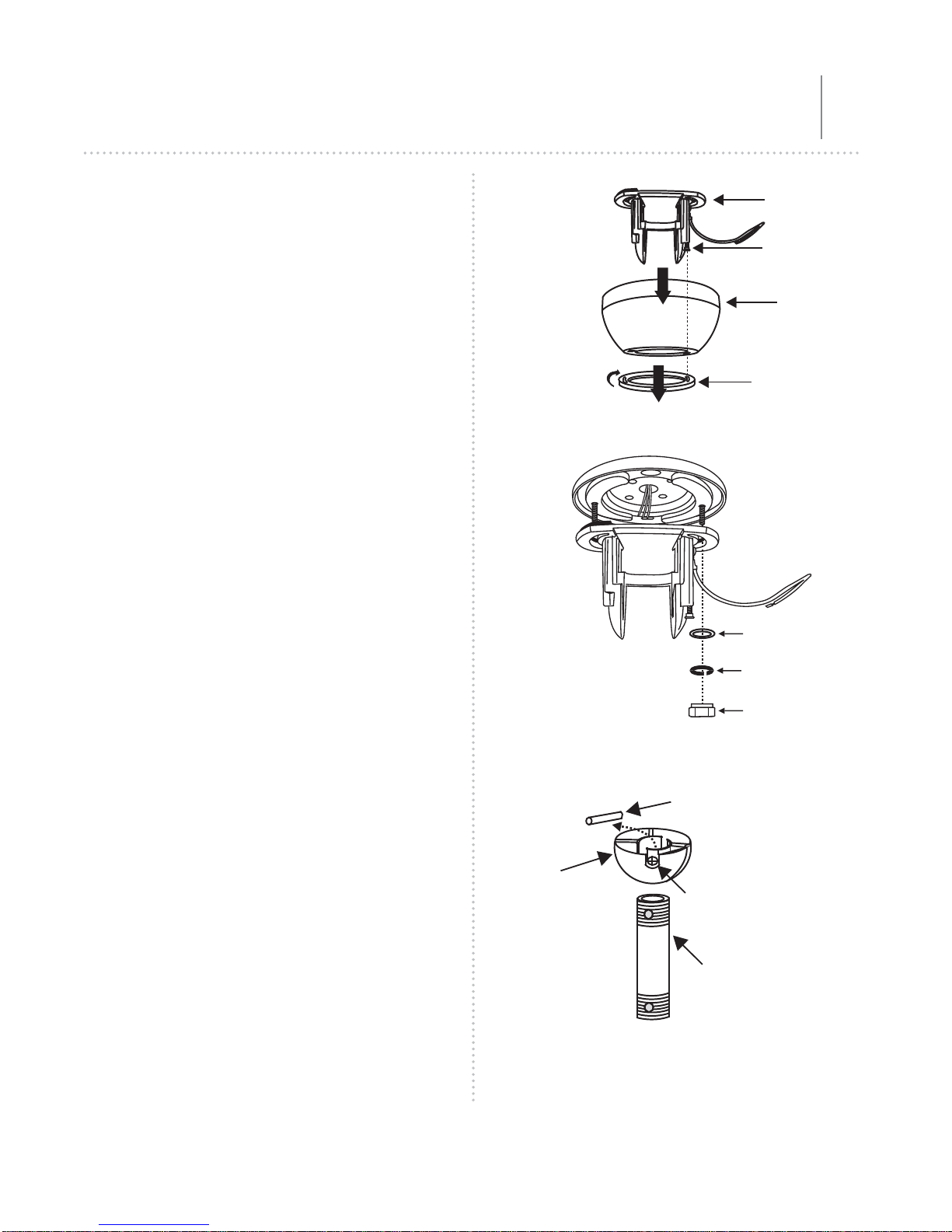

INSTALLING THE HANGING
BRACKET TO MOUNTING
PLATE ASSEMBLY

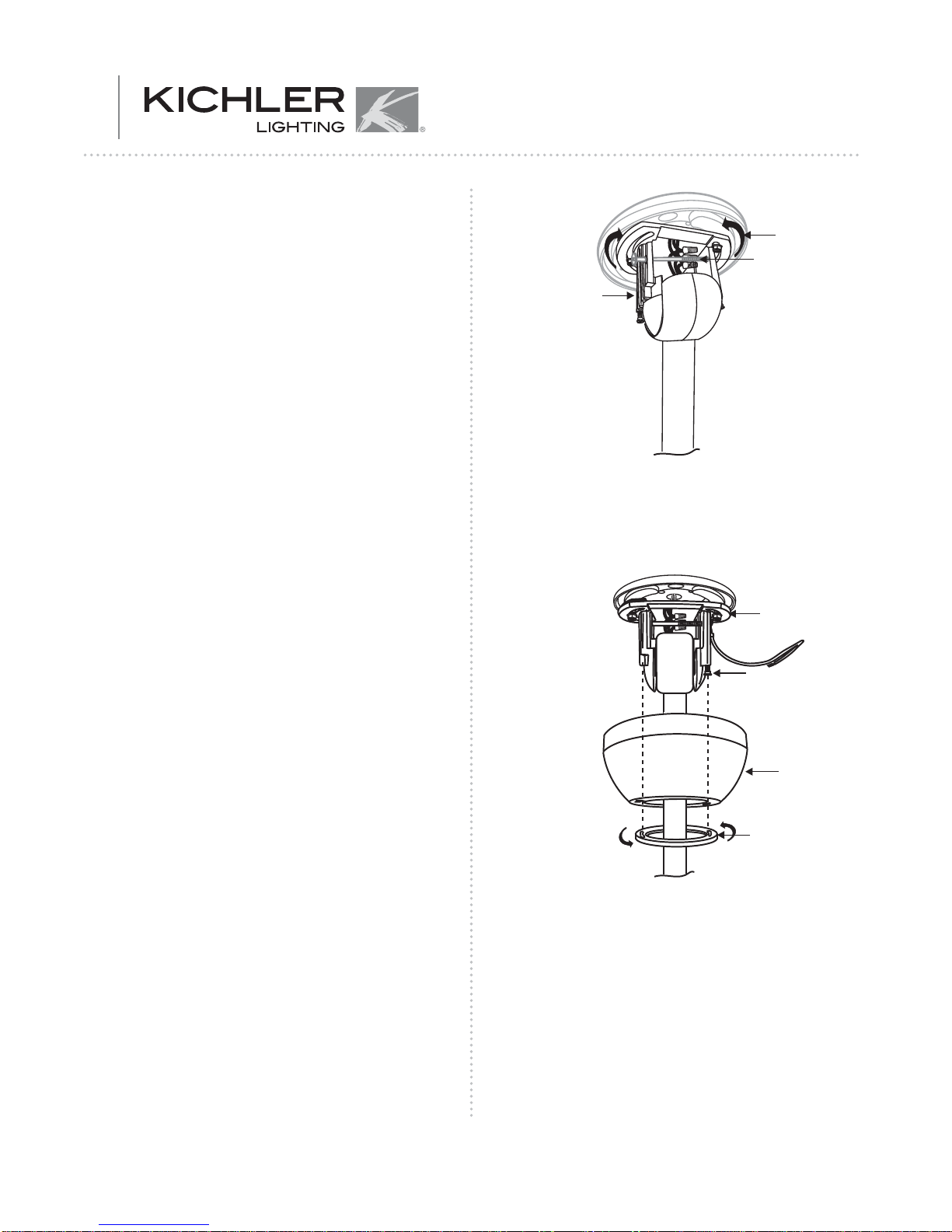

1. Remove the canopy cover from the
canopy by turning the cover counter
clockwise. This will enable you to
remove the hanger bracket. (Fig. 8)
2. Attach the hanger bracket to the
mounting plate using the two hex nuts
and washers and lock washers provided.
(Fig. 9)
DO NOT tighten completely at this point.
Allow hanger bracket to rotate but hold
the weight of the ceiling fan.
3. If you plan to use the downrod
packaged with your ceiling fan, remove
the hanger ball by loosing the set screw,
unscrewing the safety pin and
unscrewing the hanger ball. If you are
using a different downrod, skip to the
next step. (Fig.10)
Downrod
Safety pin
Hanger
ball Set screw
Flat washers
Lock washers
Hex nuts
Hanger
bracket
Ceiling
canopy
Screws
Canopy
cover

Fig. 11
Fig. 12
4. Loosen the two set screws in the motor
coupling until the inside channel is clear of
the screws. Remove the Safety Pin and
Locking Clip in the top of the motor
coupling. (Fig. 11)
5. Carefully feed the fan lead wires up
through the downrod. Thread the downrod
into the motor coupling until the Safety Pin
holes are aligned. (Fig. 11)
Next, replace the Safety Pin and secure
with the Locking Clip. Securely tighten
both set screws. (Fig. 11)
6. Slip the coupling cover, mounting screw
cover and canopy onto the downrod in the
order shown. (Fig. 12)
7. Thread the Slope Adaptor Hanger Ball
onto the downrod until the Safety Pin
center hole on the Ball aligns with the
safety pin hole in the downrod. Insert the
safety pin (careful not to damage the lead
wires.) (Fig. 12)
5
Slope adaptor
hanger ball
Safety Pin
Downrod
Canopy
Mounting screw
cover
Coupling cover
Supply wires
Downrod
Safety pin
Lock pin Set screws
Coupling
Set screws

Fig. 13
NOTE: The Hanger Ball can be installed
in ONLY one direction. The "cutout"
should be toward the "Lower" end of the
ceiling slope. (Fig. 13)
8. Now lift the motor assembly into position
with the hanger ball in the position (shown
in Fig. 13) and place the pivot pens on the
hanger ball into the pivot groves on the
hanger bracket. (Fig 13)
Next, lower the hanger ball until the pivot
pens rest in the bottom of the pivot groves.
(Fig 13)
9. Make sure the Safety Pen installed in
Fig 14 is installed but NOT tightened.
(Fig14)
DO NOT TIGHTEN AT THIS TIME
Hanger
bracket
6
SLOPE CEILING ADAPTER
Pivot groves Pivot
pens
Fig. 14
Hanger
bracket
3/16” X 65 mm
Safety pin

Fig. 16
Fig. 15
FINISHING THE INSTALLATION
1. Now, rotate the "entire fan and
slope adaptor assembly" (left or right) by
rotating the hanger bracket until the
downrod and the ceiling fan assembly are
hanging straight down and the entire
assembly "swings" freely in the exact
direction of the ceiling slope. (Fig. 15)
2. Now, Securely tighten the two (2) Hex
Nuts holding the hanger bracket to the
mounting plate. Making sure the Hanger
Bracket is secure and can not move.
Next, securely tighten the 3/16" X 65mm
Safety Pin. (Fig. 15)
3. Make all necessary electrical
connections by referring to your ceiling
fan installation manual.
Next, tuck all lead wires neatly into the
opening above the hanger ball.
4. Slide the canopy up to the ceiling and
place the mounting screws through the
key holes in the face of the canopy.
Rotate canopy clockwise. (Fig. 16)
Next, while holding the canopy with one
hand, slide the mounting screw cover
onto the heads of the mounting screws
and rotate clockwise until tight.
If necessary, adjust the canopy screws
until the canopy and mounting screw
cover are snug.
Hanger
bracket
Canopy
Canopy cover
Screws
7
Rotate
Hanger
bracket
Tighten
3/16" X 65mm
Safety Pin
