Kidzone Ride On ATV Team 7 User manual

item number: 060-ROT-08/060-ROT-08V2
Ride On ATV Team 7 (12V) (45W Motor) /
Ride On ATV Team 7 (24V) (55W Motor) w/EVA Tire

Safety Instruction
When using electrical product, basic safety precaution should always be followed including the following
Read all Instruction before use
• To Protect against electrical shock, do not immerse cord, charger, transformer, battery, or the product in
water or other liquid.
• Only use charging devices, transformer, and battery provided or recommended by the manufacturer.
• For your children’s safety, the product should by assembled by adult.
• This toy is not intended for children below 36 months old.
• Close supervision is necessary when your children is using the product.
• Unlatch the battery if not used for a long time.

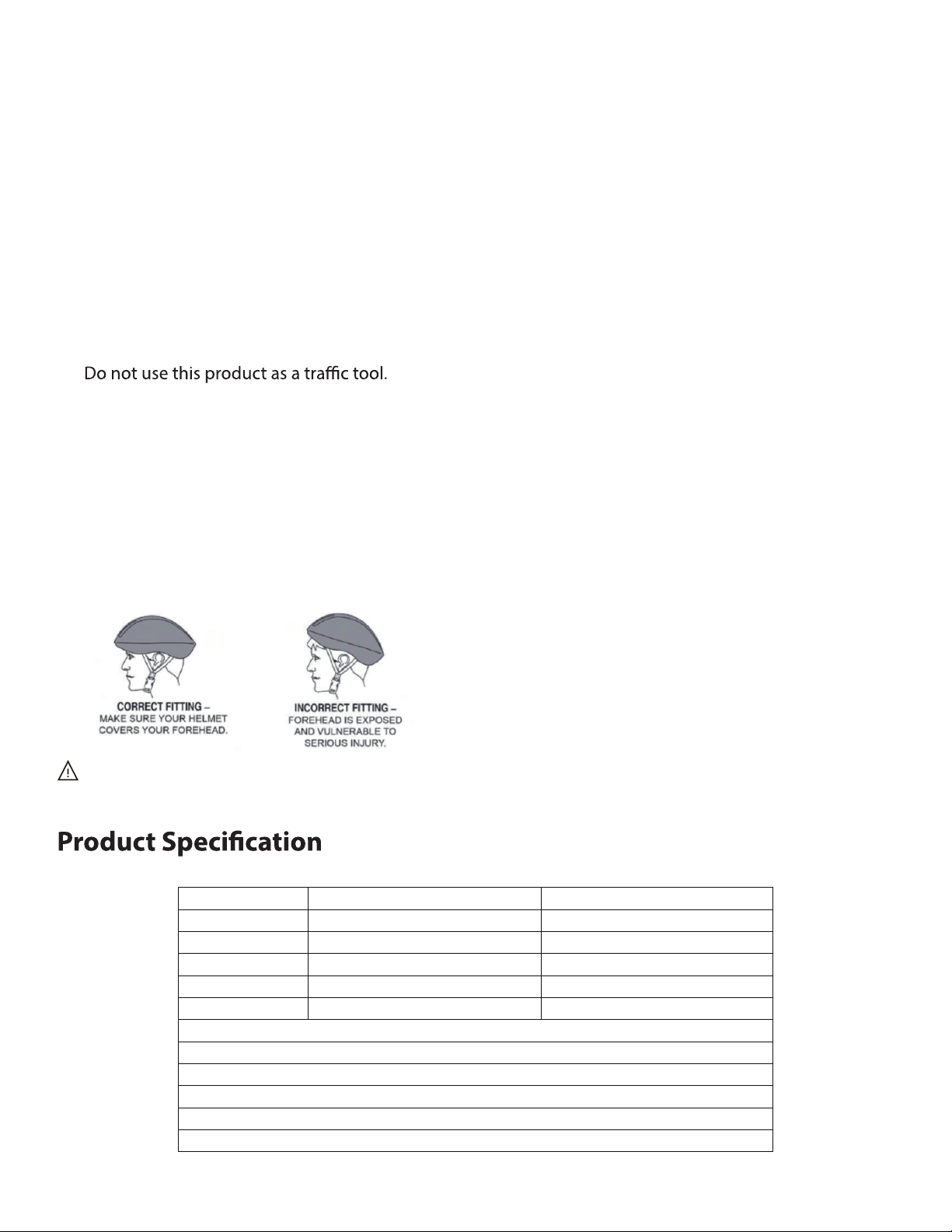

• Personal protective equipment such as helmet is needed when using this product.
•
• Do not use this product on public road, raceway, by the swimming pool, or at any potential dangerous
places.
• Do not use this product on slippery surface.
• Always keep hands, hair, and clothing away from moving parts.
• Maximum users weight for this product is 55 lb / 25 kg.
• Do not change, modify or add any electrical wiring on this product.
• Avoid using this product in tight environment to prevent damage to the product or injury to the user.
•
•
•
Do not use this product in the dark. Only operate this product during daytime or well lit area.
For your child’s safety, please make sure fasten the seat belt when using this product.
Personal protective equipment such as helmet is needed when using this product.
Avoid continuously hitting into obstacle to prevent overheat or damage
to the motor; Drive away or remove obstacle as soon as possible.
Model: 060-ROT-08 060-ROT-08V2
55W x 2, 24V RPM18000
24V7AH x1
DC24V
3.7 mph~6.2 mph
EVA tire
45W x 2, 12V RPM15000
12V7AH x1
DC12V
3.1 mph~5 mph
Plastic tire
Motor:
Battery:
Charger:
Speed:
Tire:
Suitable Age: 36 - 95 months Maximum User Weight: 55 lb / 25 kg
Dimension: 43” x 29.5” x 30.7” (1100 x 750 x 780 mm)
Battery Charge Time: 8 - 12 hours
First Charging Time:18 hours
Max Charging Time: 30 hours
Battery(Temperature Tolerance): 104°F

M8 Nut
5x 18x 6x 4x 2x 1x
Ø4x12 mm
screw
M8 Washer M10 Washer Motor Charger
Parts and Feature
Seat
Body
Rear Axle
Steering Rod
Front Wheel
Front Wheel
Hub Cap
Hub Cap
Back Wheel
Back Wheel
Hub Cap
Coupling
Coupling
Hub Cap
Handlebar
Assembly
Front Safety
Cover
Front Trim

Assembly Instruction
Turn the car body upside down and unscrew the nut on the steering bearing and take out the screw.
Unfold the front axle.
Unfold the front axle.
Unscrew the nut on the steering bearing
and take out the screw.
Insert the steering rod to the car body, assemble the two steering bearing to the iron plate on the far end of
the steering rod with the screw and nut.
Assemble the handle bar on the steering rod, follow by a M10 and M8 washer, and secure with a nut.
Assemble the plastic cover around the joints, and secure with 4 screws.
Steering Rod

Assembly Instruction
Insert rear axle to the car body from the right side. Then assemble the coupling on the rear wheel with 4
screws. Assemble the rear wheels on the rear axle. Secure the rear wheel on the axle with M8 gasket and a
nut, then clip on the hub cap.
Put on M10 gasket on the front axle, then slid in the front wheel, follow by M8 gasket and secure with a nut.
Clip on the hub cap.
Clip the front trim to the car body.
Then assemble the front safety cover to the car body and secure with 6 screws.
Insert rear axle from the right side.
Assemble the coupling on the
rear wheel and secure with 4
screws.
M8 Gasket
M10 Gasket Nut

Assembly Instruction

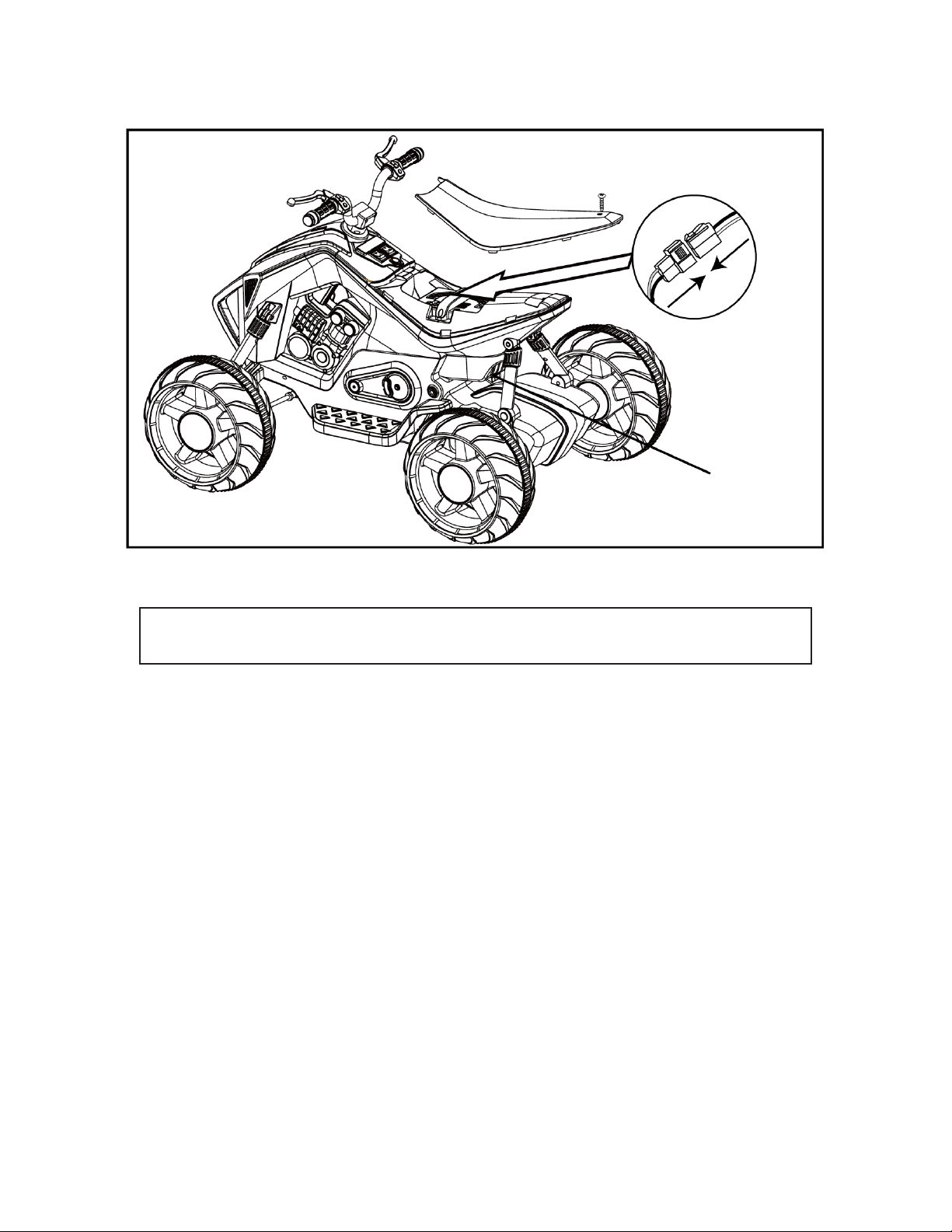

Charging Port
Battery Connection
Remove the seat by unscrewing the screw. Connect the battery to the terminal of the car, then
replace the seat.
The car is equipped with a thermal break protector. In case of a overload or improper use, the
protector automatically turn off the power. After 5 - 10 seconds, the power will restore and ready to
use again.

User Instruction
Control the vehicle
1. Start Switch
Turn the product on and o .
2. Forward / Reverse Switch
Press the switch to control the vehicle to move forward / reverse.
⚠Do not charge the speed or direction until the vehicle comes to a complete stop.
3. High-Low Speed Switch
Press to switch between high and low speed.
4. Pedal
Step on the pedal to move the vehicle.
5. USB multi-functional player

User Instruction (Multifunction Player)
A. Previous Track / Decrease Volume
Press the button once to play the previous track. Press and hold to decrease volume.
B. Play / Pause
Press the button to pause / play.
C. Next Track / Increase Volume
P
Press the mode button to cycle through dierent modes.
ress the button once to play the next track. Press and hold to increase volume.
D. Mode Button
USB -> MP3

User Instruction (Charging)
The battery should only be charged by an adult.
⚠WARNING!
Charging the battery
1. Insert the charging cable to the charging port located below the vehicle seat.
2. Insert the charger plug into a wall outlet.
• The vehicle must be OFF when charging.
• Recharge the battery if the vehicle operates slowly.
• The vehicle cannot be operated when charging.
NOTE:
Damage to the battery may occur if it is completely drained.
Do not charge the battery for more than 20 hours.
Charging Port
Battery Connection

Troubleshooting
Care and Maintenance
• Check the product regularly and make sure there is no missing or loose parts. Re-tighten any loose parts
if necessary.
• Make sure there is no cracked or broken plastic parts.
• When not using store the product away from heat source, cover it with a tarp and away from wet
weather.
• Turn o the product and disconnect the battery if the product is not use for a long period of time.
• Clean the vehicle with a cloth. Use a non-wax furniture polish to restore shine to plastic parts. Do not use
abrasive cleaner.
• Do not wash the product with a hose or immerse any parts in water or other liquid.
• Occasionally use lightweight oil to lubricate moving parts
Problem Possible Reason Solution
Vehicle does not move
Low Battery Fully charge the battery
Fuse Protection Replace with a new fuse
Disconnected / Badly connected
battery Reconnect the battery
Failed battery / engine Contact Customer Service
Vehicle does not run very long
Low Battery Fully charge the battery
Old Battery Replace battery if necessary
Vehicle runs very slow
Low Battery Fully charge the battery
Old Battery Replace battery if necessary
Vehicle is overloaded Make sure user’s weight is under
60 lb / 30 kg
Vehicle is being used in harsh
environment
Avoid using the vehicle in harsh
environment

Troubleshooting
Problem Possible Reason Solution
Vehicle needs a push to go
forward
Poor wire connection
Check if the battery connectors
are rmly connected.
Contact Customer service if
necessary
“Dead spot” on motor Contact customer service
Loud grinding sound or clicking
sound from the motor or gear box Damaged motor or gear box Contact customer service
Battery does not charge
Disconnected / Badly connected
battery Reconnect the battery
Disconnected / Badly connected
charger
Make sure the charger is rmly
plugged into the power source
and connected to the charging
port
Charger not working Contact customer service
Vehicle does not stop Damaged equipment Contact customer service
Charger feels warm with charging Normal

Limited Term Warranty (One Year from Date of Purchase)
WARRANTY TERMS ADDITIONAL CONDITIONS
ADDITIONAL CONDITIONS
KIDZONE warrants that its merchandise are free
from manufacturing defects (workmanship and/
or material) and will either give credit or replace
defective parts for a period of up to one (1) year
from the date of purchase in accordance with the
conditions set forth below. If a manufacturing defect
is found, KIDZONE should be notied promptly of
the defect and supplied a copy of the invoice and
delivery ticket. Inspection by a KIDZONE employee
or representative may be necessary to verify that
a manufacturing defect exists, or you may be
required to submit samples to KIDZONE along
with a digital image of the defects. If replacement
is required in accordance with this warranty and
the defective material or merchandise has been
discontinued or unavailable, KIDZONE reserves
the right to select and supply similar merchandise
or o󰀨er full credit for the merchandise; otherwise
the same material or merchandise will be supplied
for replacement purposes. This warranty is made
solely to the retailer and is not transferable under
any circumstances. It is the retailer’s responsibility
to contact KIDZONE with a claim. We will not
handle claims from consumers directly; all
requests must go through the retailer who sold
the merchandise to the consumer. We advise all
retailers to retain invoices for a minimum of one
(1) year for warranty purposes. This warranty
supersedes and replaces all implied warranties
of merchantability and use for particular purpose.
No representative, employee, agent or any other
person is authorized to assume for KIDZONE any
additional liability or responsibility in connection
with KIDZONEs merchandise except as described
above. Implied warranties or merchantability
and tness of the merchandise are limited to a
period of one (1) year from the date of purchase.
In no event shall KIDZONE be liable for indirect,
consequential or incidental damages of any kind.
THE FOLLOWING EXAMPLES ARE NOT
MANUFACTURER’S DEFECTS:
• Colors may vary slightly from the photo
because of photography and printing
tolerances.
• Sizes stated in U.S. standard measurements
may vary slightly due to product are
manufactured using the metric system.
• No returns for buyer’s remorse.
• No returns - other than stated above will be
accepted.
WARRANT IS VOID FOR ANY OF THE
FOLLOWING CONDITIONS:
1. Improper maintenance or improper use
resulting in damage.
2. Any product modications by dealer,
consumer, or other parties not authorized by
KIDZONE will void this warranty.
3. Floor samples sold or products designated
“AS IS” at the time of purchase are not
covered by the warranty
4. Warranty does not cover minor variations or
di󰀨erences between oor samples or printed
illustrations and your product.
5. Cost of packaging and shipping to and from
KIDZONE is not covered by the warranty
unless expressly arranged by KIDZONE.
6. This warranty covers only articles of
appliances intended for residential use only,
does not cover any industrial, commercial,
institutional or Rental use.
7. Dissatisfaction due to buyer’s remorse.
8. Normal wear and tear.
9. Damages incurred during transportation.
10.Damages incurred during assembling or
maintenance.
11. Damage incurred by accidents or abuse.
