Kielder KWT-002 User guide

ORIGINAL INSTRUCTION MANUAL
For use with all variants of KWT-002 & KWT-012 Cordless Impact Wrench TYPE18
KIELDER 18V BATTERY SYSTEM
KWT-002 & KWT-012
Kielder
18V CORDLESS IMPACT WRENCH
www.kielder.co
KWT-002-012-IMB22

2
KWT-002-012-IMB22 Kielder WT Ltd

3
Kielder WT Ltd KWT-002-012-IMB22
Noise & Vibration Data
Acoustic Pressure: <97 dB(A) K=3dB
Acoustic Power: <108 dB(A) K=3dB
Maximum Vibration: 15.9m/s2 / K = 1.5m/s2
Sound emission values determined according to
EN60745-2-1. The declared vibration total value has
been measured in accordance with a standard test
method used to compare one tool with another and
according to EN60745. Both sound and vibration
values have an uncertainty factor of K. The declared
total values may be used in a preliminary assessment
of exposure.
WARNING!
The vibration emission during actual
use of the power tool can dier from
the declared total value depending on
the ways in which the tool is used. The need to identify
safety measures and to protect the operator are based
on an estimation of exposure in the actual conditions
of use (taking account of all parts of the operating
cycle, such as the times the tool is switched o, when
it is running idle, in addition to trigger time). Identify
additional safety measures to protect the operator such
as proper maintenance of the tool, keeping hands warm
and organisation of work patterns.
CONTENTS
Safety Rules & Instruction 4
Product Overview Diagram 8
Specication Table 9
Usage

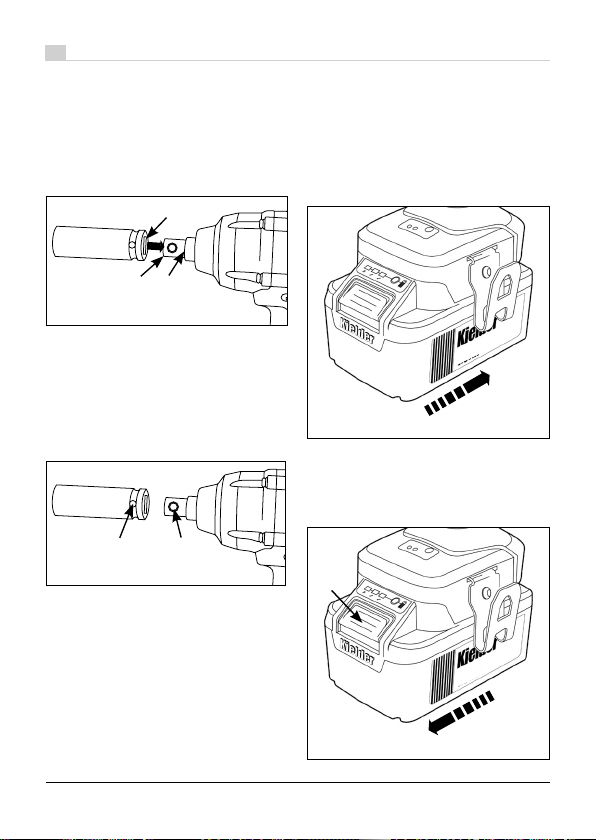

Wrench 10
Battery 12

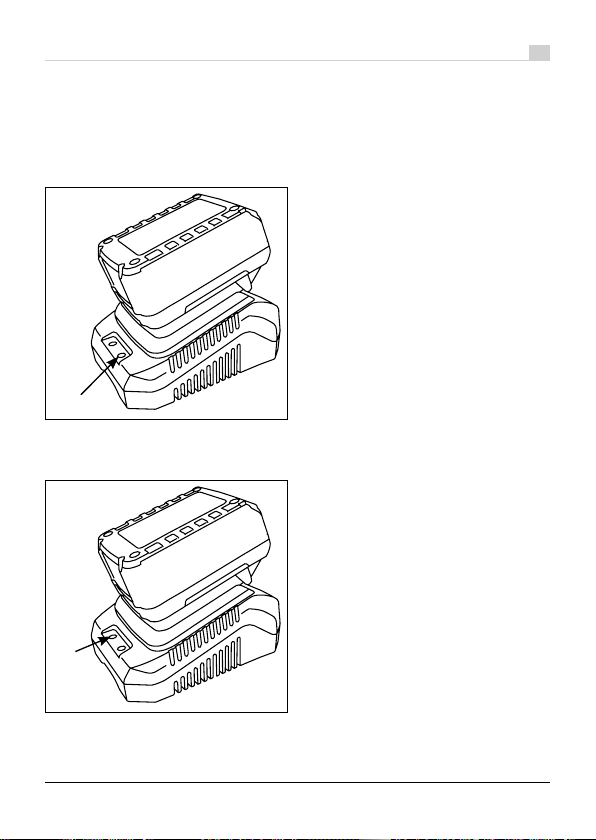

Charger 14

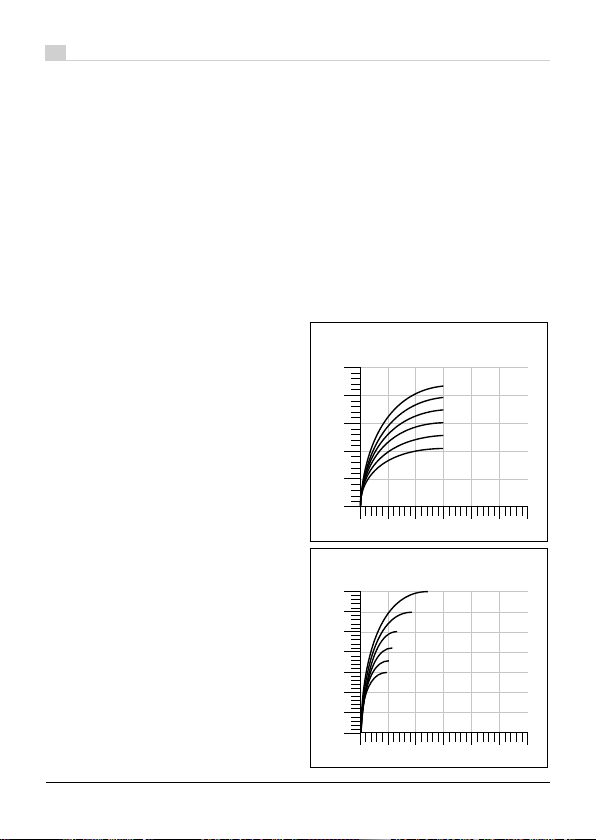

Maintenance & Operating Torque 16
LED Light & Belt Clip 17
Warranty & Support 18
EC - Declaration Of Conformity
We declare that under our responsibility the
product under part number:
KWT-002 & KWT-012 18V Cordless Impact
Wrench complies with the applicable EU
directives:
2011/65/EU, 2004/108/EC, 2006/42/EC
including the amendments and are manufactured
in accordance following standards or
standardised documents:
EN 60745-1:2009+A11
EN 60745-2-2:2010
EN 55014-1:2006+A1:2009+A2:2011
EN 55014-2:1997+A1:2001+A2:2008
All documentation is held in KWT-002 Technical
File and is available, on request for review.
Authorised Signatory:
Steven Bulloss
Director
Dated: 01/01/2018
Kielder WT Ltd, Unit 14 Carlisle Business Park,
40 Chambers Lane, Sheeld S4 8DA
IMPORTANT!
Please read these operating and
safety instructions carefully and
completely. For your own safety, before using this
equipment check that the voltage is correct and
that all external parts are rmly secured and the
machine in tact. If you are uncertain about any
aspect of using this equipment, or require support
please contact Kielder WT customer services and
we’ll be happy to help:
Tel: [phone]
Email: [e-mail]
Plug Type
• The appliance is supplied with a moulded
three pin mains plug for your safety and
convenience.
• Only use this plug in the socket it is intended.
• A 3 amp fuse is tted in this plug. Should the
fuse need to be replaced please ensure that
the replacement fuse has a 3 amp rating and
it is approved by ASTA or BSI to BS1362.
• Check for the ASTA mark or the BSI mark on
the fuse.
• If the plug contains a removable fuse cover,
you must ensure that it is retted when the
fuse is replaced.
• If you lose the fuse cover the plug must not be
used until a replacement cover is obtained.
Intended Use
The tool is intended for the fastening and
unfastening of threaded bolts and nuts.

4
KWT-002-012-IMB22 Kielder WT Ltd
WARNING!
This product uses Lithium
Battery cells, do not use if
the battery has been damaged in transit
or becomes damaged during use. If
Lithium-ion cells are damaged they
present a ammable hazard.
General Safety
Warning: when using electric tools, basic
safety precautions should always be
followed to reduce the risk of re, electric
shock and personal injury. Please read all
of these instructions before attempting to
operate this machine. Save this manual for
future reference.
• Keep work area clear. Cluttered work
areas invite accidents.
• Consider work area environment. Do not
expose tools to rain. Do not use tools in
damp or wet locations. Keep work area
well lit. Never use tools near ammable
liquids or gases.
• Protect yourself against electric shock.
Avoid body contact with earthed or
grounded surfaces.
• Keep other people away. Do not let
others, especially children, come close
to the work, and touch the tool or power
cable. Keep them away from the work
area.
• Store idle tools. When not in use, tools
should be stored in a dry locked-up
place, out of children’s reach.
• Never force the tools. Your tools will be
more ecient and safer when used at the
rate for which they were intended.
Personal Safety
• Stay alert, watch what you are doing and
use common sense when operating a
power tool. Do not use a power tool while
you are tired or under the inuence of
drugs, alcohol or medication. A moment
of inattention while operating power tools
may result in serious personal injury.
• Use personal protective equipment.
Always wear eye protection. Protective
equipment such as dust mask, non-
skid safety shoes, hard hat, hearing
protection, anti-vibration gloves used
for appropriate conditions will reduce
personal injuries.
• Prevent unintentional starting. Ensure
the switch is in the o-position before
connecting to power source and/or
battery pack, picking up or carrying the
tool. Carrying power tools with your
nger on the switch or energising power
tools that have the switch on invites
accidents.
• Remove any adjusting key or wrench
before turning a power tool on. A wrench
or a key left attached to a rotating part
of the power tool may result in personal
injury.
• Do not overreach. Keep proper footing
and balance at all times. This enables
better control of the power tool in
unexpected situations.
• Dress properly. Do not wear loose
clothing or jewellery. Keep your hair,
clothing and gloves away from moving
parts. Loose clothes, jewellery or long
hair can be caught in moving parts.
• If devices are provided for the connection
of dust extraction and collection facilities,
ensure these are connected and properly
used. Use of dust collection can reduce
dust-related hazards.

5
Kielder WT Ltd KWT-002-012-IMB22
Safe Use Of Power Tools
Do not force the power tool. Use the
correct power tool for your application.
The correct tool will do the job better and
safer at the rate for which it was designed.
• Do not use the power tool if the switch
does not turn it on and o. Any power
tool that cannot be controlled with
the switch is dangerous and must be
repaired.
• Disconnect the plug from the power
source and/or the battery pack from
the power tool before making any
adjustments, changing accessories, or
storing power tools. Such preventive
safety measures reduce the risk of
starting the power tool accidentally.
• Store idle power tools out of the reach
of children and do not allow persons
unfamiliar with the power tool or these
instructions to operate the tool. Power
tools are dangerous in the hands of
untrained users.
• Maintain power tools. Check for
misalignment or binding of moving
parts, breakage of parts and any other
condition that may aect the power tool’s
operation. If damaged, have the power
tool repaired before use. Many accidents
are caused by poorly maintained power
tools.
• Keep cutting tools sharp and clean.
Properly maintained cutting tools with
sharp cutting edges are less likely to bind
and are easier to control.
• Use the power tool, accessories and
tool bits etc. in accordance with these
instructions, taking into account the
working conditions and the work to be
performed. Use of the power tool for
operations dierent from those intended
could result in a hazardous situation.
Battery & Charger
Recharge battery only with the charger
specied by the manufacturer. A charger
that is suitable for a certain type of battery
pack may create a risk of re when used
with another battery pack.
• Use power tools only with specically
designated battery packs. Use of any
other battery packs may create a risk of
injury and re.
• Keep battery pack and charger away
from other metal objects, like paper
clips, coins, keys, nails, screws or other
small metal objects, that can make a
connection from one terminal to another.
Shorting the terminals together may
cause burns or a re.
• Under abusive conditions, liquid may be
ejected from the battery; avoid contact.
If contact accidentally occurs, ush with
water. If liquid contacts eyes, additionally
seek medical help. Liquid ejected from
the battery may cause irritation or burns.
Service
Have your power tool serviced or repaired
by Kielder or a qualied technician using
only identical replacement parts. This will
ensure that the safety of the power tool is
maintained.

6
KWT-002-012-IMB22 Kielder WT Ltd
• Wear ear protectors.
Exposure to noise can
cause hearing loss.
• Wear eye protection to
protect from loose particles
which may be thrown up
by the impact motion of
the tool.
• Wear a dust mask if the
work creates dust.
•
Wear anti-vibration or
vibration asborbing gloves.
• Apply the power tool to the fastening
only when it is switched o. Rotating tool
inserts can slip.
• The torque depends on the impact
duration. The maximum torque is
achieved from the sum of all individual
torques achieved through impact.
• If accurate torque is required check the
fastening with a torque wrench.
• When storing or carrying the tool the
Forward/Reverse lever should be set to
the centre to lock the trigger and prevent
the tool being started accidentally.
• Hold the machine with a rm grip. High
reaction torque can occur while driving in
and loosening fastenings.
• Secure the workpiece. A workpiece is
held more securely in a vice than by
hand.
Additional Safety & Working
Instructions
• Always wait until the tool has stopped
completely before setting it down.
• DURING USE DO NOT TOUCH THE
METAL SQUARE DRIVE PART OF THE
WRENCH OR ANY OF THE METAL
CASING ON THE FRONT PART OF THE
TOOL. Hold power tools by the insulated
gripping surface as the tool may contact
hidden wiring when working into areas
such as walls or oors. Contact with a
‘live’ wire will make exposed metal parts
of the tool ‘live’ and shock the operator.
• Be aware that this tool is always in an
operating condition as it does not have to
be plugged into an electrical socket.
• When working into walls or oors, live
electric wires may be encountered. Hold
the tool only by the rubber handle to
prevent an electric shock in case you
encounter a live wire.
• DO NOT operate the Forward/Reverse
lever when the trigger switch is on. The
battery will discharge rapidly and may
damage the tool.
• During charging the charger may become
slightly warm. This is normal. DO NOT
charge the battery for a long period.
• When storing or carrying the tool, set
the Forward/Reverse lever to the centre
(switch lock).
• Do not strain the tool by partially
depressing the speed control trigger so
that the motor stops.
CAUTION!
This product is powered
by a rechargeable
battery system, please
pay attention to these additional
instructions:

7
Kielder WT Ltd KWT-002-012-IMB22
Collection And Disposal Of Old Equipment
And Used Batteries:
These symbols on the products, packaging
and accompanying documents mean that
used electronic products and batteries
should not be mixed with general household
waste.
• When the battery pack is not being used,
the battery should be stored so that foreign
substances like dust and water do not
contaminate the terminals.
• When the battery pack is being charged,
ensure that the terminals are free of dust
and water. Clean the terminals before using
the battery if any foreign substances are
seen.
• The life of the battery pack may be
adversely aected by dust or water during
operation.
• If the motor or battery becomes hot, the
protection function will activate and the
motor or battery will stop operating.
• Before inserting the battery pack, always
check to ensure that the tool is turned o.
• For safe use ensure that the battery pack is
installed properly and securely to the main
unit before operating.
• Do not use other than the Kielder battery
packs that are designed for use with this
rechargeable tool.
• Kielder is not responsible for any damage or
accident caused by the use of recycled or
counterfeit battery packs.
• Do not dispose of the battery pack in a re
or expose it to excessive heat.
• Do not attempt to dismantle or modify the
battery pack.
• Do not subject the battery
pack to shocks or drive nails or
similar items into it.
• Do not allow metal objects to
touch the terminals on the battery pack.
• Do not carry or store the battery pack in
the same container as nails or small metal
objects.
• Do not charge the battery pack in a high
temperature location e.g. next to a re or in
direct sunlight. The battery may overheat,
catch re or explode.
• Do not use other than the
dedicated charger to charge
the battery pack as the battery may leak,
overheat or explode.
• When removing the battery pack from the
tool or the charger, always reattach the
pack cover as the battery contacts could be
shorted, leading to a risk of re.
• When the battery pack has deteriorated
replace it with a new one. Continued use of
a damaged battery pack may result in heat
generation, ignition or rupture of the battery.
MAX 45ºC
Li-Ion
For proper treatment, recovery and recycling
of old products and used batteries, please
take them to applicable collection points, in
accordance with the national legislation and
the Directives 2002/96/EC and 2006/66/EC.
By disposing of these products and
batteries correctly, you will help to save
valuable resources and prevent any potential
negative eects on human health and the
environment which could otherwise arise from
inappropriate waste handling.
For more information about collection and
recycling of old products and batteries, please
contact your local municipality, your waste
disposal service or the point of sale where you
purchased the items.
Penalties may apply for the incorrect
disposal of waste in accordance with national
legislation.

8
KWT-002-012-IMB22 Kielder WT Ltd
(13)
(12)
(11)
KWT-012 KWT-002
(1) Square Drive
(2) Square Drive Shoulder
(3) Socket Retainer
(4) Forward / Reverse / Lock Selector
(5) Trigger
(6) Hand Grip
(7) Belt Clip
(8) Battery; attached to tool
(9) Battery Charge Level Indicator
(10) Battery Release Button
(11) Charger
(12) Battery Insert Slide
(13) Charging Indicator
(14) Torque Setting - KWT-012 Only
(4) (4)
(5) (5)
(6) (6)
(7) (7)
(8)
(8)
(9)
(14)
(9)
(10) (10)
(1)
(1)
(2)
(2)
(3) (3)

9
Kielder WT Ltd KWT-002-012-IMB22
SPECIFICATIONS
Main Unit
Model KWT-002 KWT-012
Motor Voltage 18.0V - DC 18.0V - DC
Motor Type Digital Brushless Digital Brushless
Drive 1/2" or 3/8" Square 1/2" Square
Weight (with battery KWT-003-03 tted) 1.7kg 2.2kg
Weight (without battery tted) 1.1kg 1.6kg
No Load Speed 0-2250 min-1 0-2250 min-1
Impact Rate 0-3250 IPM 0-3250 IPM
Max Torque: 1/2" / 3/8" 430 Nm / 220 Nm 700Nm
*Vibration in use: 100Nm / Maximum 4.8 m/s2 / 9.75 m/s24.2 m/s2 / 15.9 m/s2
Battery Type Lithium-ion
Battery Pack
Model KWT-003
Cell Type Lithium-ion
Battery Voltage 18.0V DC
Weight (KWT-003-03) 0.6Kg
Battery Charger
Model KWT-004
Ratings See Rating Label on Base of Charger
Charge Time: KWT-003-04 (3/8" wrench only) 45 mins
Charge Time: KWT-003-03 90 mins
Weight 0.4Kg
VVolts
Direct Current
min-1 Revolutions Per Minute
Ah Electrical Capacity
Class II construction
(double insulated)
Read Instruction Manual
Before Use
Wear Hearing Protection
Wear Safety Glasses
Wear Vibration Absorbing
Gloves
Indoor Use Only
Conforms to CE
standard
Do not burn or
incinerate
Maximum safe ambient
temperature for battery
MAX 45ºC
*Fitted with 19mm impact socket.

10
KWT-002-012-IMB22 Kielder WT Ltd
USAGE
Attaching The Socket

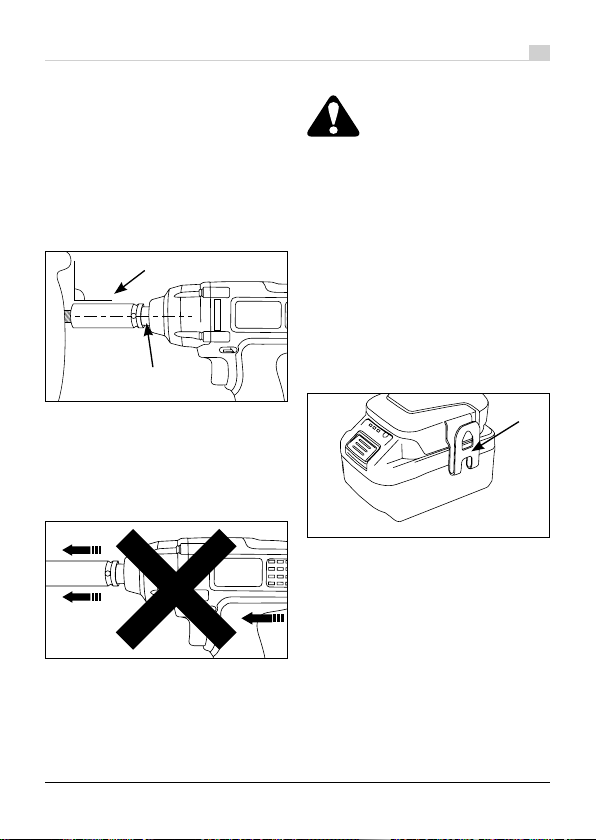

Align the square insert (A) on the socket
with the square drive on the wrench (B)
and slide together until the socket rests
against the square drive shoulder (C)
To further secure the socket, your Kielder
Impact Wrench is equipped with a ball
bearing style retaining system. This allows
any suitably designed sockets to be
secured by aligning any of the locating
holes on the socket (C) with the ball
bearing on the square drive (D).
To remove the socket, simply reverse the
process and slide the socket from the
square drive.
(C) (D)
Attaching or Removing the
Battery Pack
Connect The Battery Pack:
Line up the alignment channels and slide
on the battery pack.
Slide the battery pack until it locks into
position with an audible “CLICK”.
Remove The Battery Pack:
Depress the button (E) at the front of the
battery indication panel and slide the
battery pack out.
(E)
(A)
(B) (C)
