Kimpex 058121 User manual

1
Kimpex
TwoStage48"Snowblower
For
ALLTERRAINVEHICLES
CAUTION:
READ & FOLLOW ALL SAFETY RULES & INSTRUCTIONS BEFORE
OPERATING YOUR EQUIPMENT
104485 G-09
* ASSEMBLY * REPAIR PARTS
* OPERATION * MAINTENANCE
OWNER’SMANUAL
ModelNumber
058121
700310-6

2
Conditions and Products Covered:
KIMPEX guarantees any part of the product or accessory
manufactured by KIMPEX and found in the reasonable
judgment of KIMPEX to be defective in material and or
workmanship will be repaired or replaced by an authorized
dealer without charge up to our maximum labor rates and pre-
established times. For replacement parts only standard
ground freight services are covered. This warranty extends to
the original retail purchaser only and is not transferable to any
subsequent purchasers.
Warranty Period
(from date of the original retail purchase):
• Residential use: 1 year
• Commercial or rental use: 90 days
Exceptions Noted Below: the following items are guaranteed
by the original manufacturer and have their own warranty,
conditions and limited time.
• Tire Chains: 90 days
• Engines (supplied with KIMPEX equipment): 2 years
Please refer to the engine manufacturer’s warranty
statement included with the unit. KIMPEX is not authorized
to handle warranty adjustments on engines.
Items and Conditions NOT Covered:
This warranty does not cover the following:
• Pick-up or delivery charges or in-home services fees.
• Any damage or deterioration of the unit, parts and or finish
of these due to normal use, wear and tear, or exposure.
• Cost of regular use or maintenance service or parts, such
as gas, oil, lubricants, tune-up parts, and adjustments.
• Any part or accessory which has been altered, modified,
misused, neglected, accidentally damaged or not properly
installed, maintained, stored or repaired not in accordance
with the instructions in the owner’s manual.
• Repair due to normal wear and or any wear items such as
shear pins, bolts, belts, etc.
• Expedited freight fee services for replacement parts.
• Shear bolts and shear pins are to be considered as a
preventive measure not as an assured protection, any
damages resulting from the lack of shear bolts breakage
are not covered.
NOTE: All warranty work must be performed by an authorized
dealer using original (manufacturer) replacement parts.
Owner’s Responsibilities:
KIMPEX’s defective equipment or part must be returned to an
authorized dealer within the warranty period for repairs. In the
event that defective merchandise must be returned to
manufacturer for repairs, freight fees are prepaid and a written
authorization from KIMPEX must be obtained by KIMPEX prior
to the shipment. This warranty extends only to equipment
operated under normal conditions. To validate a warranty
claim, it is the user’s responsibility to maintain and service the
unit as specified in the owner’s manual at their expense.
General Conditions:
The sole liability of KIMPEX with respect to this warranty shall
be strictly and exclusively repair and replacement as
mentioned herein. KIMPEX shall not have any liability for any
other costs, loss or damage, including but not limited to, any
incidental or consequential loss or damage.
In particular, without being limited to, KIMPEX shall have no
liability or responsibility for:
• Travel time, overtime, after hours time or other extraordinary
repair charges or relating to repairs and or replacements
outside of normal business hours.
• Rental of like or similar replacement equipment during the
period of any, repair or replacement work.
• Any communicating or travel charges.
• Loss or damage to person or property other than that
covered by the terms of this warranty.
• Any claims for lost revenue, lost profit or any similar costs
as a result of damage or repair.
• Attorney’s fees.
KIMPEX’s responsibility in respect to claims is limited to
making the required repairs or replacement without charge up
to our maximum labor rates and pre-established times and no
claim of breach of warranty shall be cause for cancellation or
rescission of the contract of sale of any product or accessory.
This warranty gives you specific legal rights. You may also
have other rights, which vary from state to state.
Note: KIMPEX reserves the rightto change or improvethe design of any part or accessory without assuming any obligation to modify
any product previously manufactured.
Instructions for Obtaining Warranty Services:
Contact dealer where equipment was purchased or any other KIMPEX Service Dealer to arrange service at their dealership. To locate
a dealer convenient to you, access our website at www..kpx-kimpex.com.
Kimpex Inc., 5355, St-Roch, Drummundville, QC, Canada J2B 6V4
Bring the product and yourproof of purchase(sales receipt) to the KIMPEX dealer.
LIMITED WARRANTY

1
TABLE OF CONTENTS
INTRODUCTION .................................................................................................................................................... 2
SAFETY PRECAUTIONS ...................................................................................................................................... 3
SAFETY DECALS .................................................................................................................................................. 5
ASSEMBLY

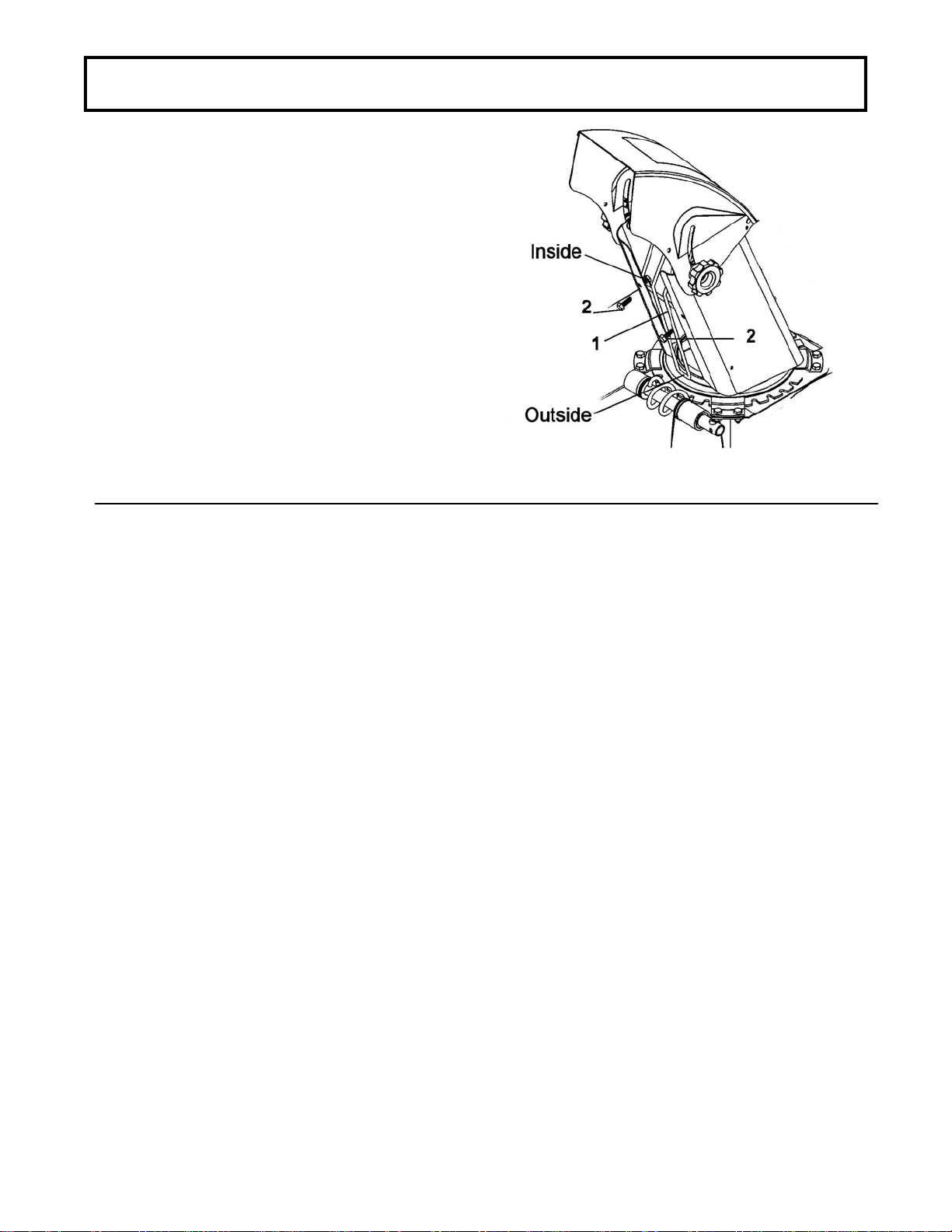

Step 1: Snowblower Preparation ............................................................................................................ 6
Step 2: Subframe Preparation ................................................................................................................. 9

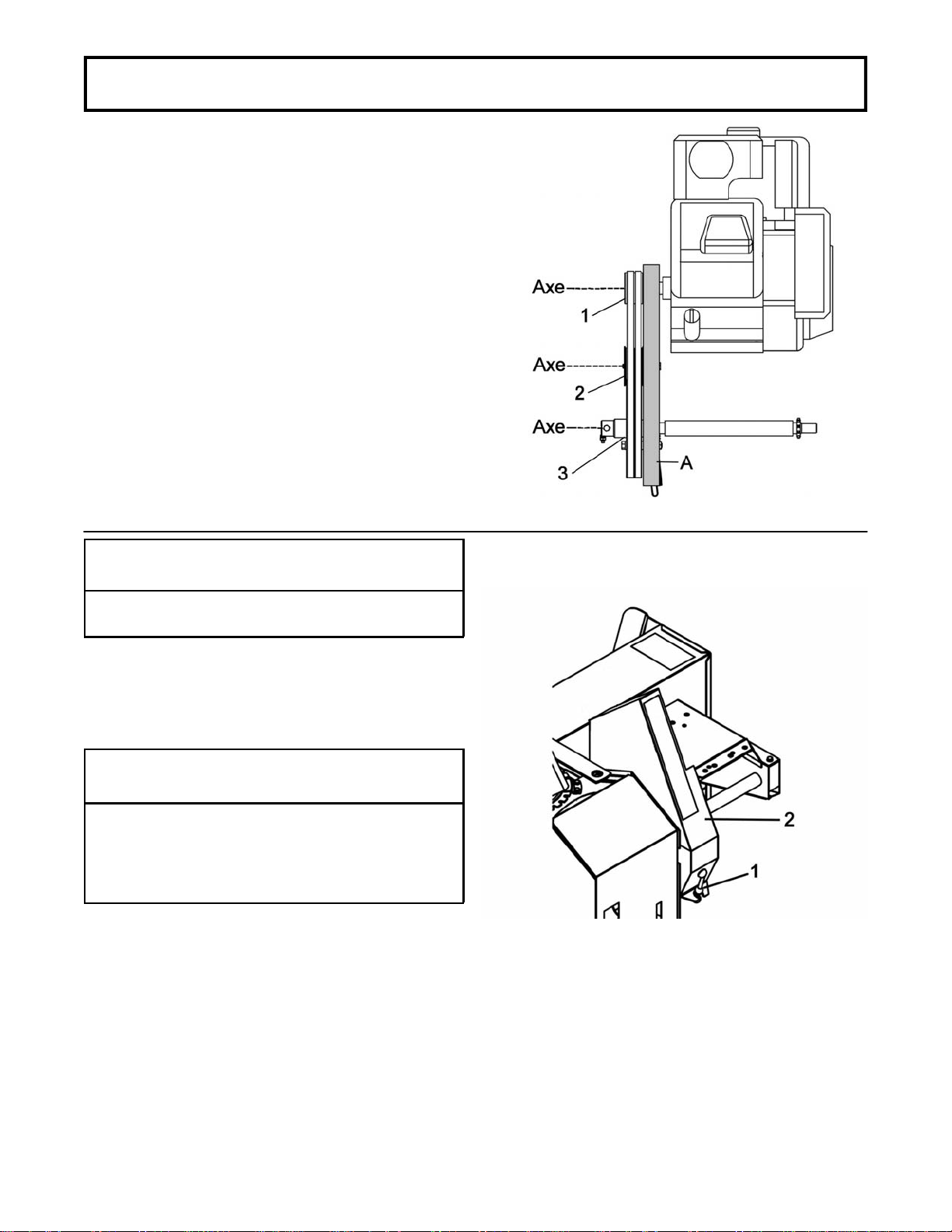

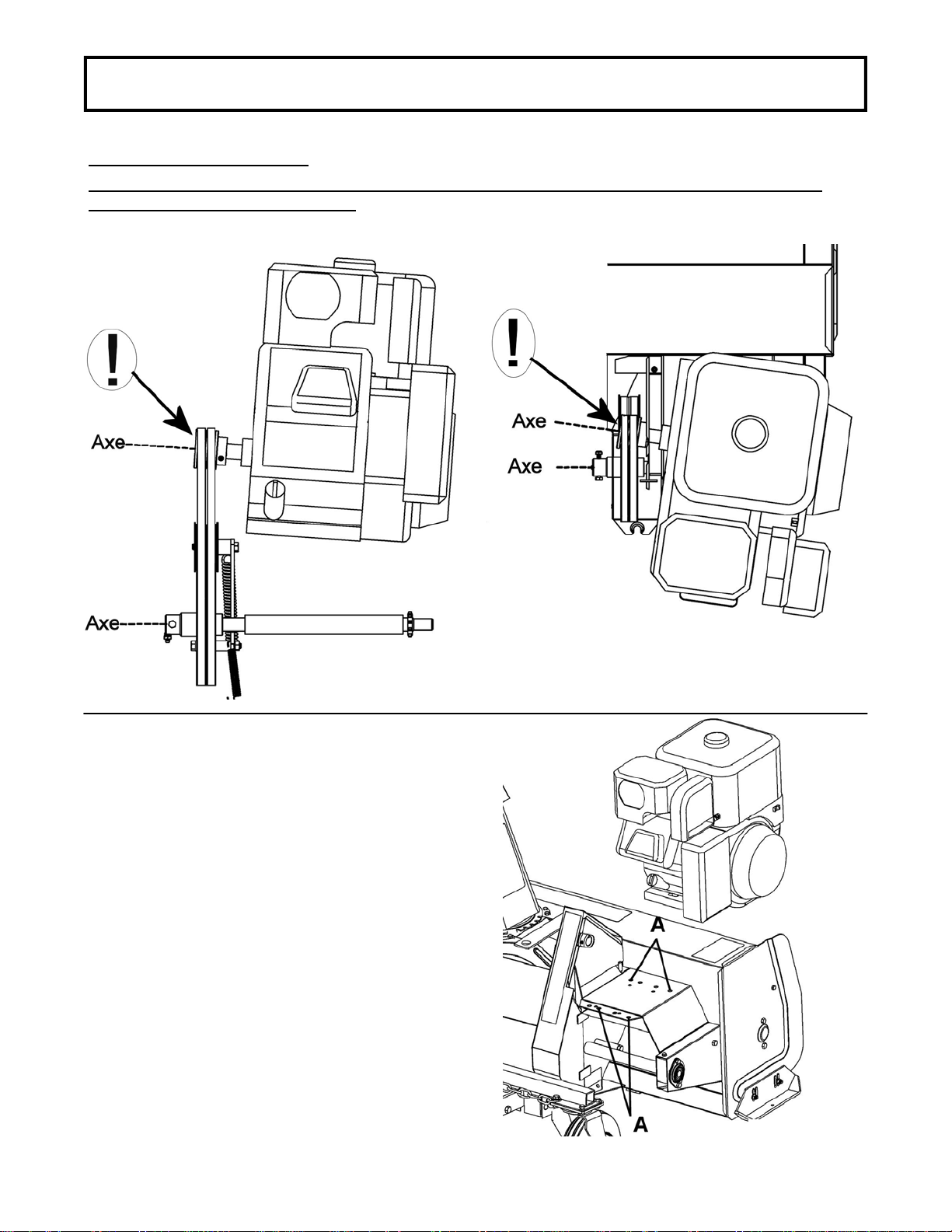

Step 3: Engine Installation ....................................................................................................................... 11

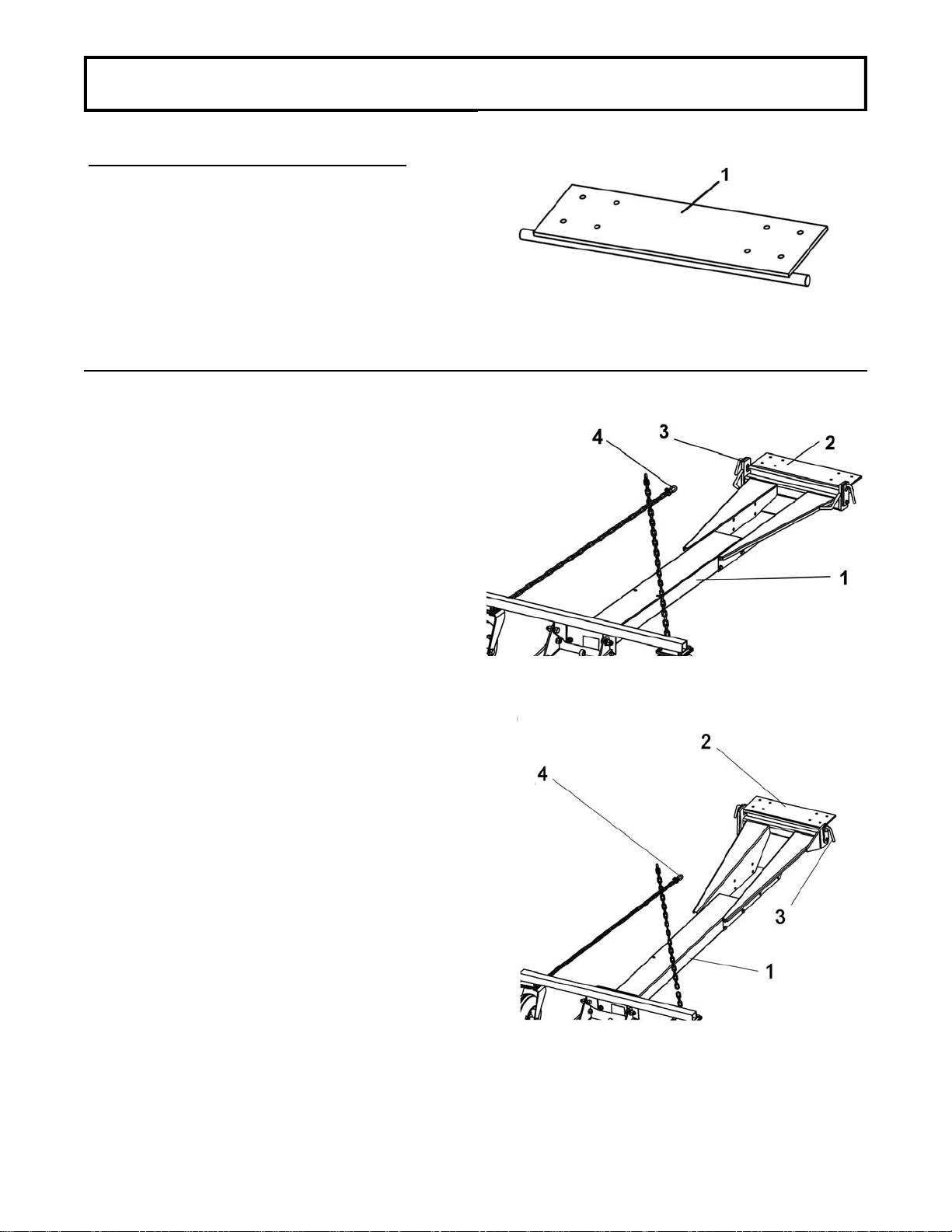

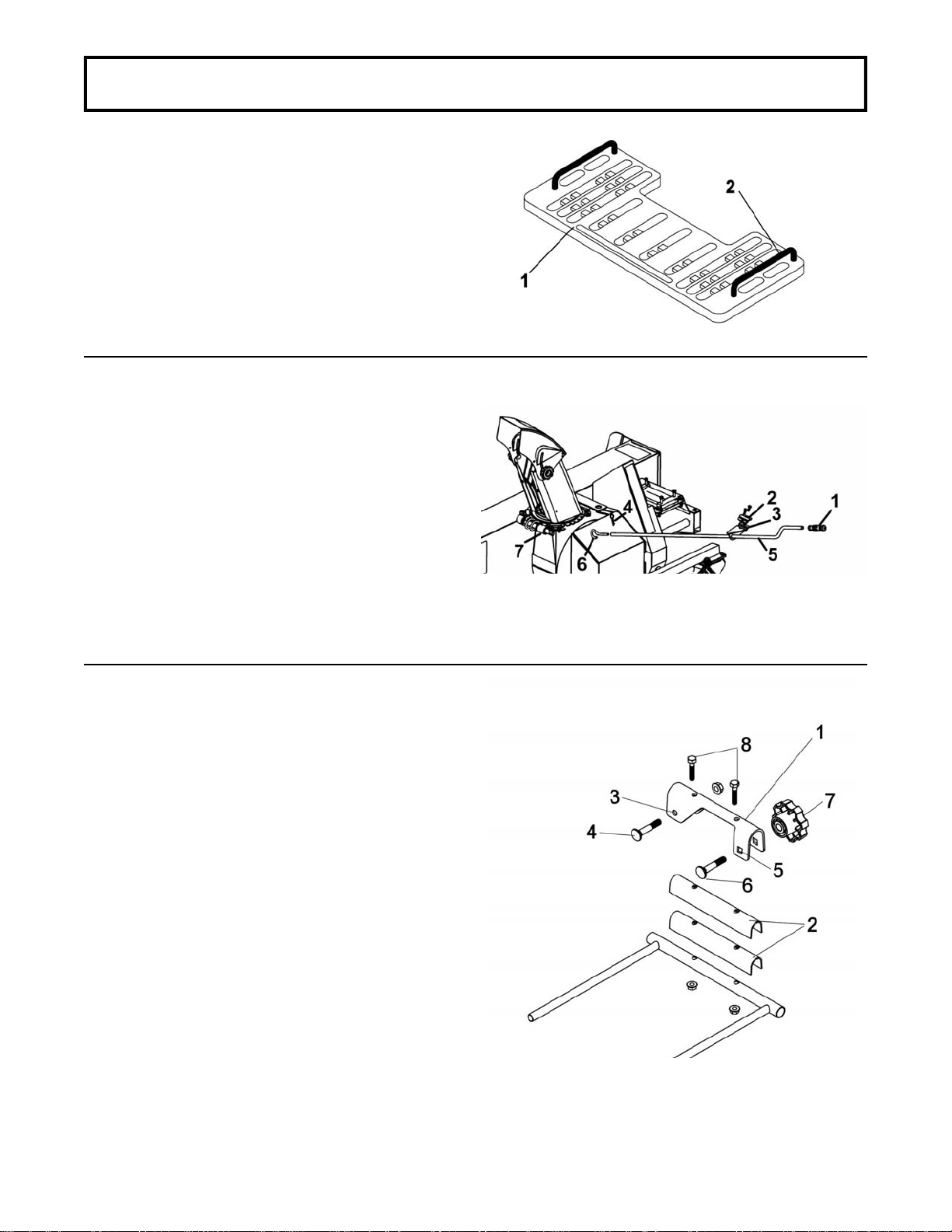

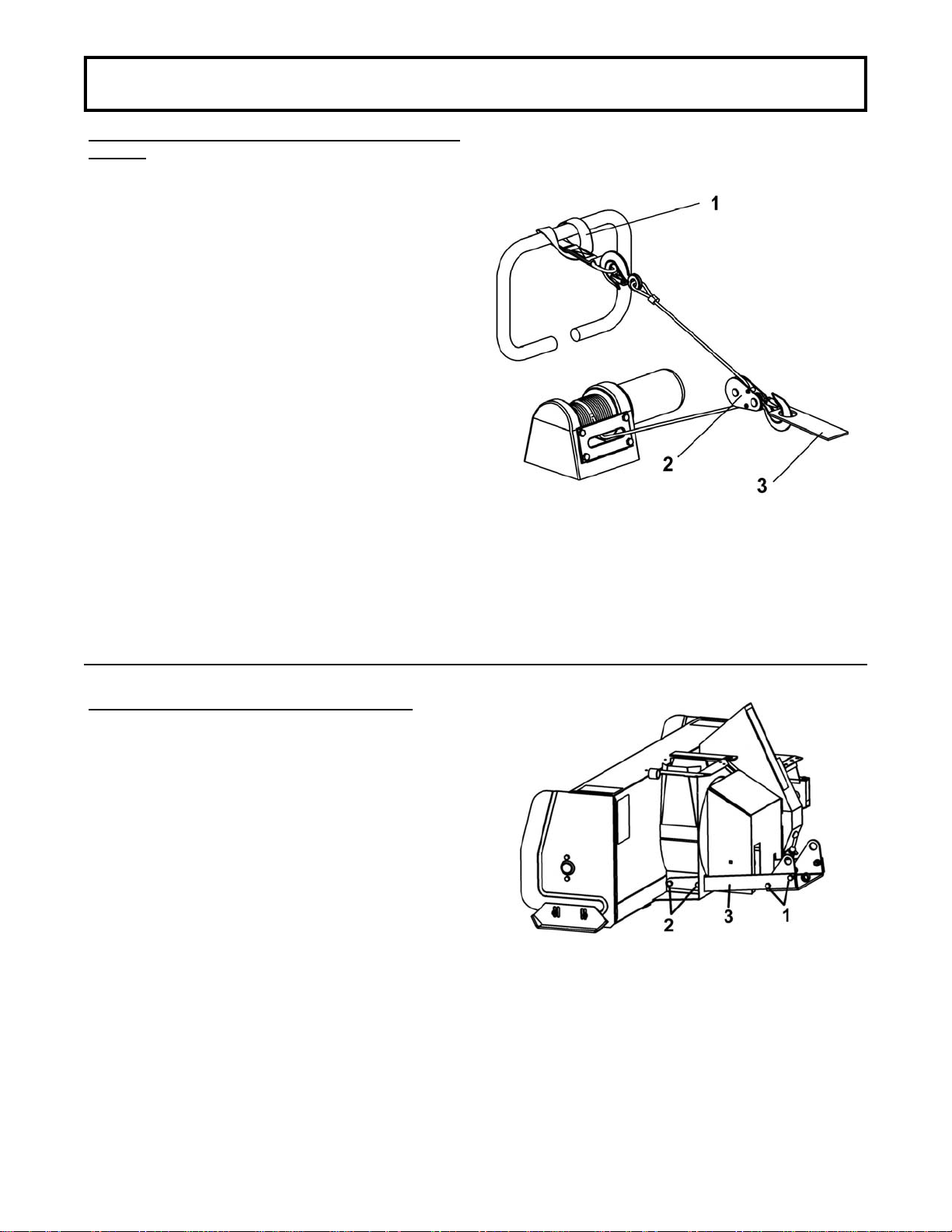

Step 4: Installation on the vehicle ............................................................................................................ 17
OPERATION

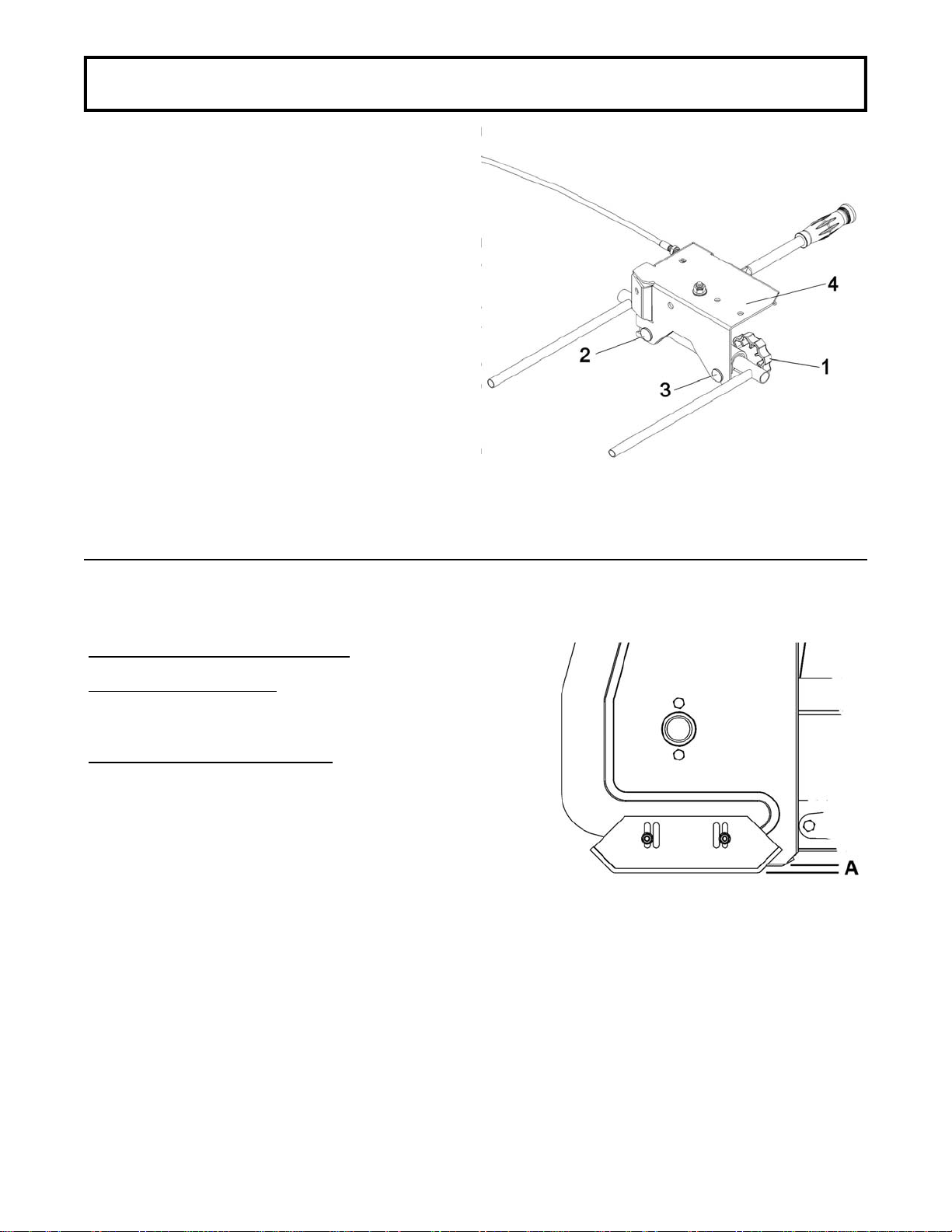

Operating the Snowblower ....................................................................................................................... 20
Controls ..................................................................................................................................................... 20
Removing Snow ........................................................................................................................................ 20
MAINTENANCE
Maintenance .............................................................................................................................................. 21
Adjustments .............................................................................................................................................. 21
Lubrication ................................................................................................................................................. 21
Cutting Edge Maintenance ....................................................................................................................... 21
Shear Bolt Replacement .......................................................................................................................... 21
Storage ...................................................................................................................................................... 21
BELT REPLACEMENT & ADJUSTMENTS .......................................................................................................... 22
TROUBLESHOOTING ........................................................................................................................................... 23
MOUNTING BRACKET CHART ............................................................................................................................ 24
PARTS BREAKDOWN AND PARTS LIST
Rotation System with Chute ..................................................................................................................... 26
Manual Clutch Mechanism ....................................................................................................................... 28
Subframe ................................................................................................................................................... 30
Snowblower ............................................................................................................................................... 32
OPTIONS & ATTACHMENTS ……. ...................................................................................................................... 34
TORQUE SPECIFICATION TABLE ...................................................................................................................... 35
PAGE

2
INTRODUCTION
TO THE PURCHASER
This new attachment was carefully designed to give years of dependable service. This manual has been provided to
assist in the safe operation and servicing of your attachment.
NOTE: All photographs and illustrations in the manual may not necessarily depict the actual models or attachment, but
are intended for reference only and are based on the latest product information available at the time of publication.
Familiarize yourself fully with the safety recommendations and operating procedures before putting the machine to use.
Carefully read, understand and follow these recommendations and insist that they be followed by those who will use
this attachment.
THIS SAFETY ALERT SYMBOL IDENTIFIES AN IMPORTANT SAFETY MESSAGE IN THIS MANUAL
THAT HELPS YOU AND OTHERS AVOID PERSONAL INJURY OR EVEN DEATH. DANGER,
WARNING, AND CAUTION ARE SIGNAL WORDS USED TO IDENTIFY THE LEVEL OF HAZARD.
HOWEVER, REGARDLESS OF THE HAZARD, BE EXTREMELY CAREFUL.
DANGER: Signals an extreme hazard that will cause serious injury or death if recommended precautions are
not followed.
WARNING: Signals a hazard that may cause serious injury or death if the recommended precautions are not
followed.
CAUTION: Signals a hazard that may cause minor or moderate injury if the recommended precautions are not
followed.
Record your attachment serial number and purchase date in the section reserved below (there is no serial number on
the subframe). Your dealer requires this information to give you prompt, efficient service when ordering replacement
parts. Use only genuine parts when replacements are required.
If warranty repairs are required please present this registration booklet and original sales invoice to your selling dealer
for warranty service.
This manual should be kept for future reference.
Please check if you have received all the parts for your kit with the list of the
bag and the list of the box.
7
SERIAL NUMBER : ___________________________
PURCHASE DATE : ___________________________
In this manual, right and left sides are determined by sitting on the vehicle seat facing forward.

3
