King Edward HFMV User manual

OPERATING INSTRUCTIONS
HOT FOOD MERCHANDISER
Product code: HFMV
BEDIENUNGSANLEITUNG
MODE D’EMPLOI
GEBRUIKSAANWIJZING
PLEASE READ CAREFULLY
(Rev3; 01/06/2010)

INTRODUCTION
Each King Edward Product is individually handmade by craftsmen using traditional methods and
materials. Please follow our recommendations carefully, you will then enjoy many years of
excellent service and lasting good looks from this product.
The Hot Food Merchandiser (product code: HFMV) is designed to hold and display pre-cooked
foods at serving temperature, which is much lower than cooking temperature and this fact should
be taken into consideration when using this unit.
The temperature control knob dial reading indicates the air temperature inside the cabinet, and
does not reflect the core temperature of the food displayed within the cabinet. The core food
temperature may be lower than the air temperature. Adjust the air temperature of the cabinet to
achieve the core temperature of the foods required, but please note: the maximum air temperature
setting of the HFMV is 1100C.
A potato when cooked has a core food temperature of 1000C. Once the potato is removed from
the oven its core temperature will naturally reduce over time. Placing the potato inside the Hot
Food Merchandiser will help contain the core temperature at around 75-850C, which is still
acceptable within standard food service guidelines.
Bear in mind that the higher the holding temperature, the shorter the shelf life of the food will be.
INSTALLATION
All King Edward products are packed securely to protect the units during transit. Prior to use,
remove all external packaging from the unit and check for any damage and missing items. All
damage and shortages must be reported within 24 hours.
Ensure all safety packing & manuals have been fully removed from the inside of the cabinet prior
to use. Please dispose of packaging in a responsible manner which is kind to the environment.
Make sure that the mains flex cannot come into contact with hot surfaces and that it is adjusted to
the required length by a qualified person upon installation.
If the supply cord is damaged, it must be replaced by the Manufacturer, its Service Agent or Similarly
Qualified Persons in order to avoid a hazard.
Do not push excess flex under the unit and ensure that the electrical socket can be reached easily
in the event that the unit needs to be disconnected from the electric supply.
The adjustable feet can be moved up or down to enable the merchandiser unit to be sited firmly on
most surfaces:
The unit can be lifted at either side of the canopy where the brass screws are positioned.
We recommend that the wire trays are thoroughly washed and dried before the units first use.
OPERATING INSTRUCTIONS
Preheat the Hot Food Merchandiser for 25 minutes at the desires temperature setting.
Load pre-heated food onto wire trays.
Periodically check food temperature and adjust the setting if required.
NB: continuously opening and closing the unit doors will increase the likelihood of the temperature
dropping below the required setting. Ensure the door is only opened when absolutely necessary.
Screw
Brass or Chrome Foot
Adjust each brass or chrome
foot individually for the
desired level and balance.

FAULT FINDING GUIDE
PROBLEM CHECK
Nothing works Is the unit switched on at the socket? Is the plug fuse OK?
Is the unit’s temperature control knob turned on?
* Interior lamps may not be working –giving the impression that the unit
is not working.
If all of the above is OK, but unit still does not heat up –see next
section
The unit does not Turn the temperature control knob to 1000 C setting. Does the red
heat up light up?
Yes –Test the air temperature in the middle of the unit with a
suitable temperature gauge, with the doors closed for at least 15
minutes. The reading should be within 150 C of the indicated
setting on the knob, when the red neon has just gone off,
indicating it has reached temperature.
If it is not, consult a qualified Service Engineer.
No - consult a qualified Service Engineer.
SERVICE SHEET FOR HFMV
REPLACING BULBS –see Bulb Change section above.
REPLACING THE ELEMENT:
•Remove s/s element cover plate at bottom of the unit, exposing the element.
•Unscrew the element fixing screws and carefully lift up the element.
•Remove the terminals but do NOT let them drop into the base –if you do you will have to
remove the entire base cover of the unit.
•Attach terminals to new element and reverse procedure to reassemble.
REPLACING THE THERMOSTAT:
•Remove outer canopy (4 screws), and remove inner canopy by slackening 4 socket screws, but
do NOT remove them fully.
•Unclip the thermostat sensor inside the top of the main body; and pull through to the outside.
•Lay the unit on its side with the control knob facing upward.
•Remove the galvanised base at the bottom of the unit, and pull off the terminals from the
thermostat.
•Remove the knob and fixing screws from the thermostat; remove the 3 screws from the bottom
fold on the side panel and lift off. The thermostat can now be completely removed.
•Replace with a new thermostat and reverse the procedure to reassemble.
•Fully test the unit to ensure it is working properly and that all terminals and screws have been
relocated properly.

COMPONENT LIST
Index No Part Description Part No Qty
1 Frame (cast) 600101 1
2 Door (cast) 600102 1
3 Door glass (plain) 600103 1
4 Door glass (painted) 600104 1
5 Canopy brass (trimmed) 600105 1
6 Funnel (brass) 500108 1
7 Side Panel (painted) 500117 2
8 Gallery (brass) 500119 2
9 Glass (painted) 500120 2
10 Foot 500116 4
11 Magnetic door catch 500128 1
12 Side block 500111 2
13 Rubber shroud 400127 1
14 Door bolt 45x5 s/s nuts etc 500124 4
15 Element cover 600115 1
16 Mesh 500137 1
17 Mesh screw 500138 2
18 Bulb (high temperature) 400125 3
19 Bulbholder (square) 500119 2
20 Bulbholder lens (square) 500120 2
21 Bulbholder assembly (complete) square 500121 2
22 Bulbholder assembly (complete) round 400023 1
23 Bulbholder wire - N (triple) 500123 1
24 Bulbholder wire - L (triple) 500124 1
25 Thermostat knob 600125 1
26 Thermostat (85oC) 190404 1
27 Neon Indicator 190305 1
28 Fireglow bulb GB 190207 1
or Euro 190307
29 Bulb reflector 190308 1
30 Grommet 300300 1
31 Wire (L) 500131 1
32 Wire (N) 500132 1
33 Wire (N) double 500133 1
34 Wire (L) 500134 1
35 Wire (L) 500136 1
36 Element 1kw MDR 500136 1
37 Mains flex 190201 1
38 Door knob 500221 2

CLEANING & MAINTENANCE
Unplug the Hot Food Merchandiser at the socket before cleaning. Wait until the unit has fully
cooled down before starting any work on it. To maintain visual appeal, the exterior should be
cleaned regularly with glass cleaner and stainless steel cleaner (where appropriate).
WARNING: If left to dry, dried-on stains will be difficult to remove, needing heavy cleaning.
This could result in surface damage. We recommend that the exterior of this unit is dried
thoroughly with a soft dry cloth after washing.
Never use abrasive materials when trying to remove stains.
The wire trays and element cover can be removed for cleaning.. Wire trays should be removed
starting with the top shelf first, and element cover last. Always use warm, soapy water and
rinse thoroughly. To refit these components, reverse the procedure.
Any crumbs that fall through to element mounting surface should be removed.
BULB CHANGE
•Red bulb in base - 60 watt amber (fireglow) obtainable from most DIY / Hardware stores
•Unplug the unit from the mains electricity supply
•Carefully tip unit onto front or back (not side) using a cushion or soft towel folded
underneath for protection
•Unscrew small central access cover (2 screws) and put to one side. Replace bulb and reverse process
•Display cabinet bulb - obtainable from supplier of oven
•Approach from heated display cabinet inside, lever off glass cover using a knife or screwdriver and
replace with new bulb (see component and wiring diagrams for parts lists)
•NB: Bulbs are not covered by the guarantee
•Prepare all 3 wires using trimming template
•Loosen cord grip
•Wire in the sequence N. L. E.
•Ensure terminal screws are tight
•Always use 13 amp (Brown) fuse
•Tighten cord grip onto cord before replacing cover

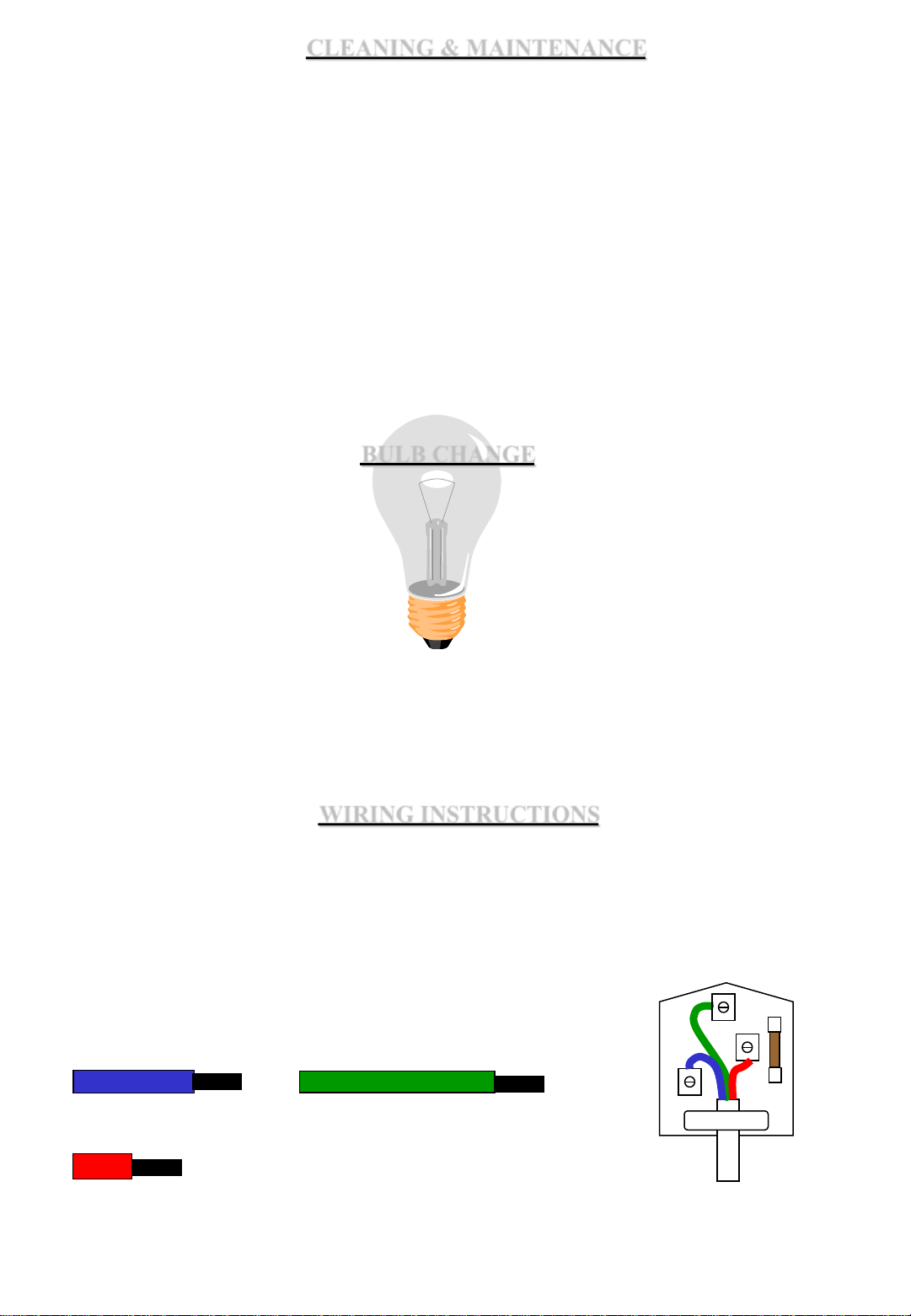

WIRING INSTRUCTIONS
If in doubt contact a qualified electrician
THIS APPLIANCE MUST BE EARTHED
8mm
BLUE OR BLACK
NEUTRAL EARTH
GREEN OR YELLOW / GREEN
40mm 8mm
LIVE
BROWN OR RED
8mm
12mm
25mm
CORD GRIP
FUSE
E
N

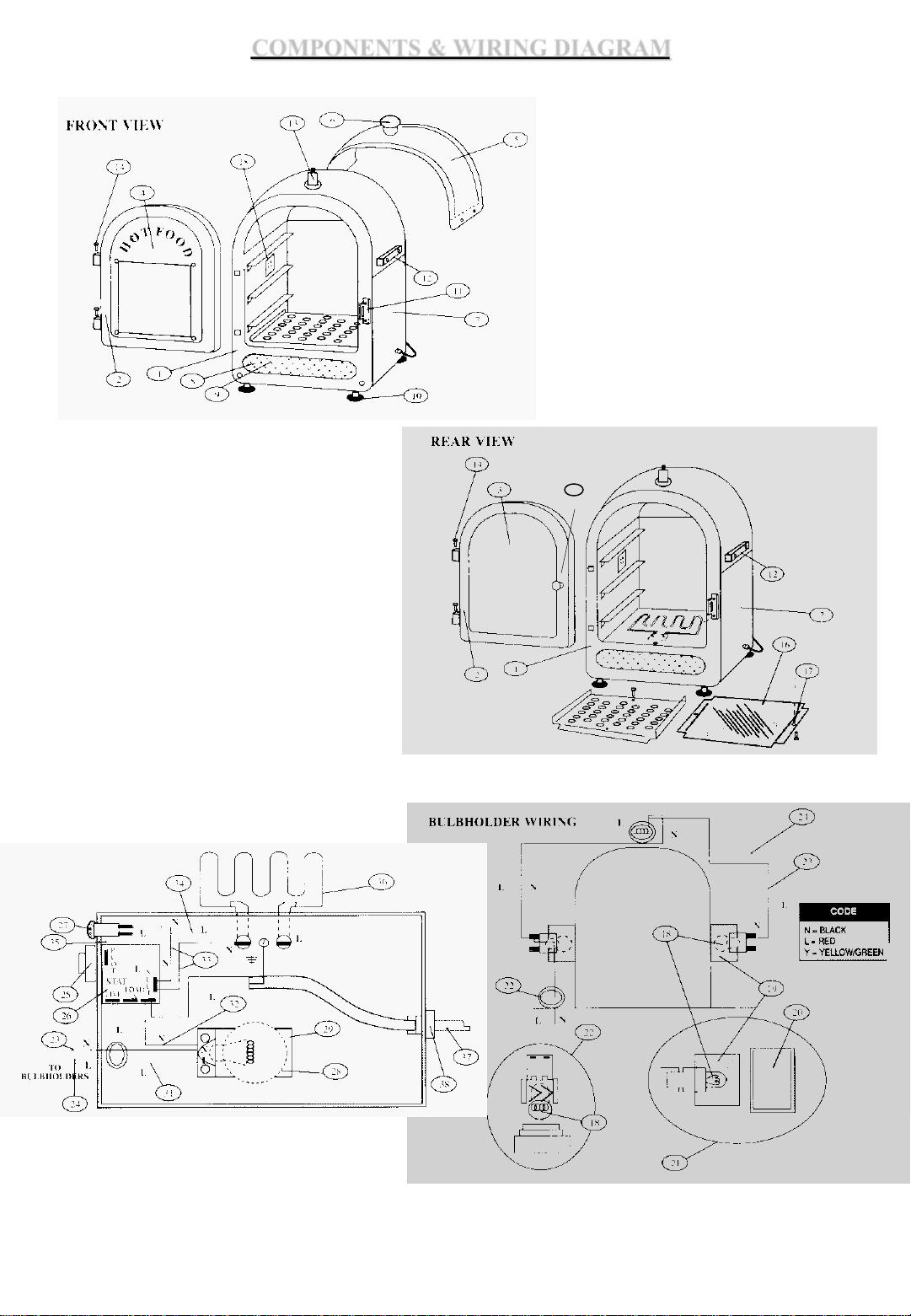

COMPONENTS & WIRING DIAGRAM
38

All King Edward equipment is covered by a 1 year guarantee from the time of
purchase; this does not effect your statutory rights. Depending on the contract
you have entered into with your supplier, the guarantee may cover Parts Only
or be full Parts & Labour. Please check with your supplier for confirmation.
Irrespective of the level of cover certain items are not covered by the
manufacturers guarantee: bulbs, fuses, glass and damage to the mains lead.
The manufacturers guarantee covers all components with the exceptions
highlighted above –but it does not cover external surfaces and trim.
Breakages to external trim (eg brass fittings, flue, etc) and the deterioration in
the quality/appearance of surface panels, canopy and stainless steel interiors,
which are deemed to have been caused by general wear & tear through oven
usage, are not covered by this guarantee.
Please check your fuses and electricity supply before calling out an engineer,
service calls requested in error will be charged at the normal rate.
Please have the equipment sited where it is easily accessible to the engineer
and where there is adequate room to work.
Most service calls will be responded to within 48 hours, however, in
exceptional circumstances we may require the equipment back at our factory
for repair, in these instances please allow 4 working days from collection to
delivery.
Persons not authorised by King Edward Catering Equipment should not
attempt to repair/adjust any part without our prior consent as this may
invalidate our guarantee as would the fitting of non specified parts.
Please contact your supplier if you have any problems, whenever possible, we
will attempt to advise you over the telephone in order to avoid any
unnecessary delay to yourselves.
*ASK FOR DETAILS OF OUR EXTENDED SERVICE COVER FOR
EQUIPMENT OVER 12 MONTHS OLD.
For future reference please write your Merchandiser serial number here:
GUARANTEE
