KISANKRAFT KK-STF-480 User manual

KisanKraft®
Warranty Certificate
(KISANKRAFT COPY)
This warranty is null & void, if you fail to register the warranty with KisanKraft
by sending the KisanKraft Copy with dealer’s stamp.
KisanKraft Limited
: www.kisankraft.com
: [e-mail]
: +91.80.22178200
Page 28 of 28
but not limited to, loss of use, loss of profits, loss of production, expense of substitute equipment
or other commercial loss or damage.
Limitation of Liability: This limited warranty is in lieu of all other express warranties,
obligations, or liabilities. Any implied warranties, obligations or liabilities, including, but not limited
to, any implied warranty of merchantability shall be limited in duration to the applicable warranty
period. Any action for breach of any warranties hereunder, including, but not limited to, any implied
warranty of merchantability must be brought within the applicable warranty period.
Modifications of Warranty: No agent, representative, dealer, or employee of KisanKraft
Limited or any of its manufacturers has the authority to increase or alter the obligations of this
warranty.
Assignment / Transfer of warranty: The warranty cannot be assigned and shall not
transfer if the product is resold by the first buyer. The above warranties are extended to the first
end user (original purchaser), and no warranty is made, nor authorized to be made assignable on
resale by the first end user.
What you must do to obtain limited warranty service: To obtain performance of
any obligation under this warranty for failure during the applicable warranty period, you must
deliver the defective product, to the nearest Authorized Dealer, along with proof-of-purchase
(invoice/receipt). KisanKraft Limited, its manufacturers and its dealers reserve the right to inspect
the claimed defective part(s) to determine if the malfunction is the result of a defect covered by this
warranty. Please note that the decision of KisanKraft Limited with respect to any warranty claim is
final.
After-sales Service (Including Warranty): KisanKraft Limited does not sell directly to
consumers. All sales or supplies are made through Authorized Dealers. It is the responsibility of the
Authorized Dealer to provide all after-sales service to consumers. Any warranty claim should be
raised by dealer to KisanKraft Limited as per warranty policy.
Jurisdiction: All disputes are subject to Bangalore court’s jurisdiction.
Notes:
This purchase is not contingent upon a product demonstration. The purchaser shall satisfy
himself with the product, including any product demonstration or verification of any function,
before buying. KisanKraft Limited or its authorized dealers, including online sellers, shall not be
liable to give any on-site demonstration after purchase of any of the product.
Any product once used will not be taken back by KisanKraft Limited.
Warranty and After Sale Services (including but not limited to installation, Demonstration,
Repair, Routine Maintenance etc.), should be done through the Authorized Dealer selling this
product.
Dealers should have their own technician to provide After Sales Services to their Customers.
KisanKraft Limited provides free training to Authorized Dealer’s technicians at KisanKraft
Limited’s head office, on request from Authorized Dealer.
KisanKraft®
Warranty Certificate
(DEALER COPY)
: www.kisankraft.com
: [e-mail]
: +91.80. 22178200
Page 1 of 28
Product
THERMAL FOGGING
SPRAYER
KisanKraft
Invoice Date
Brand
KisanKraft
KisanKraft
Invoice No.
Model
KK-STF-480 ,
KK-STF-560
WARRANTY
PERIOD
6MONTHS
FOR THE SPECIFIED PERIOD FROM THE DATE OF
SALE OR DELIVERY WHICHEVER IS EARLIER.
Dealer’s
Invoice Date
Dealer’s Invoice
No.
Buyer’s Info (Name, Address, Phone, etc.):
Dealer’s Stamp (Address, Phone, TIN, etc.):
Buyer’s Sign
Dealer’s Sign
Warranty Policy
What is covered: KisanKraft Limited and its manufacturers warrant this product to be free from
defects in material or workmanship. All parts defective in material and workmanship are covered.
This warranty will only cover defects arising under normal usage.
This warranty is limited to repair or replacement by KisanKraft Limited or its manufacturers of such parts
as appear to KisanKraft or its manufacturers, upon inspection, to be defective in material and/or
workmanship. KisanKraft or its manufacturers make no warranty with respect to items not manufactured
or sold by them. No onsite warranty is provided by KisanKraft Limited or its manufacturers. Defective
items must be brought/sent to our Authorized Dealer or KisanKraft Limited’s office for service.
What is not covered: The warranty shall become null and void and neither KisanKraft Limited nor
any of its manufacturers, nor its authorized dealers assumes any responsibility, if the failure was caused
by the following:
(1) Operation of product with incorrect fuel or lubricants, (2) Incorrect usage of machine or misuse, (3)
Lack of maintenance, (4) Negligence, (5) Accident or physical damage, (6) Repairs made by unauthorized
parties and/or with unauthorized parts, (7) Improper set up, adjustments, tampering or altered products
(8) Any modification to the product what-so-ever.
Important: (1) Normal maintenance and adjustments to the product is the responsibility of the customer.
(2) Normal wear and tear are not covered under warranty. (3) Rubber/plastic parts and consumables such
as blades, clutch and clutch-bell, sparkplugs, nylon line, air-filters, fuel-filters, oil seals and gaskets etc.
are not covered under the warranty. (4) Electrical Motor, Electrical Parts, Battery Etc. are not covered
under the warranty.
Incidental / Consequential Loss: KisanKraft Limited or its manufacturers will not be liable for
general damages, including bodily injuries, or for incidental or consequential damages including, but not

KisanKraft®
Warranty Certificate
(DEALER COPY)
: www.kisankraft.com
: [e-mail]
: +91.80. 22178200
Page 2 of 28
limited to, loss of use, loss of profits, loss of production, expense of substitute equipment or other
commercial loss or damage.
Limitation of Liability: This limited warranty is in lieu of all other express warranties, obligations,
or liabilities. Any implied warranties, obligations or liabilities, including, but not limited to, any implied
warranty of merchantability shall be limited in duration to the applicable warranty period. Any action for
breach of any warranties hereunder, including, but not limited to, any implied warranty of
merchantability must be brought within the applicable warranty period.
Modifications of Warranty: No agent, representative, dealer, or employee of KisanKraft Limited
or any of its manufacturers has the authority to increase or alter the obligations of this warranty.
Assignment / Transfer of warranty: The warranty cannot be assigned and shall not transfer if
the product is resold by the first buyer. The above warranties are extended to the first end user (original
purchaser), and no warranty is made, nor authorized to be made assignable on resale by the first end
user.
What you must do to obtain limited warranty service: To obtain performance of any
obligation under this warranty for failure during the applicable warranty period, you must deliver the
defective product, to the nearest Authorized Dealer, along with proof-of-purchase (invoice/receipt).
KisanKraft Limited, its manufacturers and its dealers reserve the right to inspect the claimed defective
part(s) to determine if the malfunction is the result of a defect covered by this warranty. Please note that
the decision of KisanKraft Limited with respect to any warranty claim is final.
After-sales Service (Including Warranty): KisanKraft Limited does not sell directly to
consumers. All sales or supplies are made through Authorized Dealers. It is the responsibility of the
Authorized Dealer to provide all after-sales service to consumers. Any warranty claim should be raised by
dealer to KisanKraft Limited as per warranty policy.
Jurisdiction: All disputes are subject to Bangalore court’s jurisdiction.
Notes:
This purchase is not contingent upon a product demonstration. The purchaser shall satisfy himself
with the product, including any product demonstration or verification of any function, before buying.
KisanKraft Limited or its authorized dealers, including online sellers, shall not be liable to give any
on-site demonstration after purchase of any of the product.
Any product once used will not be taken back by KisanKraft Limited.
Warranty and After Sale Services (including but not limited to installation, Demonstration, Repair,
Routine Maintenance etc.), should be done through the Authorized Dealer selling this product.
Dealers should have their own technician to provide After Sales Services to their Customers.
KisanKraft Limited provides free training to Authorized Dealer’s technicians at KisanKraft Limited’s
head office, on request from Authorized Dealer.
KisanKraft®
Warranty Certificate
(KISANKRAFT COPY)
This warranty is null & void, if you fail to register the warranty with KisanKraft
by sending the KisanKraft Copy with dealer’s stamp.
KisanKraft Limited
: www.kisankraft.com
: [e-mail]
: +91.80.22178200
Page 27 of 28
Product
THERMAL FOGGING
SPRAYER
KisanKraft
Invoice Date
Brand
KisanKraft
KisanKraft
Invoice No.
Model
KK-STF-480 ,
KK-STF-560
WARRANTY
PERIOD
6MONTHS
FOR THE SPECIFIED PERIOD FROM THE DATE
OF SALE OR DELIVERY WHICHEVER IS
EARLIER.
Dealer’s
Invoice Date
Dealer’s
Invoice No.
Buyer’s Info (Name, Address, Phone, etc.):
Dealer’s Stamp (Address, Phone, TIN, etc.):
Buyer’s Sign
Dealer’s Sign
Warranty Policy
What is covered: KisanKraft Limited and its manufacturers warrant this product to be free from
defects in material or workmanship. All parts defective in material and workmanship are covered.
This warranty will only cover defects arising under normal usage.
This warranty is limited to repair or replacement by KisanKraft Limited or its manufacturers of such
parts as appear to KisanKraft or its manufacturers, upon inspection, to be defective in material
and/or workmanship. KisanKraft or its manufacturers make no warranty with respect to items not
manufactured or sold by them. No onsite warranty is provided by KisanKraft Limited or its
manufacturers. Defective items must be brought/sent to our Authorized Dealer or KisanKraft
Limited’s office for service.
What is not covered: The warranty shall become null and void and neither KisanKraft Limited
nor any of its manufacturers, nor its authorized dealers assumes any responsibility, if the failure was
caused by the following:
(1) Operation of product with incorrect fuel or lubricants, (2) Incorrect usage of machine or misuse,
(3) Lack of maintenance, (4) Negligence, (5) Accident or physical damage, (6) Repairs made by
unauthorized parties and/or with unauthorized parts, (7) Improper set up, adjustments, tampering
or altered products (8) Any modification to the product what-so-ever.
Important: (1) Normal maintenance and adjustments to the product is the responsibility of the
customer. (2) Normal wear and tear are not covered under warranty. (3) Rubber/plastic parts and
consumables such as blades, clutch and clutch-bell, sparkplugs, nylon line, air-filters, fuel-filters, oil
seals and gaskets etc. are not covered under the warranty. (4) Electrical Motor, Electrical Parts,
Battery Etc. are not covered under the warranty.
Incidental / Consequential Loss: KisanKraft Limited or its manufacturers will not be liable
for general damages, including bodily injuries, or for incidental or consequential damages including,

KisanKraft®
Page 26 of 28
Wide Range of Products for Every Need
For more information give MISSED CALL: 07676065555
Many of our products have BIS: ISI certification.
KisanKraft®
Warranty Certificate
(DEALER COPY)
: www.kisankraft.com
: [e-mail]
: +91.80. 22178200
Page 3 of 28
User Manual
KisanKraft Limited
Sri Huchhanna Tower, #4,1st Main,7-A Cross, Maruthi Layout, Dasarahalli,
HAF Post, Hebbal, Bangalore 560024,Karnataka, INDIA
♦Bangalore (HO) ♦ Ahmedabad ♦ Bhopal ♦ Bhubaneswar ♦ Coimbatore♦
Guwahati ♦Hubli ♦ Hyderabad ♦Nellore♦Jaipur ♦
Karnal ♦ Kolkata ♦ Lucknow ♦ Pune ♦ Raipur

KisanKraft®
Warranty Certificate
(DEALER COPY)
: www.kisankraft.com
: [e-mail]
: +91.80. 22178200
Page 4 of 28
CONTENTS
Before Getting Started........................................................................................... 7
Product Introduction ............................................................................................. 7
Performance characteristics.................................................................................. 7
Before start.......................................................................................................... 10
Safely shutdown procedure: ............................................................................. 12
Regular maintenance and long-term storage...................................................... 19
Technical Specification ........................................................................................ 23
Part Diagram........................................................................................................ 24
KisanKraft®
PRODUCT RANGE
Page 25 of 28
KisanKraft has a large range of products to serve the farmers. A list of our products is given
below:
Brush Cutters and Accessories
Brush Cutter/Power Weeder
Backpack Brush Cutter
Tea Pruner
Pole pruner with Engine
Reaper Attachment
Blades-Circular
Blades (2 &3 points)
Baffle
Nylon Rope
Tap & Go
Chainsaws
Petrol Chainsaw
Electric Chainsaw
Chain Sharpening Machine
Engines and Water Pumps
Engine –Diesel-(Horizontal)
Engine –Diesel(Vertical)
Engine-Kerosene
Water Pump with Petrol Engine
Water Pump with Kerosene Engine
Water Pump with Diesel Engine
Hand Tools
Secateurs
Folding Saw
Garden Rake
Garden Shovel
Hedge Shear
Lopper
Telescopic Hedge Shear
Telescopic Lopping Shear
Tree Pruner
Telescopic Steel Pipe & Fruit Picker Bag
Sheep Shear
Garden Tools
Electric Pressure Washer
Hedge Trimmer
Lawn Mower (Electric, Petrol & Manual)
Leaf Blower
Cultivators and Accessories
Petrol and Diesel
Sprayers and Accessories
BatterySprayer
Portable Power Sprayer
Trolley Sprayer
Manual Knapsack Sprayer
Manual Pressure Sprayer
Rose Cans
Hose Crimping Machine
HTP Sprayer
HTP Delivery Hose
HTP Hose Reel
HTP Stand
HTP Gun / Lance(Brass Rod
Knapsack Power Sprayer
Mister / Duster / GranuelSpreader
HTP Sprayer Set with Diesel Engine
HTP Sprayer Set with Kerosene Engine
Fogging Machine
Milking Machine
Wood Shredder
Fodder Ensiling Chaff Cutter
Fodder Grinder Chaff Cutter
Fodder Mini Chaff Cutter
Harvester
Maize Sheller
Maize Sheller + Dehusker
Maize Combine Harvester
Onion Digger Carlotti Italy
Tea Leaf Harvester
Sugarcane Combine Harvester
Sugarcane Leaf Stripper
Transplanter and Post Hole Digger
Paddy Transplanter (2 & 8 Rows)
Transplanter-Vegetable & Tobacco
Post Hole Digger(4” to 14”Augers)

KisanKraft®
PRODUCT RANGE
Page 24 of 28
Part Diagram
KK-STF-480/KK-STF-560
KisanKraft®
Warranty Certificate
(CUSTOMER COPY)
: www.kisankraft.com
: [e-mail]
: +91.80. 22178200
Page 5 of 28
Product
THERMAL FOGGING
SPRAYER
KisanKraft
Invoice Date
Brand
KisanKraft
KisanKraft
Invoice No.
Model
KK-STF-480 ,
KK-STF-560
WARRANTY
PERIOD
6MONTHS
FOR THE SPECIFIED PERIOD FROM THE DATE OF
SALE OR DELIVERY WHICHEVER IS EARLIER.
Dealer’s Invoice
Date
Dealer’s Invoice
No.
Buyer’s Info (Name, Address, Phone, etc.):
Dealer’s Stamp (Address, Phone, TIN, etc.):
Buyer’s Sign
Dealer’s Sign
Warranty Policy
What is covered: KisanKraft Limited and its manufacturers warrant this product to be free from
defects in material or workmanship. All parts defective in material and workmanship are covered.
This warranty will only cover defects arising under normal usage.
This warranty is limited to repair or replacement by KisanKraft Limited or its manufacturers of such parts
as appear to KisanKraft or its manufacturers, upon inspection, to be defective in material and/or
workmanship. KisanKraft or its manufacturers make no warranty with respect to items not manufactured
or sold by them. No onsite warranty is provided by KisanKraft Limited or its manufacturers. Defective
items must be brought/sent to our Authorized Dealer or KisanKraft Limited’s office for service.
What is not covered: The warranty shall become null and void and neither KisanKraft Limited nor
any of its manufacturers, nor its authorized dealers assumes any responsibility, if the failure was caused
by the following:
(1) Operation of product with incorrect fuel or lubricants, (2) Incorrect usage of machine or misuse, (3)
Lack of maintenance, (4) Negligence, (5) Accident or physical damage, (6) Repairs made by unauthorized
parties and/or with unauthorized parts, (7) Improper set up, adjustments, tampering or altered products
(8) Any modification to the product what-so-ever.
Important: (1) Normal maintenance and adjustments to the product is the responsibility of the customer.
(2) Normal wear and tear are not covered under warranty. (3) Rubber/plastic parts and consumables such
as blades, clutch and clutch-bell, sparkplugs, nylon line, air-filters, fuel-filters, oil seals and gaskets etc.
are not covered under the warranty. (4) Electrical Motor, Electrical Parts, Battery Etc. are not covered
under the warranty.
Incidental / Consequential Loss: KisanKraft Limited or its manufacturers will not be liable for
general damages, including bodily injuries, or for incidental or consequential damages including, but not

KisanKraft®
Warranty Certificate
(CUSTOMER COPY)
: www.kisankraft.com
: [e-mail]
: +91.80. 22178200
Page 6 of 28
limited to, loss of use, loss of profits, loss of production, expense of substitute equipment or other
commercial loss or damage.
Limitation of Liability: This limited warranty is in lieu of all other express warranties, obligations,
or liabilities. Any implied warranties, obligations or liabilities, including, but not limited to, any implied
warranty of merchantability shall be limited in duration to the applicable warranty period. Any action for
breach of any warranties hereunder, including, but not limited to, any implied warranty of
merchantability must be brought within the applicable warranty period.
Modifications of Warranty: No agent, representative, dealer, or employee of KisanKraft Limited
or any of its manufacturers has the authority to increase or alter the obligations of this warranty.
Assignment / Transfer of warranty: The warranty cannot be assigned and shall not transfer if
the product is resold by the first buyer. The above warranties are extended to the first end user (original
purchaser), and no warranty is made, nor authorized to be made assignable on resale by the first end
user.
What you must do to obtain limited warranty service: To obtain performance of any
obligation under this warranty for failure during the applicable warranty period, you must deliver the
defective product, to the nearest Authorized Dealer, along with proof-of-purchase (invoice/receipt).
KisanKraft Limited, its manufacturers and its dealers reserve the right to inspect the claimed defective
part(s) to determine if the malfunction is the result of a defect covered by this warranty. Please note that
the decision of KisanKraft Limited with respect to any warranty claim is final.
After-sales Service (Including Warranty): KisanKraft Limited does not sell directly to
consumers. All sales or supplies are made through Authorized Dealers. It is the responsibility of the
Authorized Dealer to provide all after-sales service to consumers. Any warranty claim should be raised by
dealer to KisanKraft Limited as per warranty policy.
Jurisdiction: All disputes are subject to Bangalore court’s jurisdiction.
Notes:
This purchase is not contingent upon a product demonstration. The purchaser shall satisfy himself
with the product, including any product demonstration or verification of any function, before buying.
KisanKraft Limited or its authorized dealers, including online sellers, shall not be liable to give any
on-site demonstration after purchase of any of the product.
Any product once used will not be taken back by KisanKraft Limited.
Warranty and After Sale Services (including but not limited to installation, Demonstration, Repair,
Routine Maintenance etc.), should be done through the Authorized Dealer selling this product.
Dealers should have their own technician to provide After Sales Services to their Customers.
KisanKraft Limited provides free training to Authorized Dealer’s technicians at KisanKraft Limited’s
head office, on request from Authorized Dealer.
KisanKraft®
THERMAL FOGGING SPRAYER
KK-STF-480 , KK-STF-560
Page 23 of 28
Gas defense mask 1pc
Oil filling funnel 1 pc
Carburetor diagram 2 pcs
Tool kit 1 set
Safety goggles 1 pc
Pesticide filling Funnel 1 pc
Sling 1 pc
Check valve 1 pcs
Earplug 1 pair
Technical Specification
Model
KK-STF-480
KK-STF-560
Outer Dimension
(mm)
1100mm*280mm*375mm
Fuel Used
Petrol
Operation Mode
Manual & Electric
Fuel Consumption
2.6 L/H
3.0 L/H
Net Weight (Kg)
11.5 Kg
8.5 Kg
Chemical Tank
Capacity (L)
8*2 L SS
Fuel Tank
2.0 L SS
2.5 L SS
Fogging Capacity
1.5 L/M
2.0 L/M
Battery
12V 2.6Ah

KisanKraft®
THERMAL FOGGING SPRAYER
KK-STF-480 , KK-STF-560
Page 22 of 28
depends when the diesel, pesticide and water mix together
The smoke produced by gasoline combustion is dangerous. Take care!

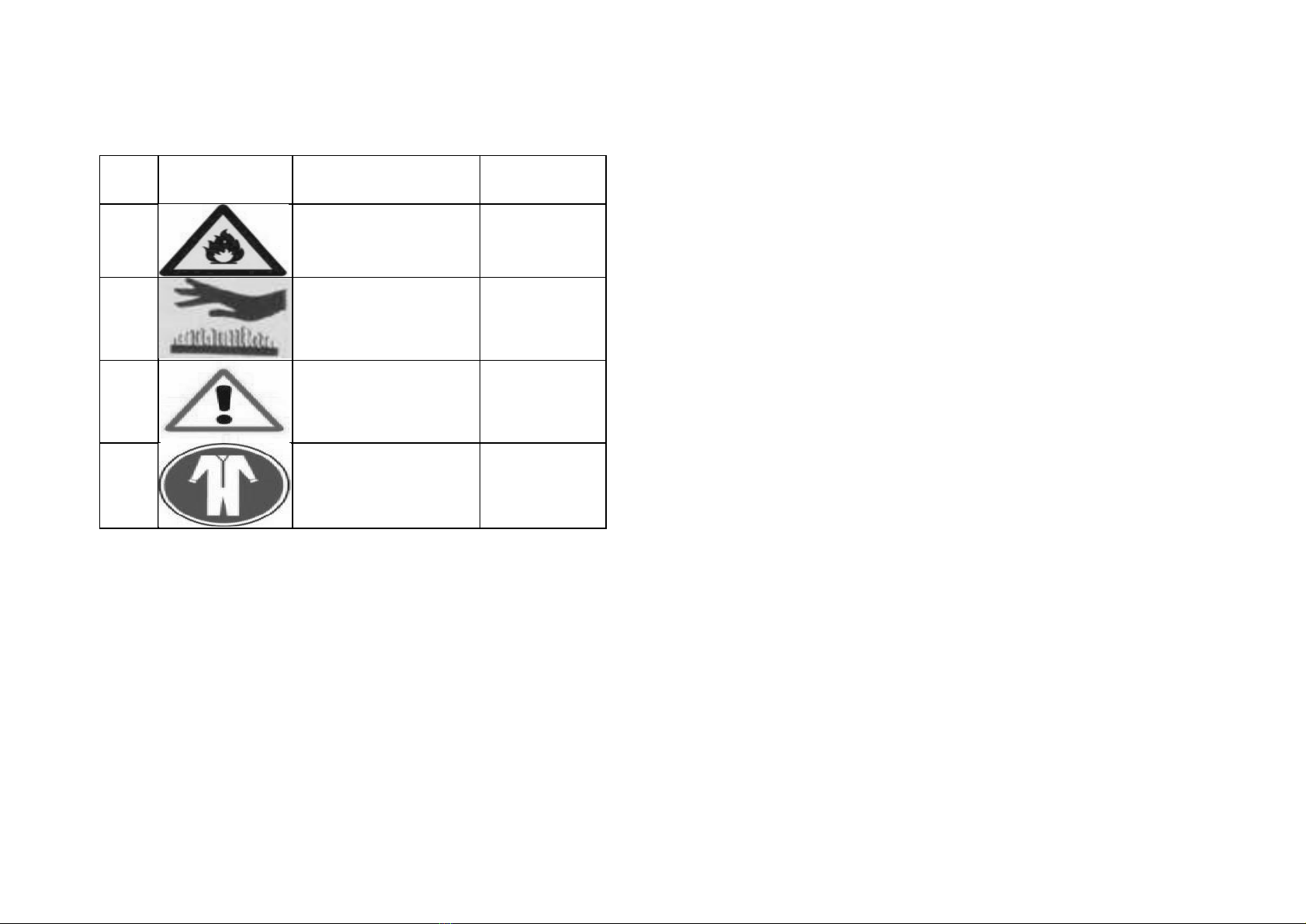

Safety signs are attached to parts such as the cover of oil tank, combustion chamber
and etc. The sign name and installing position is as the following:
Please operate the machine safely, take care to defense the gas and poison, fight the
fire, and prevent all operating accidents. Pay attention to it from the thought, and be
on the alert. Don’t be careless and ensure your personal safety.
Auxiliaries
Operating manual 1 pc
Electricity charger 1 pc
Carbon deposition cleaning bar 1 pc
No.
Si
gn
Contents
Installing position
1
Gasoline in tank, no
smoking or fire.
2
Burningdanger,anyparts of
yourbodyawayfromthe hot
source.
Cover of combustion
chamber
3
Fillthegasolineafter
machine stopped. No
spilling ofoil.
front wall of the
4
Wear protective clothes
Upperandfront
of thesolution
tank.
KisanKraft®
THERMAL FOGGING SPRAYER
KK-STF-480 , KK-STF-560
Page 7of 28
Before Getting Started
Thank you for your purchase and use of our products.In order to avoid accidents or injury, please
read this manual carefully before using the machine. After reading, preserve it for further
reference.
.Warning Protective measures must be done before spraying operation, wearing gloves,
masks and protective clothes etc. Violation of the provisions may result in danger and
personal injury, which is not the company’s responsibility
This machine is strictly prohibited to use strong corrosive drugs, such as; peroxide acetic
acid, chlorine dioxide and etc. when it is occasionallyused for above chemicals, themachine
must be cleaned with water immediately.
Tips; this product design aims to continuously improve and innovate, the contents of the
specification are subject to change without notice. The appearance of the product in this
manual is only for reference.
Product Introduction
Thank you very much for using fogging machine product by our company. It is a new product
independently researched and developed by the company, which is currently the world’s
most advanced product of its kind. It uses modernrocket technology, with maintenance free
pulse jet engine, without any rotating parts in the whole machine and no need for lubrication
system, whose character is simple structure, no waring between components, low failure
rate, long service life, easymaintenance, less fuel consumption, andhigh working efficiency.
It is an ideal high-tech product for pesticide spraying, epidemic prevention and disinfection.
Performance characteristics
The fogging machine can be widely used for pesticide spraying for crops, economic forest,
cotton, green house crops, sanitation and disinfection for warehouse, wharf, army camp,
city underground waterways, farms, passenger cars, residential areas and city.
Characteristics:
1. High working efficiency, high killing rate, large spraying range, strong penetration
and high safety factor.
2. All around working without power off, stable performance and reliable
3. High efficiency, pesticide-saving, low cost, good difusibility and high adhesion.
4. Light weight and easy operation.
Characteristics when the machine is used in forestry and fruit trees:
1. Drug-saving and less pollution: due to the small drug particle size and sufficient
effect, the pesticide and water usage is greatly reduced, which is good to be used

KisanKraft®
THERMAL FOGGING SPRAYER
KK-STF-480 , KK-STF-560
Page 8of 28
in the water shortage area such as the mountains, hills, plateau and etc.,
2. High insecticide efficiency: The special diffusion agent specially developed for
smoke and mist sprayer by the company has very good sterilizing effect, it has the
advantage of strong adhesion, good anti-rain erosion, weathering resistance and
large diffusion area etc. For example, it can be used for the fruit rot, canker, pear
scab, anthracnose, aphids’ mothand whitefly, Botrytis cinereal and downy mildew,
early blight, late blight, cotton bollworm, leafhopper, and red spider etc., and is
suitable for use with a variety of pesticides (foliar fertilizer, pesticides, sterilization
powder, and etc.)
3. To increase the temperature: in spring, when the crops is sprouting and flowering,
the spraying smoke can increase the surface temperature to prevent flower
freezing and increase the yield and income.
4. Large spraying area and long distance: the flat spray area is large, and the
spraying smoke can reach more than 50 meters far. With small particle size and
strong penetration, it is suitable for high stem and density plants such as tea
plantations, forest, fruit trees, the wheat in middle and later periods, cotton, maize,
and rice etc..
5. The city hygiene and disease control, sanitation and transportation: suitable for
hotels, parks,residential property, cityunderpass, garbagedump, toilet,container,
and warehouse etc. to kill the "four pests". It is also used for disinfection and
sterilization of vehicles, such as stations, docks, passenger ships, trains,
automobiles, aircraft, and etc.
Characteristics when it is used in greenhouse:
1. Saving time and effort: one 100-meter-long greenhouse can be sprayed in 10
minutes.
2. Quickly become effective: fine particles produced by the machine has strong
penetrating power, which can directly penetrate through the plant canopy,
insecticidal and bactericidal, without dead space.
3. With sustained effect and the temperature can be raised. The drug particles of 05-
10 microns stay long time (2-8 hours floating in the air) in greenhouse when
temperature is too low in winter, the greenhouse temperature can be increased.
Therefore, the machine can be used to improve the temperature of the
greenhouse (the flame sprayed by the machine can increase the air temperature)
.
4. To decrease the temperature and increase production and income: The water
consumption of the machine is very small, and the spraying of pesticides can be
done also in rainy days, which does not affect the growth of crops.
5. To save the drug with less residue: The fine drug particles atomized by the
machine spray very even, is the most ideal machinery to develop the green and
non-pollution vegetables in nowadays.
1, The machine is mainly composed of four parts: water circuit, electrical circuit,
gas circuit and oil circuit, including carburetor, engine and explosion tube, frame,
fuel tank, pesticide tank and pipeline.
KisanKraft®
THERMAL FOGGING SPRAYER
KK-STF-480 , KK-STF-560
Page 21 of 28
1. Spraying time: before sunrise and after sunset with no wind or with breeze.
2. Weather: air humidity between 30-80%, temperature below 35 °C (the lower
The temperature, the higher the humidity, the better the effect of spraying).
3. For crops lower than 5 meters, the pesticide can be blended with water for spraying
mist. Generally with pesticide/water ratio of 1:5 to 1:10, the solution with amount
equals to 150kg of water to be filled to the solution tank of 15-30kg, can complete
the spraying work of one acre of land, whose spraying and diffusing length can reach
more than 10 meters. (In case of more pests in the land, more solutions shall be
used and longer distance and more areas will becovered.).
B. (Diesel smoke spraying) formulating method on non-edible crops (the
following method is only for reference, as the case might be)
The spraying and diffusing length can reach 50 meters, with no wind or with breeze.
Blending order:
1. First mix the diesel diffusion agent with diesel and stir to uniform mixture, then add
water and pesticide. The mixture shall be fully dissolved before use. In mist spraying,
2.open the water valve to position of 1/3- 2/3, switch gear 1 and 2 uniformly to small
opening, until the spraying is even and no flameout happens.
Proportioning method :
1, Blend (diesel emulsifier or agricultural organosilicon) and diesel according to the
ratio of 1:15 (the total amount of diesel covers 10% - 20% of the oil tank capacity). The
mist concentration shall be regulated according to the water/diesel ratio. The pesticide
with amount of 10% oil tank capacity shall mix with water of 70% - 80% tank capacity,
stirred to uniform mixture and ready for use.
2. With diesel of 12-15 kg, pesticide of 5-6 kg, organosilicon of 200-300ml added to
the tank, the rest will be filled with water. The amount of organosilicon to be added

KisanKraft®
THERMAL FOGGING SPRAYER
KK-STF-480 , KK-STF-560
Page 20 of 28
(2) Clean the carbon deposition on various parts.
(3) Empty the oil and pesticide solution, clean
the solution tank and pipe with boiling water to
check if the pipe is blocked.
(4) Check the pipes and screws to see if there is
any loose or fallen off.
(5) Check the ignition system, to ensure the
cable and connections is good and ignition needle
works well.
4. Maintenance per 500 hours (according to the
machine running hours)
Dismantle the whole machine (except the
carburetor chamber) to clean and check, including
the wearing parts and sealing. If there is any parts
damaged or worn, it shall be repaired or replaced.
(b) Long term storage Empty the fuel tank.
1. Clean the gas intake diaphragm, and
reassemble them.
2. Clean the pesticide solution tank and pipe
with boiling water.
3. .Clean the carbon deposition on all various
parts, and recharge the battery.(Recharge
once every 4 months for a long time no use).
4. Clean every parts.
5. 5 .check each part, replace the damaged parts timely.
6. Store the machine in a ventilated and dry
warehouse.
A. Application on forestry and fruit trees (spraying mist):
KisanKraft®
THERMAL FOGGING SPRAYER
KK-STF-480 , KK-STF-560
Page 9of 28
2, working principle :
Fogging machine uses gasoline as fuel, when it is started, the high temperature
and high-pressure gas flow at high speed generated by the engine sprays from
the pulse nozzle. When the pesticide valves is opened, the pressure in the
pesticide tank presses the drug into the pipe to meet the high temperature and
high speed flow. At the moment of meeting, the drug solution is atomized into
smoke and jetted out from the nozzle, and quickly spread and diffuse. When the
object is exposed to the mist or smoke, it will be killed.
1. Working environment: temperature between -1 O°c degrees to 35°C, air
humidity 80% - 30%
2. Spraying amount: 20-120L/h.
3. Pesticide solution tank volume: 7L /15L 4, Fuel tank volume: 1.5L / 2.0L
4...The weight of the whole machine: 6.5-11.5Kg
5., Outline dimension (length, width and height): 960/1150*260*315 (mm) 7, 6.The
fuel to be used: gasoline (93# or above lead-free gasoline, not to add any lubricant
agent)
7. Fuel consumption: 1.2L/h & 3.0L/h
, Ignition power: 12V rechargeable batteries

KisanKraft®
THERMAL FOGGING SPRAYER
KK-STF-480 , KK-STF-560
Page 10 of 28
Before start
1) To ensure no onlookers or other animals nearby;
2) The machine is prohibited to face directly the human, animal and plant.
3) The machine shall be started in a flat space without flammable and explosive
materials within a radius of 2 meters from the nozzle.
4) The machine must be at least 3 meters away from the refueling site;
Preparation
1) Check andconfirm the battery is charged and the circuit is in good condition.
2) The fuel tank (recommend to fill 93# or above lead-free gasoline, which can
prevent the blockage of the carburetor) is not more than 80%full.
3) The pesticide solution tank is filled with the well mixed pesticide solution (the
cover must be tightened).
Start
2-1
, When the machine is used for the
first time, each of the oil bubble need to be
pressed 7-8 times until the oil bubble is filled
with 2/3 of the gasoline (Note: when the
machine is used again and there is oil in the oil
bubble and pipeline, skip this step directly to
the next step).
, Switch the electric switch to "ON" position, gently press oil bubble of 1# carburetor,
and long press the start button (Note: the start button need to be long pressed, not
intermittently) until the machine is started. Note: After spraying is completed, to
restart the machine, just press one oil bubble, and then press the start button gently
to start . Don' t press two oil bubbles or press one oil bubble many times when there
KisanKraft®
THERMAL FOGGING SPRAYER
KK-STF-480 , KK-STF-560
Page 19 of 28
Regular maintenance and long-term storage
(a) Regular maintenance
1. Daily maintenance (/shift)
(1) Clean up the oil and dust on the surface of the gasoline engine.
(2) Strict filtration before the oil or pesticide solution is filled, keep the filling
appliance clean, to prevent sundries into the fuel tank and the solution tank.
(3) For both oil and pesticide solutions, check whether the pipe connection leaks,
whether the pipe is open.
2. Maintenance per 50 hours (according to the machine running hours)
(1) Complete daily maintenance work.
(2) Clean oil tank.
(3) Clean the pesticide solution tank.
Clean the tank with boiling water: add 500ml-2000ml of boiling water tothe tank,
shake the tank emphatically and open the valve to empty the water into the
container. The cleaning water is handled according to the instructions of
pesticide manufacturer.
(4) Clean the carbon deposition on the nozzle, carburetor chamber and ignition
needle, and clean the inlet valve.
B e careful!
Please do not disassemble carburetor
chamber. For its maintenance, pleasecontact
professional service people. If there is problem
with it, please contact the dealer or service
network station.
3 Maintenance per 100 hours (according to the
machine running hours)
(1) complete the maintenance work per 50 hours;

KisanKraft®
THERMAL FOGGING SPRAYER
KK-STF-480 , KK-STF-560
Page 18 of 28
6-4 Mist or smoke too small or no mist
1, Check the solution tank cover is
tightened and the sealing ring inside the
cover does not fall off.
2. Check the check valve of the solution tank gas Inlet is not damaged. (Note: do not
install it in wrong way. the principle is: the gas goes into the solution tank from
the machine and not return back.)
3. Check if the pipeline and the solution inlet screw is blocked.
Note: if you have any other questions, please
contact the manufacturer
KisanKraft®
THERMAL FOGGING SPRAYER
KK-STF-480 , KK-STF-560
Page 11 of 28
is oil in two bubbles, otherwise the machine won' t be started due to too much oil
3-3. If the machine is not started, repeat step 3. When the machine is started, open the
solution valve to start spraying (water cooling type: first open water tank valve and
then open the solution tank valve. Both valves cannot fully open, only 1/3, Max. 1/2.).
Note: before the machine is started, both valves must be closed. Before turning off,
both valves must be closed .
3-4 Gas tube starting method:
A.Before the machine is started, press
the test power to check if there is squeak
sound of the ignition needle. When the
sound is normal, the machine can be
started .
b. To long press the test power with one
hand, to pull the gas tube from slow to fast
to inflate by the other hand, the sound of
machine starting can be heard after about
pulling 5-6 times. Don't release the test
power before the machine is started. Then
stop pulling, open the solution valve and
start to spray.

KisanKraft®
THERMAL FOGGING SPRAYER
KK-STF-480 , KK-STF-560
Page 12 of 28
Safely shutdown procedure :
After the work is completed, first close the solution valve, and then switch off gear
1 and 2. After power off, open one solution box cover to release the excessive gas in
the shortest time
5 . Notes in operation of the machine:
5-1. If the oil bubble is pressed too many times in
case there is oil in the bubble, which leads to
too much oil in the carburetor, you need to
bring the machine with the nozzle downwards
to poured out the extra petrol. Then the
machine can be started directly without
pressing the oil bubble.
5-2 In the shutdown, if the solution valve is
close usually the rrIaL;r111Ie is accidentally turned off, it will cause the solution return to
the machine, and the machine does not work. In this case, do not immediately start the
machine again, otherwise the machine will be damaged due to short circuit of the high-
voltage bag. Bring the machine with the nozzle downwards to pour out the extra petrol.
And then start the machine.
KisanKraft®
THERMAL FOGGING SPRAYER
KK-STF-480 , KK-STF-560
Page 17 of 28
6-2 No oil to the carburetor
1, Press the start button, at the same time gently continuously press the oil bubble, the
machine can be started
2. If step 1 is not successful, screw off the
bolt of oil / gas mixing ratio of gear 1 and 2,
Clean the bottom of the oil/gas mixing ratio.
Hole with carburetor cleaning agent. ...,....
Cleaning 5-6 times is enough. . After
cleaning the screw, tighten the screw,
which means rotate it two and a half
rounds counterclockwise. (Note: do not
tighten too much to break it)
6- 3, Machine sound and spraying mist not
stable. ..
When the mist or smoke is not stable,
Please adjust the oil/ gas mixing ratio
screw of carburetor counterclockwise, to
regulate it and make it stable.

KisanKraft®
THERMAL FOGGING SPRAYER
KK-STF-480 , KK-STF-560
Page 16 of 28
13.The operator must wear labor protection appliance according tothe following
requirements. (See Figure3):
A. he must wear working clothes: the work wear must beapplicable, which can not
interfere with the action. Do not wear skirts, coats, scarves, ties and jewelry; B.he
must wear protective gloves;
C. he must wear protective shoes;
D. he must wear a safety helmet;
E. he must wear a gas defensive mask;
F. He must wear ear protectors (especially when working for a long time).
14, when the machine works, nobody is allowed to enter the work area of danger.
15. The machine must be stopped before the operator leaves. It is not allowed to keep
the machine running with the operator left.
16. In the spraying process, the distance between the nozzle and crops shall be more
than 0.5 meters. The spraying in one direction to the crops shall not be longer than 3
seconds
17. The pesticide solution should be prepared for immediate consumption, don’t do it
in advance.
18. The treatment of pesticides should comply with the safety instructions provided
by the manufacturer.
19.The use of special working fluid is prohibited.
KisanKraft®
THERMAL FOGGING SPRAYER
KK-STF-480 , KK-STF-560
Page 13 of 28
5-3 When the outside temperature is too
Low,themachinewillpoweroffinstantaneously .................. ..._

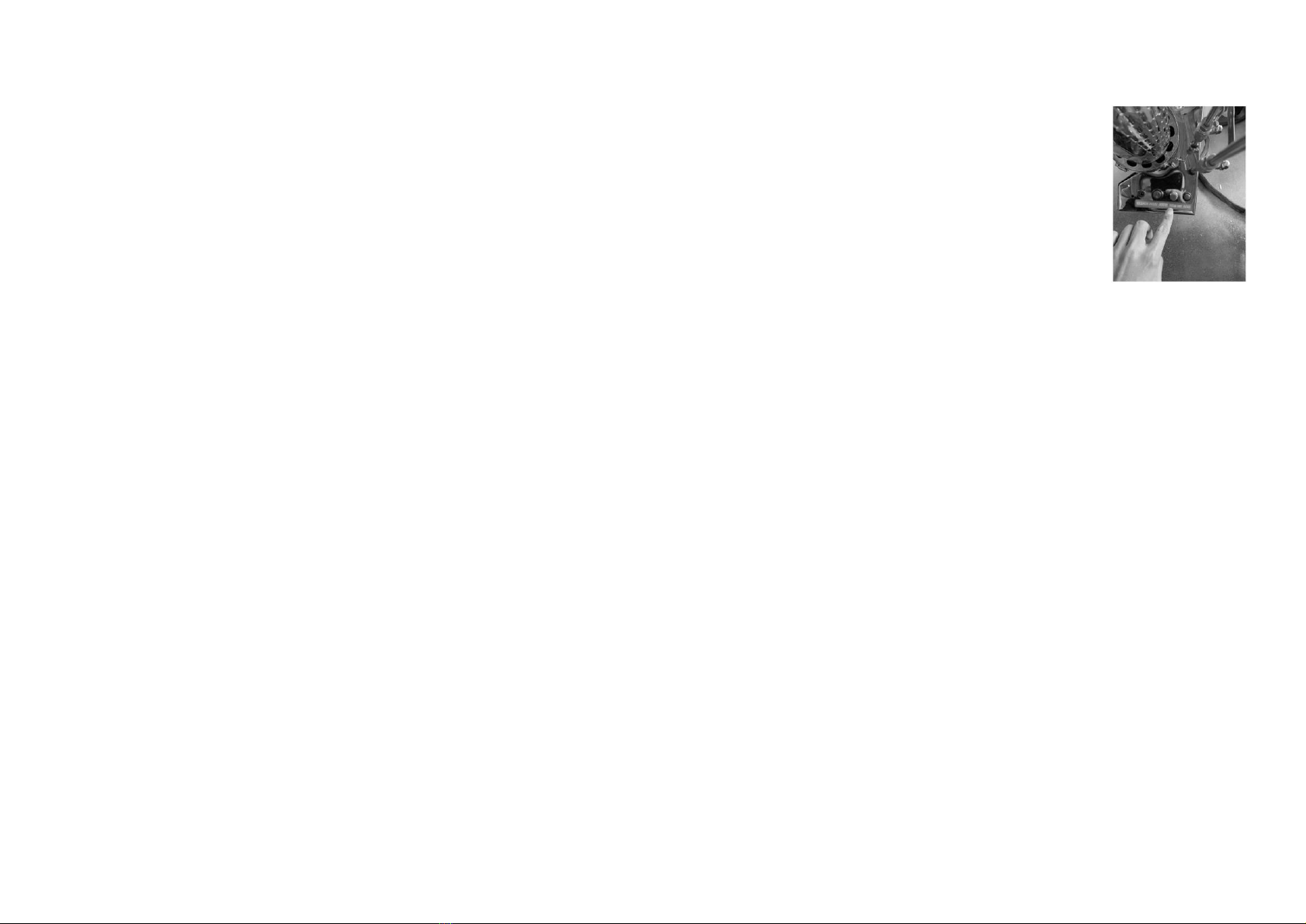

In this case, you need to long press the start. Button
after the machine is started, and open
The solution valve meanwhile until the machine works
normally.
6, Notes
1. 1.The machine isstrictly prohibited tobeusedin flammable and explosive places.
2. 2 The machine uses gasoline as fuel, attention should be paid to fire fighting.
Ignition and smoking is strictly prohibited near the machine.
3. It is strictly prohibited to open the carburetor to check igniter ignition.
4. The oil tank cover should be tightened after the oil is filled, the leakage of fuel
should be cleaned, and the machine should be started far away from the
refueling site.
5. It is prohibited to fill or dump the oil when the machine is in operation or just
stopped.
6. In operation, the high temperature parts cannot touch people or animals, to
avoid accidental injury, see figure 2. Forcibly cooling with water after the
machine is stopped is strictly prohibited, which can seriously damage the
machine.
7. For the health of operators, when working inthe field, the operator should
stand in the uptake of the nozzle to operate, and should not walk along the
direction of the wind. When working indoors, the operator should spray from
the inside to the outside. When the operator comes to the door, he stops the
machine, and closes the door after coming out from the room to ensure the
personal safety and effective killing of the insect or virus.
8. It is prohibited to use electric arc or acetylene welding method for welding

KisanKraft®
THERMAL FOGGING SPRAYER
KK-STF-480 , KK-STF-560
Page 14 of 28
or cutting on the machine with pesticides or gasoline residues. When the oil
tank or pesticide solution tank leaks, please contact the dealer or professional
after-sales service personnel to handle.
9. When the residual pesticides or washing liquid of the pesticide tank is
handled, please follow the safety instructions provided by the pesticides
manufacturer.
10. After the machine completes its work, please close the pesticide solution
valve and then turn off the engine, or do both actions at the same time; if
the engine unexpectedly flameout, please close the valve quickly.
11. Empty the fuel inside the oil tank and carburetor before the machine is
stored. For products of electrical series, the pesticide tank and pump shall
be cleaned with clean water, and the machine shall be cleaned also, then
place the machine in ventilated place away from fire. For long time storing,
the machine should be charged every 30 days and each time for 5 hours.
12. The machine should be placed in a place away from children, to avoid
accidents.
13. The operator must wear labor protection appliance according tothe following
requirements. (See Figure3):
A. He must wear working clothes: the work wear must beapplicable, which can not
interfere with the action. Do not wear skirts, coats, scarves, ties and jewelry; he
must wear protective gloves.
B. He must wear protective shoes.
C. He must wear a safety helmet.
D. He must wear a gas defensive mask.
E. The must wear ear protectors (especially when working for a long time).
KisanKraft®
THERMAL FOGGING SPRAYER
KK-STF-480 , KK-STF-560
Page 15 of 28
14. When the machine works, nobody is allowed to enter the work area of danger.
15. The machine must be stopped before the operator leaves. It is not allowed to keep
the machine running with the operator left.
16. In the spraying process, the distance between the nozzle and crops shall be more
than 0.5 meters. The spraying in one direction to the crops shall not be longer than 3
seconds
17. The pesticide solution should be prepared for immediate consumption, don’t do it
in advance.
18. The treatment of pesticides should comply with the safety instructions provided
by the manufacturer.
19 The use of special working fluid is prohibited.
8. It is prohibited to use electric arc or acetylene welding method for welding or
cutting on the machine with pesticides or gasoline residues. When the oil tank or
pesticide solution tank leaks, please contact the dealer or professional after-sales
service personnel to handle.
9 When the residual pesticides or washing liquid of the pesticide tank is handled,
please follow the safety instructions provided by the pesticides manufacturer.
10, After the machine completes its work, please close the pesticide solution valve and
then turn off the engine, or do both actions at the same time; if the engine
unexpectedly flameout, please close the valve quickly.
11, Empty the fuel inside the oil tank and carburetor before the machine is stored. For
products of electrical series, the pesticide tank and pump shall be cleaned with clean
water, and the machine shall be cleaned also, then place the machine in ventilated
place away from fire. For long time storing, the machine should be charged every 30
days and each time for 5 hours.
12 The machine should be placed in a place away from children, to avoid accidents.
