Kitchen Couture C201-20D5 User manual

Induction Cooker
C201-20D5
INSTRUCTION MANUAL
To avoid the risk of accidents or damage to the induction cooker, it is essential to read
these operating instructions before it is used for the first time. Please keep this manual
for later reference.

Dear Customer
Please read these operating instructions carefully. Above all, please observe the
“safety” section on the first few pages. Please retain these operating instructions for
later reference. Pass them on to any subsequent owners of the appliance.
SA ETY
The safety aspects of this appliance comply with accepted technical standards and
AA tandards. However, as the manufacturer we also believe it is our responsibility
to familiarize you with the following safety instructions
1.Remove and safely discard any packaging material and promotional labels before
using this appliance for the first time.
2. To eliminate a choking hazard for young children, remove and safely discard the
protective cover fitted over the pins of the power plug when unpacking this appliance
for the first time.
3. Do not place the appliance near the edge of a bench top, counter or table during
operation. Ensure that the surface is level, clean and free of water and other
substances.
4. Do not place this appliance on a hot gas or electric burner, or where it could touch a
heated oven.
5. Never place combustible items on the induction cooker.
6.Always operate this appliance on a dry, stable and heat resistant surface.
7.Position the induction cooker clear of walls ,and other heat sensitive materials such
as clothes and curtains. Minimum of 200mm distance.
8.Do not use this appliance on a sink drain board.
9.Do not leave the appliance unattended when in use.
10.If the appliance is not in use for an extended period, disconnect the appliance from
the power outlet.
11. Use only cooking saucepans and pots suitable for use with an Induction Cooker.
12. Extreme caution must be used when the appliance is in use with an induction safe
cooking saucepan. Do not move the appliance during cooking or while a saucepan
remains on the Induction Cooker.
13.Do not operate the appliance in the vicinity of magnetically sensitive objects (eg
magnetic cards).
14.The outer surface will be hot when the appliance is operating and for some time
after use.
15.Do not place metallic utensils, non-compatible induction cookware, lids, knives,
forks, spoons or other metallic objects on the Induction Cooker glass plate, as these
may be heated and become hot when the appliance is switched on.
16. Do not insert sharp objects into the ventilation system.
17. To avoid overheating , do not place any aluminium foil or metal plates on the
appliance.
18. Do not touch the hot surface of the glass plate. The induction cooker does not heat
up itself during cooking, but the temperature of the cookware heats up the glass plate.
19. Do not heat any opened or unopened cans on the Induction Cooker.
20.Always switch the on/off switch to the off position, switch the appliance off at the
power outlet, then unplug the power cord and cool completely, if appliance is not in
use, before cleaning, before attempting to move the appliance, and when storing the

appliance.
Important Safeguards
Fully unwind the cord before use. To protect against electric shock, do not immerse
the cord, plug or appliance in water or any other liquid.
Do not allow the cord to hang over the edge of a table or bench, touch hot surfaces or
become knotted.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or appropriate instructions concerning the use of the
appliance by a person responsible for their safety. Children should be supervised to
ensure that they do not play with the appliance.
It is recommended to regularly inspect the appliance. Do not use the appliance if the
power supply cord, plug or appliance becomes damaged in any way, it must be
replaced by the manufacturer or authorized service center in order to avoid any
hazard.
Any maintenance other than cleaning should be performed by professional electrician.
This appliance is for household use only. Do not use in moving vehicles or boats. Do
not use outdoors. Do not use this appliance for anything other than its intended use.
Misuse may cause injury. Do not use harsh abrasives, caustic cleaners or oven
cleaners when cleaning this appliance. The installation of a residual current device
(safety switch) is recommended to provide
Additional safety protection when using electrical appliances. It is advisable that a
safety switch with a rated residual operating current not exceeding 30mA be installed
in the electrical circuit supplying the appliance. Please contact your electrician for
professional advice.
INDUCTION COOKER WORKING PICTURE
The induction cooker works on the principle of a coil of copper wire placed
underneath the cooking pot. An alternating electric current flows through the coil,
which produces an oscillating magnetic field. This field induces an electric current in
the pot. Current flowing in the metal pot produces resistive heating which heats the
food.
SELECTING COOKWARE OR INDUCTION COOKING
In order for the induction cooker to work the cooking vessel must be made of a
ferromagnetic metal. ome of the popular cooking vessels made of ferromagnetic
metal are: stainless steel, iron or cast iron pots, casseroles and fry-pans.
Cookware made of non-metal materials like glass, porcelain, etc. or metals without

ferromagnetic properties like aluminum are not suitable for induction cooking.

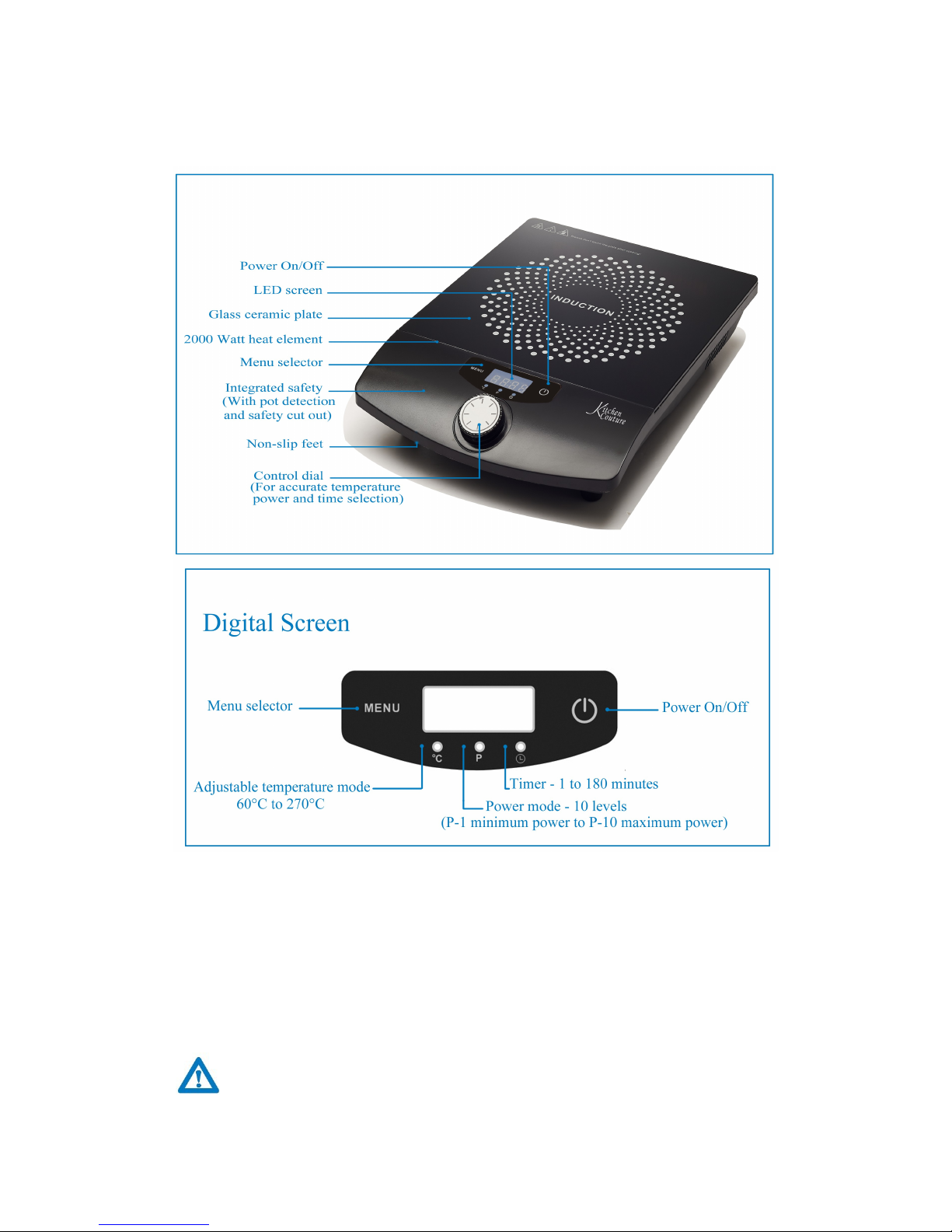

KNOW YOUR INDUCTION COOKER
OPERATING YOUR INDUCTION COOKER
BE ORE IRST USE
Before using your induction cooker become familiar with all the parts.
1. Place the Induction Cooker on a dry, level work surface.
2. Position an induction compatible saucepan/pot in the centre of the circular design
on the crystal black plate surface, ensure liquid or food is inside the saucepan/pot.
3. Insert the power plug into a 220V-240V power outlet and switch power outlet ‘On’
ENSURE THE SAUCEPAN/POT IS POSITIONED IN THE CENTRE O THE
CIRCULAR DESIGN ON THE CRYSTAL BLACK PLATE SUR ACE.
.NEVER USE THE SAUCEPAN/POT WHEN EMPTY, ENSURE LIQUID
OR OOD IS INSIDE THE SAUCEPAN/POT.

4. The LED screen will initially display (88:88),a sound will beep and the appliance
will be activated and start in a standby mode by flashing (----) symbol.
5. Press the power on/off button once. A beep will sound.
6. By default, the Induction Cooker will automatically set to the power level mode P
at 1600W. The induction cooker is now heating at this power level and is ready to use.
7.A fan will run continuously during the heating process.
INDUCTION COOKING CRYSTAL BLACK PLATE SUR ACE IS HOT
A TER COOKING,DO NOT TOUCH.
The Induction Cooker offers two heating options the Power level mode or the
Adjustable temperature mode. Each of these heating options can be combined with a
Timer mode. Heating options and Timer mode can be selected by simply pressing the
Menu button A beep will sound every time Menu button is pressed.
POWER LEVEL MODE
1. When power level mode is selected, a corresponding indicator light will illuminate
on the LED screen, adjacent to the power icon. A beep will sound every time Menu
button is pressed.
2. The Induction Cooker will initially be set to P to be 1600W by default. The LED
screen will show 1600W.
3. elect the desired power levels using the control dial turn dial clockwise to increase
power and anti-clockwise to decrease power. The power levels are adjustable on a
scale from P-1 minimum power to P-10 maximum power. A beep will sound each
time power level is changed.
4. The Induction Cooker will then begin heating. Be careful as temperature is reached
a lot faster than traditional cooking methods.
5. In this power level mode, it is also possible to set the cooking time with the Timer
mode. Refer to timer mode details.
6. When cooking is complete, press the power on/off button once to the standby
mode. A beep will sound. witch ‘Off’ at the power outlet and unplug the power cord.
The power level mode can be adjusted at any time during the cooking process by
adjusting the control dial. NOTE
°C ADJU TABLE TEMPERATURE MODE
1. When temperature mode is selected, a corresponding indicator light will illuminate
on the LED screen, adjacent to the temperature °C icon. A beep will sound every time
Menu button is pressed.
2. The Induction Cooker will initially set to 240°C by default. The LED screen will
flash 240°C.
3. elect the desired temperature using the control dial, turn dial clockwise to increase
temperature and anti-clockwise to decrease temperature. The temperature is adjustable
on a scale from 60°C to 270°C. A beep will sound each time temperature is changed.
4. The Induction Cooker will then begin heating. In this adjustable temperature °C
mode, it is also possible to set the cooking time with the timer mode. Refer to the
timer mode details.
5.When cooking is complete, press the power on/off button once to standby

mode. A beep will sound. witch ‘off’ at the power outlet and unplug the power cord.
Temperature can be adjusted at any time during the cooking process, and the
Induction Cooker temperatures can be lowered or increased on a scale of 60°C to
270°C NOTE
TIMER MODE
1. Power level and/or Adjustable temperature mode must be selected prior to setting
the Timer mode.
2. To select the Timer mode, press the mode button once, a corresponding indicator
light will illuminate on the LED screen adjacent to the timer mode icon. A beep will
sound.
3. elect the desired Time using the Control dial. Turn dial clockwise to increase time
and anti-clockwise to decrease time. The time is adjustable on a scale from 1 minute
to 180 minutes. A beep will sound each time the timing is changed.
4. During the selection period, the LED screen will continue to flash, when the
desired time has been selected, the LED screen will cease flashing after
approximately 5 seconds and display selected time.
Turning the control dial slowly increases or decreases the timing by 1 minute
increments, allowing for accurate selection. A beep will sound each time the time is
changed. Turning the control dial very quickly clockwise increases timing by 10
minute increments, anticlockwise decreases increments by 10 minute increments in fast
motion selection. NOTE
5. The timer count down then commences and when the selected time has lapsed, a
beep will sound and the Induction Cooker will automatically switch to stand-by mode.
The Timer mode does not need to be set to use the Power level mode or Adjustable
temperature mode. To readjust power level and temperature during cooking with timer
mode, the function of a pre-set timer will be cancelled.
CLEANING ,MAINTENANCE AND STORAGE
BEFORE ATTEMPTING ANY CLEANING - FIR T EN URE THAT THE PLUG
I REMOVED FROM THE MAIN OCKET. DO NOT IMMER E THI
APPLIANCE IN WATER. DO NOT U E HAR H ABRA IVE CLEAN ER .
All the surfaces may be cleaned simply by wiping over with a soft, damp cloth. For
hard stains, we recommend using a non-scratch cream cleanser.
Use a soft brush to clean the air inlet and outlet. Do not use any sharp objects to clean
the outets in order to avoid electric shock or damaging the appliance.
DO NOT IMMER E THE INDUCTION COOKER OR POWER CORD AND
POWER PLUG IN WATER OR ANY OTHER LIQUID.
TO PREVENT DAMAGE TO THE APPLIANCE DO NOT U E ALKALINE
CLEANING AGENT WHEN CLEANING, U E A OFT CLOTH AND MILD
DETERGENT.
STORAGE
Before storage, press the power on/off button once. A beep will sound. witch off
at the power outlet and unplug power cord from the power outlet. Ensure the
appliance is completely cooled, clean and dry. tore the appliance flat on the bench or
in a convenient cupboard. Do not place anything on top of the appliance during

storage.
TROUBLESHOOTING GUIDE
Malfunctions Alarming
condition eatures Recovering Recover state CODE
Reminder to
put pot
NO Pot Buzzer sounds
every 4 seconds,
the screen shows
“E0”
Put an
appropriate pot
OFF/Work EO
High
temperature of
IGBT
Radiator
of IGBT
reaches
105°C
The induction
cooker stop
heating
IGBT start
heating when
temperature
lower than 80°C
Back to the
working
state
High voltage Voltage is
over 275V
Buzzer sounds
every 4 seconds,
the screen shows
E2,
Voltage recover
to normal
OFF/Back to
the original
state before
malfunction
E2
Low voltage Voltage is
lower than
88V
Buzzer sounds
every 4 seconds,
the screen show
E1
Voltage recover
to normal
OFF/Back to
the original
state before
malfunction
E1
IGBT sensor
being off
current
∞ or 0 Buzzer sounds
every 4 seconds,
and the screen
shows E4,
Power OFF and
recover from
abnormal
situation
OFF E4
The Panel’s
sensor of the
induction
cooker being
off current
∞ or 0 Buzzer sounds
every 4 seconds,
and the screen
shows E3,
Power OFF and
recover from
abnormal
situation
OFF E3
High
temperature of
the panel or
dry burn
The
temperatur
e of
surface is
higher set
range
Buzzer sounds
every 4 seconds,
and the screen
shows E5
The temperature
of induction
cooker is lower
than 300°C
OFF E5
TECHNICAL SPECI ICATION
Model: C201-20D5
Cooking technology: Induction
Firepower: 2000W MAX
Power: 220-230V, ~50Hz, 2000W
