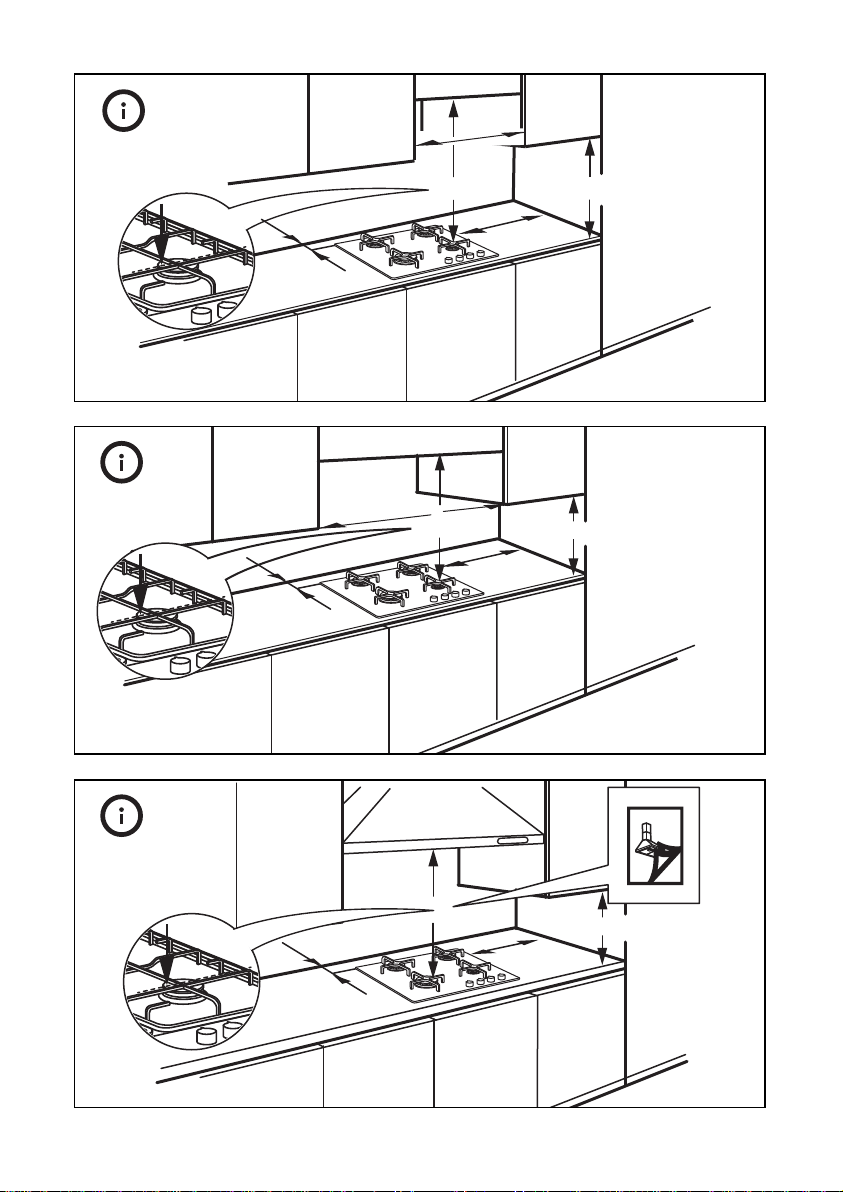

9
Min. 5 cm
Min. 40 cm
Min. 10 cm
L
Min. 52 cm
Min. 10 cm
Min. 60 cm
Max 68 cm
Min. 5 cm
Min. 75 cm
Min. 10 cm
Min. 40 cm
> 68 cm
Min. 5 cm
Min. 75 cm

5
Before using the appliance, read
these safety instructions. Keep
them nearby for future reference.
These instructions and the
appliance itself provide important
safety warnings, to be observed
at all times. The manufacturer
declines any liability for failure to
observe these safety instructions,
for inappropriate use of the
appliance or incorrect setting of
controls.
These instructions are valid if
the country symbol appears on the
appliance. If the symbol doesn’t
appear on the appliance, it is
necessary to refer to the technical
instructions which will provide the
necessary instructions concerning
modication of the appliance
to the conditions of use of the
country.
CAUTION: The use of the
gas cooking appliance results in
the production of heat, moisture
and products of combustion in
the room in which it is installed.
Ensure that the kitchen is well
ventilated especially when the
appliance is in use: keep natural
Safety Information
Table of contents
ventilation holes open or install
a mechanical ventilation device
(mechanical extractor hood).
Prolonged intensive use of the
appliance may call for additional
ventilation, for example opening
of the window, or more effective
ventilation,increasing the level
of mechanical ventilation where
present.
WARNING!: The appliance
and its accessible parts become
hot during use. Care should be
taken to avoid touching heating
elements. Children less than 8
years of age must be kept away
unless continuously supervised.
WARNING!: If the hob surface
is cracked, don’t use the appliance
– risk of electrical shock.
WARNING!: Danger of re :
Do not store items on the cooking
surfaces.
CAUTION: The cooking process
has to be supervised.
A short cooking process has to be
supervised continuously.
WARNING!:Unattended
cooking on a hob with fat or oil
Safety Information 5
Product description 11
Daily use 11
Helpful hints and tips 12
Maintenance and cleaning 12
What to do if ... 13
Injector table 14
Technical data 15
Installation 15
Environmental concerns 20
Manufacturer 20
IKEA GUARANTEE 21
GB
ENGLISH

ENGLISH 6
can be dangerous – risk of re.
NEVER try to extinguish a re with
water, but switch off the appliance
and then cover ame e.g. with a
lid or a re blanket.
Do not use the hob as a work
surface or support.
Keep clothes or other ammable
materials away from the
appliance, until all the components
have cooled down completely –
risk of re.
If the information in this manual
is not followed exactly, a re or
explosion , may result causing
property damage or injury.
Very young children (0-3 years)
should be kept away from the
appliance. Young children (3-8
years) should be kept away from
the appliance unless continuously
supervised. Children from 8 years
old and above and persons
with reduced physical, sensory
or mental capabilities or lack of
experience and knowledge can
use this appliance only if they
are supervised or have been
given instructions on safe use and
understand the hazards involved.
Children must not play with the
appliance. Cleaning and user
maintenance must not be carried
out by children without supervision.
CAUTION: In case of hotplate
glass breakage:- shut immediately
off all burners and any electrical
heating element and isolate the
appliance from the power supply;
- do not touch the appliance
surface; -do not use the appliance.
The glass lid can break in if it
is heated up. Turn off all the
burners and the electric plates
before closing the lid. Do not
shout down lid when burner
alight.
PERMITTED USE
CAUTION: the appliance is not
intended to be operated by means
of an external switching device,
such as a timer, or separate remote
controlled system.
This appliance is intended
to be used in household and
similar applications such as: staff
kitchen areas in shops, ofces
and other working environments;
farm houses; by clients in hotels,
motels, bed & breakfast and other
residential environments.
No other use is permitted (e.g.
heating rooms).
This appliance is not for
professional use. Do not use the
appliance outdoors.
Use pots and pans with
bottoms the same width as that of
the burners or slightly larger (see
specic table). Make sure pots on
the grates do not protrude beyond
the edge of the hob.
Improper use of the grids can
result in damage to the hob: do
not position the grids upside down

ENGLISH 7
or slide them across the hob.
Do not let the burner ame extend
beyond the edge of the pan.
Do not use : Cast iron griddles,
ollar stones, terracotta pots and
pans.
Heat diffusers such as metal mesh,
or any other types. Two burners
simultaneously for one receptacle
(e.g. Fish kettle).
Should particular local conditions
of the delivered gas make the
ignition of burner difcult, it is
advisable to repeat the operation
with the knob turned to small ame
setting.
In case of installation of a hood
above the cooktop, please refer
to the hood instructions for the
correct distance.
The protective rubber feet on the
grids represent a chocking hazard
for young children. After removing
the grids, please ensure that all the
feet are correctly tted.
INSTALLATION
The appliance must be
handled and installed by two or
more persons - risk of injury. Use
protective gloves to unpack and
install - risk of cuts.
Installation, including water
supply (if any) and electrical
connections, and repairs must
be carried out by a qualied
technician. Do not repair or
replace any part of the appliance
unless specically stated in the
user manual. Keep children away
from the installation site. After
unpacking the appliance, make
sure that it has not been damaged
during transport. In the event of
problems, contact the dealer or
your nearest Aftersales Service.
Once installed, packaging waste
(plastic, styrofoam parts etc.)
must be stored out of reach of
children - risk of suffocation. The
appliance must be disconnected
from the power supply before
any installation operation - risk of
electrical shock. During installation,
make sure the appliance does not
damage the power cable - risk
of re or electrical shock. Only
activate the appliance when the
installation has been completed.
The electrical and gas
connections must comply
with local regulation.
WARNING!: Modication of
the appliance and its method of
installation are essential in order
to use the appliance safely and
correctly in all the additional
countries.
Use pressure regulators
suitable for the gas pressure
indicated in the instruction.
The room must be equipped
with an air extraction system that
expels any combustion fumes.
The room must also allow
proper air circulation, as air is

ENGLISH 8
needed for combustion to occur
normally.
The ow of air must not be less
than 2 m3/h per kW of installed
power.
The air circulation system
may take air directly from the
outside by means of a pipe with
an inner cross section of at least
100 cm2; the opening must not
be vulnerable to any type of
blockages.
The system can also provide
the air needed for combustion
indirectly, i.e. from adjacent rooms
tted with air circulation tubes as
described above. However, these
rooms must not be communal
rooms, bedrooms or rooms that
may present a re hazard.
Liquid petroleum gas sinks to
the oor as it is heavier than air.
Therefore, rooms containing LPG
cylinders must also be equipped
with vents to allow gas to escape
in the event of a leak. As a result
LPG cylinders, whether partially
or completely full, must not be
installed or stored in rooms or
storage areas that are below
ground level (cellars, etc.). It is
advisable to keep only the cylinder
being used in the room, positioned
so that it is not subject to heat
produced by external sources
(ovens, replaces, stoves, etc. )
which could raise the temperature
of the cylinder above 50°C.
Carry out all cabinet cutting
works before tting the appliance
in the furniture and remove all
wood chips and sawdust.
If the appliance is Not installed
above an oven, a separator panel
(not included) must be installed
in the compartment under the
appliance.
Should you experience difculty in
turning the burners knobs, please
contact After Sales Service for
replacement of the burner tap if
found to be faulty.
The openings used for the
ventilation and dispersion of heat
must never be covered.
GAS CONNECTION
WARNING!: Prior to
installation, ensure that the local
distribution conditions (nature of
gas and gas pressure) and the
adjustment of the appliance are
compatible.
Check that the pressure
of the gas supply is consistent
with the values indicated in
Table 1 (“Burner and nozzle
specications”).
WARNING!: The adjustment
conditions for this appliance are
stated on the label (or data plate).
WARNING!: This appliance
is not connected to a combustion
products evacuation device. It
shall be installed and connected
in accordance with current

ENGLISH 9
installation regulations. Particular
attention shall be given to the
relevant requirements regarding
ventilation.
If the appliances is connected
to liquid gas, the regulation screw
must be fastened as tightly as
possible.
IMPORTANT: When gas
cylinder is adopted, the gas
cylinder or gas container must
be properly settled (vertical
orientation).
WARNING!: This operation
must be performed by a qualied
technician.
Use only exible or rigid metal
hose for gas connection.
Connection with a rigid pipe
(copper or steel) Connection to
the gas system must be carried
out in such a way as not to
place any strain of any kind
on the appliance. There is an
adjustable L-shaped pipe tting
on the appliance supply ramp
and this is tted with a seal in
order to prevent leaks. The seal
must always be replaced after
rotating the pipe tting (the seal
is provided with the appliance).
The gas supply pipe tting is a
threaded 1/2 gas cylindrical male
attachment.
Connecting a exible jointless
stainless steel pipe to a threaded
attachment The gas supply pipe
tting is a threaded 1/2 gas
cylindrical male attachment.
These pipes must be installed so
that they are never longer than
2000 mm when fully extended.
Once connection has been
carried out, make sure that the
exible metal pipe does not
touch any moving parts and is
not compressed. Only use pipes
and seals that comply with current
National regulations.
IMPORTANT: If a stainless steel
hose is used, it must be installed
so as not touch any mobile part of
the furniture (e.g. drawer). It must
pass through an area where there
are no obstructions and where it
is possible to inspect it on all its
length.
The appliance should be
connected to the main gas supply
or to gas cylinder in compliance
with the current National
regulations. Before carry out the
connection, make sure that the
appliance is compatible with the
gas supply you wish to use. If this is
not the case, follow the instructions
indicated in the paragraph
“Adapting to different types of
gas”.
After connection to the gas
supply, check for leaks with soapy
water. Light up the burners and
turn the knobs from max position
1* to minimum position 2* to check
ame stability.

ENGLISH 10
ADAPTING TO DIFFERENT TYPES
OF GAS
In order to adapt the
appliance to a type of gas other
than the type for which it was
manufactured (indicated on the
rating label), follow the dedicated
steps provided after installation
drawings.
ELECTRICAL WARNINGS
IMPORTANT: The data
relevant to the voltage an power
absorptions are indicated on the
rating plate.
The power cable must be long
enough to connect the appliance,
once tted in its housing, to the
main power supply. Do not pull the
power supply cable.
It must be possible to
disconnect the appliance from the
power supply by unplugging it if
plug is accessible, or by a multi-
pole switch installed upstream of
the socket in accordance with the
wiring rules and the appliance
must be earthed in conformity
with national electrical safety
standards.
Do not use extension leads,
multiple sockets or adapters.
The electrical components must
not be accessible to the user
after installation. Do not use the
appliance when you are wet or
barefoot. Do not operate this
appliance if it has a damaged
power cable or plug, if it is not
working properly, or if it has been
damaged or dropped.
If the supply cord is damaged,
it must be replaced with an
identical one by the manufacturer,
its service agent or similarly
qualied persons in order to avoid
a hazard - risk of electrical shock.
