Kitchen HQ KHQ GR 45632 User manual

120V~60Hz 1500W (12.5A)
KHQ GR 45632
SMOKELESS GRILL

2
KHQ GR 45632 – 180330

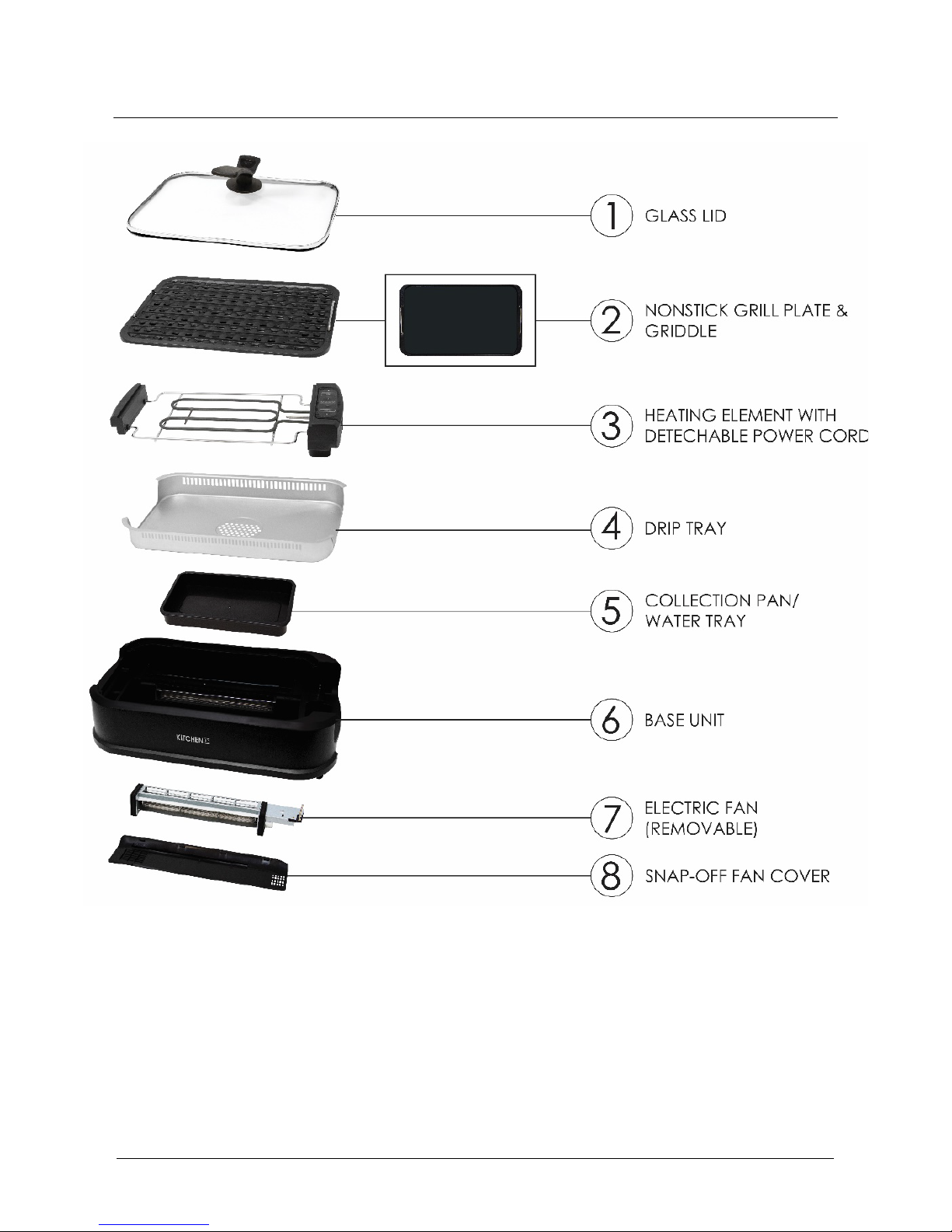

PARTS & ACCESSORIES

3
KHQ GR 45632 – 180330
LID HANDLE ASSEMBLY
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should
always be followed, including the following:
1. READ ALL INSTRUCTIONS BEFORE USE.
2. Never immerse the main unit housing, which contains electrical
components and heating elements, in water. Do not rinse under the tap.
3. To avoid electrical shock, do not put liquid of any kind into the main unit
housing containing the electrical components.
4. This appliance has a three-prong plug. This plug is intended to fit into a
polarized outlet only one way. Do not attempt to modify the plug in any
way.
5. Make sure the appliance is plugged into a wall socket.
6. While cooking, the internal temperature of the appliance reaches several
hundred degrees Fahrenheit. To avoid personal injury, never place hands
inside the appliance unless it is thoroughly cooled.
7. This appliance is not intended for use by persons with reduced physical,
sensory, or mental capabilities or a lack of experience and knowledge

4
KHQ GR 45632 – 180330
unless they are under the supervision of a responsible person or have been
given proper instruction in using the appliance. This appliance is not
intended for use by children.
8. When cooking, do not place the appliance against a wall or against other
appliances. Leave at least 5 inches free space on the back, sides and
above the smokeless grill. Do not place anything on top of the appliance.
9. Do not use this appliance if the plug, the power cable, or the appliance
itself is damaged in any way.
10. If the power cord is damaged, you must have it replaced by the
manufacturer, its service agent, or a similarly qualified person in order to
avoid hazard.
11. Do not place the appliance on stove top surfaces.
12. Do not use outdoors.
13. Keep the appliance and its power cable out of the reach of children when
it is in operation or in the cooling process.
14. Keep the power cord away from hot surfaces. Do not plug in the power
cable or operate the appliance controls with wet hands.
15. Never connect this appliance to an external timer switch or separate
remote-control system.
16. Do not operate the appliance on or near combustible materials, such as
tablecloths and curtains.
17. Do not use the smokeless grill for any purpose other than described in this
manual.
18. Never leave the appliance unattended while operating.
19. WEAR OVEN MITTS when handling hot components or touching hot
surfaces.
20. Should the appliance emit black smoke, UNPLUG IMMEDIATELY and wait for
smoking to stop before removing oven contents.
21. Always operate the appliance on a horizontal surface that is level, stable,
and noncombustible.
22. This appliance is intended for normal household use only. It is not intended
for use in commercial or retail environments.
23. If the Smokeless Grill is used improperly or for professional or
semiprofessional purposes or if it is not used according to the instructions in
the user manual, the warranty becomes invalid and the manufacturer will
not be held liable for damages.
24. Always unplug the appliance after use.
25. Let the appliance cool for approximately 30 mins. before handling,
cleaning, or storing.
26. The glass lid and handle get very hot. Always use oven mitts.
NOTE: This unit has been designed and engineered to reduce the
smoke and visible vapors usually associated with grilling to a minimum.
Delivers outdoor results indoors.

5
KHQ GR 45632 – 180330
SAVE THESE INSTRUCTIONS
HOUSEHOLD USE ONLY
3-PRONG PLUG INSTRUCTIONS
For your personal safety, this appliance must be grounded. This
appliance is equipped with a power supply cord having a 3-prong
grounding plug. To minimize possible shock hazard, the cord must be
plugged into a mating 3-prong, grounding type wall receptacle,
grounded in accordance with the National Electrical Code ANSI/NFPA
70 latest edition and all local codes and ordinances. If a mating wall
receptacle is not available, it is the personal responsibility and
obligation of the customer to have a properly grounded, 3-prong, wall
receptacle installed by a qualified electrician. Do not attempt to modify
the plug in any way.
SHORT CORD INSTRUCTIONS
A short power supply cord is provided to reduce the hazards resulting
from becoming entangled in, or tripping over a longer cord.
KNOW YOUR SMOKELESS GRILL
Grill your favorite foods without any smoke with your new Smokeless
Grill. Functioning as a traditional grill but designed with a built-in fan
and a silicone-sealed lid, this unit reduces smoke and visible vapors
usually associated with grilling to a minimum. The non-stick coated grill
and griddle quickly heat up to a maximum temperature of 460°F, while
the removable drip tray collects excess grease for healthier grilling. The
removable parts allow for easy cleaning: simply place the grill plate,
drip tray, collection plate or glass lid in the dishwasher!

6
KHQ GR 45632 – 180330
USING THE CONTROL PANEL
1. Plug the power cord into an outlet. Blue LED Light (A) will blink on
and off and one audible tone/beep is heard.
2. Select Power Button (B), and LED (A) will continue to blink until a
temperature selection is made.
3. Select Fan Button (C). Fan will run and blue Fan LED (D) will light up
and one audible tone/beep is heard.
NOTE: Fan should be kept running throughout the grilling process to
prevent grease build up.
4. Use Temperature buttons + and - (E) to adjust cooking temperature
from 180°F to 460°F.
NOTE: You may raise or lower the cooking temperature at any time
during the cooking process. To keep food warm, set the
temperature between 220°F and 250°F.

7
KHQ GR 45632 – 180330
5. Once the temperature is reached, the LED light below the Power
button becomes a solid red.
6. When you are finished grilling, press the Power and Fan Buttons to
shut down the Unit. Unplug the Power Cord and allow unit to cool
fully before disassembling for cleaning.
BEFORE THE FIRST USE
•Remove all packing materials, labels stickers and literature.
•Wipe the appliance with a damp cloth. Make sure to clean the grill
plate and/or griddle, drip tray, and the collection pan/water tray
before use (see “Cleaning and Maintenance”).
•Do not wash or submerge heating element, electric fan, or
appliance base in water or any other liquid.
•It is recommended to heat the grill for about 10 minutes without
anything on its surfaces. This helps to eliminate any grease that may
have adhered during manufacturing and to eliminate the "new"
appliance smell.
•Ventilate the room during this period. When your grill is heated for
the first time, it may emit slight smoke or odor. This is normal with
many heating appliances. This does not affect the safety of your
appliance.

8
KHQ GR 45632 – 180330
OPERATING INSTRUCTIONS
1. Place the appliance on a stable, heat-resistant surface. Keep away
from flammable objects.
2. Assemble the unit. Refer to the Parts & Accessories section to see
the order of the items as they are assembled.
3. When choosing grill plate or griddle plate, make sure to only select
one plate or the other. Grill and griddle cannot be stacked during
use.
4. Add about 2 cups water to the collection pan.
5. Ensure that the drip tray is slid into the base of the appliance.
6. Leave ample air space on all sides of the appliance to facilitate air
flow.
7. Plug the power cord into a dedicated outlet.
8. If you are starting with a cold grill, you may preheat the grill using a
medium or high heat setting for 4–6 mins.
9. Prepare and season your food according to your favorite recipe.
You may spray or wipe the grill plate’s cooking surface with cooking
oil.
10. Select the cooking temperature using the +and -buttons, add the
food, put the lid in place, and grill to your personal taste. Turn the
food as needed.
Note: Cooking with the lid on the smokeless grill is recommended
because it maintains the cooking temperature, seals in flavor, and
prevents splatter.
11. When done grilling, switch off the appliance by turning the knob
and remove the plug from the wall outlet.
Caution! Never immerse or wash heating element, electric fan or base
in water or any other liquids.
Caution! The glass lid and handle get very hot. Always handle hot
components with oven mitts while cooking.
Caution! Wait for all components to cool thoroughly after use before
disassembling.

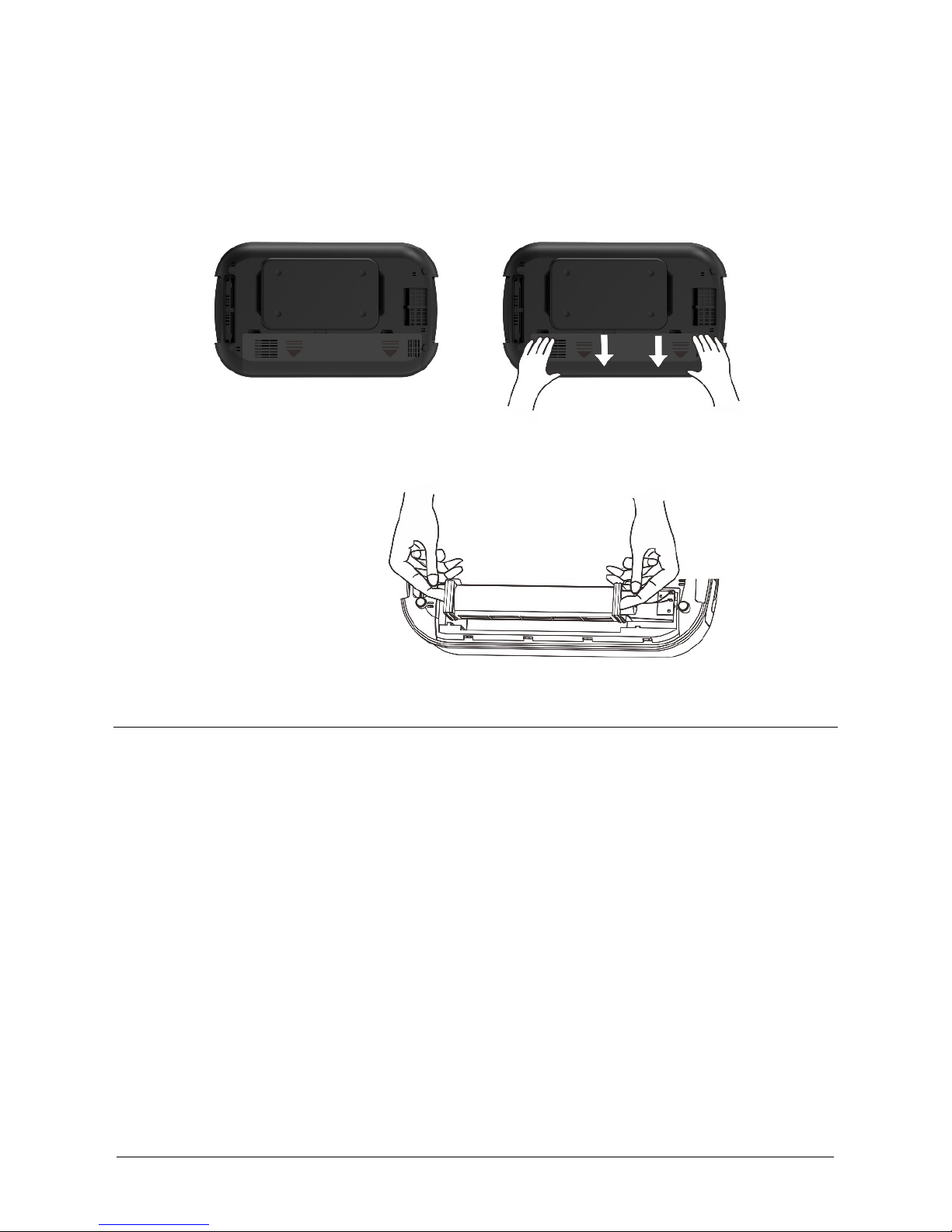

REMOVING THE ELECTRIC FAN:
When you are thoroughly cleaning the base unit with water and
detergents, always remove the electric fan. Turn over the base unit,
slide and remove the fan cover by pulling away from the base. Lift the

9
KHQ GR 45632 – 180330
fan out of the base unit slowly and disconnect the two-prong
connection into the base of the smokeless grill. When returning the fan
to the base, make sure to insert the two-prong connection into the
receptacle.
CAUTION: Unplug appliance before removing fan.
TIPS FOR USE
Electric Power
If the electrical circuit is overloaded with other appliances, your new
Unit may not operate properly. This Unit should be operated on a
dedicated electrical circuit.
Shut-Off
You can manually shut off the appliance by pressing the Power Button
at any time during cooking.
Electromagnetic Fields
This appliance complies with all standards regarding electromagnetic
fields. If handled properly and according to the instructions in this user
manual, the appliance is safe to use.

10
KHQ GR 45632 – 180330
•Be careful not to transfer germs from raw meat to cooked meat.
Use separate utensils and platters for raw and cooked meat.
•Always marinade in a tightly covered nonmetal dish and turn the
food occasionally. Be sure to refrigerate all meats while marinating.
•If leftover wet marinade is to be used as a sauce with the cooked
food, be sure to place it in a small pan and heat to a rolling boil
before serving to eliminate bacterial growth.
•Similar to a stove top frying pan, grease from high-fat foods, such as
bacon or sausage, may splatter on the countertop. Protect the
countertop as necessary.
•Before grilling, partially cook bone-in chicken, ribs, and uncooked
smoked or fresh sausages for best results. If not partially cooked,
these meats may become overbrowned on the outside before the
center is done.
•To prevent scratching the coating, use only nonmetallic utensils. Do
not cut food on the grill plate using sharp utensils, such as forks or
knives, that can scratch the cooking surface.
•Do not use steel wool or other metal pads. They could leave coarse
scratches. Always rinse thoroughly and dry immediately with a soft
towel.

11
KHQ GR 45632 – 180330
GRILLING SUGGESTIONS
The table below shows some food that can be cooked on the grill
along with suggested cooking times for each. Keep in mind that grilling
times may vary depending on the type of food used, its size, thickness
and current temperature, as well as personal preference.
Food
Time
Vegetables
8 -15 min.
Corn on the Cob
14 -16 mins.
Vegetable Kebab
5 -15 mins.
Meat Kebab
16 -18 mins.
Hot Dogs
12 -16 mins.
Sausages
16 -18 mins.
Shrimp
12 -14 mins.
Fish Fillet
12 -18 mins.
Whole Fish
15 -16 mins.
Chicken
22 - 26 mins.
Pork (Bone-in)
14 -16 mins.
Pork (Boneless)
12 -15 mins.
Beef (Bone-in)
12 -16 mins.
Beef (Boneless)
8 -15 mins.
Caution: Consuming raw or undercooked meats, poultry, seafood,
shellfish or eggs may increase your risk of foodborne illness.
TIPS
•Thaw food prior to grilling. For best results, do not attempt to grill
frozen food and make sure any meat prepared is not too thick
(approx. 0.5 in. / 1.5cm). This helps to keep the meat juicy.
•Tender meat is best suited for grilling. Meat will be more tender if
marinated overnight.
•When basting food with marinade, use only a little oil and brush the
marinade lightly onto the food to avoid excess smoke.
•Sausages tend to burst when grilled. To prevent this, cut the skin a
few times lengthwise.
•When preparing kebabs, soak bamboo or wooden skewers in water
to prevent them from getting scorched during grilling. Do not use
metal skewers.

12
KHQ GR 45632 – 180330
CLEANING AND MAINTENANCE
CAUTION! Wait for all components to cool thoroughly after use before
disassembling. Always handle hot components with oven mitts while
cooking or hot.
•Before cleaning, be sure to unplug the cord from the outlet. If
necessary, wipe the cord with a damp cloth.
•Allow the appliance to cool completely before cleaning. The grill
plate, griddle, drip tray, collection pan, and glass lid can be
placed in the bottom rack of the dishwasher or washed by hand.
The base unit can be cleaned by hand with a warm, damp cloth
and mild liquid soap. For more thorough cleaning of the base unit,
remove the electric fan.
•Always be sure to wash the smokeless grill surface after each use to
remove any grease that may have accumulated. To keep grease
from dripping outside of the base, always ensure that you are using
your smokeless grill on a level surface and that the drip tray is
completely clear of food particles.
•Use a damp cloth to clean the base. Do not use scouring pads or
harsh cleaners on this unit. If necessary, use a nylon bristle brush or
plastic scrubbing pad.
•If necessary, clean the glass sides with a cloth or paper towel using
a vinegar solution (4-parts water, 1-part vinegar). Stubborn, caked-
on food residue can be removed using a ceramic scraper on the
glass surface.
•Reassemble the appliance.
NOTE: Any other servicing should be performed by an authorized
service representative.

13
KHQ GR 45632 – 180330
TROUBLESHOOTING
If your appliance is not working properly:
Problem
Possible cause
Solution
Appliance is not
turning on.
•There is no power
going into the
appliance
•Make sure the power cord is
properly connected to the
heating element.
•Make sure the power cord is
plugged into an electrical
socket.
Appliance is not
heating
•Temperature might
be set too low
•Make sure you have set the
temperature higher than
120°F.
Appliance is
taking too long
to heat or not
heating enough.
•The appliance
may not be able
to draw enough
operating power
from the outlet.
•Switch the power cord to an
outlet that has no other
appliances attached to it.
Food is
undercooked or
overcooked
•Temperature and
time setting may
need to be
adjusted
•Change the cooking time
and temperature
accordingly.
Electric fan is not
working
•Assembly may not
be fully connected
•Disassemble the appliance
and reattach the fan
component. Follow
instructions in the removing
the electric fan section.

14
KHQ GR 45632 – 180330
WARRANTY
This product is warranted for 1 year from the date of purchase against defects
in material and workmanship. This warranty is not transferable. Keep the original
sales receipt. Proof of purchase is required to obtain warranty performance.
During this period, the product that, upon inspection by an authorized service,
is proved defective, will be repaired or replaced, at our option, without charge
to the customer. If a replacement product is sent, it will carry the remaining
warranty of the original product.
This warranty does not apply to any defect arising from a buyer's or user's
misuse of the product, negligence, failure to follow instructions noted in the
user’s manual, use on current or voltage other than that stamped on the
product, wear and tear, alteration or repair not authorized by the
manufacturer, or use for commercial purposes. There is no warranty for glass
parts, glass containers, filter basket, blades and agitators, and accessories in
general. There is also no warranty for parts lost by the user.
ANY WARRANTY OF MERCHANTABILITY OR FITNESS WITH RESPECT TO THIS
PRODUCT IS ALSO LIMITED TOTHE ONE YEAR LIMITED WARRANTY PERIOD.
Some states do not allow limitation on how long an implied warranty lasts or do
not allow the exclusion of incidental or consequential damages, so the above
limitations may not apply to you. This warranty gives you specific legal rights,
and you may also have other rights which vary from state to state.
If the appliance should become defective within the warranty period and
more than 30 days after date of purchase, do not return the appliance to
where you purchased it from: often, our Consumer Service Representatives can
help solve the problem without having the product serviced. If servicing is
needed, a representative can confirm whether the product is under warranty
and direct you to the nearest service location.
If this is the case, bring the product (or send it, postage prepaid), along with
proof of purchase and indicating a return authorization number indicated by
our Consumer Service Representatives, to the nearest authorized Service
Centre. (Please call our Customer Service Department for the address of the
nearest authorized Service Centre or email: [email protected]).
If you send the product, please include a letter explaining the nature of the
claimed defect.

15
KHQ GR 45632 – 180330
If you have additional questions, please call our Consumer Service Department
(please see below for complete contact information), Monday through Friday
from 9:00am - 6:00pm (EST). Please note hours are subject to change.
If you would like to write, please send your letter to:
Team International Group of America Inc
1400 N.W 159th Street, Suite 102
Miami Gardens, FL 33169 USA
Or call (toll free from the USA): +1 888-KALORIK
Or email: [e-mail]
Only letters can be accepted at this address above. Shipments and packages
that do not have a return authorization number will be refused.
