KitchenAid KBAL181T Product information sheet

OUTDOOR ACCESS DOORS
Installation Instructions and Use & Care Guide
For questions about features, operation/performance, parts, accessories or service, call: 1-800-422-1230
or visit our website at www.kitchenaid.com
In Canada, call for assistance, installation and service, call: 1-800-807-6777
or visit our website at www.KitchenAid.ca
PORTES D'ACCÈS D’EXTÉRIEUR
Instructions d’installation et Guide d’utilisation et d’entretien
Au Canada, pour assistance, installation ou service composez le 1-800-807-6777 ou visitez notre site Web à...
www.KitchenAid.ca
Table of Contents/Table des matières.............................................................................2
Models/Modèles KBAU272T KBAU302T KBAU362T KBAU482T KBAL181T KBAR181T
W10118096A

2
TABLE OF CONTENTS
OUTDOOR ACCESS DOORS SAFETY.........................................2
INSTALLATION REQUIREMENTS................................................3
Tools and Parts ............................................................................3
Product Dimensions.....................................................................3
Cabinet Cutout Dimensions.........................................................4
INSTALLATION INSTRUCTIONS..................................................4
ACCESS DOORS CARE.................................................................4
General Cleaning..........................................................................4
ASSISTANCE OR SERVICE...........................................................5
In the U.S.A. .................................................................................5
In Canada .....................................................................................5
WARRANTY ....................................................................................6
TABLE DES MATIÈRES
SÉCURITÉ DES PORTES D'ACCÈS D'EXTÉRIEUR....................7
EXIGENCES D'INSTALLATION.....................................................8
Outillage et pièces........................................................................8
Dimensions du produit.................................................................8
Dimensions du placard ................................................................9
INSTRUCTIONS D’INSTALLATION...............................................9
ENTRETIEN DES PORTES D'ACCÈS...........................................9
Nettoyage général ........................................................................9
ASSISTANCE OU SERVICE.........................................................10
GARANTIE ....................................................................................10
OUTDOOR ACCESS DOORS SAFETY
You can be killed or seriously injured if you don't immediately
You can be killed or seriously injured if you don't follow
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
follow instructions.
instructions.
DANGER
WARNING

3
INSTALLATION REQUIREMENTS
Tools and Parts
Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.
Tools Needed
■Tape measure
■Phillips screwdriver
■Level
Parts Needed
■Screws (quantity and type to be determined by the
requirements of the cabinet material)

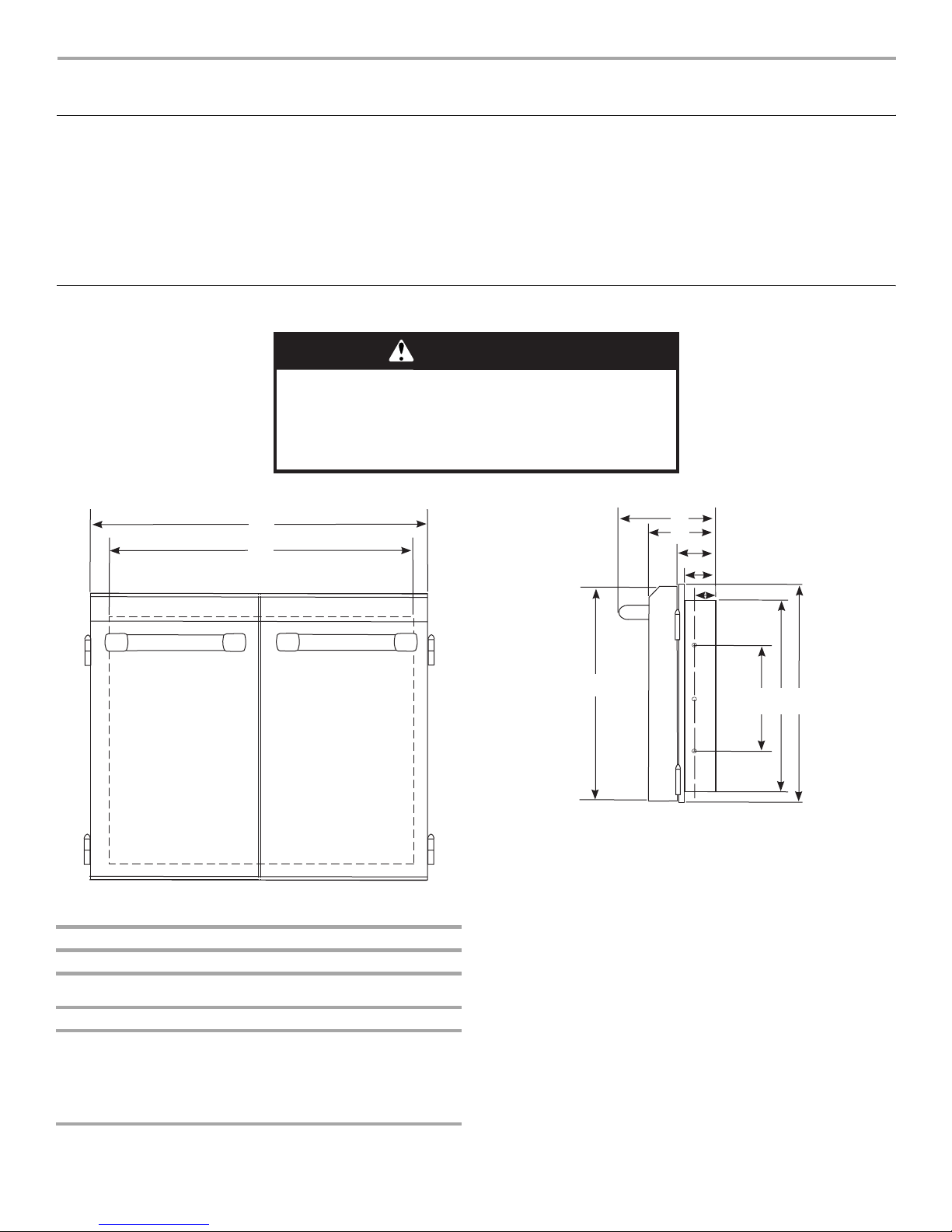

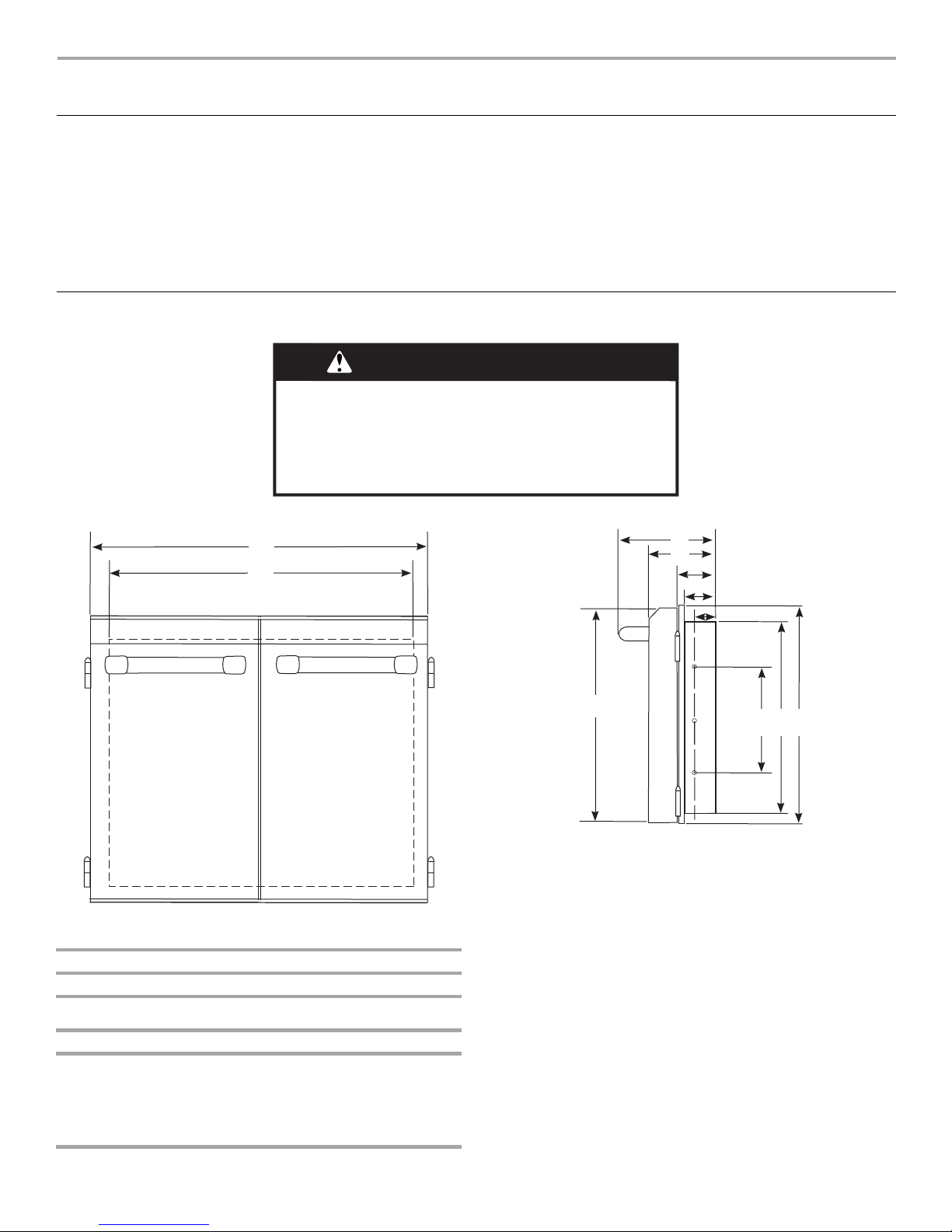

Product Dimensions
Single Access Door
Double Access Doors
WARNING
Excessive Weight Hazard
Use two or more people to move and install
access doors.
Failure to do so can result in back or other injury.
A B (Mounting Frame)
18" (45.7 cm) 15¾" (39.9 cm)
A B (Mounting Frame)
27" (68.5 cm) 24¹³⁄₁₆" (63 cm)
30" (76.2 cm) 27¹³⁄₁₆" (70.7 cm)
36" (91.4 cm) 33¹³⁄₁₆" (85.9 cm)
48" (121.9 cm) 45¹³⁄₁₆" (116.4 cm)
B
A
A. 7⁵⁄₈" (19.4 cm)
B. 4³⁄₈" (11.3 cm)
C. 2" (5.1 cm)
D. 1⁵⁄₈" (4 cm)
E. 1" (2.5 cm)
F. 22⁵⁄₈" (57.4 cm)
G. 20³⁄₈" (51.6 cm)
H. 13³⁄₈" (34 cm)
I. 22³⁄₈" (56.7 cm)
C
D
E
IF
G
H
B
A

4

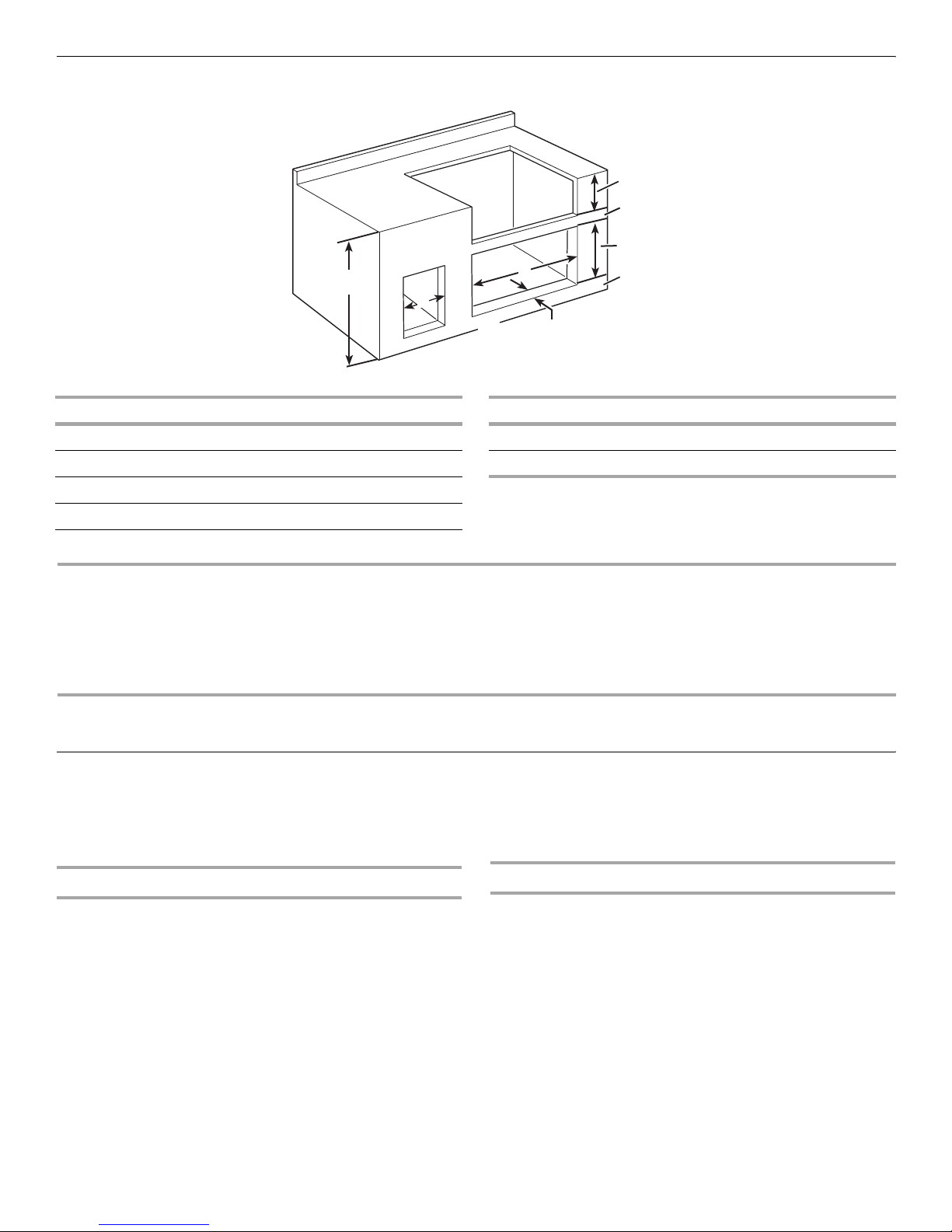

Cabinet Cutout Dimensions
INSTALLATION INSTRUCTIONS
1. Remove access doors from mounting frame by lifting each
door up and off the mounting frame hinge.
2. Install mounting frame flush to the face of the cabinet cutout.
Make sure the mounting frame is level.
3. Install screws (not supplied) into holes located on the
mounting frame.
4. Replace access doors by placing each door back on the
mounting frame hinges.
ACCESS DOORS CARE
General Cleaning
IMPORTANT: Always follow label instructions on cleaning
products.
Soap, water and a soft cloth or sponge are suggested first unless
otherwise noted.
STAINLESS STEEL
Cleaning Method:
Rub in direction of grain to avoid damage.
■Food spills should be cleaned as soon as possible. Spills may
cause permanent discoloration. Use stainless steel cleaner
and polish to clean spills.
KitchenAid®Stainless Steel Cleaner and Polish Part Number
4396920 (not included) or KitchenAid®Stainless Steel Wipes
Part Number 8212510 (not included):
See “Assistance or Service” section to order.
■Liquid detergent or all-purpose cleaner:
Rinse with clean water and dry with soft, lint-free cloth.
■Vinegar for hard water spots
■Use a glass cleaner to remove fingerprints.
To avoid damage to stainless steel surfaces, do not use soap-
filled scouring pads, abrasive cleaners, cleaners containing
chlorine, Cooktop Polishing Creme, steel-wool pads, gritty
washcloths or some paper towels.
EXTERIOR and INTERIOR
The quality of this material resists most stains and pitting,
providing that the surface is kept clean, covered and polished.
Cleaning Method:
■Apply stainless steel polish to all areas before first use.
Apply after each cleaning to avoid damage.
■Cleaning should always be followed by rinsing with clean,
warm water.
■Use a metal polish or stainless steel brightener to remove
fingerprints, water spots, oxidation, and food stains. Always
follow the manufacturer’s directions.
■Wipe the surface completely dry with a soft cloth.
35½"
(90.2 cm)
10 ¾"
(27.3 cm)
1¹⁄₂"
(3.8 cm)
20 ⁵⁄₈"
(52.5 cm)
2 ⁵⁄₈"
(6.8 cm)
1¹⁄₂" (2.9 cm) min around
opening for mounting
optional doors or drawers
A
B
A
Double Access Doors Cutout Width
27" (68.6 cm) 25¹⁄₈" (64.1 cm)
30" (76.2 cm) 28¹⁄₈" (71.1 cm)
36" (91.4 cm) 34¹⁄₈" (87.0 cm)
48" (121.9 cm) 46¹⁄₈" (117.4 cm)
B
Single Access Door Cutout Width
18" (45.7 cm) 16³⁄₁₆" (41.1 cm)

5
ASSISTANCE OR SERVICE
Before calling for assistance or service, please check
“Troubleshooting.” It may save you the cost of a service call. If
you still need help, follow the instructions below.
When calling, please know the purchase date and the complete
model and serial number of your appliance. This information will
help us to better respond to your request.
If you need replacement parts
If you need to order replacement parts, we recommend that you
use only factory specified parts. These factory specified parts will
fit right and work right because they are made with the same
precision used to build every new KITCHENAID®appliance.
To locate factory specified parts in your area, call us or your
nearest KitchenAid designated service center.
In the U.S.A.
Call the KitchenAid Customer eXperience Center toll free:
1-800-422-1230.
Our consultants provide assistance with:
■Features and specifications on our full line of appliances.
■Installation information.
■Use and maintenance procedures.
■Accessory and repair parts sales.
■Specialized customer assistance (Spanish speaking, hearing
impaired, limited vision, etc.).
■Referrals to local dealers, repair parts distributors and service
companies. KitchenAid designated service technicians are
trained to fulfill the product warranty and provide after-
warranty service, anywhere in the United States.
To locate the KitchenAid designated service company in your
area, you can also look in your telephone directory Yellow
Pages.
For further assistance
If you need further assistance, you can write to KitchenAid with
any questions or concerns at:
KitchenAid Brand Home Appliances
Customer eXperience Center
553 Benson Road
Benton Harbor, MI 49022-2692
Please include a daytime phone number in your correspondence.
In Canada
Call the KitchenAid Canada Customer Interaction Centre toll free:
1-800-807-6777.
Our consultants provide assistance with:
■Features and specifications on our full line of appliances.
■Use and maintenance procedures.
■Accessory and repair parts sales.
■Referrals to local dealers, repair parts distributors and service
companies. KitchenAid Canada designated service
technicians are trained to fulfill the product warranty and
provide after-warranty service, anywhere in Canada.
For further assistance
If you need further assistance, you can write to KitchenAid
Canada with any questions or concerns at:
Customer Interaction Centre
KitchenAid Canada
1901 Minnesota Court
Mississauga, Ontario L5N 3A7
Please include a daytime phone number in your correspondence.
