KitchenAid KBHS109B User manual

Kitchen_kid _
BUILT-IN CONVECTION MICROWAVE OVEN
For questions about features, operation/performance, parts, accessories or service, call: 1-800-422-1230
or visit our website at www.kitchenaid.com
In Canada, for assistance, installation and service, call: 1-800-807-6777
or visit our website at www, KitchenAid,ca
P
FOUR MICRO-ONDES ENCASTRE CUISSON
PAR CONVECTION
Au Canada, pour assistance, installation ou service composez le 1-800-807-6777 ou visitez notre site web &..
www.KitchenAid.ca
Table of Contents ............................................................................................................ 2
Models/Modeles KBHS109B KBHS179B KEMS309B KEMS379B
W10354195A

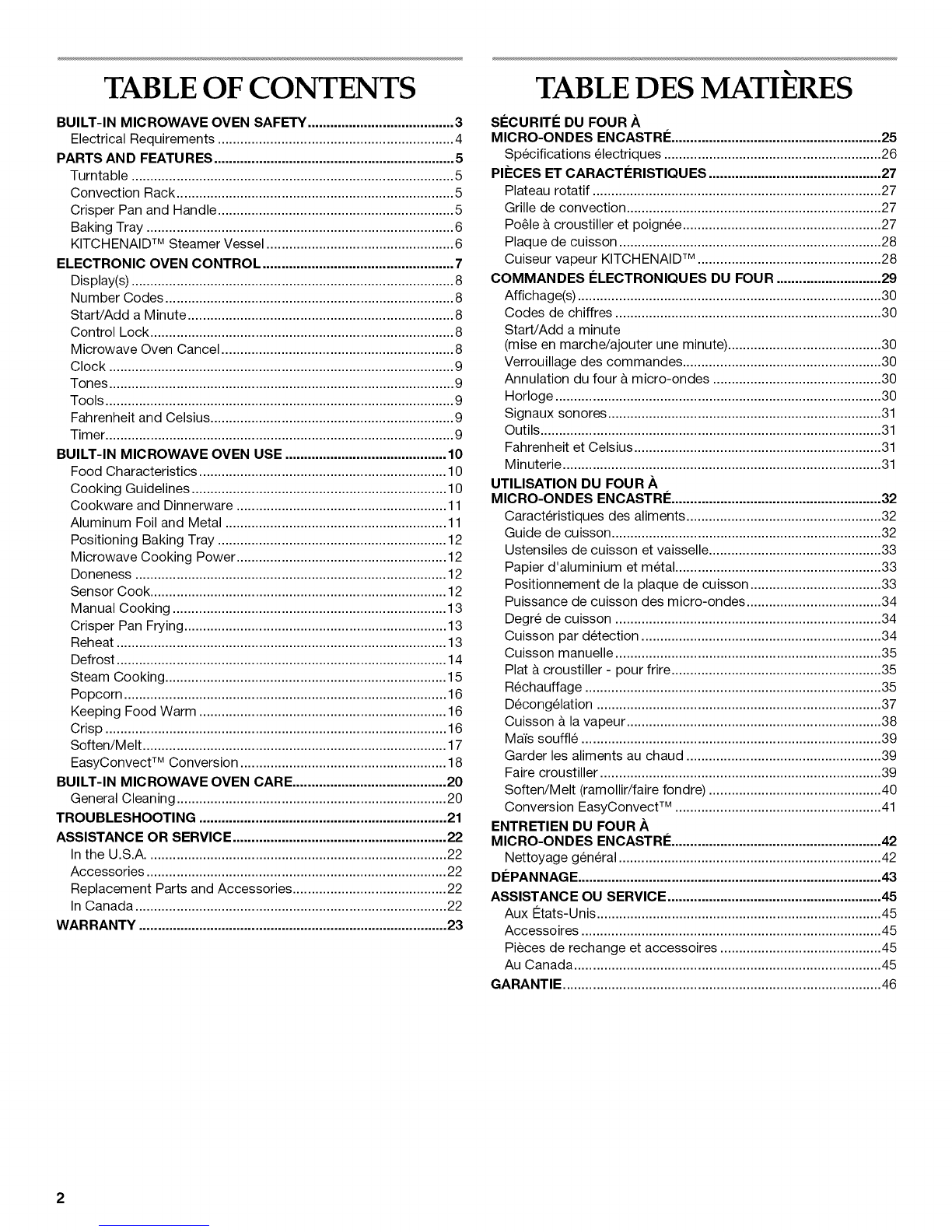

TABLEOF CONTENTS
BUILT-IN MICROWAVE OVEN SAFETY ....................................... 3
Electrical Requirements ............................................................... 4
PARTS AN D FEATU RES................................................................ 5
Turntable ...................................................................................... 5
Convection Rack .......................................................................... 5
Crisper Pan and Handle ............................................................... 5
Baking Tray .................................................................................. 6
KITCI-IENAID TM Steamer Vessel .................................................. 6
ELECTRONIC OVEN CONTROL ................................................... 7
Display(s) ...................................................................................... 8
Number Codes ............................................................................. 8
Start/Add a Minute ....................................................................... 8
Control Lock................................................................................. 8
Microwave Oven Cancel .............................................................. 8
Clock ............................................................................................ 9
Tones............................................................................................ 9
Tools ............................................................................................. 9
Fahrenheit and Celsius ................................................................. 9
Timer............................................................................................. 9
BUILT-IN MICROWAVE OVEN USE ........................................... 10
Food Characteristics .................................................................. 10
Cooking Guidelines .................................................................... 10
Cookware and Dinnerware ........................................................ 11
Aluminum Foil and Metal ........................................................... 11
Positioning Baking Tray ............................................................. 12
Microwave Cooking Power ........................................................ 12
Doneness ................................................................................... 12
Sensor Cook ............................................................................... 12
Manual Cooking ......................................................................... 13
Crisper Pan Frying ...................................................................... 13
Reheat ........................................................................................ 13
Defrost ........................................................................................ 14
Steam Cooking ........................................................................... 15
Popcorn ...................................................................................... 16
Keeping Food Warm .................................................................. 16
Crisp ........................................................................................... 16
Soften/Melt ................................................................................. 17
EasyConvect TM Conversion ....................................................... 18
BUILT-IN MICROWAVE OVEN CARE ......................................... 20
General Cleaning ........................................................................ 20
TROUBLESHOOTING .................................................................. 21
ASSISTANCE OR SERVICE ......................................................... 22
In the U.S.A................................................................................ 22
Accessories ................................................................................ 22
Replacement Parts and Accessories ......................................... 22
In Canada ................................................................................... 22
WAR RANTY .................................................................................. 23
TABLEDES MATIERES
SI_CURITI_ DU FOUR ._
MICRO-ONDES ENCASTRI_ ........................................................ 25
Specifications electriques .......................................................... 26
PII=CES ET CARACTI_RISTIQUES .............................................. 27
Plateau rotatif ............................................................................. 27
Grille de convection .................................................................... 27
Po_le & croustiller et poignee ..................................................... 27
Plaque de cuisson ...................................................................... 28
Cuiseur vapeur KITCHENAID TM ................................................. 28
COMMANDES I_LECTRONIQUES DU FOUR ............................ 29
Affichage(s) ................................................................................. 30
Codes de chiffres ....................................................................... 30
Start/Add a minute
(mise en marche/ajouter une minute) ......................................... 30
Verrouillage des commandes ..................................................... 30
Annulation du four & micro-ondes ............................................. 30
Horloge ....................................................................................... 30
Signaux sonores ......................................................................... 31
Outils ........................................................................................... 31
Fahrenheit et Celsius .................................................................. 31
Minuterie ..................................................................................... 31
UTILISATION DU FOUR .A
MICRO-ONDES ENCASTRle ........................................................ 32
Caracteristiques des aliments .................................................... 32
Guide de cuisson ........................................................................ 32
Ustensiles de cuisson et vaisselle .............................................. 33
Papier d'aluminium et metal ....................................................... 33
Positionnement de la plaque de cuisson ................................... 33
Puissance de cuisson des micro-ondes .................................... 34
Degre de cuisson ....................................................................... 34
Cuisson par detection ................................................................ 34
Cuisson manuelle ....................................................................... 35
Plat a croustiller -pour frire ........................................................ 35
Rechauffage ............................................................................... 35
Decong61ation ............................................................................ 37
Cuisson a lavapeur .................................................................... 38
Ma'fs souffle ................................................................................ 39
Garder les aliments au chaud .................................................... 39
Faire croustiller ........................................................................... 39
Soften/Melt (ramollir/faire fondre) .............................................. 40
Conversion EasyConvect TM ....................................................... 41
ENTRETIEN DU FOUR .A
MICRO-ONDES ENCASTRle ........................................................ 42
Nettoyage gen6ral ...................................................................... 42
DlePANNAGE ................................................................................. 43
ASSISTANCE OU SERVICE ......................................................... 45
Aux €:tats-Unis ............................................................................ 45
Accessoires ................................................................................ 45
Pieces de rechange et accessoires ........................................... 45
Au Canada .................................................................................. 45
GARANTIE ..................................................................................... 46
2

BUILT-IN MICROWAVE OVEN SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances basic safety precautions should be
WARNING: To reduce the risk of burns, electric shock,
fire, injury to persons, or exposure to excessive microwave
energy:
m Read all instructions before using the microwave oven.
m Read and follow the specific "PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY" found in this section.
m The microwave oven must be grounded. Connect only to
properly grounded outlet. See "GROUNDING
INSTRUCTIONS" found in this section.
m Install or locate the microwave oven only in accordance
with the provided Installation Instructions.
m Some products such as whole eggs in the shell and sealed
containers - for example, closed glass jars - may explode
and should not be heated in the microwave oven.
m Use the microwave oven only for its intended use as
described in this manual. Do not use corrosive chemicals
or vapors in the microwave oven. This type of oven is
specifically designed to heat, cook, or dry food. It is not
designed for industrial or laboratory use.
m Oversized foods or oversized metal utensils should not be
inserted in the microwave oven as they may create a fire or
risk of electric shock.
followed, including the following:
[] Do not clean with metal scouring pads. Pieces can burn off
the pad and touch electrical parts involving a risk of electric
shock.
[] Do not store any materials, other than manufacturer's
recommended accessories, in this oven when not in use.
[] Do not operate the microwave oven if it has a damaged
cord or plug, if it is not working properly, or if it has been
damaged or dropped.
[] Do not deep fry in oven. Microwavable utensils are not
suitable and it is difficult to maintain appropriate deep frying
temperatures.
[] Do not use paper products when appliance is operated in
the "PAN BROWN" mode.
[] Do not cover racks or any other part of the oven with metal
foil. This will cause overheating of the oven.
[] As with any appliance, close supervision is necessary
when used by children.
[] The microwave oven should be serviced only by qualified
service personnel. Contact nearest authorized service
company for examination, repair, or adjustment.
[] Do not cover or block any openings on the microwave
oven.
SAVE THESE INSTRUCTIONS

[]
iMPORTANT SAFETY
Liquids, such as water, coffee, or tea are able to be
overheated beyond the boiling point without appearing to be
boiling. Visible bubbling or boiling when the container is
removed from the microwave oven is not always present.
THIS COULD RESULT IN VERY HOT LIQUIDS
SUDDENLY BOILING OVER WHEN THE CONTAINER IS
DISTURBED OR A SPOON OR OTHER UTENSIL IS
INSERTED INTO THE LIQUID.
To reduce the risk of injury to persons:
- Do not overheat the liquid.
- Stir the liquid both before and halfway through heating it.
- Do not use straight-sided containers with narrow necks.
- After heating, allow the container to stand in the
microwave oven for a short time before removing the
container.
- Use extreme care when inserting a spoon or other utensil
into the container.
INSTRUCTIONS
[] Do not store the microwave oven outdoors. Do not use this
product near water - for example, near a kitchen sink, in a
wet basement, or near a swimming pool, and the like.
[] See door surface cleaning instructions in the "Oven Care"
section.
[] To reduce the risk of fire in the oven cavity:
- Do not overcook food. Carefully attend the microwave
oven if paper, plastic, or other combustible materials are
placed inside the oven to facilitate cooking.
- Remove wire twist-ties from paper or plastic bags before
placing bags in oven.
- If materials inside the oven should ignite, keep oven door
closed, turn oven off, and disconnect the power cord, or
shut off power at the fuse or circuit breaker panel.
- Do not use the cavity for storage purposes. Do not leave
paper products, cooking utensils, or food in the cavity
when not in use.
SAVE THESE INSTRUCTIONS
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open
since open-door operation can result in harmful exposure
to microwave energy. It is important not to defeat or
tamper with the safety interlocks.
(b) Do not place any object between the oven front face and
the door or allow soil or cleaner residue to accumulate on
sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly
important that the oven door close properly and that there
is no damage to the:
(1) Door (bent),
(2) Hinges and latches (broken or loosened),
(3) Door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone
except properly qualified service personnel.
__+,,_::(i[I,,IIIQI} 11,11I=:,
Observe all governing codes and ordinances. The microwave
oven is connected to both 120-volt sides of the 208/240-volt
circuit required for electrical connections. If the incoming voltage
to the microwave oven is less than 120 volts, cooking times may
be longer. Have a qualified electrician check your electrical
system.
I This device complies with Part 18 of the FCC Rules. I
GROUNDING INSTRUCTIONS
For a permanently connected microwave oven:
The microwave oven must be connected to a grounded,
metallic, permanent wiring system, or an equipment
grounding conductor should be run with the circuit
conductors and connected to the equipment grounding
terminal or lead on the microwave oven.
SAVE THESE INSTRUCTIONS

PARTS AND FEATURES
This manual covers different models. The microwave oven you
have purchased may have some or all of the parts and features
listed. The location and appearance of the features shown here
may not match those of your model.
H
Rack
The convection rack provides optimal heat circulation for
convection cooking.
A
A. Electronic oven control
B. Convection element and fan
(hidden behind back panel)
C. Light (inaccessible, in ceiling)
D. Grifl element (can be lowered)
E. Turntable
F. Metal shielded window
G. Lower oven (on combination
models, see separate Use and
Care Guide)
H. Door safety lock system
I.Dual microwave emission
J. Cooking guide label
K. Model and serial plate
(on right mounting raft,
single oven models)
I
J
K
Parts and Features not shown
Steamer
Convection grid
Crisper pan and handle
Baking tray
• The rack will become hot. Always use oven mitts or pot
holders when handling.
• To avoid damage to the microwave oven, do not allow the
rack to touch the inside cavity walls, ceiling or floor.
• Always use the turntable.
• To avoid damage to the microwave oven, do not store the
rack in the microwave oven.
• Two-level cooking is not recommended.
• For best results, do not place popcorn bags on the rack.
• The rack is designed specifically for this microwave oven. For
best cooking results, do not attempt to use any other rack in
this microwave oven.
• See "Assistance or Service" section to reorder.
0
S...................................................._
A.Turntable
B.Support and roflers
C.Hub
The turntable rotates in both directions to help cook food more
evenly. Do not operate the microwave oven without having the
turntable in place. See "Assistance or Service" to reorder any of
the parts.
NOTE: The turntable, microwave oven light, and cooling fan will
continue to run until the microwave oven door is opened or
CANCEL is touched.
The raised, curved lines in the center of the turntable bottom fit
between the 3 spokes of the hub. The hub turns the turntable
during microwave oven use. The rollers on the support should fit
inside the turntable bottom ridge.
The crisper pan, with its nonstick surface and detachable handle,
has been specifically designed for microwave use, and is ideal for
pan-frying (pan-browning) foods in the microwave oven.
• The crisper pan will become hot. Always use the handle and
oven mitts or pot holders when handling. Place gripping end
on the edge of pan, squeeze handle, and lift pan.
• To avoid damage to the microwave oven, do not allow the
crisper pan or handle to touch the inside cavity walls, ceiling
or floor.
• Do not place crisper pan on the convection grid. Always use
the turntable as asupport for the crisper pan.
• To avoid damage to the microwave oven, do not use another
metal object with the crisper pan.
• To avoid damage, do not place hot crisper pan directly on
heat sensitive surfaces.
• The crisper pan is designed specifically for this microwave
oven. Do not use it in any other oven.
• Use only wooden or plastic cooking utensils to help avoid
scratches.
• See "Assistance or Service" section to reorder.

UsetheKITCHENAIDTM Steamer Vessel with the Steam Cook
feature to steam foods.
/,
/,
/
/
!
/
/
/
/'
A
B
• Baking Tray can be used only with convection cooking.
• To avoid damage to the microwave oven, do not use in
combination with microwave cooking.
• Baking Tray will become hot. Always use oven mitts or pot
holders when handling.
• See "Positioning Baking Tray" section before using.
• See "Assistance or Service" section to reorder.
A. Lid
B. Insert
C. Base
The steamer vessel will become hot. Always use oven mitts
or pot holders when handling.
Steamer vessel is designed to be used only in the microwave
oven. To avoid damaging steamer vessel, do not use in a
convectional- or combination-type oven, with any other
convection or crisp function, or on electric or gas burners.
Do not use plastic wrap or aluminum foil when covering the
food.
• Always place the steamer on the glass turntable. Check that
the turntable turns freely before starting the microwave oven.
• Do not remove lid while the bowl is inside the microwave
oven, as the rush of steam will disrupt the sensor settings.
• To avoid scratching, use plastic utensils.
• Do not overfill with water. See steam chart in the "Steam
Cooking" section for the amount of water recommended.
Lid: Always use the lid when steaming. Place directly over the
insert and base or just the base.
Insert: Use when steam cooking to keep foods such as fish and
vegetables out of the water. Place insert with food directly over
the base. Do not use when simmering.
Base: For steam cooking, place water in base. For simmering
foods such as rice, potatoes, pasta and vegetables, place food
and water/liquid in base.
See "Assistance or Service" section to order replacements. See
"General Cleaning" section for instructions on cleaning.
6

ELECTRONIC OVEN CONTROL
This manual covers different models. The oven you have purchased may have some or all of the items listed. The locations and
appearances of the items shown here may not match those of your model.
Combination Oven Models
ABC D E F G H I
R
Q.....................................................................................__ __
0 N M L K J
A. Reheat
B. Defrost
C. Steam cook
D. Start/add 1 minute
E. Microwave oven display
F. Number keypads
G. Set/start/timer off
H. Lower oven display
I. Lower oven controls (see separate
Use and Care Guide)
J. Clock set
K. Oven light
L. Tools
M. Cancel
N. Cook time/power level
O. Popcorn
P. Crisp
Q. EasyConvect TM
R. Soften or melt
ABC DF G
P
0
N
M L
A. Reheat
B. Defrost
C. Steam cook
D. Microwave oven display
E. Number keypads
ESet/start/timer off
G. Start/add 1 min
H. Cancel
I. Oven light)
J. Tools
K. Clock set
K JI
L. Cook time/power level
M. Popcorn
N. Crisp
O. EasyConvect TM
P. Soften or melt
H
A B A B
Lower Oven Display (combination oven models)
A. Oven symbol
B. Time of day/timer display
Upper Microwave Oven Display (combination oven models)
A. Microwave oven symbol
B. Timer display
Microwave Oven Display (single oven models)
A. Microwave oven symbol
B. Time of day/timer display

When power is first supplied to the oven, the timer display will
flash "12:00," and "Clock-enter time" will appear on the display.
Enter the time by pressing the number keypads. Then touch
either CLOCK SET or START to allow operation. To allow
operation without setting a time, touch CLOCK SET, START or
CANCEL.
Lower Oven Display (combination oven models)
When the lower oven is in use, this display shows the oven
temperature, heat source(s) and start time. In addition, during
Timed Cooking, this display shows a time countdown and the
stop time (if entered).
If "Err" appears on the lower oven display, an error condition has
occurred. Call for service. See the "Assistance or Service"
section.
When the lower oven is not in use, this display shows the time of
day or Time countdown.
Upper Microwave Oven Display (combination oven
models)
When the upper oven is in use, this display shows the upper oven
heat source(s), cooking power, quantities, weights and/or help
prompts and time countdown.
If "Err" appears on the upper oven display, an error condition has
occurred. Call for service. See the "Assistance or Service"
section.
When the upper oven is not in use, this display is blank.
Microwave Oven Display (single oven models)
When the microwave oven is in use, the display shows the heat
source(s), cooking power, quantities, weight and/or help prompts
and time countdown.
If "Err" appears on the display, an error condition has occurred.
Call for service. See the "Assistance or Service" section.
Time of Day/Timer Display
When the microwave oven is not in use, the display shows the
time of day or time countdown.
The oven is preset with shortcut number codes. A number code
includes one or more of the following; food category, cooking
power, cook time and food quantity or weight. See the code
charts in the "Reheating," "Defrosting," "Steam,"
"Soften/Melt," and "EasyConvect TM''sections for additional
information.
llij_., ,= i i_ =
The Start/Add 1 Min keypad controls 3 separate functions for the
single built-in microwave: Start, Add 1 Min and Control Lock.
Start
The Start/Add 1 Min keypad begins any upper or single oven
cooking function once enough data has been entered and the
door is closed.
After enough data has been entered and the door is closed,
"Start?" will appear on the oven display as a reminder. Ifthe Start
keypad is not touched within 5 minutes after touching another
keypad, the oven display will return to the inactive mode and the
programmed function will be canceled.
If cooking is interrupted by opening the door, touching the
Start/Add 1 Min keypad after the door is closed again will resume
the preset cycle.
Add 1 Min
Touching the Start/Add 1 Min keypad when the microwave oven
is off will start 1 minute of cook time at 100% power. Touching
START/ADD 1 MIN while the microwave oven is operating will
add cook time to the current cycle by 1 minute. Multiple minutes
can be added by repeatedly touching the Start/Add 1 Min
keypad.
(.@__:1:ol Ii,,0( k
The Control Lock shuts down the control panel keypads to avoid
unintended use of the oven. The Control Lock will remain set after
a power failure, if set before the power failure occurs.
When the control is locked, only the Set/Start, Oven Light, and
Timer Off keypads will function.
The Control Lock is preset unlocked, but can be locked.
To Lock Control: Touch and hold START (on combination ovens
only) or START/ADD 1 MIN (on microwave ovens only) for
approximately 3 seconds, until "Control Locked" appears on the
lower text line and a lock icon appears in the display.
To Unlock Control: Repeat to unlock. "Control Unlocked"
appears on the lower text line and the lock icon will be removed.
_i " '=+s
The Cancel keypad stops any microwave oven function except
for the Clock, Timer and Control Lock.
The oven will also turn off when the door is opened. When the
door is opened, the element(s) and fan will turn off, but the oven
light will remain on. Close the door and touch START to resume
the preset cycle (except for sensor cooking).
The oven cooling fan may continue to operate even after an oven
function has been canceled or completed, depending on the
oven temperature.
8

This is a 12-hour clock. Before setting, make sure the oven,
Timer, and Timed Cooking are off.
To Set:
1. Touch CLOCK SET.
2. Touch the number keypads to set the time of day.
3. Touch CLOCK SET or START.
Tones are audible signals, indicating the following:
One beep
• Valid keypad touch
• Function has been entered
One chime
• Oven is preheated
• Preheat cycle has been completed
Three beeps
• Invalid keypad touch
Three chimes
• End of a cooking cycle
Four chimes
• When timer reaches zero
Includes using the Kitchen Timer for functions other than
cooking.
The Tools selection keypad allows access to 7 hidden functions
within the Electronic Oven Control. These hidden functions allow
you to change the oven temperature between Fahrenheit and
Celsius, turn the audible signals on and off, prompts, turn the
turntable on and off, select the language, and select demo
modes.
NOTE: This procedure is for dedicated microwave ovens only.
Tools for combination ovens will appear on the oven display.
To Use:
1. Touch TOOLS. The oven display will scroll through the
various options, starting at 1 and ending automatically at 7.
You can also touch the Tools keypad repeatedly to manually
scroll through the list of options.
2. Touch the number keypad for the specific option to toggle the
function setup. Use the following chart as a guide.
TOOLS CHART
TOOLS HIDDEN FUNCTION
1 Fahrenheit and Celsius conversion
2 Sound On/Off
3 Sound High/Low
4 End tone On/Off
5 Turntable On/Off
6 Language
7 Demo mode
Tone Volume
The volume is preset at low, but can be changed to high.
To Change: touch TOOLS and then "3" to toggle volume
between high and low settings.
All Tones
All tones are preset on, but can be turned off.
To Turn Off/On: touch TOOLS and then "2" to toggle tones
between On and Off settings.
The temperature is preset in Fahrenheit; however it can be
changed to Celsius.
To Change: Touch OPTIONS and then "1" to toggle temperature
between Fahrenheit and Celsius settings.
When the temperature is in Fahrenheit, "°F" follows the oven
temperature.
When the temperature is in Celsius, "°C" follows the oven
temperature.
End-of-Cycle and Reminder Tones
The Timed Cooking end-of-cycle and reminder tones are preset
on, but can be turned off. If all tones have been turned off, the
end-of-cycle and reminder tones cannot be independently turned
on.
To Turn Tones Off/On: touch TOOLS and then "4" to toggle
tones between On and Off settings.
NOTE: The Kitchen Timer is not affected by these reminder
tones.
The Timer can be set in minutes and seconds or hours and
minutes and counts down the set time.
NOTE: The Timer does not start or stop the oven.
To
1.
2=
3.
Set:
Touch SET/START.
Touch again to switch between MIN/SEC and HR/MIN.
If no action is taken, the control will continue to wait for a
length of time to be entered.
Touch the number keypads to set the length of time.
Touch SET/START.
If the keypad is not touched, the control will continue to wait
for SET/START to be touched.
When the set time ends, 4 chimes will continuously repeat
until the Timer Off keypad is touched.
If the Cancel keypad is touched, the oven will turn off;
however, the Timer can only be turned off using the Timer Off
keypad.

BUILT-IN MICROWAVE OVEN USE
A magnetron in the oven produces microwaves which reflect off
the metal floor, walls and ceiling and pass through the turntable
and appropriate cookware to the food. Microwaves are attracted
to and absorbed by fat, sugar and water molecules in the food,
causing them to move, producing friction and heat which cooks
the food.
• To avoid damage to the microwave oven, do not lean on or
allow children to swing on the microwave oven door.
• To avoid damage to the microwave oven, do not operate
microwave oven when it is empty.
• The turntable must be in place and correct side up when
microwave oven is in use. Do not use if turntable is chipped
or broken. See "Assistance or Service" section to reorder.
• Baby bottles and baby food jars should not be heated in
microwave oven.
• Clothes, flowers, fruit, herbs, wood, gourds, paper, including
brown paper bags and newspaper, should not be dried in
microwave oven.
• Paraffin wax will not melt in the microwave oven because it
does not absorb microwaves.
• Use oven mitts or pot holders when removing containers from
microwave oven.
• Do not overcook potatoes. At the end of the recommended
cook time, potatoes should be slightly firm. Let potatoes
stand for 5 minutes. They will finish cooking while standing.
• Do not cook or reheat whole eggs inside the shell. Steam
buildup in whole eggs may cause them to burst. Cover
poached eggs and allow a standing time.
(.., '_Ii]I[ ClIOI'II_I-ICS
When microwave cooking, the amount, size and shape, starting
temperature, composition and density of the food affect cooking
results.
Amount of Food
The more food heated at once, the longer the cook time needed.
Check for doneness and add small increments of time if
necessary.
Size and Shape
Smaller pieces of food will cook more quickly than larger pieces,
and uniformly shaped foods cook more evenly than irregularly
shaped food.
Starting Temperature
Room temperature foods will heat faster than refrigerated foods,
and refrigerated foods will heat faster than frozen foods.
I,;;_III i.I;:i!II{'I(!!!
Covering
Covering food helps retain moisture, shorten cook time and
reduce spattering. Use the lid supplied with cookware. If alid is
not available, wax paper, paper towels or plastic wrap approved
for microwave ovens may be used. Plastic wrap should be turned
back at one corner to provide an opening to vent steam.
Condensation on the door and cavity surfaces is normal during
heavy cooking.
Stirring and Turning
Stirring and turning redistribute heat evenly to avoid overcooking
the outer edges of food. Stir from outside to center. If possible,
turn food over from bottom to top.
Arranging
If heating irregularly shaped or different sized foods, arrange the
thinner parts and smaller sized items toward the center. If
cooking several items of the same size and shape, place them in
a ring pattern, leaving the center of the ring empty.
Piercing
Before heating, use a fork or small knife to pierce or prick foods
that have a skin or membrane, such as potatoes, egg yolks,
chicken livers, hot dogs, and sausage. Prick in several places to
allow steam to vent.
Shielding
Use small, flat pieces of aluminum foil to shield the thin pieces of
irregularly shaped foods, bones and foods such as chicken
wings, leg tips and fish tails. See "Aluminum Foil and Metal" first.
Standing Time
Food will continue to cook by the natural conduction of heat even
after the microwave cooking cycle ends. The length of standing
time depends on the volume and density of the food.
Turntable On/Off
For best performance, the turntable should be on during
microwave cooking.
If using oversized cookware that does not turn freely on the
turntable, turn the turntable off. Select turntable "Off" on the
Option menu.
When microwave cooking with the turntable off, food should be
turned halfway through the cooking process.
Composition and Density
Foods high in fat and sugar will reach a higher temperature, and
will heat faster than other foods. Heavy, dense foods, such as
meat and potatoes, require a longer cook time than the same size
of a light, porous food, such as cake.
10

i/ii......i°........ .....( £w5t'(
Cookware and dinnerware must fit on the turntable. Always use
oven mitts or pot holders when handling because any dish may
become hot from heat transferred from the food. Do not use
cookware and dinnerware with gold or silver trim. Use the
following chart as a guide, then test before using.
MATERIAL RECOMMENDATIONS
Aluminum Foil, See "Aluminum Foil and Metal" section.
Metal
Browning Dish Bottom must be at least 346"(5 mm) above
the turntable. Follow manufacturer's
recommendations.
Ceramic Glass, Acceptable for use.
Glass
China, Follow manufacturer's recommendations.
Earthenware
Melamine Follow manufacturer's recommendations.
Paper: Towels, Use nonrecycled and those approved by
Dinnerware, the manufacturer for microwave oven use.
Napkins
Plastic: Wraps, Use those approved by the manufacturer
Bags, Covers, for microwave oven use.
Dinnerware,
Containers
Pottery and Clay Follow manufacturer's recommendations.
Silicone Follow manufacturer's recommendations.
Bakeware
Straw, Wicker, Do not use in microwave oven.
Wooden
Containers
Styrofoam ®t Do not use in microwave oven.
Wax Paper Acceptable for use.
To Test Cookware or Dinnerware for Microwave Use:
1. Place cookware or dinnerware in microwave oven with
1 cup (250 mL) of water beside it.
2. Cook at 100% cooking power for 1 minute.
Do not use cookware or dinnerware if it becomes hot and the
water stays cool.
& I _ _,_ _ = 7"! _/ _ 4 _ ._ _1
1_II. II'_.I 31.II}I. iOll_xllCI;, uiII:,/;i!It
Always use oven mitts or pot holders when removing dishes from
the microwave oven.
Aluminum foil and some metal can be used in the microwave
oven. If not used properly, arcing (a blue flash of light) can occur
and cause damage to the microwave oven.
OK for Use
Racks and bakeware supplied with the microwave oven (on some
models), aluminum foil for shielding, and approved meat
thermometers may be used with the following guidelines:
• To avoid damage to the microwave oven, do not allow
aluminum foil or metal to touch the inside cavity walls, ceiling
or floor.
• Always use the turntable.
• To avoid damage to the microwave oven, do not allow
contact with another metal object during microwave cooking.
Do Not Use
Metal cookware and bakeware, gold, silver, pewter, non-
approved meat thermometers, skewers, twist ties, foil liners
such as sandwich wrappers, staples and objects with gold or
silver trim or a metallic glaze should not be used in the
microwave oven.
t®STYROFOAM is a Registered Trademark of The Dew Chemical Company.
11

Baking tray can only be used with convection cooking and
broiling (on some models). To avoid damage to the microwave
oven, do not use baking tray in combination with microwave
cooking.
Place baking tray on slide rails as shown below. Push in tray to
stop position. Check that the baking tray is level.
For best cooking results, use baking tray only in the
recommended position.
A. Slide rail
B.Baking tray
Many recipes for microwave cooking specify which cooking
power to use by percent, name or number. For example,
70%=7=Medium-High.
Use the following chart as a general guide for the suggested
cooking power of specific foods.
MICROWAVE COOKING POWER CHART
PERCENT/NAME NUMBER USE
100%, High 10
(default setting) Quick heating convenience foods and foods with high
water content, such as soups,
beverages and most
vegetables.
90% Cooking small, tender pieces
of meat, ground meat, poultry
pieces and fish fillets.
Heating cream soups.
8O% Heating rice, pasta or
casseroles.
Cooking and heating foods
that need a cook power lower
than high. For example, whole
fish and meat loaf.
70%, 7 Reheating a single serving of
Medium-High food.
60% 6 Cooking sensitive foods such
as cheese and egg dishes,
pudding and custards.
Cooking non-stirrable
casseroles, such as lasagna.
50%, Medium Cooking ham, whole poultry
and pot roasts.
Simmering stews.
PERCENT/NAME NUMBER USE
40% 4 Melting chocolate.
Heating bread, rolls and
pastries.
30%, Medium- 3 Defrosting bread, fish, meats,
Low, Defrost poultry and precooked foods.
20% 2 Softening butter, cheese, and
ice cream.
10%, Low 1 Taking chill out of fruit.
NOTE: A percentage of 0% is also acceptable. This will not heat
up.
To Set a Cooking Power other than 100%:
1. Touch the number keypads to set a length of time to cook.
2. Touch POWER LEVEL.
3. Using the Microwave Cooking Power chart above, enter the
corresponding number for the desired power level.
4. Touch START.
The display will count down the cook time.
When the stop time is reached, the oven will shut off
automatically and the end screen will appear on the display.
If enabled, end-of-cycle tones will sound, then reminder
tones will sound every minute.
5. Touch CANCEL or open the door to clear the display and/or
stop reminder tones.
Doneness is a function used for adjusting the cook time. This
feature is used on all sensor and non-sensor functions with the
exception of Manual Cooking, Popcorn, EasyConvect TM, Reheat
(beverage-manual), Defrost (manual), and Steam (manual).
The 3 Doneness levels are Normal (default), More or Less and will
appear once activated on the lower text line of the upper oven
display. Doneness can be changed only before starting the cycle.
To Change Doneness Setting:
After setting a function, the Doneness setting can be changed if
desired. This can be done before or after the "START?" prompt
appears in the display. Touch the Power Level keypad repeatedly
to toggle through Doneness options of Normal, More, or Less.
The Sensor Cook function is used in Reheat (Meal), Steam
Cooking, and Popcorn.
During the Sensor Cook function a sensor automatically adjusts
for the cook time and power level.
The microwave oven display will show the "Maximum Time
Remaining" prompt and the time countdown once the sensor
identifies the cooking duration.
If the microwave oven door is opened during a sensor function
the microwave oven will turn off, and any additional operations
will be canceled.
For best cooking performance:
Before using a sensor cook function, make sure power has been
supplied to the microwave oven for at least 2 minutes, the room
temperature is not above 95°F (35°C), and the outside of the
cooking container and the microwave oven cavity are dry.
12

To Use:
1. Touch COOK TIME and then number keypads to set a length
of time to cook OR
Touch the number keypads to set a length of time to cook.
Time can be set up to 99 minutes and 99 seconds.
If using 100% cook power, skip to Step 3.
2. Touch POWER LEVEL then enter the desired power level. See
the Microwave Cooking Power Chart in the "Microwave
Cooking Power" section.
NOTE; Doneness function is not active for manual cooking.
3. Touch START.
The display will count down the cook time.
Touching Start/Add 1 Min while the microwave oven is
operating will add cook time to the current cycle by 1 minute.
Multiple minutes can be added by repeatedly touching Start/
Add a Minute.
4.
When the stop time is reached, the oven will shut off
automatically and "Cooking Complete" will appear on the
oven display.
If enabled, end-of-cycle tones will sound, then reminder
tones will sound every minute.
Touch CANCEL or open the door to clear the display and/or
stop reminder tones.
When the crisper pan is used with microwaves, it is like a frying
pan or griddle, ideal for French toast, burgers, eggs, stir-frying
and sauteing.
Before using, see "Crisper Pan and Handle" section and the
Crisper Pan Frying Chart.
Always use the turntable "On" option when using the crisper pan
(default setting).
Before Use:
Preheat pan for 3 minutes on 100% power. Use 100% power for
cooking.
Before crisper pan frying, brush crisper pan with V2tsp (3 mL) of
oil or spray with nonstick cooking spray. Arrange food on crisper
pan. Place pan on turntable.
To Use:
1. Touch COOK TIME and then number keypads to set a length
of time to cook OR
Touch the number keypads to set a length of time to cook.
NOTE; Doneness function is not active for manual cooking.
2. Touch START.
The display will count down the cook time.
When the stop time is reached, the oven will shut off
automatically and "Cooking Complete" will appear on the
oven display.
If enabled, end-of-cycle tones will sound, then reminder
tones will sound every minute.
3. Touch CANCEL or open the door to clear the display and/or
stop reminder tones.
Use the following chart as a guide.
CRISPER PAN FRYING CHART
FOOD COOKTIME* INSTRUCTIONS
Eggs, Fried Times are for over-
2 eggs Side 1 : 30-45 sec easy doneness.
Side 2:30-45 sec
4 eggs Side 1:1 min
Side 2:45 sec
Omelet 2-3 min Mix eggs and 4 tbs
4 eggs of water.
Sausage Patties Cook until
1.5 oz (42.5 g) each 160°F (70°C)
4 patties Side 1 : 2 min
Side 2:1 min 30 sec
Side 1:3 min
Side 2:2 min 30 sec
8 patties
Vegetables, 4-5 min Cut vegetables in
stir-fry, 2 cups equal sizes. Stir
(500 mL) halfway through
cooking.
Nuts Stir halfway
1 cup (250 mL) 3 min through cooking.
2 cups (500 mL) 4 min
*Times are approximate and may be adjusted for individual
tastes.
Times and cooking powers have been preset for reheating a
number of food types.
Manual Reheat requires that a cook time and a power level be
entered if using other than 70% cook power.
Use the following chart as a guide.
REHEAT CHART
FOOD CODE QUANTITY
Meal 1 8-16 oz (227-454 g)
Place food on plate. Cover
with plastic wrap and vent.
Let stand 2-3 minutes after
reheating.
Casserole 2
Place in microwave-safe
container. Cover with
plastic wrap and vent. Stir
and let stand 2-3 minutes
after reheating.
Beverage 3 1-2 cups
Do not cover. (250 mL-500 mL)
Pizza 4 1-3 slices [3 oz (85 g)
Place on a paper towel each]
lined microwave-safe
plate.
Soup
Place in microwave-safe
container. Cover with
plastic wrap and vent. Stir
and let stand 2-3 minutes
after reheating.
1-4 cups (250 mL-1 L)
1-4 cups (250 mL-1 L)
13

FOOD CODE QUANTITY
Sauce
Place in microwave-safe
container. Cover with
plastic wrap and vent. Stir
and let stand 2-3 minutes
after reheating.
Manual
61-4 cups (250 mL-1 L)
7 Default power level
7O%
To Reheat:
1. Touch REHEAT.
Touch number keypad to select food type from the Reheat
Chart
2.
OR
Touch REHEAT repeatedly to scan and select food settings.
For example, to select the Casserole setting, REHEAT must
be touched twice.
Touch number keypads to enter quantity (slices or cups).
To change the doneness setting, touch the Power Level
keypad before or after the "Start?" prompt is displayed to
toggle through and select a doneness of Normal, More, or
Less.
3. Touch START.
When the stop time is reached, the oven will shut off
automatically and "Reheat Complete" will appear on the oven
display.
If enabled, end-of-cycle tones will sound, then reminder
tones will sound every minute.
4. Touch CANCEL or open the door to clear the display and/or
stop reminder tones.
To Manual Reheat:
1. Touch REHEAT.
2. Touch number keypad "7" OR
Touch REHEAT repeatedly to scan to the Manual setting.
If using 70% cook power, skip to Step 4.
3. Touch POWER LEVEL then enter the desired power level. See
the Cooking Power Chart.
4. Touch COOKTIME.
5. Touch the number keypad to set a length of time to cook.
Time can be set up to 99 minutes and 99 seconds.
NOTE: Doneness function is not active for manual reheating.
6. Touch START. The upper oven display will count down the
reheat time.
When the stop time is reached, the oven will shut off
automatically and "Reheat Complete" will appear on the oven
display.
If enabled, end-of-cycle tones will sound, then reminder
tones will sound every minute.
7. Touch CANCEL or open the door to clear the display and/or
stop reminder tones.
To Reheat Beverage:
1. Touch REHEAT.
2. Touch number keypad "3" OR
Touch REHEAT repeatedly to scan and select the Beverage
setting.
3. Touch number keypad to enter cups quantity.
4. Touch number keypads 1 through 3 to select Warm, Hot, Very
Hot OR
Touch REHEAT repeatedly to scan and select temperature
setting.
NOTE: Doneness function not active for reheating beverages.
5. Touch START.
The upper oven display will count down the reheat time.
When the stop time is reached, the oven will shut off
automatically and "Reheat Complete" will appear on the oven
display.
If enabled, end-of-cycle tones will sound, then reminder
tones will sound every minute.
IMPORTANT: Heated liquids can splash out during and after
heating. A wooden stir stick placed in the cup or bowl during
heating may help avoid this.
6. Touch CANCEL or open the door to clear the display and/or
stop reminder tones.
The Defrost feature can be used, or the microwave oven can be
manually set to defrost by using 30% cook power.
• For optimal results, food should be 0°F (-18°C) or colder
when defrosting.
• Unwrap foods and remove lids (from fruit juice) before
defrosting.
• Shallow packages will defrost more quickly than deep blocks.
• Separate food pieces as soon as possible during or at the
end of the cycle for more even defrosting.
• Foods left outside the freezer for more than 20 minutes or
frozen ready-made food should not be defrosted using the
Defrost feature, but should be defrosted manually.
• Use small pieces of aluminum foil to shield parts of food such
as chicken wings, leg tips and fish tails. See "Aluminum Foil
and Metal" first.
• Times and cooking powers have been preset for defrosting a
number of food types.
• Manual Defrost requires that a cook time and power level be
entered if using other than 30% cook power.
14

Use the following chart as a guide.
DEFROST CHART
FOOD CODE WEIGHT
Meats* 2
Fish* 3
Bread 4
Juice 5
Manual 6
0.1 - 6.6 Ibs (45 g - 3 kg)
0.1 - 6.6 Ibs (45 g - 3 kg)
0.1 - 2.0 Ibs (45 g - 907 g)
6, 12 or 16 oz (177, 355 or 473 mL)
Default power level 30%
*See the Defrost Preparation Chart at end of "Defrost" section for
cuts, sizes, and instructions.
To Defrost:
1. Touch DEFROST.
2. Touch the number keypad from the Defrost Chart to select
food OR
Touch DEFROST repeatedly to scroll through foods. For
example, to select the Meats setting, Defrost must be
touched twice.
3. Touch number keypads to enter the weight.
To change the doneness setting, touch the Power Level
keypad before or after the "Start?" prompt is displayed to
toggle through and select a doneness of Normal, More, or
Less.
4. Touch START.
The upper oven display will count down the defrost time. For
better results, a preset standing time is included in the
defrosting time. This may make the defrosting time seem
longer than expected.
When the stop time is reached, the oven will shut off
automatically and "Defrost Complete" will appear in the
display.
If enabled end-of-cycle tones will sound, then reminder tones
will sound every minute.
5. Touch CANCEL or open the door to clear the display and/or
stop reminder tones.
To Manual Defrost:
1. Touch DEFROST.
2. Touch number keypad "6" OR
Touch DEFROST repeatedly to scan to the Manual setting.
If using 30% cook power, skip to Step 3.
3. Touch POWER LEVEL then enter the desired power level. See
Cooking Power Chart.
4. Touch COOKTIME.
5. Touch the number keypads to set a length of time to defrost.
Time can be set up to 99 minutes and 99 seconds.
NOTE: Doneness function is not active for manual defrosting.
6. Touch START. The upper oven display will count down the
defrost time.
When the stop time is reached, the oven will shut off
automatically and "Defrost Complete" will appear on the oven
display.
If enabled end-of-cycle tones will sound, then reminder tones
will sound every minute.
7. Touch CANCEL or open the door to clear the display and/or
stop reminder tones.
Use the following chart as a guide when defrosting meat, poultry,
or fish.
DEFROST PREPARATION CHART
MEAT
Beef: ground, steaks, roast,
stew
Lamb: stew and chops
Pork: chops, ribs, roasts,
sausage
POULTRY
The narrow or fatty areas of
irregular shaped cuts should
be shielded with foil before
defrosting.
Do not defrost less than
1¼Ib (113 g) or two 4 oz (113 g)
patties.
Place all meats in microwave-
safe baking dish.
Chicken: whole and cut up
Cornish hens
Turkey: breast
Place in microwave-safe
baking dish, chicken breast
side up.
Remove giblets from whole
chicken.
FISH
Fillets, Steaks, Whole, Place in microwave-safe
Shellfish baking dish.
_J
Steam Cook is a sensor cooking function that uses microwaves
to steam food. Always use steamer vessel. See the
"KitchenAid TM Steamer Vessel" section before using. Use Steam
Cook for foods such as vegetables, fish and potatoes.
• Times and cooking powers have been preset for steaming a
number of food types.
• Manual Steam Cook requires that a cook time be entered.
• It is recommended to add 1/2cup (125 mL) of water to
Steamer Vessel before steaming.
Use the following chart as a guide.
STEAM COOKING CHART
FOOD CODE QUANTITY
Potatoes 1 2-6 cups (500 mL-1.5 L)
Fresh vegetables 2 2-6 cups (500 mL-1.5 L)
Frozen vegetables 3 2-6 cups (500 mL-1.5 L)
Fish 4 8-16 oz (227-454 g)
Shrimp 5 5-10 oz (142-283 g)
Manual 6 Sensing
15

To Steam Cook:
1. Touch STEAM COOK.
2. Touch the number keypad to select a food type from the
Steam Cooking Chart OR
Touch STEAM COOK repeatedly to scan and select food
type. For example, to select the Fresh Vegetables setting,
Steam Cook must be touched twice.
To change the doneness setting, touch the Power keypad
before or after the "Start?" prompt is displayed to toggle
through and select a doneness of Normal, More, or Less.
3. Touch START. The upper oven display will count down the
steam time once the sensor identifies the cooking duration.
When the steam time has ended, the oven will shut off
automatically and "Steam Complete" will appear in the
display.
If enabled, end-of-cycle tones will sound, then reminder
tones will sound every minute.
4. Touch CANCEL or open the door to clear the display and/or
stop reminder tones.
To Manual Steam Cook:
1. Touch STEAM COOK.
2. Touch the number keypad "6"
OR
Touch STEAM COOK repeatedly to scan and select the
Manual steam setting.
3. Touch the number keypads to set a length of time to steam.
Time can be set up to 99 minutes and 99 seconds.
NOTE: Doneness function is not active for manual steam
cooking.
4. Touch START.
Once the boiling point is reached the upper oven display will
start to count down the steam time.
When the stop time is reached, the oven will shut off
automatically and "Steam Complete" will appear in the
display.
If enabled, end-of-cycle tones will sound, then reminder
tones will sound every minute.
5. Touch CANCEL or open the door to clear the display and/or
stop reminder tones.
• Do not use regular paper bags or glassware.
• Pop only 1 package of popcorn at a time.
• Follow manufacturer's instructions when using a microwave
popcorn popper.
• Listen for popping to slow to 1 pop every 1 or 2 seconds,
then stop the cycle. Do not repop unpopped kernels.
• For best results, use fresh bags of popcorn.
• Cooking results may vary by brand and fat content.
• Recommended bag sizes are 3.5 oz, 3.0 oz, and 1.75 oz.
NOTE: Follow the instructions provided by the microwave
popcorn manufacturer.
16
To Pop Popcorn:
1. Touch POPCORN.
NOTE: Doneness function is not active for popcorn setting.
2. Touch START.
When the stop time is reached, the oven will shut off
automatically and "Cooking Complete" will appear in the
display.
If enabled, end-of-cycle tones will sound, then reminder
tones will sound every minute.
3. Touch CANCEL or open the door to clear the display and/or
stop reminder tones.
Food Poisoning Hazard
Do not let food sit in oven more than one hour before
or after cooking.
Doing so can result in food poisoning or sickness.
Hot cooked food can be kept warm in the microwave oven.
• Cover plates of food.
• Cover foods that were covered while being cooked.
• Do not cover baked goods such as pastries, pies, turnovers,
etc.
To Keep Food Warm:
1. Touch COOK TIME and then number keypads to set a length
of time to warm OR
Touch the number keypads to set a length of time to warm.
2. Touch POWER LEVEL.
3. Touch number keypad "1" to set cook power at 10%.
NOTE: Doneness function is not active for manual cooking.
4. Touch START.
The display will count down the warming time.
When the stop time is reached, the oven will shut off
automatically and "Cooking Complete" will appear in the
display.
If enabled, end-of-cycle tones will sound, then reminder
tones will sound every minute.
5. Touch CANCEL or open the door to clear the display and/or
stop the reminder tones.
The Crisp feature uses the broil element and microwaves to crisp
and brown foods. Crisp can be used to saute meats and
vegetables, pan-fry bacon and eggs, and to crisp and brown
pizza and french fries. Always use the crisper pan. See the
"Crisper Pan and Handle" section before using.
• The crisper pan will become very hot. Use oven mitts or
detachable handle to grasp and remove the pan from the
oven.
• Do not place hot crisper pan directly on heat-sensitive
surfaces. Damage may occur.
• Do not use plastic utensils on the crisper pan, as it becomes
very hot quickly and could melt the utensils.

• Donotusemetalutensils,astheycanscratchthepan.
• Donotusethecrisperpaninanyothermicrowaveovenorin
astandardthermaloven.
• Donotplacethecrisperpanontheconvectionrackorthe
bakingtray.Alwaysusetheturntableasasupportforthe
pan.
• Alwaysusetheturntable"On"optionwhencrisping(default
setting).
ToCrisp:
BeforeCrisping,brushcrisperpanwith1/2tsp(3mL)ofoilor
spraywithnonstickcookingspray.Forbestresults,thecrisper
panshouldbepreheatedfor3minutes.Arrangefoodoncrisper
pan,andplacepanonturntable.
1. TouchCRISR
The"UseCrispPan"promptwillappearmomentarilyinthe
displayasaremindertousethecrisppan.
2. Touchthenumberkeypadstoenteralengthoftimetocook
inminutesandseconds.Thetimecanbesetupto
99minutesand99seconds.
3. TouchSTART.
Theupperovendisplaywillcountdownthecrisptime.
Whenthestoptimeisreached,theovenwillshutoff
automaticallyand"CookingComplete"willappearinthe
display.
Ifenabled,end-of-cycletoneswillsound,thenreminder
toneswillsoundeveryminute.
4. TouchCANCELoropenthedoortoclearthedisplayand/or
stoptheremindertones.
Usethefollowingchartasaguide.
CRISPING CHART
FOOD COOK TIME PREPARATION
(MINUTES)*
Bacon, 4 strips Side 1: 3:00 Place in crisper pan
Side 2:1:45 in a single layer
Frozen french fries, Side 1:5:00 Place in crisper pan
2 servings Side 2:2:00 in a single layer
Boneless chicken Side 1:4:00 5-6 oz (142-170 g)
breasts, 2 pieces Side 2:3:00 each
Hamburger patties, 2 Side1 : 3:30 4 oz (113 g) each,
Side2:2:00 1/2"(1.3 cm) thick
Frozen thin crust pizza 8:00-9:00
*Times are approximate and may be adjusted for individual
tastes.
Soften and Melt functions may be used to soften or melt your
food. Times and cooking powers have been preset for a number
of food types. Use the following chart as a guide.
SOFTEN CHART
FOOD CODE QUANTITY PREPARATION
Butter 1 1/2-2sticks Unwrap and
place in
Margarine 2 1/2-2sticks microwave-safe
container.
Ice cream 16, 32, or 64 oz
(454, 907 g, or
1.8 kg)
Cream 4 3 or 8 oz Unwrap and
cheese (85 g or 227 g) place in
microwave-safe
container.
To Soften:
1. Touch SOFTEN OR MELT.
2. Touch number keypad "2" to select Soften function
OR
Touch SOFTEN OR MELT repeatedly to scan and select
Soften.
3. Touch number keypad to select food type from the Soften
Chart OR
Touch SOFTEN OR MELT repeatedly to scan and select food
settings.
4. Touch number keypads to enter quantity (weight or sticks).
To change the doneness setting, touch the Power keypad
before or after the "Start?" prompt is displayed to toggle
through and select a doneness of Normal, More, or Less.
5. Touch START.
The upper oven display will count down the soften time.
When the stop time is reached, the oven will shut off
automatically and "Soften Complete" will appear in the
display.
If enabled, end-of-cycle tones will sound, then reminder
tones will sound every minute.
6. Touch CANCEL or open the door to clear the display and/or
stop reminder tones.
17

Use the following chart as a guide.
MELT CHART
FOOD CODE QUANTITY PREPARATION
Butter 1 1/2-2sticks Unwrap and place
in microwave-safe
Margarine 2 1/2-2sticks container.
Chocolate 2, 4, 6, 8 oz Cut squares into
(57, 113, 170, small pieces or use
227 g) chips. Place in
microwave-safe
container.
Cheese 8 or 16 oz Cut into small
(227 or 454 g) pieces and place in
microwave-safe
container.
Marsh- 5 5 or 10 oz Place in
mallows (142 or 283 g) microwave-safe
container.
To Melt:
1. Touch SOFTEN OR MELT.
2. Touch number keypad "1" to select Melt function
OR
Touch SOFTEN OR MELT repeatedly to scan and select Melt.
3. Touch number keypad to select food type from the Melt Chart
OR
Touch SOFTEN OR MELT repeatedly to scan and select food
settings.
4. Touch number keypads to enter quantity (weight or sticks).
To change the doneness setting, touch the Power keypad
before or after the "Start?" prompt is displayed to toggle
through and select a doneness of Normal, More, or Less.
5. Touch START.
The upper oven display will count down the melt time.
When the stop time is reached, the oven will shut off
automatically and "Melt Complete" will appear in the display.
If enabled, end-of-cycle tones will sound, then reminder
tones will sound every minute.
6. Touch CANCEL or open the door to clear the display and/or
stop reminder tones.
B
u
D
\
A. Broil element
B. Convection fan
C. Convection element
D. Convection grid
Convection cooking uses the convection element, the broil
element and the fan. Hot air is circulated throughout the oven
cavity by the fan. The constantly moving air surrounds the food to
heat the outer portion quickly.
• The convect function may be used to cook small amounts of
food on a single rack.
• Always use the convection grid placed on turntable or baking
tray.
• Always use the turntable "On" option when convection
cooking with the convection grid (default setting).
• Do not cover turntable or convection grid or baking tray with
aluminum foil.
Do not use light plastic containers, plastic wrap or paper
products. All heatproof cookware or metal utensils can be
used in convection cooking. Round pizza pans are excellent
for convection cooking.
• Use convection cooking for items such as souffles, breads,
cookies, angel food cakes, pizza, and most meats and fish.
• All EasyConvect TM functions require preheating before use.
Place food in microwave oven after preheating is complete.
EasyConvect TM Conversion is a function that converts a standard
thermal bake cook time and temperature into an ideal cook time
and temperature for convection cooking after the oven has
preheated.
Convection temperatures and times differ from those of standard
cooking. The oven can automatically reduce standard recipe
temperatures and times for convection cooking.
18

The conversion may not be exact because foods are grouped in
general categories. Use the following chart as a guide.
CONVECTION CHART
SETTING FOODS CODE
BAKED Biscuits, Breads: quick and yeast, 1
GOODS Cakes and Cookies
Casseroles: including frozen entrees
and souffles
Fish
MEATS
OTHER
FOODS
Baked potatoes 2
Chicken: whole and pieces, Meat
loaf,
Roasts: pork, beef and ham
*Turkey and large poultry are not
included because their cook times
vary.
Convenience foods: french fries, 3
nuggets, fish sticks, pizza,
Pies: fruit and custard
To Use:
1. Position convection grid on turntable in microwave oven or
place baking tray on slide rails and close the door,
2. Touch EASYCONVECT TM.
3. Touch number keypad to select food category from the
Convection Chart OR
Touch EASYCONVECT TM repeatedly to scan and select food
category. For example, to select the Meats setting,
EASYCONVECT TM must be touched twice.
4. Touch the number keypads to set a standard temperature.
Temperature can be set between 170°F and 450°F (77°C and
232°C).
5. Touch the number keypads to set a length of standard time to
cook. Time can be set up to 11 hours and 59 minutes.
NOTE: Doneness function not active for EasyConvect TM.
6. Touch START. "Preheating" and "Lo" will appear on the upper
oven display. Once the temperature reaches 170°F (77°C),
"Lo" will be replaced by the increasing temperature. Time and
temperature will be automatically converted for convection
cooking.
When preheating is complete 2 tones will sound and the
display will show the set temperature and "Insert Food"
prompt.
7. Place food or bakeware on convection grid or on baking tray
and close the door.
8. Touch START. The upper oven display will count down the
cook time and show temperature for convection cooking.
When the stop time is reached, the oven will shut off
automatically and "Cooking Complete" will appear on the
oven display.
If enabled, end-of-cycle tones will sound, then reminder
tones will sound every minute.
9. Touch CANCEL or open the door to clear the display and/or
stop reminder tones.
BUILT-IN MICROWAVE OVEN CARE
IMPORTANT: Before cleaning, make sure all controls are off and
the microwave oven is cool. Always follow label instructions on
cleaning products.
Soap, water and a soft cloth or sponge are suggested first unless
otherwise noted.
STAINLESS STEEL (on some models)
NOTE: To avoid damage to stainless steel surfaces, do not use
soap-filled scouring pads, abrasive cleaners, Cooktop Polishing
Creme, steel-wool pads, gritty washcloths or abrasive paper
towels. Damage may occur to stainless steel surfaces, even with
one-time or limited use.
Rub in direction of grain to avoid damaging.
Cleaning Method:
• affresh TM Stainless Steel Cleaner
Part Number W10355016 (not included):
See "Assistance or Service" section to order.
• Liquid detergent or all-purpose cleaner: Rinse with clean
water and dry with soft, lint-free cloth.
• Vinegar for hard water spots.
MICROWAVE OVEN DOOR EXTERIOR
Cleaning Method:
• Glass cleaner and a soft cloth or sponge:
Apply glass cleaner to soft cloth or sponge, not directly on
panel.
• affresh TM Kitchen Appliance Cleaner
Part Number W10355010 (not included):
See "Assistance or Service" section to order.
MICROWAVE OVEN CAVITY
To avoid damage to microwave oven cavity, do not use soap-
filled scouring pads, abrasive cleaners, steel-wool pads, gritty
washcloths or some paper towels.
On stainless steel models, rub in direction of grain to avoid
damaging.
The area where the oven door and frame touch when closed
should be kept clean.
Cleaning Method:
Average soil
• Mild, nonabrasive soaps and detergents:
Rinse with clean water and dry with soft, lint-free cloth.
19

Heavy soil
• Mild, nonabrasive soaps and detergents:
Heat 1 cup (250 mL) of water for 2 to 5 minutes in oven.
Steam will soften soil. Rinse with clean water and dry with
soft, lint-free cloth.
Odors
• Lemon juice or vinegar:
• Heat1 cup(250mL) of water with1 tbs(15mL) ofeither
lemon juice or vinegar for 2 to 5 minutes in oven.
MICROWAVE OVEN CEILING
The broil element does not need cleaning since the intense heat
will burn off any food spatters. However, the ceiling above the
broil element may need regular cleaning.
Cleaning Method:
• Warm water, mild detergent and a sponge.
To clean:
1. Push the fastening thread gently towards the back of the
ceiling and then lower it to release the broil element.
TURNTABLE
Replace turntable immediately after cleaning. Do not operate the
microwave oven without the turntable in place.
Cleaning Method:
• Mild cleanser and scouring pad
• Dishwasher
RACK
• Steel-wool pad
• Dishwasher
CRISPER PAN
To avoid damage to browning pan, do not immerse or rinse with
water while the crisper pan is hot. Do not use steel-wool pads.
Cleaning Method:
• Warm water, mild detergent and a sponge. Heavily soiled
areas can be cleaned with ascouring pad and mild cleanser.
• Dishwasher
BAKING TRAY
• Dishwasher
STEAMER
• Dishwasher
TURNTABLE SUPPORT AND ROLLERS, HUB, CRISPER
PAN HANDLE
• Dishwasher
2. Lower the front of the broil element to access the ceiling for
cleaning.
3. Raise broil element back up and return the fastening thread
back to its original location.
Always return the broil element to the cooking position after
cleaning.
2O
