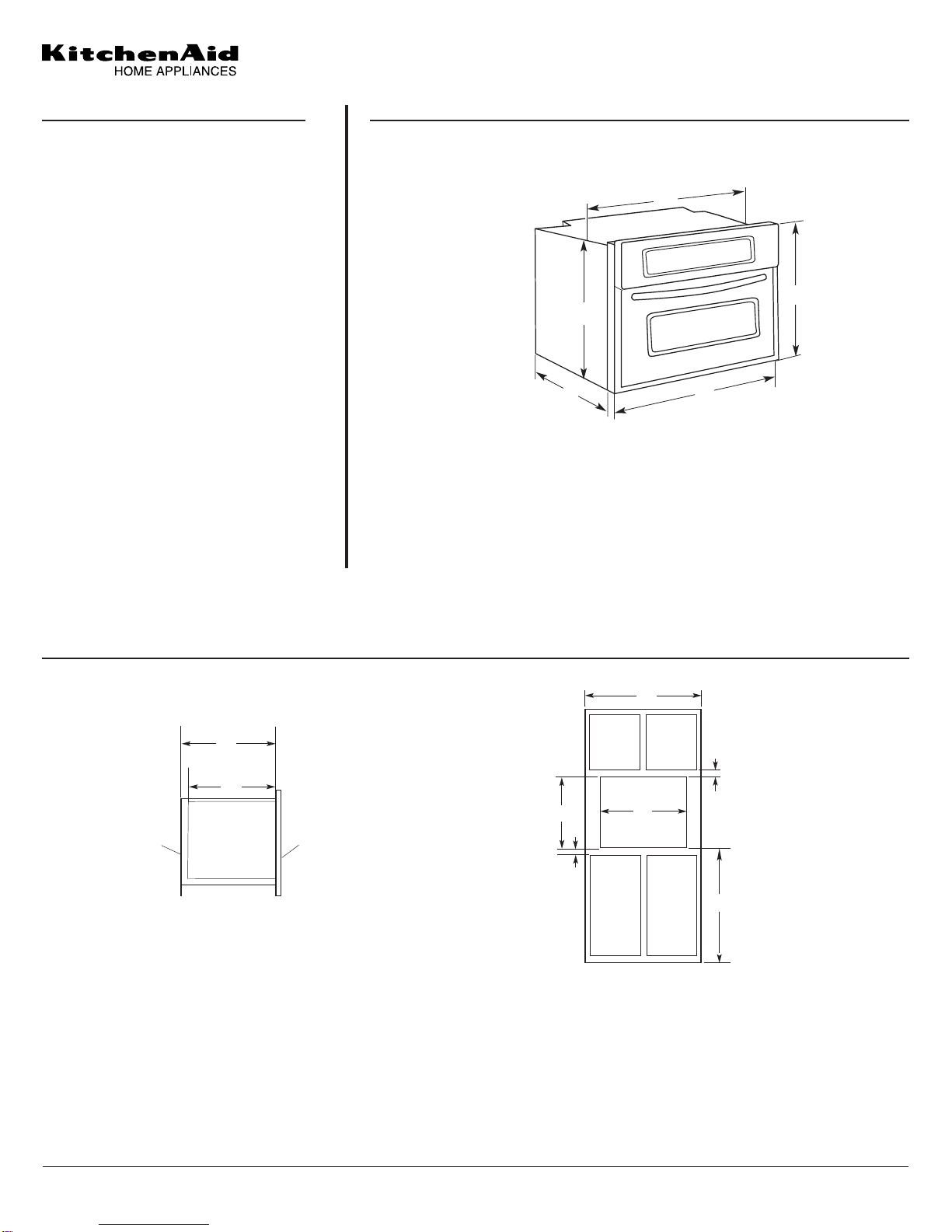

PRODUCT MODEL SERIES OVERALL DIMENSIONS
CABINET OPENING DIMENSIONS
KBHS109S KBHS179S
Electrical: Microwave oven must be connected
to the proper electrical voltage and frequency as
specified on the model/serial number rating plate.
The model/serial number rating plate is located on
the right-hand microwave oven frame. When a
4-wire or 3-wire, single phase 120/208 or 120/240
volt, 60Hz, AC only electrical supply is available, a
20-amp maximum circuit protection is required,
fused on both sides of the line.
NOTE: Models KBHC109 and KBHC179 require a
30-amp circuit.
A time-delay fuse or circuit breaker is
recommended. Connect directly to the fused
disconnect (or circuit breaker box) through
flexible, armored or nonmetallic sheathed, copper
cable (with grounding wire).
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Ref. 8304424A
05-17-07
27" (68.6 CM) AND 30" (76.2 CM) ELECTRIC BUILT-IN
MICROWAVE OVEN
27" (68.6 cm) models
A. 27" (68.6 cm) min. cabinet
width
B. 1" (2.5 cm) top of cutout to
bottom of upper cabinet door
C. 40" (101.2 cm) bottom of
cutout to floor (recommended)
D. 25¹⁄₂" (64.8 cm) cutout width
E. 1¹⁄₂" (3.8 cm) min. bottom of
cutout to top of cabinet door
F. 1 9 ⁷⁄₁₆" (49.4 cm) cutout height
30" (76.2 cm) models
A. 30" (76.2 cm) min. cabinet
width
B. 1" (2.5 cm) top of cutout to
bottom of upper cabinet door
C. 40" (101.2 cm) bottom of
cutout to floor (recommended)
D. 28¹⁄₂" (72.4 cm) cutout width
E. 1¹⁄₂" (3.8 cm) min. bottom of
cutout to top of cabinet door
F. 1 9 ⁷⁄₁₆" (49.4 cm) cutout height
A
B
D
E
F
C
®
A. 23 ¹⁄₄ " (59.1 cm) min. cutout depth
B. 23" (58.4 cm) recessed oven depth
C. Oven front
D. Recessed oven
E. Cabinet
A
B
C
D
E
Cabinet Side View
27" (68.6 cm) models
A. 25
⁵⁄₁₆
" (64.3 cm) recessed
width
B. 20
⁵⁄₁₆
" (51.6 cm) overall height
C. 26
³⁄₄
" (67.9 cm) overall width
D. 23" (58.3 cm) max. recessed
depth
E. 18
³⁄₄ " (47.6 cm) recessed
height
30" (76.2 cm) models
A. 28
⁵⁄₁₆
" (71.9 cm) recessed
width
B. 20
⁵⁄₁₆
" (51.6 cm) overall height
C. 29
³⁄₄
" (75.6 cm) overall width
D. 23" (58.3 cm) max. recessed
depth
E. 18
³⁄₄ " (47.6 cm) recessed
height
A
B
E
DC
