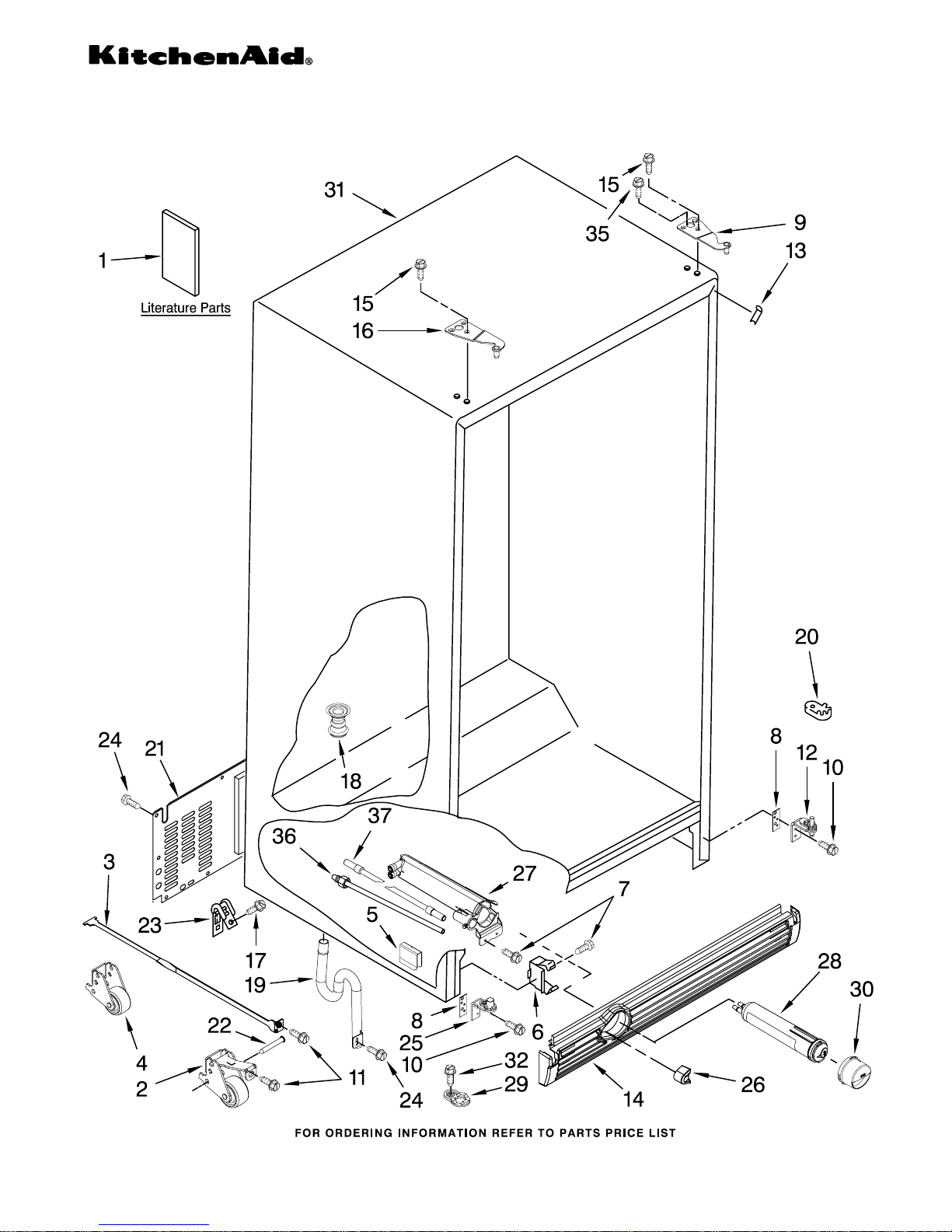

CABINET PARTS
1
For Models: KSCS23FTWH02, KSCS23FTBT02, KSCS23FTBL02, KSCS23FTMS02, KSCS23FTSS02
(White) (Biscuit) (Black) (Monochromatic Stainless)(Stainless Steel)
05−07 Printed In U.S.A. (cjj) Part No. W10139479 Rev. A
REFRIGERATOR

CABINET PARTS
2
For Models: KSCS23FTWH02, KSCS23FTBT02, KSCS23FTBL02, KSCS23FTMS02, KSCS23FTSS02
(White) (Biscuit) (Black) (Monochromatic Stainless)(Stainless Steel)
W10139479
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Literature Parts
2323158 Use & Care Guide
2304186 Service Sheet
2318510 Installation
Instructions
2326270 Energy Guide
2220407 Modular Icemaker
Service Sheet
2 Front Roller Asm
2306950 Left Side
2306951 Right Side
3 2223263 Strap, Roller
4 2306949 Roller, Rear (2)
5 2223388 Clip, Retainer (4)
6 2155013 Clip, Grille
7 488500 Screw
8 2223545 Shim
9 Hinge Top, RC
2307008W White
2307008T Biscuit
2307008B Black
2307008AP Apollo Gray
10 3400113 Screw
11 3400243 Screw
12 2307179 Hinge Assembly,
Bottom−RC
(Includes #20)
13 Filler, Wrapper
2223893W White
2223893T Biscuit
2223893B Black
2223893AP Apollo Gray
14 Grille
2322234W White
2322234T Biscuit
2322234B Black
2322234AP Apollo Gray
15 3400108 Screw
16 Hinge, Top FC
2307007W White
2307007T Biscuit
2307007B Black
2307007AP Apollo Gray
17 489464 Screw
18 2304888 Drain Fitting
19 2254566 Tube, Extension
20 2307049 Door Closer, RC
21 2223409 Cover, Unit
22 2223387 Pin, Roller (4)
23 549193 Clamp, Service
Cord
24 489084 Screw
25 2307152 Hinge Assembly,
Bottom−FC
(Includes #29)
26 Button, Water
Filter
2260503W White
2260503T Biscuit
2260503B Black
2260503AP Apollo Gray
27 2260526 Housing, Water
Filter
28 4396841 Water Filter
29 2307051 Door Closer, FC
30 Cap, Water
Filter
2260518W White
2260518T Biscuit
2260518B Black
2260518AP Apollo Gray
31 Cabinet (Not A
Serviceable Part)
32 489483 Screw
35 3400858 Screw
36 2304709 Tube, Filter
Outlet
37 2319868 Tube, Filter
Inlet

REFRIGERATOR LINER PARTS
3
For Models: KSCS23FTWH02, KSCS23FTBT02, KSCS23FTBL02, KSCS23FTMS02, KSCS23FTSS02
(White) (Biscuit) (Black) (Monochromatic Stainless)(Stainless Steel)
W10139479
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2224121 Escutcheon, Meat
Pan Control
3 2224123 Slide Meat
Pan Control
6 1118894 Switch, Rocker
Arm
7 2188820 Thermistor
8 3400893 Screw
9 2319866 Ladder, Shelf (2)
10 2301234 Housing, Door
Control
11 489084 Screw
12 2301235 Slide, Door
Control
13 2171846 Release Valve
14 2209204 Clip, Thermistor
15 2179404K Rack, Wine & Egg
16 1116793 Cover, Thermistor
17 489478 Screw
18 2304597 Gasket,
Air Baffle
19 2223403 Cover,
Air Baffle
20 2224076 Air Diffuser
Assembly
21 2220377 Air Baffle
22 2162085 Socket
23 2307107 Reservoir
24 2205813 Strap
25 2255743 Light Bulb
26 2223663 Light Lens
27 488280 Screw

REFRIGERATOR SHELF PARTS
4
For Models: KSCS23FTWH02, KSCS23FTBT02, KSCS23FTBL02, KSCS23FTMS02, KSCS23FTSS02
(White) (Biscuit) (Black) (Monochromatic Stainless)(Stainless Steel)
W10139479
Illus. Part
No. No. DESCRIPTION
1 2224061 Shelf Assembly,
Cantilever (2)
2 2301025 Button, Humidity
3 2301026 Slide, Humidity
4 2301117 Gasket, Side (2)
5 2203027 Cover, Meat Pan
(Includes Items
13, 14, 15 & 20)
6 2301023 Snack Pan
(Includes 30 & 31)
7 Glide Assembly,
Crisper Pan
2301548 Right Side
2301549 Left Side
8 2301001 Window,
Crisper Pan
9 2301567 Cover, Crisper
(Includes 2,
3, 4, 11, 12,
13, 14 & 19)
10 2301027 Glass, Cover
11 2301116 Gasket (Front)
12 2301115 Gasket (Rear)
13 2174478 Eyelet, Roller
14 2188212 Roller
15 489211 Screw
16 2301031 Crisper Pan
(Includes 8, 13
14, 19 & 31)
17 2223790 Meat Pan
(Includes 13,
14, 19 & 22)
18 Glide Assembly,
Snack Pan
2301550 Right Side
2301551 Left Side
19 489261 Screw
20 2223487 Deflector
21 Support Assembly
2301569 Right Side
2301570 Left Side
22 2203031 Handle
23 2216624 Egg Bin Assembly
25 2196485 Stud Assembly
26 2301566 Shelf, Snack Pan
27 3400894 Screw
28 2196483 Stud Assembly
29 8281158 Screw
30 2301006 Window, Snack Pan
31 Cap, Snack Pan
2301016 Right Side
2301017 Left Side

FREEZER LINER PARTS
5
For Models: KSCS23FTWH02, KSCS23FTBT02, KSCS23FTBL02, KSCS23FTMS02, KSCS23FTSS02
(White) (Biscuit) (Black) (Monochromatic Stainless)(Stainless Steel)
W10139479

FREEZER LINER PARTS
6
For Models: KSCS23FTWH02, KSCS23FTBT02, KSCS23FTBL02, KSCS23FTMS02, KSCS23FTSS02
(White) (Biscuit) (Black) (Monochromatic Stainless)(Stainless Steel)
W10139479
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 2223777 Spacer, Slide (2)
3 2223782 Basket, Front
4 2196483 Stud Assembly
5 2254611 Basket, Deep (2)
6 8281158 Screw
7 2223500 Shelf Assembly,
Cantilever (2)
8 2224053 Front, Basket
9 Shelf Track
2223787 Right Side
2223788 Left Side
10 2254615 Shelf, Fixed
11 2254612 Basket, Lower
12 842534 Clip, Air Duct
13 Glide Assembly,
Basket (2)
2301544 Right Side
2301545 Left Side
14 2259487 Cover, Emitter
15 8534064 Screw
16 2198635 Spring
17 2198634 Pin
18 2198665 Tube, P.C. Board
19 1115373 Switch, Rocker Arm
20 2220398 P.C. Board
Emitter
21 2224125 Cover, Ice Maker
22 Slide, Ice Maker
Mounting
2212321 Right Side
2306900 Left Side
23 489478 Screw
24 489214 Screw
25 2162085 Light Socket
26 2255743 Light Bulb
27 8281185 Screw
28 2198633 Flipper
29 2255561 Cover, Receiver
30 2301340 Slide, Ice Maker
Shut Off
31 2255114 P.C. Board,
Receiver
32 2198643 Lens
33 2198589 Light Shield
34 2212340 Light Lens
35 2198641 Bracket, Ice Maker
Cover
36 2155597 Socket, Light
37 3400893 Screw
38 Ladder
2320024 Left Side
2320025 Right Side
39 2303378 Shield, Wiring

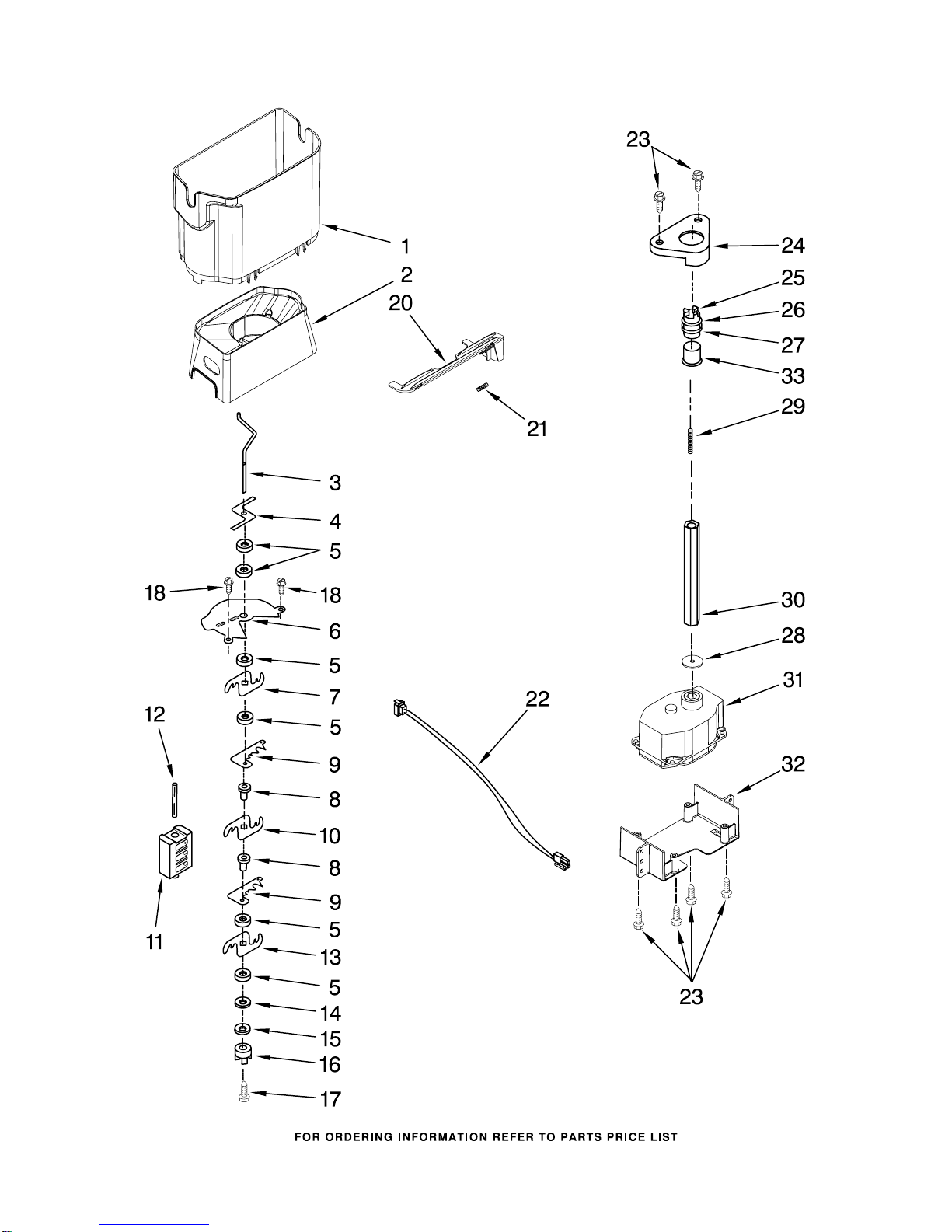

MOTOR AND ICE CONTAINER PARTS
7
For Models: KSCS23FTWH02, KSCS23FTBT02, KSCS23FTBL02, KSCS23FTMS02, KSCS23FTSS02
(White) (Biscuit) (Black) (Monochromatic Stainless)(Stainless Steel)
W10139479

MOTOR AND ICE CONTAINER PARTS
8
For Models: KSCS23FTWH02, KSCS23FTBT02, KSCS23FTBL02, KSCS23FTMS02, KSCS23FTSS02
(White) (Biscuit) (Black) (Monochromatic Stainless)(Stainless Steel)
W10139479
Illus. Part
No. No. DESCRIPTION
1 2305416 Ice Bin
2 2305294 Crusher Bin
3 2320327 Auger
4 2258220 Washer
5 1119007 Spacer, Flat (4)
6 2305244 Cover, Crusher
7 2257024 Blade, Rotary
8 1119005 Spacer, Step (2)
9 2257020 Blade, Fixed
10 2257023 Blade, Rotary
11 2198602 Block, Blade
12 489229 Roll Pin
13 2257022 Blade, Rotary
14 489235 Washer, Plain
15 2198661 Washer, Coupling
16 2220457 Coupling
17 8281164 Screw
18 3400065 Screw
20 2305441 Latch, Bin
21 2198608 Spring, Latch
22 2187813 Wire Assembly,
IDI Motor
23 8281163 Screw
24 2212369 Holder
25 2220458 Coupling, Bottom
26 2198628 Seal
27 2212370 Washer
28 2305382 Rubber Boot
29 2198607 Spring
30 2305243 Drive Shaft
31 2252130 Dispenser, Motor
32 2305208 Bracket, Motor
33 2212365 Sleeve, Coupling
100
W10127745 Ice Container
(Complete)

REFRIGERATOR DOOR PARTS
9
For Models: KSCS23FTWH02, KSCS23FTBT02, KSCS23FTBL02, KSCS23FTMS02, KSCS23FTSS02
(White) (Biscuit) (Black) (Monochromatic Stainless)(Stainless Steel)
W10139479

REFRIGERATOR DOOR PARTS
10
For Models: KSCS23FTWH02, KSCS23FTBT02, KSCS23FTBL02, KSCS23FTMS02, KSCS23FTSS02
(White) (Biscuit) (Black) (Monochromatic Stainless)(Stainless Steel)
W10139479
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes #7)
W10128346 White
W10128350 Biscuit
W10128348 Black
2307199SAP Monochromatic
Stainless
2307199S Stainless Steel
2 2203087K Trim, Shelf
3 2255421 Dairy Door
4 2223883 Caddy, Can
6 2219698 Stud, Handle
7 Door Gasket,
Magnetic
2223841 Mist Beige
2223911 Black
2326342 Apollo Grey
8 Handle
2319727W White
2319727T Biscuit
2319727B Black
2319727S Stainless Steel
9 Set Screw
W10010140 Chrome
W10010150 Black
10 2223879 Dairy Compartment
11 488208 Screw
12 2307048 Door Closer,
Upper Cam
13 2308050 Thimble, Top
14 489420 Screw
15 Bracket, Door Stop
2306940 Chrome
2306940B Black
16 2223860 Door Bin (3)
17 3400012 Screw
18 2224173 Door Bin,
Shallow
19 Nameplate
W10046670 White
W10046700 Biscuit
W10046640 Black
W10046610 Gray
20 2156006K Plug, Trim

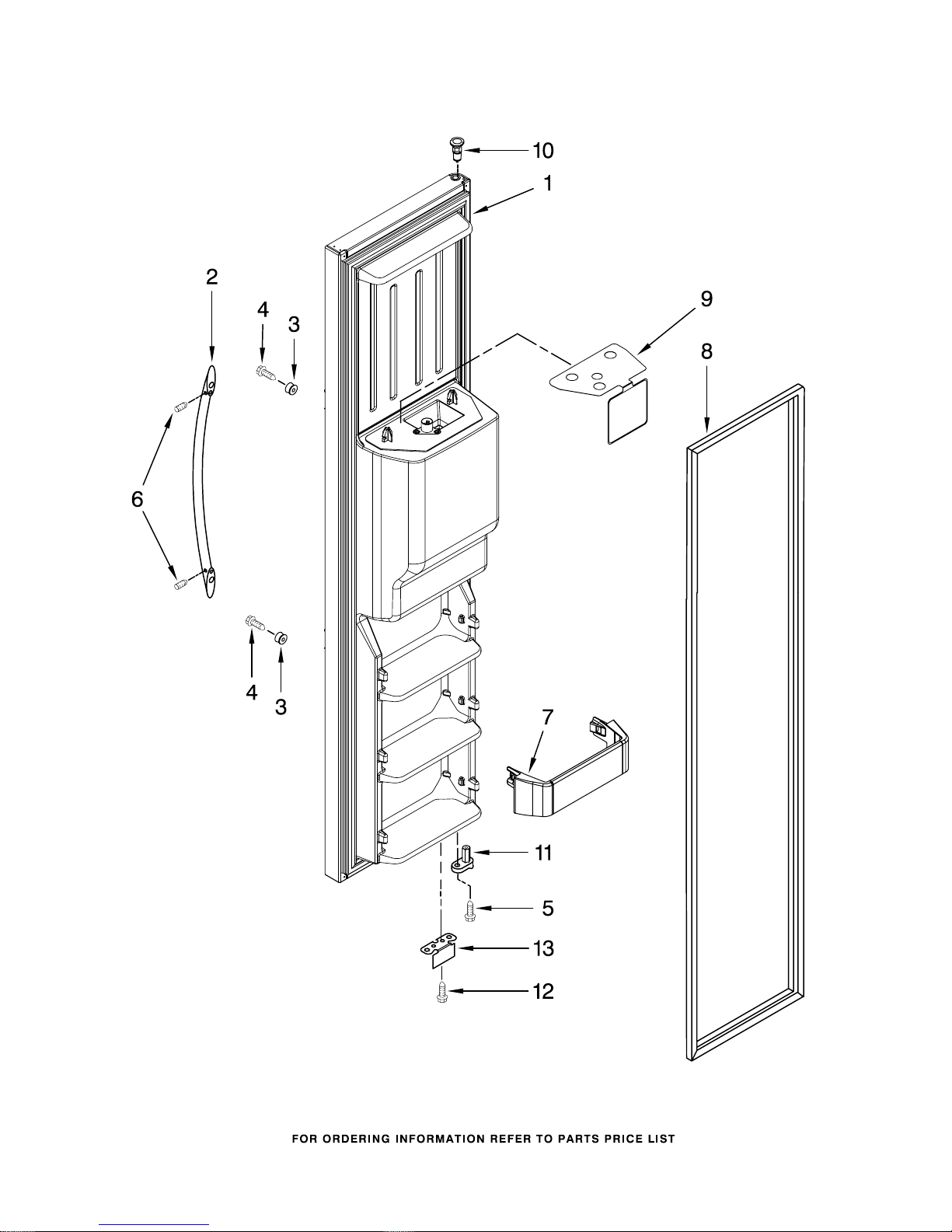

FREEZER DOOR PARTS
11
For Models: KSCS23FTWH02, KSCS23FTBT02, KSCS23FTBL02, KSCS23FTMS02, KSCS23FTSS02
(White) (Biscuit) (Black) (Monochromatic Stainless)(Stainless Steel)
W10139479

FREEZER DOOR PARTS
12
For Models: KSCS23FTWH02, KSCS23FTBT02, KSCS23FTBL02, KSCS23FTMS02, KSCS23FTSS02
(White) (Biscuit) (Black) (Monochromatic Stainless)(Stainless Steel)
W10139479
Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(Includes #8
And Dispenser
Front Parts)
W10130210 White
W10130220 Biscuit
W10130215 Black
2326211SAP Monochromatic
Stainless
2326211SB Stainless Steel
2 Handle
2319727W White
2319727T Biscuit
2319727B Black
2319727S Stainless Steel
3 2219698 Stud, Handle
4 488208 Screw
5 3400012 Screw
6 Set Screw
W10010140 Chrome
W10010150 Black
7 2223559K Shelf Bin (3)
8 Door Gasket,
Magnetic
2223850 Mist Beige
2223912 Black
2326343 Apollo Grey
9 2304895 Safety Barrier
10 2308050 Thimble, Top
11 2307050 Door Closer,
Upper Cam
12 489420 Screw
13 Bracket, Door Stop
2306940 Chrome
2306940B Black
FOLLOWING PARTS
NOT ILLUSTRATED
2310224 Wire Harness,
Freezer Door
2317707 Tube, Door

13
DISPENSER FRONT PARTS
For Models: KSCS23FTWH02, KSCS23FTBT02, KSCS23FTBL02, KSCS23FTMS02, KSCS23FTSS02
(White) (Biscuit) (Black) (Monochromatic Stainless)(Stainless Steel)
W10139479

DISPENSER FRONT PARTS
14
For Models: KSCS23FTWH02, KSCS23FTBT02, KSCS23FTBL02, KSCS23FTMS02, KSCS23FTSS02
(White) (Biscuit) (Black) (Monochromatic Stainless)(Stainless Steel)
W10139479
Illus. Part
No. No. DESCRIPTION
1 Housing, Dispenser
(Not Serviced)
3 2305202 Bracket, Motor
4 2305242 Connector, Door
Bracket
5 2305262 Motor, Ice Door
6 2305258 Door, Ice
7 2305204 Support, Ice
Door
8 4449745 Screw
9 Tray Assembly
2315109W White
2315109T Biscuit
2315109B Black
2315109US Universal Silver
10 2305236 Spigot
11 2305456 Separator Assembly
12 2303843 Electronic Control
(Core)
13 2321746 Cover, Electronic
Control
16 Pad, Water
2305307CE For White Model
2305307MN For Biscuit Model
2305307GE For Black Model
2305307AS For Monochromatic
Stainless Model
2305307GE For Stainless
Steel Model
17 Pad, Ice
2305306CE For White Model
2305306MN For Biscuit Model
2305306GE For Black Model
2305306AS For Monochromatic
Stainless Model
2305306GE For Stainless
Steel Model
18 2305287 Lens, Front Cover
20 2305342 LED Assembly
21 Front Cover,
Housing
(Not Available,
Order #23)
23 Front Cover
Assembly
(Includes Items
13, 16, 17, 18,
20 & 21)
2326256W White
2326256T Biscuit
2326256B Black
2326256US Universal Silver
24 2187814 Wire Assembly,
User Interface
25 2305447 Clip, Wiring

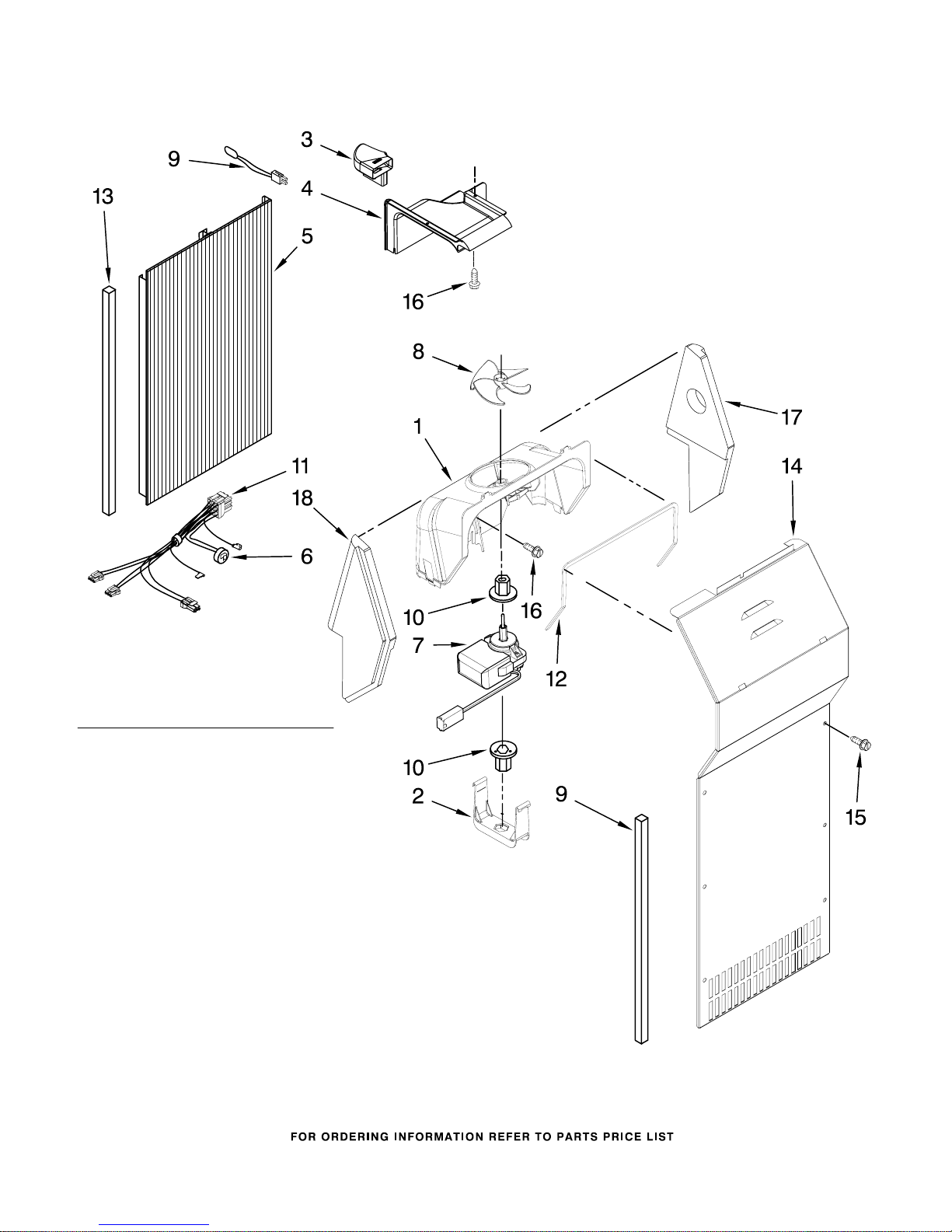

AIR FLOW PARTS
15
For Models: KSCS23FTWH02, KSCS23FTBT02, KSCS23FTBL02, KSCS23FTMS02, KSCS23FTSS02
(White) (Biscuit) (Black) (Monochromatic Stainless)(Stainless Steel)
W10139479
Illus. Part
No. No. DESCRIPTION
1 2182120 Fan Scroll
2 2223733 Retainer,
Fan Motor
3 2223298 Air Scoop
4 2223303 Air Duct, Upper
5 2223771 Air Duct Freezer
6 2319914 Bi−Metal, Defrost
7 2259385 Fan Motor
8 2169142 Fan Blade
9 2304241 Gasket, Evaporator
Cover (2)
10 2223986 Fan Grommet (2)
11 2310236 Harness, Fan
Evaporator, And
Heater, Bi−Metal
12 2155789 Gasket, Fan Scroll
13 2203876 Gasket
14 2223413 Cover, Evaporator
(Includes #9)
15 8281159 Screw
16 489478 Screw
17 2223395 Support, R.S
18 2203596 Support, L.S

CONTROL PARTS
16
For Models: KSCS23FTWH02, KSCS23FTBT02, KSCS23FTBL02, KSCS23FTMS02, KSCS23FTSS02
(White) (Biscuit) (Black) (Monochromatic Stainless)(Stainless Steel)
W10139479
Illus. Part
No. No. DESCRIPTION
1 2318985 Control Box
(Includes #3)
2 2223882 Heat Shield Asm
(Includes #5)
3 2307037 Control Board Asm
4 2223506 Light Lens,
Control Box
5 2223857 Light Socket
6 2326255 Light Bulb
7 489000 Screw

UNIT PARTS
17
For Models: KSCS23FTWH02, KSCS23FTBT02, KSCS23FTBL02, KSCS23FTMS02, KSCS23FTSS02
(White) (Biscuit) (Black) (Monochromatic Stainless)(Stainless Steel)
W10139479

UNIT PARTS
18
For Models: KSCS23FTWH02, KSCS23FTBT02, KSCS23FTBL02, KSCS23FTMS02, KSCS23FTSS02
(White) (Biscuit) (Black) (Monochromatic Stainless)(Stainless Steel)
W10139479
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 777070 Screw
2 2225834 Fan, Blade
3 2223315 Condenser
Assembly
4 8281197 Screw
5 3400524 Screw (6)
6 2223703 Housing,
Control Board
7 2223351 Tube Suction
8 2161302 Sleeve
9 2319835 Grommet,
Condenser (4)
10 2301979 Plate, Mounting
11 8281196 Screw
12 2215676 Cover, Terminal
13 2169104 Insulation, Sound
14 2305373 Clamp, Cable
15 488649 Screw
18 2223353 Tube, Condenser
to Heat Loop
19 2307028 Electronic Control
20 2306932 Baseplate
22 2188823 Evaporator
23 2161324 Clamp
24 2188729 Fan, Motor
25 2223398 Tray, Evaporator
26 2224022 Heat Shield
27 2319825 Drier
28 2223801 Compressor
(Includes Items
12 & 39)
29 2223800 Spacer (5)
31 2310122 Harness,
Main Control
32 2224024 Fan, Motor Bracket
33 2210737 Heater, Defrost
34 2304287 Clip
36 2304175 Inverter Box
37 489373 Screw
38 2223352 Tube, Discharge
39 Grommet (4)
2183042 Production
4387558 Service
40 2223394 Extension,
Air Baffle
41 2155547 Clip, Heat Shield
42 2310121 Unit Harness
43 2300868 Connector, Water
Tube
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
6.00 oz.
(R−134A)

ICEMAKER PARTS
19
For Models: KSCS23FTWH02, KSCS23FTBT02, KSCS23FTBL02, KSCS23FTMS02, KSCS23FTSS02
(White) (Biscuit) (Black) (Monochromatic Stainless)(Stainless Steel)
W10139479

ICEMAKER PARTS
20
For Models: KSCS23FTWH02, KSCS23FTBT02, KSCS23FTBL02, KSCS23FTMS02, KSCS23FTSS02
(White) (Biscuit) (Black) (Monochromatic Stainless)(Stainless Steel)
W10139479
Illus. Part
No. No. DESCRIPTION
1 489084 Screw
2 2256096 Fitting, Water
Tube
3 628379 Clip, Fuse
4 2313394 Shield, Water
Valve
5 489478 Screw
6 2319734 Smart Valve Asm
7 2208136 Tube Clip
8 2174358 Cover
9 488649 Screw
10 628228 Mold & Heater
Assembly (Also
Order 542638)
11 628356 Cup, Water Fill
12 627843 Ejector
13 2198598 Ice Striper
14 2194712 Support
15 2315522 Retainer,
Thermostat
16 627985 Thermostat (Also
Order 542369
Cement
Alumilastic)
17 8533917 Screw
18 489276 Screw
19 2187467 Harness, Wiring
20 2303583 Bracket, Icemaker
Mounting
21 626684 Module Assembly
(Includes Items
22 & 23)
22 626691 Motor
23 489136 Screw
100 2198597 Icemaker Assembly
