CABINET PARTS
1
For Models: KSRK25XLWH10, KSRK25XLBL10, KSRK25XLBT10, KSRK25XLSS10
(White) (Black) (Biscuit) (Stainless Steel)
11−03 Printed In U.S.A. (kdj) Part No. 8198776
REFRIGERATOR

CABINET PARTS
2
For Models: KSRK25XLWH10, KSRK25XLBL10, KSRK25XLBT10, KSRK25XLSS10
(White) (Black) (Biscuit) (Stainless Steel)
8198776
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
LITERATURE PARTS
1 LIT2255706 Use & Care Guide
LIT2255383 Service & Wiring
Sheet
LIT2261535 Energy Label
LIT2220407 Modular Icemaker
Service Sheet
2 2174748 Front Roller (2)
3 3400517 Screw
4 2196236 Roller (Rear) (2)
5 489427 Screw
6 2155013 Clip, Grille
7 489478 Screw
8 2156056 Shim
9 2203771 Hinge Top, RC
10 3400103 Screw
11 Hinge Cover, FC
2203407W White
2203407B Black
2203407T Biscuit
12 2217075 Hinge Bottom (2)
13 Filler, Wrapper
2196094 White
2196097 Black
2196150 Biscuit
14 Grille
2186881W White
2186881B Black
2186881T Biscuit
15 489497 Screw
16 2203770 Hinge, Top FC
17 489464 Screw
18 940139 Drain Fitting
19 1108438 Tube, Extension
20 1108439 Clip, Drain Tube
21 2188739 Cover, Unit
22 Hinge Cover, RC
2203408W White
2203408B Black
2203408T Biscuit
23 549193 Clamp, Service
Cord
24 489084 Screw
25 2155311 Door Closer,
Lower Cam (2)
26 489483 Screw
27 2186443 Housing, Water
Filter
28 2203220 Water Filter
29 489500 Screw
30 Cap, Water
Filter
2186494W White
2186494B Black
2186494T Biscuit
31 Cabinet (Not A
Serviceable Part)
32 8281227 Screw
33 2203098 Plate, Screw
34 3400113 Screw

REFRIGERATOR LINER PARTS
3
For Models: KSRK25XLWH10, KSRK25XLBL10, KSRK25XLBT10, KSRK25XLSS10
(White) (Black) (Biscuit) (Stainless Steel)
8198776
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2194744 Escutcheon, Meat
Pan Control
3 2182757 Slide Meat
Pan Control
4 2257741 Louver
5 2256035 Bracket, Dual
Crisper Light
7 2256037 Wire Harness,
Dual Crisper
Light
9 2206273 Ladder, Shelf (2)
11 486298 Screw (2)
12 487539 Screw
16 2179404 Rack, Wine & Egg
22 1123919 Bracket Retainer
23 489290 Screw (2)
24 2209751 Air Diffuser
Assembly
25 2212240 Air Diffuser
Cover
26 2150331 Cover, Conduit
29 2162085 Socket
30 842534 Clip, Air Duct
31 2217199 Reservoir
33 527949 Light Bulb
34 2209769 Light Lens
37 488280 Screw

REFRIGERATOR SHELF PARTS
4
For Models: KSRK25XLWH10, KSRK25XLBL10, KSRK25XLBT10, KSRK25XLSS10
(White) (Black) (Biscuit) (Stainless Steel)
8198776
Illus. Part
No. No. DESCRIPTION
1 2195975 Shelf Assembly,
Cantilever (3)
2 2174253 Button, Humidity
3 2174252 Slide, Humidity
4 2174273 Gasket, Side (2)
5 2223357 Cover, Meat Pan
(Includes Items
13, 14 & 15)
6 2188669 Snack Pan
(Includes 7)
7 2179243 Trim, Handle
8 2255144 Glass, Cover
9 2256153 Cover, Crisper
(Includes 2,
3, 4, 11, 12,
13, 14 & 19)
10 2255143 Glass, Cover
11 2223361 Gasket (Front)
12 2223362 Gasket (Rear)
13 2174478 Eyelet, Roller
14 2188212 Roller
15 489211 Screw
16 2223358 Crisper Pan
(Includes 13,
14, 18, 19 & 21)
17 2223359 Meat Pan
(Includes 13,
14, 19 & 22)
18 2174076 Window, Crisper
19 489261 Screw
20 2176095 Deflector
21 Cap, Crisper Pan
2223286 Right Side
2223285 Left Side
22 2174362 Window, Meat Pan
23 2216624 Egg Bin
24 2216102 Shelf & Roller
Assembly
25 2196485 Stud Assembly
26 2206346 Shelf, Snack Pan
27 3400894 Screw
28 2196483 Stud Assembly
29 8281158 Screw

FREEZER LINER PARTS
5
For Models: KSRK25XLWH10, KSRK25XLBL10, KSRK25XLBT10, KSRK25XLSS10
(White) (Black) (Biscuit) (Stainless Steel)
8198776

FREEZER LINER PARTS
6
For Models: KSRK25XLWH10, KSRK25XLBL10, KSRK25XLBT10, KSRK25XLSS10
(White) (Black) (Biscuit) (Stainless Steel)
8198776
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 941839 Hole Plug
3 3400893 Screw
4 940014 Hole Plug
5 2198697 Gasket
6 2223539 Basket, Tall
7 Track, Basket−Dual
2223708 Right Side
2223709 Left Side
9 2211746 Shelf, Slide Out
Upper
12 2171766 Basket, Front
13 Shelf Track
2261449 Right Side
2261448 Left Side
14 2205837 Shelf
15 2223535 Basket, Sloped
16 486298 Screw
17 842534 Clip, Air Duct
19 2198587 Cover, Emitter
22 2198635 Spring
23 2198634 Pin
25 1115373 Switch, Rocker Arm
26 2220398 P.C. Board
Emitter
27 2198642 Cover, Ice Maker
28 2212321 Slide, Ice Maker
Mounting
29 489478 Screw
30 489214 Screw
32 2162085 Light Socket
33 527949 Light Bulb
34 8281185 Screw
35 2198633 Flipper
36 2198588 Cover, Receiver
37 2198637 Slide, Ice Maker
Shut Off
38 2255114 P.C. Board,
Receiver
39 2198643 Lens
40 2198589 Light Shield
41 2212340 Light Lens
42 2198641 Bracket, Ice Maker
Cover
43 2155597 Socket, Light
45 Ladder
2198609 Left Side
2198610 Right Side
46 2219878 Shield, Wiring

MOTOR AND ICE CONTAINER PARTS
7
For Models: KSRK25XLWH10, KSRK25XLBL10, KSRK25XLBT10, KSRK25XLSS10
(White) (Black) (Biscuit) (Stainless Steel)
8198776

MOTOR AND ICE CONTAINER PARTS
8
For Models: KSRK25XLWH10, KSRK25XLBL10, KSRK25XLBT10, KSRK25XLSS10
(White) (Black) (Biscuit) (Stainless Steel)
8198776
Illus. Part
No. No. DESCRIPTION
1 2198573 Ice Bin
2 2212367 Crusher Bin
3 2211590 Auger
4 2198603 Blade, Stirring
5 1119007 Spacer, Flat (6)
6 2255460 Cover, Crusher
7 1119013 Blade, Rotary
8 1119005 Spacer, Step (2)
9 2198601 Blade, Fixed
10 1119012 Blade, Rotary
11 2198602 Block, Blade
12 489229 Roll Pin
13 1119006 Blade, Rotary
14 489235 Washer, Plain
15 2198661 Washer, Coupling
16 2220457 Coupling
17 8281164 Screw
18 3400065 Screw
19 2198605 Button, Bin
20 2212371 Latch, Bin
21 2198608 Spring, Latch
22 2198671 Screw
23 8281163 Screw
24 2212369 Holder
25 2220458 Coupling, Bottom
26 2198628 Seal
27 2212370 Washer
29 2198607 Spring
30 999536 Drive Shaft
31 2198655 Bracket, Motor
32 2198594 Dispenser, Motor
33 2198626 Cover
34 8281162 Screw
36 2212365 Sleeve, Coupling

REFRIGERATOR DOOR PARTS
9
For Models: KSRK25XLWH10, KSRK25XLBL10, KSRK25XLBT10, KSRK25XLSS10
(White) (Black) (Biscuit) (Stainless Steel)
8198776

REFRIGERATOR DOOR PARTS
10
For Models: KSRK25XLWH10, KSRK25XLBL10, KSRK25XLBT10, KSRK25XLSS10
(White) (Black) (Biscuit) (Stainless Steel)
8198776
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes #7)
2219830W White
2219830B Black
2219830T Biscuit
2219830S Stainless Steel
3 2218122 Door, Compartment
4 2193409 Holder, Beverage
5 2165792 Butter Dish
6 2195497 Divider, Bin
7 Door Gasket,
Magnetic
2221302 Mist Beige
2221313 Black
8 Handle
(Includes #9)
2188635W White
2188635B Black
2188635T Biscuit
2188635S Stainless Steel
9 98654 Set Screw
10 2203690 Stud, Handle
11 488208 Screw
12 2182178 Door Closer,
Upper Cam
13 2159124 Gasket
14 489420 Screw
15 Bracket, Door Stop
2206629 Chrome
2206629B Black
16 2171063 Shelf Bin (4)
17 3400012 Screw
18 2182180 Thimble, Top

FREEZER DOOR PARTS
11
For Models: KSRK25XLWH10, KSRK25XLBL10, KSRK25XLBT10, KSRK25XLSS10
(White) (Black) (Biscuit) (Stainless Steel)
8198776

FREEZER DOOR PARTS
12
For Models: KSRK25XLWH10, KSRK25XLBL10, KSRK25XLBT10, KSRK25XLSS10
(White) (Black) (Biscuit) (Stainless Steel)
8198776
Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(Includes #8
And Dispenser
Front Parts)
2255407W White
2255407B Black
2255407T Biscuit
2216569S Stainless Steel
2 Handle
(Includes #6)
2188635W White
2188635B Black
2188635T Biscuit
2188635S Stainless Steel
4 488208 Screw
5 3400012 Screw
6 98654 Set Screw
7 2171070 Shelf Bin (4)
8 Door Gasket,
Magnetic
2221303 Mist Beige
2221314 Black
9 2203690 Stud, Handle
10 2219982 Trim, Door Shelf
12 488500 Screw
13 2206178 Wire Harness
14 2182179 Door Closer,
Upper Cam
15 2154473 Connector
16 489420 Screw
17 Bracket, Door Stop
2206629 Chrome
2206629B Black
18 2182181 Thimble, Top

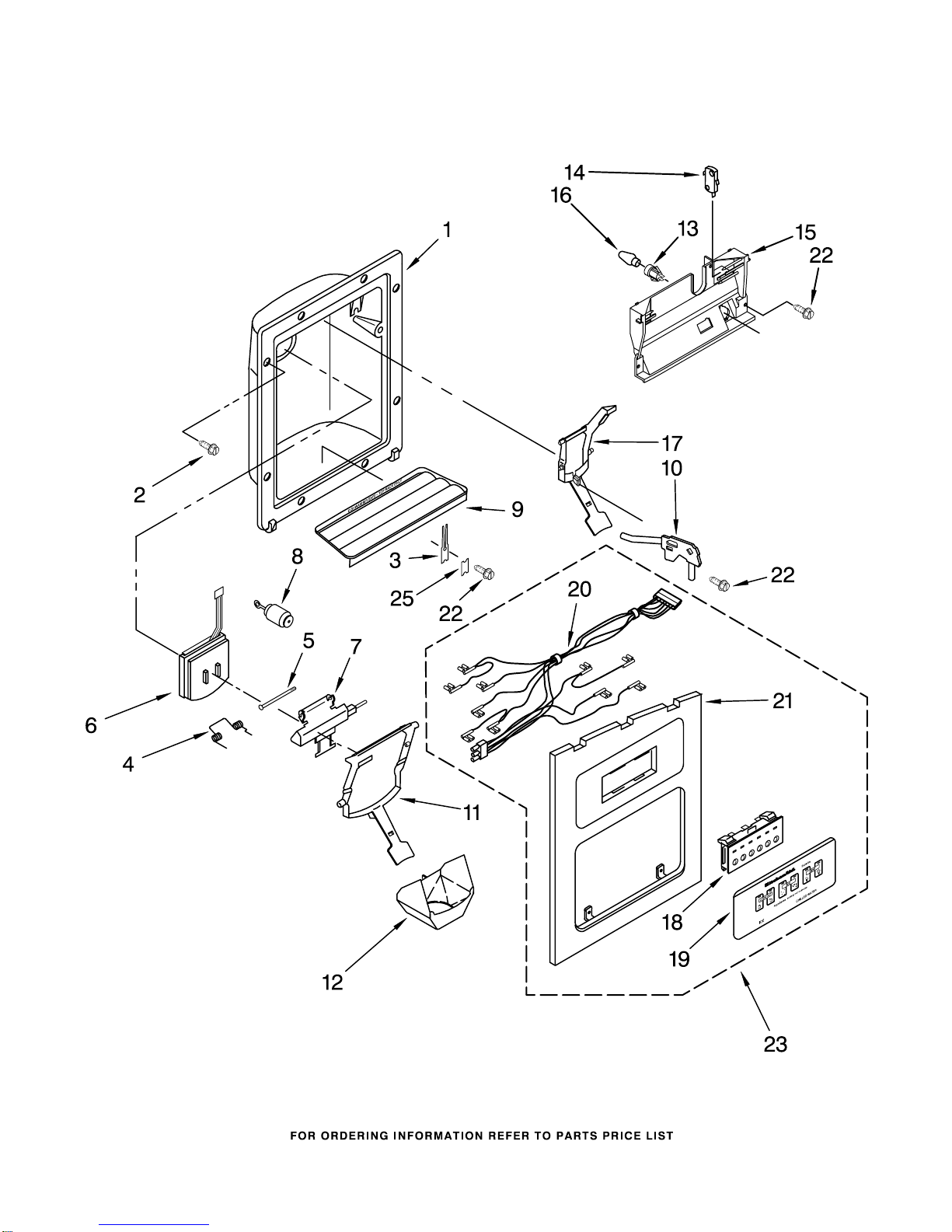

DISPENSER FRONT PARTS
13
For Models: KSRK25XLWH10, KSRK25XLBL10, KSRK25XLBT10, KSRK25XLSS10
(White) (Black) (Biscuit) (Stainless Steel)
8198776

DISPENSER FRONT PARTS
14
For Models: KSRK25XLWH10, KSRK25XLBL10, KSRK25XLBT10, KSRK25XLSS10
(White) (Black) (Biscuit) (Stainless Steel)
8198776
Illus. Part
No. No. DESCRIPTION
1 Housing, Dispenser
(Not Serviced)
2 3196537 Screw
3 2194719 Retainer, Levers
4 2256199 Spring, Torsion
5 2196195 Pin
6 2180352 Door, Ice
7 2206423 Door Mechanism
Assembly
8 2205686 Mechanism Delay
9 Grille, Overflow
2206670W White
2206670B Black
2206670T Biscuit
10 2209718 Water Fitting
Assembly (Includes
Water Tube)
11 Lever, Ice
Dispenser
2180259 White
2180261 Black
2186850 Biscuit
12 2180224 Guide, Ice
13 2180200 Lamp Holder
14 2162361 Switch (4)
15 2183771 Bracket, Control
16 3406124 Bulb, Light
17 Lever, Water
Dispenser
2180268 White
2180270 Black
2186852 Biscuit
18 Switch Assembly
(Not Available
Order #23)
19 Overlay, Front
Cover
(Not Available,
Order #23)
20 2187406 Wire Assembly
21 Front Cover,
Housing
(Not Available,
Order #23)
22 489000 Screw
23 Front Cover
Assembly
(Includes Items
18, 19, 20 & 21)
2220092W White
2220092B Black
2220092T Biscuit
25 2195051 Strain Relief

AIR FLOW PARTS
15
For Models: KSRK25XLWH10, KSRK25XLBL10, KSRK25XLBT10, KSRK25XLSS10
(White) (Black) (Biscuit) (Stainless Steel)
8198776
Illus. Part
No. No. DESCRIPTION
1 2182120 Fan Scroll
2 2155590 Retainer,
Fan Motor
3 2198595 Air Scoop
4 2212377 Air Duct, Upper
5 2198580 Air Duct Freezer
7 2149299 Fan Motor
8 2169142 Fan Blade
10 2176759 Fan Grommet (2)
12 2206504 Harness, Fan
Evaporator, And
Heater, Bi−Metal
13 2155789 Gasket Cover
14 2172840 Wire Tie
16 2203876 Gasket
17 2206314 Cover, Evaporator
18 489355 Screw
21 489478 Screw
22 2203595 Support, R.S
23 2203596 Support, L.S

CONTROL PARTS
16
For Models: KSRK25XLWH10, KSRK25XLBL10, KSRK25XLBT10, KSRK25XLSS10
(White) (Black) (Biscuit) (Stainless Steel)
8198776
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 2216588 Control Box
2 2182150 Tube Barrier,
Thermostat (RC)
3 489214 Screw (3)
4 2149705 Light Switch
5 2161460 Thermostat (RC)
6 2252148 Adaptive Defrost
Control
7 489398 Screw (2)
8 2200096 Cover, Light
Lens
9 2161461 Thermostat (FC)
10 2172940 Window
11 2172906 Grommet, Light Bar
12 2161466 Slide, Thermostat
13 489084 Screw (2)
14 2179920 Light Bar (RC)
15 2196003 Tube, Barrier
Thermostat (FC)
16 489290 Screw (2)
17 2162085 Light Socket
19 527949 Light Bulb
20 2216587 Control Box
Harness
22 1115375 Clip, Wiring
24 2213462 Harness, Indicator
Light
25 2219879 Escutcheon,
Control Box
26 2179921 Light Bar (FC)
27 2172941 Window
28 2172931 Heat Shield
Filter Indicator

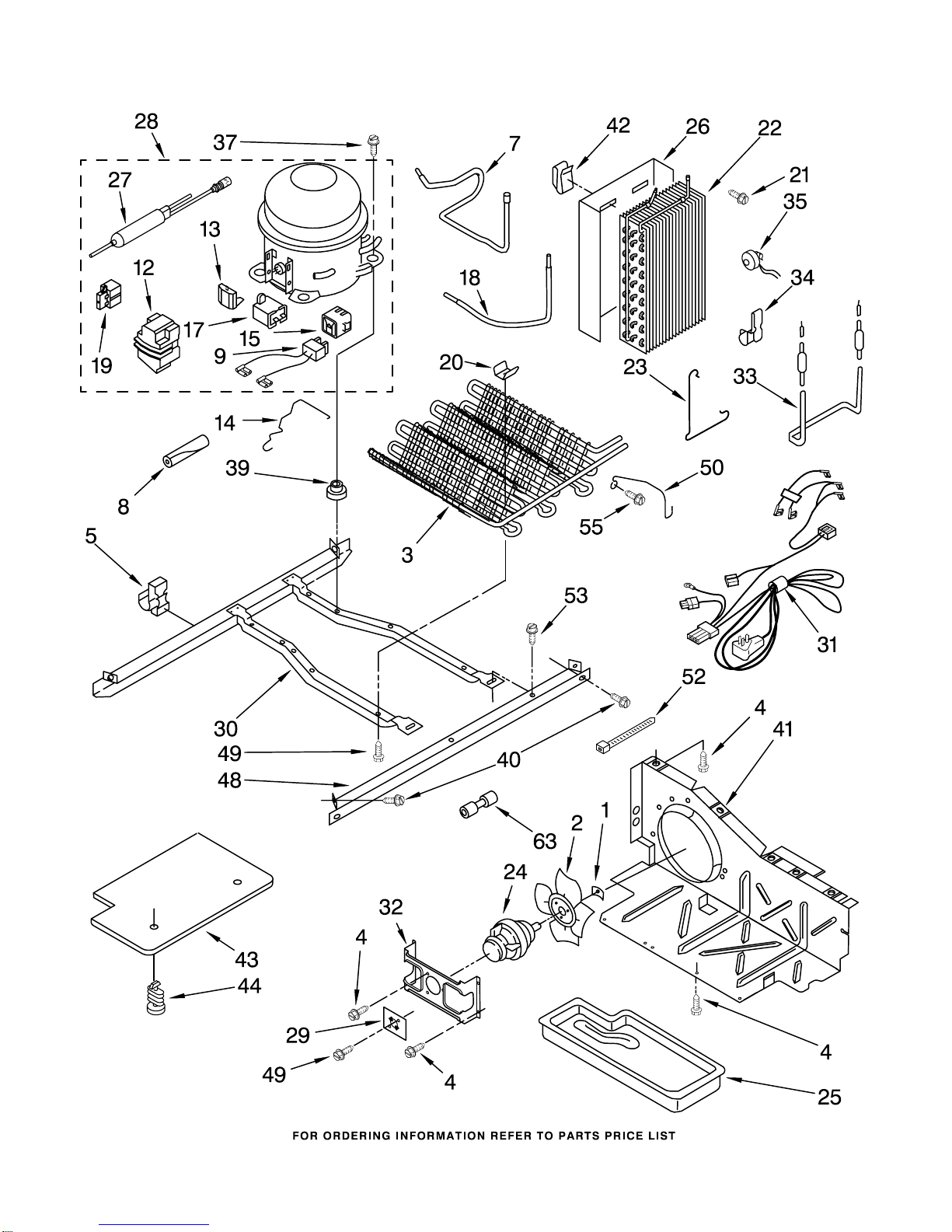

UNIT PARTS
17
For Models: KSRK25XLWH10, KSRK25XLBL10, KSRK25XLBT10, KSRK25XLSS10
(White) (Black) (Biscuit) (Stainless Steel)
8198776

UNIT PARTS
18
For Models: KSRK25XLWH10, KSRK25XLBL10, KSRK25XLBT10, KSRK25XLSS10
(White) (Black) (Biscuit) (Stainless Steel)
8198776
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 486692 Speed Nut
2 2190685 Fan, Blade
3 2204484 Condenser
Assembly
4 489464 Screw
5 2208280 Clip, Wire
7 2205765 Tube Suction
8 2161302 Sleeve
9 4387765 Wire, Capacitor
(Service Only)
12 4387731 Cover (Service
Compressor Only)
13 2187145 Overload
(Service Only)
14 2223314 Clip, Retaining
15 2220475 Start Device,
Combination
(Start Relay and
Overload) for
Production
Compressor
17 Capacitor
999532 (Production)
1118576 (Service)
18 2255798 Tube, Condenser
to Heat Loop
19 2183454 Relay
(Service Only)
20 2216914 Clip, Condenser
21 489478 Screw
22 2209611 Evaporator
23 2161324 Clamp
24 2206005 Fan, Motor
25 1105523 Tray, Evaporator
26 2256150 Heat Shield
27 Drier
2199167 Production
4387019 Service
28 2212192 Compressor
(Includes Items
9, 12, 13, 17,
19 & 27)
(Also Order
876765 Tube Kit)
29 2216997 Bracket, Insert
30 2157397 Unit Mounting
Frame
31 2187783 Unit, Harness
32 2181929 Fan, Motor Bracket
33 2188175 Heater, Defrost
34 2161330 Clip
35 2196155 Bi−Metal, Defrost
37 489373 Screw
39 Grommet (4)
1100826 (Production)
4387558 (Service)
40 489340 Screw
41 2196202 Air Baffle
42 2155547 Clip, Heat Shield
43 2206281 Unit Cover, Bottom
44 489396 Clip
48 1127911 Unit Mounting
Rail
49 8281160 Screw
50 2186495 Guard, Fan
52 2172840 Strap
53 489427 Screw
55 488649 Screw
63 2209709 Connector, Water
Tube
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
5.00 oz.
(R−134A)

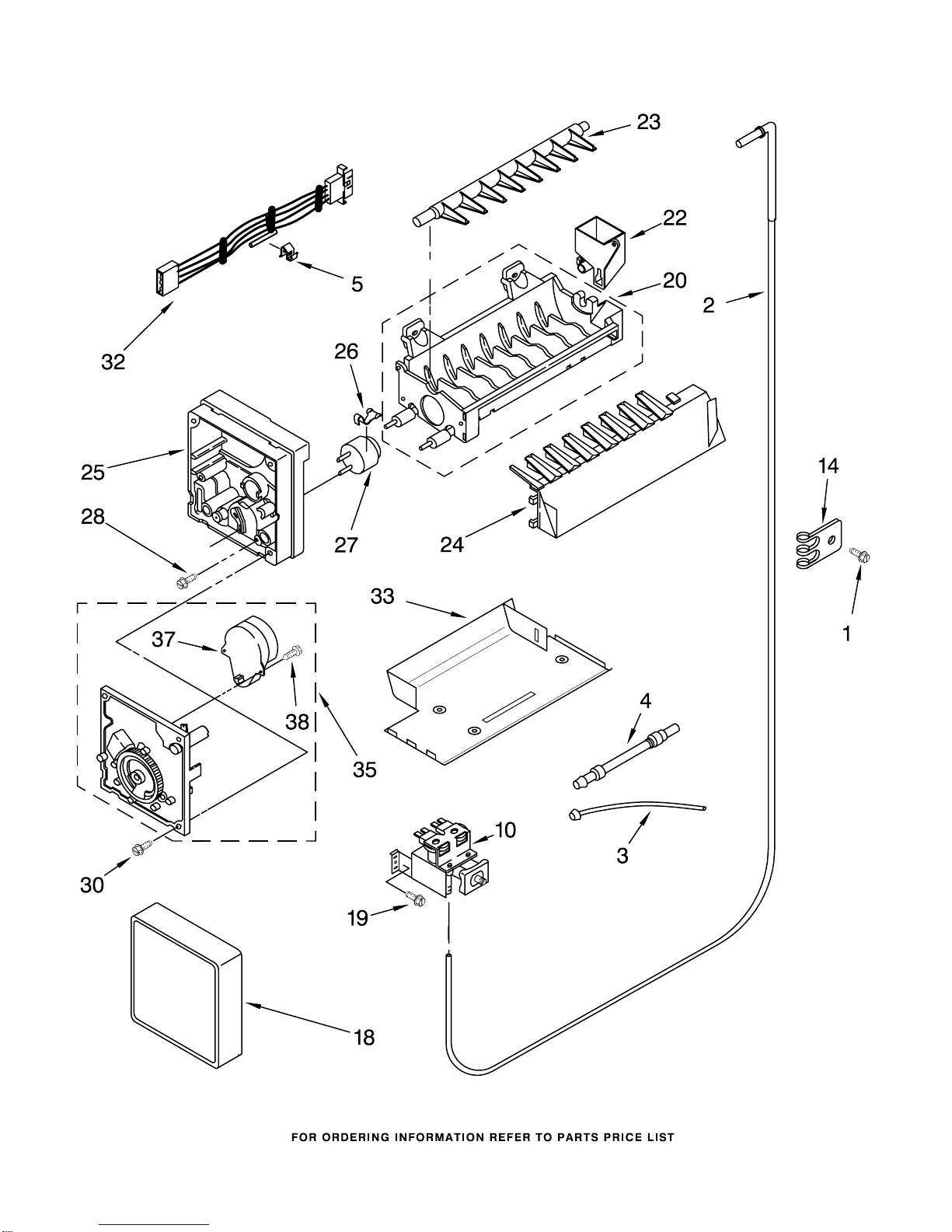

ICEMAKER PARTS
19
For Models: KSRK25XLWH10, KSRK25XLBL10, KSRK25XLBT10, KSRK25XLSS10
(White) (Black) (Biscuit) (Stainless Steel)
8198776

ICEMAKER PARTS
20
For Models: KSRK25XLWH10, KSRK25XLBL10, KSRK25XLBT10, KSRK25XLSS10
(White) (Black) (Biscuit) (Stainless Steel)
8198776
Illus. Part
No. No. DESCRIPTION
1 489084 Screw
2 2256096 Fitting, Water
Tube
3 2255012 Tube, Filter
Outlet
4 2188744 Tube, Filter
Inlet
5 628379 Clip, Fuse
10 2188746 Valve, Solenoid
14 2208136 Tube Clip
18 2174358 Cover
19 488649 Screw
20 628228 Mold & Heater
Assembly (Also
Order 542638
22 628356 Cup, Water Fill
23 627843 Ejector
24 2198598 Ice Striper
25 2194712 Support
26 627796 Retainer,
Thermostat
27 628397 Thermostat (Also
Order 542369
Cement
Alumilastic)
28 8533917 Screw
30 489276 Screw
32 2187467 Harness, Wiring
33 2212322 Bracket, Icemaker
Mounting
35 626653 Module Assembly
(Includes Items
37 & 38)
37 627811 Motor
38 489136 Screw
100 2198597 Complete Icemaker
Assembly
