1
CABINET PARTS
For Models: KSRP22FTWH01, KSRP22FTBT01, KSRP22FTBL01, KSRP22FTSS01, KSRP22FTMS01
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless)
03−07 Litho In U.S.A. (rrm) Part No. W10133400 Rev. A
REFRIGERATOR

CABINET PARTS
2
For Models: KSRP22FTWH01, KSRP22FTBT01, KSRP22FTBL01, KSRP22FTSS01, KSRP22FTMS01
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless)
W10133400
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Literature Parts
2315184 Use & Care Guide
2301270 Service & Wiring
Sheet
2318938 Energy Label
2220407 Modular Icemaker
Service Sheet
2 2254628 Front Roller (2)
3
W10079910 Screw
4 2254625 Roller (Rear) (2)
5 489427 Screw
6 2155013 Clip, Grille
7 488500 Screw
8 2260507 Housing, Water
Filter
9 2209697 Shim
10 2203771 Hinge Top (RC)
11 8281227 Screw
13 Hinge Cover
2203407W White
2203407T Biscuit
2203407B Black
2203407AP Apollo Gray
14 2304322 Hinge Bottom
15 Filler, Wrapper
2304846 White
2304849 Biscuit
2304848 Black
2315169 Apollo Gray
16 Grille
2260501W White
2260501T Biscuit
2260501B Black
2260501AP Apollo Gray
17 489497 Screw
18 489464 Screw
19 2304888 Drain Fitting
20 2304937 Extension Tube
22 4396841 Water Filter
23 2188734 Cover, Unit
24 Hinge Cover
2203408W White
2203408T Biscuit
2203408B Black
2203408AP Apollo Gray
25 549193 Clamp, Service
Cord
26 489084 Screw (6)
27 2155311 Door Closer,
Lower Cam (2)
28 489483 Screw
29 489500 Screw
30 Cap, Water
Filter
2260502W White
2260502T Biscuit
2260502B Black
2260502AP Apollo Gray
31 Cabinet (Not A
Serviceable Part
32 2203770 Hinge Top (FC)
34 2304708 Tube, Filter
Outlet
35 3400113 Screw
36 2319867 Tube, Filter
Inlet
37 489290 Screw
38 2260519 Block, Housing
Support
39 Button, Water
Filter
2260503W White
2260503T Biscuit
2260503B Black
2260503AP Apollo Gray

REFRIGERATOR LINER PARTS
3
For Models: KSRP22FTWH01, KSRP22FTBT01, KSRP22FTBL01, KSRP22FTSS01, KSRP22FTMS01
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless)
W10133400
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2255613 Escutcheon, Meat
Pan Control
3 2301339 Slide Meat
Pan Control
4 2257741 Louver
6 2256035 Bracket, Dual
Crisper Lights
7 2311637 Wire Harness,
Dual Crisper
Lights
9 2206270 Shelf Ladder
10 489478 Screw
11
W10004810 Screw
12 2179404 Rack, Wine & Egg
13 2188819 Thermistor
14 2301234 Housing, Door
Control
15 2216112 Air Diffuser
Assembly
16 2212240 Air Diffuser
Cover
17 2150331 Cover, Conduit
18 2162085 Socket
19 2256126 Reservoir
20 2255743 Light Bulb
21 2209769 Light Lens
22 488280 Screw
24 2301235 Slide, Door
Control

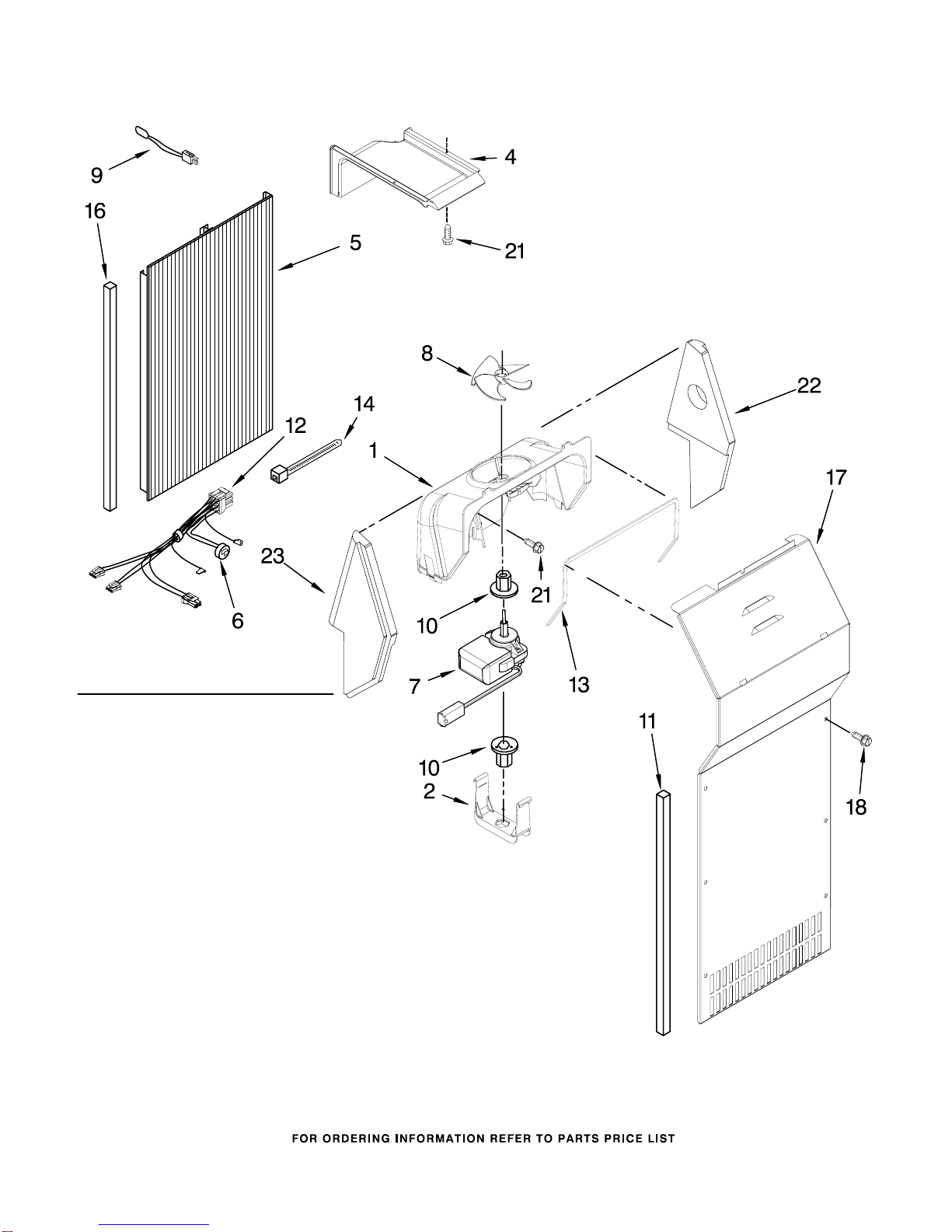

AIR FLOW PARTS
4
For Models: KSRP22FTWH01, KSRP22FTBT01, KSRP22FTBL01, KSRP22FTSS01, KSRP22FTMS01
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless)
W10133400
Illus. Part
No. No. DESCRIPTION
1 2182119 Fan Scroll
2 2155590 Retainer,
Fan Motor
4 2313359 Air Duct, Upper
5 2212313 Air Duct Freezer
6 2319914 Bi−Metal, Defrost
7 2162404 Fan Motor
8 2169142 Fan Blade
9 2188819 Thermistor
10 2176759 Fan Grommet (2)
11 2304241 Gasket, Evap
Cover (2)
12 2310239 Harness, Fan
Evaporator
(Includes #6)
13 2155788 Gasket,
Fan Scroll
14 2172840 Wire Tie
16 2203875 Gasket
17 2304908 Cover, Evaporator
(Includes #11)
18 8281159 Screw
21 489478 Screw
22 2203595 Support, R.S
23 2203596 Support, L.S

FREEZER LINER PARTS
5
For Models: KSRP22FTWH01, KSRP22FTBT01, KSRP22FTBL01, KSRP22FTSS01, KSRP22FTMS01
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless)
W10133400

FREEZER LINER PARTS
6
For Models: KSRP22FTWH01, KSRP22FTBT01, KSRP22FTBL01, KSRP22FTSS01, KSRP22FTMS01
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless)
W10133400
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
3 2216957 Gasket
4 2219878 Shield, Wiring
5 Ladder
2320027 Left Side
2320028 Right Side
6 2155597 Socket, Light
7 Track, Basket−Dual
2301291 Right
2301292 Left
8 2198641 Bracket, Ice
Maker Cover
9 2211743K Shelf, Slide Out
Upper
10 2301192 Basket, Tall
12 2305582K Basket Front
13 Shelf Track
2301289 Right Side
2301290 Left Side
14 2212343K Shelf (2)
15 2301193 Basket, Sloped
16
W10004810 Screw (8)
17 842534 Clip, Air Duct (2)
19 2198587 Cover, Emitter
20 2212376 Light Lens
21 2198643 Lens
22 2198635 Spring
23 2198634 Pin
25 1115373 Switch, Rocker Arm
26 2220398 P.C. Board
Emitter
27 2255591 Cover, Ice Maker
28 2212321 Slide, Ice Maker
29 489478 Screw
30 489214 Screw
33 2255743 Light Bulb
34 8281185 Screw
35 2198633 Flipper
36 2255561 Cover, Receiver
37 2301340 Slide, Ice Maker
Shut Off
38 2255114 P.C. Board,
Receiver

REFRIGERATOR SHELF PARTS
7
For Models: KSRP22FTWH01, KSRP22FTBT01, KSRP22FTBL01, KSRP22FTSS01, KSRP22FTMS01
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless)
W10133400

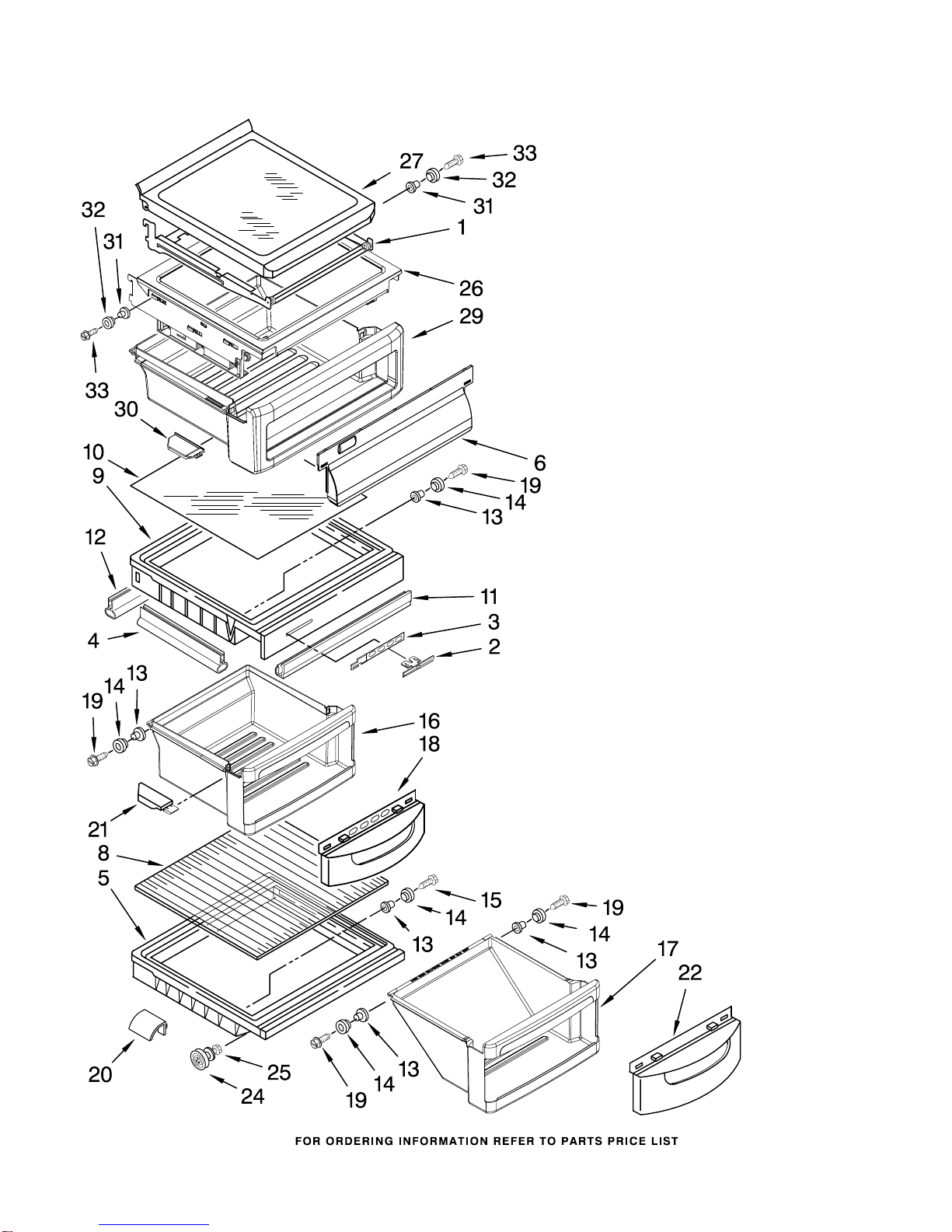

REFRIGERATOR SHELF PARTS
8
For Models: KSRP22FTWH01, KSRP22FTBT01, KSRP22FTBL01, KSRP22FTSS01, KSRP22FTMS01
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless)
W10133400
Illus. Part
No. No. DESCRIPTION
1 2195975 Frame Assembly,
Slide−Out
2 2174253 Button, Humidity
3 2174252 Slide, Humidity
4 2174273 Gasket, Side (2)
5 2223357 Cover, Meat Pan
(Includes 13,
14, 15 & 20)
6 2301006 Window, Snack Pan
8 2255144 Glass, Cover
9 2301484 Cover, Crisper
(Includes 2, 3,
4, 11, 12, 13,
14 & 19)
10 2255143 Glass, Cover
11 2223361 Gasket (Front)
12 2223362 Gasket (Rear)
13 2174478 Eyelet, Roller
14 2188212 Roller
15 489211 Screw
16 2301481 Crisper Pan
(Includes 13, 14
18, 19 & 21)
17 2301482 Meat Pan
(Includes 13, 14,
19 & 22)
18 2174076 Window, Crisper
19 489261 Screw
20 2176095 Deflector
21 Cap, Crisper Pan
2223286 Right Side
2223285 Left Side
22 2174362 Window, Meat Pan
24 2196485 Stud Assembly
25 3400894 Screw
26 2301034 Shelf Assembly
27 2216102 Shelf, Slide−Out
Assembly
29 2301120 Snack Bin
(Includes 6 & 30)
30 Cap, Snack Pan
2301017 Left Side
2301016 Right Side
31 2301153 Eyelet
32 2301152 Roller
33 8533983 Screw

MOTOR AND ICE CONTAINER PARTS
9
For Models: KSRP22FTWH01, KSRP22FTBT01, KSRP22FTBL01, KSRP22FTSS01, KSRP22FTMS01
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless)
W10133400

MOTOR AND ICE CONTAINER PARTS
10
For Models: KSRP22FTWH01, KSRP22FTBT01, KSRP22FTBL01, KSRP22FTSS01, KSRP22FTMS01
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless)
W10133400
Illus. Part
No. No. DESCRIPTION
1 2317246 Ice Bin
2 2317257 Crusher Bin
3 2317247 Auger
4 2258220 Washer
5 1119007 Spacer, Flat (4)
6 2317248 Cover, Crusher
7 2257024 Blade, Rotary
8 1119005 Spacer, Step (2)
9 2257020 Blade, Fixed
10 2257023 Blade, Rotary
11 2317239 Block, Blade
12 489229 Roll Pin
13 2257022 Blade, Rotary
14 489235 Washer, Plain
15 2198661 Washer, Coupling
16 2188918 Coupling
17 8281164 Screw
18 3400065 Screw
19 2187725 Wire Harness,
IDI Motor
20 2317269 Latch, Bin
21 2198608 Spring, Latch
23 8281163 Screw
24 2188919 Holder
25 2317243 Wiper
26 2198628 Seal
27 2317250 Divider−Chamber
28 2315559 Sleeve, Coupling
29 2212305 Cover
30 2188916 Drive Shaft
31 2256154 Enclosure, Motor
32 2315547 Dispenser, Motor
100 2317270 Ice Container
(Complete)

REFRIGERATOR DOOR PARTS
11
For Models: KSRP22FTWH01, KSRP22FTBT01, KSRP22FTBL01, KSRP22FTSS01, KSRP22FTMS01
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless)
W10133400

REFRIGERATOR DOOR PARTS
12
For Models: KSRP22FTWH01, KSRP22FTBT01, KSRP22FTBL01, KSRP22FTSS01, KSRP22FTMS01
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless)
W10133400
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes Item #8)
2318439W White
2318439T Biscuit
2318439B Black
2301188S Stainless Steel
2301188SAP Monochromatic
Stainless
2 Thimble, Top
2308091 For White, Black,
Biscuit and
Monochromatic
Stainless Models
2308050 For Stainless
Steel Models
3 2301486 Door, Compartment
4 2193409K Holder, Beverage
6 2205821K Door Bin (4)
7 2159124 Gasket
8 Door Gasket,
Magnetic
2221300 Mist Beige
2221311 Black
2326336 Grey
9 Nameplate
W10046670 White
W10046700 Biscuit
W10046640 Black
W10046610 Grey
10 3400012 Screw
11 Screw
W10010140 Chrome
W10010150 Black
12 2219698 Stud
13 Handle
(Includes #11)
2319727W White
2319727T Biscuit
2319727B Black
2319727S Stainless Steel
14 2182178 Door Closer,
Upper Cam
15 489420 Screw
16 Bracket, Door Stop
2206629 Chrome
2206629B Black
17 488208 Screw

FREEZER DOOR PARTS
13
For Models: KSRP22FTWH01, KSRP22FTBT01, KSRP22FTBL01, KSRP22FTSS01, KSRP22FTMS01
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless)
W10133400

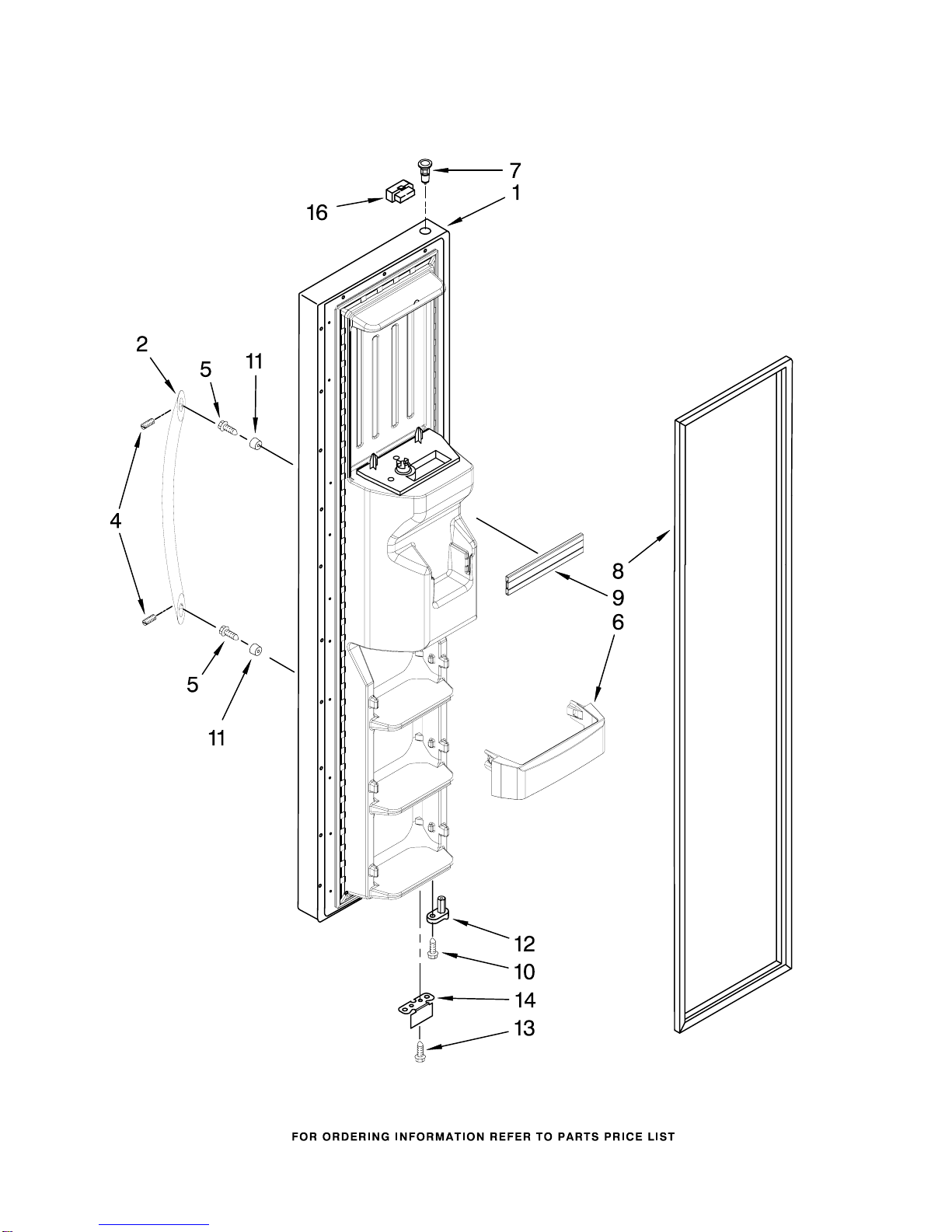

FREEZER DOOR PARTS
14
For Models: KSRP22FTWH01, KSRP22FTBT01, KSRP22FTBL01, KSRP22FTSS01, KSRP22FTMS01
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless)
W10133400
Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(Includes Item #8
And Dispenser
Front Parts)
2327703W White
2327703T Biscuit
2327703B Black
2327705SB Stainless Steel
2327705SAP Monochromatic
Stainless
2 Handle
(Includes #4)
2319727W White
2319727T Biscuit
2319727B Black
2319727S Stainless Steel
4 Screw
W10010140 Chrome
W10010150 Black
5 488208 Screw
6 2171071K Trivet, Shelf (3)
7 Thimble, Top
2182181 For White, Black,
Biscuit and
Monochromatic
Stainless Models
2301049 For Stainless
Steel Models
8 Door Gasket,
Magnetic
2221301 Mist Beige
2221312 Black
2326337 Grey
9 2212375 Trim, Door Shelf
10 3400012 Screw
11 2219698 Stud
12 2182179 Door Closer,
Upper Cam
13 489420 Screw
14 Bracket, Door Stop
2206629 Chrome
2206629B Black
16 1128252 Connector

DISPENSER FRONT PARTS
15
For Models: KSRP22FTWH01, KSRP22FTBT01, KSRP22FTBL01, KSRP22FTSS01, KSRP22FTMS01
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless)
W10133400

DISPENSER FRONT PARTS
16
For Models: KSRP22FTWH01, KSRP22FTBT01, KSRP22FTBL01, KSRP22FTSS01, KSRP22FTMS01
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless)
W10133400
Illus. Part
No. No. DESCRIPTION
1 Housing, Dispenser
(Not Serviced)
2 3196537 Screw
3 2194719 Retainer, Levers
4 2304772 Spring, Torsion
5 2196195 Pin
6 2180353 Door, Ice
7 2304355 Door Mechanism
Assembly
8 2205686 Mechanism Delay
9 Grille, Overflow
2206671W White
2206671T Biscuit
2206671B Black
2206671AP Apollo Gray
10 2304317 Water Fitting
Assembly (Includes
Water Tube)
11 Lever, Ice
Dispenser
2180259 White
2186850 Biscuit
2180261 Black
2180261AP Apollo Gray
12 2180224 Guide, Ice
13 2305571 Gasket
15 2323001 Bracket, Control
17 Lever, Water
Dispenser
2180268 White
2186852 Biscuit
2180270 Black
2180270AP Apollo Gray
19 Overlay, Front
Cover
(Not Available
Order #23)
20 LED Display
(Not Available,
Order #23)
21 Front Cover,
Housing
(Not Available,
Order #23)
22 489000 Screw
23 Front Cover
Assembly
(Includes Items
19, 20 & 21)
2318948W White
2318948T Biscuit
2318948B Black
2318948US Universal Silver
25 2195051 Strain Relief
26 2304673 Bracket, Dispenser
27 2252127 Sleeve, Delay
Mechanism

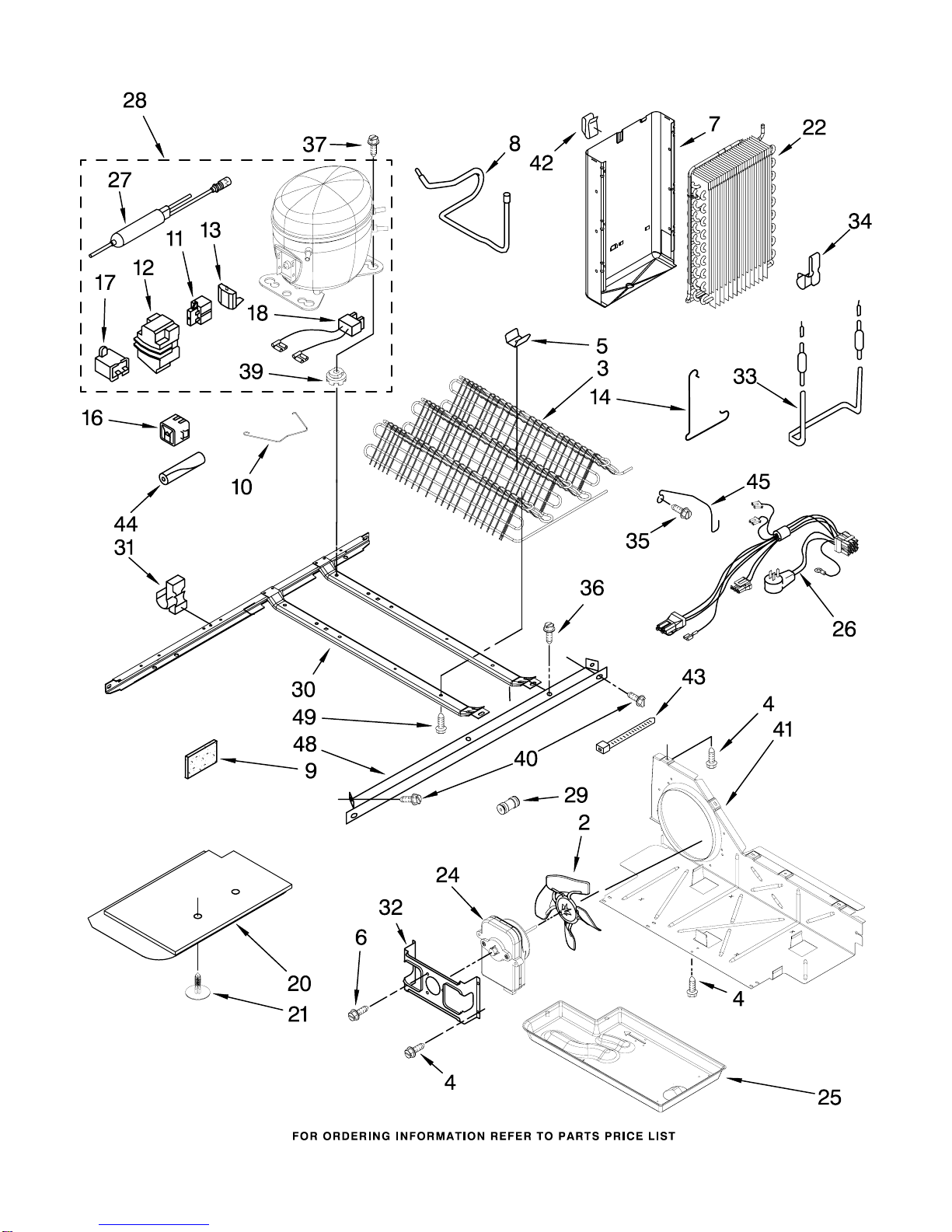

UNIT PARTS
17
For Models: KSRP22FTWH01, KSRP22FTBT01, KSRP22FTBL01, KSRP22FTSS01, KSRP22FTMS01
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless)
W10133400

UNIT PARTS
18
For Models: KSRP22FTWH01, KSRP22FTBT01, KSRP22FTBL01, KSRP22FTSS01, KSRP22FTMS01
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless)
W10133400
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
2 2225834 Fan, Blade
3
W10121484 Condenser
Assembly
4 489464 Screw
5 2216914 Clip, Condenser
6 8533993 Screw
7 2217195 Heat Shield
And Drain Pan
8 2205764 Tube Suction
9 2169104 Insulation−Sound
10 2223314 Clip, Retaining
11 2183454 Relay
(Service Only)
12 4387731 Cover
(Service Only)
13 2187145 Overload
(Service Only)
14 2161324 Clip, Defrost
Heater
16 2304884 Start−Device,
Combination
(Start Relay and
Overload for
Production
Compressor Only)
17 Capacitor
2169373 Production
4387764 Service
18 4387765 Wire, Capacitor
(Service Only)
20 2304898 Unit Cover, Bottom
21 489396 Clip
22 2188822 Evaporator
24 2188874 Motor, Fan
25 1105523 Tray, Evaporator
26 2187783 Harness, Wire
27 Drier
2319825 Production
2317845 Service
28
W10120459 Compressor
(Includes Items
11, 12, 13, 17,
18, 27 & 39)
29 2209709 Connector−Water
Tube
30 2304903 Frame, Unit
Mounting
31 2208220 Clip−Wire & Tube
32 2181929 Bracket, Fan Motor
33 2188174 Heater, Defrost
34 2304287 Clip
35 489478 Screw
36 489427 Screw
37 489373 Screw
39 Grommet (4)
1100826 Production
4387558 Service
40 489340 Screw
41 2196202 Air Baffle
42 2155547 Clip, Heat
43 2172840 Wire Tie
44 2161302 Sleeve
45 2260516 Guard, Fan
48 2149718 Unit Mounting
Rail
49 8281232 Screw
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
5.0 oz.
(R−134)

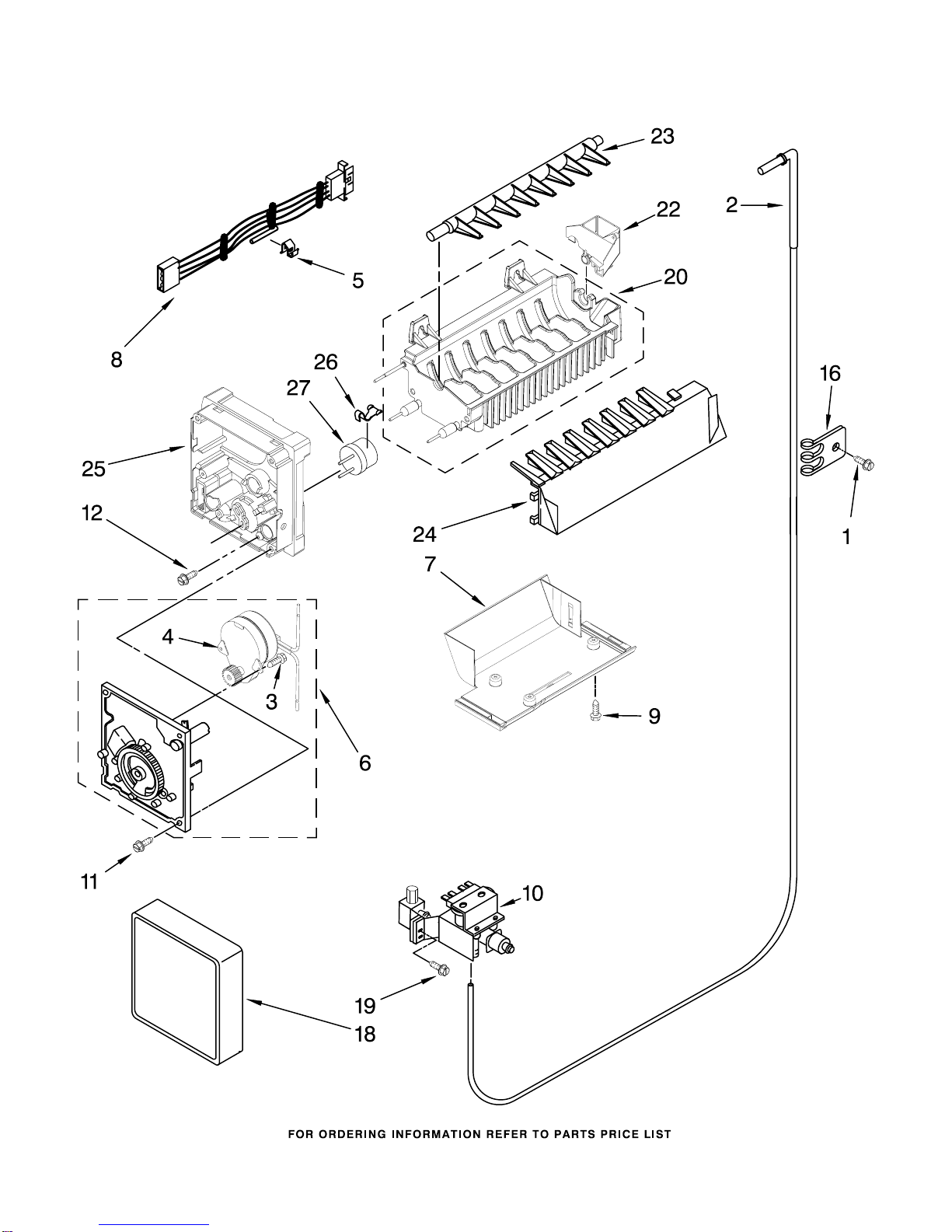

ICEMAKER PARTS
19
For Models: KSRP22FTWH01, KSRP22FTBT01, KSRP22FTBL01, KSRP22FTSS01, KSRP22FTMS01
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless)
W10133400

ICEMAKER PARTS
20
For Models: KSRP22FTWH01, KSRP22FTBT01, KSRP22FTBL01, KSRP22FTSS01, KSRP22FTMS01
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless)
W10133400
Illus. Part
No. No. DESCRIPTION
1 489084 Screw
2 2256095 Fitting, Water
Tube
3 489136 Screw
4 Motor
(Not Serviced,
Order # 6)
5 628379 Clip, Fuse
6 626680 Module Assembly
(Includes Items
3 & 4)
7 2212317 Bracket, IceMaker
Mounting
8 2187484 Harness, Wiring
9 489478 Screw
10 2188709 Valve, Solenoid
11 489276 Screw
12 8533917 Screw
16 2208136 Clamp, Tube
18 2174358 Cover
19 488649 Screw
20 2212351 Mold & Heater
Assembly (Also
Order 542638
Silicone Grease)
22 628356 Cup−Water Fill
23 2212320 Ejector
24 2212318 Ice Striper
25 2194712 Support
26 2315522 Retainer,
Thermostat
27 627985 Thermostat (Also
Order 542369
Cement
Alumilastic)
100 2212353 Complete IceMaker
Assembly
