CABINET PARTS
For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00
(White) (Black) (Biscuit) (Stainelss Steel)
6−00 Printed In U.S.A. (dmz) Part No. 4398738
REFRIGERATOR

CABINET PARTS
2
For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00
(White) (Black) (Biscuit) (Stainelss Steel)
4398738
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
LITERATURE PARTS
1 LIT2206106 Use & Care Guide
LIT2200279 Service & Wiring
Sheet
LIT2211901 Energy Label
LIT628370 Modular Icemaker
Service Sheet
2 2174748 Front Roller (2)
3 3400517 Screw
4 2196236 Roller (Rear) (2)
5 489427 Screw
6 2155013 Clip, Grille
7 489478 Screw
8 Shim
2156056 (2)
2181911 (1)
9 2196048 Shim, Hinge Top
10 489284 Screw
11 Hinge Cover (FC)
2203407W White
2203407B Black
2203407T Biscuit
12 2171851 Hinge Bottom (2)
13 Filler, Wrapper
2196094 White
2196097 Black
2196150 Biscuit
14 Grille
2186881W White
2186881B Black
2186881T Biscuit
15 489497 Screw
16 2203770 Hinge, Top (FC)
17 489464 Screw
18 940139 Drain Fitting
19 1108438 Tube, Extension
20 1108439 Clip, Drain Tube
21 2176140 Cover, Unit
22 Hinge Cover (RC)
2203408W White
2203408B Black
2203408T Biscuit
23 549193 Clamp, Service
Cord
24 489084 Screw
25 2155311 Door Closer,
Lower Cam (2)
26 489483 Screw
27 2186443 Housing, Water
Filter
28 2203220 Water Filter
29 489500 Screw
30 Cap, Water
Filter
2186884W White
2186884B Black
2186884T Biscuit
31 Cabinet (Not A
Serviceable Part)
32 2203771 Hinge, Top (RC)

REFRIGERATOR LINER PARTS
3
For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00
(White) (Black) (Biscuit) (Stainelss Steel)
4398738
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2194744 Escutcheon, Meat
Pan Control
3 2182757 Slide Meat
Pan Control
4 2182147 Louver
5 2171846 Release Valve
6 2196485 Stud Assembly
7 3400894 Screw
8 2196483 Stud Assembly
9 2181796 Ladder, Shelf (2)
10 8281158 Screw
11 486298 Screw (2)
12 487539 Screw
13 2205813 Strap
16 2179404 Rack, Wine & Egg
22 1123919 Bracket Retainer
23 489290 Screw (2)
24 2161467 Air Diffuser
Assembly
25 2161470 Air Diffuser
Cover
26 2150331 Cover, Conduit
29 2162085 Socket
30 842534 Clip, Air Duct
31 2209687 Reservoir
33 527949 Light Bulb
34 2203266 Light Lens
37 488280 Screw

REFRIGERATOR SHELF PARTS
4
For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00
(White) (Black) (Biscuit) (Stainelss Steel)
4398738
Illus. Part
No. No. DESCRIPTION
1 2195978 Shelf Assembly,
Cantilever (3)
2 2174253 Button, Humidity
3 2174252 Slide, Humidity
4 2174273 Gasket, Side (2)
5 2161491 Cover, Meat Pan
(Includes Items
13, 14 & 15)
6 2209677 Snack Pan
7 2179243 Trim, Handle
8 2189526 Glass, Cover
9 2174250 Cover, Crisper
(Includes 2,
3, 4, 11, 12,
13, 14 & 19)
10 2174148 Glass, Cover
11 2174272 Gasket (Front)
12 2174274 Gasket (Rear)
13 2174478 Eyelet, Roller
14 2188212 Roller
15 489211 Screw
16 2179227 Crisper Pan
(Includes 13,
14, 18, 19 & 21)
17 2179231 Meat Pan
(Includes 13,
14, 19 & 22)
18 2174076 Window, Crisper
19 489261 Screw
20 2176095 Deflector
21 Cap, Crisper Pan
2174259 Right Side
2174258 Left Side
22 2174362 Window, Meat Pan
23 2182730 Egg Bin
24 2174021 Shelf & Roller
Assembly
25 489439 Screw
26 2208298 Shelf, Snack Pan

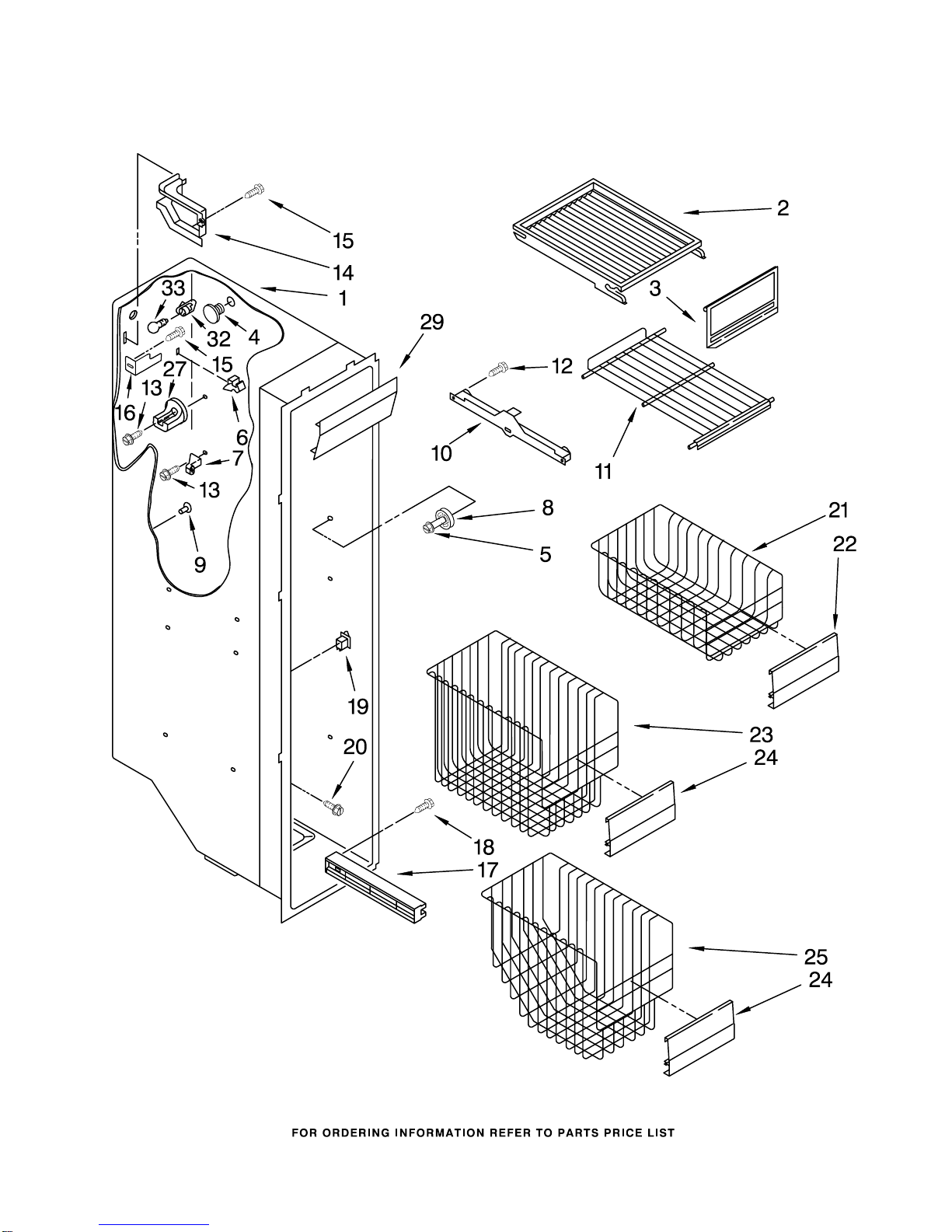

FREEZER LINER PARTS
5
For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00
(White) (Black) (Biscuit) (Stainelss Steel)
4398738

FREEZER LINER PARTS
6
For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00
(White) (Black) (Biscuit) (Stainelss Steel)
4398738
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 2174493 Shelf, Top
Compartment
3 2171713 Door, Ice
Compartment
4 940014 Hole Plug
5 8281158 Screw
6 842534 Clip, Air Duct (2)
7 2196206 Support, Stud (4)
8 2196483 Stud Assembly
9 2176134 Grommet (2)
10 Slide, Container
1119237 Left Side
1119293 Right Side
11 2174267 Shelf
12 489100 Screw (4)
13 3400893 Screw
14 2155572 Cover, Wiring
15 489355 Screw
16 2209674 Bracket, Fill Tube
17 Shelf Track
2181760 Right Side (3)
2181759 Left Side (3)
18 486298 Screw
19 1115373 Switch, Rocker Arm
20 489478 Screw
21 2181763 Basket, Shallow
22 2171767 Front, Basket
23 2181765 Basket, Square
24 2171766 Front, Basket
25 2181764 Basket, Sloped
27 2196207 Stud, Rear
29 2171705 Light Lens
32 2162085 Socket, Light
33 527949 Bulb, Light

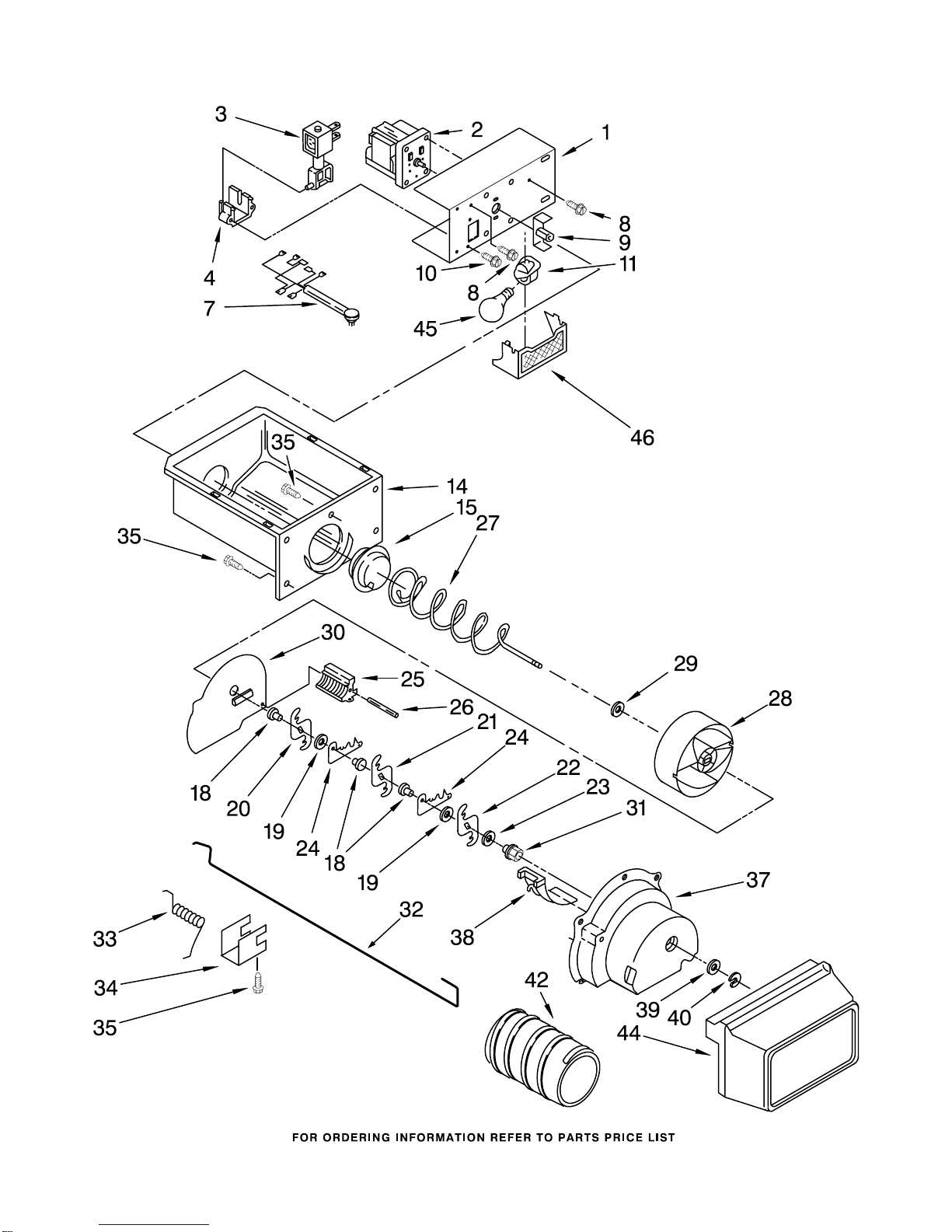

MOTOR AND ICE CONTAINER PARTS
7
For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00
(White) (Black) (Biscuit) (Stainelss Steel)
4398738

MOTOR AND ICE CONTAINER PARTS
8
For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00
(White) (Black) (Biscuit) (Stainelss Steel)
4398738
Illus. Part
No. No. DESCRIPTION
1 2183726 Bracket, Motor
2 2188385 Motor, Dispenser
3 2152713 Soleniod Assembly
4 2149100 Guide, Solenoid
7 2186815 Wiring Assembly,
Ice Dispenser
8 489399 Screw
9 2205716 Coupling, Motor
10 489478 Screw
11 2162085 Socket, Light
14 2196091 Ice Container
15 983668 Coupling, Conveyor
18 1119005 Spacer, Step (3)
19 1119007 Spacer, Flat (2)
20 1119006 Blade, Rotary
21 1119012 Blade, Rotary
22 1119013 Blade, Rotary
23 489235 Washer, Plain
24 1119009 Blade, Fixed (2)
25 2157405 Block, Blade
26 489229 Roll Pin
27 2181955 Conveyor
28 2196194 Drum
29 3400912 Washer
30 2171682 Floating Baffle
31 1119018 Nut, Bearing
32 2155231 Control Arm
33 1119020 Spring, Return
34 1119021 Retainer Clip, Rod
35 488886 Screw
37 2180348 Housing, Crusher
38 1119017 Deflector, Ice
39 489234 Washer, Plain
40 489236 Retainer Ring
42 2152021 Sleeve−Auger
44 2204321 Front Cover,
Ice Container
45 527949 Light Bulb
46 2171706 Light Lens,
Dispenser

REFRIGERATOR DOOR PARTS
9
For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00
(White) (Black) (Biscuit) (Stainelss Steel)
4398738

REFRIGERATOR DOOR PARTS
10
For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00
(White) (Black) (Biscuit) (Stainelss Steel)
4398738
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes #7)
2207183W White
2207183B Black
2207183T Biscuit
2207183S Stainless Steel
3 2182399 Door, Compartment
4 2193409 Holder, Beverage
5 2165792 Butter Dish
7 Door Gasket,
Magnetic
2159075 Mist Beige
2159083 Black
10 Handle
2207112W White
2207112B Black
2207112T Biscuit
2207112S Stainless Steel
11 3400898 Screw
12 2182178 Door Closer,
Upper Cam
13 2159124 Gasket
14 489420 Screw
15 2200082 Bracket, Door Stop
16 2205821 Shelf Bin (4)
17 3400012 Screw
21 Endcap, Handle
2207111W White
2207111B Black
2207111T Biscuit

FREEZER DOOR PARTS
11
For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00
(White) (Black) (Biscuit) (Stainelss Steel)
4398738

FREEZER DOOR PARTS
12
For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00
(White) (Black) (Biscuit) (Stainelss Steel)
4398738
Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(Includes #8
And Dispenser
Front Parts)
2207189W White
2207189B Black
2207189T Biscuit
2207189S Stainless Steel
2 Handle
2207112W White
2207112B Black
2207112T Biscuit
2207112S Stainless Steel
4 3400898 Screw
5 3400012 Screw
7 2171070 Shelf Bin (4)
8 Door Gasket,
Magnetic
2159074 Mist Beige
2159082 Black
10 2209681 Trim, Door Shelf
12 488500 Screw
13 2200400 Wire Harness
2207101 Wire Harness
(Stainless Model)
14 2182179 Door Closer,
Upper Cam
15 2154473 Connector
16 489420 Screw
17 2200082 Bracket, Door Stop
23 Endcap, Handle
2207110W White
2207110B Black
2207110T Biscuit

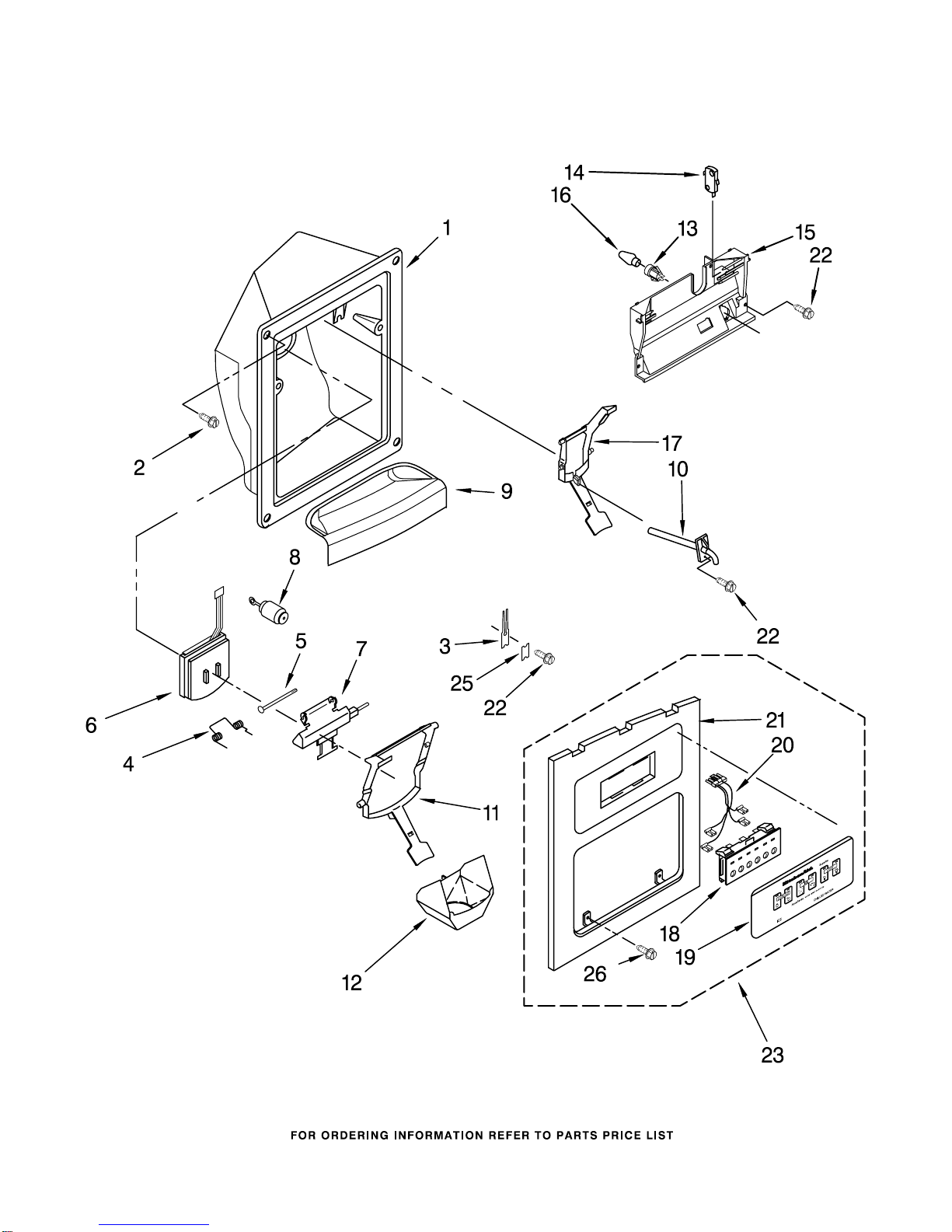

DISPENSER FRONT PARTS
13
For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00
(White) (Black) (Biscuit) (Stainelss Steel)
4398738

DISPENSER FRONT PARTS
14
For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00
(White) (Black) (Biscuit) (Stainelss Steel)
4398738
Illus. Part
No. No. DESCRIPTION
1 Housing, Dispenser
(Not Serviced)
2 489000 Screw
3 2194719 Retainer, Levers
4 2180209 Spring, Torsion
5 2196195 Pin
6 2180352 Door, Ice
7 2206423 Door Mechanism
Assembly
8 2205686 Mechanism Delay
9 Grille, Overflow
2207109W White
2207109B Black
2207109T Biscuit
10 2180225 Water Fitting
Assembly (Includes
Water Tube)
11 Lever, Ice
Dispenser
2180259 White (White
Shadow Pad)
2180261 Black (Storm
Grey Pad)
2186850 Biscuit (Almond
Shadow Pad)
12 2180224 Guide, Ice
13 2180200 Lamp Holder
14 2162361 Switch (4)
15 2183771 Bracket, Control
16 3406124 Bulb, Light
17 Lever, Water
Dispenser
2180268 White (White
Shadow Pad)
2180270 Black (Storm
Grey Pad)
2186852 Biscuit (Almond
Shadow Pad)
18 2180236 Switch Assembly
(Also Order
Item #19)
19 Overlay, Front
Cover
2207187W White
2207187B Black
2207187T Biscuit
20 2196199 Wire Assembly
21 Front Cover,
Housing
(Not Available,
Order #23)
22 489000 Screw
23 Front Cover
Assembly
(Includes Items
18, 19, 20 & 21)
2207186W White
2207186B Black
2207186T Biscuit
25 2195051 Strain Relief
26 3400065 Screw

AIR FLOW PARTS
15
For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00
(White) (Black) (Biscuit) (Stainelss Steel)
4398738
Illus. Part
No. No. DESCRIPTION
1 2182120 Fan Scroll
2 2155590 Retainer,
Fan Motor
3 2161231 Air Scoop
4 2209606 Gasket
5 2203593 Air Duct Freezer
7 2149299 Fan Motor
8 2169142 Fan Blade
9 2209607 Gasket
10 2176759 Fan Grommet (2)
11 2182146 Duct, Icemaker
12 2186800 Harness, Fan
Evaporator, And
Heater, Bi−Metal
13 2155789 Gasket Cover
14 2172840 Wire Tie
16 2203876 Gasket
17 2203841 Cover, Evaporator
18 489355 Screw
21 489478 Screw
22 2203595 Support, R.S
23 2203596 Support, L.S

CONTROL PARTS
16
For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00
(White) (Black) (Biscuit) (Stainelss Steel)
4398738
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 2200135 Control Box
2 2182150 Tube Barrier,
Thermostat (RC)
3 489214 Screw (3)
4 2149705 Light Switch
5 2161461 Thermostat (FC)
6 2162046 Adaptive Defrost
Control
7 489398 Screw (2)
8 2196003 Tube Barrier,
Thermostat (FC)
9 2161460 Thermostat (R.C.)
10 2172940 Window
11 2172906 Grommet, Light Bar
12 2161466 Slide, Thermostat
13 489084 Screw (2)
14 2179920 Light Bar (RC)
15 2200096 Cover, Light
Lens
16 489290 Screw (2)
17 2162085 Light Socket
18 2172931 Heat Shield
19 527949 Light Bulb
20 2200441 Control Box
Harness
21 2200097 Retainer,
Light Lens
22 1115375 Clip, Wiring
23 2203384 P.C. Board
Filter Indicator
24 489214 Screw
25 2200099 Escutcheon,
Control Box
26 2179921 Light Bar (FC)
27 2172941 Window

UNIT PARTS
17
For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00
(White) (Black) (Biscuit) (Stainelss Steel)
4398738

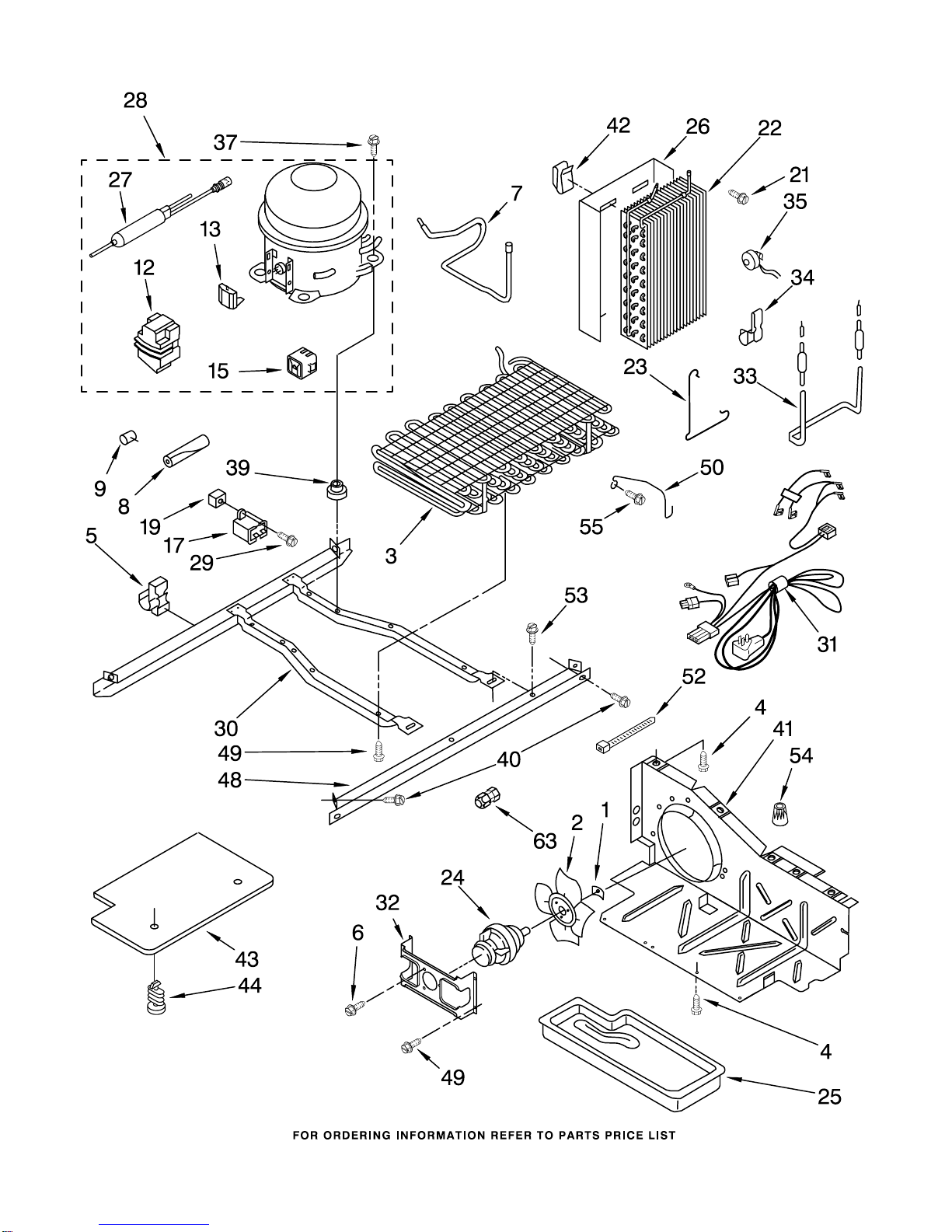

UNIT PARTS
18
For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00
(White) (Black) (Biscuit) (Stainelss Steel)
4398738
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 486692 Speed Nut
2 2190685 Fan, Blade
3 2204242B Condenser
Assembly
4 489464 Screw
5 2208280 Clip, Wire
6 489099 Screw
7 2204239 Tube Suction
8 2161302 Sleeve
9 2158826 Dampener
12 4387731 Cover (Service
Compressor Only)
13 4387835 Overload,
(Service
Compressor
Includes Relay)
15 2204307 Start Device,
Combination
(Start Relay and
Overload) for
Production
Compressor
17 Capacitor
4387764 (Service)
19 509812 Screw Grommet
21 489478 Screw
22 2209611 Evaporator
23 2161324 Clamp
24 2176336 Fan, Motor
25 1110674 Tray, Evaporator
26 2149294 Heat Shield
27 2199167 Drier
28 2183455 Compressor
(Includes Items
12, 13, 15, 17,
27) (Also Order
876765 Tube Kit)
29 488687 Screw
30 2157396 Unit Mounting
Frame
31 2188346 Unit, Harness
32 2181929 Fan, Motor Bracket
33 2188175 Heater, Defrost
34 2161330 Clip
35 2196155 Bi−Metal, Defrost
37 489387 Screw
39 2183042 Grommet (4)
40 489340 Screw
41 2196202 Air Baffle
42 2155547 Clip, Heat Shield
43 2206281 Unit Cover, Bottom
44 489396 Clip
48 1127906 Unit Mounting
Rail
49 488624 Screw
50 2186495 Guard, Fan
52 2172840 Strap
53 489427 Screw
54 227991 Wire Connector
55 488649 Screw
63 2196152 Union
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
5.75 oz.
(R−134A)

ICEMAKER PARTS
19
For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00
(White) (Black) (Biscuit) (Stainelss Steel)
4398738

ICEMAKER PARTS
20
For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00
(White) (Black) (Biscuit) (Stainelss Steel)
4398738
Illus. Part
No. No. DESCRIPTION
1 489084 Screw
2 2196157 Fitting, Water
Tube
3 2186493 Tube, Filter
Outlet
4 2186492 Tube, Filter
Inlet
5 628379 Clip, Fuse
6 2200083 Nut, Compression
7 2181940 Tube, Water
9 489478 Screw
10 2205762 Valve, Solenoid
11 627018 Nut, Compression
14 489385 Tube Clamp
18 2174155 Cover
19 488649 Screw
20 628228 Mold & Heater
Assembly (Also
Order 542638
22 628356 Cup, Water Fill
23 2194711 Ejector
24 2182124 Ice Striper
25 2194712 Support
26 627796 Retainer,
Thermostat
27 628397 Thermostat (Also
Order 542369
Cement
Alumilastic)
28 489322 Screw
30 489276 Screw
31 2171593 Shut Off Arm
32 628256 Harness, Wiring
33 628320 Bracket
35 628399 Module Assembly
(Includes Items
37 & 38)
36 488208 Screw
37 628398 Motor
38 489136 Screw
40 1129179 Nut, Compression
100 4317943 Complete Icemaker
Assembly
