KitchenAid KSRS25PNBL00 User manual

CABINET PARTS
1
For Models: KSRS25PNWH00, KSRS25PNBT00, KSRS25PNBL00, KSRS25PNSS00, KSRS25PNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
Part No. 8199002
REFRIGERATOR
04−04 Printed In U.S.A. (kdj)

CABINET PARTS
2
For Models: KSRS25PNWH00, KSRS25PNBT00, KSRS25PNBL00, KSRS25PNSS00, KSRS25PNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199002
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
LITERATURE PARTS
1 2261570 Use & Care Guide
2301270 Service & Wiring
Sheet
2305642 Energy Guide
2220407 Modular Icemaker
Service Sheet
2 2174748 Front Roller (2)
3 3400517 Screw
4 2196236 Roller (Rear) (2)
5 489427 Screw
6 2155013 Clip, Grille
7 489478 Screw
8 2156056 Shim
9 2203771 Hinge Top, RC
10 3400113 Screw
11 Hinge Cover, FC
2203407W White
2203407T Biscuit
2203407B Black
2203407ES European Silver
12 2217075 Hinge Bottom (2)
13 Filler, Wrapper
2196094 White
2196150 Biscuit
2196097 Black
2301252 European Silver
14 Grille
2198468W White
2198468T Biscuit
2198468B Black
2198468ES European Silver
15 489497 Screw
16 2203770 Hinge, Top FC
17 489464 Screw
18 940139 Drain Fitting
19 1108438 Tube, Extension
20 1108439 Clip, Drain Tube
21 2188739 Cover, Unit
22 Hinge Cover, RC
2203408W White
2203408T Biscuit
2203408B Black
2203408ES European Silver
23 549193 Clamp, Service
Cord
24 489084 Screw
25 2155311 Door Closer,
Lower Cam (2)
26 489483 Screw
27 2186443 Housing, Water
Filter
28 2255519 Water Filter
29 489500 Screw
30 Cap, Water
Filter
2186494W White
2186494T Biscuit
2186494B Black
2186494ES European Silver
31 Cabinet (Not A
Serviceable Part)
32 8281227 Screw
33 3400103 Screw
34 2203098 Plate, Screw
35 3400858 Screw
36 2255012 Tube, Filter
Outlet
37 2305536 Tube, Filter
Inlet

REFRIGERATOR LINER PARTS
3
For Models: KSRS25PNWH00, KSRS25PNBT00, KSRS25PNBL00, KSRS25PNSS00, KSRS25PNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199002
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2255612 Escutcheon, Meat
Pan Control
3 2301339 Slide Meat
Pan Control
4 2257741 Louver
5 2256035 Bracket, Dual
Crisper Lights
7 2216113 Thermistor
8 2256037 Wire Harness,
Dual Crisper
Lights
9 2206273 Ladder, Shelf (2)
10 2301234 Housing, Door
Control
11 486298 Screw (2)
12 487539 Screw
13 2301235 Slide, Door
Control
16 2179404 Rack, Wine & Egg
24 2216112 Air Diffuser
Assembly
25 2212240 Cover, Air
Diffuser
26 2150331 Cover, Conduit
29 2162085 Socket
30 842534 Clip, Air Duct
31 2217199 Reservoir
33 2255743 Light Bulb
34 2209769 Light Lens
37 488280 Screw

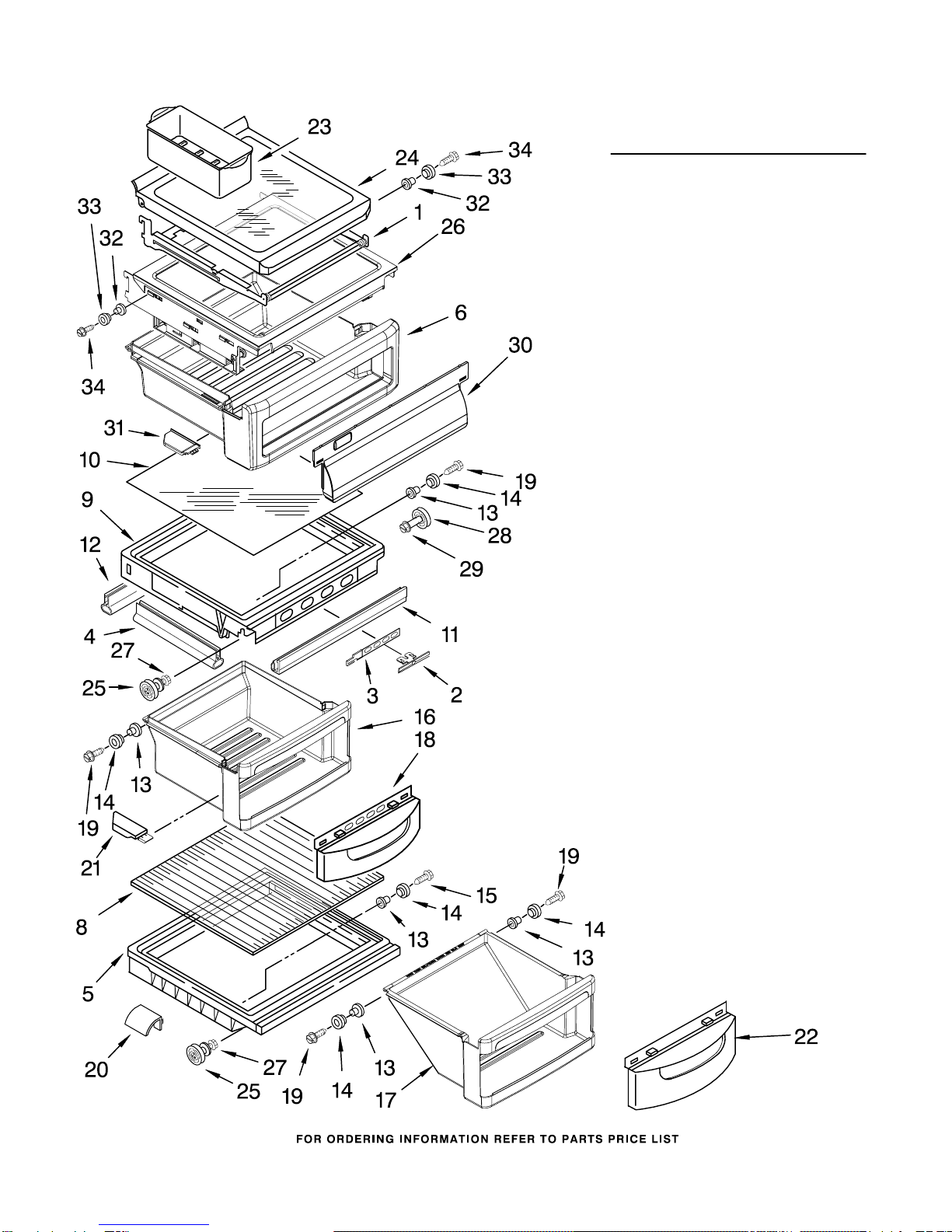

REFRIGERATOR SHELF PARTS
4
For Models: KSRS25PNWH00, KSRS25PNBT00, KSRS25PNBL00, KSRS25PNSS00, KSRS25PNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199002
Illus. Part
No. No. DESCRIPTION
1 2195975 Frame Assembly,
Cantilever (2)
2 2174253 Button, Humidity
3 2174252 Slide, Humidity
4 2174273 Gasket, Side (2)
5 2223357 Cover, Meat Pan
(Includes Items
13, 14 & 15)
6 2301120 Snack Pan
(Includes #30,
31, 32, 33, & 34)
8 2255144 Glass, Cover
9 2301484 Cover, Crisper
(Includes 2,
3, 4, 11, 12,
13, 14 & 19)
10 2255143 Glass, Cover
11 2223361 Gasket (Front)
12 2223362 Gasket (Rear)
13 2174478 Eyelet, Roller
14 2188212 Roller
15 489211 Screw
16 2301481 Crisper Pan
(Includes 13,
14, 18, 19 & 21)
17 2301482 Meat Pan
(Includes 13,
14, 19 & 22)
18 2174076 Window, Crisper
19 489261 Screw
20 2176095 Deflector
21 Cap, Crisper Pan
2223286 Right Side
2223285 Left Side
22 2174362 Window, Meat Pan
23 2216624 Egg Bin
24 2216102 Shelf & Roller
Assembly
25 2196485 Stud Assembly
26 2301034 Shelf, Snack Pan
27 3400894 Screw
28 2196483 Stud Assembly
29 8281158 Screw
30 2301006 Window, Snack Pan
31 Cap, Snack Pan
2301016 Right Side
2301017 Left Side
32 2301153 Eyelet, Roller
33 2301152 Roller
34 8533983 Screw

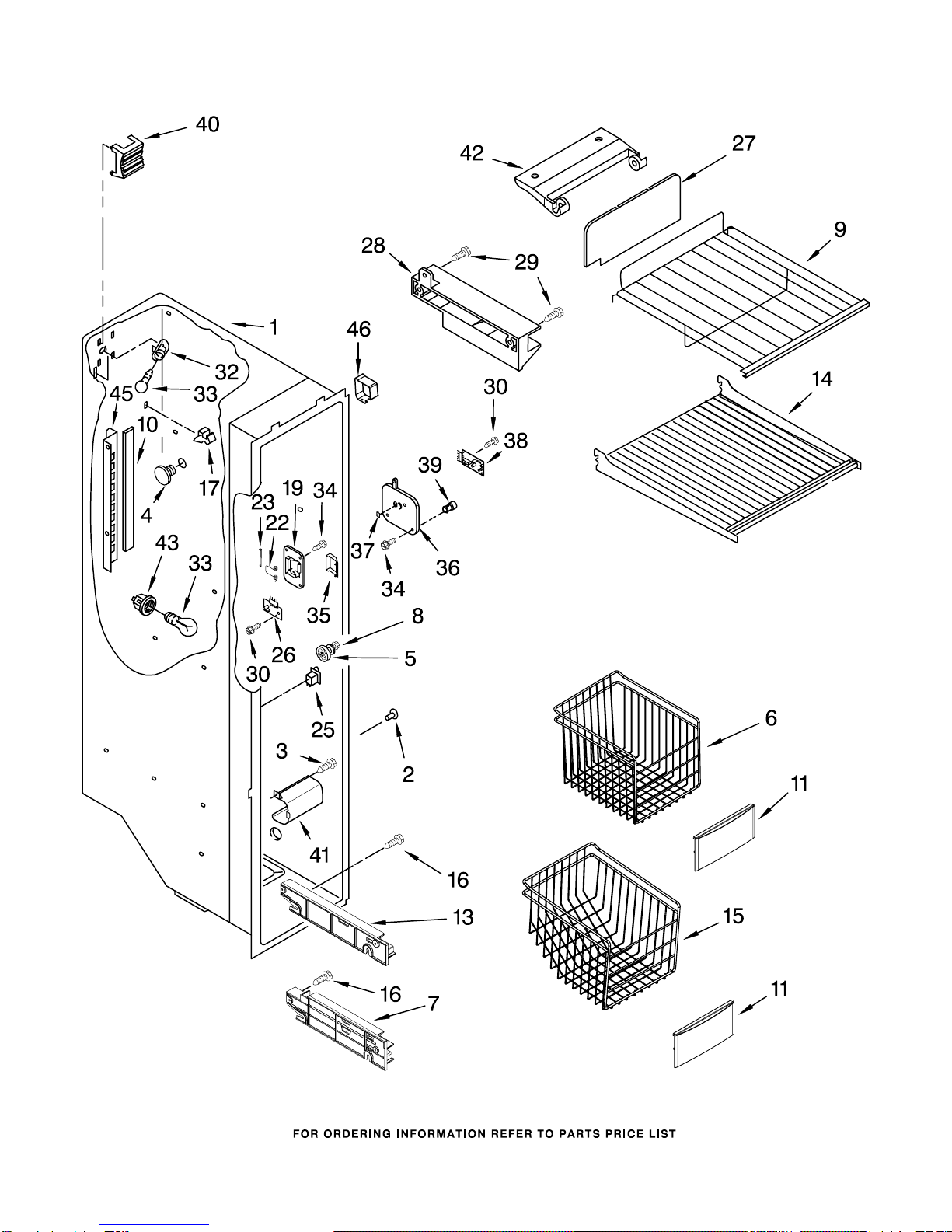

FREEZER LINER PARTS
5
For Models: KSRS25PNWH00, KSRS25PNBT00, KSRS25PNBL00, KSRS25PNSS00, KSRS25PNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199002

FREEZER LINER PARTS
6
For Models: KSRS25PNWH00, KSRS25PNBT00, KSRS25PNBL00, KSRS25PNSS00, KSRS25PNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199002
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 941839 Hole Plug
3 3400893 Screw
4 940014 Hole Plug
5 2196483 Stud Assembly
6 2305583 Basket, Tall
(Includes #11)
7 Track, Basket−Dual
2301293 Right Side
2301294 Left Side
8 8281158 Screw
9 2211746 Shelf, Slide Out
Upper
10 2198697 Gasket for
(RH Ladder)
11 2305580 Basket Front
13 Shelf Track
2301289 Right Side
2301290 Left Side
14 2205837 Shelf
15 2305584 Basket, Sloped
(Includes #11)
16 486298 Screw
17 842534 Clip, Air Duct
19 2198587 Cover, Emitter
22 2198635 Spring
23 2198634 Pin
25 1115373 Switch, Rocker Arm
26 2220398 P.C. Board
Emitter
27 2255590 Cover, Ice Maker
28 2212321 Slide, Ice Maker
Mounting
29 489478 Screw
30 489214 Screw
32 2162085 Light Socket
33 2255743 Light Bulb
34 8281185 Screw
35 2198633 Flipper
36 2255561 Cover, Receiver
37 2301340 Slide, Ice Maker
Shut Off
38 2255114 P.C. Board,
Receiver
39 2198643 Lens
40 2198589 Light Shield
41 2212340 Light Lens
42 2198641 Bracket, Ice Maker
Cover
43 2155597 Socket, Light
45 Ladder
2198609 Left Side
2198610 Right Side
46 2219878 Shield, Wiring

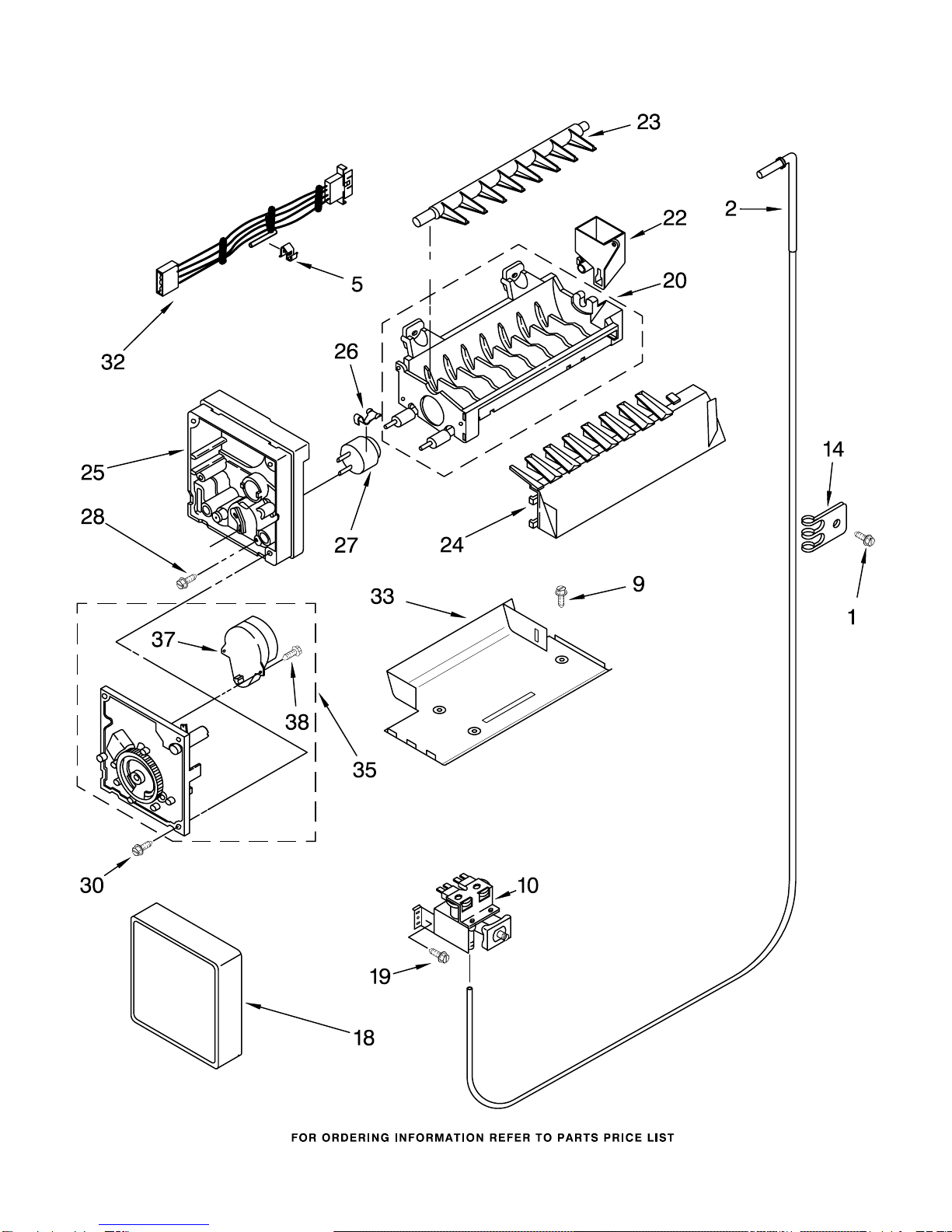

MOTOR AND ICE CONTAINER PARTS
7
For Models: KSRS25PNWH00, KSRS25PNBT00, KSRS25PNBL00, KSRS25PNSS00, KSRS25PNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199002

MOTOR AND ICE CONTAINER PARTS
8
For Models: KSRS25PNWH00, KSRS25PNBT00, KSRS25PNBL00, KSRS25PNSS00, KSRS25PNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199002
Illus. Part
No. No. DESCRIPTION
1 2198573 Ice Bin
2 2255580 Crusher Bin
3 2211590 Auger
4 2257021 Blade, Stirring
5 1119007 Spacer, Flat (6)
6 2255460 Cover, Crusher
7 1119013 Blade, Rotary
8 1119005 Spacer, Step (2)
9 2257020 Blade, Fixed
10 1119012 Blade, Rotary
11 2198602 Block, Blade
12 489229 Roll Pin
13 1119006 Blade, Rotary
14 489235 Washer, Plain
15 2198661 Washer, Coupling
16 2220457 Coupling
17 8281164 Screw
18 3400065 Screw
19 2301345 Button, Bin
20 2212371 Latch, Bin
21 2198608 Spring, Latch
22 2198671 Screw
23 8281163 Screw
24 2212369 Holder
25 2220458 Coupling, Bottom
26 2198628 Seal
27 2212370 Washer
29 2198607 Spring
30 999536 Drive Shaft
31 2198655 Bracket, Motor
32 2252129 Dispenser, Motor
33 2198626 Cover
34 8281162 Screw
36 2212365 Sleeve, Coupling
37 2187725 Wire Harness,
IDI Motor

REFRIGERATOR DOOR PARTS
9
For Models: KSRS25PNWH00, KSRS25PNBT00, KSRS25PNBL00, KSRS25PNSS00, KSRS25PNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199002

REFRIGERATOR DOOR PARTS
10
For Models: KSRS25PNWH00, KSRS25PNBT00, KSRS25PNBL00, KSRS25PNSS00, KSRS25PNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199002
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes #7)
2207183W White
2207183T Biscuit
2207183B Black
2207183S Stainless Steel
2207183LK Lake Blue
3 2301486 Door, Compartment
(Includes #13)
4 2193409 Holder, Beverage
5 2165792 Butter Dish
6 Endcap, Bottom
2207111W White
2207111T Biscuit
2207111B Black
2207111ES European Silver
7 Door Gasket,
Magnetic
2221302 Mist Beige
2221313 Black
8 Handle
2220238W White
2220238T Biscuit
2220238B Black
2220238ES European Silver
9 3400898 Screw (4)
12 2182178 Door Closer,
Upper Cam
13 2159124 Gasket
14 489420 Screw
15 Bracket, Door Stop
2200082B Black
2200082 Chrome
16 2205821 Shelf Bin (4)
17 3400012 Screw

FREEZER DOOR PARTS
11
For Models: KSRS25PNWH00, KSRS25PNBT00, KSRS25PNBL00, KSRS25PNSS00, KSRS25PNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199002

FREEZER DOOR PARTS
12
For Models: KSRS25PNWH00, KSRS25PNBT00, KSRS25PNBL00, KSRS25PNSS00, KSRS25PNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199002
Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(Includes #8
And Dispenser
Front Parts)
2301201W White
2301201T Biscuit
2301201B Black
2301201SB Stainless Steel
2301201LK Lake Blue
2 Handle
2220238W White
2220238T Biscuit
2220238B Black
2220238ES European Silver
3 Endcap, Bottom
2207110W White
2207110T Biscuit
2207110B Black
2207110ES European Silver
4 3400898 Screw (4)
5 3400012 Screw
7 2171070 Shelf Bin (4)
8 Door Gasket,
Magnetic
2221303 Mist Beige
2221314 Black
10 2219982 Trim, Door Shelf
14 2182179 Door Closer,
Upper Cam
16 489420 Screw
17 Bracket, Door Stop
2200082 Chrome
2200082B Black

13
DISPENSER FRONT PARTS
For Models: KSRS25PNWH00, KSRS25PNBT00, KSRS25PNBL00, KSRS25PNSS00, KSRS25PNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199002

DISPENSER FRONT PARTS
14
For Models: KSRS25PNWH00, KSRS25PNBT00, KSRS25PNBL00, KSRS25PNSS00, KSRS25PNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199002
Illus. Part
No. No. DESCRIPTION
1 Housing, Dispenser
(Not Serviced)
2 3196537 Screw
3 2194719 Retainer, Levers
4 2256199 Spring, Torsion
5 2196195 Pin
6 2252076 Door, Ice
7 2206423 Door Mechanism
Assembly
8 2205686 Delay Mechanism
9 Grille, Overflow
2207109W White
2207109T Biscuit
2207109B Black
2207109ES European Silver
10 2209718 Water Fitting
Assembly (Includes
Water Tube)
11 Lever, Ice
Dispenser
2259396W White
2259396T Biscuit
2259396SB Black
12 2180224 Guide, Ice
15 2252163 Bracket, Control
17 Lever, Water
Dispenser
2259395W White
2259395T Biscuit
2259395SB Black
19 Overlay, Front
Cover
(Not Available,
Order #23)
20 LED Display
(Not Available,
Order #23)
21 Front Cover,
Housing
(Not Available,
Order #23)
22 489000 Screw
23 Front Cover
Assembly
(Includes Items
18, 19, 20 & 21)
2252085W White
2252085T Biscuit
2252085B Black
2252085ES European Silver
24 2188355 Bracket, Dispenser
25 2195051 Strain Relief
26 3400065 Screw
27 2252127 Sleeve, Delay
Mechanism

AIR FLOW PARTS
15
For Models: KSRS25PNWH00, KSRS25PNBT00, KSRS25PNBL00, KSRS25PNSS00, KSRS25PNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199002
Illus. Part
No. No. DESCRIPTION
1 2182120 Fan Scroll
2 2155590 Retainer,
Fan Motor
3 2198595 Air Scoop
4 2212377 Air Duct, Upper
5 2198580 Air Duct Freezer
6 2188824 Bi−Metal, Defrost
7 2162404 Fan Motor
8 2169142 Fan Blade
10 2176759 Fan Grommet (2)
12 2187825 Harness, Fan
Evaporator
(Includes #6)
13 2155789 Gasket Cover
14 2172840 Wire Tie
16 2203876 Gasket
17 2206314 Cover, Evaporator
18 489355 Screw
21 489478 Screw
22 2203595 Support, R.S
23 2203596 Support, L.S

CONTROL PARTS
16
For Models: KSRS25PNWH00, KSRS25PNBT00, KSRS25PNBL00, KSRS25PNSS00, KSRS25PNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199002
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 2212005 Control Box
2 2216879 Cover
3 3196537 Screw
4 2219875 Light Switch
6 2252197 Control Board Asm
(Includes #25)
7 489290 Screw
8 940014 Hole Plug
9 Insert, Control
Board (Not
Available Order#6)
17 2162085 Light Socket
19 2255743 Light Bulb
20 2216115 Harness, Control
Box
21 1115374 Clip, Wiring
25 2255617 Overlay, Control
Box

UNIT PARTS
17
For Models: KSRS25PNWH00, KSRS25PNBT00, KSRS25PNBL00, KSRS25PNSS00, KSRS25PNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199002

UNIT PARTS
18
For Models: KSRS25PNWH00, KSRS25PNBT00, KSRS25PNBL00, KSRS25PNSS00, KSRS25PNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199002
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 486692 Speed Nut
2 2190685 Fan, Blade
3 2204484 Condenser
Assembly
4 489464 Screw
5 2208280 Clip, Wire
7 2205765 Tube Suction
8 2161302 Sleeve
9 2183454 Relay
(Service Only)
10 2216997 Bracket, Insert
11 8281160 Screw
12 4387731 Cover (Service
Compressor Only)
13 2154697 Overload
(Service Only)
14 2255199 Clip, Retaining
15 2255198 Start Device,
Combination
(Start Relay and
Overload) for
Production
Compressor
16 4387765 Wire, Capacitor
(Service Only)
17 Capacitor
999532 Production
1118576 Service
18 2255798 Tube, Condenser
to Heat Loop
20 2216914 Clip, Condenser
21 489478 Screw
22 2188823 Evaporator
23 2161324 Clamp
24 2206005 Fan, Motor
25 1105523 Tray, Evaporator
26 2256150 Heat Shield
27 Drier
2199167 Production
4387019 Service
28 2255197 Compressor
(Includes Items
9, 12, 13, 16,
17, 27 & 39)
30 2157397 Unit Mounting
Frame
31 2187783 Unit, Harness
32 2181929 Fan, Motor Bracket
33 2188175 Heater, Defrost
34 2161330 Clip
37 489373 Screw
39 Grommet (4)
1100826 Production
4387558 Service
40 489340 Screw
41 2196202 Air Baffle
42 2155547 Clip, Heat Shield
43 2206281 Unit Cover, Bottom
44 489396 Clip
48 1127911 Unit Mounting
Rail
49 8281232 Screw
50 2186495 Guard, Fan
52 2172840 Strap
53 489427 Screw
55 488649 Screw
63 2209709 Connector, Water
Tube
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
5.00 oz.
(R−134A)

ICEMAKER PARTS
19
For Models: KSRS25PNWH00, KSRS25PNBT00, KSRS25PNBL00, KSRS25PNSS00, KSRS25PNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199002

ICEMAKER PARTS
20
For Models: KSRS25PNWH00, KSRS25PNBT00, KSRS25PNBL00, KSRS25PNSS00, KSRS25PNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199002
Illus. Part
No. No. DESCRIPTION
1 489084 Screw
2 2256096 Fitting, Water
Tube
5 628379 Clip, Fuse
9 489478 Screw
10 2188746 Filter Valve Asm
14 2208136 Tube Clip
18 2174358 Cover
19 488649 Screw
20 2255835 Mold & Heater
Assembly (Also
Order 542638
22 628356 Cup, Water Fill
23 627843 Ejector
24 2198598 Ice Striper
25 2194712 Support
26 627796 Retainer,
Thermostat
27 628397 Thermostat (Also
Order 542369
Cement
Alumilastic)
28 8533917 Screw
30 489276 Screw
32 2187467 Harness, Wiring
33 2212322 Bracket, Icemaker
Mounting
35 626653 Module Assembly
(Includes Items
37 & 38)
37 627811 Motor
38 489136 Screw
100 2198597 Icemaker Assembly
