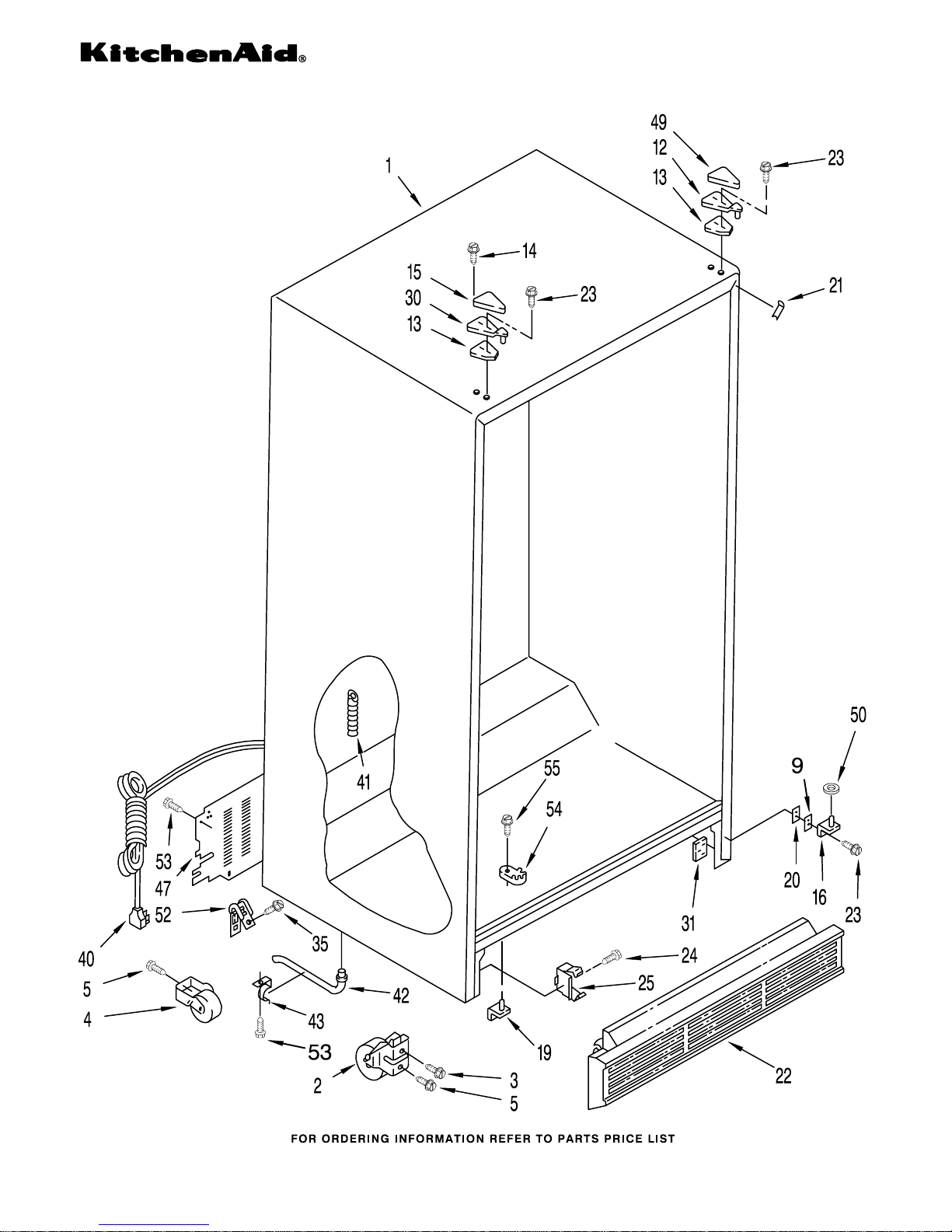

CABINET PARTS REFRIGERATOR
2−94 Printed In U.S.A. (RCG) Part No. 4379300
For Models: KSRS27QAWH10, KSRS27QAAL10
(White) (Almond)

CABINET PARTS
Illus. Part
No. No. DESCRIPTION
2
For Models: KSRS27QAWH10, KSRS27QAAL10
(White) (Almond)
4379300
1 Cabinet (Not A
Serviceable Part)
2 2152011 Front Roller (2)
3 489393 Screw
4 981122 Roller (Rear) (2)
5 488454 Screw
9 836196 Shim
12 1117937 Hinge Top (R.H.)
13 1123515 Shim, Hinge Top
14 489284 Screw
15 Hinge Cover
1129262 White
2150343 Almond
16 2155321 Hinge Bottom (R.H)
19 2155323 Hinge Bottom (L.H)
20 1129868 Spacer, Hinge
21 Filler, Wrapper
1110708 White
1110709 Almond
22 Grille
2155486 White
2155487 Almond
23 489367 Screw
24 489242 Screw
25 2155013 Clip, Grille
30 2155449 Hinge, Top (L.H.)
31 2147310 Tap Plate (2)
35 489337 Screw
40 937360 Service Cord
41 940139 Drain Fitting
42 1108438 Tube, Extension
43 1108439 Clip, Drain Tube
47 2171576 Cover, Unit
49 Hinge Cover
1119787 White
1119789 Almond
50 489366 Washer
52 549193 Clamp, Service
Cord
53 489084 Screw
54 2155310 Door Closer,
Lower Cam
55 489420 Screw

Illus. Part
No. No. DESCRIPTION
REFRIGERATOR LINER PARTS
3
For Models: KSRS27QAWH10, KSRS27QAAL10
(White) (Almond)
4379300
1 Liner (Not A
Serviceable Part)
2 985468 Escutcheon, Meat
Pan Control
3 984102 Slide Meat
Pan Control
4 992358 Foam Pad
6 1125675 Stud, Pan Cover
8 1110718 Stud (9)
9 1116794 Ladder, Shelf (2)
10 658944 Stud, Shelf (2)
11 486298 Screw (2)
12 487539 Screw
13 487559 Screw (2)
14 941839 Plug, Hole
16 1126137 Rack, Wine & Egg
22 1123919 Bracket Retainer
23 489290 Screw, (2)
24 2161251 Air Diffuser
Assembly
25 2152019 Air Diffuser
Cover
26 2150331 Cover, Conduit
29 851067 Socket, Light
30 842534 Clip, Air Duct
31 2155290 Reservoir
33 527949 Light Bulb
34 1125586 Light Lens
37 488280 Screw (2)

4
Illus. Part
No. No. DESCRIPTION
REFRIGERATOR SHELF PARTS
For Models: KSRS27QAWH10, KSRS27QAAL10
(White) (Almond)
4379300
1 1125597 Shelf Assembly,
Cantilever (2)
2 1125593 Glass, Shelf
3 1125594 Retainer, Glass
4 1125786 Gasket, Front
5 2161771 Cover, Pan
Assembly (2)
6 1125705 Gasket, Cover
(Front)
7 1125706 Gasket, Cover
(Rear)
8 1125822 Glass, Cover (2)
9 2161760 Pan Shelf & Slide
Assembly
10 1125595 Glass, Shelf
11 1125814 Gasket (Front)
12 1125817 Gasket (Rear)
13 1112308 Eyelet, Roller
14 2161749 Roller
15 489212 Screw
16 2161893 Crisper Pan (2)
17 2161892 Utility Pan
19 489261 Screw
20 1116917 Container
22 2161683 Glass, Shelf
23 2161809 Reflector
24 2161686 Gasket, Front
25 2161706 Frame And Roller
26 2161806 Frame And Roller
Asm (Cantilever)

5

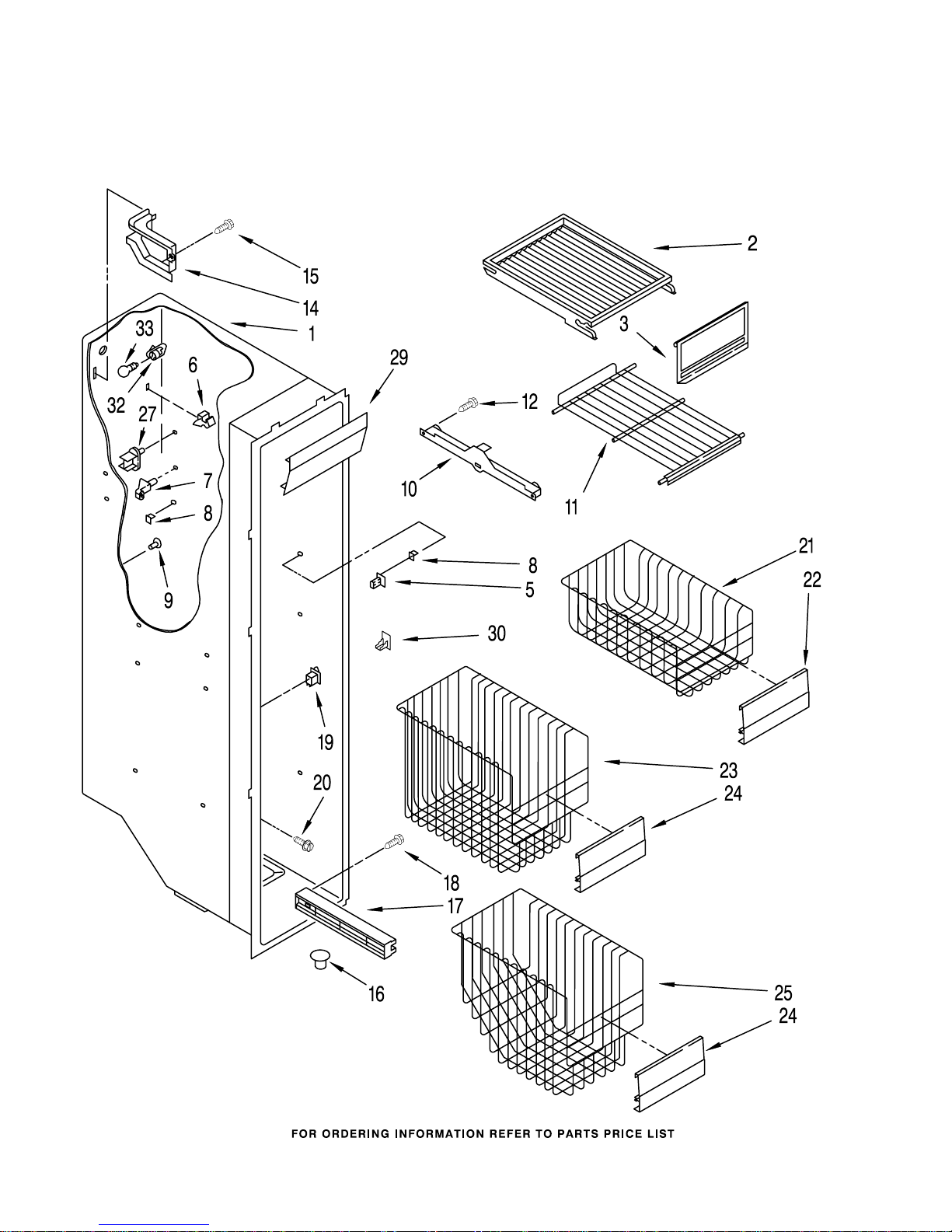

FREEZER LINER PARTS
For Models: KSRS27QAWH10, KSRS27QAAL10
(White) (Almond)
4379300

6
FREEZER LINER PARTS
Illus. Part
No. No. DESCRIPTION
For Models: KSRS27QAWH10, KSRS27QAAL10
(White) (Almond)
4379300
1 Liner (Not A
Seviceable Part)
2 1125824 Shelf, Top
Compartment
3 1125657 Door, Ice
Compartment
5 946356 Stud, R.S. Front
6 842534 Clip, Air Duct (2)
7 1115317 Support, Stud (4)
8 946355 Support, Stud (2)
9 1110779 Grommet (2)
10 Slide, Container
1119237 Left Side
1119293 Right Side
11 2155683 Shelf
12 489100 Screw (4)
14 2155572 Cover, Wiring
15 489176 Screw
16 2155556 Drain Fitting
17 Shelf Track
1126354 Right Side (3)
1126355 Left Side (3)
18 487042 Screw
19 1115373 Switch, Rocker Arm
20 489242 Screw
21 2155685 Basket, Middle
22 1125770 Front, Basket
23 2152093 Basket, Upper
24 1125612 Front, Basket
25 2152102 Basket, Lower
27 1115386 Stud, Shelf (4)
Compartment
29 1115389 Light Lens
30 1106982 Stud, R.S. Rear
32 851067 Socket, Light
33 527949 Bulb, Light

MOTOR AND ICE CONTAINER PARTS
7
For Models: KSRS27QAWH10, KSRS27QAAL10
(White) (Almond)
4379300

MOTOR AND ICE CONTAINER PARTS
8
Illus. Part
No. No. DESCRIPTION
For Models: KSRS27QAWH10, KSRS27QAAL10
(White) (Almond)
4379300
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1 1118386 Bracket, Motor
2 2155263 Motor, Dispenser
3 2152713 Soleniod Assembly
4 2149100 Guide, Solenoid
6 1115374 Clip, Wiring
7 2149192 Wiring Assembly,
Ice Dispenser
8 489399 Screw
9 983663 Coupling, Motor
10 489242 Screw
11 851067 Socket, Light
12 1115339 Cover, Motor
14 2152702 Ice Container
15 983668 Coupling, Conveyor
16 1118480 Stop, Cone
17 1119074 Feeder Cone
18 1119005 Spacer, Step (3)
19 1119007 Spacer, Flat (2)
20 1119006 Blade, Rotary
21 1119012 Blade, Rotary
22 1119013 Blade, Rotary
23 489235 Washer, Plain
24 1119009 Blade, Fixed (2)
25 2157405 Block, Blade
26 489229 Roll Pin
27 1119003 Conveyor
28 2171681 Drum
29 1118470 Drive Bar
30 2171682 Floating Baffle
31 1119018 Nut, Bearing
32 2155231 Control Arm
33 1119020 Spring, Return
34 1119021 Retainer Clip, Rod
35 488886 Screw
37 2157407 Housing, Crusher
38 1119017 Deflector, Ice
39 489234 Washer, Plain
40 489236 Retainer Ring
41 2152700 Housing, Filler
42 2152021 Sleeve−Auger
43 1119043 Ice Deflector
44 1126036 Front Cover,
Ice Container
45 527949 Light Bulb
46 983359 Light Lens,
Dispenser

9

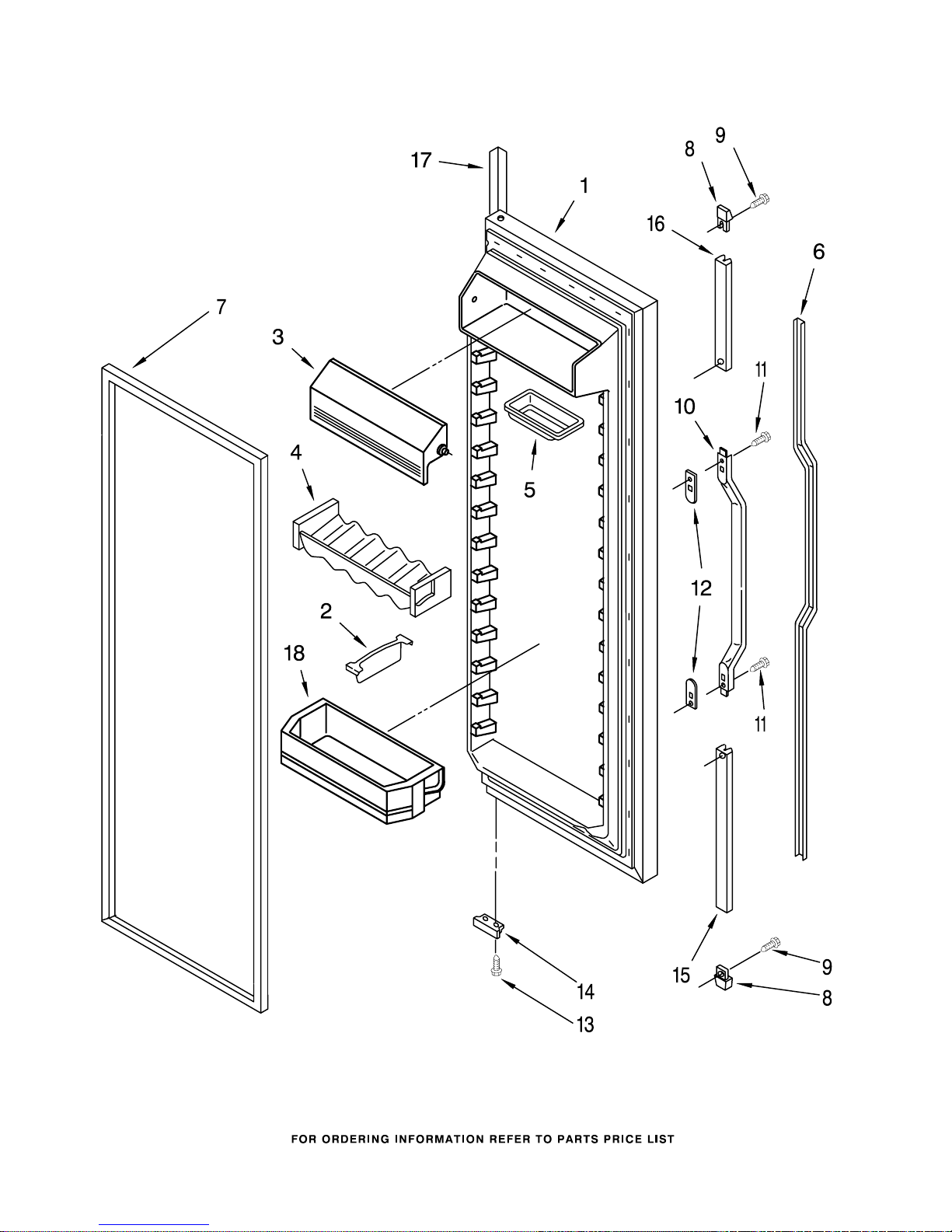

REFRIGERATOR DOOR PARTS
For Models: KSRS27QAWH10, KSRS27QAAL10
(White) (Almond)
4379300

REFRIGERATOR DOOR PARTS
10
Illus. Part
No. No. DESCRIPTION
For Models: KSRS27QAWH10, KSRS27QAAL10
(White) (Almond)
4379300
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes Item 7)
2171580 White
2171581 Almond
2 2161564 Load Lock
3 2159136 Door, Compartment
4 1125981 Holder, Beverage
5 1125936 Butter Dish
6 Insert, Handle
1117948 White
1117949 Almond
7 2159079 Door Gasket,
Magnetic (Service)
8 1107341 End Cap, Handle
9 489075 Screw (2)
10 1107215 Handle Assembly
11 489084 Screw
12 1107651 Spacer, Handle
13 489367 Screw
14 2155331 Bracket, Door Stop
15 1117952 Retainer, Insert
(Bottom)
16 1107243 Retainer, Insert
Hinge Side
17 1119062 Trim, Door
18 1126069 Shelf Bin (4)
BLACK GLASS PANEL KIT
(Optional Kit)
4318526 Trim Kit
Trim Kit Panels
4211148 White
4211147 Almond
4210348 Black
Handle Inserts
4318339 Black
4318340 Woodgrain
4318417 Black Grille Kit
PARTS NOT ILLUSTRATED
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Parts Not Illustrated and
Optional Parts (Not Included)
Customer Touch−Up Material
350942 Primer, White
(13 Oz. Spray Can)
350941 Leveler, Enamel
(13 Oz. Spray Can)
350939 Enamel, Black
(13 Oz. Spray Can)
350930 Enamel, White
(13 Oz. Spray Can)
350956 Enamel, Almond
(13 Oz. Spray Can)
72017 Brush Touch−Up Kit
(White)
72107 Brush Touch−Up Kit
(Almond)
72032 Brush Touch−up kit
(Black)
Miscellaneous
212643 Sealer, Gum
(4 Feet)
479502 Tape, Vinyl
(3/4 x 108")
876370 Kit, Insulation
(2 Pcs. x 3" x 24"
X 48")
876305 Kit, Insulation
(14 Pcs. x 3"
x 24" x 48")
978941 Insulation,
Fiberglass
(63−1/2" x 35−1/2"
X 2−5/8)
876029 Kit, Foam Slab
(30" x 32−1/2"
x 1−1/2")
505587 Sealer, Mastic
(1 Qt.)
503695 Cork, Sealer
(1/4 Pound)
511873 Touch−Up, White
Porcelain (2 Oz.)
542638 Grease, Silicone
(1/2 Oz.)
542639 Cement,
Alumilastic
(1−1/4 Oz.)
606755 Bag, Insulation
(36−5/8" x 46")
799833 Kit, Evaporator
Repair
(Aluminum Epoxy)
833938 Kit, Terminal
Connector
515393 Transformer
(115−230 Volts)
2152710 Ice Container Asm
2149072 Ice Crusher Asm
Refinishing Material
799340 Enamel, Black
(1 Qt. Uncut)
799344 Enamel, White
(1 Qt. Uncut)
978883 Enamel, Almond
(1 Qt. Uncut)
LITERATURE PARTS
LIT2155734 Use And Care Guide
LIT2169394 Service & Wiring
Sheet
LIT2168863 Energy Label
LIT628370 Modular Icemaker
Service Sheet
TORX SCREW WRENCH
1117510 Torx Key

11

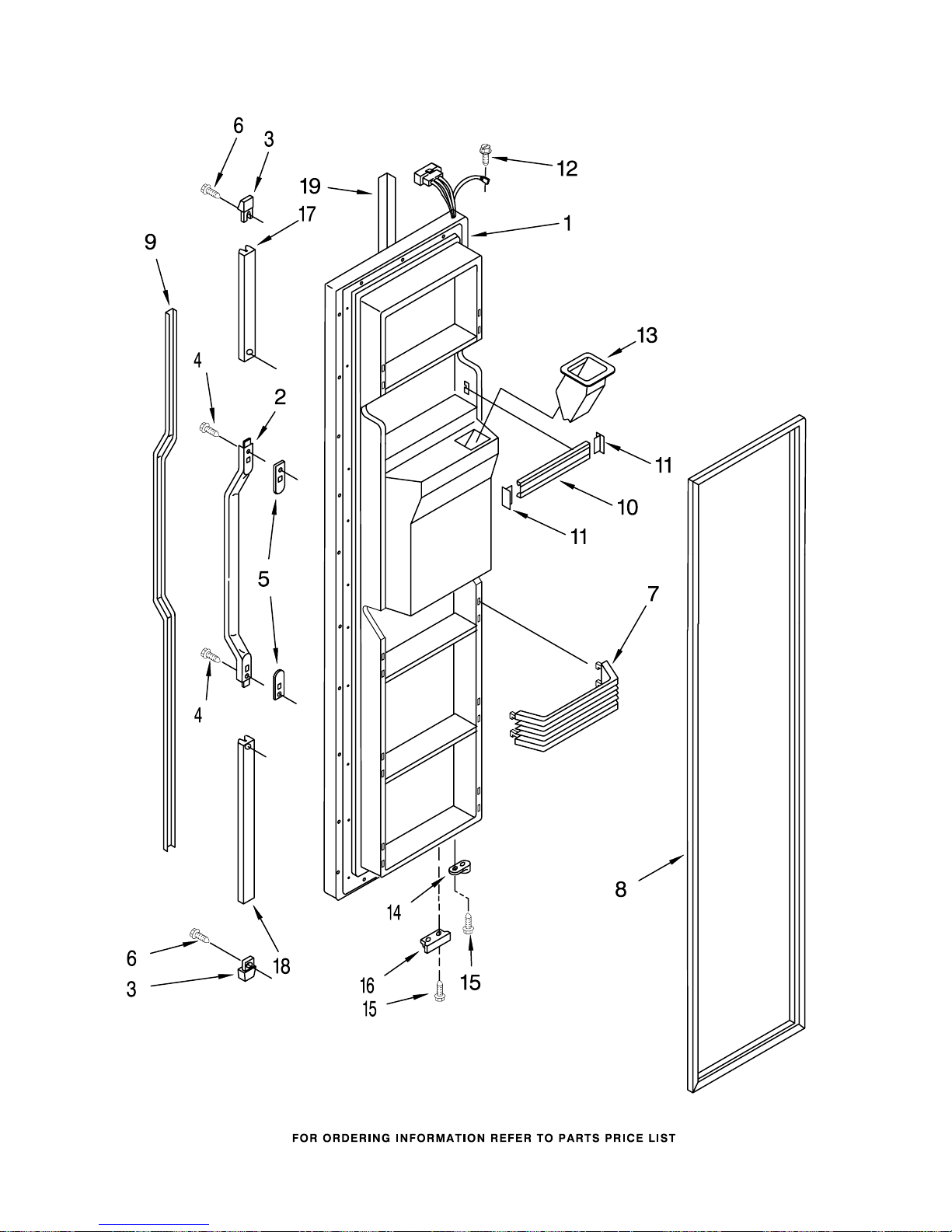

FREEZER DOOR PARTS
For Models: KSRS27QAWH10, KSRS27QAAL10
(White) (Almond)
4379300

12
FREEZER DOOR PARTS
Illus. Part
No. No. DESCRIPTION
For Models: KSRS27QAWH10, KSRS27QAAL10
(White) (Almond)
4379300
1 Freezer Door
(Includes Item 8
And Dispenser
Front Parts)
2171588 White
2171589 Almond
2 1107215 Handle Assembly
3 1107341 End Cap (2)
4 489084 Screw
5 1107651 Spacer, Handle
6 489075 Screw (2)
7 2156016 Shelf Bin (4)
8 2159078 Door Gasket,
Magnetic (Service)
9 Insert, Handle
1117948 White
1117949 Almond
10 2157603 Trim, Door Shelf
11 2156006 End Cap
12 489422 Screw
13 2156145 Chute, Ice
14 2155313 Door Closer,
Upper Cam
15 489367 Screw
16 2155331 Bracket, Door Stop
17 1107243 Retainer, Insert
18 1117952 Retainer, Insert
19 1119062 Trim, Door

DISPENSER FRONT PARTS
13
For Models: KSRS27QAWH10, KSRS27QAAL10
(White) (Almond)
4379300

DISPENSER FRONT PARTS
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
14
For Models: KSRS27QAWH10, KSRS27QAAL10
(White) (Almond)
4379300
4 Housing, Dispenser
(Not a
Servicable Item)
5 488687 Screw
6 Tube, Water
(See Item #22)
7 Frame, Slides
2152717 White
2152718 Almond
8 Slide, Cube/Crush
Switch
2152720 White
2152721 Almond
9 2157650 Ice Door
10 2157651 Door Mechanism
Assembly
12 1120581 Mechanism Delay
13 Grille, Overflow
1126120 White
1126121 Almond
14 987917 Clip,
Bearing (2)
15 983697 Bearing,
Lever (3)
16 983696 Spring, Lever (2)
17 2147165 Shield, Wiring
18 488500 Screw
19 625834 Spacer
22 2155018 Water Fitting
Assembly (Includes
Water Tube)
23 487916 Screw
24 Lever Assembly,
Ice Dispenser
2155815 White
1125972 Almond
25 Guide, Ice
1124730 White
1126026 Almond
26 488892 Screw
27 Slide, Light
Switch
2152726 White
2152727 Almond
29 2147131 Lamp Holder
30 2162361 Switch
32 2147164 Insulator, Control
Bracket
33 2147163 Bracket, Control
34 851389 Bulb, Light
35 488361 Screw (2)
36 489155 Screw,
37 313125 Switch
38 Lever Assembly,
Water Dispenser
2159199 White
2159198 Almond
39 Insert, Cover
1125798 White
1125801 Almond
40 Cover, Housing
(Includes Item 39)
1125673 White
1125805 Almond
41 2147172 Heat Shield, Frame
42 987049 Bracket, Water
45 489000 Screw

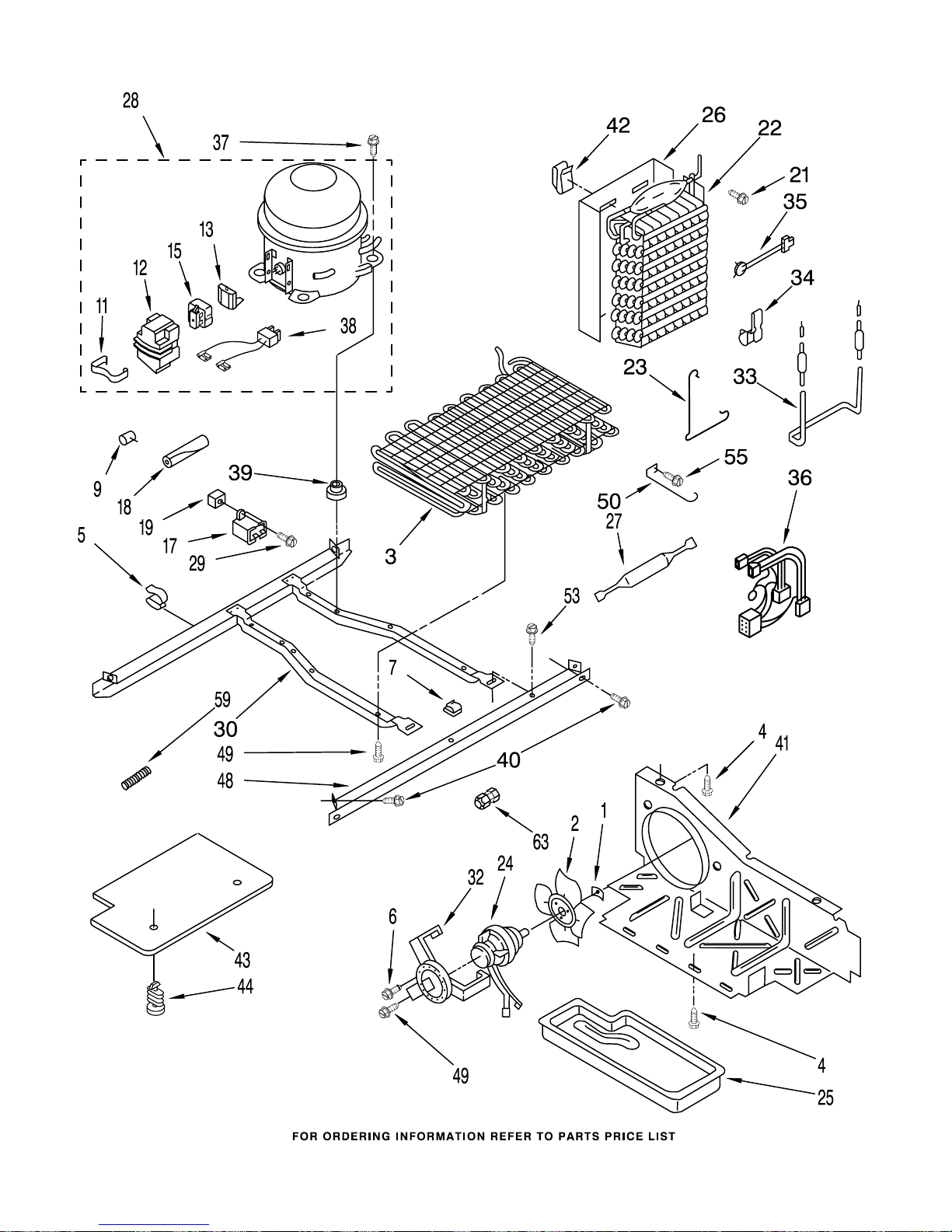

UNIT PARTS
15
For Models: KSRS27QAWH10, KSRS27QAAL10
(White) (Almond)
4379300

UNIT PARTS
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
16
For Models: KSRS27QAWH10, KSRS27QAAL10
(White) (Almond)
4379300
1 486692 Speed Nut
2 1108179 Fan, Blade
3 2164504 Condenser
Assembly
4 489337 Screw
5 2155658 Clip, Wire
6 489019 Screw
7 934011 Clip, Tube (3)
9 2158826 Dampener
11 Strap
943322 Production
938384 Service
12 Cover
1105055 Production
1108115 Service
13 Overload
2162218 Production
(Includes Relay)
2154761 Service
(Includes Relay)
15 Relay
(See Overload)
17 Running Capacitor
1114291 Production
2154565 Service
18 2161302 Sleeve
19 509812 Screw Grommet
21 489242 Screw
22 2164519 Evaporator
23 2161324 Clamp
24 2154735 Fan, Motor
25 1110674 Tray, Evaporator
26 2149294 Heat Shield
27 2154002 Drier
28 2154562 Compressor
(Includes Items
11, 12, 13, 15,
17 & 38)
(Also Order
876765 Tube Kit)
29 488687 Screw
30 2157396 Unit Mounting
Frame
32 2162062 Fan, Motor Bracket
33 2161323 Heater, Defrost
34 2161330 Clip
35 2161331 Bi−Metal, Defrost
36 2149199 Unit Harness
37 489387 Screw
38 1127675 Wire, Connector
39 Grommet (4)
2162067 Production
1100826 Service
40 489340 Screw
41 2149128 Air Baffle
42 2155547 Clip, Heat Shield
43 2161363 Unit Cover, Bottom
44 489396 Clip
48 1127906 Unit Mounting
Rail
49 488624 Screw
50 1110663 Guard, Fan
53 489339 Screw
55 488649 Screw
59 983659 Spring−Tube
63 2150347 Union
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
6.5 oz.
Production Compressor Requires Production Electrical Components.
Service Compressor Requires Service Electrical Components.
For Further Information, Refer to Filmcard 19.1.

17

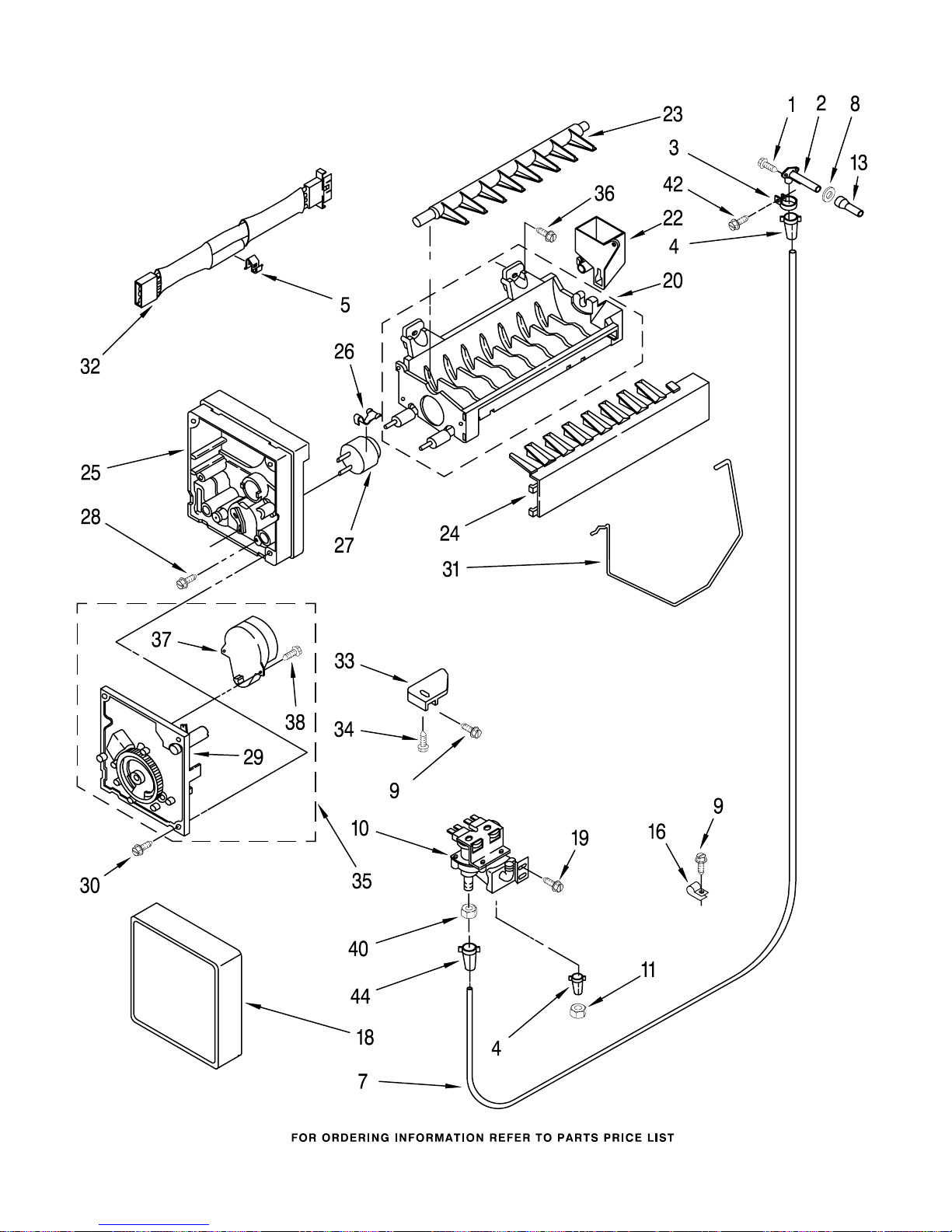

ICEMAKER PARTS
For Models: KSRS27QAWH10, KSRS27QAAL10
(White) (Almond)
4379300

ICEMAKER PARTS
Illus. Part
No. No. DESCRIPTION
18
For Models: KSRS27QAWH10, KSRS27QAAL10
(White) (Almond)
4379300
1 489084 Screw
2 836489 Fitting, Water
Tube
3 488878 Clamp, Tube
4 841707 Insert, Tube
5 628379 Clip, Fuse
7 2155294 Tube, Water
8 1106508 Seal, Gasket
9 489242 Screw
10 2002182 Valve, Solenoid
11 627018 Nut, Compression
13 2155247 Tube, Water
Inlet
16 489385 Clamp, Tube
18 628355 Cover
19 488649 Screw
20 628228 Mold & Heater
Assembly (Also
Order 542638
Silicone Grease)
22 628356 Bearing & Inlet
23 627843 Ejector
24 627788 Ice Striper
25 627790 Support
26 627796 Retainer,
Thermostat
27 628397 Thermostat (Also
Order 542369
Cement
Alumilastic)
28 489322 Screw,
29 628357 Motor Module
30 489276 Screw
31 2171593 Shut Off Arm
32 628256 Harness, Wiring
33 628320 Bracket
34 489365 Screw
35 628366 Module Assembly
(Includes Items
29, 37 & 38)
36 488208 Screw
37 628258 Motor
38 489136 Screw
40 1129179 Nut, Compression
42 488886 Screw
44 1129177 Insert, Tube
100 4211173 Complete Icemaker
Assembly

AIR FLOW PARTS
Illus. Part
No. No. DESCRIPTION
19
For Models: KSRS27QAWH10, KSRS27QAAL10
(White) (Almond)
4379300
1 2155594 Fan Scroll
2 2155590 Retainer,
Fan Motor
3 2161231 Air Scoop
4 489176 Screw
5 2155575 Air Duct Freezer
7 2149299 Fan Motor
8 2169142 Fan Blade
10 2155589 Fan Grommet (2)
11 1115381 Duct, Icemaker
12 2161327 Harness, Fan
Evaporator, And
Heater, Bi−Metal
13 2155789 Gasket Cover
14 2155774 Wire Tie
16 2155782 Gasket
17 2155612 Cover, Evaporator
18 489355 Screw
21 489242 Screw
22 2155765 Support, R.S
23 2155766 Support, L.S

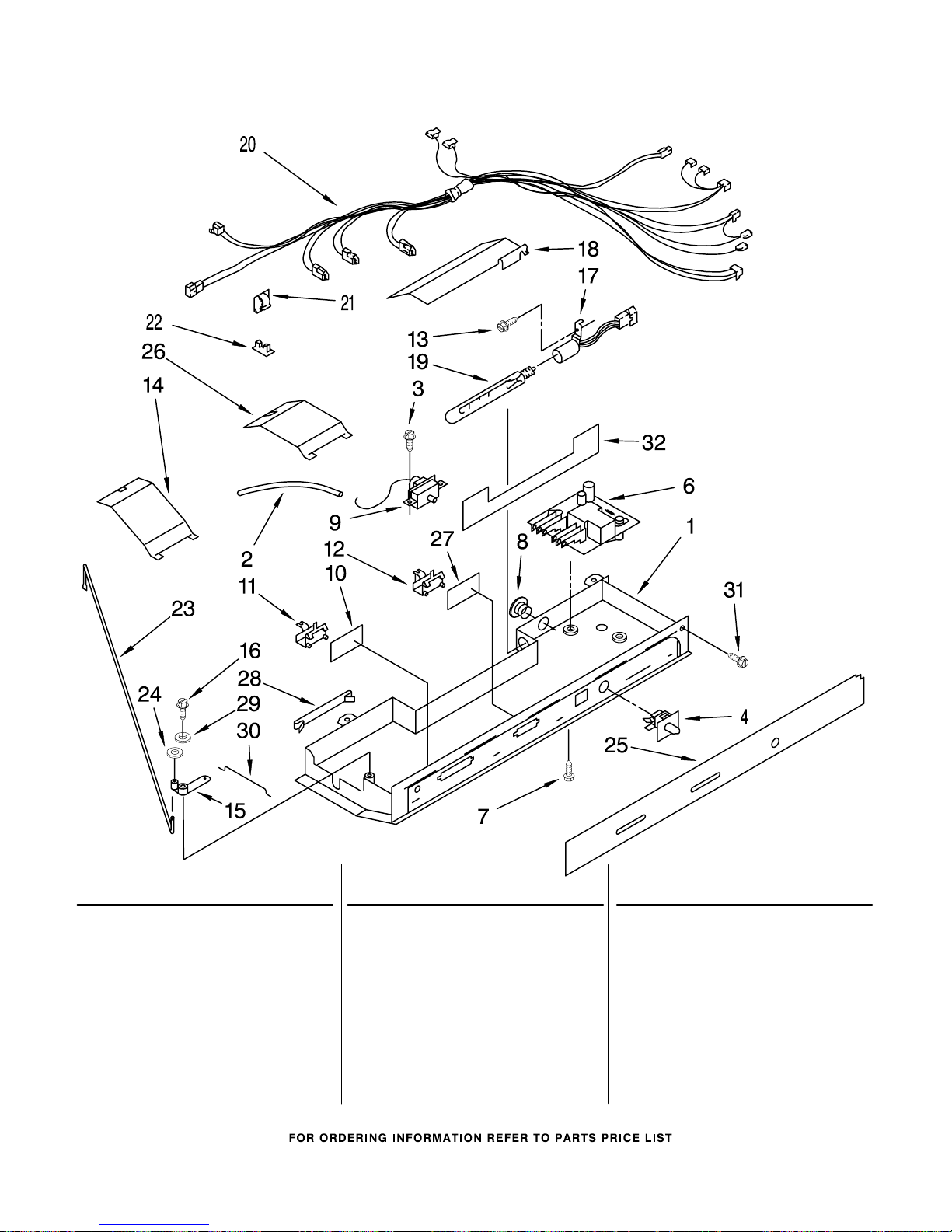

CONTROL PARTS
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
20
For Models: KSRS27QAWH10, KSRS27QAAL10
(White) (Almond)
4379300
1 2169150 Control Box
2 1115241 Tube Barrier,
Thermostat
3 489214 Screw
4 1123923 Light Switch
6 2169267 Adaptive Defrost
Control
7 489398 Screw (2)
8 940014 Hole Plug
9 2161282 Thermostat
Assembly
10 1126028 Window
11 1125592 Slide, Air Control
12 1125591 Slide, Thermostat
13 489242 Screw
14 1118072 Light Bar
15 2161306 Pivot Arm
16 627068 Screw
17 1110690 Light Socket
18 1118033 Heat Shield
19 548049 Light Bulb
20 2162461 Control Box
Harness
21 1115374 Clip, Wiring
22 1115375 Clip, Wiring
23 2161308 Connecting Rod
24 489391 Fastener, Push−On
25 2155695 Escutcheon,
Control Box
26 1126089 Light Bar
27 1126027 Window
28 1125811 Clip, Control Box
29 489203 Spring Washer
30 2161307 Connecting Rod
(Short)
31 489290 Screw (4)
32 1127141 Heat Shield
