KitchenAid KSSS36FKB02 User manual

1
CABINET PARTS
For Models: KSSS36FKB02, KSSS36FKT02, KSSS36FKW02, KSSS36FKX02
(Black) (Biscuit) (White) (Etched Aluminum)
5−03 Litho In U.S.A. (kdj) Part No. 8198465
36" BUILT IN
REFRIGERATOR

2
CABINET PARTS
For Models: KSSS36FKB02, KSSS36FKT02, KSSS36FKW02, KSSS36FKX02
(Black) (Biscuit) (White) (Etched Aluminum)
8198465
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Literature Parts
LIT2254714 Use & Care Guide
LIT2259214 Energy Label
LIT2254722 Service & Wiring
Sheet
LIT628370 Modular Icemaker
Service Sheet
LIT2266877 Installation
Instructions
2 Cabinet (Not A
Serviceable Part)
4 1112023 Roller, Front &
Rear (4)
5 Support, Leveler
Assembly
2004506 Refrigerator Side
2004505 Freezer Side
6 2005006 Grommet, Wiring
7 2005007 Grommet,
Flexible
8 Cap, Water Filter
2186494W White
2186494B Black
2186494T Biscuit
9 2006442 Mounting Stud,
Grill
11 2005783 Cam, Door Closer
12 2209022 Housing, Water
Filter
14 3400525 Screw
15 2203221 Filter, Water
16 489399 Screw
17 2005378 Screw, Door Stop
18 2257644 Hinge (Top)
20 489464 Screw
21 2004994 Lock, Adjustable
Bushing
22 2002903 Bushing
23 2209090 Clamp, Filter
Housing
24 2004517 Spring, Door
Closure (2)
25 486194 Screw
26 2005008 Retaining Ring,
Adjustable Bushing
27 1113227 Fastener (3)
28 2006342 Gap, Cover
Assembly (Bottom)
29 Hinge (Bottom)
2006780 Freezer Side
2006779 Refrigerator Side
30 2004992 Bushing,
Adjustable
31 8533913 Screw
32 Skirt−Grille,
Bottom
2209024W White
2209024B Black
2209024T Biscuit
33 Extension Arm,
Door Closer
2221095 Right
2221094 Left
34 Grille Bottom,
Front
2209425W White
2209425B Black
2209425T Biscuit
35 2005921 Screw
36 Bracket, Support
Base (Front)
2006616 Left
2006556 Right
37 1157158 Screw
38 2006617 Bracket, Support
Base (Rear) (2)
39 2006346 Washer
40 2006960 Bushing,
Extension Arm
41 1163283 Screw
44 Switch, Rocker Arm
1118894 Refrigerator Door
Side
1115373 Freezer Door Side
45 2215938 Cover, Switch (2)
46 487415 Screw (2)
47 Bracket, Switch
2221097 Right
2221096 Left
48 2209449 Cover, Rear
49 2221070 Clamp, Tube

3

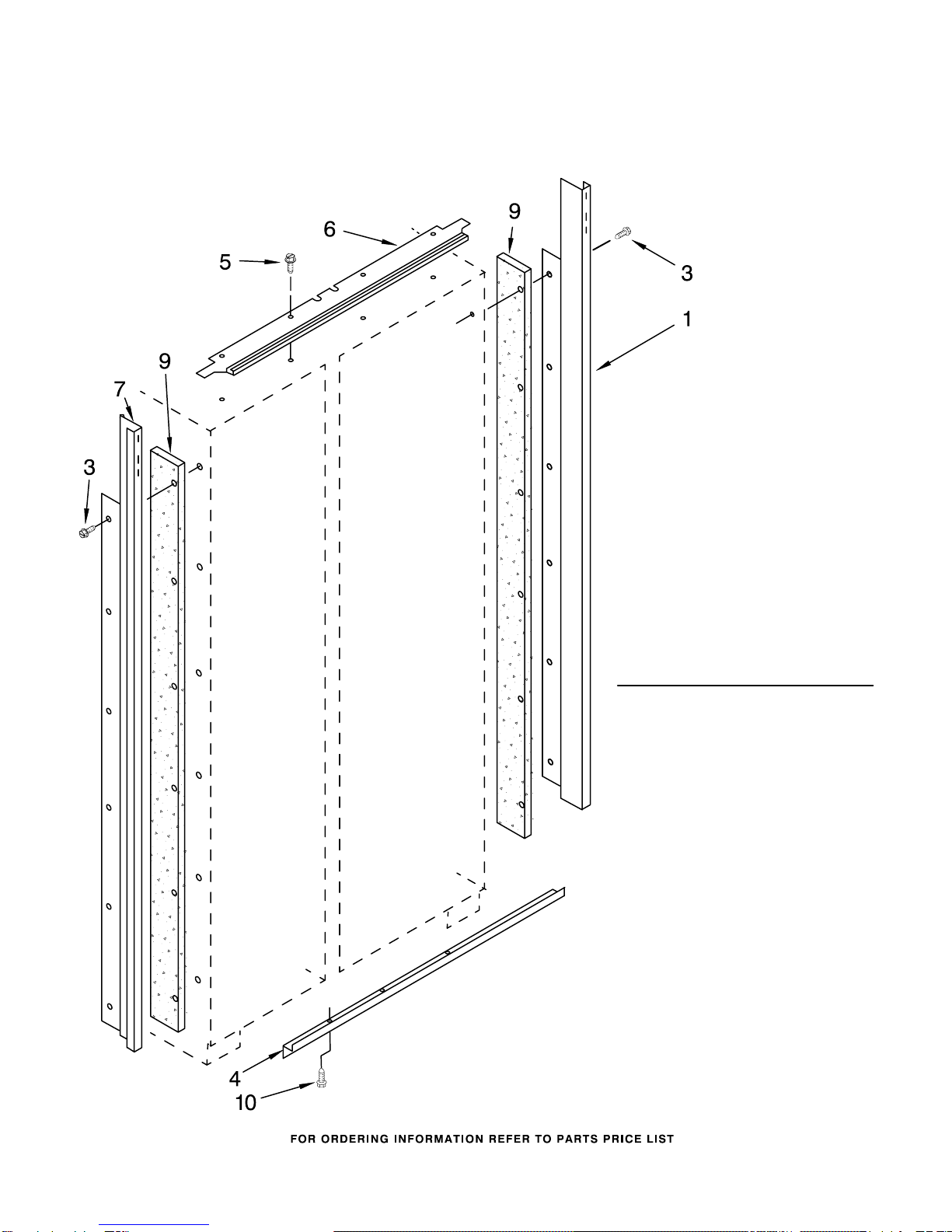

CABINET TRIM PARTS
For Models: KSSS36FKB02, KSSS36FKT02, KSSS36FKW02, KSSS36FKX02
(Black) (Biscuit) (White) (Etched Aluminum)
8198465
Illus. Part
No. No. DESCRIPTION
1 Cabinet, Trim
(Right Side)
2215919W White
2215919B Black
2215919T Biscuit
8201535 Etched Aluminum
3 Screw
8281251 White
8281252 Black
8281253 Biscuit
8281250 Stainless Steel
4 2254724 Cabinet, Trim
(Bottom)
5 486194 Screw
6 2003645 Cabinet, Trim Top
7 Cabinet Trim
(Left Side)
2215936W White
2215936B Black
2215936T Biscuit
2215936 Etched Aluminum
9 2005925 Seal−Trim, Side
10 489464 Screw

4

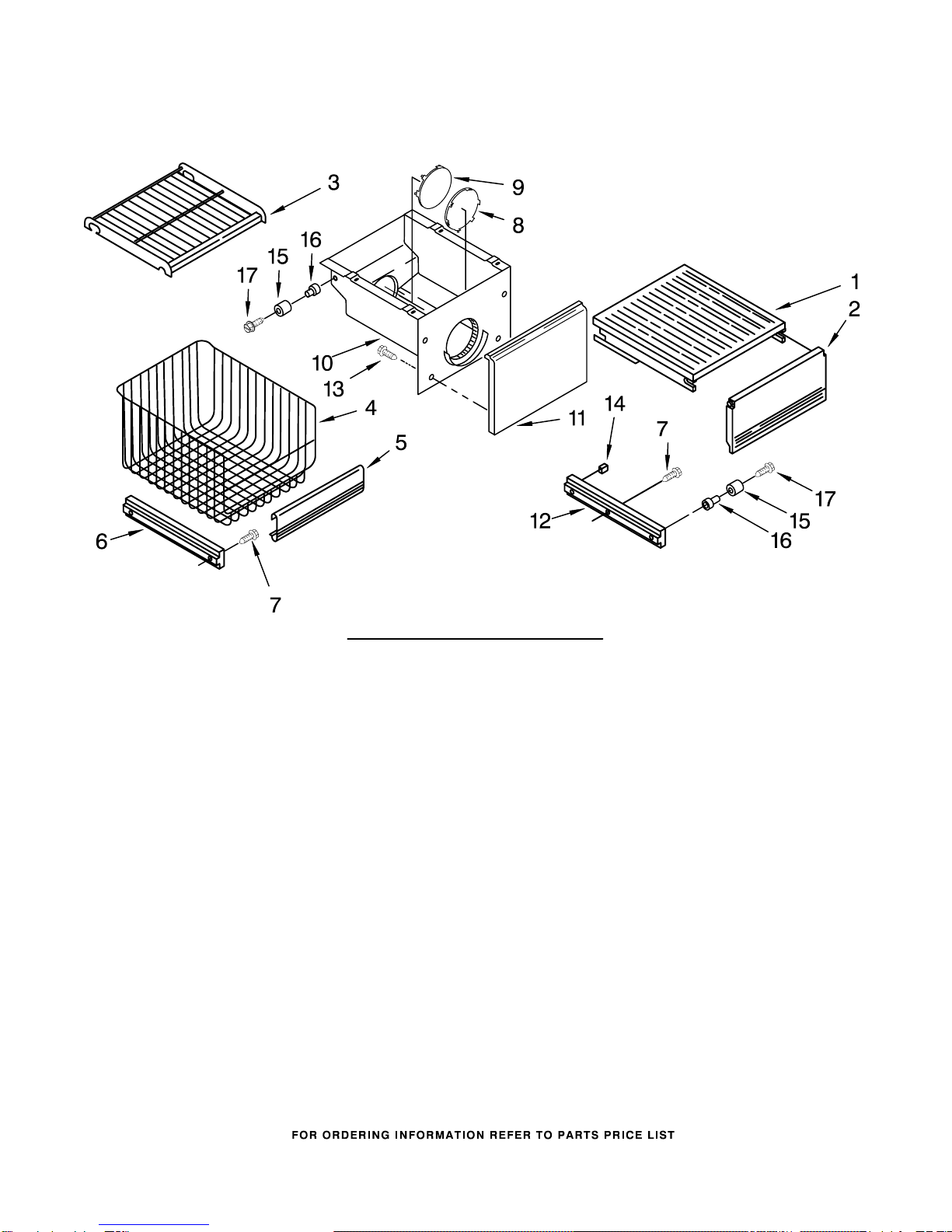

FREEZER SHELF PARTS
For Models: KSSS36FKB02, KSSS36FKT02, KSSS36FKW02, KSSS36FKX02
(Black) (Biscuit) (White) (Etched Aluminum)
8198465
Illus. Part
No. No. DESCRIPTION
1 2220889 Solid Shelf
2 2220846 Front, Ice
Compartment
3 1113636 Shelf, Fixed (2)
1113564 Shelf, Deep
4 2208192 Basket
5 2220843 Trim, Basket
6 Slide, Basket
2208198 Right Side
2208197 Left Side
7 486194 Screw
8 2003046 Hole Plug, Front
9 2003047 Hole Plug, Rear
10 2208906 Ice Container
11 2003043 Front Cover
12 Slide, Container
2002720 Right Side
2002721 Left Side
13 488886 Screw
14 1113169 Stop, Roller
15 2188212 Roller
16 2174478 Eyelet, Roller
17 2003478 Screw

5
REFRIGERATOR LINER PARTS
For Models: KSSS36FKB02, KSSS36FKT02, KSSS36FKW02, KSSS36FKX02
(Black) (Biscuit) (White) (Etched Aluminum)
8198465

6

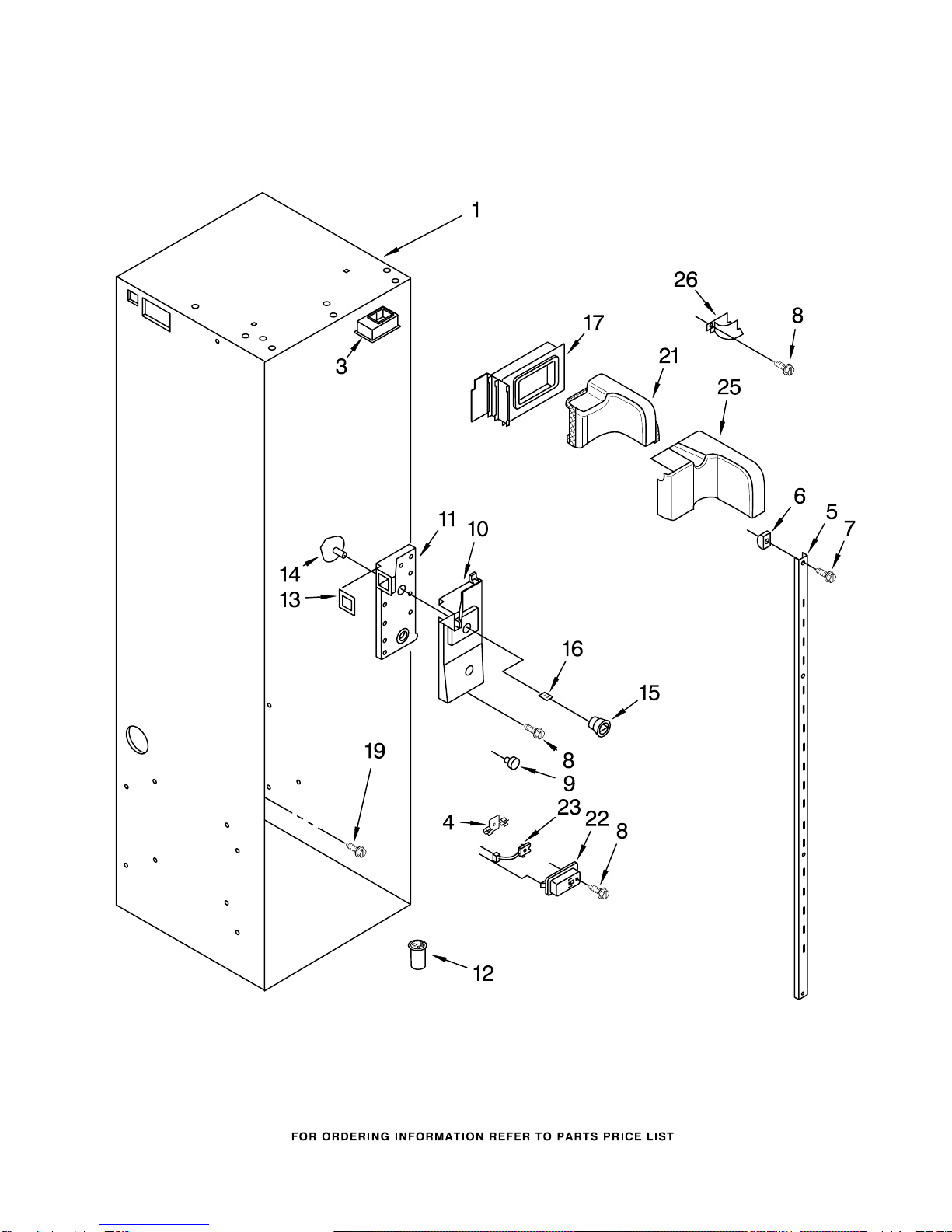

REFRIGERATOR LINER PARTS
For Models: KSSS36FKB02, KSSS36FKT02, KSSS36FKW02, KSSS36FKX02
(Black) (Biscuit) (White) (Etched Aluminum)
8198465
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
3 2208970 Air Duct
4 2209204 Clip, Thermistor
5 2221211 Ladder, Shelf (2)
6 520965 Screw Support,
Ladder (8)
7 2006475 Screw
8 486194 Screw
9 1112257 Hole Plug
10 2220888 Meat Pan, Air
Duct Cover
11 2000337 Meat Pan, Air Duct
12 2171846 Release Valve
13 2221175 Seal, Air Duct
14 1112218 Damper Control,
Meat Pan
15 2003811 Control Knob,
Meat Pan
16 2003841 Retainer, Knob
17 2221296 Air Baffle
Assembly
19 488280 Screw
21 2208997 Diffuser Assembly
22 1116793 Cover, Thermistor
23 2213442 Thermistor
25 2215728 Cover, Diffuser
26 2003577 Guard, Air Return

7
CONTROL PANEL PARTS
For Models: KSSS36FKB02, KSSS36FKT02, KSSS36FKW02, KSSS36FKX02
(Black) (Biscuit) (White) (Etched Aluminum)
8198465
Illus. Part
No. No. DESCRIPTION
1 2215715 Control Box
2 2215670 Insert, Control
Box
3 2209159 Circuit Board,
Housing Control
4 2187424 Control Box
Wire Harness
5 2003841 Retainer, Knob
6 2221121 Support, Control
Box
7 489006 Screw
11 2162085 Socket, Light
12 2160708 Light Bulb (2)
13 486194 Screw
15 2221067 Overlay

TOP GRILLE AND UNIT COVER PARTS
8
For Models: KSSS36FKB02, KSSS36FKT02, KSSS36FKW02, KSSS36FKX02
(Black) (Biscuit) (White) (Etched Aluminum)
8198465
Illus. Part
No. No. DESCRIPTION
1 Top Grille
Assembly
2215924W White
2215924B Black
2215924T Biscuit
8201576 Etched Aluminum
2 2209490 Cover, Unit
3 486194 Screw
4 2215830 Back Panel
5 2209492 Guard, Wiring
6 487415 Screw
7 2187429 Wire Assembly
RC/FC Light Switch
8 2215678 Baffle−Air,
Condenser
9 489348 Clamp

REFRIGERATOR SHELF PARTS
9
For Models: KSSS36FKB02, KSSS36FKT02, KSSS36FKW02, KSSS36FKX02
(Black) (Biscuit) (White) (Etched Aluminum)
8198465

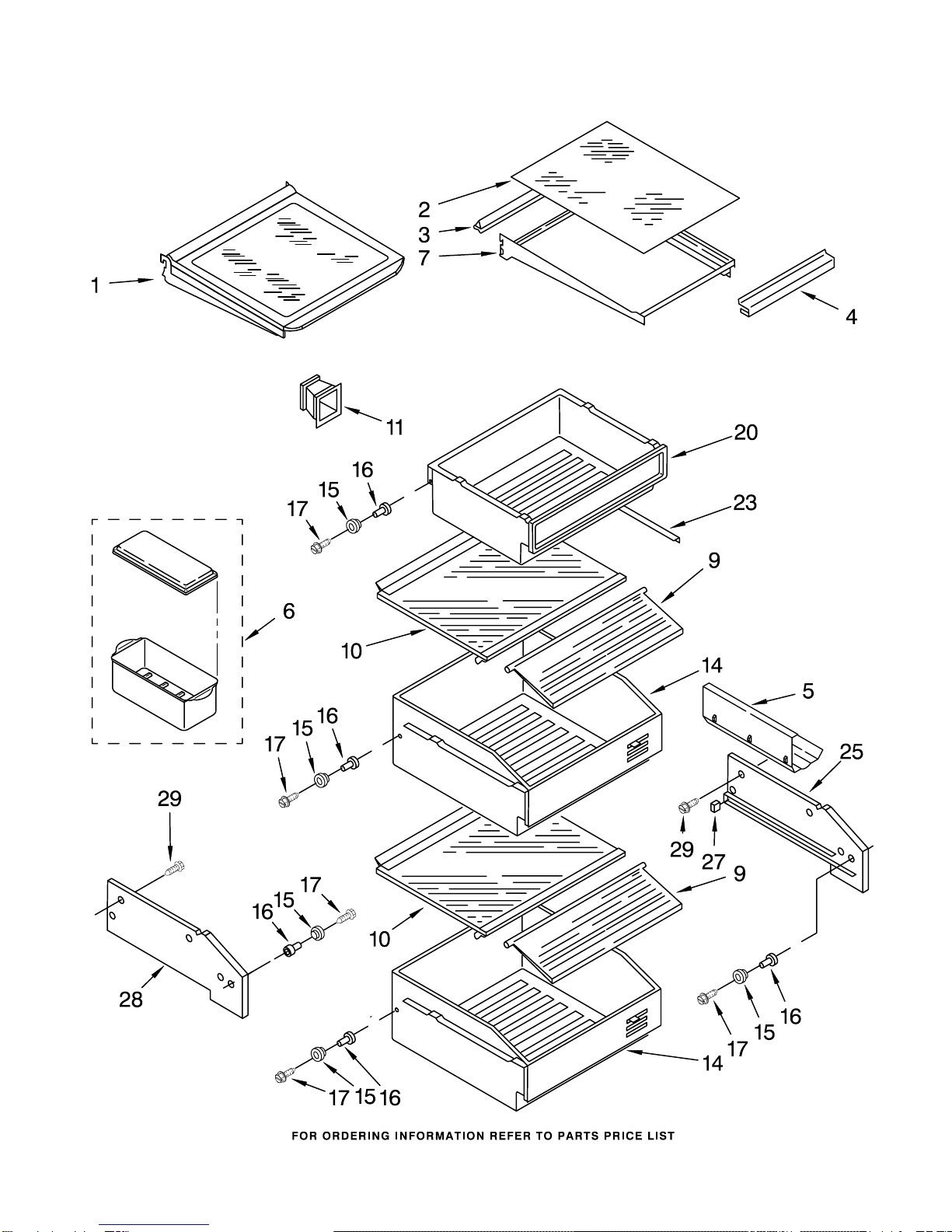

REFRIGERATOR SHELF PARTS
10
For Models: KSSS36FKB02, KSSS36FKT02, KSSS36FKW02, KSSS36FKX02
(Black) (Biscuit) (White) (Etched Aluminum)
8198465
Illus. Part
No. No. DESCRIPTION
1 2174402 Frame, Shelf
2 2003375 Glass, Shelf
3 1113546 Reflector, Shelf
4 1113790 Gasket, Glass (2)
5 2179404 Rack, Wine
6 2221071 Egg Bin
7 2006523 Frame, Assembly
Meat Pan
9 1113893 Cover, Crisper
10 2003378 Glass, Crisper
(Includes #9)
11 2000742 Meat Pan,
Connector
14 2220895 Crisper Pan (2)
15 2188212 Roller
16 2174478 Eyelet, Roller
17 2003478 Screw
20 2220901 Meat Pan
23 2002181 Retainer, Glass
25 2006515 Crisper Spacer,
Right Side (2)
27 1113169 Stop, Roller
28 2006516 Crisper Spacer,
Left Side (2)
29 486194 Screw

11
FREEZER LINER AND AIR FLOW PARTS
For Models: KSSS36FKB02, KSSS36FKT02, KSSS36FKW02, KSSS36FKX02
(Black) (Biscuit) (White) (Etched Aluminum)
8198465

12
FREEZER LINER AND AIR FLOW PARTS
For Models: KSSS36FKB02, KSSS36FKT02, KSSS36FKW02, KSSS36FKX02
(Black) (Biscuit) (White) (Etched Aluminum)
8198465
Illus. Part
No. No. DESCRIPTION
1 2208939 Fan Motor
2 2002732 Cup, Clearance
3 2169142 Fan Blade
4 2155590 Retainer,
Fan Motor
5 2155788 Gasket, Cover
6 2208968 Grommet
7 486194 Screw
8 2003924 Deflector,
Air Duct
9 488500 Screw, Ground
10 2162085 Socket, Light (2)
11 488937 Clamp, Nylon
12 2160708 Light Bulb (2)
13 1112871 Fastner
14 2182119 Scroll, Fan
15 2003927 Deflector,
Air Duct
16 2215612 Cover, Air Duct
17 2209334 Assembly, Air Duct
18 2182146 Duct, Icemaker
19 Block, Fan Scroll
2209481 Right
2209066 Left
20 2221262 Harness, Wire
21 Liner (Not A
Serviceable Part)
22 1112869 Gasket, Air Baffle
23 2215718 Cover, Air Outlet
24 2198589 Light Shield (2)
25 2221104 Cover, Evaporator
26 486194 Screw
27 487539 Screw
28 2215823 Clip, Air Duct (4)
29 1112851 Diffuser, Air Duct
30 1112260 Support,
Evaporator (2)
31 2196483 Shelf, Stud (20)
32 8281158 Screw
33 Evaporator,
Cover Rail
2221107 Left Side
2221108 Right Side
34 2220904 Gasket (2)
Evaporator Cover
35 2221077 Wire, Jumper
38 941839 Hole Plug (4)
39 2213442 Thermistor
40 2209204 Clip, Thermistor
41 1116793 Cover, Thermistor
42 488208 Screw 8−15 x 7/8
43 2220241 Insulation (4)

REFRIGERATOR DOOR PARTS
13
For Models: KSSS36FKB02, KSSS36FKT02, KSSS36FKW02, KSSS36FKX02
(Black) (Biscuit) (White) (Etched Aluminum)
8198465

REFRIGERATOR DOOR PARTS
14
For Models: KSSS36FKB02, KSSS36FKT02, KSSS36FKW02, KSSS36FKX02
(Black) (Biscuit) (White) (Etched Aluminum)
8198465
Illus. Part
No. No. DESCRIPTION
1 2259180 Refrigerator
Door Panel
(Includes
Insulation)
3 2266854 Hinge Assembly,
Top
4 2256381 Door Spacer,
Top
5 489282 Screw
6 2256389 Hinge Assembly,
Bottom
7 1112533 Gasket Retainer,
Side (2)
8 1112539 Gasket Retainer,
Top & Bottom
9 2188497 Door Gasket,
Magnetic
11 Handle, Door
2005953 White
2005956 Black
2005955 Biscuit
2005952 Etched Aluminum
12 2001230 Washer
13 2257637 Door Spacer,
Bottom
15 Screw, 8−15 x .500
8281251 White
8281252 Black
8281253 Biscuit
8281250 Stainless Steel
16 Trim (Top)
2005013 White
2005839 Black
2005740 Biscuit
2005010 Etched Aluminum
18 Trim (Side)
2005968 White
2005971 Black
2005970 Biscuit
2005967 Etched Aluminum
19 Trim (Bottom)
2215993W White
2215993B Black
2215993T Biscuit
2215993 Etched Aluminum
20 1113952 Panel, Interior
Door
21 1113951 Ladder, Shelf (2)
22 1112530 Retainer, Shelf
Ladder (2)
23 1112514 Back Up Plate (8)
24 486194 Screw
25 1112720 Bin, Utility
26 2003463 Door, Utility Bin
27 1112745 Door Shelf
28 2165792 Butter Tray
30 2188331 Shelf, Gallon
Door

FREEZER DOOR PARTS
15
For Models: KSSS36FKB02, KSSS36FKT02, KSSS36FKW02, KSSS36FKX02
(Black) (Biscuit) (White) (Etched Aluminum)
8198465

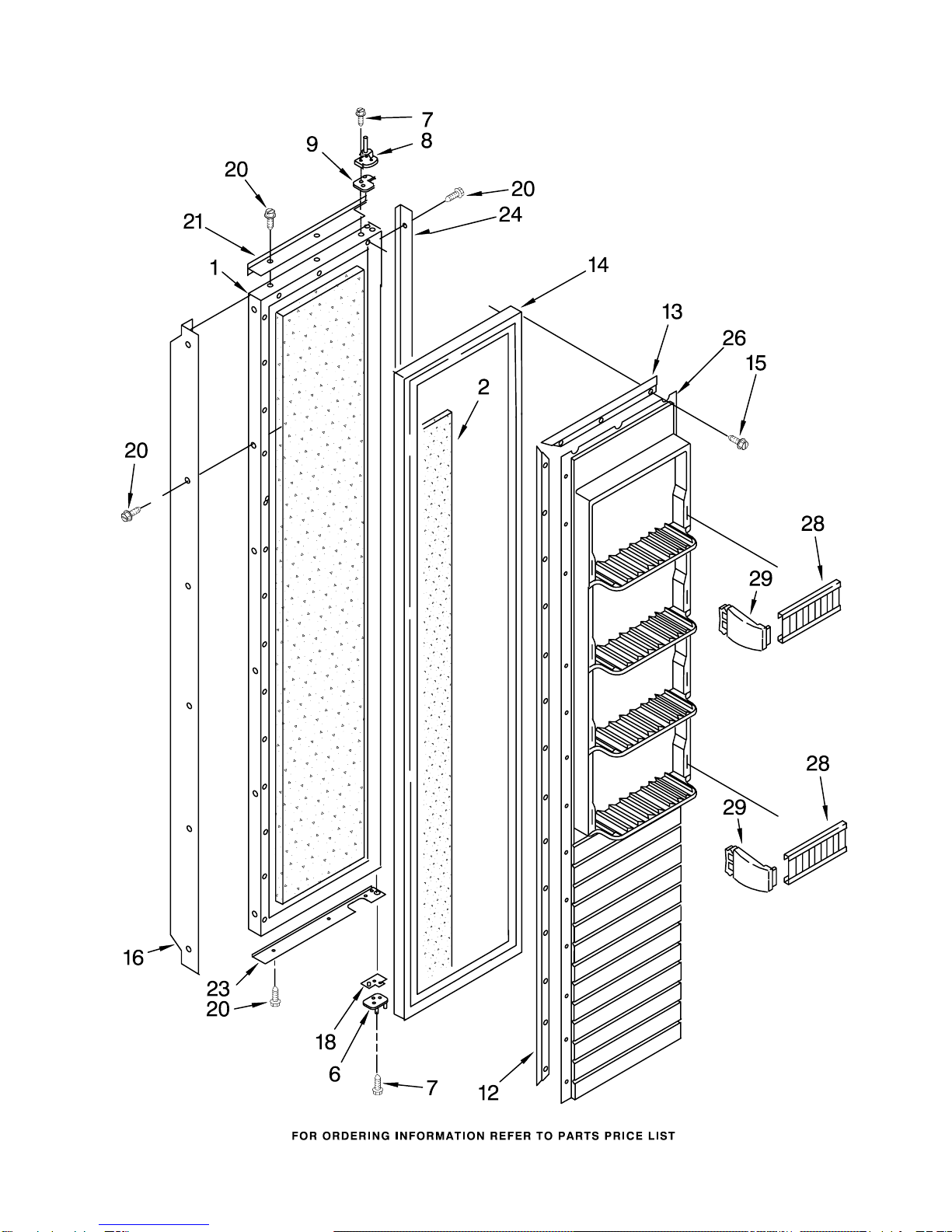

FREEZER DOOR PARTS
16
For Models: KSSS36FKB02, KSSS36FKT02, KSSS36FKW02, KSSS36FKX02
(Black) (Biscuit) (White) (Etched Aluminum)
8198465
Illus. Part
No. No. DESCRIPTION
1 2259162 Freezer Door
Panel (Includes
Insulation)
2 2005610 Seal (2)
6 2256390 Hinge Assembly,
Bottom
7 489282 Screw
8 2266854 Hinge Assembly,
Top
9 2256381 Door Spacer,
Top
12 1112533 Gasket Retainer,
Side (2)
13 1112538 Gasket Retainer,
Top & Bottom
14 2188495 Door Gasket,
Magnetic
15 486194 Screw (34)
16 Handle, Door
2005943 White
2005946 Black
2005945 Biscuit
2005942 Etched Aluminum
18 2257637 Door Spacer,
Bottom
20 Screw
8281251 White
8281252 Black
8281253 Biscuit
8281250 Stainless Steel
21 Trim (Top)
2005022 White
2005885 Black
2005746 Biscuit
2005019 Etched Aluminum
23 Trim (Bottom)
2215984W White
2215984B Black
2215984T Biscuit
2215984 Etched Aluminum
24 Trim (Side)
2005963 White
2005966 Black
2005965 Biscuit
2005962 Etched Aluminum
26 2209030 Panel, Interior
Door
28 2209163 Shelf Bin
29 Trim, Endcap
2208954 Left Side
2209134 Right Side

UPPER UNIT PARTS
17
For Models: KSSS36FKB02, KSSS36FKT02, KSSS36FKW02, KSSS36FKX02
(Black) (Biscuit) (White) (Etched Aluminum)
8198465

UPPER UNIT PARTS
18
For Models: KSSS36FKB02, KSSS36FKT02, KSSS36FKW02, KSSS36FKX02
(Black) (Biscuit) (White) (Etched Aluminum)
8198465
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 2209324 Inverter Box
2 489373 Screw, Compressor
Mounting (4)
3 2208937 Compressor
(Includes Items
6, 9 & 21)
(Also Order
876765 Tube Kit)
4 2257354 Housing, Control
Board
5 2215641 Bracket, Fan Motor
6 1100826 Grommet, Mounting
7 2257350 Shroud, Condenser
(Right)
8 2215665 Panel, Condenser
Front
9 2215676 Terminal Cover
10 2209037 Shroud, Condenser
(Left)
11 2254739 Control Board
12 2203075 Spacer (5)
13 2209493 Bracket, Inverter
Box
14 486899 Screw
15 1157158 Screw
16 2209062 Condenser
17 943447 Grommet (4)
18 2187422 Wire, Jumper
19 487522 Screw
20 857547 Wire Tie (2)
21 2199167 Drier
23 2206036 Motor, Fan
24 2190685 Blade, Fan
25 2003169 Orifice, Fan
27 8281160 Screw
29 486692 Speed Nut
32 2000645 Sleeve,
Condenser
34 2194319 Process, Tube
35 486194 Screw
36 2209495 Cover, Fan
37 2257351 Cover, Condenser
39 2003381 Service Cord
41 549193 Clamp, Cord
42 1113229 Switch, Power
Disconnect
43 488500 Screw, Ground
44 653035 Clip, Cord Plug
45 2187662 Wiring Harness,
Unit Compartment
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
7.75 oz.
(R−134A)

LOWER UNIT AND TUBE PARTS
19
For Models: KSSS36FKB02, KSSS36FKT02, KSSS36FKW02, KSSS36FKX02
(Black) (Biscuit) (White) (Etched Aluminum)
8198465

LOWER UNIT AND TUBE PARTS
20
For Models: KSSS36FKB02, KSSS36FKT02, KSSS36FKW02, KSSS36FKX02
(Black) (Biscuit) (White) (Etched Aluminum)
8198465
Illus. Part
No. No. DESCRIPTION
1 2196155 Defrost Bi−Metal
2 2209119 Wire Harness
3 486194 Screw
4 2215508 Bracket
5 2209067 Side Support
6 2209035 Suction Tube
7 2257372 Tube, Transition
8 2209454 Tube, Connect
(Drier)
9 2209451 Heater, Drain Pan
10 2209450 Hanger, Heater
11 2005908 Shield, Drain Pan
13 2209036 Tube, Discharge
16 2209063 Evaporator
17 2006749 Heater, Defrost
18 1113048 Clamp, Heater (2)
20 2220832 Gasket, Evaporator
21 857547 Wire Tie
22 2215691 Clip, Heat
Exchanger
25 2001264 Drain Pan
26 Bracket, Drain Pan
1113206 Left
1113207 Right
27 513942 Dampener
28 2215648 Damper, Heater
