KitchenAid KSSS48DWW01 User manual

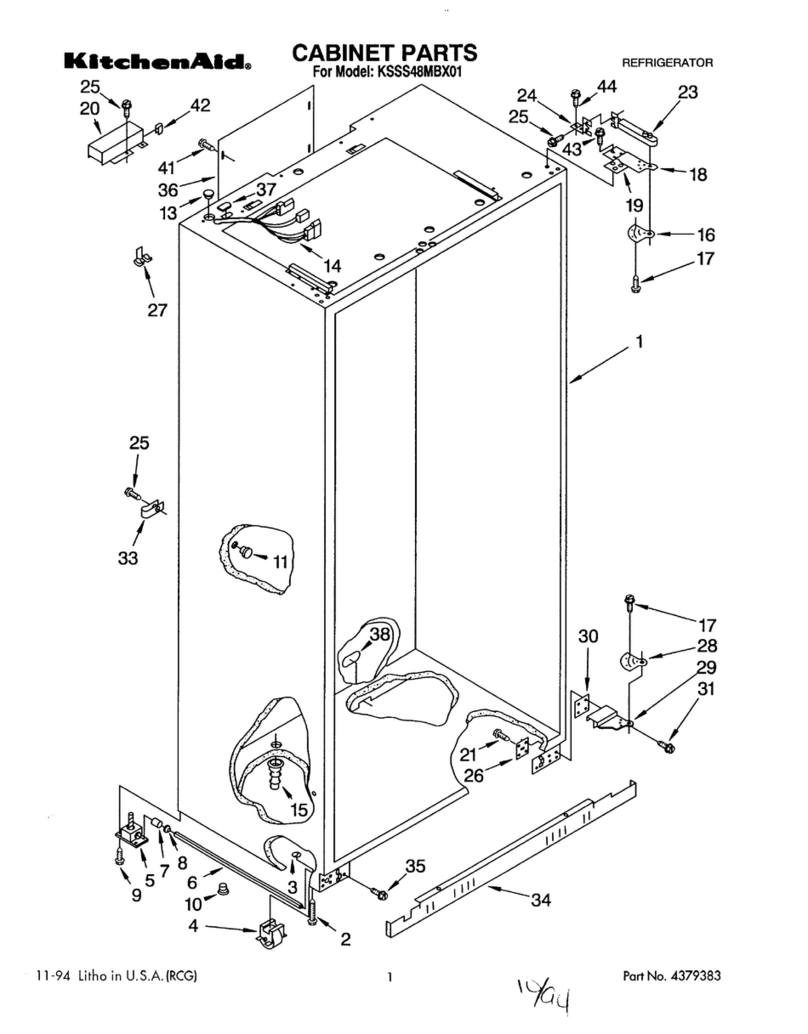

1 Cabinet (Not A Serviceable Part)
2 1112019 Leveler, Front (2)
3 1113249 Retainer (2)
4 1112023 Roller, Front & Rear (4)
5 1112695 Leveler, Adjustable (2)
6 1112936 Adjusting Rod (2)
7 1113250 Sleeve, Retainer (2)
8 1112937 Bushing, Rod (2)
9 489359 Screw, 10-32 x 5/8
10 1112939 Hole Plug, Leveler
11 1112849 Cap, Grommet
12 1112970 Grommet, Water Tube
13 1113122 Grommet, Wiring
14 1112469 Wiring Harness, Cabinet
15 1112848 Drain Fitting
16 Gap, Cover Assembly (Top)
1113217 Left Side
1113216 Right Side
17 1112906 Shoulder Screw
18 Hinge (Top)
1112094 Left Side
1112095 Right Side
19 1112988 Shim, Hinge Top (4)
20 1112805 Guard, Wiring
21 1112907 Door Closer, Fixed Cam
22 487818 Screw, 8-32 x 5/16
23 1112992 Door Closer Assembly (2)
24 Bracket, Door Closer
1112947 Left Side
1112948 Right Side
25 486194 Screw,8x1/2
26 1112973 Tap Plate, Hinge Butt (2)
27 1113227 Fastener (3)
28 Gap, Cover Assembly (Bottom)
1113217 Left Side
1113216 Right Side
29 Hinge (Bottom)
1112130 Left Side
1112154 Right Side
30 1112942 Shim, Hinge Bottom (4)
31 489237 Screw, 1/4-28 x 3/4
32 1113809 Spacer Lower Door Hinge
34 1112139 Grille Base, Front
35 489238 Screw (6)
36 1112835 Cover, Rear
37 1113123 Grommet, Wiring
38 1113079 Grommet, Flexible
39 1112926 Grommet, Tube
40 487534 Screw,8x3/4
41 488366 Clamp, Tube

1 1112667 Breaker Trim, (One Piece)
2 1113277 Retainer Side (4)
3 1112754 Retainer Trim Freezer (2)
4 1112687 Retainer Trim Refrigerator (2)
5 1112682 Magnet, Side (4)
6 1112679 Magnet, Freezer (2)
7 1112681 Magnet, Refrigerator (2)
8 1112712 Heater, Mullion
9 1113836 Trim (R.S.)
10 1113835 Trim (L.S.)
11 489238 Screw (12)
487246 Screw (Repair)
12 1112802 Trim (Bottom)
13 488649 Screw, 8-32 x 1/2 (8)
14 1113844 Spacer Trim, Grille
15 1113604 Retainer, Unit Base (2)
16 487944 Washer (2)

1 Liner (Not A Serviceable Part)
6 538533 Support Clip, Icemaker (2)
7 538532 Grommet, Screw (2)
8 488552 Screw, 10-12 x 3/8 (2)
9 992720 Stud, Support (4)
11 Rail, Evaporator Cover
1112841 Left Side
1112842 Right Side
12 486194 Screw,8x1/2
13 1112591 Spacer, Control Panel (3)
14 842534 Clip, Air Duct (4)
15 842339 Grommet (15)
16 1112260 Support, Evaporator
17 658944 Stud, Shelf (8)
18 487559 Screw, 8-15 x 1-1/4 (8)
19 1112843 Gasket, Evaporator Cover (2)

1 LINER (Not A Serviceable Part)
2 1112591 Spacer, Control Panel (3)
3 843436 Grommet, Screw (3)
4 842339 Grommet
5 1112115 Ladder, Shelf (2)
6 520965 Screw Support, Ladder (8)
7 488357 Screw, 8 x 1-1/4 (8)
8 486194 Screw,8x1/2
9 1112257 Hole Plug
10 1112128 Cover, Liner Back
11 1112219 Control Panel Assembly (Meat)
12 1112125 Insulation, Liner Back Cover
13 1112132 Duct, Meat Pan
14 1112218 Damper Control, Meat Pan
15 1112258 Control Knob, Meat Pan
16 837444 Retainer, Knob
17 1112789 Bracket, Light
18 1112613 Socket, Light
19 547225 Light Bulb
20 1112995 Wiring Harness, Air Baffle
21 1112709 Wiring Harness, Light Socket
22 1116793 Cover, Thermistor
23 1116959 Thermistor
24 1113078 Flexible Grommet
25 1112788 Shield, Light

1 Spacer, Track
1112282 Left Side
1112281 Right Side
2 1113870 Roller
3 1113871 Eyelet, Roller
5 1113169 Stop, Roller
6 488307 Washer
7 486194 Screw,8x1/2
8 1113127 Bracket, Motor
9 1113960 Motor Assembly
10 488906 Screw, 8-32 x 5/16
11 983663 Coupling, Motor
12 1112613 Socket, Light
13 1113130 Cover, Motor
14 487294 Screw, 8-32 x 3/8
15 1112287 Ice Container
16 1112378 Conveyor
17 983668 Coupling, Conveyor
18 946192 Drive Bar, Drum
19 946195 Bearing Nut
20 946193 Drum
21 946194 Baffle
22 1112385 Overlay, Cover
23 1112382 Front Cover
24 488886 Screw, 8-18 x 1/2 (5)
25 489211 Screw, 10-16 x 3/4
28 1113140 Lens, Dispenser
29 547225 Light Bulb

1 1112004 Frame, Shelf
2 1113956 Glass, Shelf
3 1112006 Reflector, Shelf
4 1113792 Gasket, Glass (2)
5 1125913 Rack, Wine
6 1112324 Retainer Glass
7 1112014 Frame Assembly
9 1112247 Cover, Crisper
10 1113238 Glass, Crisper
14 1112222 Crisper Pan
15 1113870 Roller
16 1113871 Eyelet, Roller
17 489211 Screw, 10-16 x 3/4
18 488307 Washer
19 1113244 Utility Pan
20 1113898 Meat Pan
25 1112165 Crisper Spacer, Right Side (2)
27 1113169 Stop, Roller
28 1113890 Crisper Spacer, Left Side (2)
29 486194 Screw,8x1/2

1 1112367 Solid Shelf
2 1112395 Front, Ice Compartment
3 1112052 Shelf, Fixed (2)
14 1113644 Trim, Basket
15 1113870 Roller
16 1113871 Eyelet, Roller
17 489211 Screw, 10-16 x 3/4
18 488307 Washer
19 1113641 Basket
22 2000061 Slide, Basket R.S.
2000062 Slide, Basket L.S.
24 1113169 Stop, Roller
25 486194 Screw,8x1/2

1 1113938 Door Panel, Refrigerator (Also Order Item 29)
2 939101 Screw Anchor (8)
3 1112945 Hinge Assembly, Top
4 1112940 Spacer
5 489282 Screw
6 1112921 Hinge Assembly, Bottom
7 1112533 Gasket Retainer, Side (2)
8 1112542 Gasket Retainer, Top & Bottom
9 1112549 Door Gasket, Magnetic
10 489101 Screw, 7 x 1/2 (36)
11 2000076 Handle, Door
12 1113955 Gasket Utility Door
15 487052 Screw, 8-15 x 1/2
16 2000083 Trim (Top)
17 489112 Screw, 6-32 x 1/2
18 1113820 Trim (Side)
19 2000089 Trim (Bottom)
20 1113950 Panel, Interior Door
21 1113949 Ladder, Shelf (2)
22 1113948 Retainer, Shelf Ladder (2)
23 1112514 Back Up Plate (8)
24 486194 Screw,8x1/2
26 1112737 Door, Utility Bin
27 1113972 Door Shelf (4)
28 1125936 Butter Tray
29 876029 Kit, Foam Slab (Required When Replacing Exterior Door Panel)

1 1112642 Control Panel
2 1113958 Inlay, Control Panel
3 1113390 Circuit Board
4 1116853 Control Knob
5 837444 Retainer, Knob
6 1108112 Switch, Rocker Arm
7 1113137 Seal, Control Panel
8 489260 Screw (3)
9 2000153 Hole Plug (3)
10 1113775 Shield, Control Panel
11 1112613 Socket, Light (2)
12 547225 Light Bulb (2)
13 486194 Screw,8x1/2
14 1112662 Lens
15 1112708 Channel, Wiring
16 1115375 Clip, Wiring (2)
