Kitchencraft 3210 User manual

MODEL 3210
OPERATING MANUAL
HOOD
KITCHEN HOODS
(BUILT-IN DECORATIVE)
USER MANUAL

Min 663/Max 1013
-2- -15-
6
5
3
2
1
4

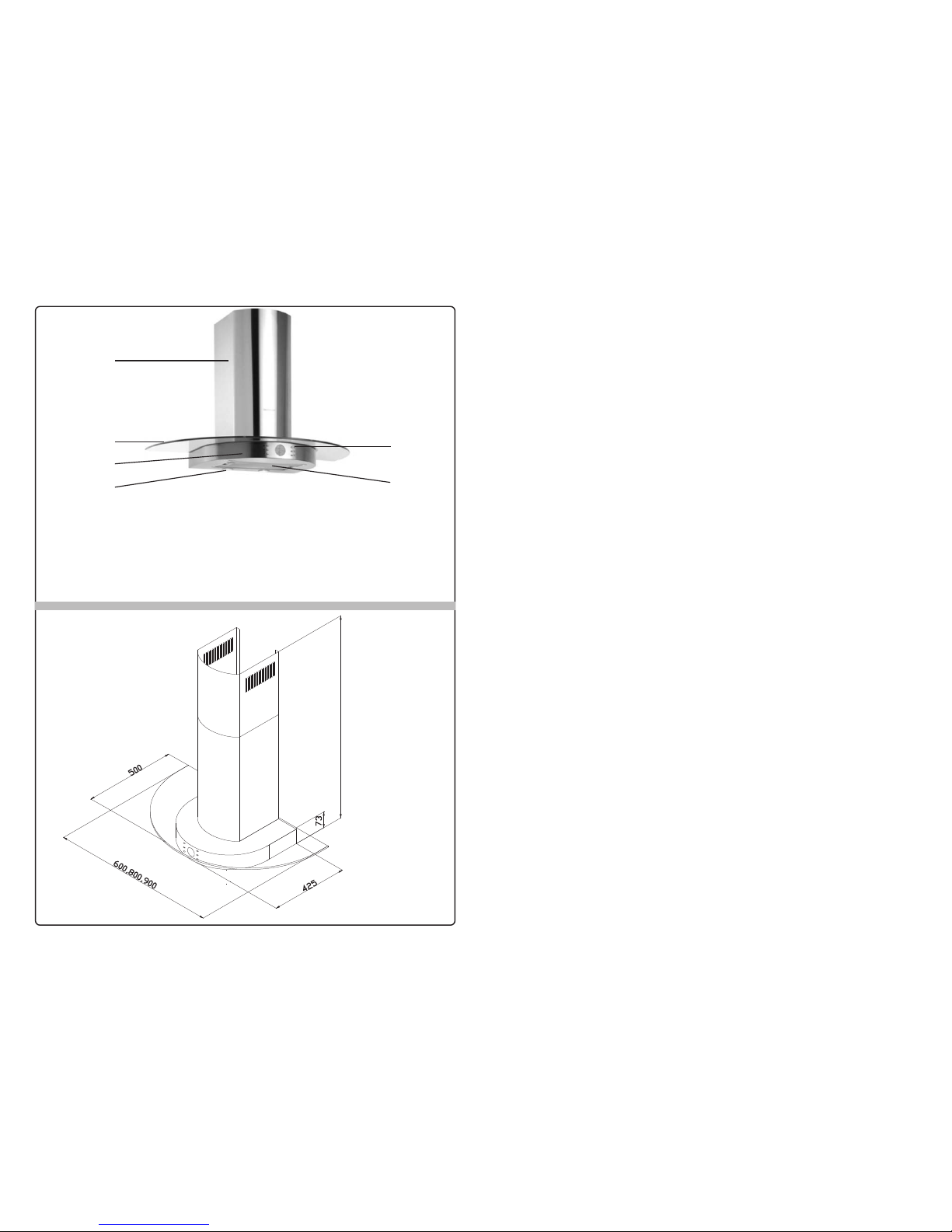

1. Aluminum Filter
2. Touch-Operated Switch
3. Oven Illumination
4. Front Panel
5. Tempered Glass
6. Metal Chimney
INTRODUCTION OF PRODUCT

-3--14-
*This product is designed for usage at
home.
*Your products usage voltage is 220-
240 Volts~50Hz
*Grounded plug is montaged to your
product's electric network cable. This
cable should definitely be plugged in
a grounded socket.
*All electrical network should be set
by a qualified electrician.
*Montage applied by unauthorised
people may cause the product to
operate at low performance, damage
of the product and accidents.
*Feeding cable should not be
exposed to press or smash during
montage. Network cordon should not
be placed near the cookers, it may
cause fire if it melts.
*Do not plug into the socket without
montage of the product is completed.
*Keep the plug at a reachable place
so that you can unplug it in case of
any danger.
*Do not touch the lamps when they
are on for long time. Lamps may hurt
your hand as they will be hot.
*Kitchen cooker hoods are designed
for usage during normal and home-
style cooking. If it is used for other
purposes, failure risk occurs and it will
be out of warranty.
*Obey competent authorities' rules
and directions for passing out outlet
air.(This warning is not valid for usage
without chimney.)
WARNINGS AND SAFETY
*Flaming foods shall not be cooked
under the product.
*Start your product after you put pot,
fry-pan etc. on the hob. Otherwise high
temperature may cause some parts of
your product to get deformed.
*Before you take pot, fry-pan etc. from
the hob, put their lids on.
*Do not leave hot oil on the hob. Pots
that has hot oil in them may cause self-
ignition.
*Pay attention to curtains and covers
during cooking of meals like frying
because oil may flare up.
*Make sure that filters are changed in
convenience. Filters that are not
changed at appropriate time has risk of
causing fire due to oil that will be
gathered on them.
*Do not use filter materials that are not
flame resistant instead of filter.
*Do not operate your product without
filter, do not remove filters when the
product is on.
*In case flame occurs, cut power of the
product and the cooking appliances.
(cut power of the product by plugging it
off the socket).
*Your product may cause fire risk if
cleaning is not applied periodically.
*Cut power of the product before
maintenance process. (Cut power of the
device by unplugging it)

-4- -13-
Standard Accessories
Resim 1
*When chimney hood and the appliances
working with an energy other than electricity
are operated at the same time, negative
pressure in the room should not be more
than 4 Pa (4 x 10-5 bar)
*If there is an appliance working with fuel or
gaseous fuel at the same place that your
product will be used, this appliance's
exhaust should be isolated from its volume
totally and the appliance should be hermetic
type.
*When chimney connection is applied to
your product, use ducts of 150mm or
120mm diameter. Duct connection should
be as short as possible and should include
few bends.
*Keep package materials away from
children as they may be dangerous for them.
-5
*Be sure that your child does not play
with the product. Do not allow kids to
use your product.
*If the feeding cable is damaged, this
cable should be changed by its
producer or its service agency or a
personnel who is a specialist at the
same level in order to prevent a
dangerous situation.
*If flaming occurs, cut power of the
cooker hood and the cooking
appliances, cover the flame. Never
use water in order to extinguish it.
Use “MAX 6 A” fuse at cooker hood
installment for your security.
Warning about Transportation and Carriage
*All the materials used at package of your product are suitable for recycling.
*Please comply with the signs on the product's box during transportation.
*Hold the holders placed at sides of the box in order to carry your product.
If you need transportation;
*Keep the original box.
*Carry with the original box, comply with the carrying signs on the product's box.
If there is no original package;
*Do not put heavy material on the chimney hood.
*Keep the external surface from bash.
*Carry the product packing it as it will not get damaged.
Montage, Taking off the Product from its Package:
*Check if there is any deformation on your product.
*Transportation damages and failures should immediately be reported to the
transportation responsible.
*Realised mistakes should also be reported to the seller.
*Do not allow children to play with packing material!!!

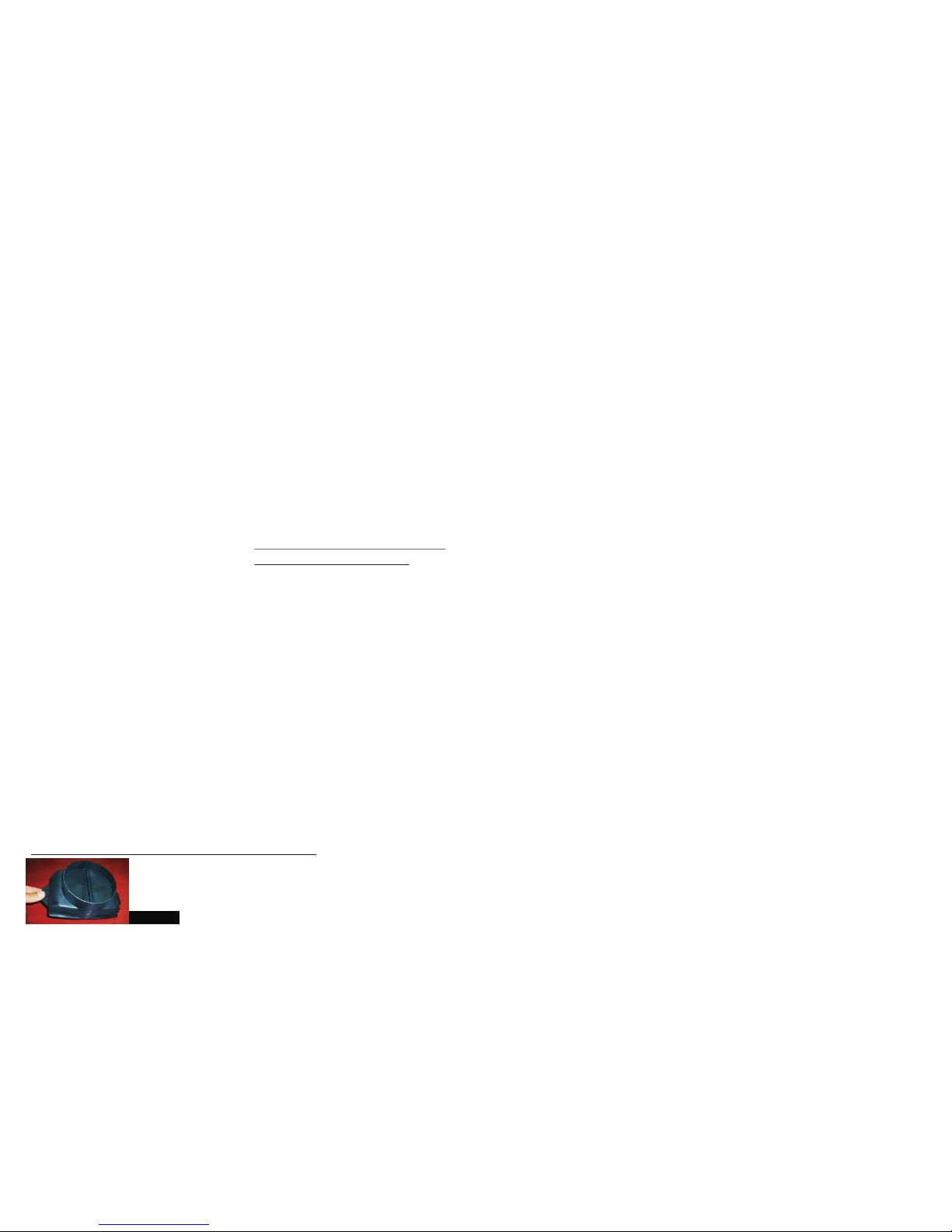

Plastic chimney
Plastic chimney, assembled to air outlet of aspirator
(Picture 1)

-5-
Min.65 cm
Min.65 cm
Min.75 cm
Figure 1
INSTALLATION OF DEVICE:
* Check whether there is any deformation in your device or not.
* Transportation failures should be reported to transportation responsible
immediately.
* Seen mistakes should also be informed to the seller.
* Do not allow children to play with packaging materials!!!
ASSEMBLY OF HOOK SHEET TO THE CHIMNEY HOOD:
In order to hang product onto the wall, there are 2 pieces of
hook sheets in the form of (L). These sheets are provided
together with screw set for convenience of package. Before
hanging the product, screw these sheets to M5 hammering
nuts, which are available on the cabinet, with M5 x 40 bolts.

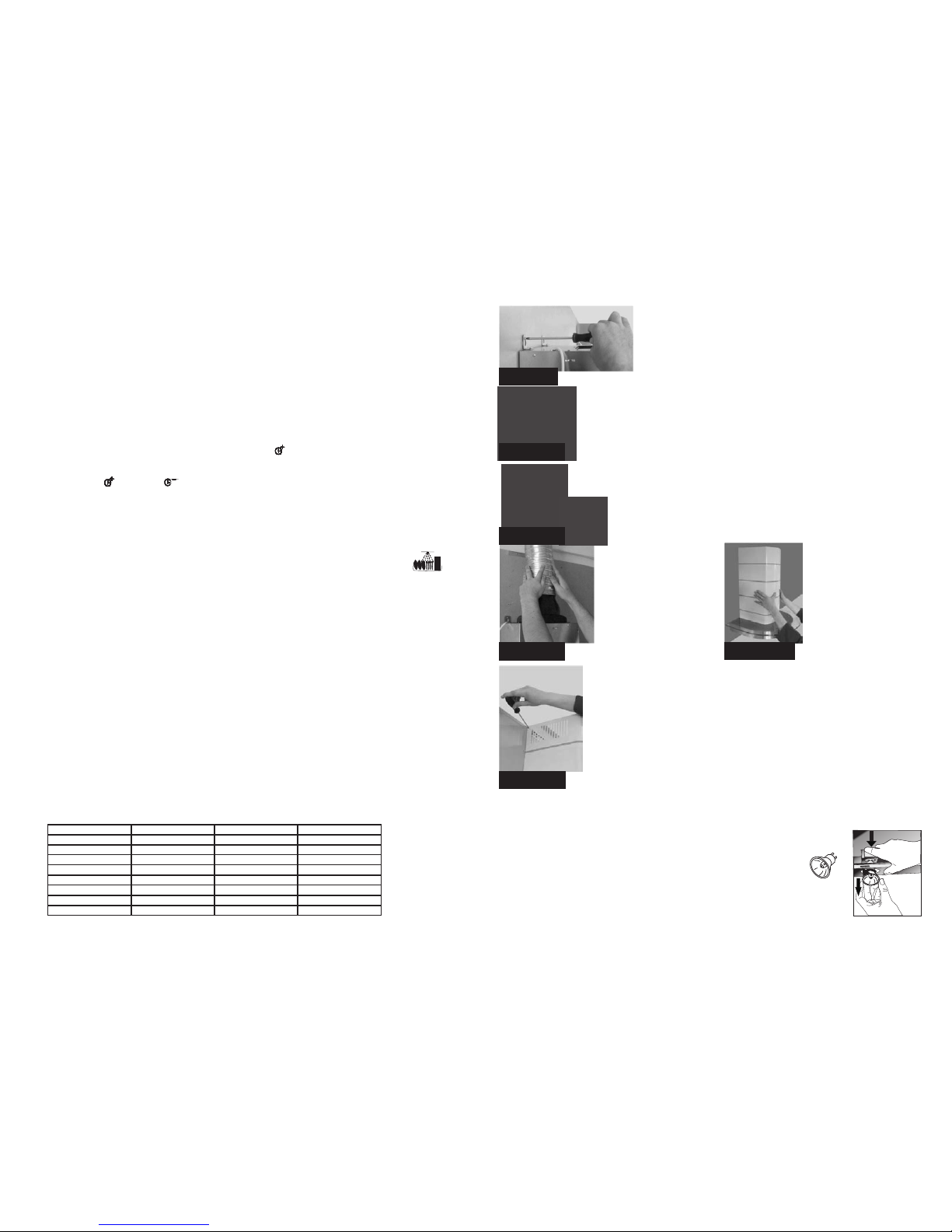

Picture 2
Picture 2

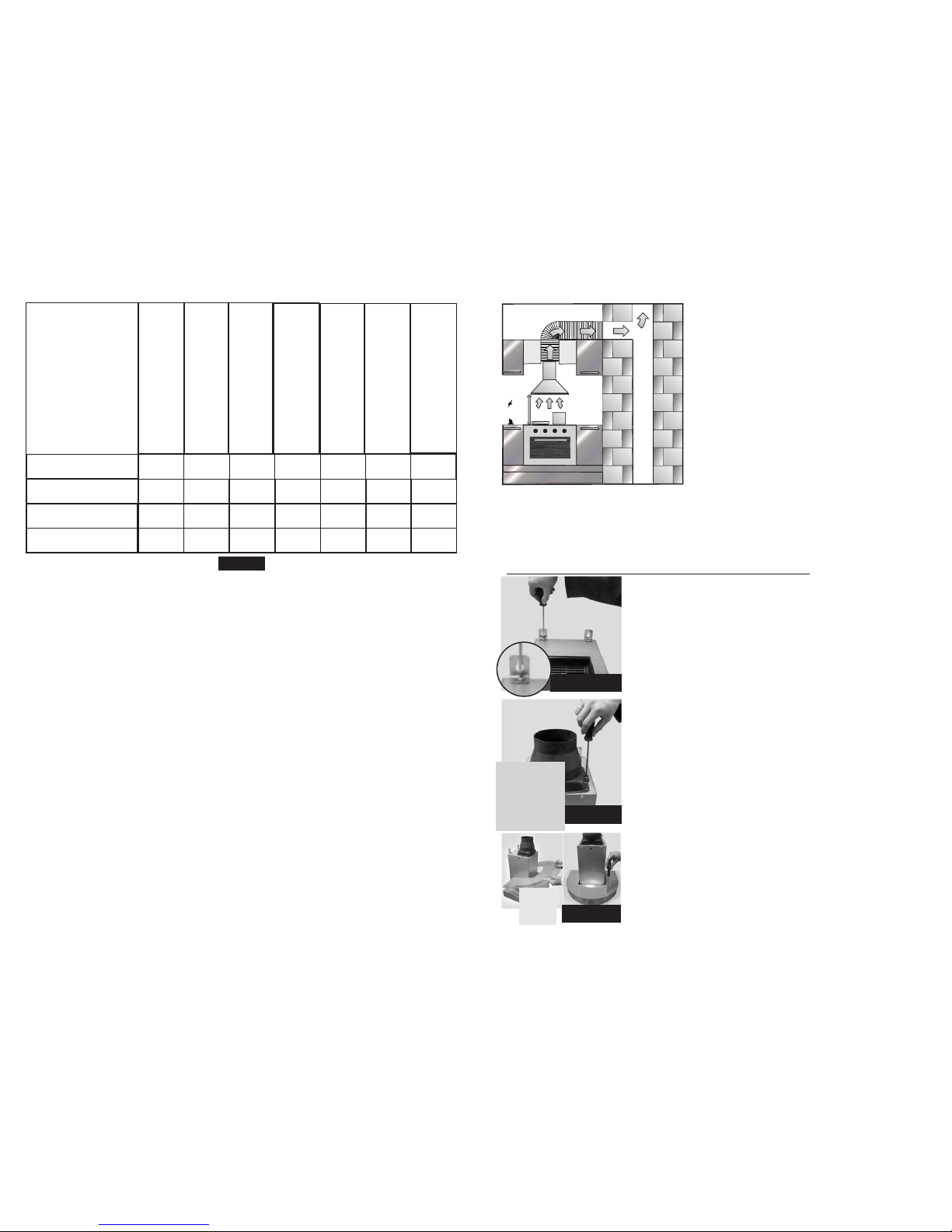

ASSEMBLY OF PLASTIC CHIMNEY TO THE CHIMNEY
HOOD: Fix plastic chimney to motor connection sheet with
3,5 x 9,5 screw. Picture 3
Picture 3
Picture 4
Fastening Tempered Glass: Place tempered glass, which
is provided with your chimney hood, so as to come onto the
top of body of chimney hood. Fasten glass to the body by
means of screws, which are provided with your aspirator,
from 4 pieces of bores on the body of glass and chimney
hood. Picture 4
-12-
If the product does not work:
Before you contact the technical service:
Make sure that the product is plugged in and the electric fuse of the electric wiring is
running. Do not take any action that will damage the product. Before you contact with
technical service, check your cooker hood according to Table 1. If the problem goes
on, contact the seller or the most authorised service.
Service and Spare Parts:
You can supply spare parts of your product from the seller of your authorised service.
There is an authorised service centers list in the package of your product. In order to
request spare parts when you contact seller or authorised service, please tell them
model name of your product that you can see on the product's label. You will be able
to see the product's label when you remove Aluminum Cassette Filter.
Table 2
X
X
X
X
X
X
X
X X
X
Check the electric connection (Voltage of the electric network should be between 220- 240V, cooker hood should be connected to grounded plug.) Check motor switch (Motor switch should be at on position) Check motor switch (Motor switch should be at on position) Check the lamp switch (Lamp switch should be at on position) Check the aluminum filter (Aluminum Cassette Filter should be washed once a month at normal conditions.) Check the lamps (Lamps should be firm.) Check the Carbon Filter (Carbon filter should be replaced with a new one each 2- 3 months at the models with Carbon Filter at normal conditions)
Cooker-hood does not work
Illumination Lamp does not work
Cooker-hoods air suction is weak
Cooker-hood does not direct air out
(at places without chimney)

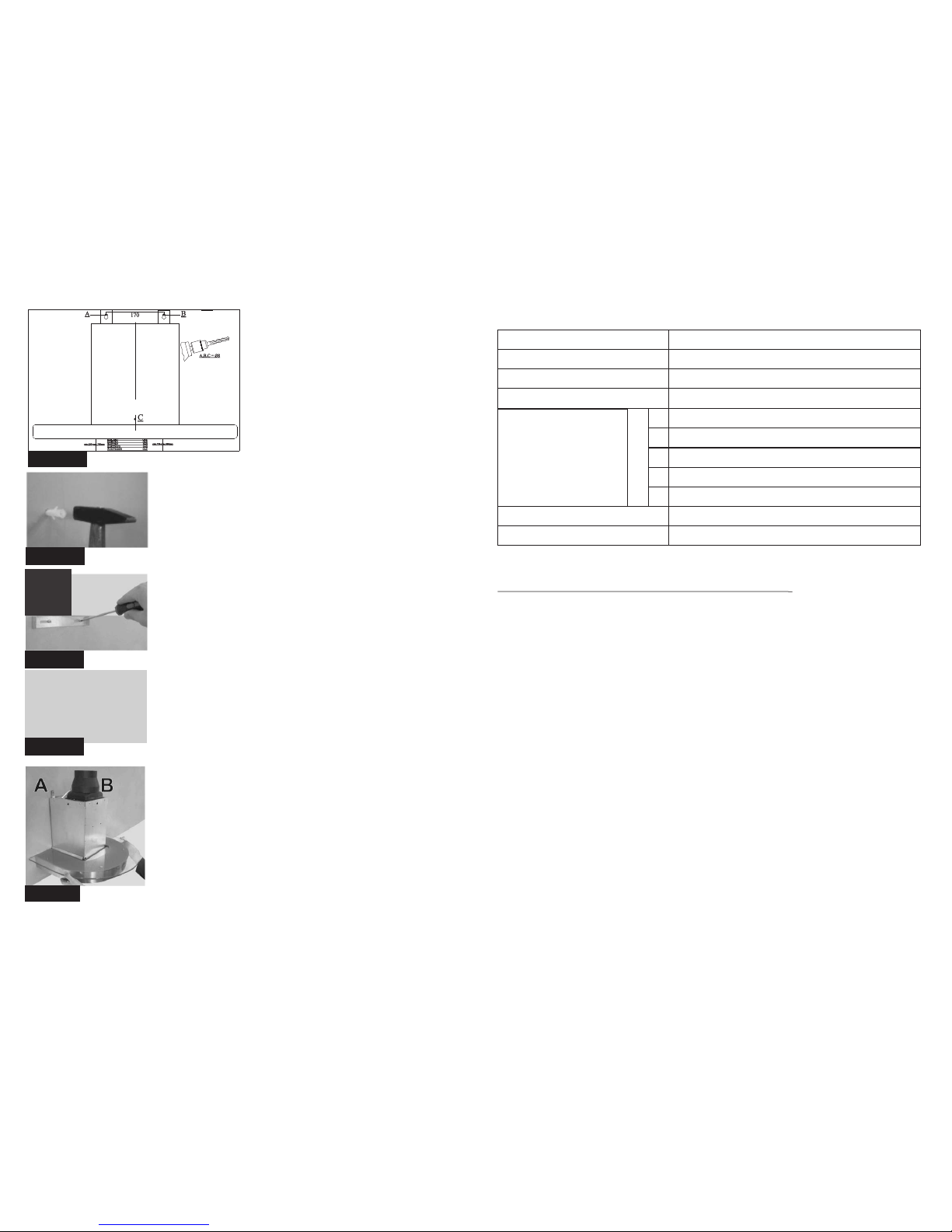

Place of the Product:
When montage of the cooker hood is completed,
distance of at least 65 cm should be between the
product and electrical hobs or distance of at least
75cm should be between the product and hobs
operating with gas or other fuel.Figure 1
