Kleenmaid LWT1210 User manual

laundry collection
Instructions for use and warranty details
Top Load Washing Machine
Model No.: LWT1210
To register your warranty or make a
warranty claim, scan this QR code:


 







 



 








2

3
CONTENTS
SAFETY INSTRUCTIONS
Safety instructions ....................................................
INSTALLATION
Product description ..................................................
Packing the washing machine ...................................
Unpacking the washing machine ...............................
Installation area .......................................................
Installation of drain hose ..........................................
Positioning of drain hose ........................................
Levelling the washing machine.........................
Connection of inlet hose, tap and washing machine.....
OPERATION
Preparation before washing.......................................
Washing ...................................................................
After washing............................................................
Preparing the machine and clothes ..........................
The usage of detergent and washing powder.................
Control panel ............................................................
Options.....................................................................
Personalized setting of washing program....................
Operation of washing processes..................................
Washing program table .............................................
MAINTENANCE
Cleaning and care .....................................................
Cleaning the cabinet..................................................
Cleaning the filters ....................................................
Trouble shooting.......................................................
Technical Specifications ............................................
Energy efficiency test program....................................
4
9
10
10
10
11
11
11
12
13
13
13
14
14
15
16
17
17
18
19
19
19
20
21
21

4
SAFETY INSTRUCTIONS
Safety instructions
For your safety, the information in this manual must be followed
to minimize the risk of fire or explosion, electric shock, or to
prevent property damage, personal injury or loss of life.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities
or lack of experience and knowledge unless they have
been given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not
play with the appliance.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
• The new hose-sets supplied with the appliance are to be
used and old hose-sets should not be reused.
• The openings must not be obstructed by a carpet.
• This appliance is intended to be used in household and similar
applications such as:
− staff kitchen areas in shops, offices and other working environments;
− farm houses;
− by clients in hotels, motels and other residential type environments;
− bed and breakfast type environments;
− areas for communal use in blocks of flats or in launderettes.
！Warning!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
death or serious injuries unless s it' avoided.
Explanation of the symbols:

5
SAFETY INSTRUCTIONS
Electrical Safety Precautions
•This appliance is for indoor use only.
• Do not install the washing machine in a humid place.
•Hands should not be inserted into the tub whilst it is spinning.
•If the tub does not stop spinning within 15 seconds of
opening the lid during a spin cycle please stop using the
machine and have it repaired.
•Before any maintenance is performed upon this washing
machine, unplug the appliance from the mains electricity
supply.
•Always unplug the machine and turn off the water supply
after use. See the max/min. inlet water pressure in the
Technical Specifications table on page 21.
•To ensure your safety, the power plug must be inserted into
an earthed three-pole socket. Check carefully and make sure
that your socket is properly and reliably earthed.
•The water and electrical devices must be connected by a
qualified technician in accordance with the manufacturer's
instructions and local safety regulations.
Warning!
！
Caution!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
slight or minor injuries or damage to property and the
environment.
Note!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
slight or minor injuries.

•This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities
or lack of experience and knowledge unless they have
been given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
•Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
•Check the machine before every operation to ensure animals or
children have not climbed inside the tub.
•Young children should be supervised to ensure that they do not
play with the appliance.
•The machine may become very hot during operation.
Keep children and pets far away from the machine whilst in
operation.
•Avoid using this appliance in very wet rooms as well
as in rooms with explosive or caustic gas.
•Remove all packaging before using the appliance, otherwise,
serious damage may result.
•The washing machine has double inlet valves and should be
correctly connected to the hot water and cold water supply.
•Plug must be accessible after installation.
Avoiding risk of explosion
• Do not wash or dry articles that have been cleaned in, washed
in, soaked in, or dabbed with combustible or explosive
substances( such as wax, oil, paint, gasoline, degreasers,
dry-cleaning solvents, kerosene, etc.) This may result in
fire or explosion.
• Thoroughly rinse such items of washing by hand.
6
SAFETY INSTRUCTIONS
Child Safety Precautions

• This washing machine is for indoor use only.
• It isn't intended to be built-in.
• The openings must not be obstructed by a carpet.
• Washing machine shall not be installed in bathrooms or
very wet rooms or in rooms with explosive or caustic gases.
• Remove all packaging and transport bolts before using
the appliance, otherwise, serious damage may result.
• The washing machine has double inlet valves and should be
correctly connected to the hot and cold water supply.
• Plug must be accessible after installation.
To avoid damaging the appliance
7
SAFETY INSTRUCTIONS
Caution
Installation Safety Precautions
• Your product is only for home use and is only designed
for textiles suitable for machine washing.
• Do not climb up and sit on the top cover of the machine.
• Do not lean against machine lid.
• Cautions during Handling Machine:
1.Transport bolts shall be reinstalled to the machine by
a qualified person.
2.The accumulated water shall be drained out of the
machine.
3.Handle the machine carefully. Never hold any protruding
part on the machine while lifting. The machine lid can
not be used as the handle during conveyance.
4.This appliance is heavy. Transport with care.

Operating the appliance
• Before washing a load of clothes for the first time the
product shall be operated whilst empty for one whole cycle.
• Flammable and explosive or toxic solvents are forbidden.
Gasoline and alcohol etc. shall not be used as detergents.
Please only select detergents suitable for top loading
washing machines.
• Make sure that all pockets are emptied. Sharp and rigid
items such as coins, brooches, nails, screws or stones etc.
may cause serious damage to this machine.
• Please check whether the water inside the tub has
been drained before opening its lid.
• Be careful of burns to the skin when the product drains hot
washing water.
• Never refill the water by hand during washing.
To dispose of packaging and the appliance please go to a recycling centre.
For safety, cut off the appliance power supply cable and disable the lid closing
device.
Cardboard packaging is manufactured from recycled paper and should be
disposed of in the waste paper collection for recycling.
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product.
For more detailed information about recycling of this product, please contact your local
council office and your household waste disposal service.
DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such
waste separately for special treatment is necessary.
Disposal of Packaging Old/ Appliance
8
SAFETY INSTRUCTIONS
• Please do not close the lid with excessive force.
• This machine is not intended for washing carpets.

INSTALLATION

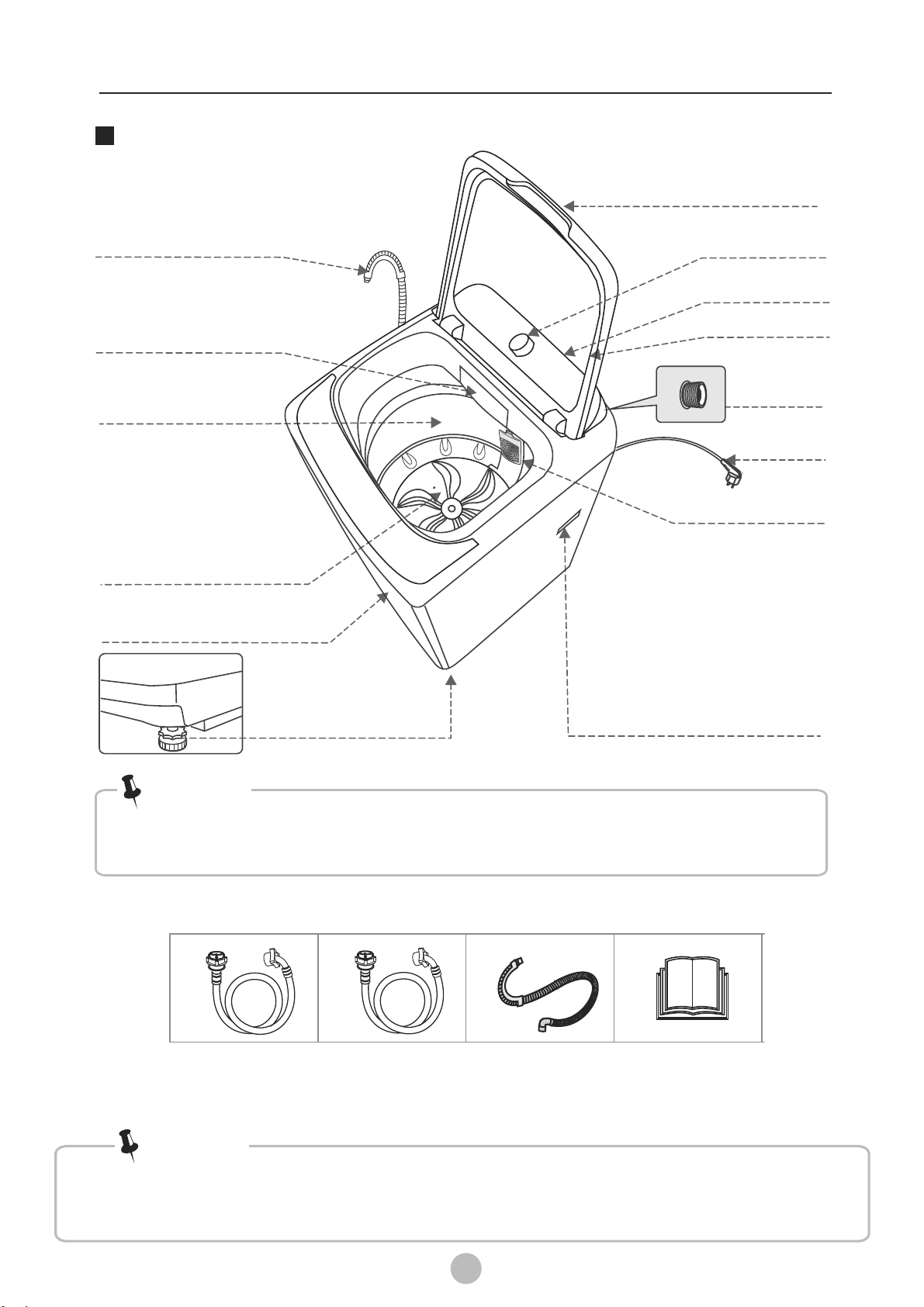

Product description
9
The product description diagram is for reference only, please refer to your
appliance to note the name and position of each part.
Note!
Accessories
Top lid
Water inlet valves
Power Cord
Handle
Cabinet
Cabinet handle
Adjustable foot
Wash·Spin tub
Filter Holder
on tub wall
Control panel
Impeller
Powder and liquid
detergent box
drain hose and
hose clamp
Supply hose hot
water
Supply hose
cold water
User Manual
knob
Drain hose
Before making preparations for or commencing installation, the installer should refer to the
current online version of the User Manual, which is available on the Kleenmaid website (see
back cover for details).
Note!

Installation area
Before installing the machine, check the selected location has:
1.Rigid, dry, and level surface
2.Avoid direct sunlight
3.Sufficient ventilation
4.Room temperature is above 0 C
5.Keep far away from heat sources such as coal or gas.

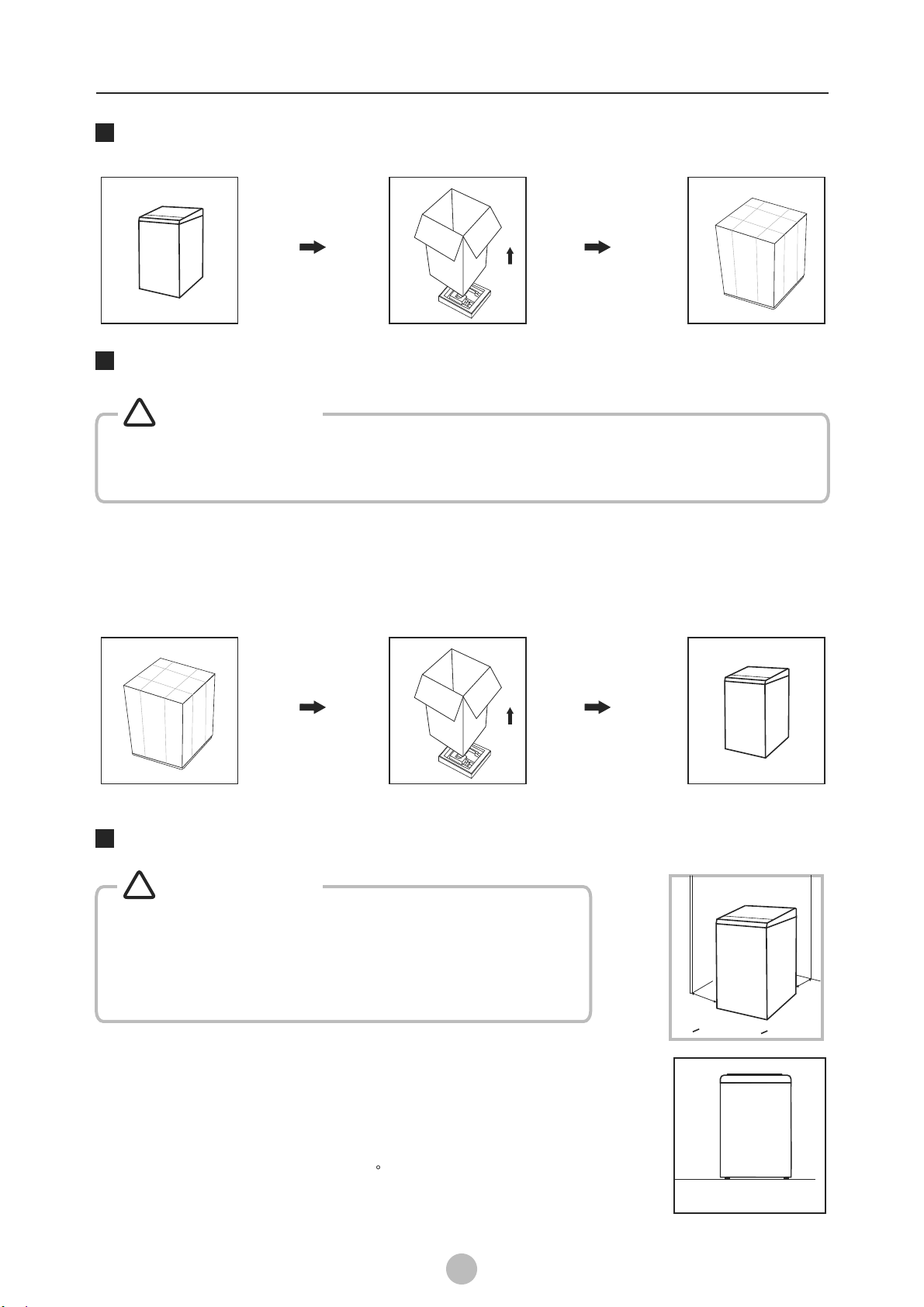

Unpacking the washing machine
1. Remove the cardboard box and styrofoam packing.
2. Lift the washing machine and remove the base packing.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.
• Stability is important to prevent the product from
moving around.
• Make sure that the power cord does not get trapped
under the appliance.
Warning!
！
• Packaging material (e.g. Film, Styrofoam) can be dangerous for children.
• There is a risk of suffocation. Keep all packaging well away from children.
Warning!
！
10
INSTALLATION
L
w
W 20mm>L 45mm>
Packing the washing machine

11

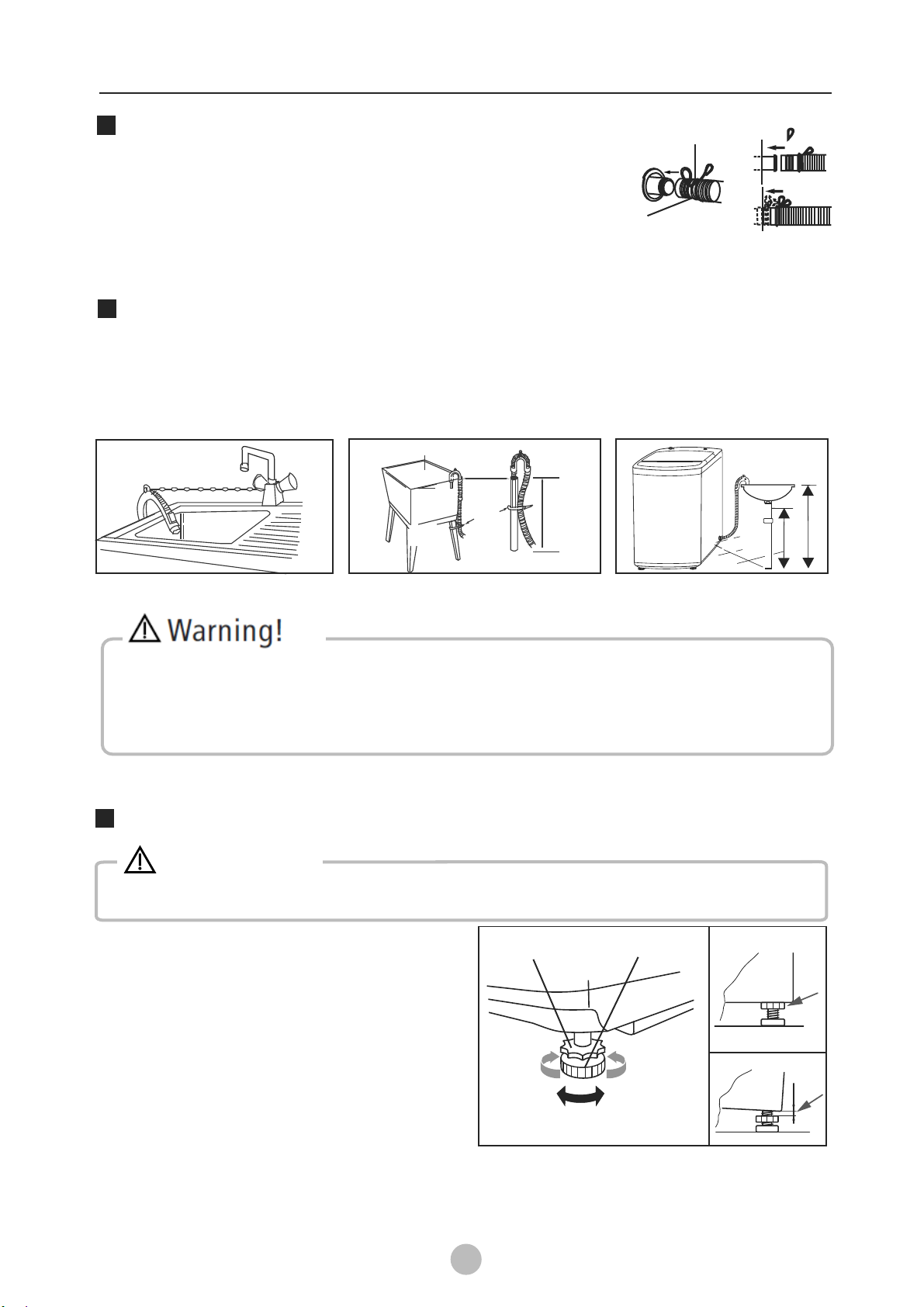

Position the drain hose properly, or damage may result from water leakage.
During the initial empty cycle (see p14) check for water leakage from the drain
outlet/drain hose and tighten the hose clamp if necessary.
Do not kink, crush or stretch the drain hose.
Trough
Hose
Retainer
Bind
Min.86cm
Max.100cm
Min.86cm
100cm
Max.
1.Check if the feet are closely attached to
the cabinet. If not, turn them to their
original position by tightening the nuts.
2.Check alignment of the product with a
spirit level and adjust if required.
3.Loosen the lock nut and turn each foot
until it closely contacts with the floor.
4.After locking the feet properly press on
all four corners to ensure the
feet have been adjusted correctly.
• The lock nuts on all the feet must be screwed firmly against the housing.
Levelling the washing machine
Warning!
INSTALLATION
Installation of drain hose
1.Connect the end of the supplied drain hose to the drain outlet on the
lower back of the washing machine.
2.Fix and tighten it firmly with the supplied hose clamp. See figure on
right.
Lock nut foot
right
wrong
Raise Lower
lockloosen
See the diagrams below for minimum and maximum heights for positioning the drain hose. Ensure
the drain hose is not kinked, crushed or stretched.
Positioning of drain hose

12
Connection between screw tap and inlet hose.
To prevent leakage or water damage, follow the instructions in this section.
Do not kink, crush, modify or cut the water inlet hose.
Warning!
！
Connection of inlet hose, tap and washing machine
Screw inlet hose onto a tap with threads and tighten firmly. Check for water leakage after
connection.
INSTALLATION

Caution!
Before washing, please make sure the machine is installed correctly.
Before washing a load of clothes for the first time, operate the empty washing machine
for one whole cycle. Check for water leakage from the drain outlet/drain hose
and tighten the hose clamp if necessary.

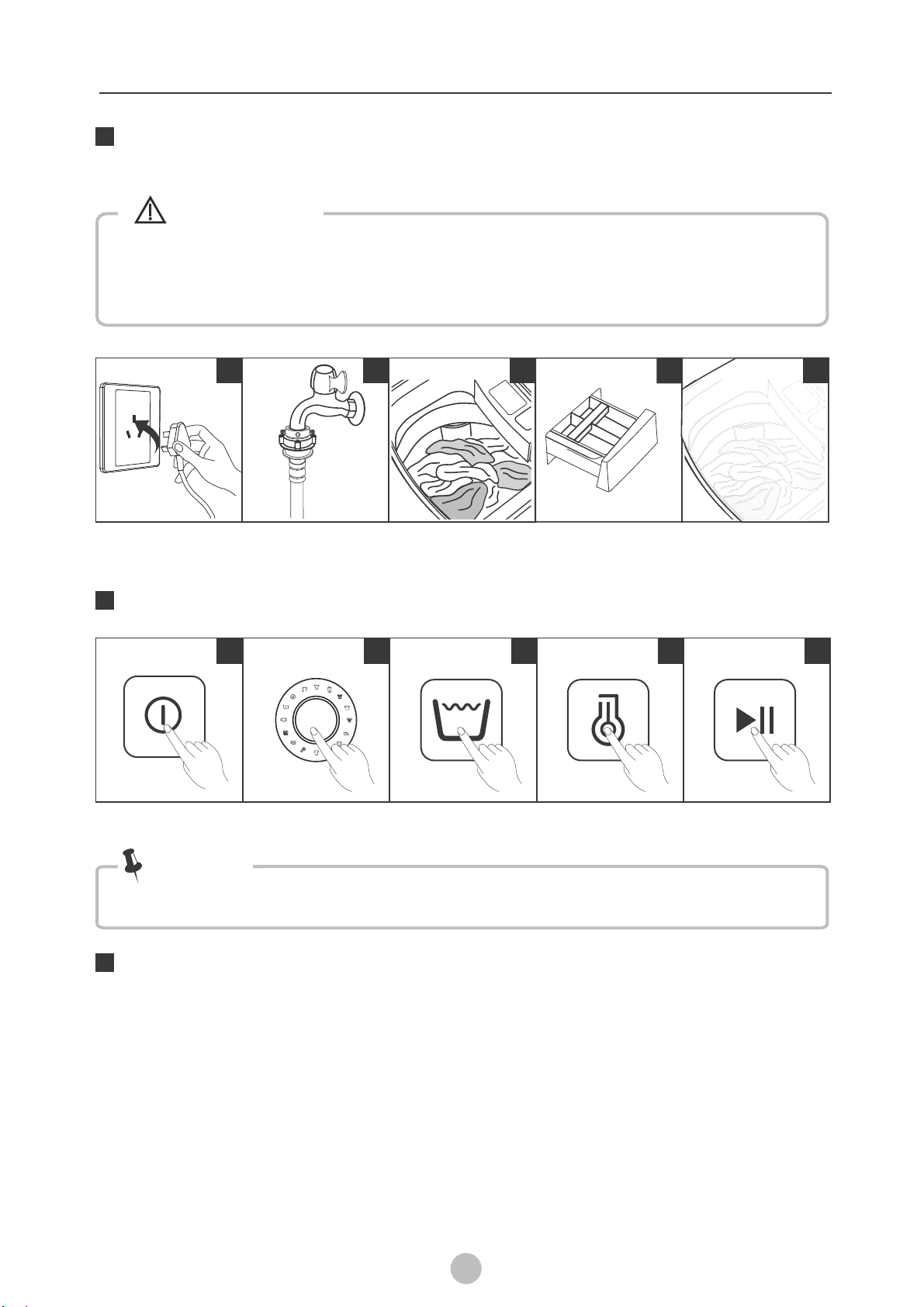

Open tap
Plug in Add detergent
After washing
1 2 3 4
Washing
Power On
1 2
• If default is selected, step 2, 3, and 4 can be skipped.
Note!
13
Open the lid and
put the clothes in
the washing machine
Buzzer will beep after the washing cycle is finished and the power supply will cut off
automatically. The laundry may then be unloaded.
3 4
Select Program Select Level
Preparation before washing
OPERATION
Close the lid
5
Start up
5
Select Temp.

Tie cords and close zips and
buttons
• The working condition of the washer should be(0-40)℃. If used under 0℃ the inlet
valve and draining system may be damaged. If the machine is placed under conditions
of 0℃ or less, then it should be transferred to normal ambient temperature to ensure
the water supply hose and drain hose are not frozen before use.
• Please check the clothing care labels and the directions for detergent use before washing.
Use non-foaming or low-foaming detergent suitable for top load washing machines.
Take all items out of the
pockets
Put small clothes into a
protective washing bag
Check the label
Preparing the machine and clothes
Turn fabric which pills or
has long pile inside out
Separate clothes with
different textures
！Warning!
•Washing only a single item may cause the machine to become unbalanced during the
cycle. It is recommended that a few other items be included in the load so the
machine functions smoothly.
•Don't use the machine to wash clothes spotted or saturated with kerosene, petrol, alcohol or
other flammable materials.
14
• Dilute washing powder or powdered additives with a little water before
adding to the detergent dispenser to prevent the inlet of the dispenser
becoming blocked and overflowing while the machine is filling with water.
• Please choose a detergent suitable for top load machines, and for the
selected washing temperature, to optimize washing performance with
less water and energy consumption.
Using Detergent and Washing Powder
OPERATION

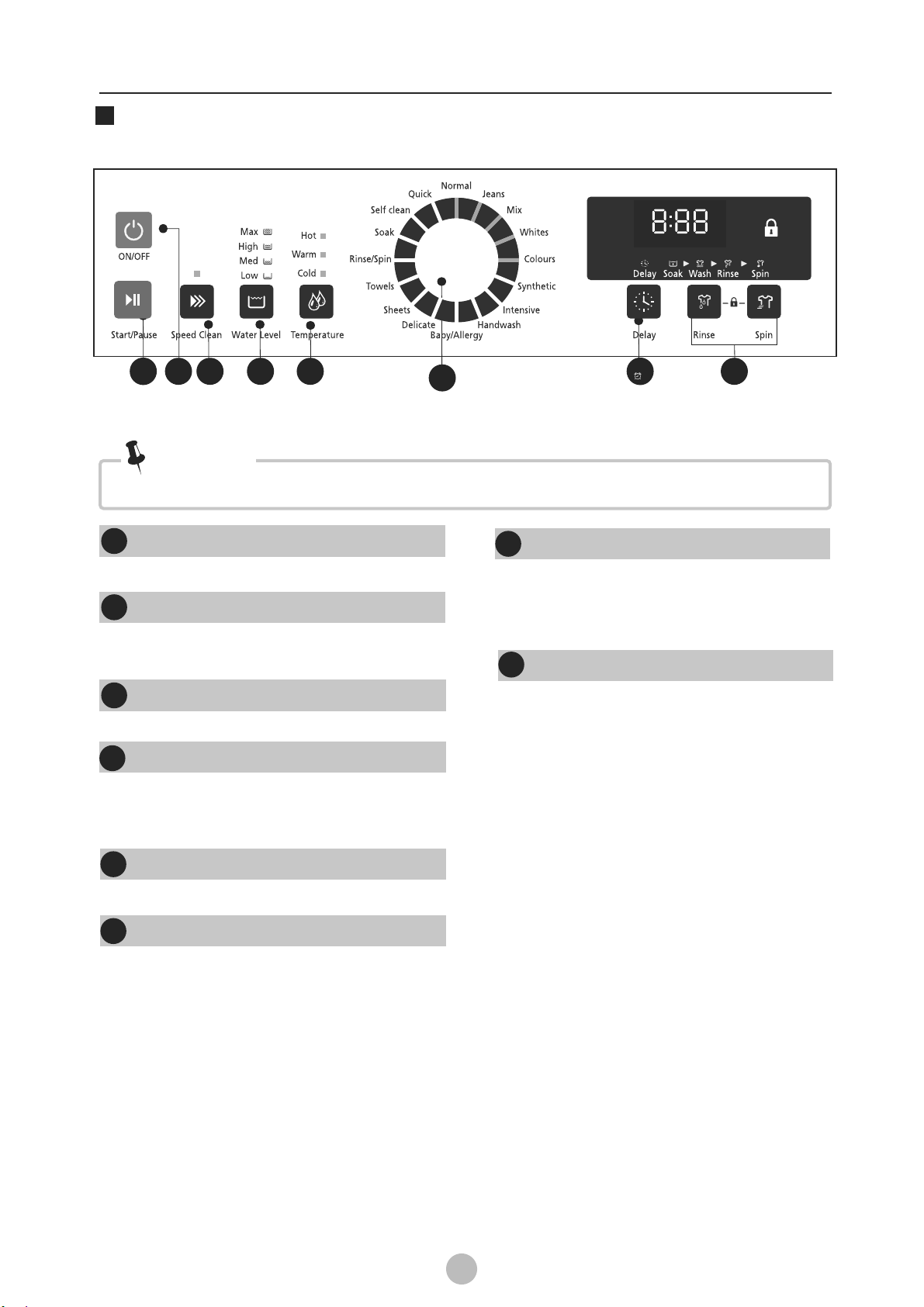

Control Panel
15
OPERATION
On/Off
Product is switched on or off.
Start/Pause
Press the button to start or pause the
washing cycle.
Program
Rotate to select program.
Note!
This diagram is for reference only, please refer to your appliance control panel.
1
1
3
1
2
4
5
Press the button to manually sele ct the wash
temperature.
Press the Rinse button & the Spin
button respectively to select and store
a rinse or spin time.
After choosing a program, the user can press
the Speed Clean button to start this
function, making the program shorter with
good washing performance. Press the
Speed Clean button again to cancel the
function.
Rinse &Spin
Delay
Press the button to preset delay time.
6 Temperature
7
Water Level
After program selection, press the water level
button to manually select the water level for
the wash.
1
2
4678
5
Speed Clean
8
3

Options
16
OPERATION
Caution!
When the lid is opened during machine operation, the buzzer will beep continuously.
If the lid is left open more than1 hour, the machine will shut down automatically.
To resume the wash cycle if error code E3 appears close the lid and press Start.
Child Lock
If you want to lock all the buttons to prevent settings from being changed by children you
can activate the Child Lock function. NB. Power button is still active when child lock is on.

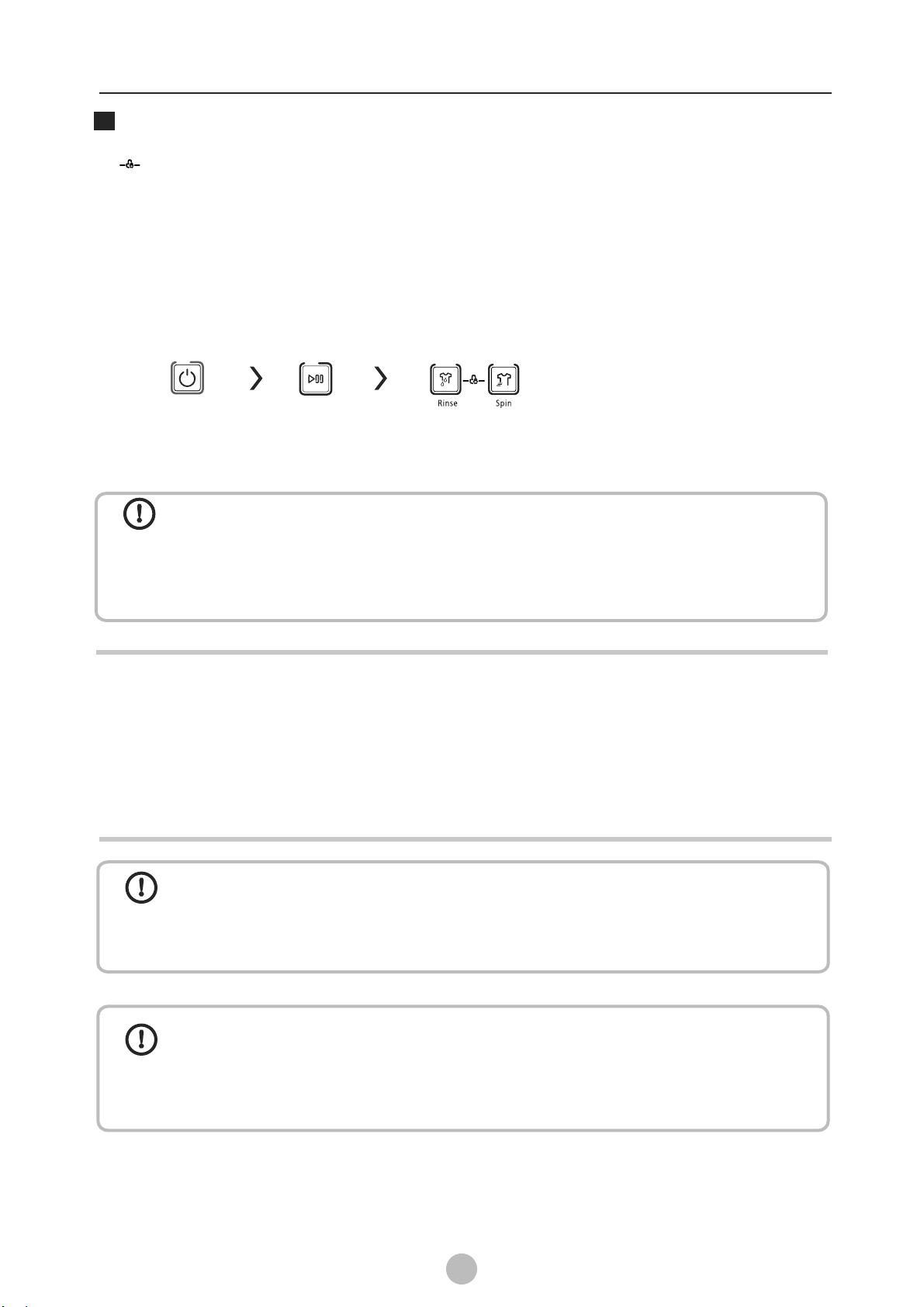

How to Lock
1. Press the Power button to turn power on.
2. Press the Start/Pause button to start washing.
3. Press and hold the Rinse and the Spin buttons simultaneously until there is a beep and the
child lock icon on the display lights up. NB. Power button is still active when child lock is on.
How to Unlock
If you want to turn off the child lock during the wash cycle press the Rinse and Spin buttons
simultaneously again until the machine beeps and the childlock display light goes off.
Speed Clean System
1. Press the Power button to turn power on.
2. Turn the Program Knob to select "Normal", Jeans", "Mix",
“Whites”or "Colours" program.
3. Press the Speed Clean button.
4. Press the Start/Pause button, the Speed Clean function starts up.
Caution!
If there is any break in the power supply while the machine is operating, a
special memory stores the selected program for when the power is restarted.
Caution!
The Speed Clean function is available for use only with the 5 programs:
Normal, Jeans, Mix, Whites, and Colours.

17
Personalized setting of washing program
OPERATION
Rinse+Spin
On
On
Start
Start
Users can select and customise washing programs, by setting rinsing
time, spinning time, water volume and delayed starting time.
Users can set a single process or combinations of rinsing and spinning
freely according to demand. Detailed operations as follows:
Press Rinse and Spin separately,
set parameters
Use this method to select other process combinations.
Operation of washing processes
Spin Only Function
Select speed of spin
On Start
Water Level
Program
Delay
Spin
Temp.
Rinse
Select Rinse&Spin

Washing programs table
18
OPERATION
Programs
Self clean
Intensive
Programs are available according to the laundry type.
Delicate Use this program for washing woollens, delicate items
or clothes that only require a light wash.
Use this program when washing heavy duty clothes eg. work
clothes and blankets.
Quick Use for lightly soiled clothes. This program has only one rinse cycle.
Washing power residue and pollutants in the water gradually build up
inside and outside the tub of washing machines. Water drainage and
the cleanliness of clothes can be adversely affected. To ensure this
appliance works efficiently please use the Self clean feature to clean
the tub at least monthly.
Suitable to wash children's clothes.
Handwash
Baby/Allergy
Normal Standard fabric washing program suitable to wash cotton fabric
with one wash cycle, two rinse cycles,and a long spin time.
Jeans Suitable to wash Jeans.
Mix
Suitable to wash mixed load consisting of textiles made of
cotton and synthetic.
Whites Suitable to wash white clothes.
ColoursSuitable to wash coloured clothes. It is set to protect the colours.
Suitable for washing sheets and bed linen.
Sheets
TowelsSuitable for washing towels.
Extra rinse and spin.
Rinse/Spin
When the Soak program is selected the machine fills as for the
normal washing program, however agitation is delayed for about
30 minutes before the washing process begins. This is useful for washing
particularly soiled clothes.
Soak
Synthetic Use to wash synthetic articles eg shirts, coats, fabric blends
A gentle wash program to protect hand-washable
textiles.

• Before commencing maintenance, please unplug the machine and turn off the tap.
Cleaning the cabinet
Proper maintenance of the washing machine can extend its
working life. The surface can be cleaned with diluted
non-abrasive neutral detergents when necessary. If there is
any water overflow, use a cloth to wipe it off immediately.
Sharp items should not be used when cleaning the machine.
• Formic acid and its diluted solvents or equivalents such as alcohol, solvents
Warning!
Note!
19
Cleaning and care
or chemical products,etc. should not be used to clean this appliance.
Cleaning the filters
• Inlet filter must be cleaned if the water flow decreases.
Note!
Cleaning the inlet filter:
1.Screw off the inlet pipe from the back
of the machine.
2.Pull out the filter with long nose pliers
and use a brush to clean the filter.
3.Reinstall the filter after cleaning.
4. Reconnect the inlet pipe.
Cleaning the lint filter
1.There is a built-in lint filter on the inner wall
of the tub. It helps to collect lint during the
washing cycle.
2.It is recommended that the the lint filter is
cleaned after every 10 cycles.
3.Press the latch to release the cover and
remove the filter. Clean the filter with water
then replace it into the washer.
cleaning the lint filter
MAINTENANCE

•
After inspecting and resolving issues if possible, restart the appliance.
If the issue reoccurs or other alarm codes are shown call a service technician.
Trouble shooting
If this appliance does not work or it stops during operation use the information
here to try to find a solution. If the issue is cannot be resolved, contact a service
centre.
Note!
Description
Description Reason Solution
Please restart the washer first then call the
service centre if issues are not resolved.
Others
20
Washer doesn't start
Inspection to check:
If the power is off or the fuse is burned out.
If the power supply voltage is too low.
If the water amount reaches to the required water level.(The washer will
not work if the water amount does not reach the required water level)
If it is set to "Delay" washing mode. (It will only start to work once the
selected time is reached)
No water flows in
If the power is off or the fuse is burned out.
If the water supply is cut off or the water pressure is too low.
If the inlet hose is properly connected and the water tap is opened.
If the filtering screen of the inlet valve is blocked by dirt.
If the coil of inlet valve is damaged. (The slight electromagnetic sound is
normal when the inlet valve is switched on.)
If the "Start / Pause" button is pressed after the power switch is pressed.
Abnormal draining
If the water drain hose is placed very high.
If the end of the water drain hose is kinked or crushed.
If the internal rubber ring of the drain valve is blocked by dirt.
Abnormal spin
If the lid is closed.
If items in the washer are unevenly distributed.
If the washer is not placed on a stable surface, the floor is not flat, or the
feet are not correctly adjusted.
E1
XX
E2
Check that the water tap is open.
Check the water level
sensor and drain pump.
Alarm for abnormal
water intake.
Alarm for incomplete
water drainage.
Alarm to indicate the lid is not
closed before wash and spin.
E3
Close the lid. Press "Start" button.
E4
Manually balance clothes
in the barrel.
Alarm for unbalanced
washing load.
MAINTENANCE
