KLING & FREITAG VIDA M User manual

EN | VERSION 4.0 | 07/26/2023
USER‘S MANUAL
K&F VIDA M

User‘s Manual K&F VIDA M
©KLING & FREITAG GMBH Version 4.0 Page 3 of 42
Table of Content
Chapter / Content Page
1 Introduction 5
1.1 Icons Used 5
1.2 About this user's manual 5
1.3 Scope of Application 5
2 Product Description 6
2.1 Intended Use 6
2.2 Versions 7
2.3 System requirements 8
2.4 Items Included 8
2.4.1 Items Included VIDA M 110 / 110 S 8
2.4.2 Items Included VIDA M 220 / 220 S 8
2.5 Overview of VIDA M 110 / 110 S Parts 9
2.6 Overview of VIDA M 220 / 220 S Parts 10
2.7 Front-panel indicator 11
2.8 Accessories 12
2.8.1 Fixtures for permanent mounting 12
2.8.2 Accessories for Mobile Use 13
2.9 Dimensions 14
2.9.1 Dimensions VIDA M 110 / 110 S 14
2.9.2 Dimensions VIDA M 220 / 220 S 15
2.10 Technical Specifications 16
2.10.1 Technical Specifications VIDA M 110 16
2.10.2 Technical Specifications VIDA M 110 S 17
2.10.3 Technical Specifications VIDA M 220 18
2.10.4 Technical Specifications VIDA M 220 S 19
2.11 Measuring Diagrams 20
3 General Safety Instructions 22
4 Initial installation of VIDA M 220 / 220 S modules 23
5 Wiring 26
5.1 Terminal positions and purpose 26
5.2 Kardioid 27
5.2.1 AC power inlet 27
5.2.2 Audio terminals 28
5.2.3 GPIO 29
6 GPIO specifications 30
6.1 GPI 30
6.1.1 GPI internal wiring: 31
6.2 GPO 32
7 Systemlatency 33

User‘s Manual K&F VIDA M
Page 4 of 4 Version 4.0 ©KLING & FREITAG GMBH
7.1 Dante latency 33
7.1.1 Example 33
7.1.2 Changing between Dante redundancy operating modes 34
7.1.3 Setting up Dante latency with an additional hop 34
8 Initial Operation 35
9 Updates 37
9.1 Firmware Update 37
9.2 Dante Update 38
10 Care and Maintenance 39
11 Transportation and Storage 40
12 Disposal 40
12.1 Germany 40
12.2 EU, Norway, Iceland, and Liechtenstein 40
12.3 All Other Countries 40
13 EC Declaration of Conformity 41

© KLING & FREITAG GMBH Version 4.0 Seite 5 von 42
User's Manual K&F VIDA M
1Introduction
1.1 Icons Used
1.2 About this user's manual
EN | Translation of the original instructions
All KLING & FREITAG manuals are originally authored in German.
© KLING & FREITAG GmbH, all rights reserved.
All specifications regarding the features of the described products and applicable safety guide-
lines provided in this manual are based on information available at the time of publishing.
We assume no responsibility for technical specifications, dimensions, weights, and properties.
All information in this manual is subject to change without notice.
To ensure safe operation, all persons using the speaker system must have access to
these user's manual and all other relevant material during installation. The speaker
system may neither be set up nor used until these user's manual has been read, un-
derstood and kept readily available in site.
KLING & FREITAG spare manuals are separately available for order or can be downloaded from
our website: www.kling-freitag.de
Contact Us: [e-mail]
KLING & FREITAG GmbH, Wohlenbergstr. 5, D-30179 Hannover
Phone [phone]
1.3 Scope of Application
If you have purchased this product together with other accessories, the instructions of those
accessories including, but not limited to, mounting-accessory instructions become part of
these instructions by reference.
If the VIDA M speaker is used together with accessories that restrict the use specified in here,
those restrictions will apply.
WARNUNG
This icon indicates a risk of injury or death. Not following these instructions may result in seri-
ous health problems including potentially fatal injuries.
VORSICHT
This icon indicates a possibly dangerous situation. Not following these instructions may cause
minor injuries or damage.
HINWEIS
This icon marks instructions for proper use of the described products. Not following these in-
structions may cause malfunctions or damage.
TIPP
This icon marks information provided for simplified use of the described products.

Seite 6 von 42 Version 4.0 © KLING & FREITAG GMBH
User's Manual
VIDA M4.026.07.20 2307/26/2023
K&F VIDA M
2 Product Description
The VIDA M speaker system is an active 2-way coaxial line array with electronic beam steering.
2.1 Intended Use
Be sure to use the speaker system only with K&F mounting accessories suitable for the specific
application.
The speaker has originally been designed for stationary installation but can be upgraded to mo-
bile use using the optional »Accessories for Mobile Use«.
Note that you cannot convert the system for a number of use cases without the optional
VIDA M accessories for mobile use; in that case, mobile use has certain limitations.
From the following serial numbers and larger, the enclosures are dust-tight and protected
against water jets from any angle (IP65 rating according to DIN EN 60529). The speaker can
therefore be used in environments that meet the respective requirements.
VIDA M 110 81211700071
VIDA M 110 S 83211700043
VIDA M 220 82211700072
VIDA M 220 S 84212100010
Any use not described in this User’s Guide is not an intended use.
WARNUNG
Risks imposed by falling or overturning parts
Be sure to install, suspend, fasten, and use Kling &<###Space: 1##>Freitag speakers only us-
ing the designated fixtures as specified in this document.
Be sure to observe all instructions and information in the user manuals of the specific mounting
accessories.
Never down-tilt speakers mechanically.
HINWEIS
Possible malfunctions
Never operate the speaker in an environment where the temperature exceeds 45 °C / 113 °F.
Never operate the speaker in places exceeding an altitude of 2,000 meters / 6,000 ft.
Make sure that the humidity is between 10% and 90%.
This product is not designed for use in corrosive environments.
Potential interference with household appliances
This device is not designed for home use.

© KLING & FREITAG GMBH Version 4.0 Seite 7 von 42
User's Manual K&F VIDA M
2.2 Versions
VIDA M is available in four versions designed for different applications and transmission rang-
es.
VIDA M 110
•Asymmetrical design
•Transmission range: approx. 20
meters
•Height: 1.1 meters
VIDA M 110 S
•Symmetrical design
•Transmission range: approx. 25
meters
•Height: 1.1 meters
VIDA M 220
•Asymmetrical design
•Transmission range: approx. 30
meters
•Height: 2.2 meters
VIDA M 220 S
•Symmetrical design
•Transmission range: approx. 32
meters
•Height: 2.2 meters

Seite 8 von 42 Version 4.0 © KLING & FREITAG GMBH
User's Manual
VIDA M4.026.07.20 2307/26/2023
K&F VIDA M
2.3 System requirements
•Mounting hardware
•Computer running Windows 8, 8.1, or 10
•VIDA App
The VIDA App required for setting up the speaker system is freely available at the Windows
Store.
For this purpose, visit the Microsoft App Store and search for VIDA App.
For more information, refer to the VIDA App User's Manual, which is available for down-
load at our website.
www.kling-freitag.de
•Audio source connected to Analog, AES 3, or Dante.
2.4 Items Included
2.4.1 Items Included VIDA M 110 / 110 S
•1 x VIDA M 110 / 110 S speaker
•12 x counterbore caps
•1 x sealing plate for the connector panel
•7 x Countersunk screw M4x10 for securing the sealing plate
•1 x 3-pin power connector
•1 x 9-pin audio-in connector
•1 x 15-pin GPIO connector
•3 x cable tie
•5 ml Loctite 2400
•1 x user guide
2.4.2 Items Included VIDA M 220 / 220 S
•Passive module for VIDA M 220 or VIDA M 220 S (1 piece)
•Active module for VIDA M 220 or VIDA M 220 S (1 piece)
•2 x mounting plate for securing the modules
•12 x Countersunk screw M6x10 for securing the modules
•12 x counterbore caps
•1 x sealing plate for the active-module connector panel
•1 x sealing plate for the passive-module connector panel
•14 x Countersunk screw M4x10 for securing the sealing plates
•1 x 3-pin power connector
•1 x 9-pin audio-in connector
•1 x 15-pin GPIO connector
•3 x cable tie
•5 ml Loctite 2400
•1 x user guide

© KLING & FREITAG GMBH Version 4.0 Seite 9 von 42
User's Manual K&F VIDA M
2.5 Overview of VIDA M 110 / 110 S Parts
[A] Inlet for connecting mounting
hardware (also available at the
bottom)
[B] Bores for fastening mounting
hardware. Can be sealed using
the supplied caps when not in
use.
[C] Connector panel
[D] Sealing plate for connector panel
[E] Screws for fastening the sealing
plate:
7 x Countersunk screw M4x10,
hexagon socket wrench IS2,5 (7
pieces)

Seite 10 von 42 Version 4.0 © KLING & FREITAG GMBH
User's Manual
VIDA M4.026.07.20 2307/26/2023
K&F VIDA M
2.6 Overview of VIDA M 220 / 220 S Parts

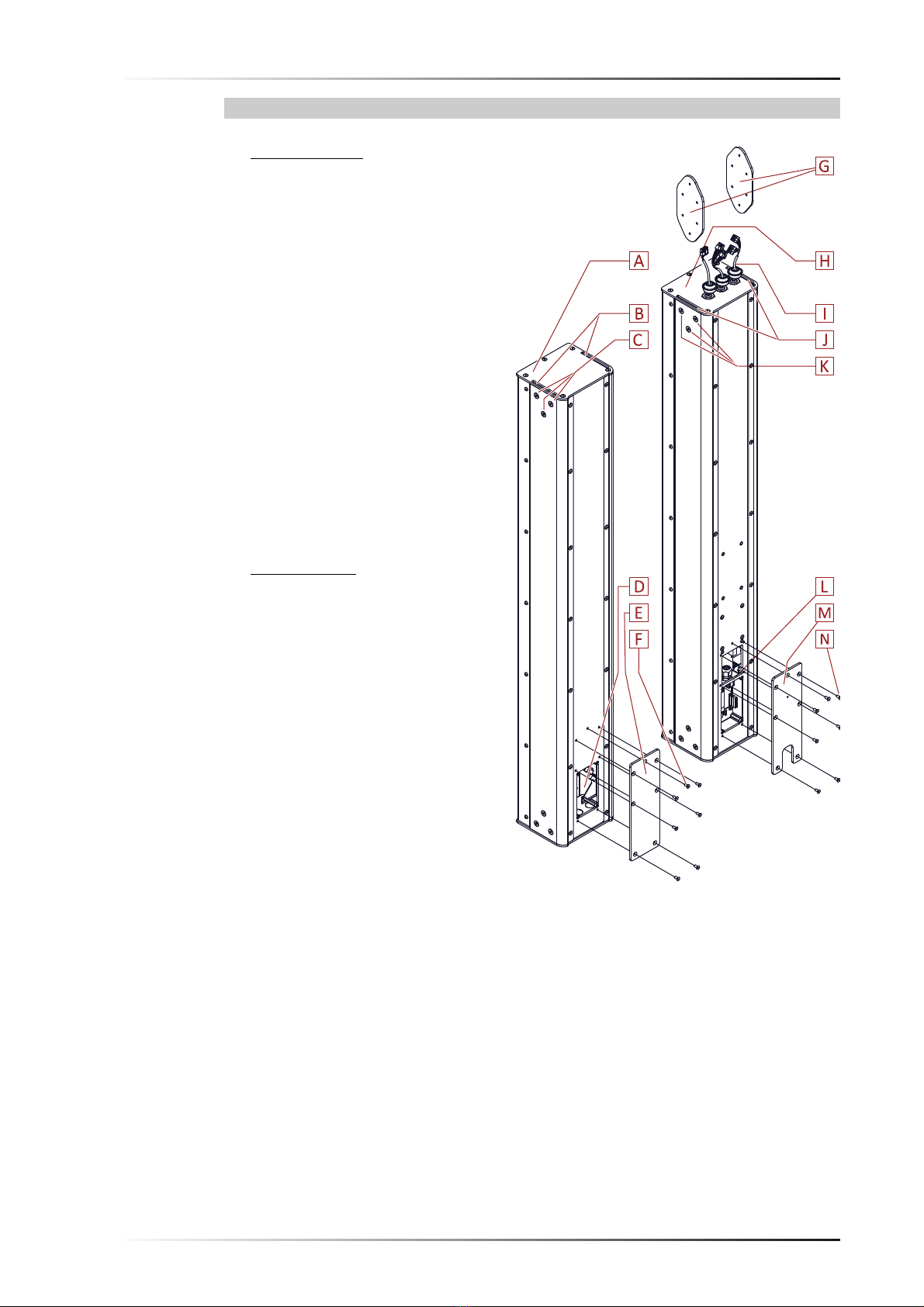

[A] Passive module
[B] Inlet for connecting mounting
hardware (bottom inlet for con-
necting the active module)
[C] Bores for fastening mounting
hardware. Can be sealed using
the supplied caps when not in
use. Use the bores at the bottom
for connection with the active
module [H].
[D] Connector panel for fastening
the active module
[E] Sealing plate for the passive-
module connector panel
[F] Screws for fastening the sealing
plate:
7 x Countersunk screw M4x10,
hexagon socket wrench IH2.5
[G] Fastener for connecting the pas-
sive module to the active module
[H] Active module
[I] Cable with connectors and
grommets for connecting the
passive module. The VIDA M 220
has only one single cable!
[J] Inlet for connecting to the pas-
sive module (inlet at the bottom
is for fastening mounting hard-
ware)
[K] Bores for fastening the active
module [A]. The bores at the bot-
tom are for fastening mounting
hardware. Can be sealed using
the supplied caps when not in
use.
[L] Connector panel
[M] Sealing plate for the active-mod-
ule connector panel
[N] Screws for fastening the sealing
plate:
7 x Countersunk screw M4x10,
hexagon socket wrench IH2.5

© KLING & FREITAG GMBH Version 4.0 Seite 11 von 42
User's Manual K&F VIDA M
2.7 Front-panel indicator
Each VIDA M features an LED indicator located behind the front grille. The indicator color
shows the following statuses:
•Power-up (blue): The speaker is being powered up and will be ready for operation shortly.
•Beam error (red-lit): The speaker has been powered up successfully and is ready for oper-
ation; however, the sound-ray setup needs to be checked.
•Identification (green): The speaker is part of the selected speaker group.
•Error (flashing red and green): Fatal file error. Perform a firmware update. See chapter
»Updates«, page 37. If the flashing is not stopped by a firmware update, contact the ser-
vice department.

Seite 12 von 42 Version 4.0 © KLING & FREITAG GMBH
User's Manual
VIDA M4.026.07.20 2307/26/2023
K&F VIDA M
2.8 Accessories
2.8.1 Fixtures for permanent mounting

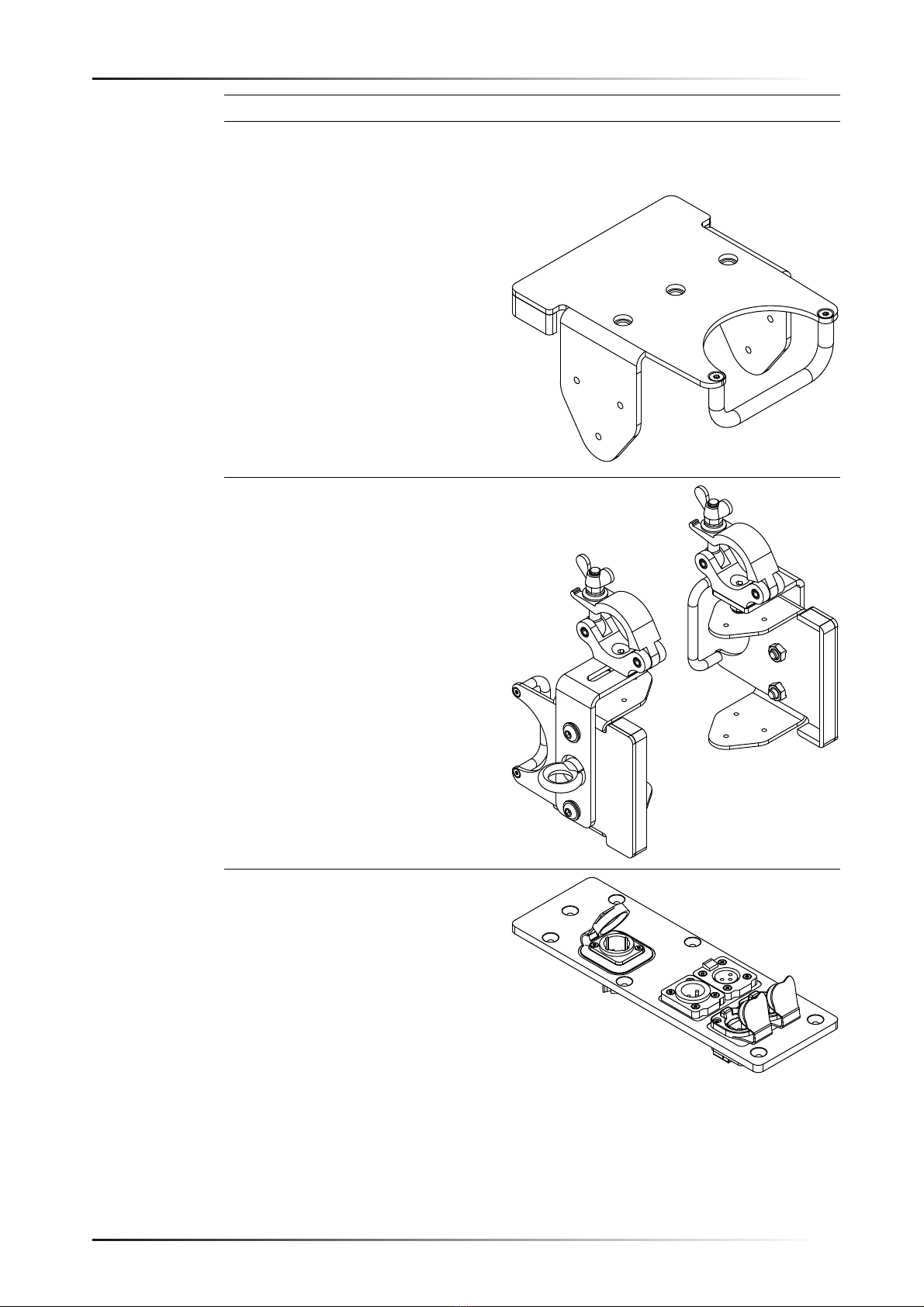

VIDA M wall bracket
In stationary installations, you can
mount the speaker to a wall vertically
or horizontally using the permanent-
ly attached wall mount.
Not suitable for ceiling mounting!
VIDA M flying frame
The flying frame permanently
mounted on the loudspeaker allows
for suspending a VIDA M loudspeak-
er vertically.
Note that the fixing accessories are
not suitable for recurring assembly
and disassembly.
VIDA M Stand Adapter
The stand adapter is permanently at-
tached to the VIDA M 110 / 110 S
speaker and allows for using it on a
speaker stand.
Note that the fixing accessories are
not suitable for recurring assembly
and disassembly.
VIDA M Adapter Plate
The adapter plate is permanently at-
tached to the VIDA M speaker and
allows for mounting it to an H.O.F.
Alutec speaker stand.
Note that the fixing accessories are
not suitable for recurring assembly
and disassembly.

© KLING & FREITAG GMBH Version 4.0 Seite 13 von 42
User's Manual K&F VIDA M
2.8.2 Accessories for Mobile Use
The accessories below allow for mobile use of VIDA M speakers and for adapting them to a
number of applications, for example, in rental use.
VIDA M Mounting Adapter
This mounting adapter with handles
is permanently attached the VIDA M
speaker. It ensures safe handling of a
VIDA M speaker in mobile use.
Depending on the specific applica-
tion, the mounting adapter allows
for repeatedly attaching and remov-
ing the following:
•Eyebolts
•TV spigot
•Pole mount socket
VIDA M Truss Adapter Set
(incl. 2 VIDA M mounting adapters)
Allows for vertically and horizontally
mounting a VIDA M speaker to a
truss or tube with a diameter of ap-
prox. 50 mm.
VIDA M Connector Panel
Provides connectivity for power-sup-
ply, audio, and network connectors.

Seite 14 von 42 Version 4.0 © KLING & FREITAG GMBH
User's Manual
VIDA M4.026.07.20 2307/26/2023
K&F VIDA M
2.9 Dimensions
2.9.1 Dimensions VIDA M 110 / 110 S

© KLING & FREITAG GMBH Version 4.0 Seite 15 von 42
User's Manual K&F VIDA M
2.9.2 Dimensions VIDA M 220 / 220 S

Seite 16 von 42 Version 4.0 © KLING & FREITAG GMBH
User's Manual
VIDA M4.026.07.20 2307/26/2023
K&F VIDA M
2.10 Technical Specifications
2.10.1 Technical Specifications VIDA M 110
Concept Active 2-way coaxial line array with electronic beam
steering
Input signal Each speaker is fed through a dedicated DSP/amp channel.
Frequency range @-10 dB 95 Hz – 22 kHz
Frequency range @±3 dB 125 Hz – 21 kHz
Horizontal coverage angle
(nominal) 90° nominal
Coverage angle vertical Continuously adjustable spread angle up to 90°.
±45° steering angle
Max. SPL 131 dB
Components 16 x 1” dome tweeters
8 × 4” bass/midrange drivers
Connectors
DANTE™ (primary/secondary)/remote (RJ45), AES67
compliant, AES/EBU input (9-pin Phoenix terminal block),
Analog input (9-pin Phoenix terminal block),
GPIO (15-pin Phoenix terminal block),
AUX OUT (9-pin Phoenix terminal block)
AUX OUT Controllable DSP output, e.g. for subwoofer expander,
+6 dBu nominal level
Analog input Fullscale at +18 dBu
Wide-range power supply 100 – 240 VAC, 50 / 60 Hz
Rated input powera)
a) @ 1/8 full-scale
185 W
Maximum power
consumption 450 W
maximum amplifier RMS
power 1120 W
Idle power consumption 65 W
Enclosure
Dust and jet-proof enclosure (IP65) made of extruded
aluminum profile, highly robust powder coating, opaque
steel grille with acoustic foam, hidden connector panel
Dimensions (H x W x D) 1083 x 150 mm × 133 mm
Weight 16.5 kg
Colors
RAL 9005 (black), standard
RAL 9010 (white), standard
RAL spot color, on request

© KLING & FREITAG GMBH Version 4.0 Seite 17 von 42
User's Manual K&F VIDA M
2.10.2 Technical Specifications VIDA M 110 S
Concept Active 2-way coaxial line array with electronic beam
steering
Input signal Each speaker is fed through a dedicated DSP/amp channel.
Frequency range @-10 dB 95 Hz – 22 kHz
Frequency range @±3 dB 125 Hz – 21 kHz
Horizontal coverage angle
(nominal) 90° nominal
Coverage angle vertical Continuously adjustable spread angle up to 90°.
±45° steering angle
Max. SPL 131 dB
Components 32 x 1” dome tweeters
8 × 4” bass/midrange drivers
Connectors
DANTE™ (primary/secondary)/remote (RJ45), AES67
compliant, AES/EBU input (9-pin Phoenix terminal block),
Analog input (9-pin Phoenix terminal block),
GPIO (15-pin Phoenix terminal block),
AUX OUT (9-pin Phoenix terminal block)
AUX OUT Controllable DSP output, e.g. for subwoofer expander,
+6 dBu nominal level
Analog input Fullscale at +18 dBu
Wide-range power supply 100 – 240 VAC, 50 / 60 Hz
Rated input powera)
a) @ 1/8 full-scale
240 W
Maximum power
consumption 585 W
maximum amplifier RMS
power 1120 W
Idle power consumption 65 W
Enclosure
Dust and jet-proof enclosure (IP65) made of extruded
aluminum profile, highly robust powder coating, opaque
steel grille with acoustic foam, hidden connector panel
Dimensions (H x W x D) 1083 x 150 mm × 133 mm
Weight 17.4 kg
Colors
RAL 9005 (black), standard
RAL 9010 (white), standard
RAL spot color, on request

Seite 18 von 42 Version 4.0 © KLING & FREITAG GMBH
User's Manual
VIDA M4.026.07.20 2307/26/2023
K&F VIDA M
2.10.3 Technical Specifications VIDA M 220
Concept Active 2-way coaxial line array with electronic beam
steering
Input signal Each speaker is fed through a dedicated DSP/amp channel.
Frequency range @-10 dB 95 Hz – 22 kHz
Frequency range @±3 dB 125 Hz – 21 kHz
Horizontal coverage angle
(nominal) 90° nominal
Coverage angle vertical Continuously adjustable spread angle up to 90°.
±45° steering angle
Max. SPL 133 dB
Components 32 x 1” dome tweeters
16 × 4” bass/midrange drivers
Connectors
DANTE™ (primary/secondary)/remote (RJ45), AES67
compliant, AES/EBU input (9-pin Phoenix terminal block),
Analog input (9-pin Phoenix terminal block),
GPIO (15-pin Phoenix terminal block),
AUX OUT (9-pin Phoenix terminal block)
AUX OUT Controllable DSP output, e.g. for subwoofer expander,
+6 dBu nominal level
Analog input Fullscale at +18 dBu
Wide-range power supply 100 – 240 VAC, 50 / 60 Hz
Rated input powera)
a) @ 1/8 full-scale
305 W
Maximum power
consumption 700 W
maximum amplifier RMS
power 1120 W
Idle power consumption 65 W
Enclosure
Dust and jet-proof enclosure (IP65) made of extruded
aluminum profile, highly robust powder coating, opaque
steel grille with acoustic foam, hidden connector panel
Dimensions (H x W x D) 2167.5 mm × 150 mm × 133 mm
Weight 31.6 kg
Colors
RAL 9005 (black), standard
RAL 9010 (white), standard
RAL spot color, on request

© KLING & FREITAG GMBH Version 4.0 Seite 19 von 42
User's Manual K&F VIDA M
2.10.4 Technical Specifications VIDA M 220 S
Concept Active 2-way coaxial line array with electronic beam
steering
Input signal Each speaker is fed through a dedicated DSP/amp channel.
Frequency range @-10 dB 95 Hz – 22 kHz
Frequency range @±3 dB 125 Hz – 21 kHz
Horizontal coverage angle
(nominal) 90° nominal
Coverage angle vertical Continuously adjustable spread angle up to 90°.
±45° steering angle
Max. SPL 133 dB
Components 32 x 1” dome tweeters
16 × 4” bass/midrange drivers
Connectors
DANTE™ (primary/secondary)/remote (RJ45), AES67
compliant, AES/EBU input (9-pin Phoenix terminal block),
Analog input (9-pin Phoenix terminal block),
GPIO (15-pin Phoenix terminal block),
AUX OUT (9-pin Phoenix terminal block)
AUX OUT Controllable DSP output, e.g. for subwoofer expander,
+6 dBu nominal level
Analog input Fullscale at +18 dBu
Wide-range power supply 100 – 240 VAC, 50 / 60 Hz
Rated input powera)
a) @ 1/8 full-scale
305 W
Maximum power
consumption 700 W
maximum amplifier RMS
power 1120 W
Idle power consumption 65 W
Enclosure
Dust and jet-proof enclosure (IP65) made of extruded
aluminum profile, highly robust powder coating, opaque
steel grille with acoustic foam, hidden connector panel
Dimensions (H x W x D) 2167.5 mm × 150 mm × 133 mm
Weight 31.6 kg
Colors
RAL 9005 (black), standard
RAL 9010 (white), standard
RAL spot color, on request

Seite 20 von 42 Version 4.0 © KLING & FREITAG GMBH
User's Manual
VIDA M4.026.07.20 2307/26/2023
K&F VIDA M

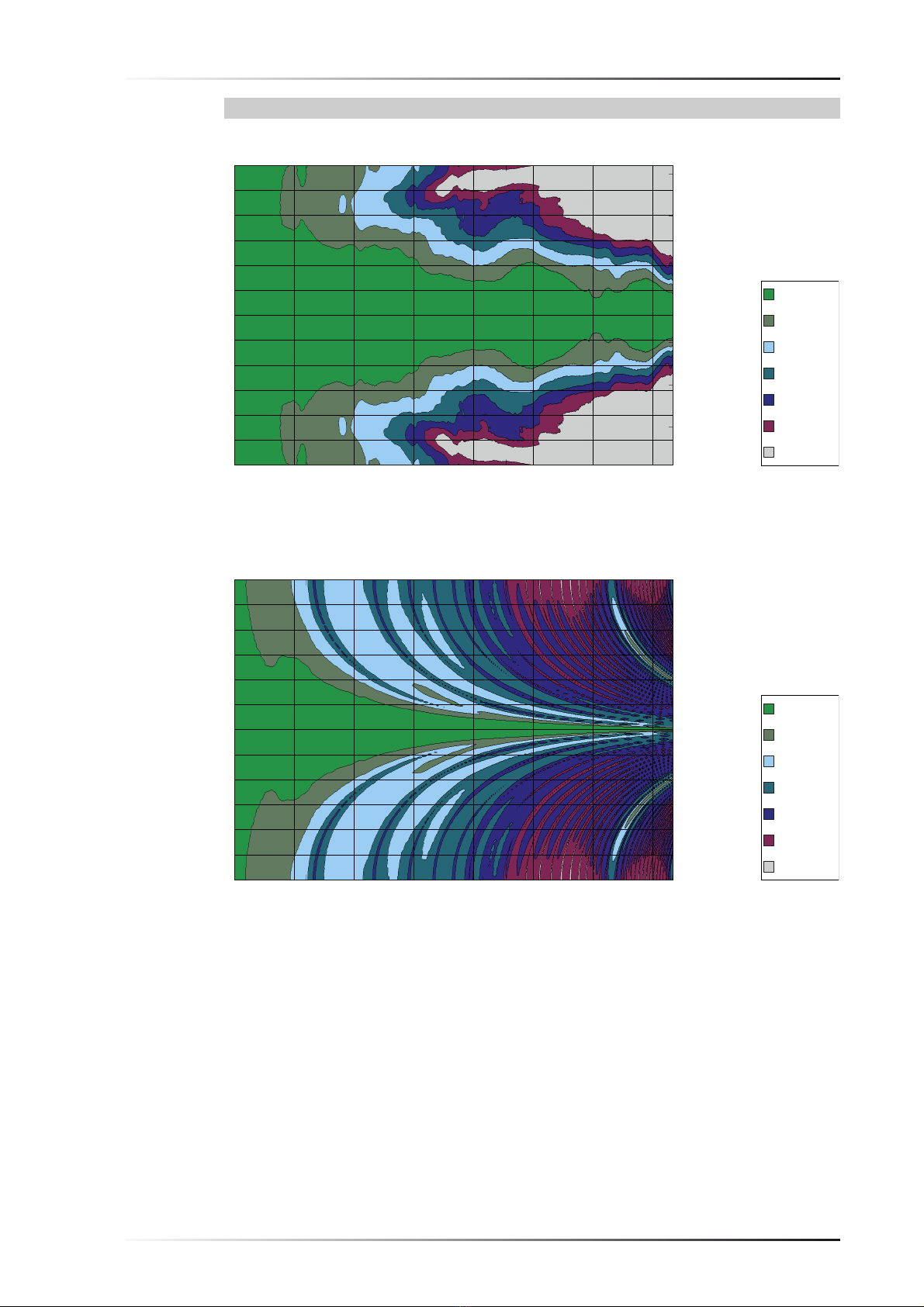

2.11 Measuring Diagrams
Horizontal Directivity
Vertical Directivity
-180°
-150°
-120°
-90°
-60°
-30°
0°
30°
60°
90°
120°
150°
180°
Attenuation (dB)
3 - 6
6 - 9
9 - 12
12 - 15
15 - 18
> 18
< 3
125 250 500 1k 2k
Frequency [Hz]
4k 8k 16k
-180°
-150°
-120°
-90°
-60°
-30°
0°
30°
60°
90°
120°
150°
180°
Attenuation (dB)
3 - 6
6 - 9
9 - 12
12 - 15
15 - 18
> 18
< 3
125 250 500 1k 2k
Frequency [Hz]
4k 8k 16k
