KODA LM56176 Guide

Motion-Activated Light with Camera
CARE & USE INSTRUCTIONS
IMPORTANT, RETAIN FOR
FUTURE REFERENCE: READ CAREFULLY
For assistance with assembly, installation, parts and customer service, call us at 1-866-294-9244 (English),
Monday - Friday, 8am - 5pm Pacific Time, email us at [e-mail]
2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626, USA
www.KodaBuilt.com
Model: LM56176

2
Table of Contents
1. Table of Contents 2
2. Package Contents 3
3. Product Specifications 4
4. Product Overview 5
5. Pre-Installation Check List 6
6. Installation 7
7. Set up the App 13
8. Using the App 17
9. Troubleshooting tba
10. FCC / IC Compliance Statement tba
11. Safety Information tba
12. Maintenance & Warranty tba
13. General Information tba

3
Package Contains
1 x Phillips Screwdriver
1 x Motion-Activated Light with Camera
Conversion Kit (WIN-56176A_V1)
Tools needed (not included)
1 x S-Hook
3 x Wall Anchor
1 x Spare Short Screw (for Power Box)
3 x Self-tapping Screw (for drywall or wood)
2 x Spare Mounting Screw (for light fixture)
1 x Spare Rubber Plug
1 x Waterproof Cap
1 x Wall Mounting Plate
1 x Quick Installation Guide
1 x Instruction Manual
Power Drill

4
Product Specications
Input:
Wattage:
Dimensions (D x W x H):
Light Output:
Color Temperature:
Video Resolution:
Viewing Angle:
IR Night Vision:
Connectivity:
Audio:
Siren dB:
Weather Resistance:
Operating Temperature:
120 Vac, 60 Hz, 0.2 A
24 W
7.9 cm x 19.4 cm x 7.5 cm
(3.11 in x 7.64 in x 2.95 in)
(includes external heat sink)
1300 Lm
4000 K
1080p Full HD
106° Field of View
Up to 7.62 m (25 ft)
802.11b/g/n Connection @ 2.4 Ghz
Two-Way Audio with Noise Cancellation
IP65 rating
-20°C~50°C (-4°F~122°F)

5
Front View
Back View
Product Overview
Power Box
Mounting Plate
Power Box
Ball Joint
Power Cord
Power Cord
Camera Lens
UltraSense™
Motion Sensor
Microphone /
Speaker
Pairing / Reset Button
Flood Light
Status Light

6
Install the KODA app on your smart device. Scan below QR code or search
KODA in the App Store or Google Play. Download and install the app.
NOTE: The app is only available on smartphones with Apple iOS 9 or newer, and
Android 5.0 or newer. The KODA app is not accessible from tablets, browsers, or
PCs.
TIP: Check out the installation video at www.KodaBuilt.com to help familiarize
yourself with the installation process before starting.
KODA APP
SAMPLE SAMPLE
Download the app

7
Email Address
Sign In to Your Account
Password
Reset Password
Sign Up
LOG IN
Set up a new account

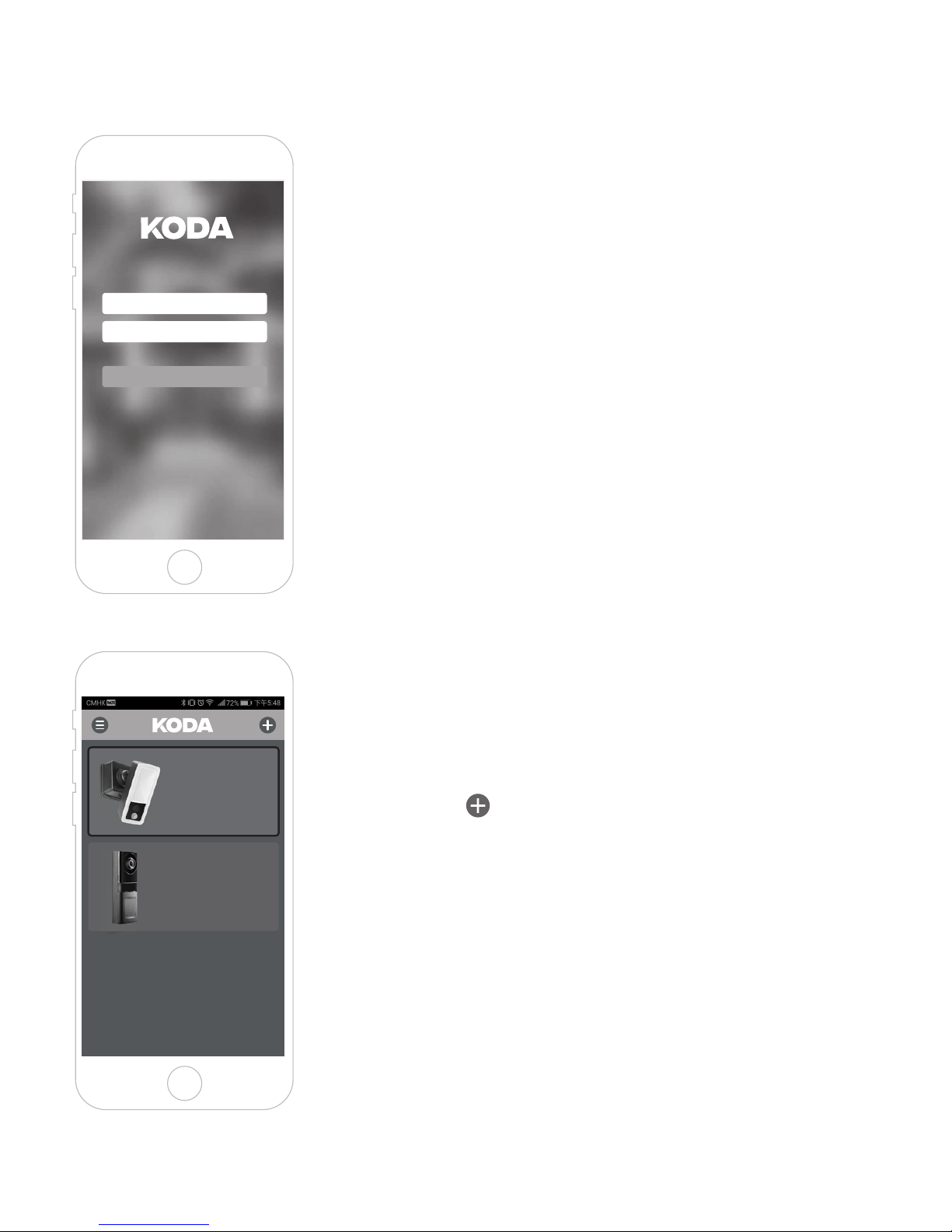

1. Open the KODA app on your smartphone.
2. Select Sign Up and fill in the information to get
started if you are a new user. If you already have a
KODA account, select Log In and fill in
your login information.
Add a new device
1. Select the icon to add a new device.
2. Select LightCam from the list of devices.
3. Follow the in-app instructions.
LIGHTCAM
DOOR BELL
WiFi DECIVE
Set up the app

8
Pairing your mobile device
with the LightCam

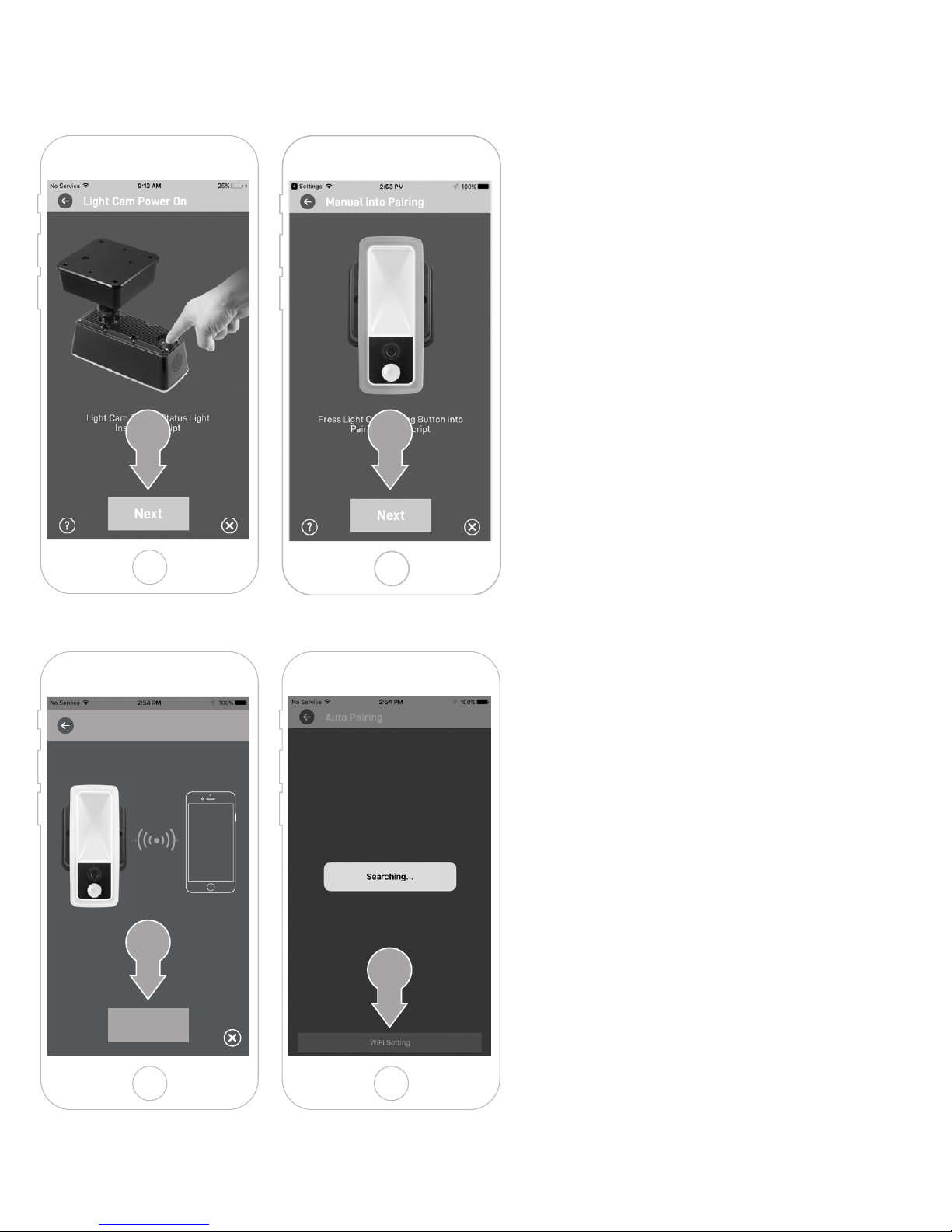

1. Press the pairing button the
back of your LightCam device.
Your LightCam device should be
flashing red and blue indicating
it is ready for pairing. Press
Next on the app screen to start
pairing.
2. When you see the
status light on LightCam
pulsating red and blue, press
Next to enter auto-pairing mode.
3. Android users: The app will
automatically jump to the SET
DEVICE NAME page at this stage.
4. iOS users: Press Next on the
auto-pairing screen to start the
pairing process.
5. Press WiFi Setting to perform
manual connect in the iOS WiFi
setting page.
1
Auto Pairing Instration Script
Next
4
5
2
Set up the app
Pair Manually

9
6. The WiFi setting page will
scan the LAN network and
search for the LightCam.
Select the SSID of the
LightCam “KODA-LM01-XXX“
and press the KODA icon on
the top left of the screen to go
back to the KODA app.
7. Name your LightCam and
press Next.
TIP: Suggested names:
LightCam_FrontPorch
LightCam_SideYard
LightCam_Pool
8. The LightCam is now paired
to your smartphone. Next,
connect the LightCam to your
local network. Select the SSID
of your local network and
press Next.
9. Input your router password
and press Set Password.
67
8 9
Set up the app

8.9 ft
24º
10
Select the installation location
Check WiFi Signal
Pre-Installation Check List

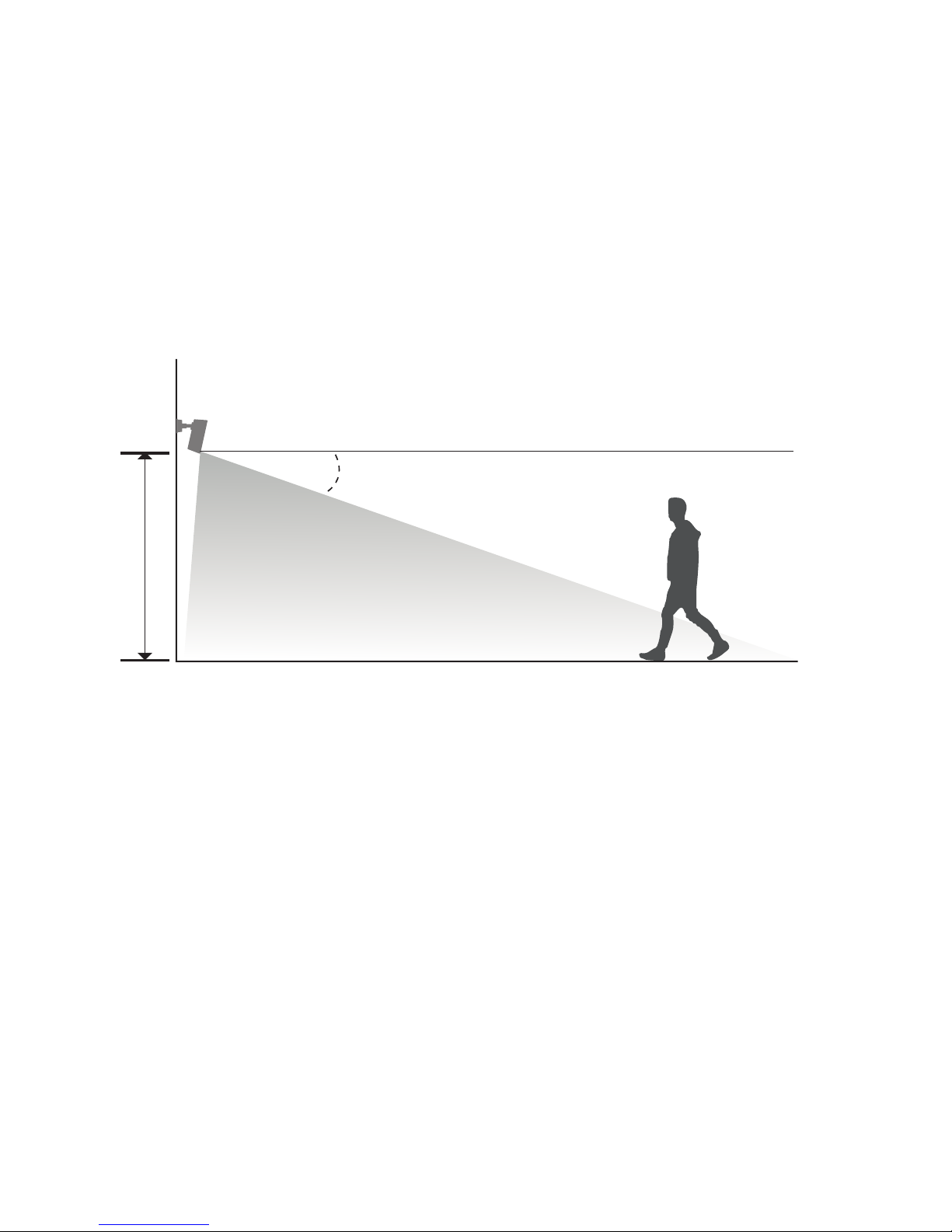

We recommend installing the LightCam 8.9 ft (2.7 m) above the ground, with
camera tilted down 24 degrees for optimal viewing. Once the LightCam has
been installed, open the KODA app to adjust the viewing angle as needed.
Make sure your home WiFi network is within range of the installation location.
Check your smartphone where the installation point for at least three bars.
TIP: Stream a video at the installation point to determine if the WiFi signal is
stable at that location. Thick walls or insulation may decrease your WiFi signal
strength significantly so checking your signal strength prior to installation is
important.

11
Installation

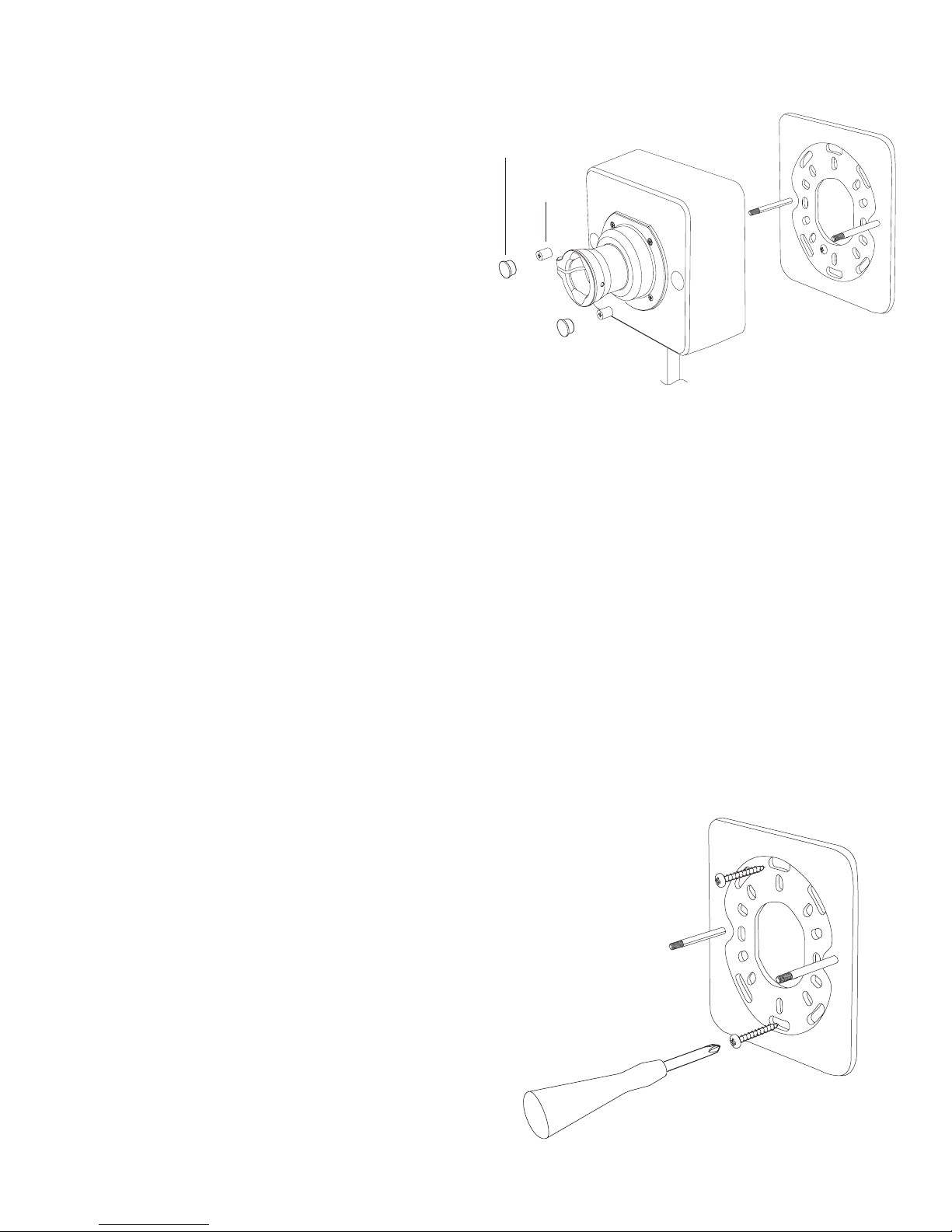

1. Remove the two rubber plugs on
the LightCam’s power box. Unscrew
and remove the rivet nuts underneath.
Place these aside for now.
2. Detach the mounting plate
from the power box.
3. Place the mounting plate over the installation location, and mark your
intended drilling positions with a pencil. Drill pilot holes into the areas you
marked and insert the plastic anchors into the pilot holes.
TIP: Before installing, make sure the power cord of the LightCam can easily
plug into the desired outlet. The power cord is 78.74 in (2 m) in length.
TIP: Use a level (not included) when marking the drill locations to help with
the installation.
NOTE: If your wall is made of masonry (e.g. brick or concrete) or stucco
material, use a 15/64 inch (6 mm) drill bit for your power drill (both not
included) to drill pilot holes into the wall. Insert the plastic anchors into the
pilot holes. Skip this step if you are installing on wood.
See our drill bit guide on page 3 for more information
on drill bit types and sizes.
4. Place the mounting plate over
the plastic anchors and secure the
screws into the plastic anchors.
5. Slide the LightCam over the screw
posts on the mounting plate. Reinstall
the rivet nuts and rubber plugs.
Plug-in option
Rivet Nut
Rubber Plug

12
6. Connect the power cord to the nearest power outlet.
WARNING: If plugging the LightCam to an outdoor outlet, the outdoor outlet
must be outdoor rated and have a cover to protect the outlet and LightCam
plug from rain, snow, and weather.
7. Open the KODA app to adjust the camera's viewing angle as needed. To
adjust the viewing angle, carefully loosen the jewelry screw around the ball
joint with one hand while holding onto the LightCam with the other hand to
prevent dropping the unit. Once the desired camera angle has been selected,
tighten the screw to secure into place.
CAUTION: When adjusting the positioning of the LightCam, it is important
to note the ball joint connecting the LightCam to the power box is intended
to lock into place and ONLY rotates 180-degrees in a counter clockwise
direction. Do not use excess force to change the LightCam angle, doing so may
permanently damage the unit. To adjust the LightCam angle, turn the
LightCam left or right (Figure) to first unlock the ball joint. Now you can twist
the LightCam upward for the angle most suitable for the installation location.
The ball joint will lock at the top. Go back to center and repeat the steps to
unlock the ball joint if you wish to change the LightCam angle to the opposite
direction.
Installation

13
IMPORTANT SAFETY INSTRUCTIONS
This portable luminaire has a polarized plug (one blade is wider than the other)
as a feature to reduce the risk of electric shock. This plug will fit in a polarized
outlet only one way. If the plug does not fit fully in the outlet, reverse the
plug. If it still does not fit, contact a qualified electrician. Never use with an
extension cord. Do not alter the plug.
Hardwire option
1. Before installing the LightCam, a standard light fixture needs to be pre-
installed on the wall, and the power supply wires need to be run to the light
fixture providing 120Vac of power. If the light fixture does not exist, contact a
qualified electrician for installation.
2. Shut OFF the main power at the fuse or circuit breaker before installing the
light fixture or making any electrical connection. Uninstall the existing light
fixture if one exists. You may use a non-contact voltage tester to ensure no
power is running to the wires.
WARNING: Failure to disconnect the power supply prior to installation may
result in serious injury or death.
NOTE: Remove the existing bracket from the junction box if one is installed.
NOTE: Do not connect the LightCam to a dimmer switch or timer. Doing so
may damage the LightCam.
3. Repeat step 1 to 2 from page 11 on how to detach the mounting plate from
the power box.
Installation

14
4. Place the mounting plate over the pre-installed light fixture and secure with
the two mounting screws provided. If your existing light fixture has a junction
box, simply screw the mounting plate over the existing junction box. Detach
the designated screw (colored green) from the mounting plate. Attach the
green (ground) supply wire to that hole and reinstall the screw. Pull out the
white (neutral) supply wire and black (hot) supply wire from the light fixutre
through the center of the mounting plate.

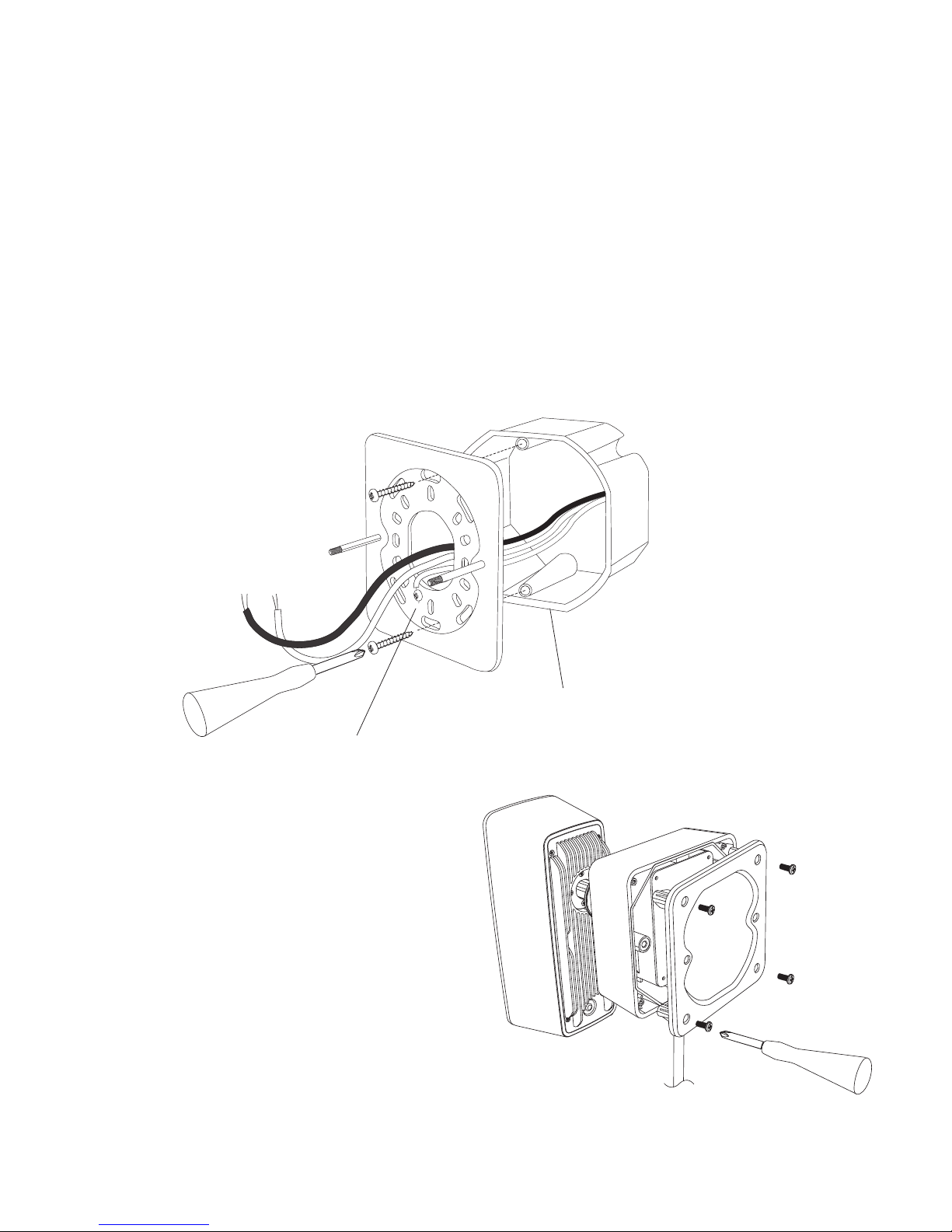

5. Loosen the four screws using the
Phillips screwdriver provided and open
the power box.
Ground screw for
green (ground) wire
Light xture in wall
Installation

15
Installation
6. Disconnect the two wire nuts and
separate the spliced white (neutral)
supply wire and black (hot) supply wire
from the power cord. Save the wire nuts
for later use.
7. Remove metal clamp from the power
cord bushing. Pull out the unspliced
power cord from the power box.
8. Insert one end of the S-hook through
the hole in the power box where the
power cord passed through, and
the other end through the hole of
the mounting plate. Gently ease the
LightCam to hang in place while you
work on hardwiring the LightCam.
Metal Clamp

16

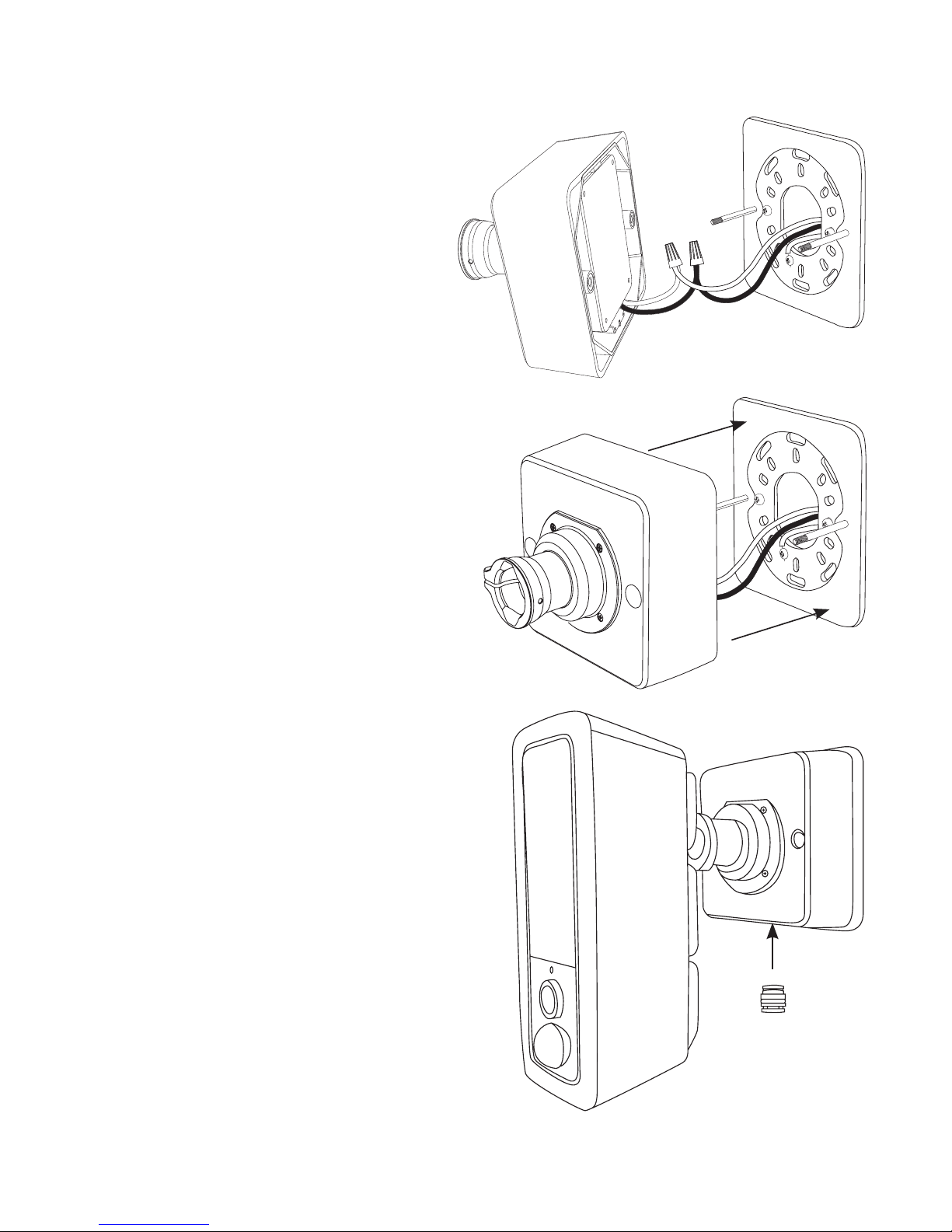

9. Line up the white (neutral) supply
wire to white light fixture wire. Place
the wire nut over the wires and twist
clockwise to secure. Line up the
black (hot) supply wire to black light
fixture wire. Place the wire nut over
the wires and twist clockwise to
secure.
10. Hold the LightCam with one hand.
Remove the S-hook with your other
hand.
11. Slide the LightCam over the screw
posts on the mounting plate.
12. Reinstall the rivet nuts and rubber
plugs.
13. Install the waterproof cap back
into the power box where the power
cord was detached and make sure it is
correctly seated.
WARNING: Fail to install the waterproof
cap correctly may result in serious
accident including short circuit of the
unit due to water gets in.
14. Restore power to the circuit from
the breaker box.
Waterproof cap
Installation

17
15. Open the KODA app to adjust the camera's viewing angle as needed. To
adjust the viewing angle, carefully loosen the jewelry screw around the ball
joint with one hand while holding onto the LightCam with the other hand to
prevent dropping the unit. Once the desired camera angle has been selected,
tighten the screw to secure into place.
CAUTION:
When adjusting the positioning of the LightCam, it is important to note the
ball joint connecting the LightCam to the power box is intended to lock into
place and ONLY rotates 180-degrees in a counter clockwise direction. Do not
use excess force to change the LightCam angle, doing so may permanently
damage the unit. To adjust the LightCam angle, turn the
LightCam left or right (Figure) to first unlock the ball joint. Now you can twist
the LightCam upward for the angle most suitable for the installation location.
The ball joint will lock at the top. Go back to center and repeat the steps to
unlock the ball joint if you wish to change the LightCam angle to the opposite
direction.

18
10. You should see the live view if the connection
was successful.
Live View Introduction
Enable to speak to your
visitors. Disable to mute
Enable/disable the
siren alarm
Enable/disable disable
listening to your visitors.
Turn sound on/off to listen
in on the LightCam. (You
cannot speak to your
visitor unless Microphone
is enabled.)
Record a video clip up to
30 seconds and store in
the gallery
Turn the LightCam
spotlight on/off
Setup the camera
(More detail discriptions on
page 19)
Setup the LightCam
Adjust LightCam
settings
Device Setting
1. Rename the device.
2. Change router SSID (router
name).
3. Remove device.
Note: you can also go to Device Setting
from the Device List view. (See page 19)
1
2
3
Using the app

19
Camera Setting
1. Adjust brightness and contrast of LightCam
2. Turn Pet Mode ON/OFF
3. Day Mode / Night Mode
5. Adjust motion trigger sensitivity
6. Adjust time delay
4. Camera View Rotation
7. Adjust brightness level of the ? light
8. Adjust duration light stays on
By turning on the Pet Mode, the motion trigger won't set off
when your pet is walking around.
The default camera view is set to Normal. Press Rotate if you
installed the LightCam upside down.
When Night Mode is set, the live view will change to black and white.
When a motion trigger is actived, the LightCam will record
a video clip and upload to the cloud server. Use this setting
to adjust the time delay of the next motion trigger after 10
seconds, 3 minutes, or 5 minutes.
The ? light will turn on with each motion trigger, depending
on the brightness of the surroundings. Note: The ? light
will extend its duration after the set lighting peroid, if the
LightCam detects continuous movements.
1
2
3
4
5
6
7
8
Using the app

20

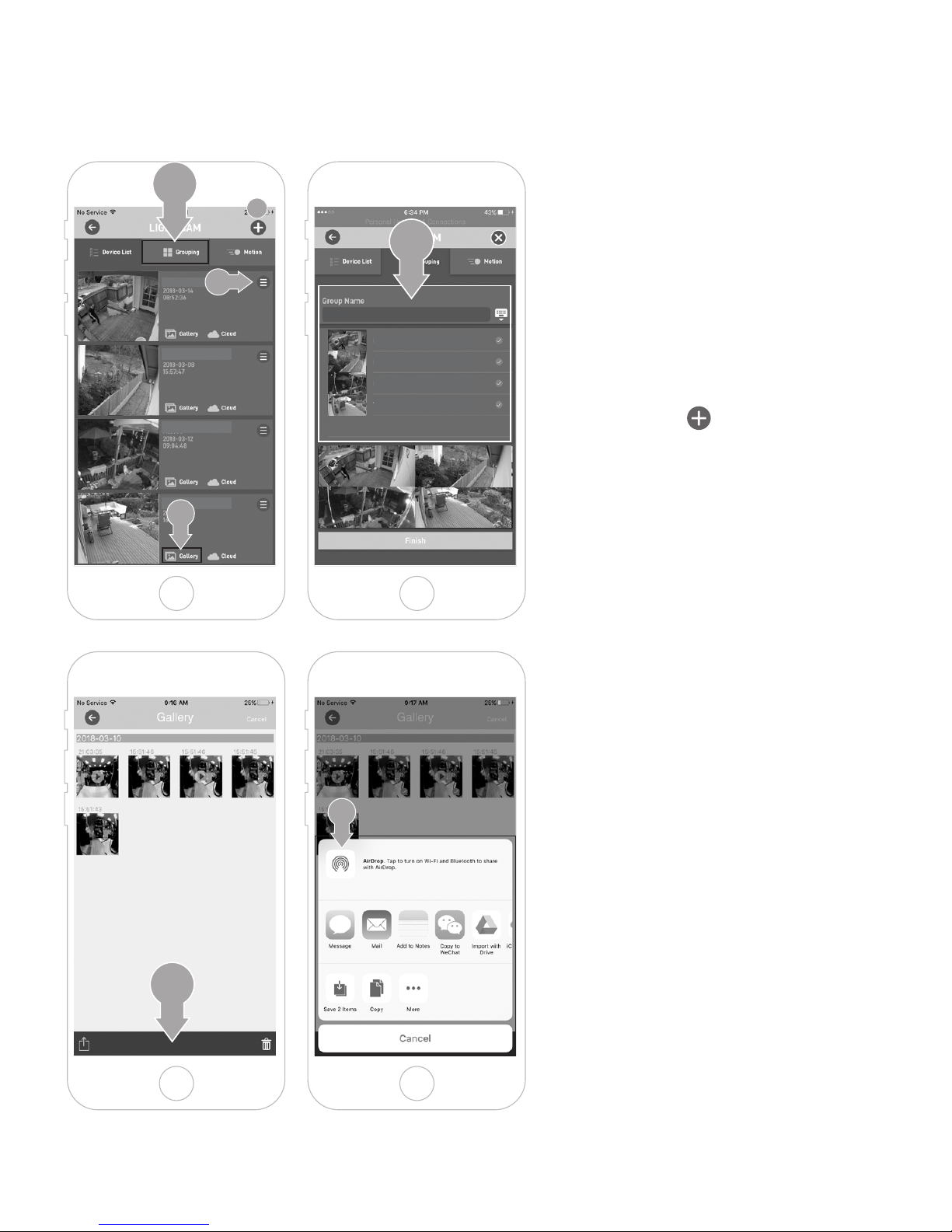

Grouping
If you have multiple LightCams
installed in your house, you can
choose to group live views from
different LightCams and show on
one screen simultaneously.
1. Press the Grouping tap.
2. Press the icon to create a
group.
3. Check the name of the
LightCams you already set up
in an order you prefer, from
left to right, top to bottom.
Note: You can add up to 4
LightCams in one group.
4. Press Finish to create
the group.
5. You can also press this to go to
Device Setting.
Manage the Gallery
6. All the contents (video clips,
images) captured by motion
trigger will be stored in the
gallery under each Life View.
7. You can share or delete the
contents.
8. Choose how to share the
contents.
Front PorchFront Porch
Side Yard
Backyard
Patio
2
Front Porch
Side Yard
Backyard
Patio
My Home
3
7
6
1
5
8
Using the app
