DESCRIPTION
The KAI-4011/KAI-4021 Imager Evaluation Board,
referred to in this document as the Imager Board, is
designed to be used as part of a two-board set, used in
conjunction with a Timing Generator Board. Kodak
offers an Imager Board / Timing Generator Board
package that has been designed and configured to
operate with the KAI-4011/KAI-4021 CCD image sensors.
The Timing Generator Board generates the timing
signals necessary to operate the CCD, and provides the
power required by the Imager Board. The timing signals,
in LVDS format, and the power, are provided to the
Imager Board via the interface connector (J1). In
addition, the Timing Generator Board performs the
processing and digitization of the analog video output of
the Imager Board.
The KAI-4011/KAI-4021 Imager Board has been designed
to operate the KAI-4011/KAI-4021 CCDs with the
specified performance at 40MHz pixel clocking rate and
nominal operating conditions. (See the KAI-4011/KAI-
4021 performance specifications for details).
For testing and characterization purposes, the KAI-
4011/KAI-4021 Imager board provides the ability to adjust
many of the CCD bias voltages and CCD clock level
voltages by adjusting potentiometers on the board. The
Imager Board provides the means to modify other device
operating parameters (CCD reset clock pulse width, VSS
bias voltage) by populating components differently on the
board.
INPUT REQUIREMENTS
Power Supplies Minimum Typical Maximum Units
4.9 5 5.1 V+5V_MTR Supply
1400 mA
-5.1 -5 -4.9 V-5V_MTR Supply
200 mA
18 20 21 VVPLUS Supply
175 mA
-21 -20 -18 VVMINUS Supply
150 mA
Table 1: Power Requirements
Input Signals (LVDS) Vmin Vthreshold Vmax Units Comments
H1A (+/-) 0 +/- 0.1 2.4 V H1A clock
H1B (+/-) 0 +/- 0.1 2.4 V H1B clock
H2A (+/-) 0 +/- 0.1 2.4 V H2A clock
H2B (+/-) 0 +/- 0.1 2.4 V H2B clock
FDG 0 +/- 0.1 2.4 V Fast Dump clock
R (+/-) 0 +/- 0.1 2.4 V Reset clock
V1 (+/-) 0 +/- 0.1 2.4 V V1 clock
V2 (+/-) 0 +/- 0.1 2.4 V V2 clock
V2B(+/-) 0 +/- 0.1 2.4 V V2B clock
V3RD (+/-) 0 +/- 0.1 2.4 V V2 Clock 3rd-level
VES (+/-) 0 +/- 0.1 2.4 V Electronic Shutter
AMP_ENABLE (+/-) 0 +/- 0.1 2.4 V Output Amplifier Enable
Table 2: Signal Level Requirements
©Eastman Kodak Company, 2005 www.kodak.com/go/imagers Revision 4.0 (MTD/PS-0521) p3

ARCHITECTURE OVERVIEW
The following sections describe the functional blocks of the KAI-4011/KAI-4021 Imager board (refer to Figure 1).
POWER FILTERING AND REGULATION
Power is supplied to the Imager Board via the J1
interface connector. The power supplies are de-coupled
and filtered with ferrite beads and capacitors to suppress
noise. Voltage regulators are used to create the +15 and
–15V supplies from the VPLUS and VMINUS supplies.
LVDS RECEIVERS / TTL BUFFERS
LVDS timing signals are input to the Imager Board via
the J1 interface connector. These signals are shifted to
TTL levels before being sent to the CCD clock drivers.
CCD PIXEL-RATE CLOCK DRIVERS (H1, H2 &
RESET CLOCKS)
The pixel rate CCD clock drivers utilize two fast switching
transistors that are designed to translate TTL-level input
clock signals to the voltage levels required by the CCD.
The high level and low level of the CCD clocks are set by
potentiometers.
RESET CLOCK ONE-SHOT (U15; NOT
POPULATED)
The pulse width of the RESET_CCD clock used to be set
by a programmable One-Shot. The One-Shot was
configured to provide a RESET_CCD clock signal with a
pulse width from 5ns to 15ns. Now, the pulse width
control functionality is provided by the KSC-1000 Timing
Generator Board, and the one-shot has been bypassed by
removing U15 and inserting a shorting resistor on pads 1
and 2 of U15.
CCD VCLK DRIVERS
The vertical clock (VCLK) drivers consist of MOSFET
driver IC’s. These drivers are designed to translate the
TTL-level clock signals to the voltage levels required by
the CCD. The high, middle, and low voltage levels of the
vertical clocks are set by potentiometers buffered by
operational amplifiers configured as voltage followers.
The current sources for these voltage levels are high
current (up to 600 mA) transistors. The V2_CCD high
level clock voltage is switched from V_MID to V_HIGH
once per frame to transfer the charge from the
photodiodes to the vertical CCDs.
CCD FDG DRIVER
The Fast Dump Gate (FDG) driver is a transistor that will
switch the voltage on the FDG pin of the CCD from
FDG_LOW to FDG_HIGH during Fast Dump Gate
operation. When not in operation, or when the Fast
Dump Gate feature is not being utilized, the FDG pin of
the CCD is held at FDG_LOW. The FDG_HIGH and
FDG_LOW voltage levels of the FDG driver are set by
resistor divider circuits, and are buffered by operational
amplifiers configured as voltage followers.
VES CIRCUIT
The quiescent CCD substrate voltage (VSUB) is set by a
potentiometer. For electronic shutter operation, the VES
signal drives a transistor amplifier circuit that AC-
couples the voltage difference between the VPLUS and
VMINUS supplies onto the Substrate voltage. This
creates the necessary potential to clear all charge from
the photodiodes, thereby acting as an electronic shutter
to control exposure.
CCD BIAS VOLTAGES
The CCD bias voltages are set by potentiometers,
buffered by operational amplifiers configured as voltage
followers. The bias voltages are de-coupled at the CCD
pin.
CCD IMAGE SENSOR
This evaluation board supports the Kodak KAI-4011 and
KAI-4021 Interline CCD image sensors.
EMITTER-FOLLOWER
The VOUT_CCD signals are buffered using bipolar
junction transistors in the emitter-follower configuration.
These circuits also provide the necessary 5mA current
sink for the CCD output circuits.
LINE DRIVERS
The buffered VOUT_CCD signals are AC-coupled and
driven from the Imager Board by operational amplifiers
©Eastman Kodak Company, 2005 www.kodak.com/go/imagers Revision 4.0 (MTD/PS-0521) p4

in a non-inverting configuration. The operational
amplifiers are configured to have a gain of 2, to correctly
drive 75Ωvideo coaxial cabling from the SMB
connectors.
OPERATIONAL SETTINGS
The Imager board is configured to operate the KAI-4011/KAI-4021 CCD image sensors under the following operating
conditions:
BIAS VOLTAGES
The following voltages are fixed, or adjusted with a potentiometer as noted. The nominal values listed in Table 3 were
correct at the time of this document’s publication, but may be subject to change; refer to the KAI-4011/KAI-4021 device
specification.
Description Symbol Min Nominal Max Units Potentiometer Notes
Left Output Amplifier Supply VDDL 15.0 V -
Right Output Amplifier Supply VDDR 15.0 V - 1
Reset Drain VRD 6.7 12.0 13.5 V R23 3
ESD Protection ESD -9.0 V -
Substrate VSUB 8.5 TBD 15.0 V R18 3
Output Gate Left VOGL -7.5 -3.5 -0.4 V R11 2,3
Output Gate Right VOGR -7.5 -3.5 -0.4 V R7 2,3
Table 3: Bias Voltages
NOTES:
1. If the CCD is to be operated in single output mode only (VOUT_LEFT) the unused output amplifier supply can be tied to ground to conserve
power by not populating R71, R72 and C76 and by replacing C75 with a 0 ohm resistor.
2. The Output Gate signals VOGL and VOGR may be controlled independently, or, by installing R28 and R33 and removing R29, may be set to
the same potential, controlled by R11.
3. The Min and Max voltages in the table indicate the imager board potentiometer adjustable voltage range. These values may exceed the
specified CCD operating conditions. See the KAI-4011/KAI-4021 device specification for details.
CLOCK VOLTAGES
The following clock voltage levels are fixed, or adjusted with a potentiometer as noted. The nominal values listed in Table
4 were correct at the time of this document’s publication, but may be subject to change; refer to the KAI-4011/KAI-4021
device specification.
Description Symbol Level Min Nom Max Unit Potentiometer Notes
Hxx_CCD Low -7.5 -4.5 -0.8 V R147 1Horizontal CCD Clock
High 0.4 0.5 7.5 V R127 2
Vx_CCD Low -14.0 -9.0 -1.0 V R40 3
Vx_CCD Mid -2.5 -0.0 -0.0 V R66 4
Vertical CCD Clock
V2_CCD High 4.0 9.0 11.0 V R48
RESET_CCD Low -7.0 -3.5 -1.0 V R20Reset Clock
High 1.0 5.0 7.0 V R19
FDG_CCD Low -9.0 V 5Fast Dump Clock
High 5.0 V
Table 4: Clock Voltages
NOTES:
1. The H1A_CCD, H1B_CCD, H2A_CCD, and H2B_CCD low levels are controlled by the same potentiometer (R147).
2. The H1A_CCD, H1B_CCD, H2A_CCD, and H2B_CCD high levels are controlled by the same potentiometer (R127).
3. V1_CCD and V2_CCD low levels are controlled by the same potentiometer (R40)
4. V1_CCD and V2_CCD mid levels are controlled by the same potentiometer (R66)
5. FDG is used to flush the device when operated in Still Mode.
©Eastman Kodak Company, 2005 www.kodak.com/go/imagers Revision 4.0 (MTD/PS-0521) p5

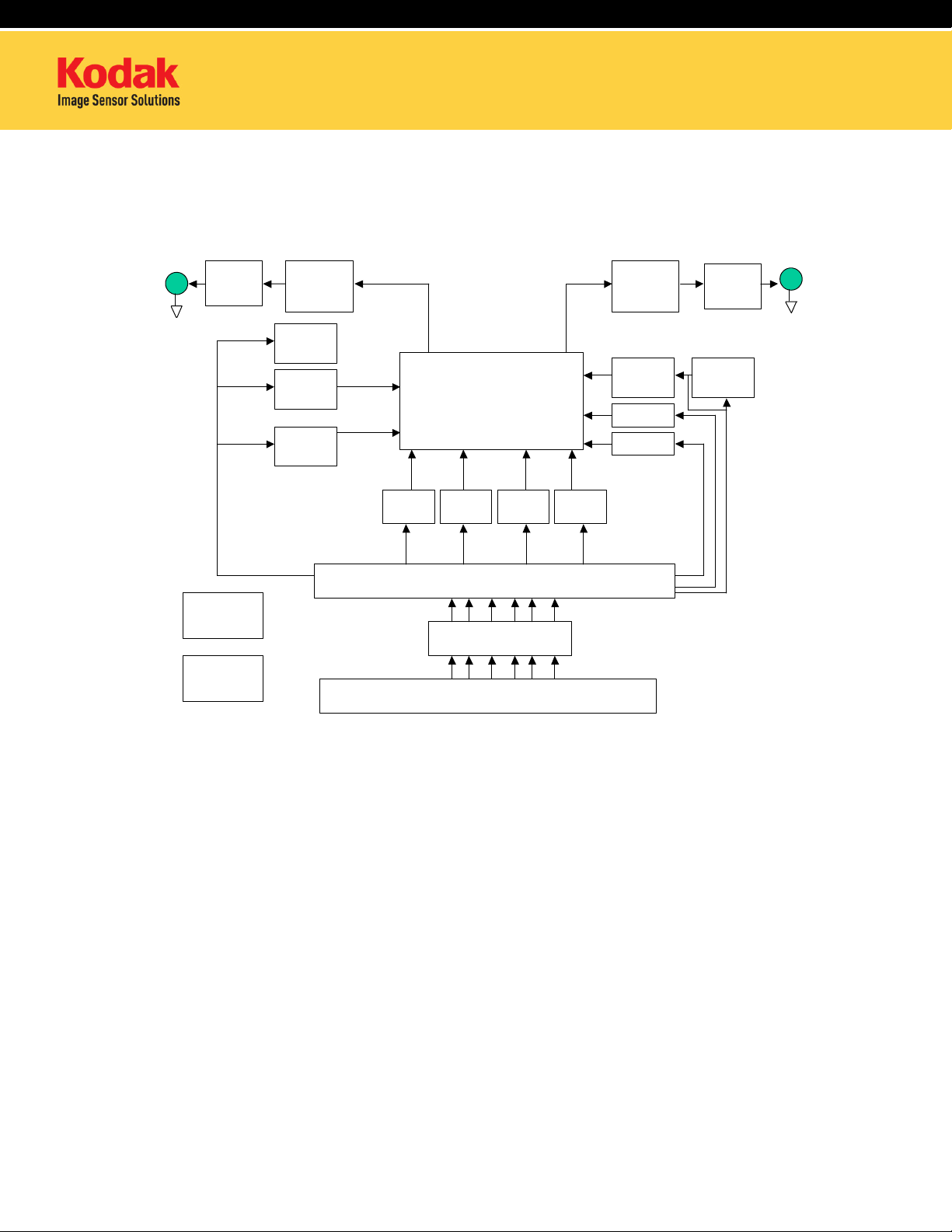

BLOCK DIAGRAM AND PERFORMANCE DATA
CCD SENSOR
EMITTER
FOLLOWER
VOUT RIGHT
J2
SMB
J1 BOARD INTERFACE CONNECTOR
LINE
DRIVER
LVDS RECEIVERS
LVDS TO TTL BUFFERS
H1B
DRIVER
H2A
DRIVER
RCLK
DRIVER
V2
DRIVER
V1
DRIVER
RCLK
1 SHOT
H2B
DRIVER
+15V
REGULATOR
-15V
REGULATOR
EMITTER
FOLLOWER
LINE
DRIVER
VOUT LEFT
H1A
DRIVER
V3RD
DRIVER
FDG CKT
J3
SMB
VES CKT
(optional)
Figure 1: KAI-4011/KAI-4021 Imager Board Block Diagram
©Eastman Kodak Company, 2005 www.kodak.com/go/imagers Revision 4.0 (MTD/PS-0521) p6

LINEARITY
0.01
0.1
1
10
100
1000
10000
100000
0.1 1 10
INTEGRATION TIME (SECONDS)
SIGNAL MEAN (ELECTRON
S
MEA SURED
FIT
%DEV IA TION FROM FIT

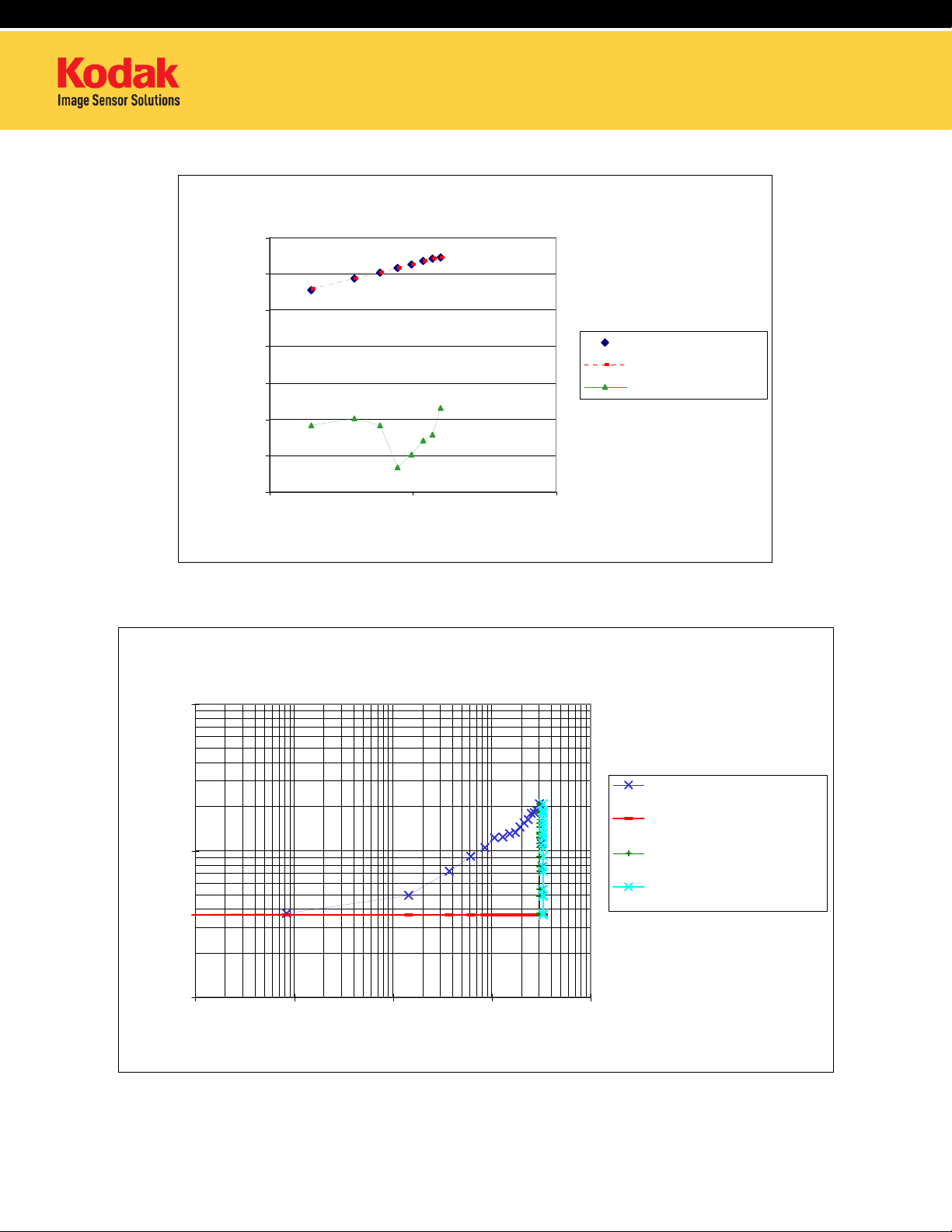

Figure 2: Measured Performance -- Linearity
Photon Transfer
1
10
100
10 100 1000 10000 100000
Signal Mean (Electrons)
Noise (A/D counts)
Slope = el/Adu = 9.29 electrons
Noise floor = 3.65 counts (33.9
electrons)
LVSAT = 30220 electrons
VSAT = 32980 electrons
Figure 3: Measured Performance -- Dynamic Range and Noise Floor
©Eastman Kodak Company, 2005 www.kodak.com/go/imagers Revision 4.0 (MTD/PS-0521) p7

CONNECTOR ASSIGNMENTS AND PINOUTS
SMB CONNECTORS J2 AND J3
The emitter-follower buffered CCD_VOUT signals are driven from the Imager Board via the SMB connectors J2 and J3.
Coaxial cable with a characteristic impedance of 75 Ωshould be used to connect the imager board to the Timing Generator
Board to match the series and terminating resistors used on these boards.
BOARD INTERFACE CONNECTOR J1
Pin Signal Pin Signal
1 N.C. 2 N.C.
3 AGND 4 AGND
5 VES+ 6 VES-
7 AGND 8 AGND
9 FDG+ 10 FDG-
11 AGND 12 AGND
13 V3RD+ 14 V3RD-
15 AGND 16 AGND
17 V2B+ 18 V2B-
19 AGND 20 AGND
21 V2+ 22 V2-
23 AGND 24 AGND
25 V1+ 26 V1-
27 AGND 28 AGND
29 R+ 30 R-
31 AGND 32 AGND
33 H2B+ 34 H2B-
35 AGND 36 AGND
37 H2A+ 38 H2A-
39 AGND 40 AGND
41 H1B+ 42 H1B-
43 AGND 44 AGND
45 H1A+ 46 H1A-
47 N.C. 48 N.C.
49 AGND 50 AGND
51 N.C. 52 N.C.
53 VMINUS_MTR 54 VMINUS_MTR
55 N.C. 56 N.C.
57 AGND 58 AGND
59 AMP_ENABLE+ 60 AMP_ENABLE-
61 -5V_MTR 62 -5V_MTR
63 N.C. 64 N.C.
65 AGND 66 AGND
67 N.C. 68 N.C.
69 +5V_MTR 70 +5V_MTR
71 N.C. 72 N.C.
73 AGND 74 AGND
75 N.C. 76 N.C.
77 VPLUS_MTR 78 VPLUS_MTR
79 N.C. 80 N.C.
Table 5: J1 Interface Connector Pin Assignments
©Eastman Kodak Company, 2005 www.kodak.com/go/imagers Revision 4.0 (MTD/PS-0521) p8

WARNINGS AND ADVISORIES
The Imager Board described in this document is designed for use as part of a two-board set, in conjunction with a Timing
Generator Board. Kodak offers an Imager Board / Timing Generator Board package that has been designed and
configured to operate with the KAI-4011 and KAI-4021 CCD image sensors.
Purchasers of a Kodak Evaluation Board Kit may, at their discretion, make changes to the Timing Generator Board
firmware. Eastman Kodak can only support firmware developed and supplied by Eastman Kodak. Changes to the
firmware are at the risk of the customer.
When programming the Timing Board, the Imager Board must be disconnected from the Timing Board, by removing the
Board Interface Cable before power is applied. If the Imager Board is connected to the Timing Board during the
reprogramming of the Altera PLD, damage to the Imager Board will occur.
GLOSSARY OF ABBREVIATIONS
AGND Analog Ground.
CCD Charge-Coupled Device; also referred as to the image sensor , imager, or device.
FDG Fast Dump Gate; signal drains charge from the Horizontal registers to allow line sampling.
HCLK Horizontal Clock
LVDS Low Voltage Differential Signaling, per the TIA/EIA-644 and IEEE 1596.3 standards.
R+ or R- Reset Clock
SMB Subminiature video connector, 75Ωcharacteristic impedance.
VCLK Vertical Clock.
V3RD Vertical Clock 3rd-level voltage; initiates frame readout by transferring charge to vertical registers.
VES Electronic Shutter control signal.
REVISION HISTORY
Revision Number Description of Changes
1 Initial Formal Version
2.0 Added Warnings and Advisories Section
Added Glossary of Abbreviations
Added Revision History
3.0 Document now applies to KAI-4011 and KAI-4021 Imagers.
Added information regarding optional One-Shot.
4.0 Added text note on drawings to define ground pins on CCD imager (Product Drawing)
Added metric units to drawing.
©Eastman Kodak Company, 2005 www.kodak.com/go/imagers Revision 4.0 (MTD/PS-0521) p9

APPENDICES

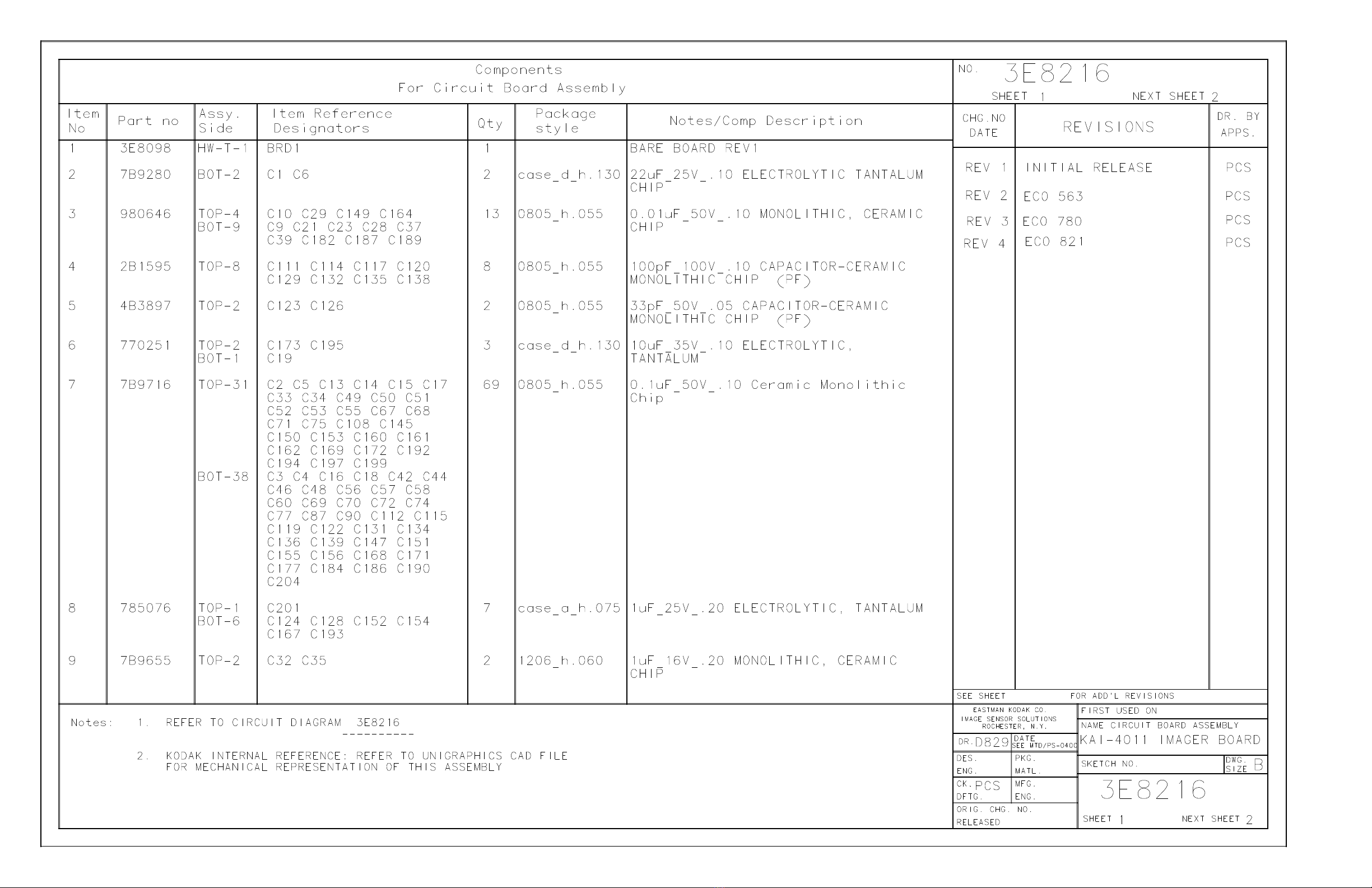

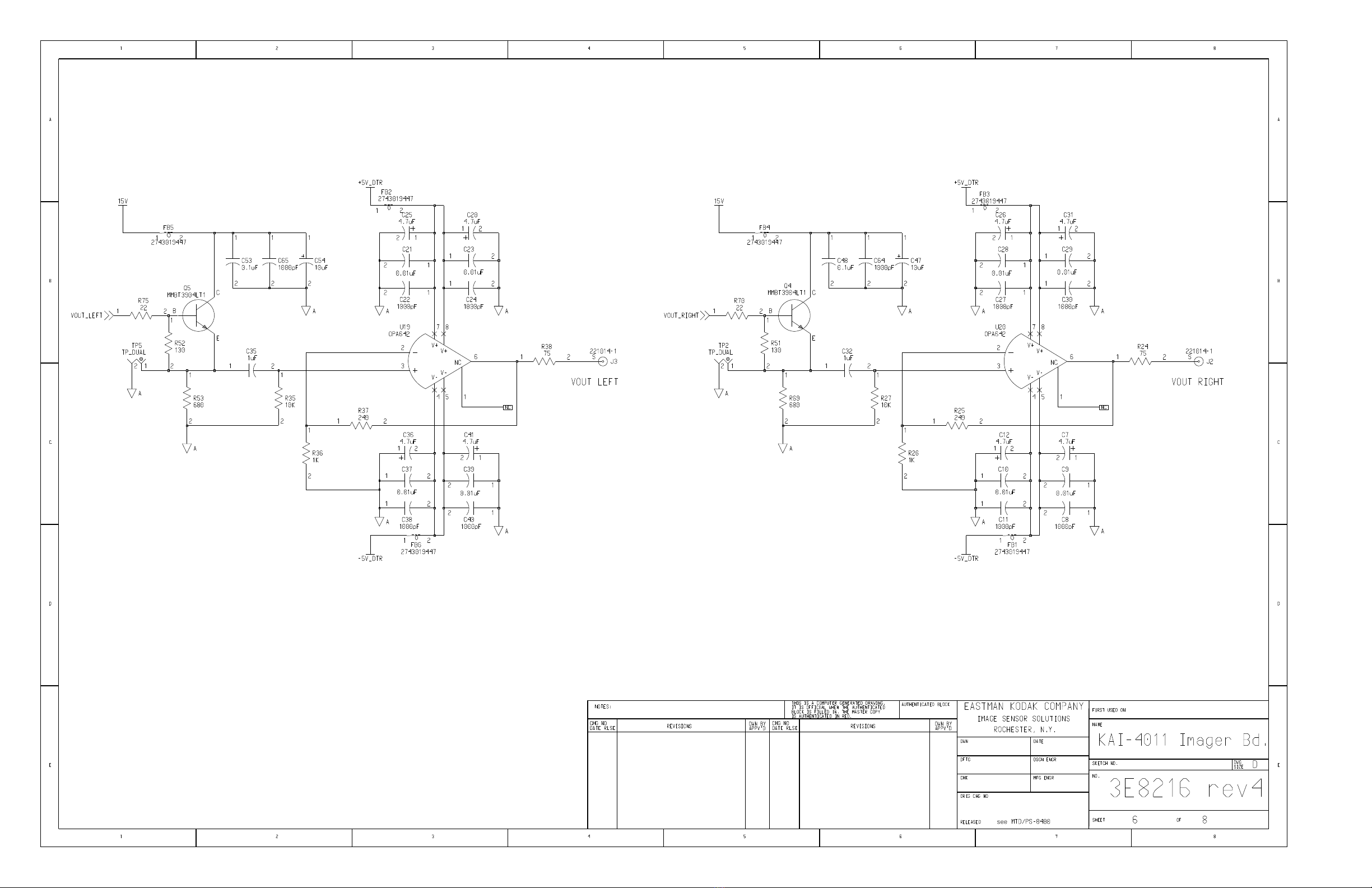

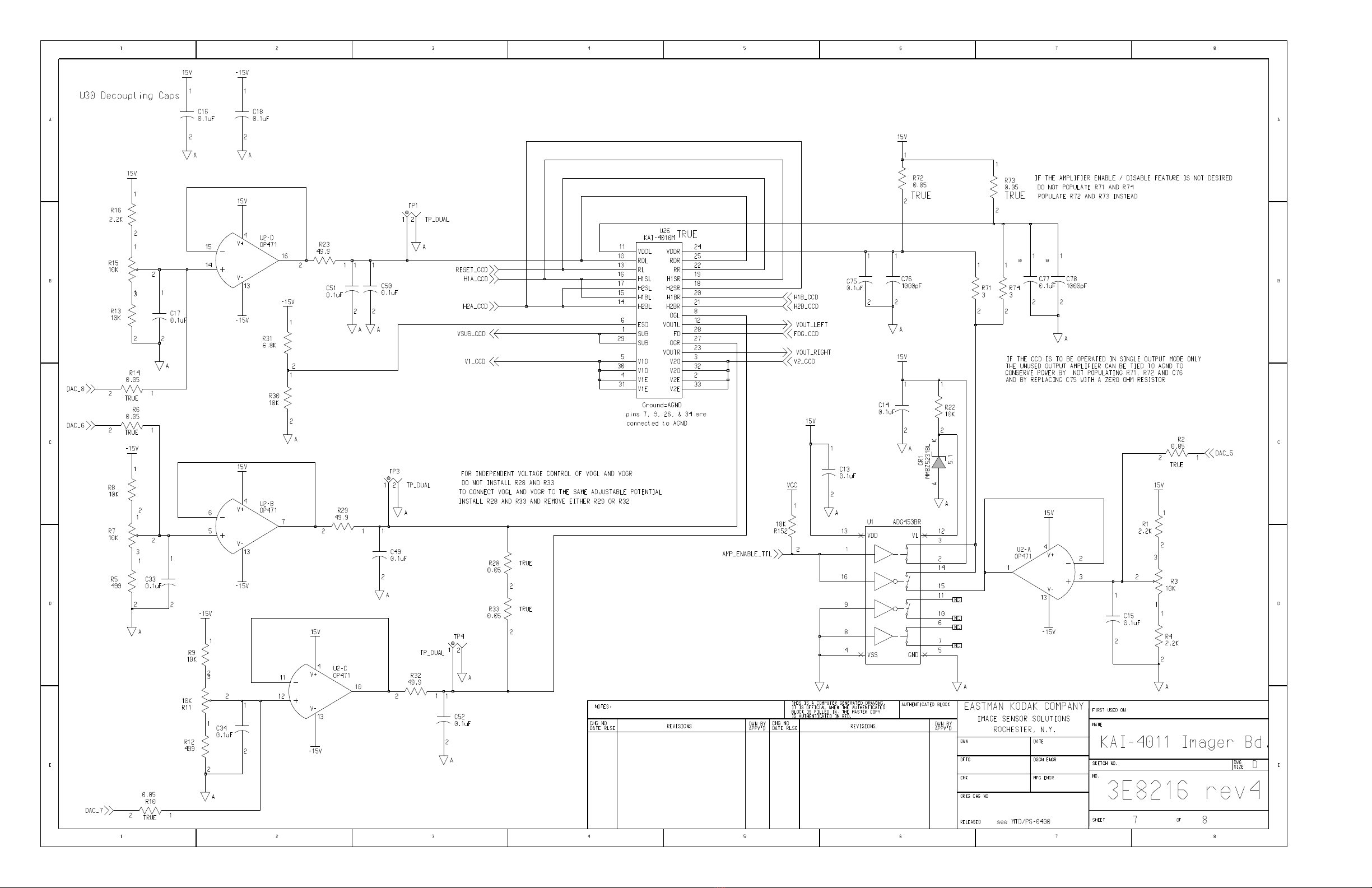

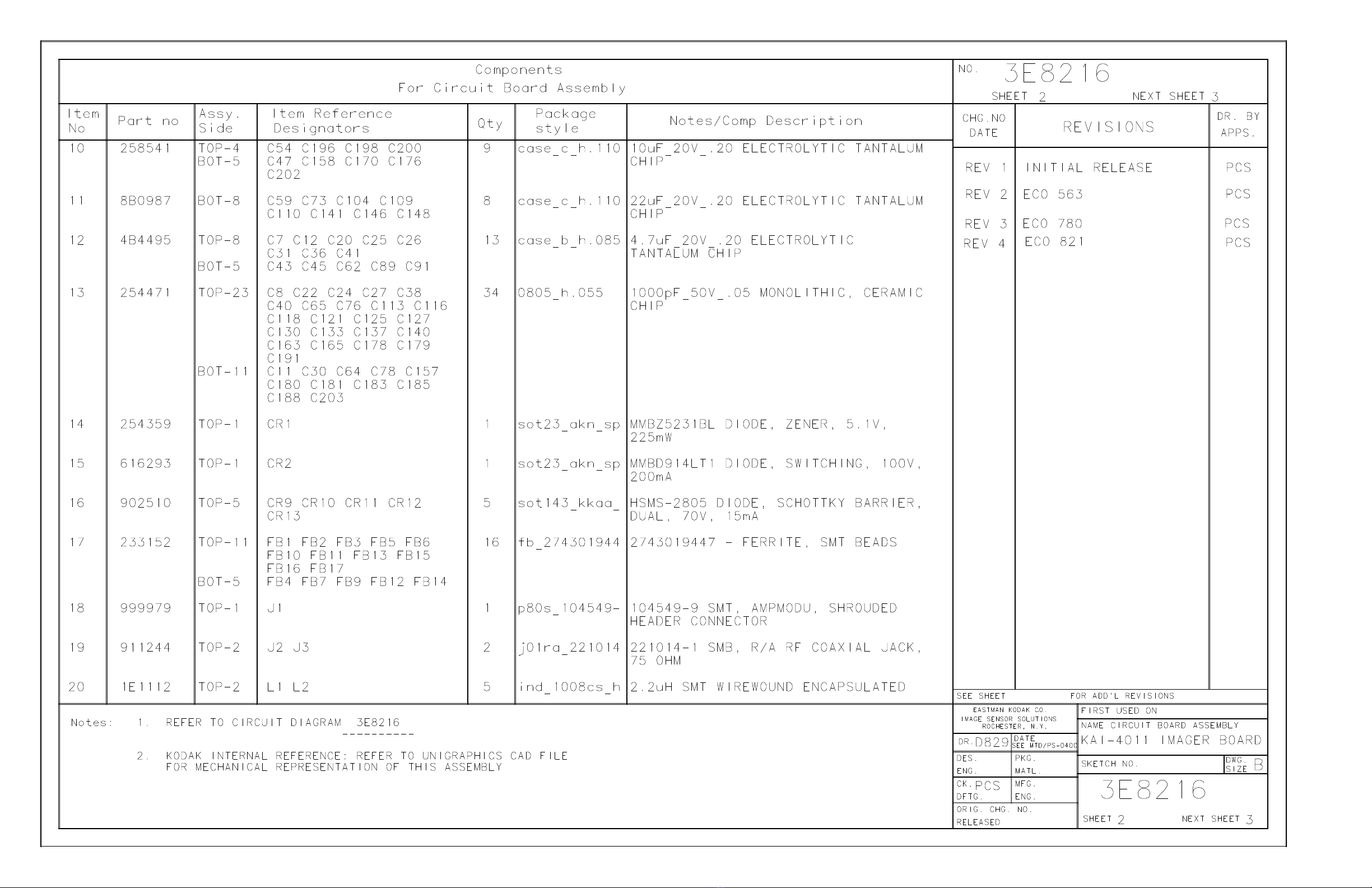

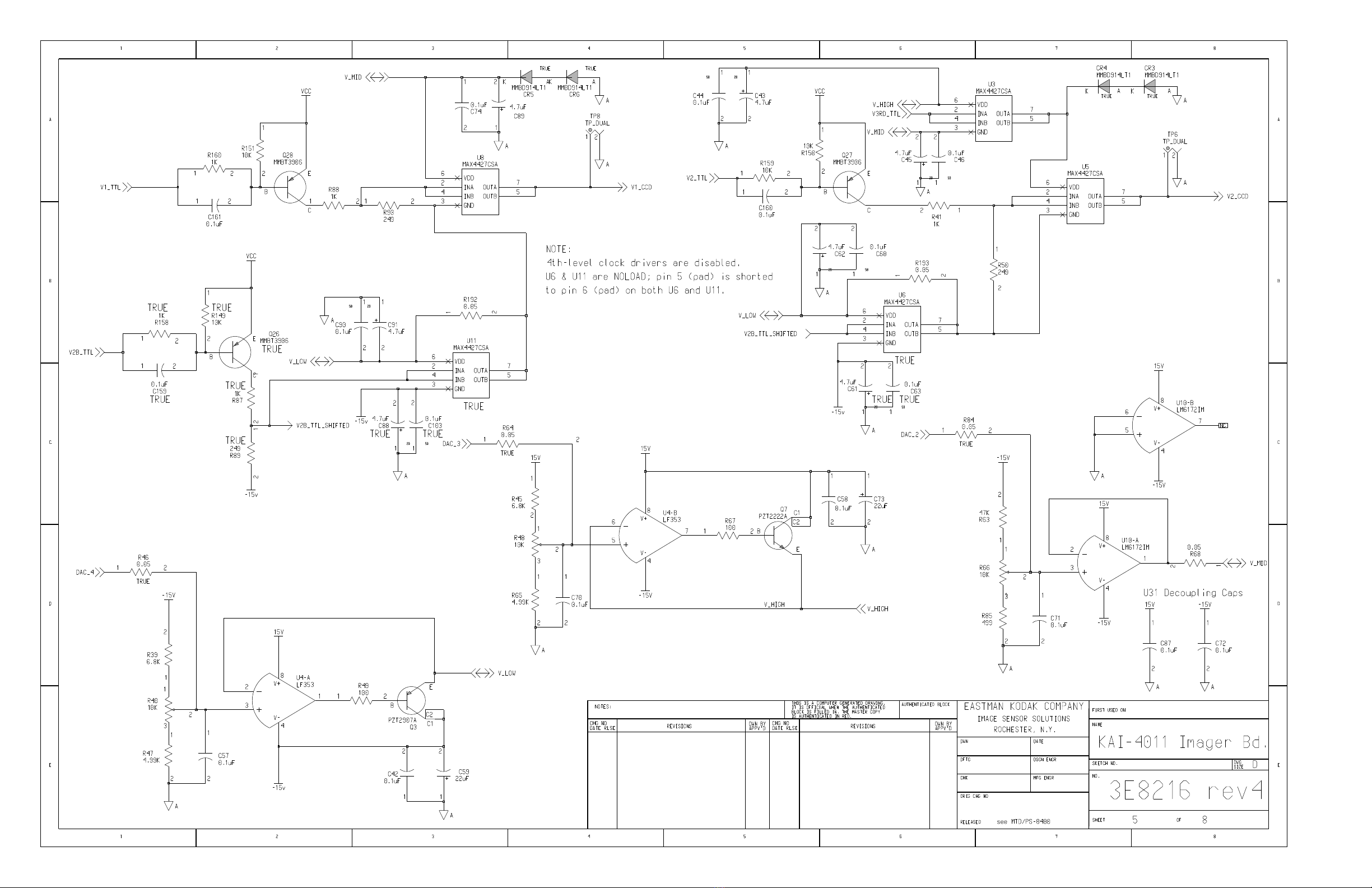

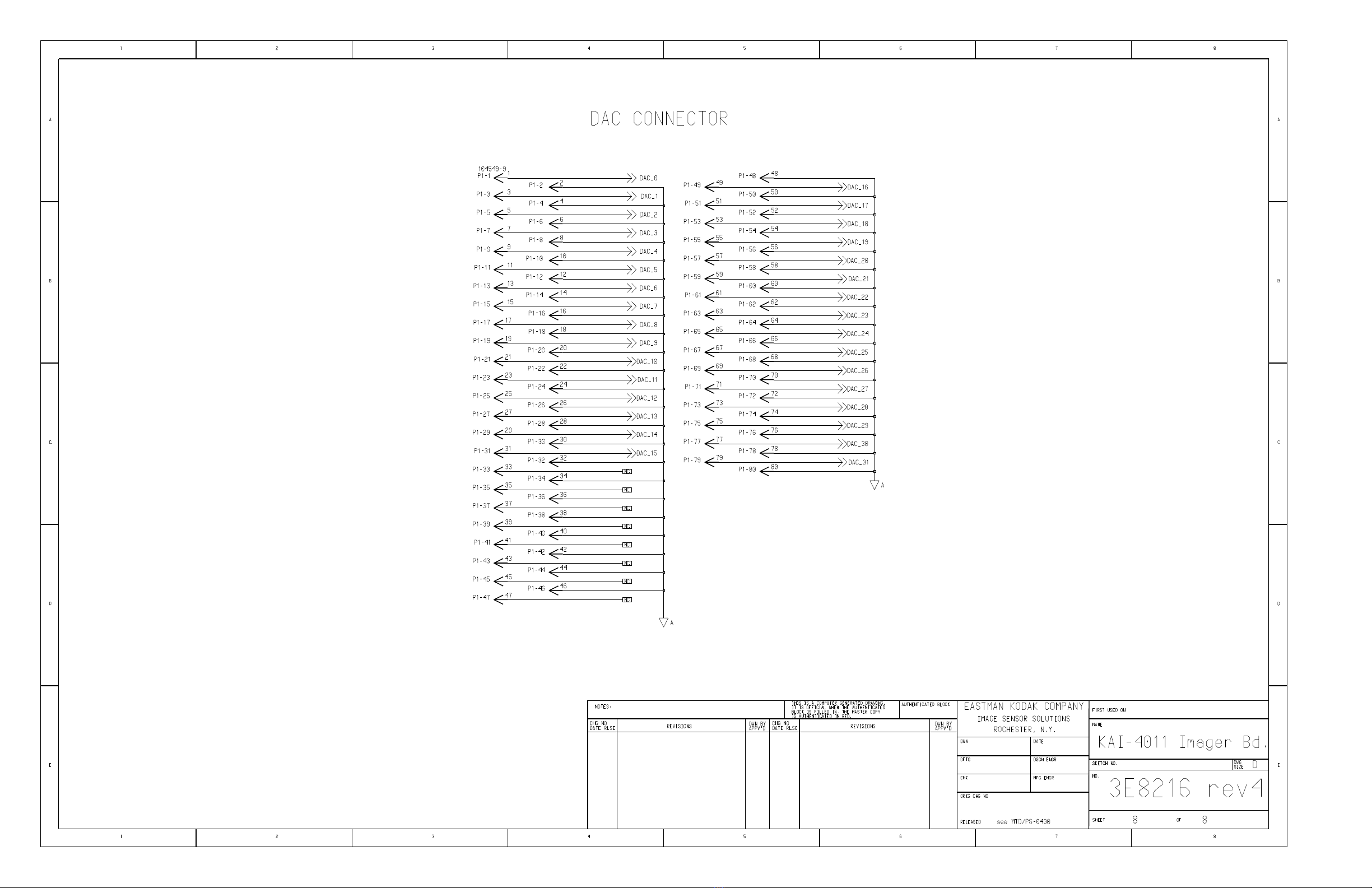

KAI-4011/KAI-4021 IMAGER BOARD SCHEMATICS
©Eastman Kodak Company, 2005 www.kodak.com/go/imagers Revision 4.0 (MTD/PS-0521) p10
