Kogan KAM12PDWFSA User manual

12 PLACE DISHWASHER
(WHITE)
KAM12PDWFSA

2
Safety & Warnings
3
Overview
6
Installation
9
Before First Use
21
Operation
23
Cleaning & Care
32
Troubleshooting
36
Specifications
39

3
WARNING
When using your dishwasher, follow the precautions listed below:
• Installation and repair must be carried out by a qualified technician.
• This appliance is intended to be used in household and similar applications such as:
o staff kitchen areas in shops, offices and other working environments.
o farmhouses.
o by clients in hotels, motels and other residential type environments.
o bed and breakfast type environments.
• This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved.
• Children should not be allowed to play with the appliance.
• Cleaning and user maintenance shall not be done by children without supervision.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
• Packaging material could be dangerous for children.
• This appliance is for indoor household use only. To protect against the risk of electrical
shock, do not immerse the unit, cord or plug in water or other liquid.
• Unplug before cleaning and performing maintenance on the appliance.
• Use a soft cloth moistened with mild soap, and then use a dry cloth to wipe it again.
SAFETY & WARNINGS
Note:
To get the best performance from your dishwasher, read all operating instructions and
safety notes before using it for the first time. Retain this user guide for future reference.

4
Earthing Instructions
• This appliance must be earthed. In the event of a malfunction or breakdown, earthing
will reduce the risk of an electric shock by providing a path of least resistance of electric
current. This appliance is equipped with an earthing conductor plug.
• The plug must be plugged into an appropriate outlet that is installed and earthed in
accordance with all local codes and ordinances.
• Improper connection of the equipment-earthing conductor can result in the risk of an
electric shock.
• Check with a qualified electrician or service representative if you are in doubt whether
the appliance is properly grounded.
• Do not modify the plug provided with the appliance if it does not fit the outlet.
• Ensure a proper outlet has been installed by a qualified electrician.
• Do not abuse, sit on or stand on the door or dish rack of the dishwasher.
• Do not operate your dishwasher unless all enclosure panels are properly in place.
• Open the door very carefully if the dishwasher is operating, there is a risk of water
squirting out.
• Do not place any heavy objects on or stand on the door when it is open. The appliance
could tip forward.
• When loading items to be washed:
o Place sharp items so that they are not likely to damage the door seal.
o Warning: Knives and other utensils with sharp points must be loaded in the
basket with their points facing down or placed in a horizontal position.
• Some dishwasher detergents are strongly alkaline. They can be extremely dangerous if
swallowed. Avoid contact with the skin and eyes and keep children away from the
dishwasher when the door is open.
• Check that the detergent compartment is empty after completion of the wash cycle.
• Do not wash plastic items unless they are marked “Dishwasher safe”or the equivalent.
• For unmarked plastic items not so marked, check the manufacturer's
recommendations.
• Use only detergent and rinse agents recommended for use in an automatic dishwasher.
• Never use soap, laundry detergent or hand washing detergent in your dishwasher.
• The door should not be left open since this could increase the risk of tripping.
• If the power cord is damaged, cease use immediately and contact help.Kogan.com for
support.
• During installation, the power cord must not be excessively or dangerously bent or
flattened.
• Do not tamper with controls.

5
• The appliance needs to be connected to the main water valve using new hose sets. Old
sets should not be reused.
• To save energy, in standby mode. the appliance will switch off automatically while
there is an any operation in 30 minutes.
Disposal
This marking indicates that this appliance should not be disposed with
other household wastes. To prevent possible harm to the environment or
human health from uncontrolled waste disposal, recycle it responsibly to
promote the sustainable reuse of material resources.

6

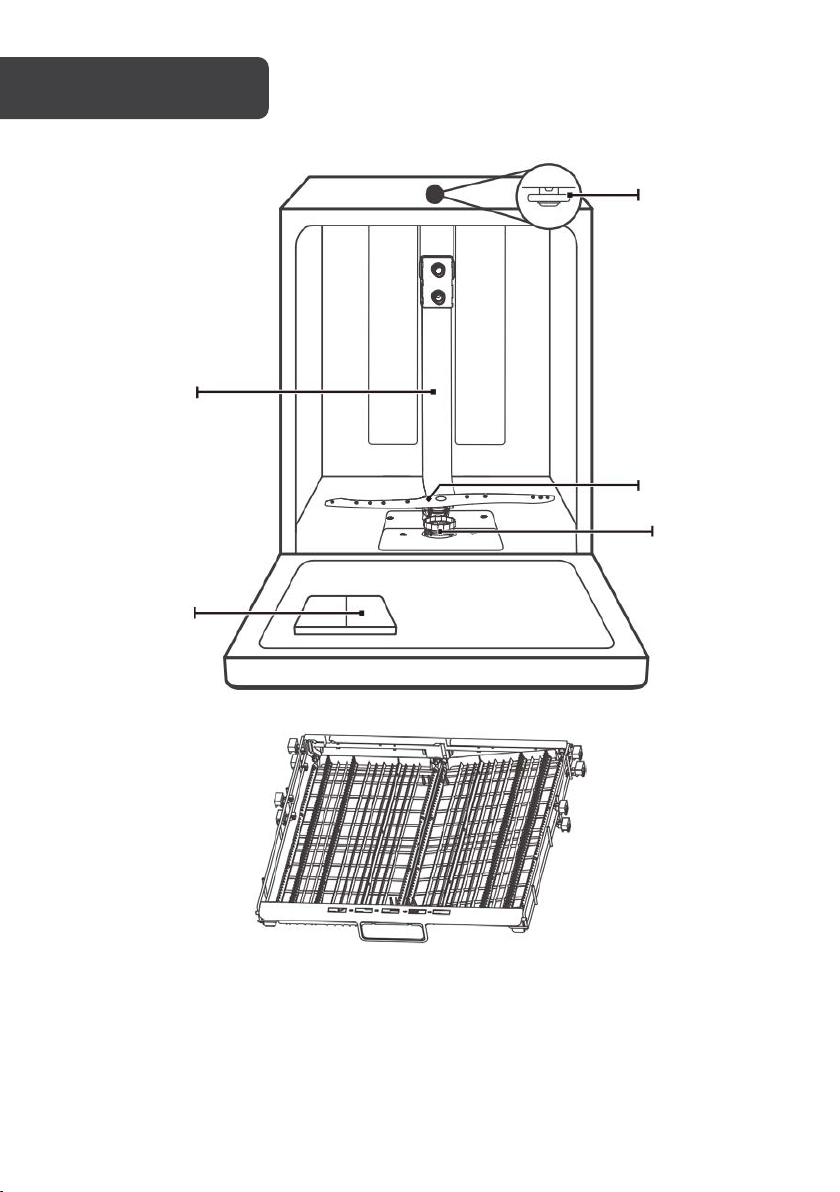

Cutlery rack
OVERVIEW
Top spray arm
Inner pipe
Lower spray arm
Filter assembly
Dispenser

7
Upper basket Lower basket
Control Panel
Buttons
1Power
Press this button to turn on your dishwasher.
2Delay
Press the Delay button to increase the delay start time. Delay
a cycle for up to 24 hours in one-hour increments. After
setting the delay time, press the Start/Pause button to start.
3Half-load
For small loads, you may use just the upper or lower rack to
save energy. Each press of the Half Load button cycles
between upper rack only and lower rack only.
When pressing this button, corresponding indicator will be lit.
4Child lock
This option allows you to lock the buttons on the control
panel - except the On/Off button - so children cannot
accidently start the dishwasher by pressing the buttons on
the panel. To lock or unlock the buttons on the control panel,
press and hold the Alt button+ Delay button for 3 seconds
simultaneously. When pressing this button, corresponding
indicator will be lit.
Upper spray arm
Cup rack
Intensive
Normal
ECO
Glass
90 Min
Rapid
Soak
Programs
Start/Pause

8
5Program
Select the appropriate washing program, the selected
program indicator will be lit.
6Start / Pause
To start the selected washing program or pause it when the
dishwasher is working.
Display
7Screen
To show the reminding time, delay time, error code etc.
8Warning indicator
Rinse Aid
If the “ ” indicator is lit, it means the dishwasher is low on
dishwasher rinse aid and requires a refill.
Program End
When the program is end, the indicator will be lit.
Water Faucet
If the “ ” indicator is lit, it means the water faucet closed
9Program indicator
Intensive
Heavily soiled items include pots and pans. With dried on food.
Normal
For normally soiled loads, such as pots, plates, glasses and
lightly soiled pans.
ECO
This is the standard program suitable for normally soiled loads,
such as pots, plates, glasses and lightly soiled pans.
Glass
For lightly soiled crockery and glass.
90 Min
For normally soiled loads that need quick wash.
Rapid
A shorter wash for lightly soiled loads that do not need drying.
Soak
To rinse dishes that you plan to wash later that day.

9
WARNING
Electrical Shock Hazard
Disconnect electrical power before installing dishwasher. Failure to do so
could result in death or electrical shock.
Attention
The installation of the pipes and electrical equipment’s should be done by
professionals.
About Power Connection
WARNING
For personal safety:
• Do not use an extension cord or an adapter plug with this appliance.
• Do not, under any circumstances, cut or remove the earthing connection from the
power cord.
Electrical requirements
Pay attention to the rating label to know the rating voltage and connect the dishwasher to
the appropriate power supply. Use the required fuse 10A/13A/16A, time delay fuse or circuit
breaker recommended and provide separate circuit serving only this appliance.
Electrical connection
Ensure the voltage and frequency of the power supply corresponds to those on the rating
plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical
socket to which the appliance must be connected is not appropriate for the plug, replace
the socket, rather than using an adaptor or the like as they could cause overheating and
burns.
Ensure that proper earthing exists before use
INSTALLATION

10
Water Supply and Drain
Cold Water Connection
Connect the cold-water supply hose to a threaded 3/4-inch connector and ensure that it is
fastened tightly in place.
If the water pipes are new or have not been used for an extended period, let the water run to
make sure that the water is clear. This precaution is needed to avoid the risk of the water
inlet blocking and damaging the appliance.

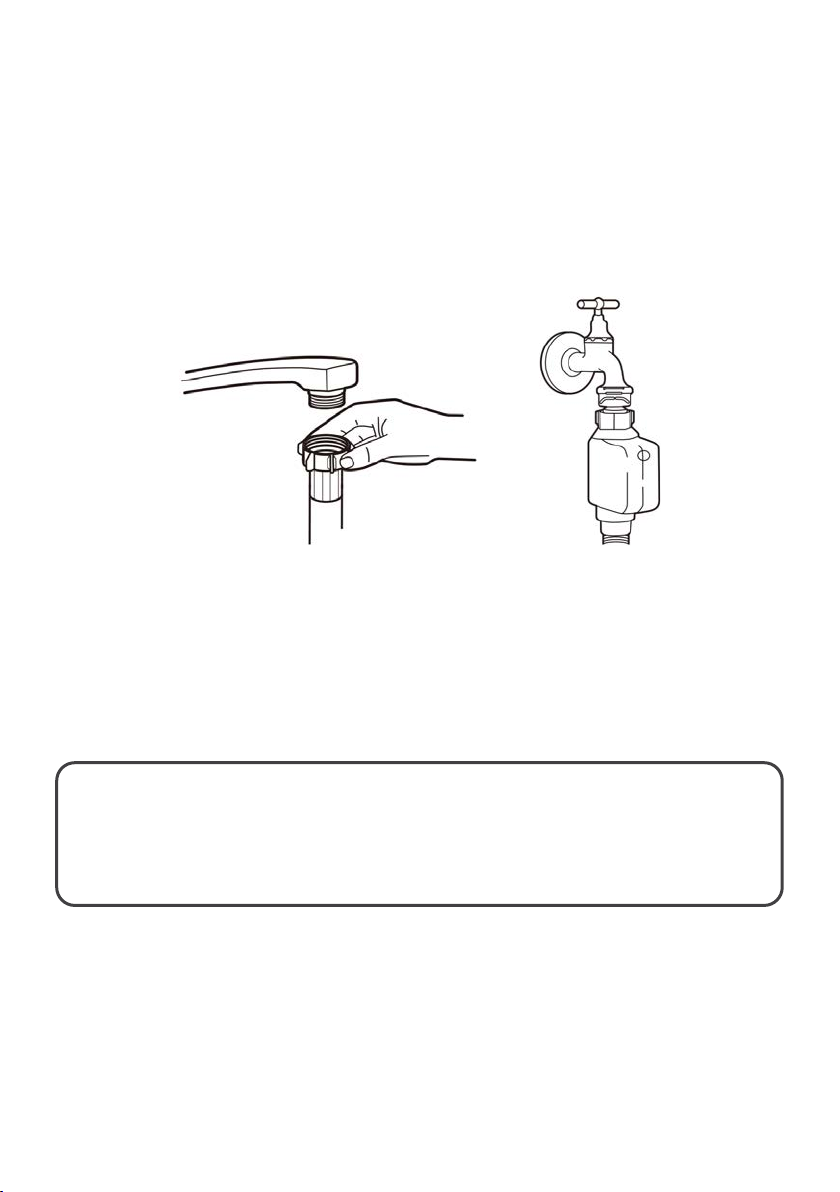

Ordinary supply hose Safety supply hose
About the Safety Supply Hose
The safety supply hose consists of the double walls. The hose's system guarantees its
intervention by blocking the flow of water in case of the supply hose breaking and when the
air space between the supply hose itself and the outer corrugated hose is full of water.
WARNING: A hose that attaches to a sink spray can burst if it is
installed on the same water line as the dishwasher. If your sink has
one, it is recommended that the hose be disconnected and the hole
plugged.

11
How to Connect the Safety Supply Hose
1. Pull the safety supply hoses completely out from storage compartment located at
rear of dishwasher.
2. Tighten the screws of the safety supply hose to the faucet with 3/4-inch thread.
3. Ensure the water is on before starting the dishwasher.
How to Disconnect the Safety Supply Hose
1. Turn off the water.
2. Unscrew the safety supply hose from the faucet.
Connection of Drain Hoses

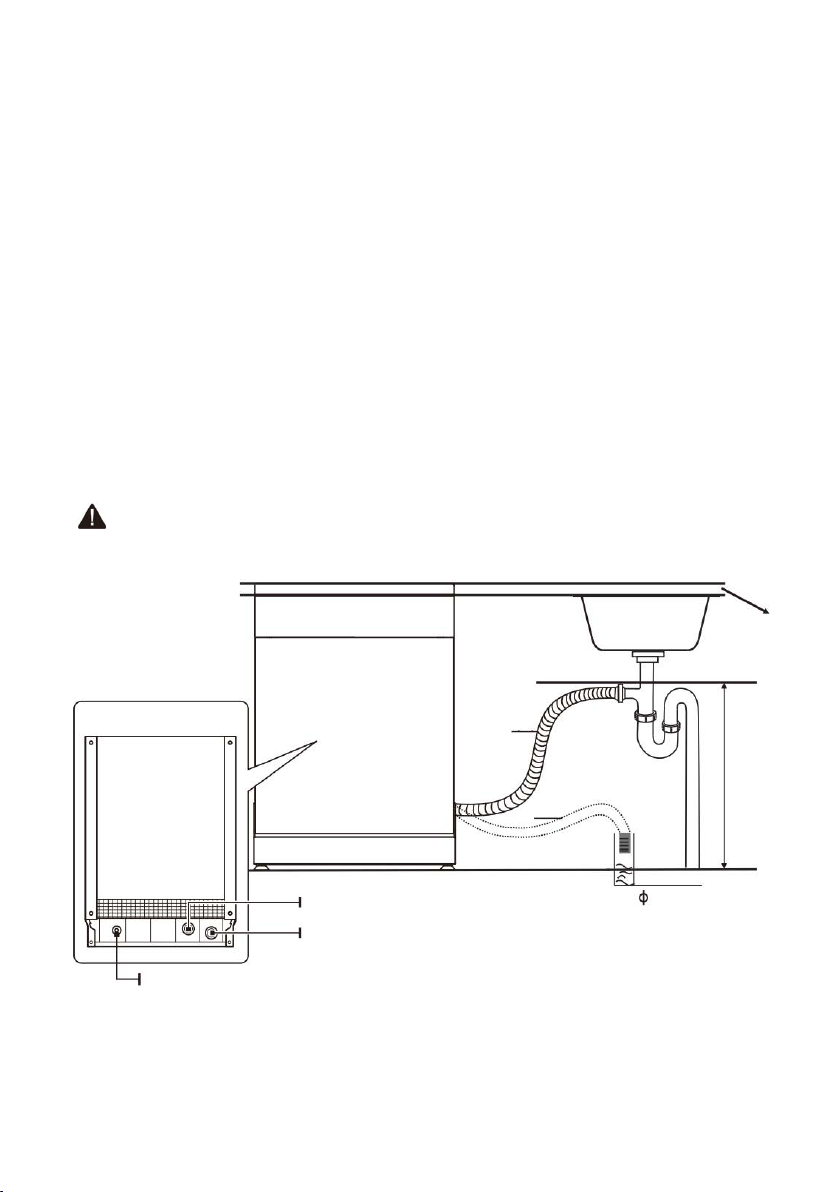

Insert the drain hose into a drainpipe with a minimum diameter of 4cm or let it run into the
sink, making sure to avoid bending or crimping it. The height of drainpipe must be less than
1000mm. The free end of the hose must not be immersed in water to avoid the back flow of
it.
Securely attach the drain hose in either position A or position B
Back of dishwasher
Water Inlet
Drainpipe
Mains Cable
Drain hose
Counter
MAX 1000mm
40 mm
A
B

12
How to Drain Excess Water from Hoses
If the sink is 1000mm higher from the floor, the excess water in the hoses cannot be drained
directly into the sink. It will be necessary to drain excess water from hoses into a bowl or
suitable container that is external and lower than the sink.
Water Outlet
Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks.
Ensure that the water drain hose is not kinked or squashed.
Extension Hose
If you need a drain hose extension, ensure to use a similar drain hose. It must be no longer
than 4m; otherwise, the cleaning effect of the dishwasher may be impacted.
Syphon Connection
The waste connection must be at a height less than 1000mm (maximum) from the bottom
of the dishwasher. The water drain hose should be fixed.
Position the Appliance
Position the appliance in the desired location. The back should rest against the wall behind
it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with a
water supply and drain hoses that can be positioned either to the right or the left sides to
facilitate proper installation.
Levelling the Appliance
Once the appliance is positioned, the height of the dishwasher may be adjusted rotating
feet. Ensure the appliance is not inclined more than 2°.

13
Free Standing Installation
Fitting between existing cabinets
The height of the dishwasher (845 mm) has been
designed to allow the machine to be fitted between
existing cabinets of the same height. The feet can be
adjusted so that correct height is reached.
The laminated top of the machine does not require
any particular care since it is heatproof, scratchproof
and stainproof.
Underneath existing work top
In most kitchens, there is only one single work top under which cabinets and electrical
appliances are fitted. In this case remove the top of the dishwasher by unscrewing the
screws under the rear edge of the top (a).
The height can then be reduced to 815 mm, as scheduled by the International Regulations
(ISO) and the dishwasher will fit perfectly under the kitchen bench top.
Attention

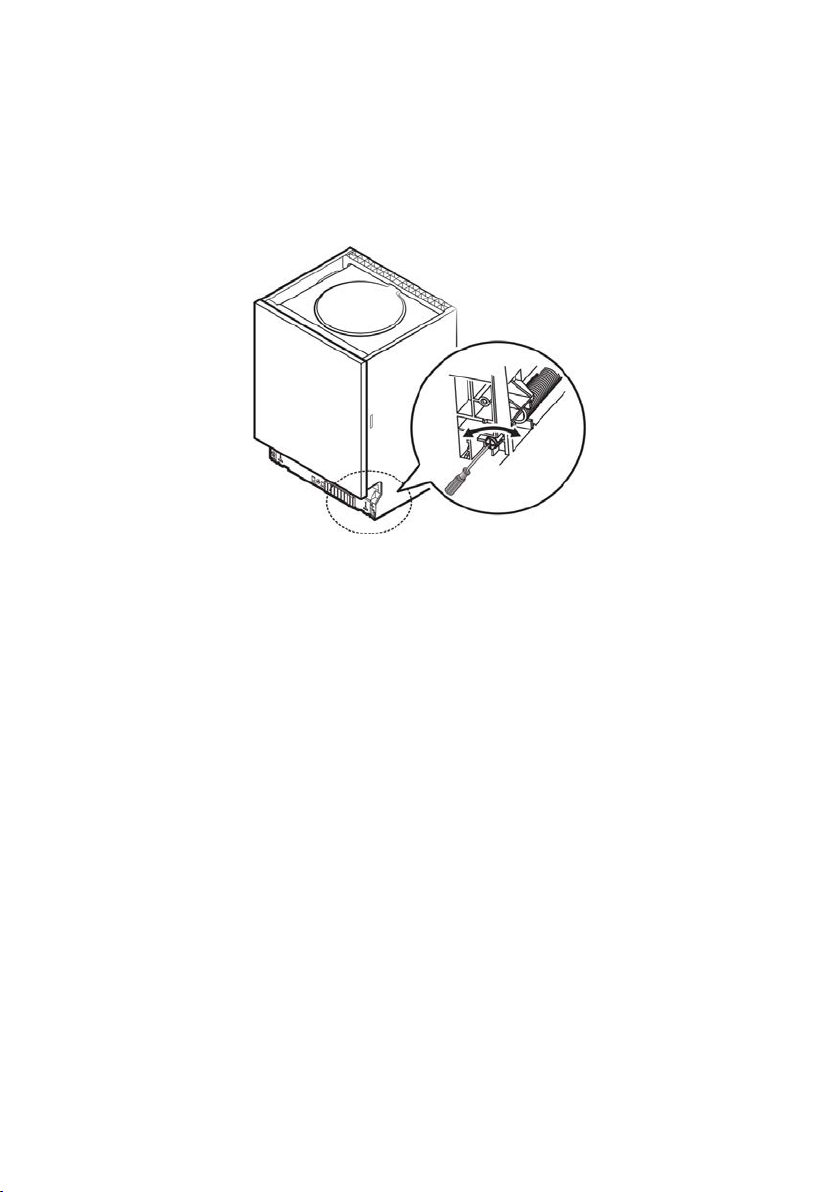

After removing the top, the screws must be screwed again under the rear edge of the top
(b).

14
Built-in Installation (for the integrated model)
Step 1: Selecting the best location for the dishwasher.
The installation position of dishwasher should be near the existing inlet and drain hoses and
power cord.
1. Ensure there is a gap of no more than 5mm between the top surface of the dishwasher
and the underside of the kitchen cabinet.
2. If dishwasher is installed at the corner of the cabinet, there must be adequate space to
allow the door to open.
Electrical, drain
and water supply
line entrances
Space between cabinet
bottom and dishwasher
floor
600mm (for 60cm model)
450mm (for 45cm model)
90°
580mm
820mm
90°
80
100
Minimum space of 50mm
Cabinet
Dishwasher
Door of
dishwasher
Note:
Depending on where your electrical outlet is, you may need to cut a hole in the
opposite cabinet side.

15
Step 2: Aesthetic panel installation.
This integration method ensures that the wooden panel aligns with the surrounding
cabinets, creating an appealing and seamless appearance while maintaining efficient
dishwasher operation.
Semi-integrated model:
(A) Apply adhesive tape to the wooden panel, and then attach the felted side of the
adhesive tape to the outer door of the dishwasher.
(B) Once the wooden panel is correctly positioned, securely fasten it to the
dishwasher's outer door using screws and bolts.
A B
Fully-integrated model:
(A) Install the handle onto the wooden panel and attach the back of the hook into the
slots in the outer door of the dishwasher.
(B) After positioning the panel, attach the panel onto the outer door using the screws
and bolts.
A B
Adhesive tape
Adhesive tape
Remove the 4 short screws
Attach the 4 long screws
Remove the 4 short screws
Attach the 4 long screws

16
Step 3: Tension adjustment of the door spring
1. The door springs are set from the factory to the proper tension for the outer door. If
wooden panels are installed, you will have to adjust the door spring tension. Rotate
the adjusting screw to drive the adjustor to strain or relax the steel cable.
2. Door spring tension is correct when the door remains horizontal in the fully opened
position yet rises to a close with the slight lift of a finger.
Step 4: Dishwasher installation steps
1. Attach the condensation strip under the work surface of cabinet. Please ensure the
condensation strip is flush with edge of work surface.
2. Connect the inlet hose to the cold-water supply.
3. Connect the drain hose.
4. Connect the power cord.
5. Place the dishwasher into position.
6. Level the dishwasher. The rear foot can be adjusted from the front of the
dishwasher by turning the Philips screw in the middle of the base of the dishwasher.
To adjust the front feet, use a flat blade screwdriver and turn the front feet until the
dishwasher is level.
7. Install the wooden panel to the outer door of the dishwasher.
8. Adjust the tension of the door springs by using an Allen key turning in a clockwise
motion to tighten the left and right door springs. Note: Failure to do this could
cause damage to your dishwasher.
9. The dishwasher must be secured in place. There are two ways to do this:
A. Wooden benchtop:Place the installation hook into the slot in the side panel
and secure it to the work surface using wood screws.
B. Marble or granite benchtop: Fix the side using screws.

17
Step 5: Levelling the dishwasher.
The dishwasher must be level for proper dish rack operation and wash performance.
1. Place a spirit level on the door and rack track inside the dishwasher to ensure the
dishwasher is level.
2. If necessary, level the dishwasher by adjusting the 3 levelling legs individually.
3. When levelling the dishwasher, pay attention to avoid letting the dishwasher tip
over.
Check level front to back
Check level side to side
Note:
The maximum adjustment height of the feet is 50 mm.

18
Loading The Baskets
Upper basket:
Lower basket:
Number
Items
1
Cups
2
Saucers
3
Glasses
Number
Items
4
Dinner plates
5
Soup plates
6
Dessert dishes
2

19

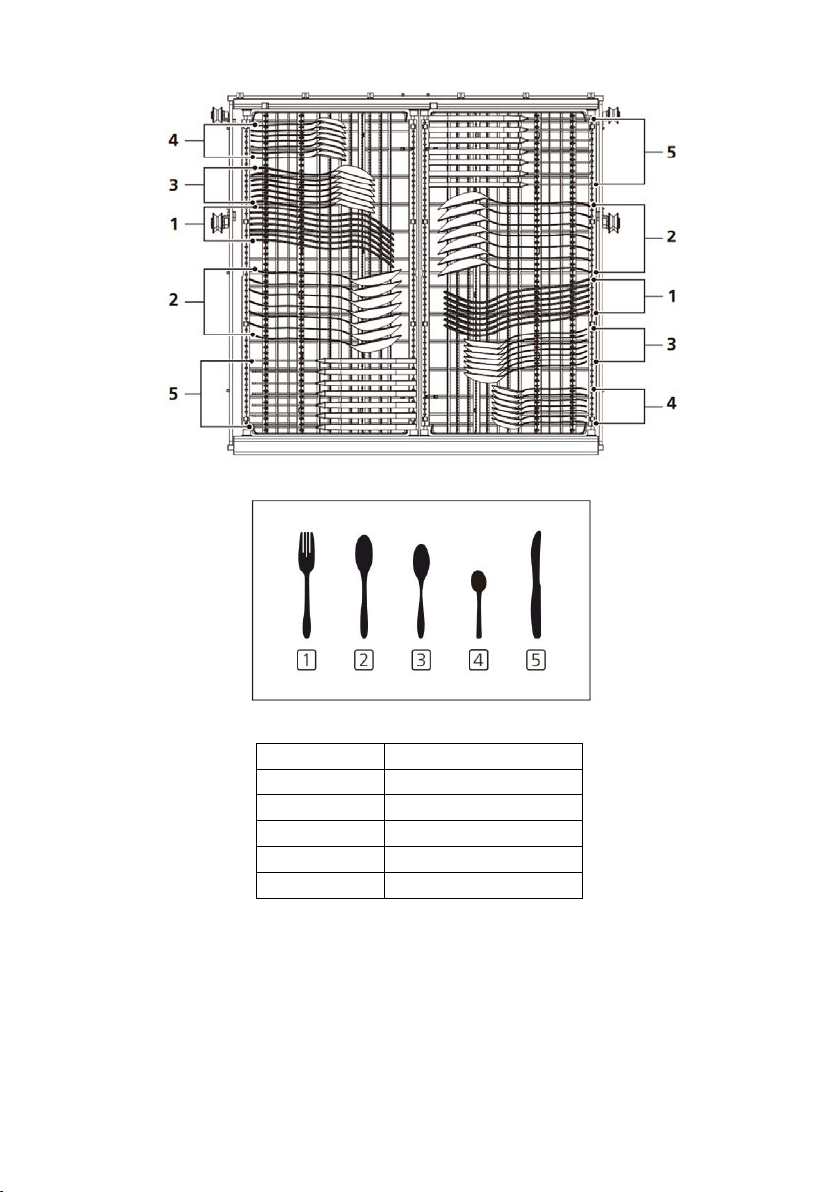

Cutlery tray:
Number
Items
1
Forks
2
Soup spoons
3
Dessert spoons
4
Teaspoons
5
Knives

20

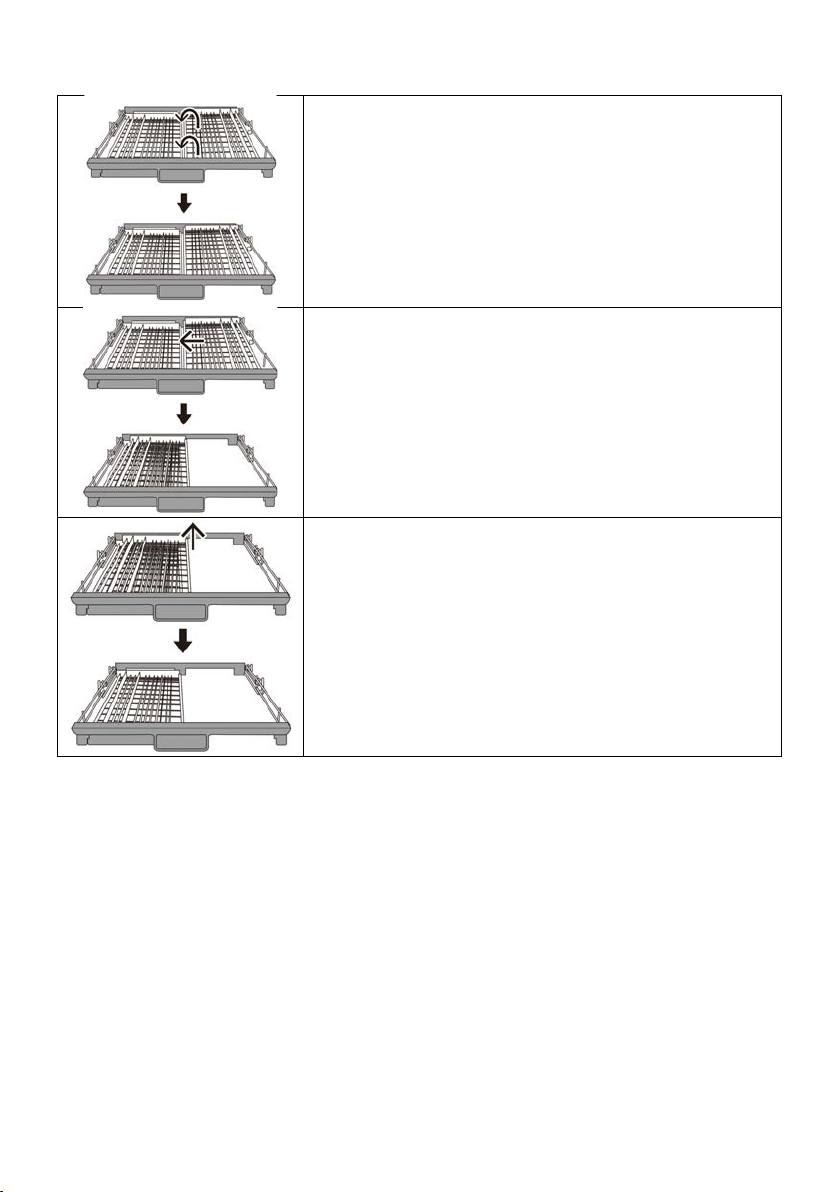

Adjusting Cutlery Tray
Lift the right rack up. Both racks are flat.
Move the right rack from right to left. The two racks are
overlapping.
Remove the right rack from the cutlery tray, leaving only
the left rack.
