Safety & Warnings 3
Overview 7
Installation 8
Operation 14
Functions 20
Cleaning & Care 22
Specifications 26
Troubleshooting 27
ISO 7010 W021: Risk of fire/ flammable materials
•Oil-affected items can ignite spontaneously, especially when exposed to
heat sources such as in a tumble dryer. The items become warm, causing
an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot
escape, the items can become hot enough to catch fire. Piling, stacking
or storing oil-affected items can prevent heat from escaping and so
create a fire hazard.
•If it is unavoidable that fabrics that contain vegetable or cooking oil or
have been contaminated by hair care products be placed in a tumble
dryer they should first be washed in hot water with extra detergent –this
will reduce, but not eliminate, the hazard.

3
IMPORTANT – TO BE READ AND OBSERVED
Read carefully and keep for future reference.
Before using the appliance, read these safety instructions. Keep them nearby for future
reference. These instructions and the appliance itself provide important safety warnings, to
be observed at all times. The manufacturer declines any liability for failure to observe these
safety instructions, for inappropriate use of the appliance or incorrect setting of controls.
Very young children (0-3 years) should be kept away from the appliance. Young
children (3-8 years) should be kept away from the appliance unless continuously
supervised. Children from 8 years old and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge can
use this appliance only if they are supervised or have been given instructions on
safe use and understand the hazards involved. Children must not play with the
appliance. Cleaning and user maintenance must not be carried out by children
without supervision. Never open the door forcibly or use it as a step.
Always follow basic safety precautions and accident prevention measures when using
an electrical appliance, including the following:
Warning This heading indicates that there is a serious risk of injury if you do not
adhere to the warning(s).
Caution This heading indicates that care should be taken to avoid injury to
persons or damage to property.
Permitted Use
•CAUTION: The appliance is not intended to be operated by means of an external
switching device, such as a timer, or separate remote controlled system.
•This appliance is intended to be used in household and similar applications such as:
staff kitchen areas in shops, offices and other working environments; farm houses; by
clients in hotels, motels, bed & breakfast and other residential environments.
•The appliance has a washing & spinning capacity (max. weight of dry wash load) of 9kg
and drying capacity of 6kg.
•This appliance is not for professional use. Do not use the appliance outdoors.
•Do not use any solvents (e.g. turpentine, benzene), detergents containing solvents,
scouring powder, glass or general purpose cleaners, or flammable fluids; do not
machine wash fabrics that have been treated with solvents or flammable liquids.
SAFETY & WARNINGS

4
•That the tumble dryer is not to be used if industrial chemicals have been used for
cleaning.
•That the lint trap must be cleaned frequently, if applicable.
•That lint must not to be allowed to accumulate around the tumble dryer.
•Do not dry unwashed items in the tumble dryer.
Installation
•The appliance must be handled and installed by two or more persons – risk of injury.
Use protective gloves to unpack and install-risk of cuts.
•Move the appliance without lifting it by the worktop or top lid.
•Installation, including water supply (if any) and electrical connections and repairs must
be carried out by a qualified technician. Do not repair or replace any part of the
appliance unless specifically stated in the user manual. Keep children away from the
installation site. After unpacking the appliance, make sure that it has not been
damaged during transport. In the event of problems, contact help.kogan.com for
support assistance. Once installed, packaging waste (plastic, styrofoam parts etc.)
must be stored out of reach of children – risk of suffocation. The appliance must be
disconnected from the power supply before any installation operation – risk of electric
shock. During installation, make sure the appliance does not damage the power cable
– risk of fire or electric shock. Only activate the appliance when the installation has
been completed.
•Do not install your appliance where it may be exposed to extreme conditions, such as:
poor ventilation, temperatures below 5 °C or above 35 °C.
•When installing the appliance make sure that the four feet are stable and resting on
the floor, adjusting them as required, and check that the appliance is perfectly to level
using a spirit level.
•If the appliance is being installed on wood or "floating" floors (certain parquet and
laminate materials), secure a 60 x 60 x 3 cm (at least) sheet of plywood to the floor
then place the appliance on top of this.
•Connect the water inlet hose(s) to the water supply in accordance with the regulations
of your local water company.
•For cold fill only models: Do not connect to the hot water supply.
•For models with hot fill: The hot water inlet temperature must not exceed 60 °C.
•The washing machine is fitted with transport bolts to prevent any possible damage to
the interior during transport. Before using the machine, it is imperative that the
transport bolts are removed. After their removal, cover the openings with the 4
enclosed plastic caps.
•After installation of the device, wait a few hours before starting it so that it acclimates
to the environmental conditions of the room.
•Make sure that the ventilation openings in the base of your washing machine (if
applicable to your model) are not obstructed by a carpet or other material.

5
•Use only new hoses to connect the appliance to the water supply. The old hose-sets
should not be reused.
•The supply water pressure must be in the 0.03-1 MPa range.
Electrical Warnings
•It must be possible to disconnect the appliance from the power supply by unplugging it
if plug is accessible, or by a multi-pole switch installed upstream of the socket in
accordance with the wiring rules and the appliance must be earthed in conformity with
national electrical safety standards.
•Do not use extension leads, multiple sockets or adapters. The electrical components
must not be accessible to the user after installation. Do not use the appliance when
you are wet or barefoot. Do not operate this appliance if it has a damaged power cable
or plug, if it is not working properly, or if it has been damaged or dropped.
•If the supply cord is damaged, cease use immediately and contact help.Kogan.com for
replacement in order to avoid a hazard – risk of electric shock.
•Do not damage the power cable. Do not damage, alter, forcibly bend, pull, twist or
mishandle the cable. Do not place heavy items on the cable or plug.
Matters Requiring Attention
•Items that have been soiled with substances such as cooking oil, acetone, alcohol,
petrol, kerosene, spot removers, turpentine, waxes and wax removers should be
washed in hot water with an extra amount of detergent before being dried in the
tumble dryer.
•Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber
backed articles and clothes or pillows fitted with foam rubber pads should not be dried
in the tumble dryer.
•Fabric softeners, or similar products, should be used as specified by the fabric softener
instructions.
•Remove all objects from pockets such as lighters and matches.
•WARNING: Never stop a tumble dryer before the end of the drying cycle unless all
items are quickly removed and spread out so that the heat is dissipated.
•WARNING: The appliance must not be supplied through an external switching device,
such as a timer, or connected to a circuit that is regularly switched on and off by a
utility.
•For appliances with ventilation openings in the base, instructions that a carpet must
not obstruct the openings.
•Exhaust air must not be discharged into a flue which is used for exhausting fumes from
appliances burning gas or other fuels.
•The appliance must not be installed behind a lockable door, a sliding door or a door
with a hinge on the opposite side to that of the tumble dryer, in such a way that a full
opening of the tumble dryer door is restricted.

6
Disposal of Packaging Materials
•The packaging material is 100% recyclable and is marked with the recycle symbol:
•The various parts of the packaging must therefore be disposed of responsibly and in full
compliance with local authority regulations governing waste disposal.
Disposal of Household Appliances
•This appliance is manufactured with recyclable or reusable materials. Dispose of it in
accordance with local waste disposal regulations. For further information on the
treatment, recovery and recycling of household electrical appliances, contact your
local authority, the collection service for household waste or the store where you
purchased the appliance. By ensuring this product is disposed of correctly, you will help
prevent negative consequences for the environment and human health.
•The symbol on the product or on the accompanying documentation indicates that
it should not be treated as domestic waste but must be taken to an appropriate
collection centre for the recycling of electrical and electronic equipment.

7

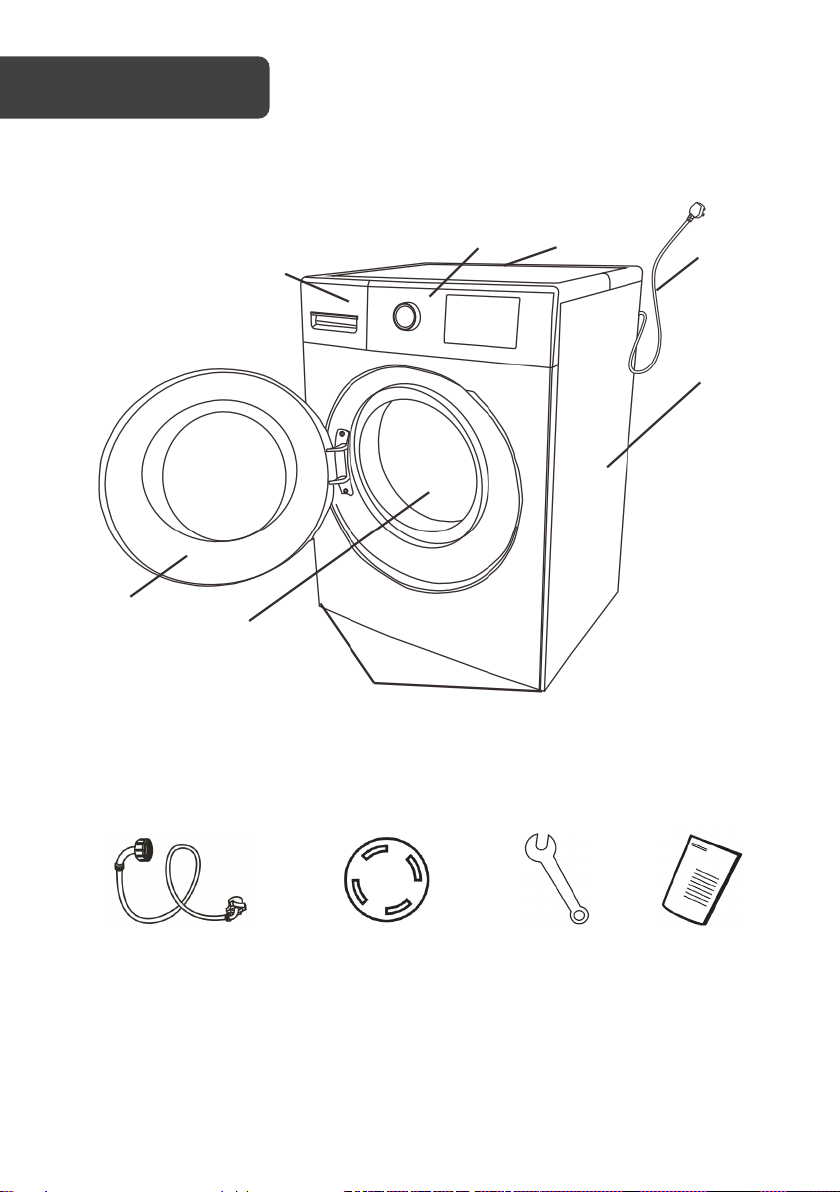

Additional Components
Water Supply Hose
Caps (x4)
Spanner
User Guide
OVERVIEW
Power cord
Frame
Detergent
compartment
Control
panel
Water
inlet valve
Washer door
Wash/Spin tub
Adjustable leg

8

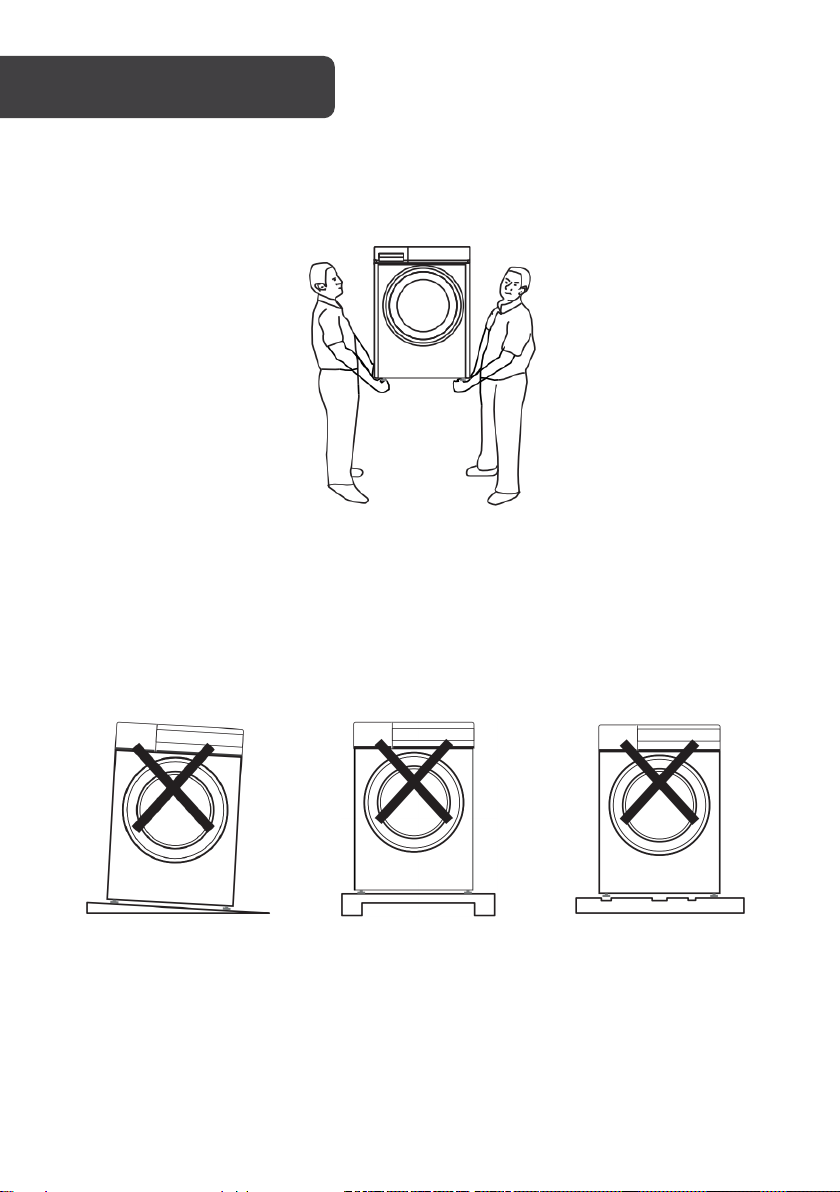

Transportation
Two people are needed to carry the machine. One person on one side carries the machine
by holding the machine feet.
Washing machine must be installed on the ground which must be hard, flat and skidproof.
Please do not lay the washing machine on the soft blanket or wooden floor. It is forbidden to
lay the washing machine on the platform or the bracket.
Positioning of washer
1. On the Sloping ground 2. On the platform and the
bracket
3. On the concavo-
convex ground
INSTALLATION

9
Remove the transit bolts

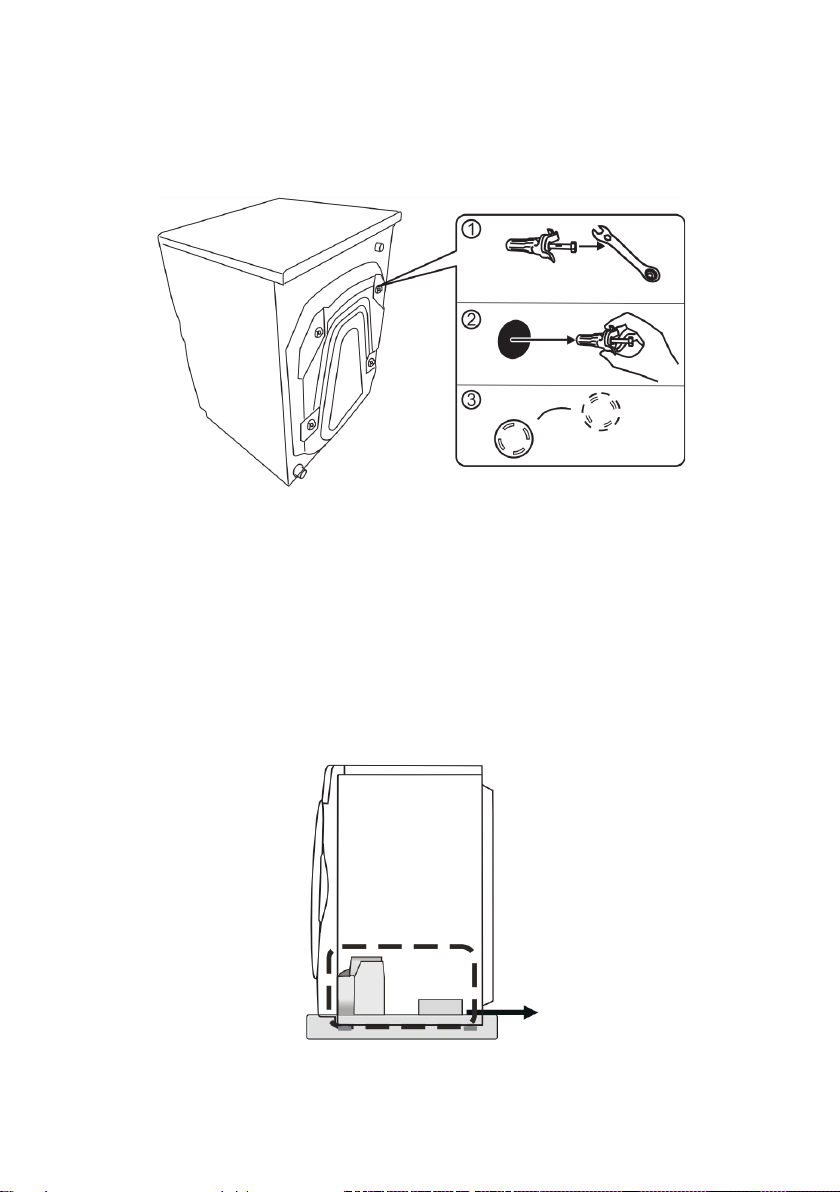

To protect the machine in transportation, there are 4 bolts inserted into the inner part of the
machine. Remove these bolts before use. Otherwise, there will be strong shock, noise and
disfunction in spin process.
1. Unscrew the transit bolts by spanner (4 bolts)
2. Remove the bolts horizontally.
3. Fit the x4 caps over the holes.
•Keep the dismounted bolts carefully, you will need them in house moving.
•As the picture shows, please be sure to confirm that the base protection device is not
stuck at the bottom of the washing machine before use, otherwise it will affect the
normal use of washing machine.
Base protection Device

10
Adjust the machine horizontally
There will be strong shock, noise and disfunction in operation if the washing machine is not
steadily installed. Adjust the front leg height.

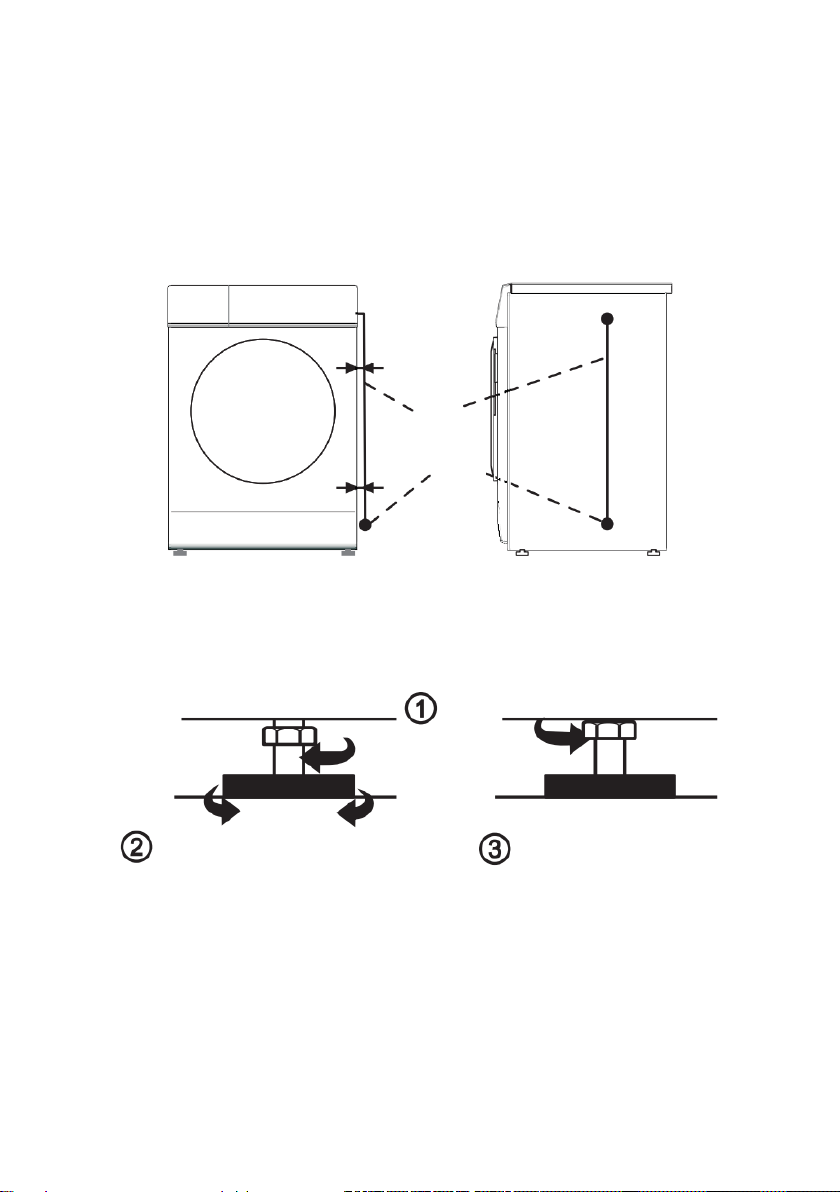

1. Check whether the washer is on a level surface using a plumb line as shown in the
beside figure.
•The washer is on level ground floor if the Frame line of washer is parallel with the
plumb line.
2. Adjust the Adjustable Leg of washer if necessary, to make the washer level as shown
in the below image.
Opening
Plumb
line
Plumb
Fundus Fundus
Loosen
Tighten
Down Up Screw on the Lock nut by
wrench
Opening

11
3. Put your hands on the washer diagonally, press and shake the washer slightly to make
sure that the washer is steady.

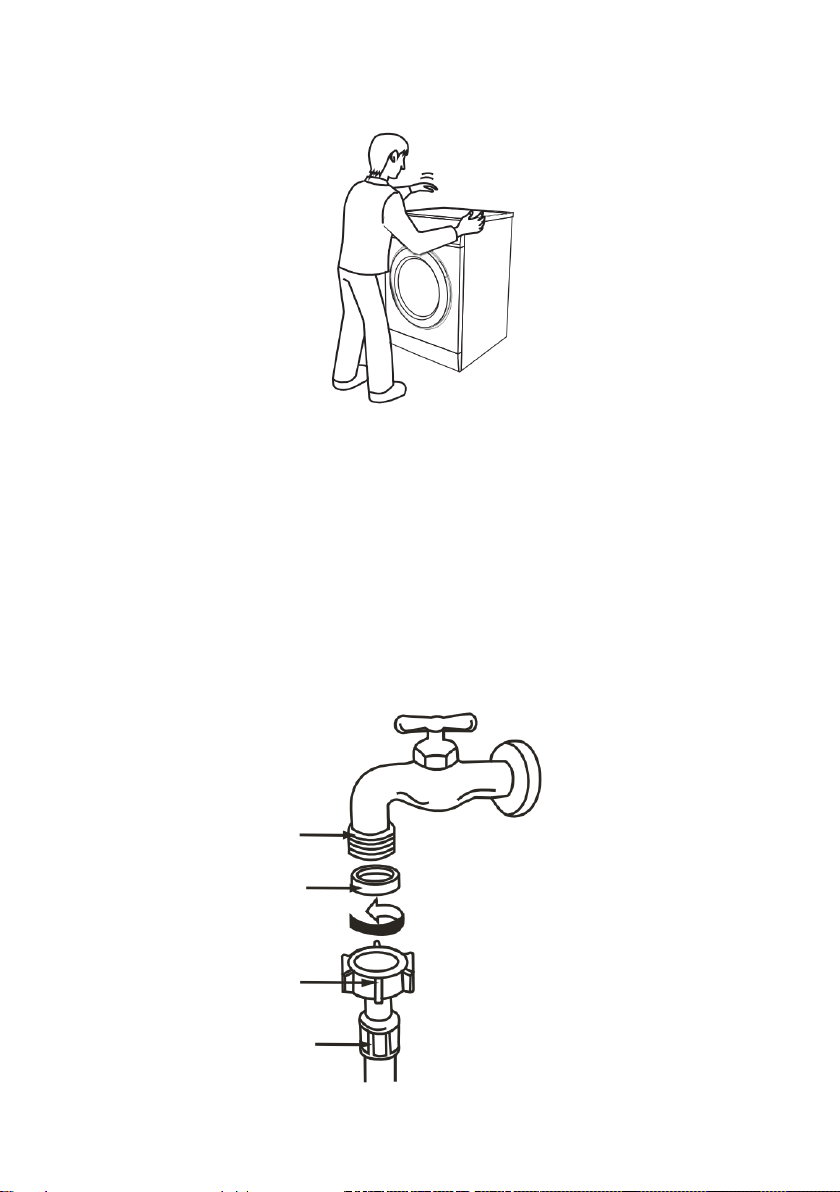

Connecting the Supply Hose
1. Check that sealing washers are firmly seated.
2. Attach the curved end of the hose to the inlet valve of the washing machine,
Tighten the coupling nuts securely by hand.
3. Attach straight end of the hose to the tap. Tighten the coupling nuts securely by
hand.
4. Turn on the taps and check for leaks. Tighten the coupling nuts firmly if there is
any leakage. If water pressure is strong, close the water tap completely then open
it slightly.
Tap
Tap End
Twist
Sealing Washer
Inlet Hose

12

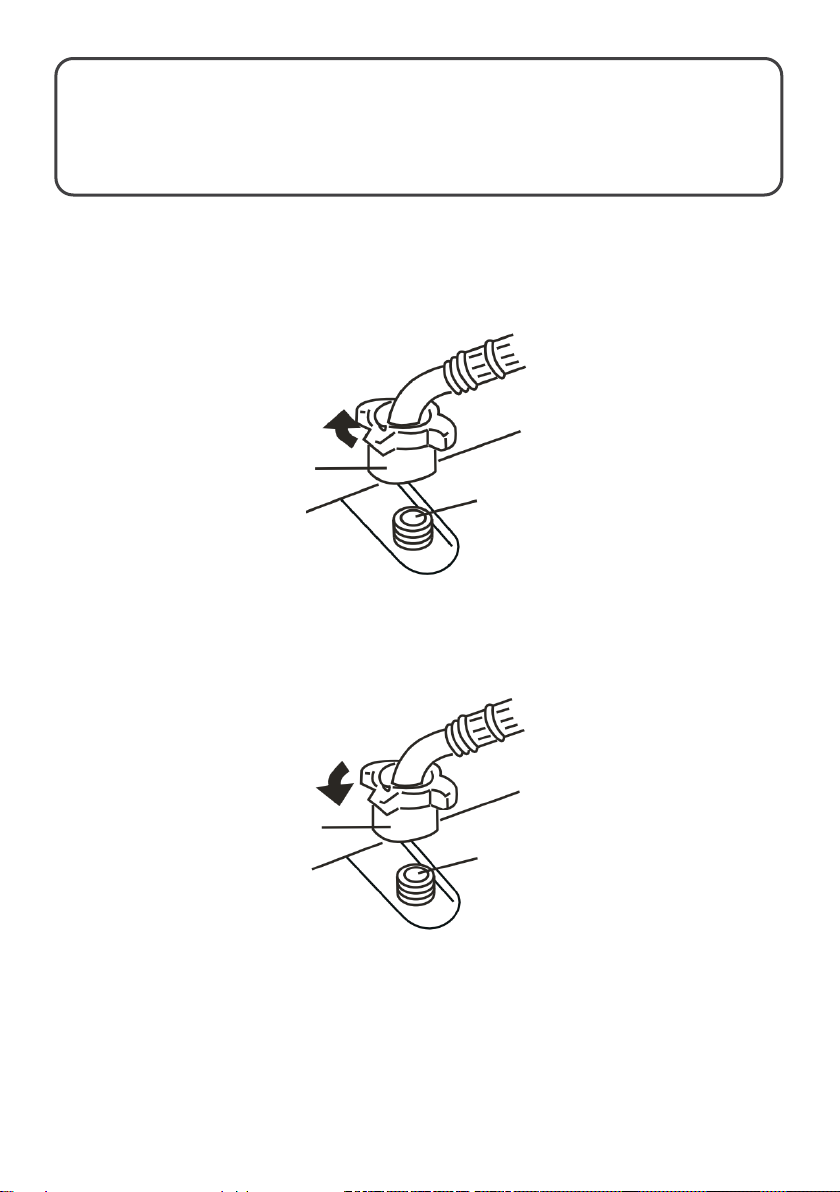

Installing Water Supply Hose to the Washer
Turn the nut clockwise till the nut turned tight while holding the hose.
Turn the nut counterclockwise after turning the faucet off when you want to detach the
water supply hose.
Nut Hose
Nut Hose
CAUTIONS:
•Do not use water which is hotter than 50°C.
•If your faucet is not suitable, please consult your dealer.

13
Connection of Drain Hose
1. When washing machine does not work, put drain hose at back of washing
machine. (As pie 1 shows)
2. When washing machine works, put drain hose into drainage pond (as pie 2 shows),
you can also put end of drain hose into sewer and keep space between end of
drain hose and sewer elbow to avoid difficult to drain water out of washing
machine.
3. Clean filter in pump periodically to keep washing machine working normally,
Drain
hose
Drain hose stay
Drain hose
1200mm
Note:
Do not take off drain hose stay, if not, it will lead to drainage problems.

14
Ensure transit bolts have been removed prior to use.
Attention
•It is recommended to run the tub clean program before the first time washing.
•Don't forget to close the water tap and take down the power plug to avoid any flood
and fire disaster.
Lock and Unlock Method
Door Lock
When the machine is working, the door locks automatically. It can’t be opened.
Unlock
When the machine is working, the user presses the “START/STOP” button. The door can be
unlocked after inner tube stopping spin.
•If take down the power plug directly or power cut when the machine is running, the
door can't be unlocked automatically.
•If open the door when the machine is working, the froth may exceed and please clean it
with towel.
•The user can't open the door when the machine is running with a high working
temperature.
•The user can't open the door when the water temperature is high.
OPERATION

15
Introduction to each section of Detergent Compartment
•High bubble washer powder or detergents is forbidden.
•Use the detergents in accordance with the instruction by its manufacturer.
•Excessive detergents will cause too much bubble and affect the rinse, also create
function faults.
•Choose suitable detergents in accordance with the type and colour of clothes, the
water temperature and the stain.
Powder synthetic detergents
Liquid detergent & bleach
For the undissolved detergents, for
example: powder state soap, dissolve
it in advance, then pour into the
compartment.
Use low bubble liquid synthetic
detergents.
For the concentrated liquid detergents,
diluted it, then pour it into the
compartment.
Softener
Put into the section before washing, it
will be poured into tub automatically
at the last round of rinse.
For the concentrated detergents, use
corresponding proportion of water to
dilute it, then pour it into the
compartment. No exceed to the full
mark line.
Liquid detergents
Detergents can be poured in this section
to ensure the wash performance when
QUICK DUTY Program is chosen.

16
Control Panel
Start/Stop
•Press the button for a start and press again for a stop
Power knob
•It is for open or close the power. When the program is finished, machine will
turn off automatically.
Dry button
•Set the drying type and drying duration as needed
•Press this button to lighten the dry icon and select the dry program.
Display window introduction
•When power on, it will display the spin speed and others.
•When running, it will display the rest time.
•When breakdown, it will display the error code.
Temp button
•Set the washing temperature according to the clothes type.
•The temperature setting range is different among programs. Some of them have range
limitations.
•Hold for 3 seconds to set child lock function.
Display
Button
Knob

17
Speed button
•Set the spin speed according to user's requirement.
•Some programs have the limitation on setting the spin speed.
Delay button
•It is for washing reservation function to set time from beginning to finish.
Soak button
•Set the soak time as needed.
•Settings of the soak time are limited in some programs.
DIY wash
•A complete washing process, you can easily select multi-file laundry
time, easy to operate.
•Part of the program's DIY wash function is limited.
Stainwash button
•Used to set the stainwash type
Air wash button
•Used to set air wash function, hot air refresh.

18
Program Introduction
Cotton Eco
Recommended for a normally soiled cotton load at rated capacity
Cotton
Wash cotton clothes only
Mix Wash
Mixed wash of cotton and synthetics clothes
Jeans
Wash jeans and heavy denim clothing
Wool
Wash wool clothes that are machine washable
Synthetic
Wash clothing with synthetic fibres
Winter clothes
Wash down jackets which are machine washable
Quick wash
Wash a small amount of light dirty clothes
Colours
Wash clothes with dark or light colour. Always wash dark and light-
coloured loads separately.
Underwear
Wash underwear and delicates
Shirt
Wash dress and business shirts
Kids Wear
Wash children’s clothing
Rinse + spin
For clothes which only require rinse and spin
Spin
For clothes which only require a spin
Drum clean
For cleaning the machine’s drum. Do not run this cycle with clothes in
the drum.
Dry
Used to dry clothes
User instruction for the normal clothes
Method
1. Preparation
•Put the clothes in and close the door.
•Put the detergent or washing powder into the detergent compartment.
•Switch on the water tap, put the drainpipe, plug the power supply.

19
2. Open the power
3. Choose the suitable program
4. Choose the suitable button
5. Press the "Start/Stop" button.
6. When finishing washing, the buzzer will sound.
Wool program
Method
•Open the power and choose the wool program
Attention
•Confirm the washing mark on the clothes before washing.
•When finishing wash, take the clothes out immediately for airing in order to
avoid clothes deformation.
•The temperature cannot be set higher than 40 degrees (°C) to avoid damaging
the clothing.
•Using wool detergent can improve the washing performance.
•Separate washing load for light colour clothes and dark colour clothes.
Delay wash
Method
•With the power on (turn the knob), choose the suitable program and buttons
according to user's requirement.
•Press the delay button to setting the finishing time. Press the start/stop button
to start-up the delay wash function.
•Delay time has every one-hour interval and maximum is 24 hours.
Attention
•If you need to change the scheduled time, turn the power knob and set again.
•After scheduling, user can cancel it by turning the power button.
•When confirm the delay wash, please press the delay button. The setting time
will display for 5 seconds.
•Reservation time is different in the different condition. It depends on water
pressure, drain, clothes type, water temperature.

20
Add-Up Function
Used this function to add washing when machine is running.
Method
Press "Start/Stop" button till the clock light off. Door lock is released. Please add
washing and close the door, press the "Start/stop" button to continue to wash.
•Please don't forcibly open the door, it will cause damage to parts and unsafe
issue.
•when there is a lot of foam or water in the drum, please use a dry towel to
prevent foam and water from spilling out after opening the door.
Child Protection Function
If the door is opened again before program running, the machine will start the child
protection function automatically when working.
•Firstly, the door will be locked and motor will be running for a while.
•Following this, the door will be unlocked for a while until working again. If during
the waiting time the door is opened, the machine will be stopped.
Cancel the buzzer
There is no buzzer when program finishing working.
Set/Cancel Method
With the power on (turn the knob), press "Start/Pause" button till buzzer sound. When
release the button, "Cancel the buzzer" function is finished setting. If repeat this action,
the setting will be cancelled.
Child Lock Function
User can set child lock function in order to avoid child operate the machine when it is
working. So, the door can't be opened and the button except power button can't be
handled. When cancel this function, door can be opened again.
Set/Cancel Method
With the power on (turn the knob), press "Temp" button for 3 seconds until the buzzer
sounds. The child lock function is finished to set. If repeat this action, the child lock
function will be cancelled.
FUNCTIONS
