Kole Audio PH1-2000D User manual

PH4-800 / PH4-1000 / PH4-1400
PH1-2000D / PH1-4000D / PH1-5500D
PH2-700 / PH2-1000 / PH2-1500 / PH2-2000 / PH2-2400
OWNERS MANUAL

- 2 -
INTRODUCTION
Kole Audio amplifiers provide high-performance sound reinforcement for your mobile
audio equipment. Its versatility enables compatibility with optional Equalizers,
Frequency Dividing Crossover Networks, and other audio processors in a customized
system. The Multi-Mode bridging capabilities allow flexibility in hosting several different
speaker configurations.
To achieve optimum performance, it is highly recommended that you read this
Owners Manual before beginning installation.
WARNING
High powered audio systems in a vehicle are capable of generating "Live Concert"
high levels of sound pressure. Continued exposure to excessively high volume sound
levels may cause hearing loss or damage. Also, operation of a motor vehicle while
listening to audio equipment at high volume levels may impair your ability to hear
external sounds such as; horns, warning signals, or emergency vehicles, thus
contributing to a potential traffic hazard. In the interest of safety, Kole Audio
recommends listening at lower volume levels while driving.

- 3 -
Before beginning the installation, consider the following:
1. Do you plan to add additional mobile electronics equipment in the future?
If you plan to expand your system by adding other components sometime in the
future, ensure adequate space is left and cooling requirements are met.
2. Should you use high or low level inputs?
Your Amplifier has been designed to accept Low-Level(Pre-Amp outputs from your
radio) source signal. If your radio/source is equipped with Pre-Amp outputs, it is
possible to utilize them to drive the Amplifier and the 2 front speakers. Then, use the
built-in power of your radio to drive the 2 rear speakers.
3. Are your components matched?
The RMS power rating of your speaker(s) must be equal or greater than the RMS
power rating of your amplifier. Your speaker(s) also must be 2 - 8 Ohms impedance
for stable amplifier operation. Impedance information is normally printed on the
speaker basket or magnet.
4. Where will the amplifier be installed?
Consider both the length of your leads, and routing when determining the mounting
location. It is best to run power and RCA wiring on opposite sides of the vehicle to
prevent induced noise. Pre-amp input jacks require a length of high quality shielded
male to male RCA patch cord.
PLANNING YOUR SYSTEM ................................................................
WIRING CONNECTION ....................................................................
CONTROL FUNCTIONS .....................................................................
SPEAKER CONNECTION MONO CHANNEL ..................................
2 CHANNEL ............................................
4 CHANNEL ............................................
TROUBLE SHOOTING GUIDE ............................................................
SPECIFICATION .................................................................................
WARNING .........................................................................................
3
4
5, 6, 7
8, 9
10, 11
12, 13, 14
15
16, 17
18
TABLE OF CONTENTS
PLANNING YOUR SYSTEM

- 4 -
CONNECTING THE POWER (Fig.1)
CAUTION:
AS A PRECAUTION, DISCONNECT THE POWER WIRE FROM THE BATTERY WHILE MAKING THE
POWER AND GROUND CONNECTIONS TO THE AMPLIFIER.
4/8 GAUGE(Thicker if planning for additional Amplifiers) wire is recommended for
both the power and ground wires. 12 Gauge, for the remote turn-on wire. Both
types are available at most Mobile Audio Dealers or Installation Shop.
(1) Ground :To Vehicle Chassis
To avoid unwanted ignition noise caused by ground loop, it is essential that the
Amplifier be grounded to a clean, bare, metal surface of the vehicle's Chassis
NOTE :
GROUND WIRE SHOULD NOT BE EXTENDED MORE THAN 3 FT. (1 METER).
(2) +12 Volt(Fused) Constant Power:To Battery (+)
Due to the power requirements of the Amplifier, this connection should be made
directly to the positive (+) terminal of battery. For safety measures, install an in-line
Fuse Holder (not included) as close to the battery positive (+) terminal as
possible with an ampere rating; not to exceed total value of fuses in Amp.
(3) Remote Turn-On Input: To remote turn-on output of Car Stereo
This Amplifier is turned "ON" remotely when the vehicle's stereo is turned "ON".
NOTE :
IF YOUR RADIO DOES NOT HAVE A +12 VOLT OUTPUT LEAD WHEN THE RADIO IS TURNED ON, THE "REMOTE"
TERMINAL ON THE AMPLIFIER CAN BE CONNECTED TO VEHICLE'S ACCESSORY CIRCUIT THAT IS LIVE WHEN THE
KEY IS "ON".

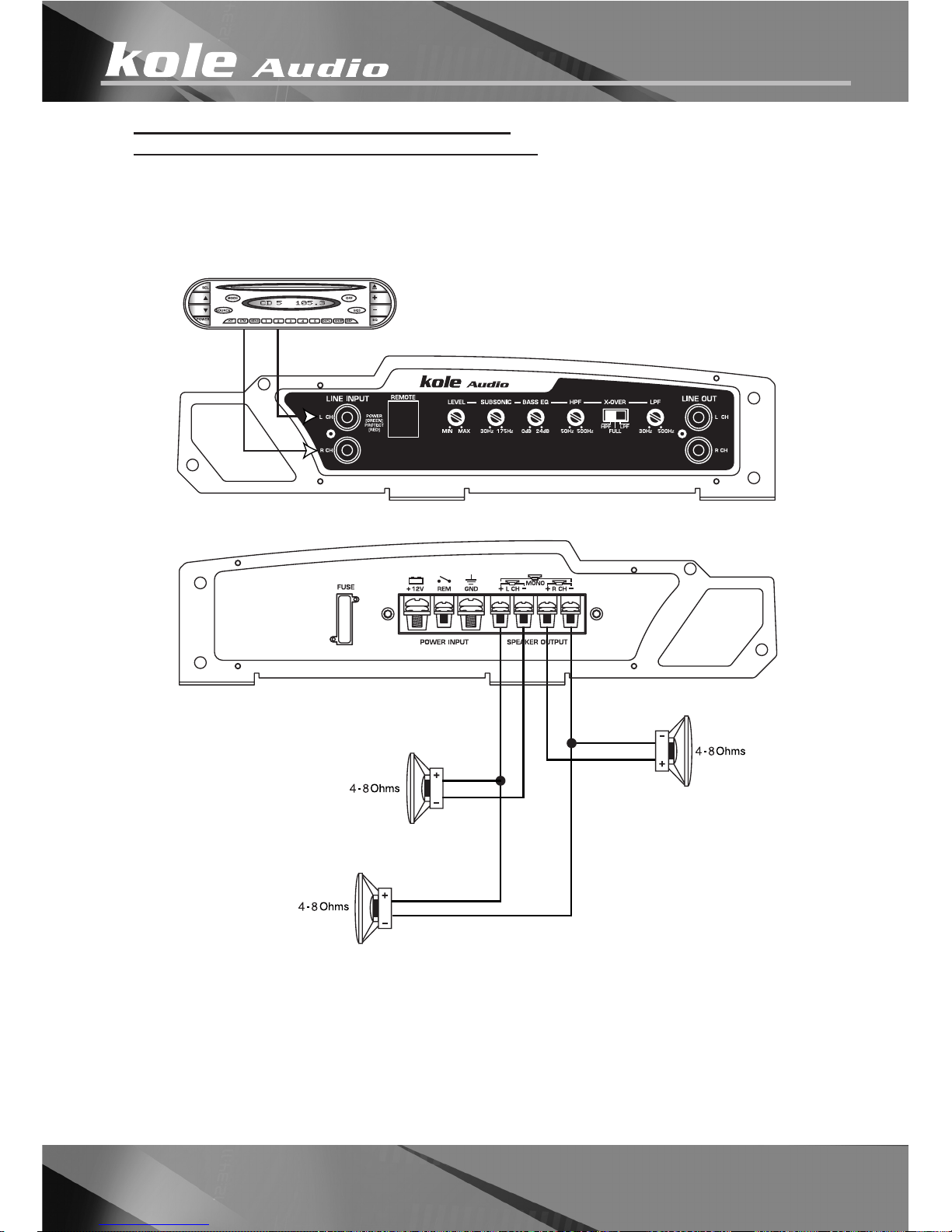

FIG. 1

- 5 -
RCA input jacks
These RCA input jacks are for use with source units that
have RCA or Line level outputs. A source unit with a
minimum level of 200mV is required for proper operation.
The use of high quality twisted pair cables is
recommended to decrease the possibility of radiated
noise entering the system.
Auxiliary outputs
The Auxiliary outputs offer Kole Audio amplifiers easy,
unlimited system expansion.
Route RCA's from the line out of the first amplifier to the line
input of a second amplifier when using a single source
output.
LEVEL Control
The level control will match the amplifiers sensitivity to the
source units signal voltage.
PH4-800/PH4-1000/PH4-1400/PH1-2000D/PH1-4000D/PH1-
5500D : The Operating range is 200mV minimum to 6V
maximum.
PH2-700/PH2-1000/1500/2000/2400 : The Operating range is
200mV minimum to 3V maximum.
CAUTION: Do not run the amplifier in high volume for long time,
otherwise the loudspeakers will be damaged.
Bass EQ / BASS BOOST
PH4-800/PH4-1000/PH4-1400 : The boost can be selected
0dB or 18dB.
PH2-700/PH2-1000/PH2-1500/PH2-2000/PH2-2400 : The
boost can be adjusted between 0dB to 24dB.
PH1-2000D/PH1-4000D/PH1-5500D : The boost can be
adjusted between 0dB to 18dB.
Full pass x-over switch
When the switch is in the "Full" position, full range signal is
passed.
HPF X-over switch
When the switch is in the "HPF" position, frequencies higher
than the high pass frequency setting are passed.
LPF X-over switch
When the switch is in the "LPF" position, frequencies lower
than the low pass frequency setting are passed.
CONTROLS

- 6 -
High pass x-over frequency control
This control is used to select the desired high pass x-over
frequency.
PH4-800/PH4-1000/PH4-1400 : The frequency can be
adjusted between 40Hz and 250Hz.
PH2-700/PH2-1000/PH2-1500/PH2-2000/PH2-2400 : The
frequency can be adjusted between 50Hz and 500Hz.
Low pass x-over frequency control
This control is used to select the desired low pass x-over
frequency.
PH4-800/PH4-1000/PH4-1400 : The frequency can be
adjusted between 40Hz and 250Hz.
PH2-700/PH2-1000/PH2-1500/PH2-2000/PH2-2400 : The
frequency can be adjusted between 30Hz and 500Hz.
PH1-2000D/PH1-4000D/PH1-5500D : The frequency can be
adjusted between 40Hz and 200Hz.
SUBSONIC
PH2-700/PH2-1000/PH2-1500/PH2-2000/PH2-2400 : The
frequency can be adjusted between 30Hz and 175Hz.
PH1-2000D/PH1-4000D/PH1-5500D : The frequency can be
adjusted between 20Hz and 50Hz.
INPUT MODE
Selects 2, 3 or 4 channel operation(FIG. 2)
PH4-800/PH4-1000/PH4-1400

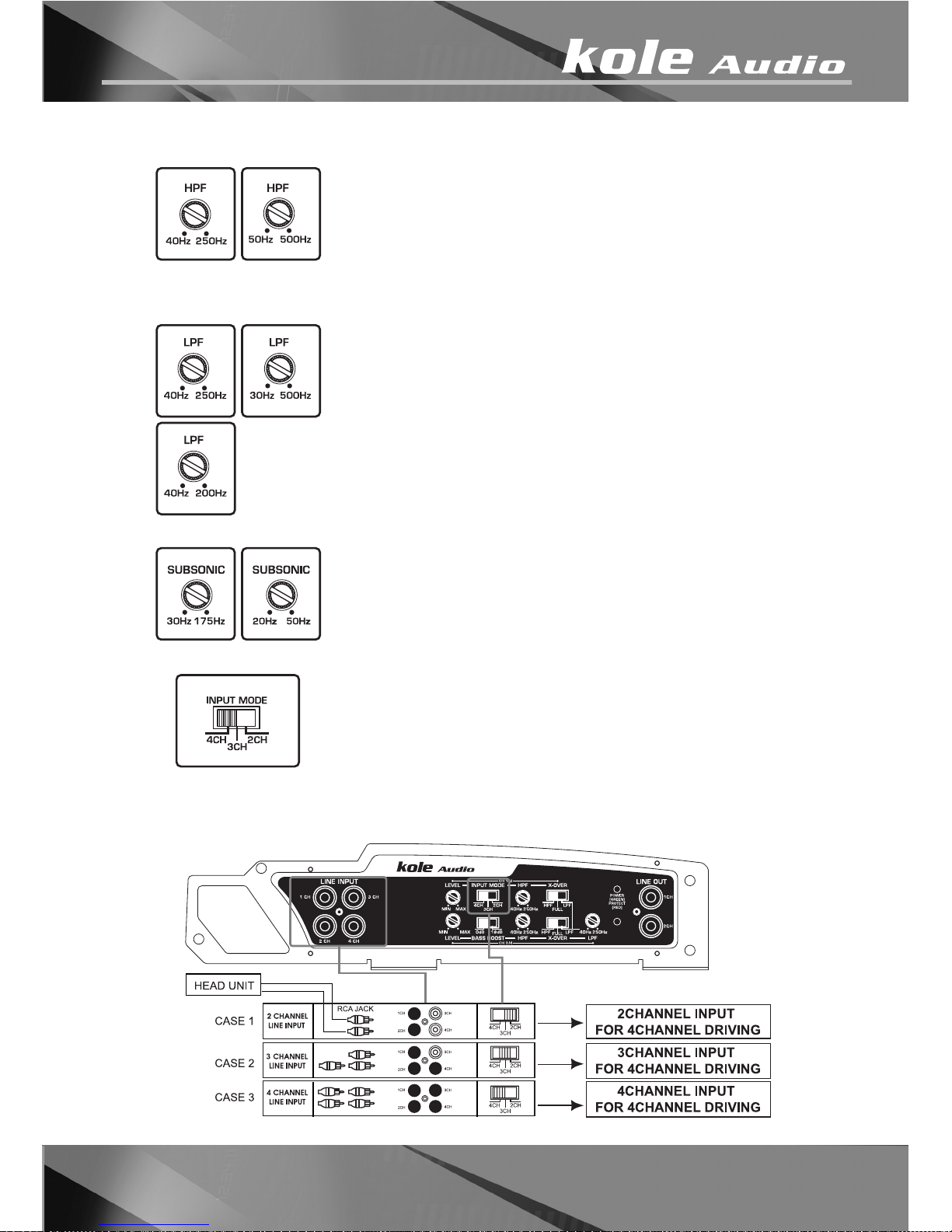

CONTROLS
FIG. 2

- 7 -
LED
Will illuminate GREEN to indicate the amplifier is on and
operating normally, and will be illuminated RED if the
amplifier shuts down due to short circuit, DC offset, or
overheating detected by on board protection circuitry.
REMOTE
Controls the subwoofer amplifier gain, from a remote
location for ease of adjustment during listening.
Warning: Do not connect a level control knob from other
manufacturers to the Remote Sub Level Control of any amplifier.
Even though the connectors fit properly, the control knob and
connector pin positions may be different and the amplifier will be
damaged.
PHASE
0°or180° selectable for switching the phase of the output
to the woofer.
MASTER/SLAVE MODE[PH1-2000D/4000D/5500D]
Controls whether the amplifier is a slave or master when
connected in combined amplifier configurations. (Refer to
the Master Mode section of this guide.)
All of the controls will be adjusted by the "Master" amplifier.
-Slave mode : To be switched " Slave mode" when linking
one amplifier with another amplifier.
-Master mode : To be switched " Master mode" when only
using this single amplifier.
CONTROLS
REMOTE

- 8 -
MASTER MODE CONFIGURATION
PH1-2000D / PH1-4000D / PH1-5500D
1.Lowest Recommended Impedance is 1ohm mono.
2.RCA Inputs are connected to both Left and Right channels
3.Gain controls to be set match input source
4.Line Output configured for stereo operation

- 9 -
STRAPPED CONFIGURATION
PH1-2000D / PH1-4000D / PH1-5500D
STRAPPED
2-4ohms
1.Lowest Recommended Impedance is 2ohm Stereo
2.RCA Inputs are connected to both Left and Right channels
3.Gain controls to be set match input source
4.Line Output is configured summed bridged which is ideal for subwoofer applications

- 10 -

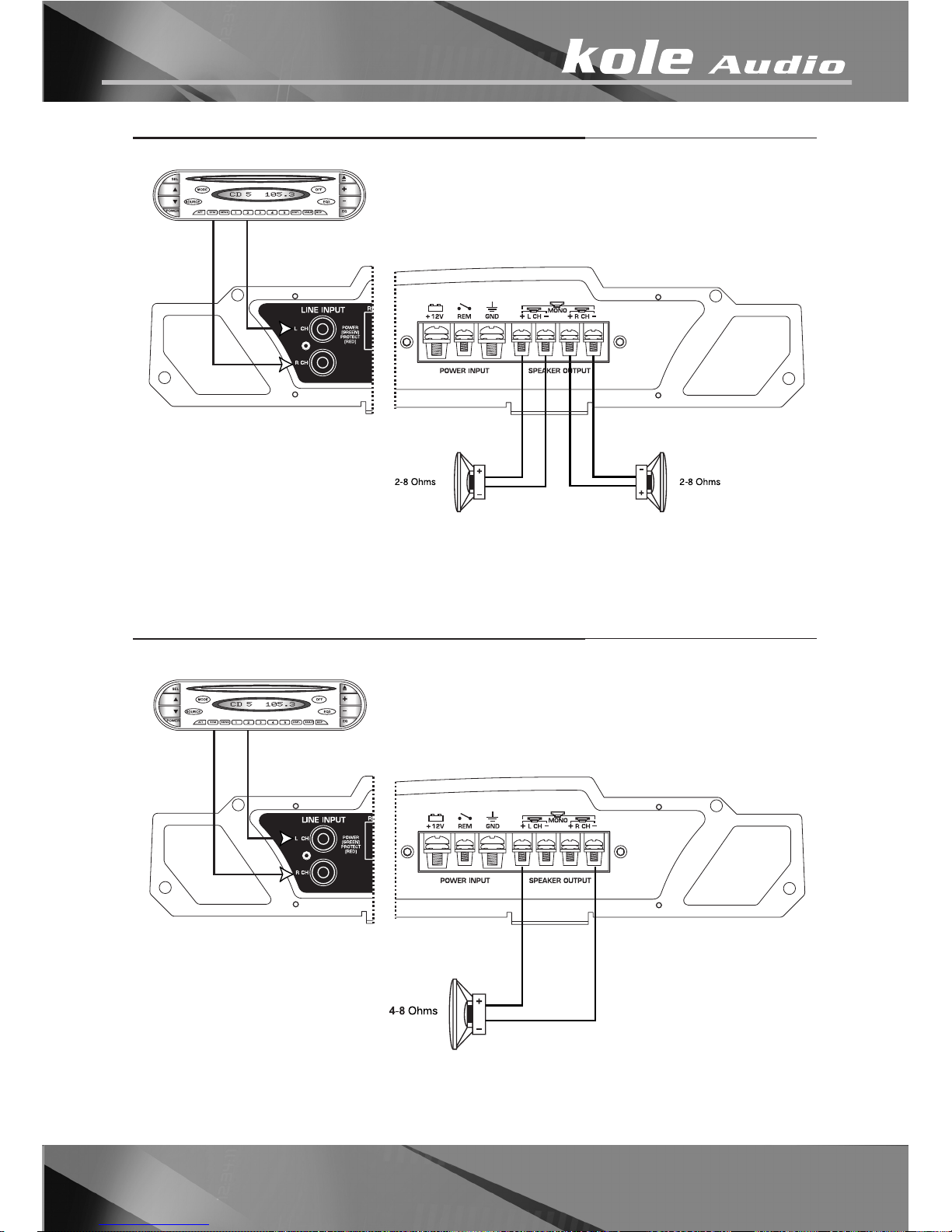

2 CHANNEL STEREO CONFIGURATION PH2-700/1000/1500/2000/2400
HEAD UNIT
FRONT PANEL REAR PANEL
2 CHANNEL BRIDGED CONFIGURATION PH2-700/1000/1500/2000/2400
HEAD UNIT
FRONT PANEL REAR PANEL
1.Lowest Recommended Impedance is 2ohm Stereo
2.RCA Inputs are connected to both Left and Right channels
3.Gain controls to be set match input source
4.Line Output configured for stereo operation
1.Lowest recommended impedance is 4ohm bridged mono
2.RCA Inputs are connected to both Left &Right channels
3.Line Output configured for stereo operation

- 11 -
2 CHANNEL TRI MODE CONFIGURATION
PH2-700 / PH2-1000 / PH2-1500 / PH2-2000 / PH2-2400
HEAD UNIT
1.Lowest Recommended Impedance is 4ohm Stereo
2.RCA Inputs are connected to both Left and Right channels
3.Output configured for stereo operation

- 12 -

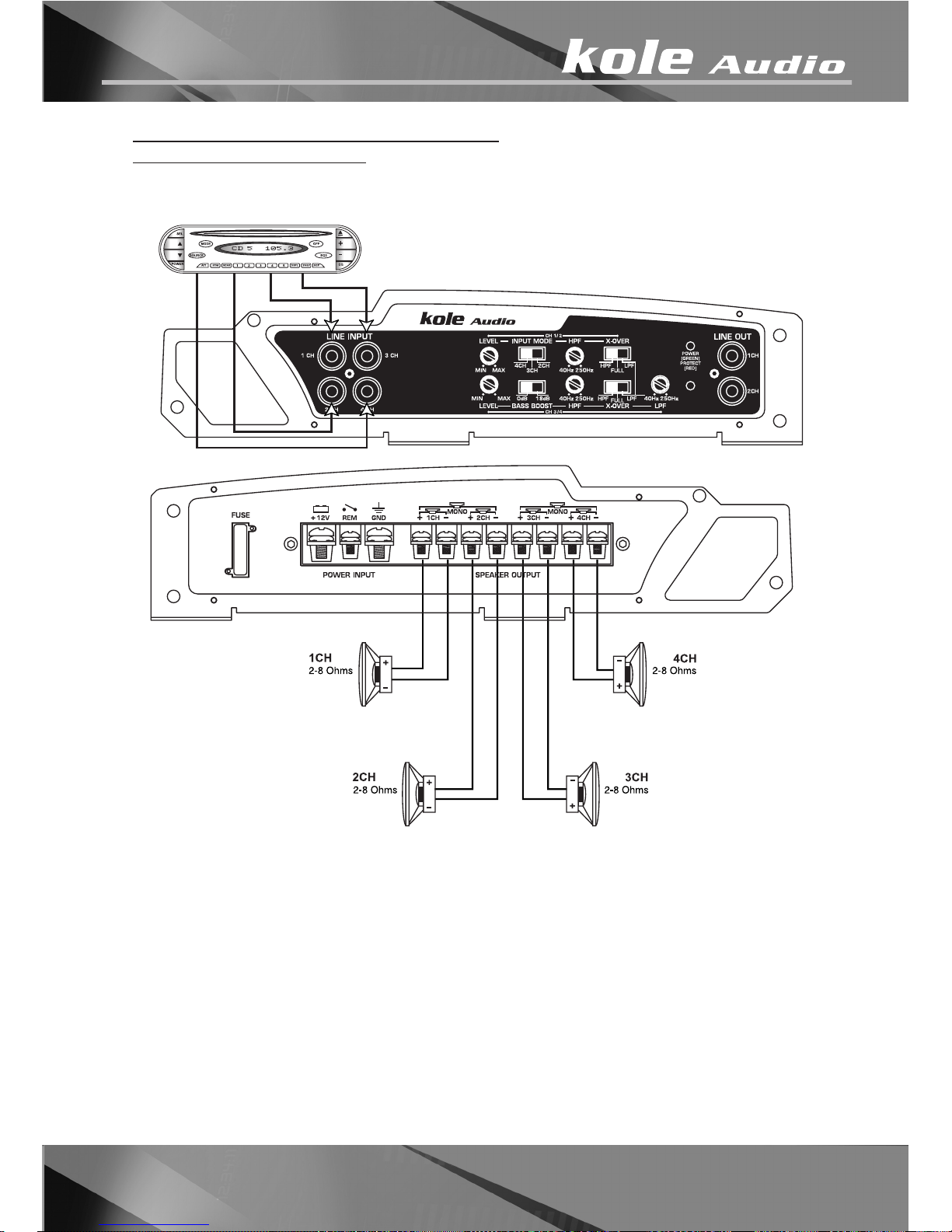

4 CHANNEL STEREO CONFIGURATION
PH4-800 / PH4-1000 / PH4-1400
HEAD UNIT
1.Lowest Recommended Impedance is 2ohm Stereo
2.RCA Inputs are connected to both Left and Right channels
3.Gain controls to be set match input source
4.Line Output configured for stereo operation

- 13 -
4 CHANNEL BRIDGED CONFIGURATION
PH4-800 / PH4-1000 / PH4-1400
HEAD UNIT
1.Lowest recommended impedance is 4ohm bridged mono
2.RCA Inputs are connected to both Left &Right channels
3.Line Output configured forstereo operation

- 14 -
4 CHANNEL TRI MODE CONFIGURATION
PH4-800 / PH4-1000 / PH4-1400
3CH
4-8 Ohms
4CH
4-8 Ohms
WOOFER
1CH
4-8 Ohms
WOOFER
2CH
4-8 Ohms
HEAD UNIT
1.Lowest Recommended Impedance is 4ohm Stereo
2.RCA Inputs are connected to both Left and Right channels
3.Output configured for stereo operation

- 15 -
TROUBLE SHOOTING GUIDE
Check fuses in amplifier.
Be sure Turn-on lead is connected
Repair power wire or connections
Check connections to radio
Check fuse
Inspect for short circuit or an
open connection.
Reverse Left and Right
RCA inputs to determine if it is
occurring before the amp.
Check Tuner/Deck volume level.
Clean contacts on fuse holders.
Be sure proper speakers are used
to ensure impedance
recommendations are observed.
(If you use an Ohmmeter to
check speaker resistance,
please remember that DC
resistance and AC impedance
may not be the same.)
NO SOUND
AMP NOT
SWITCHING
ON
NO SOUND
IN ONE
CHANNEL
AMP
TURNING
OFF
MEDIUM/
HIGH
VOLUME
SYMPTOMS CHECK POINTS CURE
Is the power
LED illuminated?
No power to power wire
No power to remote
wire with receiver on
Fuse broken
Check speaker leads
Check audio input
leads
Check speaker load
impedance

- 16 -
MODEL#
MAXIMUM POWER
OUTPUT
POWER OUTPUT
@4Ohm
POWER OUTPUT
@2Ohm
BRIDGED POWER
THD
FREQUENCY
RESPONSE -1.0dB
HPF
LPF
SUBSONIC FILTER
BASS BOOST
ADJUSTABLE
SENSITIVITY RANGE
INPUT IMPEDANCE
(LOW LEVEL)
FUSE
DIMENSION
(D x W x H inch)
PH2-700
700W
2 X 150W 2 X 180W 1 X 360W
0.02%
10Hz-30kHz
50Hz~500Hz 30Hz~500Hz 30Hz~175Hz
0dB ~ 24dB
0.2V~3V
10K Ohms
40A x 1
10.94" x
10.23" x 2.5"
PH2-1000
1000W
2 X 220W 2 X 280W 1 X 560W
0.02%
10Hz-30kHz
50Hz~500Hz 30Hz~500Hz 30Hz~175Hz
0dB ~ 24dB
0.2V~3V
10K Ohms
25A x 2
12.91" x
10.23" x 2.5"
PH2-1500
1500W
2 X 300W 2 X 380W 1 X 760W
0.02%
10Hz-30kHz
50Hz~500Hz 30Hz~500Hz 30Hz~175Hz
0dB ~ 24dB
0.2V~3V
10K Ohms
30A x 2
19.21" x
10.23" x 2.5"
PH2-2000
2000W
2 X 370W 2 X 450W 1 X 900W
0.02%
10Hz-30kHz
50Hz~500Hz 30Hz~500Hz 30Hz~175Hz
0dB ~ 24dB
0.2V~3V
10K Ohms
25A x 3
20.39" x
10.23" x 2.5"
PH2-2400
2400W
2 X 450W 2 X 540W
1 X 1080W
0.02%
10Hz-30kHz
50Hz~500Hz 30Hz~500Hz 30Hz~175Hz
0dB ~ 24dB
0.2V~3V
10K Ohms
30A x 3
21.18" x
10.23" x 2.5"
SPECIFICATIONS

- 17 -
MODEL#
MAXIMUM POWER
OUTPUT
POWER OUTPUT
@4Ohm
POWER OUTPUT
@2Ohm
POWER OUTPUT
@1Ohm
BRIDGED POWER
THD
FREQUENCY
RESPONSE -1.0dB
HPF
LPF
SUBSONIC FILTER
BASS BOOST
ADJUSTABLE
SENSITIVITY RANGE
INPUT IMPEDANCE
(LOW LEVEL)
FUSE
DIMENSION
(D x W x H inch)
PH4-800
800W
4 X 80W 4 X 95W
-
2 X 190W
0.02%
10Hz-30kHz
40Hz~250Hz 40Hz~250Hz
-
0dB, 18dB
0.2V~6V
10K Ohms
40A x 1
10.94" x
10.23" x 2.5"
PH4-1000
1000W
4 X 100W 4 X 125W
-
2 X 250W
0.02%
10Hz-30kHz
40Hz~250Hz 40Hz~250Hz
-
0dB, 18dB
0.2V~6V
10K Ohms
25A x 2
12.91" x
10.23" x 2.5"
PH4-1400
1400W
4 X 150W 4 X 180W
-
2 X 360W
0.02%
10Hz-30kHz
40Hz~250Hz 40Hz~250Hz
-
0dB, 18dB
0.2V~6V
10K Ohms
20A x 3
14.88" x
10.23" x 2.5"
PH1-2000D
2000W
1X 600W
1 X 900W
1 X 1200W
-
0.5%
20Hz-200Hz
-
40Hz~200Hz
20Hz-50Hz
0dB- 18dB
0.2V~6V
10K Ohms
30A x 2
10.94" x
10.23" x 2.5"
PH1-4000D
4000W
1X 1200W
1 X 1700W 1 X 2200W
-
0.5%
20Hz-200Hz
-
40Hz~200Hz
20Hz-50Hz
0dB- 18dB
0.2V~6V
10K Ohms
30A x 4
14.88" x
10.23" x 2.5"
PH1-5500D
5500W
1X 1700W
1 X 2500W 1 X 3200W
-
0.5%
20Hz-200Hz
-
40Hz~200Hz
20Hz-50Hz
0dB- 18dB
0.2V~6V
10K Ohms
40A x 5
18.03" x
10.23" x 2.5"
SPECIFICATIONS

- 18 -
WARNINGS
Investigate the layout of your automobile throughly before drilling or cutting
any holes. Take care when to work near the gas tanks, lines, or hydraulic
lines, and electrical wiring. Don't use power amplifier unmounted. Attach
this system securely to the automobile to prevent damage, particularly in
the event of an accident. Don't mount this system so that the wire
connections are unprotected or are subject to pinching or damage from
nearby objects. The +12V DC power wire must be fused at the battery
positive terminal connection. Before making or breaking power connections
at this system power terminals, disconnect the +12V wire at the battery end.
Confirm your radio/cassette player and/or other equip is turned off while
connecting the input jacks and speaker terminals. If you need to replace
the power fuse, replace it only with a fuse identical to that supplied with the
system. Using a fuse of different type or rating may result in damage to this
system which isn't covered by the warranty.
