Konwin Home GDSFP-1500AS User manual

Electric Fireplace Stove with Heater
OWNER’S MANUAL
Model No. GDSFP-1500AS
PLEASE SAVE THESE INSTRUCTIONS
WARNING: READ THIS OWNER’S MANUAL CAREFULLY BEFORE USE.

2
Thank you for choosing a Konwin Home Electric Fireplace. This owner’s manual will provide
you with valuable information necessary for the proper care and maintenance of your new
product. Please take a few moments to thoroughly read the instructions and familiarize yourself
with all the operational aspects of your new heater.
IMPORTANT INSTRUCTIONS
When using this electric unit, basic safety precautions should always be followed to reduce the
risk of fire, electric shock, and injury to persons, including the following:
1. Read ALL instructions before using this unit.
2. CAUTION: Risk of Electric Shock. DO NOT open or try to repair the heater yourself.
3. This heater may get hot when in use. To avoid burns, DO NOT let bare skin touch hot
surfaces. If provided, use handles when moving this heater.
4. Keep combustible materials, such as furniture, pillows, bedding, paper, clothes, and
curtains at least 3 ft from the front of the heater and keep them away from the sides, top,
and rear. DO NOT place towels or other objects on the heater.
5. Extreme caution is necessary when any heater is used by or near children or the disabled,
or when the heater is left operating and unattended.
6. DO NOT operate any heater with a damaged cord or after the heater malfunctions, has
been dropped or damaged in any manner. Return heater to authorized service facility for
examination, electrical or mechanical adjustment, or repair.
7. This heater is not intended for use in bathrooms, laundry areas and similar indoor
locations. NEVER locate heater where it may fall into a bathtub or other water container.
To protect against electrical hazards, DO NOT immerse in water or other liquids.
8. DO NOT touch the control panel or plug with a wet hand.
9. DO NOT run cord under carpeting. DO NOT cover cord with throw rugs, runners, or
similar coverings. Arrange cord away from traffic area and where it will not be tripped
over.
10. DO NOT insert or allow foreign objects to enter any ventilation or exhaust opening as
this may cause an electric shock or fire, or damage the heater.
11. To prevent a possible fire, DO NOT block the air intakes or exhaust in any manner. DO
NOT use on soft surfaces, like a bed, where openings may become blocked.
12. A heater has hot and arcing or sparking parts inside. DO NOT use in areas where
gasoline, paint, explosive and/or flammable liquids are used or stored. Keep unit away
from heated surfaces and open flames.
13. Always plug heaters directly into a wall outlet receptacle. Never use with an extension
cord or relocatable power tap(outlet/power strip)
14. To avoid fire or shock hazard, plug the unit directly into a 120VAC electrical outlet.

3
15. To disconnect heater, turn controls to OFF, then remove plug from outlet. Pull firmly on
the plug, DO NOT unplug by pulling on the cord.
16. Always unplug the unit before moving or cleaning, or whenever the heater is not in use.
17. Use only for intended household use as described in this manual. Any other use not
recommended by the manufacturer may cause fire, electric shock, or injury to persons.
The use of attachments not recommended or sold by unauthorized dealers may cause
hazards.
18. Always use on a dry, level surface. Use on floor only.
19. DO NOT use outdoors.
20. WARNING: To reduce the risk of fire or electric shock, DO NOT use this unit with any
solid-state speed control device.
21. DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit.
Doing so will void your warranty. The inside of the unit contains no user serviceable
parts. Qualified personnel should perform all servicing only.
22. .Save these instructions.
SPECIFICATIONS
Voltage Rating
120V (60Hz)
Power Consumption
1000W
Unit Size
14.6 in. (W) x 9.6 in. (D) x20 in. (H)
Unit Weight
13.4 lbs
SAFETY FEATURES
Overheat Safety Feature
This heater is equipped with a overheat safety feature. When the heaters internal components
reach a certain temperature that could cause overheat and possible fire, the heater will
automatically shut off.
IN THE BOX
*ELECTRIC STOVE *LEG (4pcs) *SCREW *INSTRUCTION BOOKLET
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents above. If any part is missing or damaged, do not
attempt to assemble the product. Contact customer service for replacement parts.

4
Tools Required for Assembly (not included): Phillips screwdriver
ASSEMBLY INSTRUCTIONS

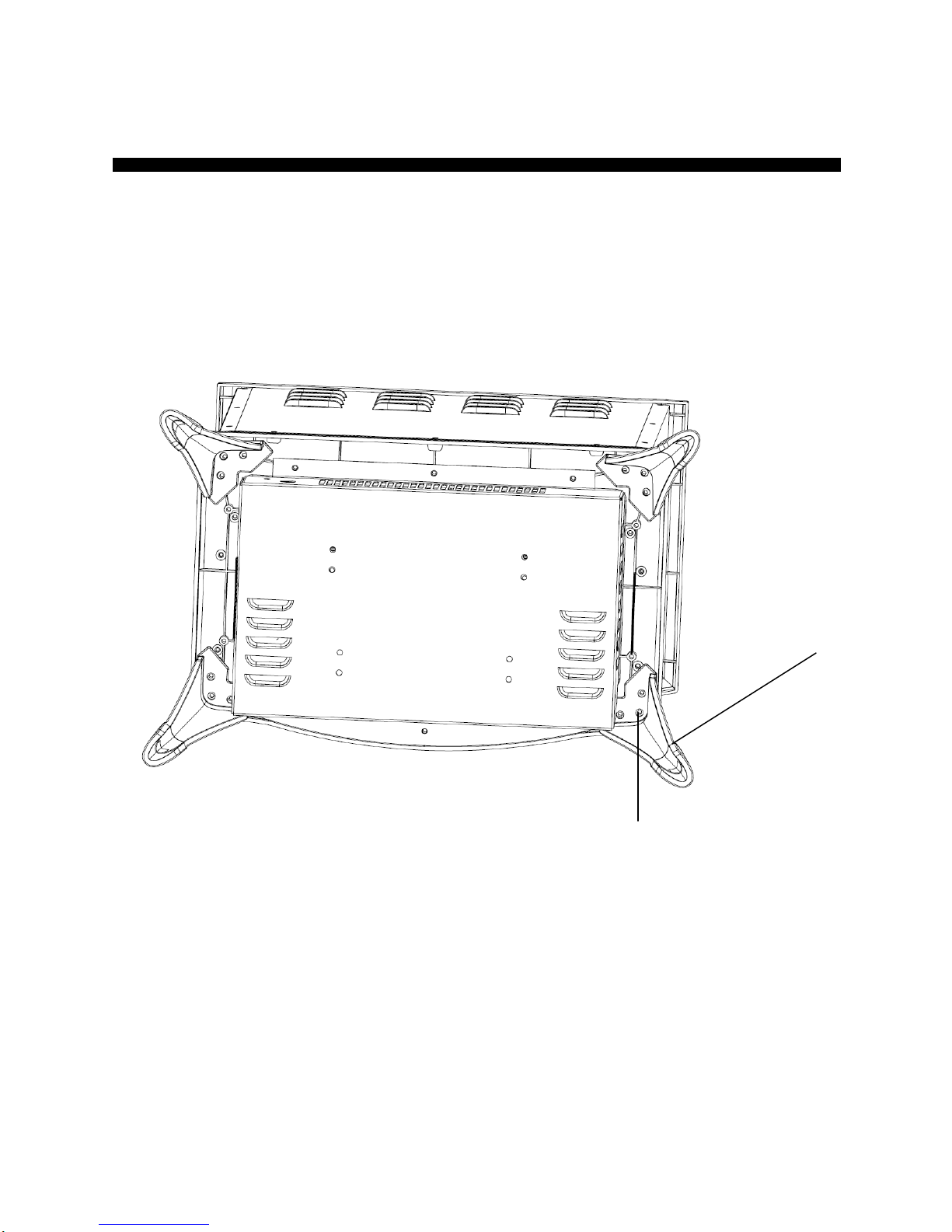

Lay stove upside down on a padded surface with the underside accessible. Attach leg
to stove by inserting the tab on the top of the leg into the corresponding slot on the
bottom of the stove. Insert screws into predrilled holes and tighten securely. Repeat with
remaining three legs.
Fixing screws
Leg

5
PRODUCT DIAGRAM
Location of Controls
1. Thermostat control knob - Adjust to maintain room temperature
2. Heat Switch - Two switches for high heat setting
3. Heat switch –One switch for low heat setting
4. Flame switch - Switches flame effect and power on/off
5. Flame dimmer control - Adjust to set flame intensity
Leg
Heater / Blower
Assembly
Control Panel
Ember Bed
Handle
1
5
2
3
4

6
AUTOMATIC CUT-OFF
A cut-off switch is fitted to the heating element to prevent damage due to overheating. If it cuts-
off due to an obstruction in the airflow, the heater must be allowed to cool for 5 minutes and the
obstruction must be removed before restarting.
OPERATING YOUR HEATER
Once the stove has been properly assembled and connected to a grounded electrical outlet,
it is ready to operate:
Open control panel door, by the knob of front of stove.
1. Thermostat control knob:
To adjust the temperature to your individual requirements, turn the thermostat dial (#1) to the
right (clockwise) to increase the desired temperature, or to the left (counter-clockwise) to
decrease desired temperature. This thermostat control dial can one or both of the (# 2 & 3)
switches are in the “on” position. When the heater reaches the desired temperature, the heater
and one or both of the indicator lights will turn off.
2. Ⅰand ⅡHeat Switch
For high heat function - Press Ⅱswitch while the switch (#3 and #4) are in the “on” position for
high heat. The indicator light will turn on.
For low heat function - Press Ⅰswitch while the FAN and (# 4) switches are in the “on”
position for high heat. The indicator light will turn on.
3. Flame Effect:
Press Flame effect switch (#4) to the “on” position for flame effect. The indicator light will turn
on. This function can be used without heat .
4. Flame Dimmer Control:
Turn the dimmer dial (#5) clockwise or counter-clockwise to get the desired flame intensity. The
dimmer switch can only be used when the Flame effect switch is in the “on” position.
NOTE:
Heat functions will NOT operate unless the fan switch (#3) is in the “on” position.

7
MAINTENANCE
1. Replacing Light Bulbs
CAUTION: Even though the glass is safety glass it may break if bumped, struck or dropped.
Care must be taken when handling the glass.
This electric stove uses clear 120V / 25W, G9 socket base light bulbs (candelabra base, B bulb).

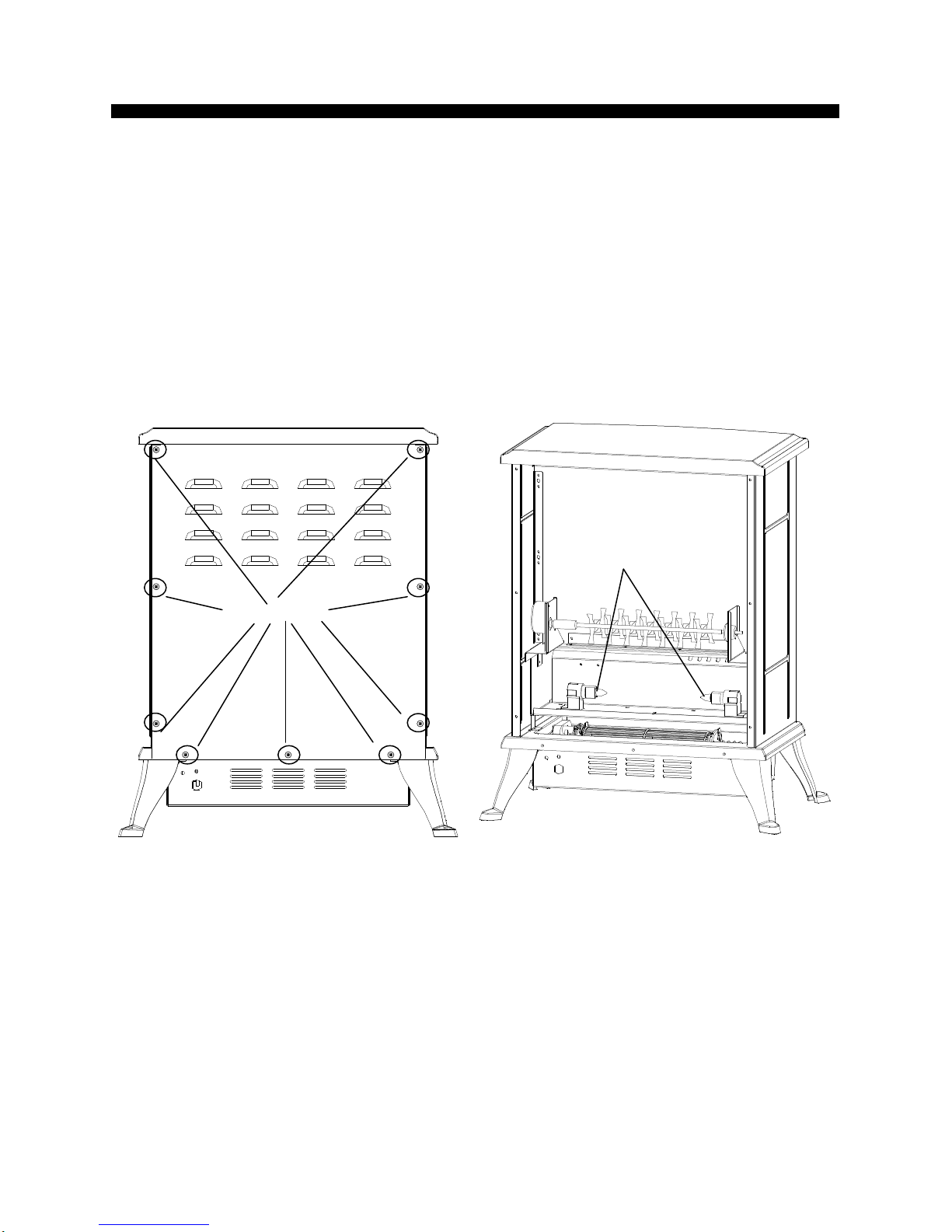

Access the 25W bulbs through the rear access panel (see illustration below). For convenience,
replace all bulbs at the same time if one goes out.
a. Turn the main power switch off, and then unplug the power cord from the wall outlet.
b. If the stove has been operating, let the unit cool at least 1 hours.
c. Loosen the screws holding the stove back panel to the main body of stove (see Fig.1).
d. Remove light bulbs and replace with clear 120V / 25W, light bulbs (see Fig.2).
e. Place rear access panel back into position and tighten screws (Do not over tighten).
2.Glass Information
* Under no circumstances should this product be operated with missing or broken glass.
* Do not strike or slam the glass.
* Do not use abrasive cleaners to clean the glass.
* Replacement glass is available from the manufacturer and replacement should be carried out
by a qualified service person.
3. Cleaning
*To clean the unit, first turn off controls on unit and unplug unit from power source.
*To clean the glass door: remove dust with clean dry cloth or to remove finger prints and other
marks clean glass with clean damp cloth. Do not use abrasive cleaners or spray liquids on glass door
surfaces.
*Metal and metal painted parts should be cleaned with clean damp cloth only. Do not use abrasive
cleaners or spray liquids on this surface.
Light bulbs
Fig.1
Fig.2
Nine screws

8
TROUBLE SHOOTING
If the heater will not operate, please check the following before seeking repair of service:
1. Check if the power cord is plugged into an electrical outlet, if not, plug in.
2. Check if electricity to the outlet is working.
STORAGE
Store the heater in a cool, dry location when not in use. To prevent dust and dirt build-up, use the
original packaging to repack the unit.
