SETUP INSTRUCTIONS 2013
125 EXC EU
125 EXC SIX DAYS EU
200 EXC EU
200 EXC AUS
200 XC‑W USA
250 EXC EU
250 EXC AUS
250 EXC SIX DAYS EU
250 XC‑W USA
300 EXC EU
300 EXC AUS
300 EXC SIX DAYS EU
300 XC‑W USA
Art. no. 3211909en


INTRODUCTION 1
INTRODUCTION
The work described in these setup instructions must be performed before the vehicle is delivered to the customer.
Read the setup instructions in their entirety before beginning work.
Print out the current PDI form found on the KTM DEALER.NET.
These setup instructions were written to correspond to the latest state of this series. We reserve the right to make changes in the inter-
est of technical advancement without at the same time updating this manual.
We shall not provide a description of general workshop methods. Likewise, safety rules that apply in a workshop are not specified here.
It is assumed that the work will be performed by a fully trained mechanic.
All specifications are non-binding. KTM Sportmotorcycle AG specifically reserves the right to modify or delete technical specifica-
tions, prices, colors, forms, materials, services, designs, equipment, etc., without prior notice and without specifying reasons, to adapt
these to local conditions, as well as to stop production of a particular model without prior notice. KTM accepts no liability for delivery
options, deviations from illustrations and descriptions, as well as misprints and other errors. The models portrayed partly contain spe-
cial equipment that does not belong to the regular scope of delivery.
© 2012 KTM-Sportmotorcycle AG, Mattighofen Austria
All rights reserved
Reproduction, even in part, as well as copying of all kinds, is permitted only with the express written permission of the copyright
owner.
ISO 9001(12 100 6061)
According to the international quality management standard ISO 9001, KTM uses quality assurance processes that lead
to the maximum possible quality of the products.
Issued by: TÜV Management Service
KTM-Sportmotorcycle AG
5230 Mattighofen, Austria

1 MEANS OF REPRESENTATION 2
1.1 Symbols used
The meaning of specific symbols is described below.
Indicates an expected reaction (e.g. of a work step or a function).
Indicates an unexpected reaction (e.g. of a work step or a function).
Indicates a page reference (more information is provided on the specified page).
Indicates information with more details or tips.
Indicates the result of a testing step.
Denotes a voltage measurement.
Denotes a current measurement.
Denotes a resistance measurement.
1.2 Formats used
The typographical formats used in this document are explained below.
Proprietary name Identifies a proprietary name.
Name®Identifies a protected name.
Brand™ Identifies a trademark.

2 SETUP 3
2.1 Unpacking and setting up the vehicle
B00887-01
Packaging 2
–Remove the box and the plastic packaging.
Info
An assistant prevents the motorcycle from falling over.
To avoid damaging the motorcycle during the setup, leave the protective
film on the vehicle until you have finished.
–Remove the separate enclosure and unpack it. Check that the scope of delivery
is complete on the basis of the enclosed packing list.
–Have a lift stand available.
Lift stand (54829055000)
–Carefully loosen and remove the footrest mount.
Info
An assistant prevents the motorcycle from falling over.
–Together with an assistant, take the vehicle off the palette.
–Position the vehicle on a lift stand.
–Check the vehicle for transport damage.
600811-10
Package 12
–Remove the box and the plastic packaging.
Info
An assistant prevents the motorcycle from falling over.
To avoid damaging the motorcycle during the setup, leave the protective
film on the vehicle until you have finished.
–Remove the separate enclosure and unpack it. Check that the scope of delivery
is complete on the basis of the enclosed packing list.
–Have a lift stand available.
Lift stand (54829055000)
–Together with an assistant, take the vehicle off the palette.
–Position the vehicle on a lift stand.
–Check the vehicle for transport damage.
B00902-01
–Install the shock absorber. ( p. 9)
600814-01
–Route the clutch line with the clutch master cylinder toward the front between
the upper and lower triple clamps.
(125 EXC EU, all 200 models, 250/300 EXC EU, EXC AUS, XC‑W)
–Position the fork legs and tighten the screws of the triple clamp.
Guideline
Screw, top triple clamp M8 20 Nm
(14.8 lbf ft)
Screw, bottom triple clamp M8 15 Nm
(11.1 lbf ft)
Info
The topmost milled groove in the fork leg must be flush with the top
edge of the upper triple clamp.
Position the bleeder screws toward the front.

2 SETUP 4
(250/300 EXC SIX DAYS EU, 125 EXC SIX DAYS EU)
–Position the fork legs and tighten the screws of the triple clamp.
Guideline
Screw, top triple clamp M8 17 Nm
(12.5 lbf ft)
Screw, bottom triple clamp M8 12 Nm
(8.9 lbf ft)
Info
The rebound damping is located in the right fork leg (red adjust-
ing screw). The compression damping is located in the left fork leg
(white adjusting screw).
The topmost milled groove in the fork leg must be flush with the top
edge of the upper triple clamp.
Position the bleeder screws toward the front.
400223-10
–Remove screws 1. Remove the handlebar clamps.
–Remove screws 2. Remove the handlebar supports.
–Place the handlebar supports in the required position. Mount and tighten
screws 2.
Guideline
Screw, handlebar support M10 40 Nm
(29.5 lbf ft)
Loctite®243™
Info
Position the left and right handlebar supports evenly.
600824-10
–Position the handlebar.
Info
Make sure cables and wiring are positioned correctly.
–Position the handlebar clamps. Mount and tighten the screws.
Guideline
Screw, handlebar clamp M8 20 Nm
(14.8 lbf ft)
Info
The markings on the handlebar should be at the center of the handlebar
clamps.
Keep the gap widths equal when tightening.
B00903-10
(All EXC models)
–Insert the indicator lamp with the blue and brown cable colors into socket 3.
–Insert the indicator lamp with the blue and violet cable colors into socket 4.

2 SETUP 5
B00904-10
(XC-W)
–Connect pull switch 5with the yellow and white cables.
401408-01
(All EXC models)
–Attach the retaining bracket for the connector, the turn signal bracket with the
turn signal, and the speedometer to the upper triple clamp.
Guideline
Remaining screws, chassis M6 10 Nm
(7.4 lbf ft)
401409-01
(XC-W)
–Attach the speedometer to the upper triple clamp.
Guideline
Remaining screws, chassis M6 10 Nm
(7.4 lbf ft)
B00096-10
–Position the controls on the right half of the handlebar.
Info
The routing of the cables can be seen in the figure.

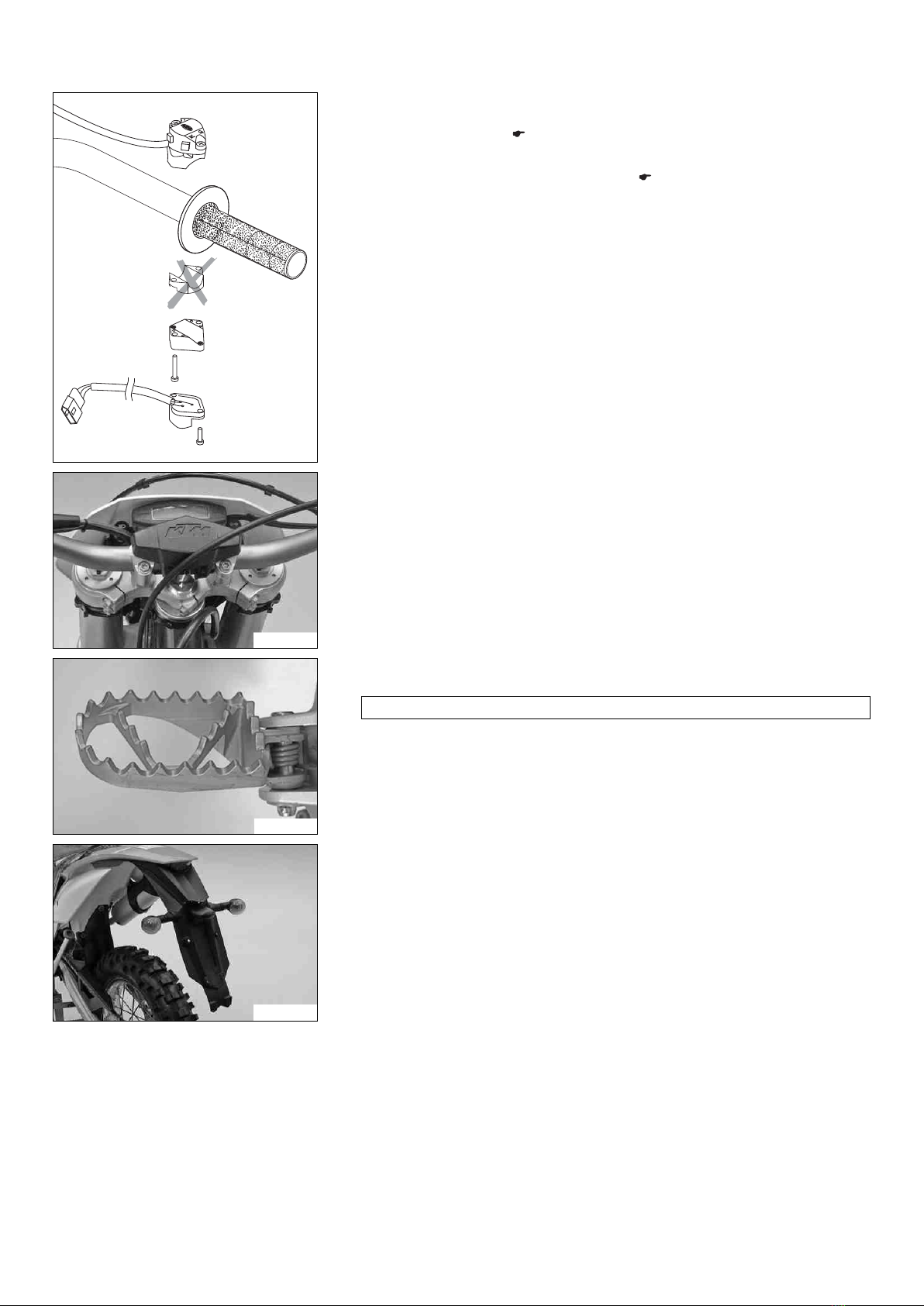

600817-10
–Position the controls on the left half of the handlebar.
Info
The figure shows how to route the clutch line and wiring harness.
201945-10
(All EXC models)
–Mount and tighten nuts 6of the turn signals on both sides.
–Connect connector 7of the right turn signal with connector 8, which is
marked green.
–Connect connector 9of the left turn signal with connector bk, which is marked
red.
–Connect the plug of the electric starter button to connector bl.

2 SETUP 6
401382-01
(All EXC models)
–Mount the turn signal switch.
–Install the front fender. ( p. 12)
–Correctly mount the fuel tank breather.
–Refit the headlight mask with the headlight. ( p. 12)
B00907-01
–Mount the handlebar cushion.
800042-10
–Mount the footrests with the springs and bolts. Secure the bolts using the washers
and pins.
Pliers for footrest spring (58429083000)
B00908-01
(All EXC models)
–Mount the license plate holder with the license plate lamp, turn signals, and
reflector.
–Connect the electrical components.
–Connect the connector of the left turn signal with connector that is marked red.
–Connect the connector of the right turn signal with the connector that is marked
green.

2 SETUP 7

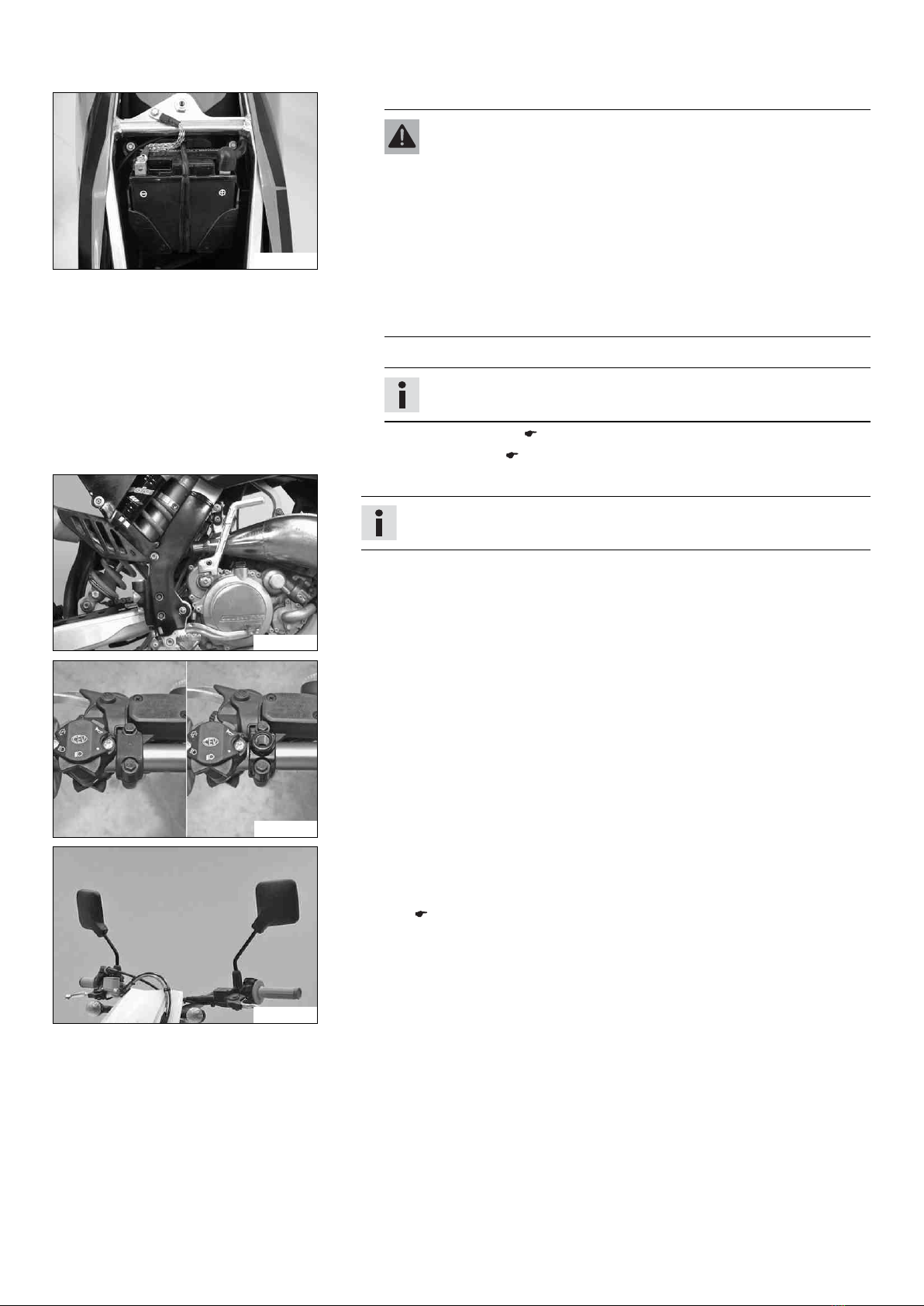

800035-10
(All 200/250/300 models)
Warning
Risk of injury Battery acid and battery gases cause serious chemical
burns.
–Keep batteries out of the reach of children.
–Wear suitable protective clothing and goggles.
–Avoid contact with battery acid and battery gases.
–Keep the battery away from sparks or open flames. Charge only in
well-ventilated areas.
–In the event of skin contact, rinse with large amounts of water. If
battery acid gets in the eyes, rinse with water for at least 15 minutes
and contact a physician.
–Fill the battery.
Info
Read the notes in the battery package.
–Recharge the battery. ( p. 10)
–Install the battery. ( p. 11)
B00097-01
–Unpack and mount the KTM PowerParts included in the delivery (optional).
Info
Read the accompanying KTM PowerParts installation instructions.
–Apply the label included in the delivery (optional).
101037-01
(All EXC models)
–Mount the mirror clamps on both sides.
B00909-01
–Mount and tighten the rear mirror on both sides.
–Mount the reflector.
–Position all controls in their exact positions on the handlebar. Tighten all screws.
–Refuel. ( p. 14)
–Print out the current PDI form found on KTM DEALER.NET and perform the delivery
inspection.

3 WORK 8
3.1 Raising the motorcycle with the lift stand
B00796-01
(All 125/200 models)
Note
Danger of damage The parked vehicle may roll away or fall over.
–Always place the vehicle on a firm and even surface.
–Raise the motorcycle at the frame underneath the engine.
Lift stand (54829055000)
The wheels must no longer touch the ground.
–Secure the motorcycle against falling over.
B00803-10
(All 250/300 models)
Note
Danger of damage The parked vehicle may roll away or fall over.
–Always place the vehicle on a firm and even surface.
–Raise the motorcycle at the frame underneath the engine.
Lift stand (54829055000)
The wheels must no longer touch the ground.
–Secure the motorcycle against falling over.
3.2 Removing the motorcycle from the lift stand
Note
Danger of damage The parked vehicle may roll away or fall over.
–Always place the vehicle on a firm and even surface.
B00789-10
(All 125/200 models)
–Remove the motorcycle from the lift stand.
–Remove the lift stand.
–To park the motorcycle, press side stand 1to the ground with your foot and
lean the motorcycle on it.
Info
When you are riding, the side stand must be folded up and secured with
the rubber band.
B00802-10
(All 250/300 models)
–Remove the motorcycle from the lift stand.
–Remove the lift stand.
–To park the motorcycle, press side stand 1to the ground with your foot and
lean the motorcycle on it.
Info
When you are riding, the side stand must be folded up and secured with
the rubber band.
3.3 Removing the seat
B00817-10
–Remove screw 1. Lift up the seat at the rear, pull it back and then remove from
above.

3 WORK 9

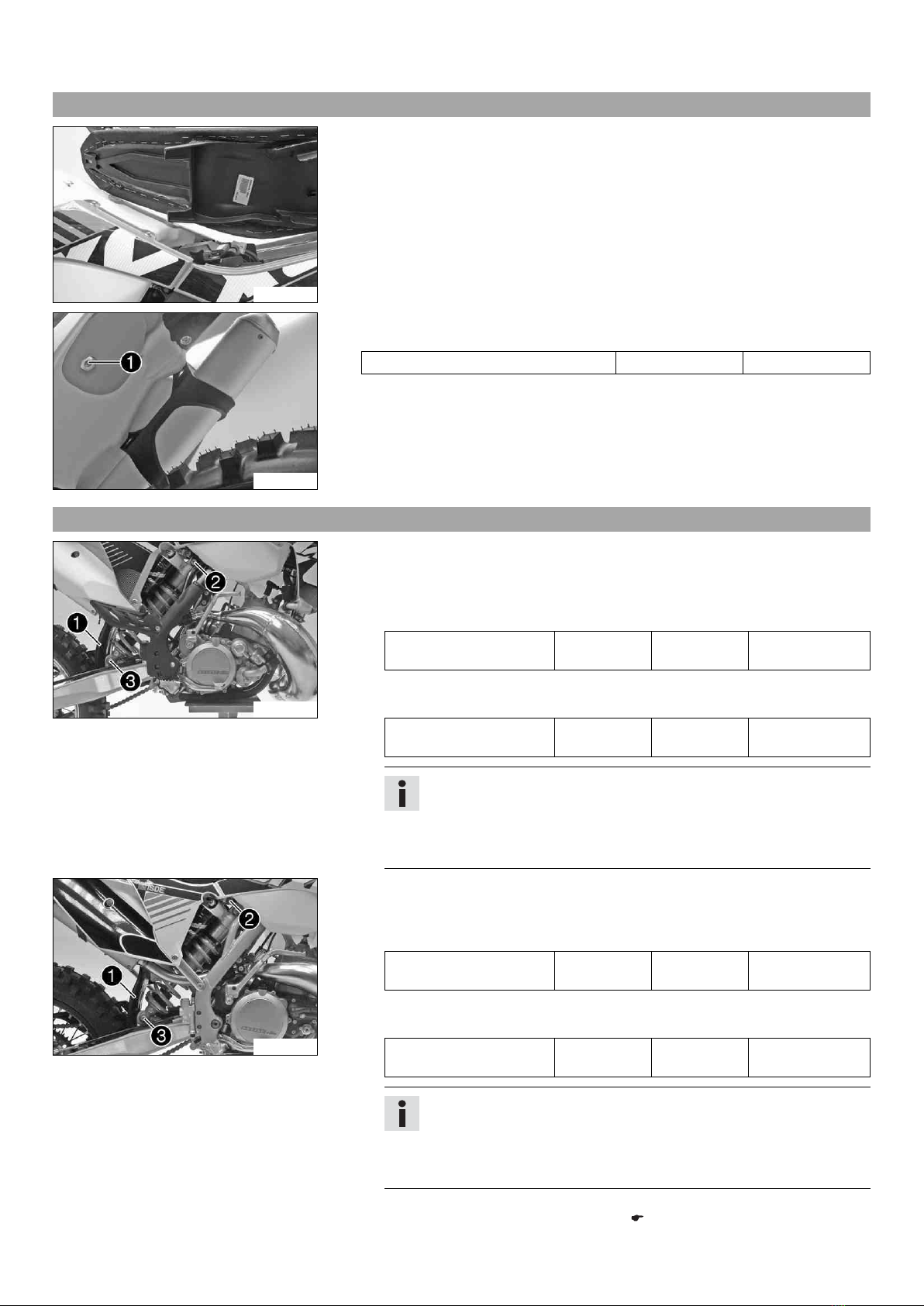

3.4 Mounting the seat
B00818-01
–Hook in the front of the seat at the collar bushing of the fuel tank, lower at the rear
and simultaneously push forward.
–Make sure that the seat is correctly locked in.
B00817-10
–Mount and tighten screw 1of the seat fixation.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
3.5 Installing the shock absorber
B00815-11
Main work
(All 125/200 models)
–Push splash protector 1to the side and position the shock absorber. Mount
and tighten screw 2.
Guideline
Screw, top shock
absorber
M12 80 Nm
(59 lbf ft)
Loctite®2701
–Mount and tighten screw 3.
Guideline
Screw, bottom shock
absorber
M12 80 Nm
(59 lbf ft)
Loctite®2701
Info
The heim joint for the shock absorber at the swing arm is Teflon
coated. It must not be lubricated with grease or with other lubricants.
Lubricants dissolve the Teflon coating, thereby drastically reducing the
service life.
B00816-11
(All 250/300 models)
–Push splash protector 1to the side and position the shock absorber. Mount
and tighten screw 2.
Guideline
Screw, top shock
absorber
M12 80 Nm
(59 lbf ft)
Loctite®2701
–Mount and tighten screw 3.
Guideline
Screw, bottom shock
absorber
M12 80 Nm
(59 lbf ft)
Loctite®2701
Info
The heim joint for the shock absorber at the swing arm is Teflon
coated. It must not be lubricated with grease or with other lubricants.
Lubricants dissolve the Teflon coating, thereby drastically reducing the
service life.
Finishing work
–Remove the motorcycle from the lift stand. ( p. 8)

3 WORK 10
3.6 Installing the front wheel
Warning
Danger of accidents Reduced braking efficiency due to oil or grease on the brake discs.
–Always keep the brake discs free of oil and grease, and clean them with brake cleaner when necessary.
500086-11
–Check the wheel bearing for damage and wear.
» If the wheel bearing is damaged or worn:
–Change the wheel bearing.
–Clean and grease shaft seal rings 1and bearing surface Aof the spacers.
Long-life grease ( p. 18)
–Insert the spacers.
500084-11
–Lift the front wheel into the fork, position it, and insert the wheel spindle.
–Mount and tighten screw 2.
Guideline
Screw, front wheel spindle M24x1.5 45 Nm
(33.2 lbf ft)
–Operate the hand brake lever several times until the brake linings are lying correctly
against the brake disc.
–Remove the motorcycle from the lift stand. ( p. 8)
–Pull the front wheel brake and push down hard on the fork several times to align
the fork legs.
–Tighten screws 3.
Guideline
Screw, fork stub M8 15 Nm
(11.1 lbf ft)
3.7 Recharging the battery (All 200/250/300 models)
Warning
Risk of injury Battery acid and battery gases cause serious chemical burns.
–Keep batteries out of the reach of children.
–Wear suitable protective clothing and goggles.
–Avoid contact with battery acid and battery gases.
–Keep the battery away from sparks or open flames. Charge only in well-ventilated areas.
–In the event of skin contact, rinse with large amounts of water. If battery acid gets in the eyes, rinse with water for at least
15 minutes and contact a physician.
Warning
Environmental hazard The battery contains elements that are harmful to the environment.
–Do not discard batteries with the household trash. Dispose of a defective battery in an environmentally compatible manner.
Give the battery to your KTM dealer or to a recycling center that accepts used batteries.
Warning
Environmental hazard Hazardous substances cause environmental damage.
–Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.

3 WORK 11
Info
Even when there is no load on the battery, it still loses power steadily.
The charge state and the type of charge are very important for the service life of the battery.
Rapid recharging with a high charging current shortens the battery's service life.
If the charging current, charging voltage and charging time are exceeded, electrolyte escapes through the safety valves. This
reduces the battery capacity.
If the battery is depleted from starting the vehicle repeatedly, the battery must be charged immediately.
If the battery is left in a discharged state for an extended period, it will become over-discharged and sulfate, destroying the
battery.
The battery is maintenance-free, i.e., the acid level does not have to be checked.
Preparatory work
–Switch off all power consumers and the engine.
–Remove the seat. ( p. 8)
–Disconnect the minus (negative) cable of the battery to avoid damage to the motor-
cycle's electronics.
400240-10
Main work
–Connect the battery charger to the battery. Switch on the battery charger.
Battery charger (58429074000)
You can also use the battery charger to test rest potential and start potential of the
battery, and to test the alternator. With this device, you cannot overcharge the bat-
tery.
Info
Never remove the lid 1.
Charge the battery with at most 10% of the capacity specified on the bat-
tery 2.
–Switch off the charger after charging. Disconnect the battery.
Guideline
The charge current, charge voltage and charge time must not be exceeded.
Charge the battery regularly when the
motorcycle is not in use
3 months
Finishing work
–Mount the seat. ( p. 9)
3.8 Installing the battery (All 200/250/300 models)
101712-10
Main work
–Insert the battery into the battery compartment with the terminals facing to the
front.
Battery (YTX4L-BS)
–Attach rubber band 1.
–Attach positive cable 2.
Guideline
Screw, battery terminal M5 2.5 Nm
(1.84 lbf ft)
Info
Contact disk Amust be mounted between screw 4and cable socket 5
with the claws facing down.
–Slide positive terminal cover 6over the positive terminal.
–Attach negative cable 3.
Guideline
Screw, battery terminal M5 2.5 Nm
(1.84 lbf ft)
Info
Contact disk Amust be mounted between screw 4and cable socket 5
with the claws facing down.

3 WORK 12
Finishing work
–Mount the seat. ( p. 9)
3.9 Installing the front fender
B00814-10
–Ensure that the spacers are mounted in the fender.
–Position the front fender. Mount and tighten screws 1.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
Info
Make sure the holding lugs engage in the start number plate.
3.10 Refitting the headlight mask with the headlight
303402-11
Main work
–Connect the electric plug connector 1.
B00833-11
–Position the headlight mask and fix it with the rubber band 2.
Info
Ensure that the holding lugs engage in the fender.
–Position the brake line and wiring harness. Put on the clamp and mount and
tighten screw 3.
Finishing work
–Check the headlight setting. ( p. 12)
3.11 Checking the headlight setting
400726-10
–Position the vehicle upright on a horizontal surface in front of a light wall and make
a mark at the height of the center of the low beam headlight.
–Make another mark a distance Bunder the first mark.
Guideline
Distance B5 cm (2 in)
–Position the vehicle vertically a distance Aaway from the wall.
Guideline
Distance A5 m (16 ft)
–The rider now sits down on the motorcycle.
–Switch on the low beam.
–Check the headlight setting.
The boundary between light and dark must be exactly on the lower mark for a
motorcycle with driver.
» If the light-dark border does not meet specifications:
–Adjust the headlight range. ( p. 13)

3 WORK 13

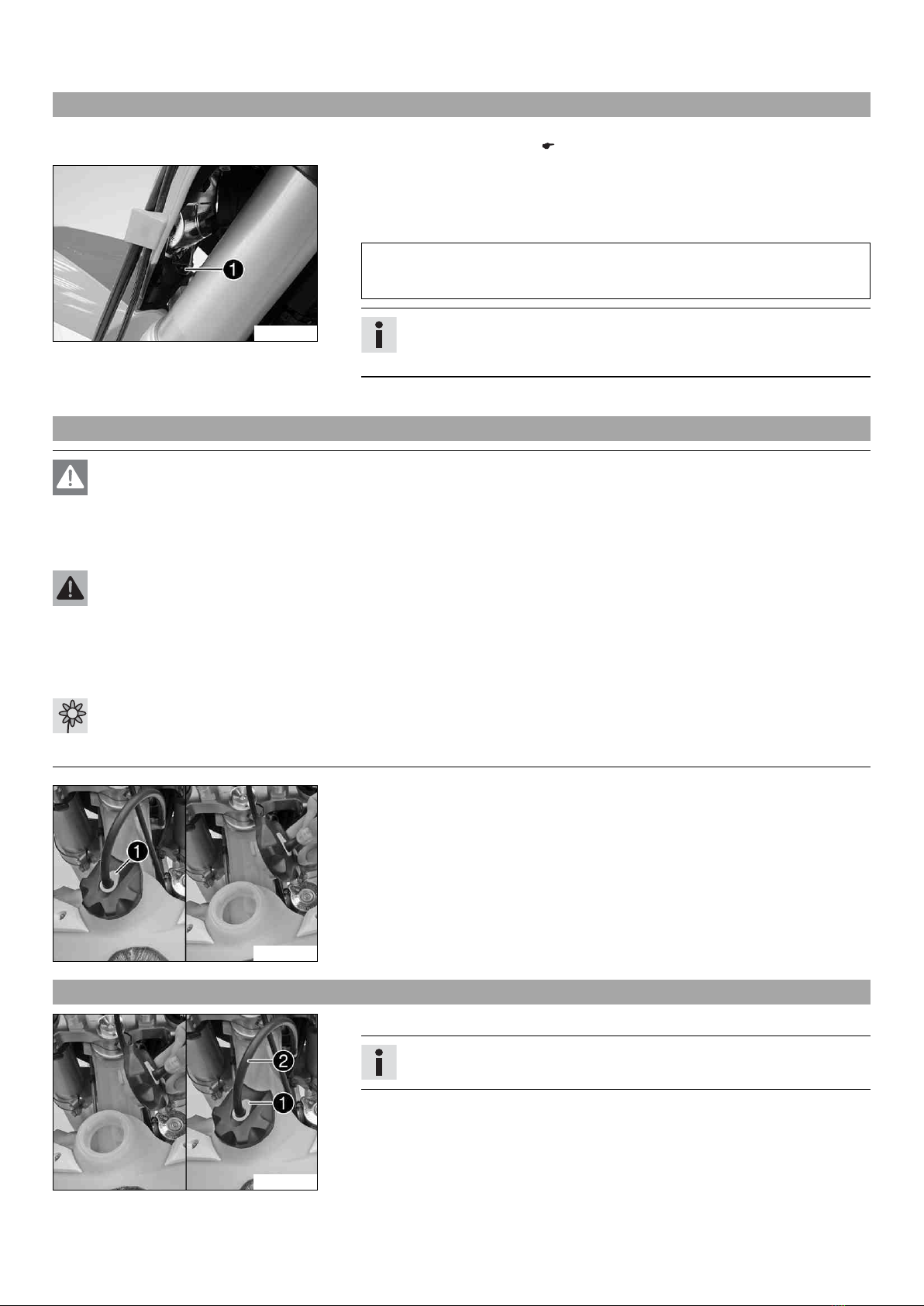

3.12 Adjusting the headlight range
Preparatory work
–Check the headlight setting. ( p. 12)
301251-10
Main work
–Loosen screw 1.
–Adjust the headlight range by swiveling the headlight.
Guideline
The boundary between light and dark must be exactly on the lower mark for a
motorcycle with driver (instructions on how to apply the mark: Checking the
headlight setting).
Info
The headlight range may need to be corrected if luggage is carried on the
vehicle.
–Tighten screw 1.
3.13 Opening the filler cap
Danger
Fire hazard Fuel is highly flammable.
–Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no
fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
–Fuel in the fuel tank expands when warm and can escape if the tank is overfilled. See the notes on refueling.
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
–Avoid contact between fuel and skin, eyes and clothing. Do not inhale fuel vapors. If fuel gets into your eyes, rinse immedi-
ately with water and contact a doctor. Wash affected skin areas immediately with soap and water. If fuel is swallowed, con-
tact a doctor immediately. Change clothing that has come into contact with fuel. Store fuel in a suitable canister according
to regulations and keep it out of the reach of children.
Warning
Environmental hazard Improper handling of fuel is a danger to the environment.
–Do not allow fuel to get into the ground water, the ground, or the sewage system.
B01211-10
–Press release button 1, turn the filler cap counterclockwise and lift it free.
3.14 Closing the filler cap
B01212-10
–Replace the filler cap and turn clockwise until the release button 1locks in place.
Info
Run the fuel tank breather hose 2without kinks.

3 WORK 14

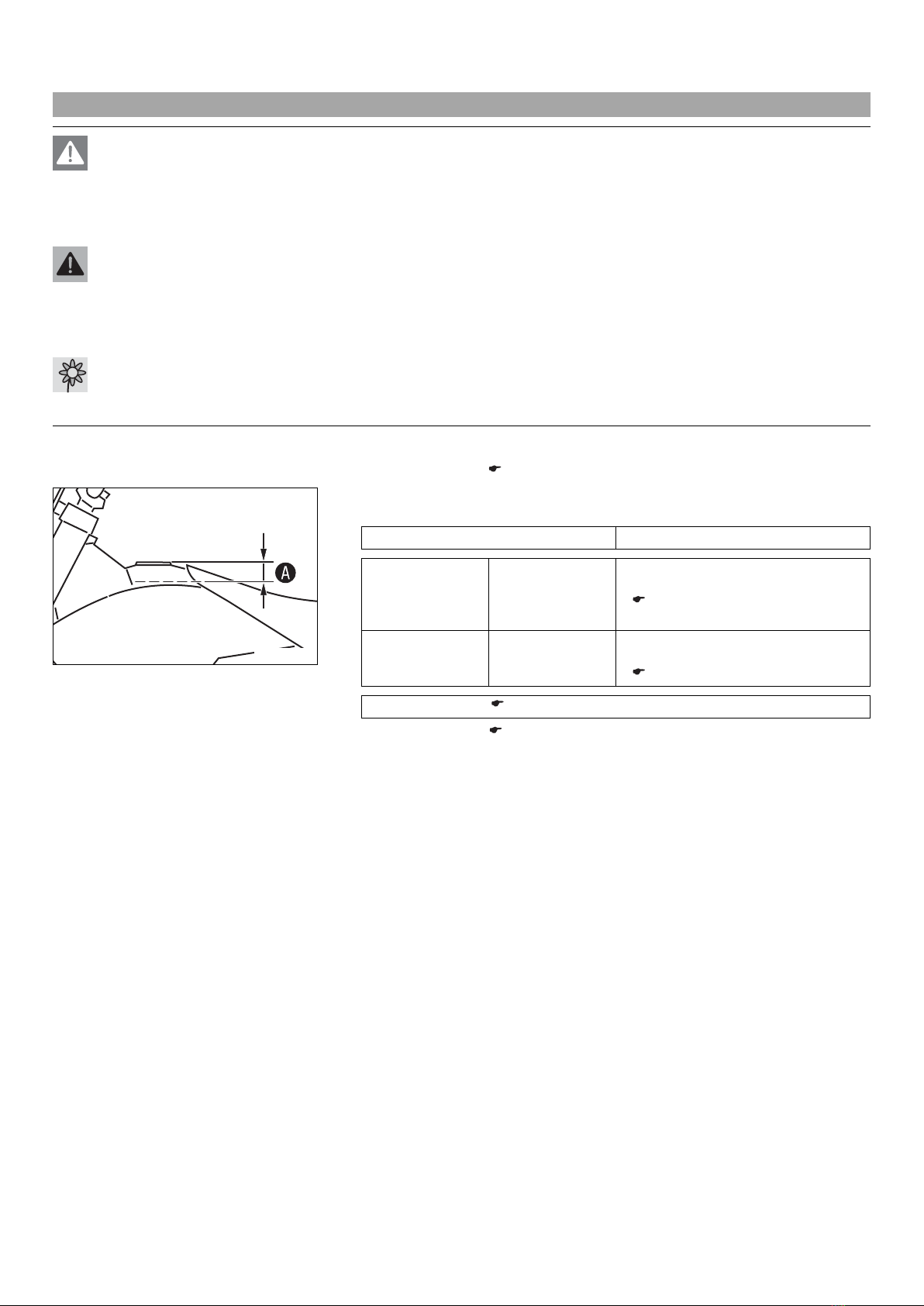

3.15 Refueling
Danger
Fire hazard Fuel is highly flammable.
–Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no
fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
–Fuel in the fuel tank expands when warm and can escape if the tank is overfilled. See the notes on refueling.
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
–Avoid contact of the fuel with skin, eyes and clothing. Do not inhale fuel vapors. If fuel gets into your eyes, rinse imme-
diately with water and contact a doctor. Wash affected skin areas immediately with soap and water. If fuel is swallowed,
contact a doctor immediately. Change clothing that has come into contact with fuel.
Warning
Environmental hazard Improper handling of fuel is a danger to the environment.
–Do not allow fuel to get into the ground water, the ground, or the sewage system.
–Switch off the engine.
–Open the filler cap. ( p. 13)
400382-10
–Fill the fuel tank with fuel up to measurement A.
Guideline
Measurement of A35 mm (1.38 in)
Total fuel tank
capacity, approx.
(EXC EU,
EXC SIX DAYS)
9.5 l
(2.51 US gal)
Super unleaded gasoline (95 octane),
mixed with 2-stroke engine oil (1:60)
( p. 17)
Total fuel tank
capacity, approx.
(EXC AUS, XC‑W)
10 l (2.6 US gal) Super unleaded gasoline (95 octane),
mixed with 2-stroke engine oil (1:60)
( p. 17)
2-stroke engine oil ( p. 17)
–Close the filler cap. ( p. 13)

4 TECHNICAL DATA - TIGHTENING TORQUES FOR CHASSIS 15
Spoke nipple, front wheel M4.5 5… 6 Nm (3.7… 4.4 lbf ft) –
Spoke nipple, rear wheel M4.5 5… 6 Nm (3.7… 4.4 lbf ft) –
Screw, battery terminal
(All 200/250/300 models)
M5 2.5 Nm (1.84 lbf ft) –
Screw, shock absorber adjusting ring M5 5 Nm (3.7 lbf ft) –
Nut, cable on starter motor
(All 200/250/300 models)
M6 4 Nm (3 lbf ft) –
Remaining nuts, chassis M6 10 Nm (7.4 lbf ft) –
Remaining screws, chassis M6 10 Nm (7.4 lbf ft) –
Screw, ball joint of push rod on foot
brake cylinder
M6 10 Nm (7.4 lbf ft) Loctite®243™
Screw, chain sliding guard M6 6 Nm (4.4 lbf ft) Loctite®243™
Screw, front brake disc M6 14 Nm (10.3 lbf ft) Loctite®243™
Screw, rear brake disc M6 14 Nm (10.3 lbf ft) Loctite®243™
Screw, throttle grip M6 3 Nm (2.2 lbf ft) –
Nut, foot brake lever stop M8 20 Nm (14.8 lbf ft) –
Nut, rear sprocket screw M8 35 Nm (25.8 lbf ft) Loctite®2701
Nut, rim lock M8 10 Nm (7.4 lbf ft) –
Remaining nuts, chassis M8 25 Nm (18.4 lbf ft) –
Remaining screws, chassis M8 25 Nm (18.4 lbf ft) –
Screw, bottom triple clamp
(125 EXC EU, all 200 models,
250/300 EXC EU, EXC AUS, XC‑W)
M8 15 Nm (11.1 lbf ft) –
Screw, bottom triple clamp
(250/300 EXC SIX DAYS EU,
125 EXC SIX DAYS EU)
M8 12 Nm (8.9 lbf ft) –
Screw, chain sliding piece M8 15 Nm (11.1 lbf ft) –
Screw, engine brace M8 33 Nm (24.3 lbf ft) –
Screw, fork stub M8 15 Nm (11.1 lbf ft) –
Screw, front brake caliper M8 25 Nm (18.4 lbf ft) Loctite®243™
Screw, handlebar clamp M8 20 Nm (14.8 lbf ft) –
Screw, side stand attachment M8 45 Nm (33.2 lbf ft) Loctite®2701
Screw, subframe M8 35 Nm (25.8 lbf ft) Loctite®2701
Screw, top steering stem
(125 EXC EU, all 200 models,
250/300 EXC EU, EXC AUS, XC‑W)
M8 20 Nm (14.8 lbf ft) –
Screw, top steering stem
(250/300 EXC SIX DAYS EU,
125 EXC SIX DAYS EU)
M8 17 Nm (12.5 lbf ft) Loctite®243™
Screw, top triple clamp (125 EXC EU,
all 200 models, 250/300 EXC EU,
EXC AUS, XC‑W)
M8 20 Nm (14.8 lbf ft) –
Screw, top triple clamp
(250/300 EXC SIX DAYS EU,
125 EXC SIX DAYS EU)
M8 17 Nm (12.5 lbf ft) –
Engine bracket screw M10 60 Nm (44.3 lbf ft) –
Remaining nuts, chassis M10 45 Nm (33.2 lbf ft) –
Remaining screws, chassis M10 45 Nm (33.2 lbf ft) –
Screw, handlebar support M10 40 Nm (29.5 lbf ft) Loctite®243™
Screw, bottom shock absorber M12 80 Nm (59 lbf ft) Loctite®2701
Screw, top shock absorber M12 80 Nm (59 lbf ft) Loctite®2701
Nut, seat fixing M12x1 20 Nm (14.8 lbf ft) –
Nut, swingarm pivot M16x1.5 100 Nm (73.8 lbf ft) –
Nut, rear wheel spindle M20x1.5 80 Nm (59 lbf ft) –
Screw, top steering head M20x1.5 12 Nm (8.9 lbf ft) –
Screw-in nozzles, cooling system M20x1.5 12 Nm (8.9 lbf ft) Loctite®243™

4 TECHNICAL DATA - TIGHTENING TORQUES FOR CHASSIS 16
Screw, front wheel spindle M24x1.5 45 Nm (33.2 lbf ft) –

5 SUBSTANCES 17
2-stroke engine oil
According to
–JASO FC ( p. 19)
Guideline
–Only use high quality 2-stroke engine oil of a well-known brand. KTM recommends Motorex®products.
Fully synthetic
Supplier
Motorex®
–Cross Power 2T
Super unleaded (ROZ 95/RON 95/PON 91)
According to
–DIN EN 228 (ROZ 95/RON 95/PON 91)
Guideline
–Only use unleaded super fuel that matches or is equivalent to the specified fuel grade.
–Fuel with an ethanol content of up to 10 % (E10 fuel) is safe to use.
Info
Do not use fuel containing methanol (e. g. M15, M85, M100) or more than 10 % ethanol (e. g. E15, E25, E85, E100).
Super unleaded gasoline (95 octane), mixed with 2-stroke engine oil (1:60)
According to
–DIN EN 228
–JASO FC ( p. 19) (1:60)
Mixture ratio
1:60 2-stroke engine oil ( p. 17)
Super unleaded (ROZ 95/RON 95/PON 91) ( p. 17)
Supplier
Motorex®
–Cross Power 2T

6 AUXILIARY SUBSTANCES 18
Long-life grease
Guideline
–KTM recommends Motorex®products.
Supplier
Motorex®
–Bike Grease 2000
This manual suits for next models
12
Table of contents
Other KTM Motorcycle manuals

KTM
KTM 690 Duke USA User manual

KTM
KTM 450 EXC-R EU User manual

KTM
KTM 150 SX User manual

KTM
KTM 125 Duke 2017 User manual

KTM
KTM 200 Duke 2016 User manual

KTM
KTM SX-E 3 2023 User manual

KTM
KTM 1190 ADVENTURE R User manual

KTM
KTM 1290 SUPER ADVENTURE S 2021 Manual

KTM
KTM 790 ADVENTURE R 2022 User manual

KTM
KTM 250 SX-F 2023 User manual

KTM
KTM 660 RALLY 2005 Owner's manual

KTM
KTM 950 Adventure 2005 User manual

KTM
KTM 450 SX-F Manual

KTM
KTM 390 Duke Series 2018 Manual

KTM
KTM 250 XC-F 2017 Manual

KTM
KTM 125 XC-W EU 2017 Manual

KTM
KTM 350 EXC-F WESS User manual

KTM
KTM Freeride 250 R 2017 Manual

KTM
KTM 450 SX-F EU 2009 Manual

KTM
KTM 990 Supermoto R USA 2010 User manual
