KTM 390 Duke Series 2018 Manual

SETUP INSTRUCTIONS 2018
390 Duke
Art. no. 3213834en

INTRODUCTION
*3213834en*
3213834en
01/2018
INTRODUCTION
Perform the work described in these setup instructions before the vehicle is delivered to the customer.
Read the setup instructions in their entirety before beginning work.
These setup instructions were written to correspond to the latest state of this series. We reserve the right to make
changes in the interest of technical advancement without at the same time updating this manual.
We shall not provide a description of general workshop methods. Likewise, safety rules that apply in a workshop
are not specified here. It is assumed that the work will be performed by a fully trained mechanic.
All specifications are non-binding. KTM Sportmotorcycle GmbH specifically reserves the right to modify or delete
technical specifications, prices, colors, forms, materials, services, designs, equipment, etc., without prior notice
and without specifying reasons, to adapt these to local conditions, as well as to stop production of a particular
model without prior notice. KTM accepts no liability for delivery options, deviations from figures and descriptions,
misprints, and other errors. The models portrayed partly contain special equipment that does not belong to the
regular scope of supply.
© 2018 KTM Sportmotorcycle GmbH, Mattighofen Austria
All rights reserved
Reproduction, even in part, as well as copying of all kinds, is permitted only with the express written permission
of the copyright owner.
ISO 9001(12 100 6061)
According to the international quality management standard ISO 9001, KTM uses quality assur-
ance processes that lead to the maximum possible quality of the products.
Issued by: TÜV Management Service
KTM Sportmotorcycle GmbH
Stallhofnerstraße 3
5230 Mattighofen, Austria
This document is valid for the following models:
390 Duke EU (F4303R1, F4303R2)
390 Duke EU (F4303R3, F4303R4)
390 Duke AU (F4360R1, F4360R2)
390 Duke JP (F4386R1, F4386R2)
390 Duke US (F4375R1, F4375R2)
390 Duke AR (F4342R1, F4342R2)
390 Duke BR (F4340R1, F4340R2)
390 Duke CN (F4387R1, F4387R2)
390 Duke CO (F4341R1, F4341R2)
390 Duke MY (F4389R1, F4389R2)
390 Duke PH (F4382R1, F4382R2)
390 Duke TH (F4383R4, F4383R5)

1 MEANS OF REPRESENTATION
2
1.1 Symbols used
The meaning of specific symbols is described below.
Indicates an expected reaction (e.g. of a work step or a function).
Indicates an unexpected reaction (e.g. of a work step or a function).
Indicates a page reference (more information is provided on the specified page).
Indicates information with more details or tips.
Indicates the result of a testing step.
Indicates a voltage measurement.
Indicates a current measurement.
Indicates a resistance measurement.
Indicates the end of an activity including potential rework.
1.2 Formats used
The typographical formats used in this document are explained below.
Proprietary name Indicates a proprietary name.
Name®Indicates a protected name.
Brand™ Indicates a brand available on the open market.
Underlined terms Refer to technical details of the vehicle or indicate technical terms, which
are explained in the glossary.

SETUP 2
3
2.1 Unpacking and setting up the vehicle
A00034-10
–Remove the straps and box.
A00035-10
–Remove the adhesive tape in the upper area of the motorcycle.
A00038-10
–Roll down the film at the sides.
Info
To avoid damaging the motorcycle during unpacking,
leave the other films on the vehicle until you have fin-
ished work on the vehicle.
–Remove the separate enclosure and unpack it. Check the sepa-
rate enclosure for completeness.
–Check the vehicle for transport damage.
A00037-10
Warning
Danger of accidents A repaired handlebar poses a
safety risk.
If the handlebar is bent or straightened, the mate-
rial becomes fatigued. The handlebar may break as a
result.
–Change the handlebar if the handlebar is damaged
or bent.
–Position the handlebar.
Info
Make sure the cables and wiring are positioned cor-
rectly.
–Position the handlebar clamp. Mount and tighten the screws
evenly.
Guideline
Screw, handle-
bar clamp
M8 20 Nm (14.8 lbf ft)
Loctite®243™

2 SETUP
4
The lettering on the handlebar is in the middle of the han-
dlebar clamp.
A00036-10
–Position all controls in their exact positions on the handlebar.
Tighten all screws.
–Check the clutch lever play. ( p. 6)
–Check the play in the throttle cable. ( p. 7)
–Mount and tighten the rear mirror on both sides.
F01045-10
–Mount reflector 1with spring washers 2on holding
plate 3.
–Mount the retaining plate on the license plate holder.
–Mount the license plate holder.
–Carefully loosen and remove the tension belt over the
swingarm.
Info
An assistant prevents the motorcycle from falling over.
–Carefully loosen and remove the tension belts around the lower
triple clamp.
The vehicle is released at the front.
–Together with an assistant, take the vehicle off the pallet.
–Remove the passenger seat. ( p. 8)
E01183-01
–Take tool set out of the separate enclosure and fasten onto the
bottom of the passenger seat using the rubber straps provided
in the tool set.
–Remove the front rider's seat. ( p. 8)
–Remove spare key and KEYCODECARD under the seat and keep
in a safe place for the handover.
Warning
Risk of injury Battery acid and battery gases cause
serious chemical burns.
–Keep batteries out of the reach of children.
–Wear suitable protective clothing and safety
glasses.
–Avoid contact with battery acid and battery gases.
–Keep sparks or open flames away from the battery.
–Only charge batteries in well-ventilated rooms.
–Rinse the affected area immediately with plenty of
water in the event of contact with the skin.
–Rinse eyes with water for at least 15 minutes and
consult a doctor immediately if battery acid and
battery gases get into the eyes.
–Fill the battery.

SETUP 2
5
Info
Read the notes in the battery package.
–Recharge the battery. ( p. 9)
–Install the battery. ( p. 10)
–Remove the remaining films.

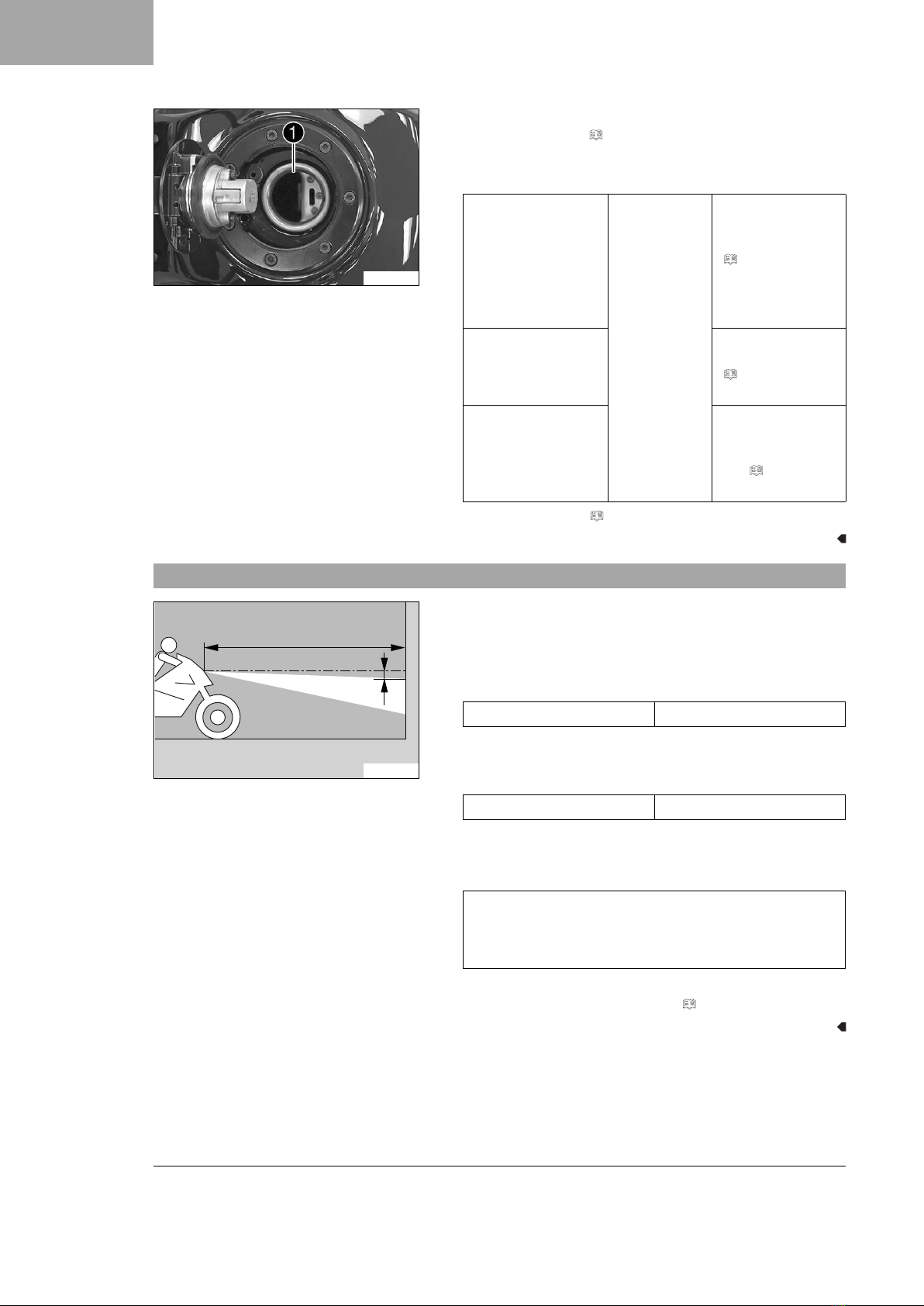

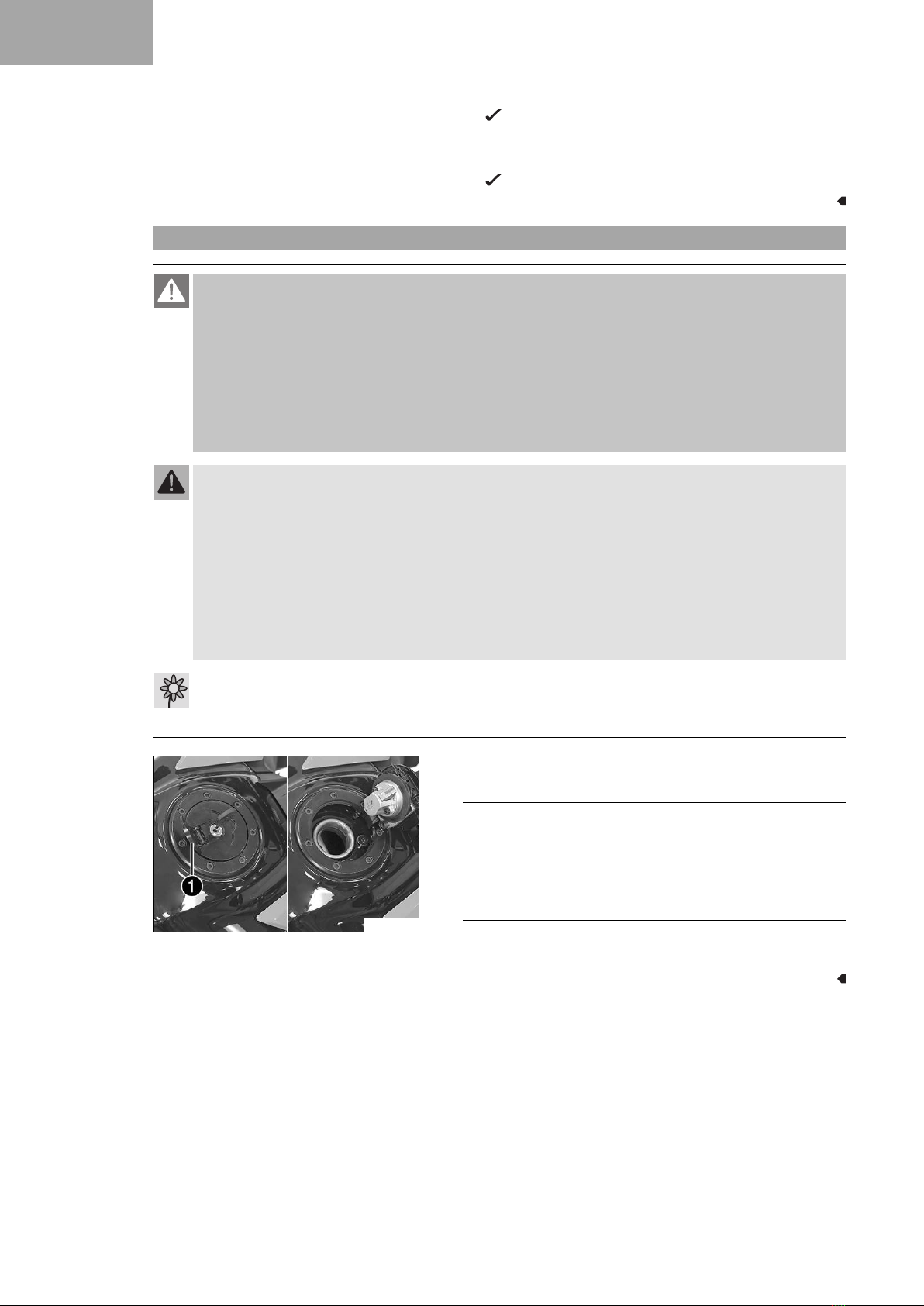

–Refuel. ( p. 13)
–Check the headlight setting. ( p. 14)
–Prepare the vehicle according to the specifications in
the KTM Dealer.net for handover to the customer.

3 WORK
6
3.1 Checking the clutch lever play
Note
Clutch damage If there is no free travel by the clutch lever, the clutch will begin to slip.
–Check the free travel of the clutch lever each time before using the motorcycle.
–Adjust the free travel of the clutch lever when necessary in accordance with the specification.
F00871-10
–Check the clutch lever for smooth operation.
–Move the handlebar to the straight-ahead position.
–Pull the clutch lever until resistance is perceptible, and deter-
mine the play in the clutch lever A.
Clutch lever play A1 … 3 mm (0.04 …
0.12 in)
» If the clutch lever play does not meet the specified value:
–Adjust play in the clutch lever. ( p. 6)
–Move the handlebar to and fro over the entire steering range.
The clutch lever play must not change.
» If the clutch lever play changes:
–Check the routing of the clutch cable.
3.2 Adjusting play in the clutch lever
F00872-10
–Move the handlebar to the straight-ahead position.
–Push back sleeve 1.
–Loosen lock nut 2.
–Adjust the play in the clutch level Aby turning adjusting
screw 3.
Guideline
Clutch lever play A1 … 3 mm (0.04 …
0.12 in)
–Tighten lock nut 2.
–Position bellows 1.

WORK 3
7

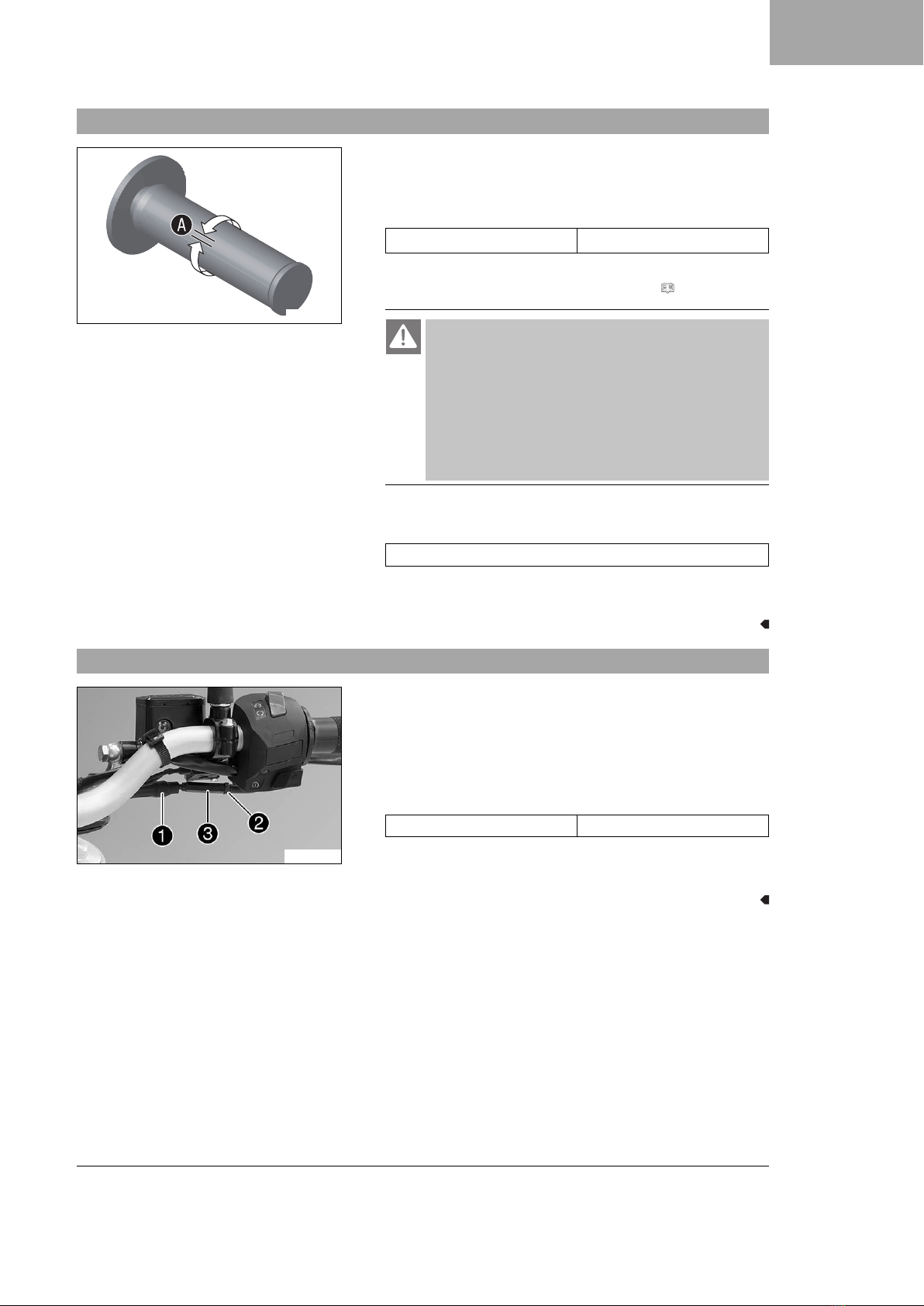

3.3 Checking the play in the throttle cable
400192-11
–Check the throttle grip for smooth operation.
–Move the handlebar to the straight-ahead position. Turn the
throttle grip back and forth slightly and determine the play in
throttle cable A.
Throttle cable play A3 … 5 mm (0.12 … 0.2 in)
» If the throttle cable play does not meet the specified value:
–Adjust the play in the throttle cable. ( p. 7)
Danger
Danger of poisoning Exhaust gases are toxic and inhal-
ing them may result in unconsciousness and death.
–Always make sure there is sufficient ventilation
when running the engine.
–Use an effective exhaust extraction system when
starting or running the engine in an enclosed
space.
–Start the engine and let it run idle. Move the handlebar to and
fro over the entire steering range.
The idle speed must not change.
» If the idle speed changes:
–Check throttle cable routing.
3.4 Adjusting the play in the throttle cable
M00731-10
–Move the handlebar to the straight-ahead position.
–Push back sleeve 1.
–Loosen lock nut 2.
–Adjust the play in the throttle cable by turning adjusting
screw 3.
Guideline
Throttle cable play 3 … 5 mm (0.12 … 0.2 in)
–Tighten lock nut 2.
–Slide on sleeve 1.

3 WORK
8
3.5 Removing the passenger seat
H01991-10
–Insert the ignition key in seat lock 1and turn it clockwise.
–Raise the rear of the seat, push it towards the rear, and lift it
off.
–Remove the ignition key from the seat lock.
3.6 Mounting the passenger seat
H01992-01
–Attach hooks 1on the passenger seat to seat mounting 2
on the subframe, and lower it at the rear while pushing for-
ward.
–Press passenger seat downward until it clicks into place.
Warning
Danger of accidents The seat can come loose from the
anchoring if it is not mounted correctly.
–After assembly, check whether the seat is correctly
locked and cannot be pulled up.
–Finally, check that the passenger seat is correctly mounted.
3.7 Removing the front rider's seat
Preparatory work
–Remove the passenger seat. ( p. 8)
H01993-01
Main work
–Raise the rear of the front rider's seat, pull it towards the rear,
and remove it upwards.

WORK 3
9

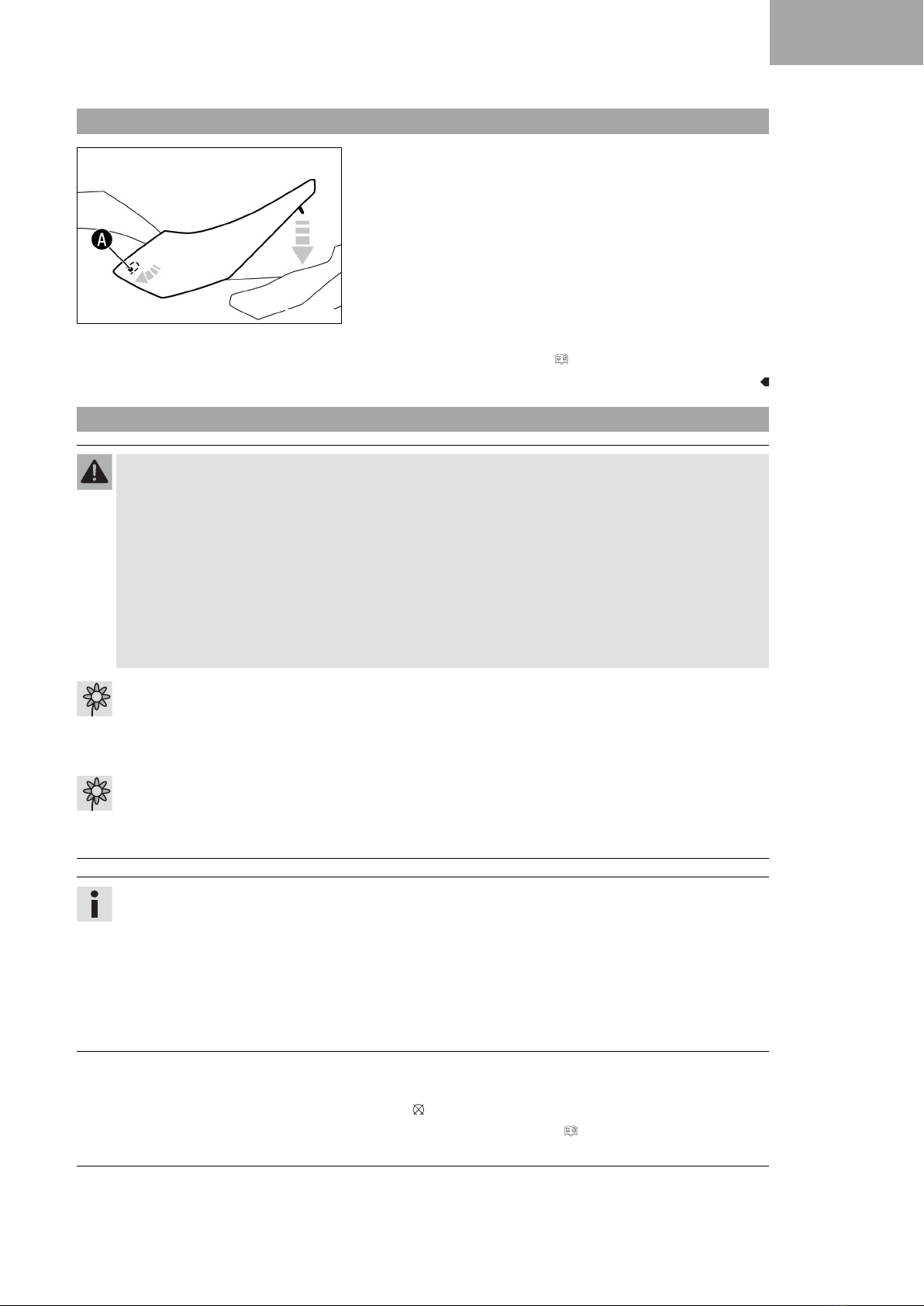

3.8 Mounting the front rider's seat
H01994-01
Main work
–Attach the front rider's seat in area Aand lower at the rear.
–Finally, check that the driver's seat is correctly mounted.
Finishing work
–Mount the passenger seat. ( p. 8)
3.9 Recharging the battery
Warning
Risk of injury Battery acid and battery gases cause serious chemical burns.
–Keep batteries out of the reach of children.
–Wear suitable protective clothing and safety glasses.
–Avoid contact with battery acid and battery gases.
–Keep sparks or open flames away from the battery.
–Only charge batteries in well-ventilated rooms.
–Rinse the affected area immediately with plenty of water in the event of contact with the skin.
–Rinse eyes with water for at least 15 minutes and consult a doctor immediately if battery acid and
battery gases get into the eyes.
Note
Environmental hazard Batteries contain environmentally-hazardous materials.
–Do not dispose of batteries as household waste.
–Dispose of batteries at a collection point for used batteries.
Note
Environmental hazard Hazardous substances cause environmental damage.
–Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with
the applicable regulations.
Info
Even when there is no load on the battery, it discharges steadily.
The charging level and the method of charging are very important for the service life of the battery.
Rapid recharging with a high charging current shortens the service life of the battery.
If the charging current, charging voltage, and charging time are exceeded, the battery will be destroyed.
If the battery is depleted from starting the vehicle repeatedly, the battery must be charged immediately.
If the battery is left in a discharged state for an extended period, it will become over-discharged and sul-
fated, destroying the battery.
The battery is maintenance-free, i.e., the acid level does not have to be checked.
Preparatory work
–Switch off the ignition by turning the ignition key to the posi-
tion .
–Remove the passenger seat. ( p. 8)

3 WORK
10
–Remove the front rider's seat. ( p. 8)
–Disconnect the negative cable of the battery.
311910-10
Main work
–Connect the battery charger to the battery. Adjust the battery
charger.
EU battery charger XCharge-professional (00029095050)
Alternative 1
US battery charger XCharge-professional
(00029095051)
Alternative 2
UK battery charger XCharge-professional
(00029095052)
Alternative 3
CH battery charger XCharge-professional
(00029095053)
Info
Follow the instructions of the charger and the manual.
–Disconnect the battery charger after charging the battery.
Guideline
The charging current, charging voltage, and charging time
must not be exceeded.
Charge the battery regularly
when the motorcycle is not
in use
3 months
Finishing work
–Mount the front rider's seat. ( p. 9)
–Mount the passenger seat. ( p. 8)
–Set the time and date. ( p. 11)
3.10 Installing the battery
V01274-11
Main work
–Position the battery in the battery holder.
Battery (ETZ‑9‑BS)
–Reconnect rubber band 1.
–Position positive cable 2and mount and tighten the screw.
–Position positive terminal cover 3.

WORK 3
11

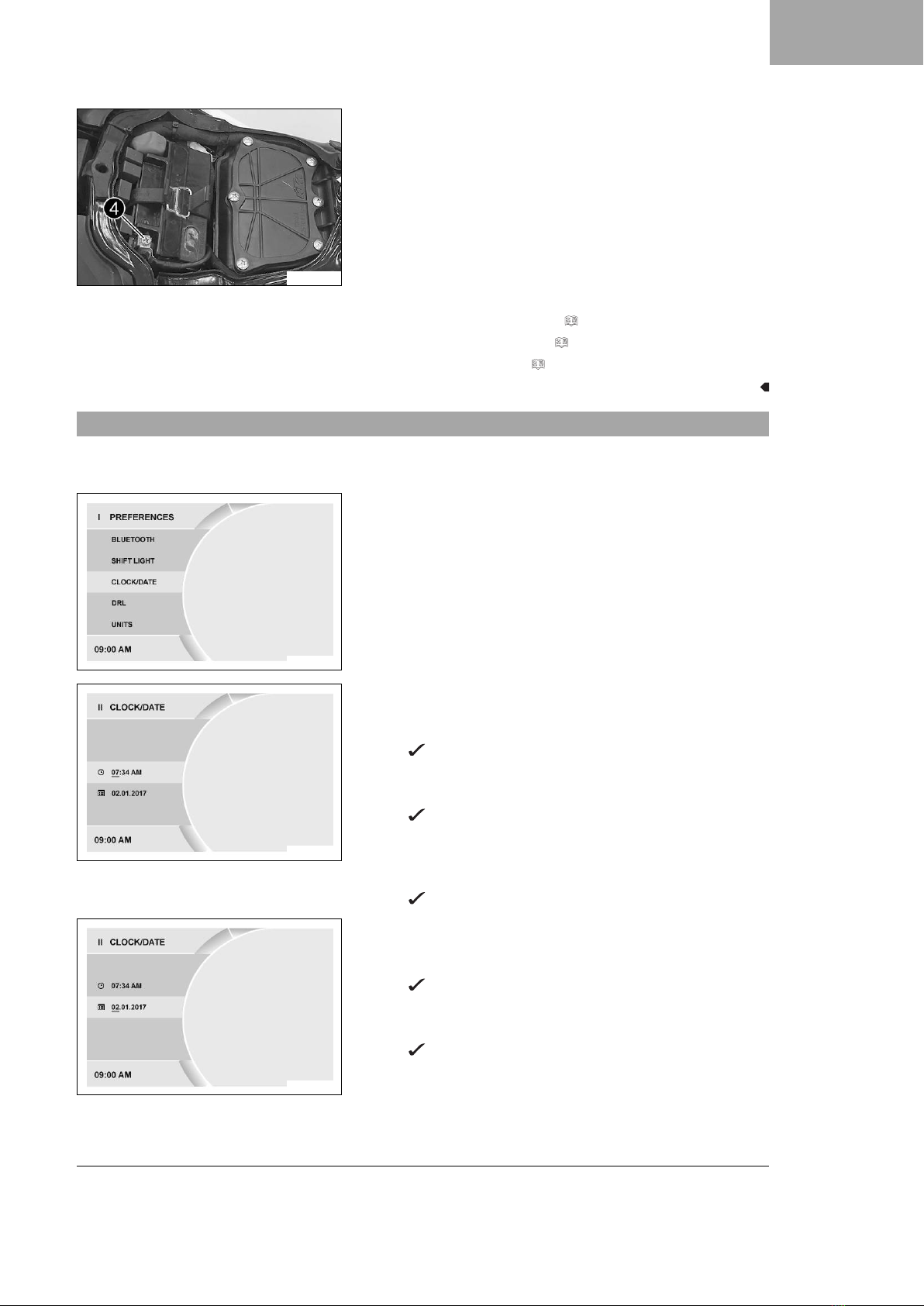

V01273-11
–Position negative cable 4; mount and tighten the screw.
Finishing work
–Mount the front rider's seat. ( p. 9)
–Mount the passenger seat. ( p. 8)
–Set the time and date. ( p. 11)
3.11 Setting the time and date
Condition
The motorcycle is stationary.
V01172-01
–Press the SET button when the menu is closed.
–Press the UP or DOWN button until Preferences appears. Press
the SET button to open the menu.
–Press the UP or DOWN button until Clock/Date is marked. Press
the SET button to open the menu.
V01173-01
Setting the clock
–Press the UP or DOWN button until the time is marked.
–Press the SET button.
The hour flashes and is underlined.
–Press the UP or DOWN button until the current hour is set.
–Press the SET button.
The minutes flash and are underlined.
–Press the UP or DOWN button until the current minute is
set.
–Press the SET button.
The time is stored.
V01174-01
Setting the date
–Press the UP or DOWN button until the date is marked.
–Press the SET button.
The day flashes and is underlined.
–Press the UP or DOWN button until the current day is set.
–Press the SET button.
The month flashes and is underlined.
–Press the UP or DOWN button until the current month is
set.
–Press the SET button.

3 WORK
12
The year flashes and is underlined.
–Press the UP or DOWN button until the current year is set.
–Press the SET button.
The date is stored.
3.12 Opening the filler cap
Danger
Fire hazard Fuel is highly flammable.
The fuel in the fuel tank expands when warm and can escape if overfilled.
–Do not refuel the vehicle in the vicinity of open flames or lit cigarettes.
–Switch off the engine for refueling.
–Make sure that no fuel is spilled; particularly not on hot parts of the vehicle.
–If any fuel is spilled, wipe it off immediately.
–Observe the specifications for refueling.
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
–Avoid skin, eye and clothing contact with fuel.
–Immediately consult a doctor if you swallow fuel.
–Do not inhale fuel vapors.
–In case of skin contact, rinse the affected area with plenty of water.
–Rinse the eyes thoroughly with water, and consult a doctor in case of fuel contact with the eyes.
–Change your clothing in case of fuel spills on them.
–Keep fuels correctly in a suitable canister, and out of the reach of children.
Note
Environmental hazard Improper handling of fuel is a danger to the environment.
–Do not allow fuel to enter the groundwater, the soil, or the sewage system.
F00858-10
–Lift cover 1of the filler cap and insert the ignition key in the
lock.
Note
Danger of damage The ignition key may break if overloaded.
Damaged ignition keys must be replaced.
–Push down on the filler cap to take pressure off the igni-
tion key.
–Turn the ignition key 90° clockwise.
–Open the filler cap.

WORK 3
13
3.13 Closing the filler cap
F00859-01
Warning
Fire hazard Fuel is highly flammable, toxic and a
health hazard.
–Check the filler cap is locked correctly after clos-
ing.
–Change your clothing in case of fuel spills on them.
–Rinse the affected area immediately with plenty of
water in the event of contact with the skin.
–Fold down the filler cap.
–Turn the ignition key 90° clockwise.
–Push down the filler cap and turn the ignition key counter-
clockwise until the tank lock engages.
–Remove the ignition key and close the cover.
3.14 Refueling
Danger
Fire hazard Fuel is highly flammable.
The fuel in the fuel tank expands when warm and can escape if overfilled.
–Do not refuel the vehicle in the vicinity of open flames or lit cigarettes.
–Switch off the engine for refueling.
–Make sure that no fuel is spilled; particularly not on hot parts of the vehicle.
–If any fuel is spilled, wipe it off immediately.
–Observe the specifications for refueling.
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
–Avoid skin, eye and clothing contact with fuel.
–Immediately consult a doctor if you swallow fuel.
–Do not inhale fuel vapors.
–In case of skin contact, rinse the affected area with plenty of water.
–Rinse the eyes thoroughly with water, and consult a doctor in case of fuel contact with the eyes.
–Change your clothing in case of fuel spills on them.
Note
Material damage Inadequate fuel quality causes the fuel filter to quickly become clogged.
In some countries and regions, the available fuel quality and cleanliness may not be sufficient. This will result in
problems with the fuel system.
–Refuel only with clean fuel that meets the specified standards.
Note
Environmental hazard Improper handling of fuel is a danger to the environment.
–Do not allow fuel to enter the groundwater, the soil, or the sewage system.

3 WORK
14
F00792-10
–Switch off the engine.
–Open the filler cap. ( p. 12)
–Fill the fuel tank with fuel up to the lower edge 1of the fuel
filler.
Total fuel tank
capacity, approx.
13.5 l
(3.57 US gal)
Super unleaded
(ROZ 95/RON
95/PON 91)
( p. 19) (KTM
390 Duke
EU/AU/JP/US,
AR/CN/CO, MY/PH)
Total fuel tank
capacity, approx.
Gasohol 95 E20
(RON 95)
( p. 19)
(390 Duke TH)
Total fuel tank
capacity, approx.
Super unleaded,
type C (ROZ
95/RON 95/PON
91) ( p. 19)
(390 Duke BR)
–Close the filler cap. ( p. 13)
3.15 Checking the headlight setting
0
0
AA
0
0
BB
400726-10
–Position the vehicle upright on a horizontal surface in front of
a light wall and make a marking at the height of the center of
the low beam headlight.
–Make another mark at a distance Bunder the first marking.
Guideline
Distance B5 cm (2 in)
–Position the vehicle perpendicular to the wall at a distance A
from the wall and switch on the low beam.
Guideline
Distance A5 m (16 ft)
–The rider now mounts the motorcycle with luggage and passen-
ger if applicable.
–Check the headlight setting.
The light-dark boundary must lie exactly on the lower mark-
ing when the motorcycle is ready to operate with the rider
mounted along with any luggage and a passenger if applica-
ble.
» If the light-dark border does not meet specifications:
–Adjust the headlight range. ( p. 15)

WORK 3
15
3.16 Adjusting the headlight range
Preparatory work
–Check the headlight setting. ( p. 14)
F00850-10
Main work
–Turn adjusting screw 1to adjust the headlight range.
Info
Turn clockwise to increase the headlight range; turn
counterclockwise to reduce the headlight range.
If you have a payload, you may have to correct the
headlight range.
Screw 1also secures the headlight. Ensure the screw
is always screwed in far enough.
400726-11
–Set the headlight to marking B.
Guideline
The light-dark boundary must lie exactly on lower marking
Bwhen the motorcycle is ready to operate with the rider
mounted along with any luggage and a passenger if applica-
ble.

4 TECHNICAL DATA
16
4.1 Chassis tightening torques
Screw, chain guard EJOT PT®K60x30 7 Nm (5.2 lbf ft)
Remaining screws, chassis M4 4 Nm (3 lbf ft)
Remaining nuts, chassis M5 5 Nm (3.7 lbf ft)
Remaining screws, chassis M5 5 Nm (3.7 lbf ft)
Screw, chain guard M5 7 Nm (5.2 lbf ft)
Loctite®243™
Screw, compensating tank cap
lock, rear brake
M5 9 Nm (6.6 lbf ft)
Screw, fuel tank cover M5 4 Nm (3 lbf ft)
Screw, outer clutch cable guide M5 5 Nm (3.7 lbf ft)
Loctite®243™
Screw, side stand switch M5 5 Nm (3.7 lbf ft)
Loctite®243™
Screw, tail light M5 5 Nm (3.7 lbf ft)
Nut, foot brake lever adjustment M6 9 Nm (6.6 lbf ft)
Remaining nuts, chassis M6 10 Nm (7.4 lbf ft)
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
Screw, ABS hose clamp M6 7 Nm (5.2 lbf ft)
Screw, ABS module M6 10 Nm (7.4 lbf ft)
Screw, ABS module retaining
bracket on frame
M6 7 Nm (5.2 lbf ft)
Screw, air filter box M6 6 Nm (4.4 lbf ft)
Screw, brake fluid reservoir of rear
brake
M6 8 Nm (5.9 lbf ft)
Loctite®243™
Screw, brake hose clamp M6 7 Nm (5.2 lbf ft)
Screw, cable holder, side stand
switch
M6 9 Nm (6.6 lbf ft)
Loctite®243™
Screw, chain sliding guard M6 7 Nm (5.2 lbf ft)
Screw, combination instrument M6 7 Nm (5.2 lbf ft)
Screw, compensating tank M6 5 Nm (3.7 lbf ft)
Screw, damper block M6 8 Nm (5.9 lbf ft)
Screw, engine sprocket cover M6 8 Nm (5.9 lbf ft)
Screw, foot brake cylinder M6 9 Nm (6.6 lbf ft)
Loctite®243™
Screw, front fender M6 7 Nm (5.2 lbf ft)
Screw, front seat fixing M6 6 Nm (4.4 lbf ft)
Screw, front spoiler M6x13 9 Nm (6.6 lbf ft)
Screw, front spoiler rear M6x9 9 Nm (6.6 lbf ft)
Screw, fuel pump M6 10 Nm (7.4 lbf ft)
Screw, fuel tank holder evaporation
valve
M6 9 Nm (6.6 lbf ft)
Screw, fuel tank trim M6 5 Nm (3.7 lbf ft)
Screw, fuel tank trim M6 7 Nm (5.2 lbf ft)
Screw, headlight M6 8 Nm (5.9 lbf ft)
Screw, ignition coil M6 8 Nm (5.9 lbf ft)

TECHNICAL DATA 4
17
Screw, ignition lock (tamper-proof
screw)
M6 13 Nm (9.6 lbf ft)
Screw, license plate holder M6 12 Nm (8.9 lbf ft)
Loctite®243™
Screw, lower rear panel M6 7 Nm (5.2 lbf ft)
Screw, magnetic holder on side
stand
M6 5 Nm (3.7 lbf ft)
Loctite®243™
Screw, main silencer M6 12 Nm (8.9 lbf ft)
Screw, main silencer retaining
bracket
M6 9 Nm (6.6 lbf ft)
Screw, protective plate M6 8 Nm (5.9 lbf ft)
Screw, radiator holder M6 10 Nm (7.4 lbf ft)
Screw, radiator shield M6 7 Nm (5.2 lbf ft)
Screw, rear ABS sensor wheel M6 8 Nm (5.9 lbf ft)
Loctite®243™
Screw, rear splash protector M6 9 Nm (6.6 lbf ft)
Screw, rollover sensor M6 8 Nm (5.9 lbf ft)
Loctite®243™
Screw, shift lever linkage M6 11 Nm (8.1 lbf ft)
Loctite®243™
Screw, wheel speed sensor holder M6 8 Nm (5.9 lbf ft)
Nut, rear sprocket M8 27 Nm (19.9 lbf ft)
Remaining nuts, chassis M8 25 Nm (18.4 lbf ft)
Remaining screws, chassis M8 25 Nm (18.4 lbf ft)
Screw, bottom triple clamp M8 12 Nm (8.9 lbf ft)
Screw, engine bearer M8 22 Nm (16.2 lbf ft)
Screw, foot brake lever M8 16 Nm (11.8 lbf ft)
Loctite®243™
Screw, fork stub M8 15 Nm (11.1 lbf ft)
Screw, front brake caliper M8 30 Nm (22.1 lbf ft)
Loctite®204™
Screw, front brake disc M8 30 Nm (22.1 lbf ft)
Loctite®243™
Screw, front seat fixing M8 25 Nm (18.4 lbf ft)
Screw, front wheel spindle M8 25 Nm (18.4 lbf ft)
Screw, fuel tank M8 20 Nm (14.8 lbf ft)
Screw, grab handle M8 22 Nm (16.2 lbf ft)
Screw, handlebar clamp M8 20 Nm (14.8 lbf ft)
Loctite®243™
Screw, horn M8 12 Nm (8.9 lbf ft)
Screw, main silencer M8 23 Nm (17 lbf ft)
Screw, passenger footrest bracket M8 22 Nm (16.2 lbf ft)
Loctite®243™
Screw, rear brake disc M8 21 Nm (15.5 lbf ft)
Loctite®243™
Screw, rear frame M8 25 Nm (18.4 lbf ft)
Loctite®243™
Screw, rear seat fixing M8 18 Nm (13.3 lbf ft)
Screw, seat support plate M8 18 Nm (13.3 lbf ft)

4 TECHNICAL DATA
18
Screw, top triple clamp M8 15 Nm (11.1 lbf ft)
Banjo bolt, brake line M10 24 Nm (17.7 lbf ft)
Fitting side stand M10 35 Nm (25.8 lbf ft)
Loctite®243™
Remaining nuts, chassis M10 45 Nm (33.2 lbf ft)
Remaining screws, chassis M10 45 Nm (33.2 lbf ft)
Screw, engine bearer M10 49 Nm (36.1 lbf ft)
Loctite®243™
Fitting, handlebar support M10x1.25 21 Nm (15.5 lbf ft)
Fitting, shock absorber, bottom M10x1.25 51 Nm (37.6 lbf ft)
Loctite®243™
Nut, mirror, left M10x1.25 16 Nm (11.8 lbf ft)
Nut, mirror, right M10LHx1.25 16 Nm (11.8 lbf ft)
Screw, combination instrument
bracket
M10x1.25 21 Nm (15.5 lbf ft)
Screw, front footrest bracket M10x1.25 44 Nm (32.5 lbf ft)
Loctite®243™
Screw, front footrest bracket /
engine bearer
M10x1.25 49 Nm (36.1 lbf ft)
Screw, top shock absorber M10x1.25 51 Nm (37.6 lbf ft)
Loctite®243™
Stud, rear sprocket M10x1.25 50 Nm (36.9 lbf ft)
Nut, rear wheel spindle M14x1.5 98 Nm (72.3 lbf ft)
Nut, swingarm pivot M14x1.5 98 Nm (72.3 lbf ft)
Screw, steering head, top M16x1.5 49 Nm (36.1 lbf ft)
Loctite®243™
Lambda sensor M18x1.5 19 Nm (14 lbf ft)
Swingarm bearing adjusting ring M22x1 Tighten and ensure that there is no
play
Nut, steering head M30x1 1st stage
45 Nm (33.2 lbf ft)
2nd stage (loosen, counterclock-
wise)
2 turns
3rd stage
5 Nm (3.7 lbf ft)
