Dear customer,
Please read these operating instructions carefully
and pay particular attention to the safety notes
indicated in the first pages. We recommend that you
keep this instruction booklet for future reference and
pass it on to any future owners.
The warning triangle and/or the key words
(Warning!, Caution!) emphasize information
that is particularly important for your safety or
correct functioning of the appliance.
The information marked with this symbol
provides additional instructions and practical
tips on the use of the appliance.
Tips and information about economical and
ecological use of the machine are marked
with this symbol.
Should any problems arise, this booklet provides
instructions on how to solve them by yourself; see
section “Something not working?”.
If this information is not sufficient, please contact our
nearest SERVICE CENTRE.
Printed on recycled paper.
People who think ecologically, act accordingly…
Technical data
Height x Width x Depth 82x60x54.5 cm
Depth with door opened 91 cm
Height adjustment ±13 mm approx.
Net weight 73 kg approx.
Load (depending on programme) 4.5 kg max.
Use domestic
Drum speed during washing max. 55 rpm
Drum speed during spinning 1200/900/700/500 rpm
Water pressure 50-800 kPa
This appliance complies with the following EC directives:
73/23/EEC of 19.2.1973 “Low voltage directive”, including directive 93 / 68 / EEC;
89/336/EEC of 3.5.1989 “Electromagnetic Compatibility Directive”.
132995140.qxd 11/22/01 11:04 AM Pagina 2 (Nero/Process Black pellicola)

Programme charts 14
Wash programmes 14
Special programmes 15
Cleaning and maintenance 16
After each wash 16
Periodical cleaning 16
Bodywork 16
Detergent dispenser drawer 16
Drain filter 16
Water inlet filter 16
Emergency emptying out 17
Frost precautions 17
Something not working? 18
Troubleshooting 18
Unsatisfactory washing results 20
Service 21
Instructions for installation and
electrical connection 22
Safety instructions for the installer 22
Dimensions of the appliance 22
Front view and side view 22
Rear view 22
Installation 23
Unpacking 23
Positioning 23
Levelling 24
Water inlet 24
Water drainage 24
Electrical connection 25
Permanent connection 25
Bulding-in 25
Preparation and assembly of the door 25
Safety instructions 4
Discarding 5
Tips for environmental protection 5
Main features of your washer-dryer 6
Description of the appliance 6
Control panel 7
Mains-on light 7
ON/OFF button 7
Programme Option buttons 7
SPIN SPEED 7
PREWASH 7
QUICK 7
RINSE PLUS 7
RINSE HOLD 7
BIO button 8
DELAY START button 8
Display 8
START/PAUSE button 8
Programme progress display 9
Programme selector dial 9
Detergent dispenser drawer 10
Before the first wash 10
Preparing the wash cycle 10
Sorting out and preparing the laundry 10
Weight of laundry 10
Types of fabric and care labels 11
Detergents and additives 11
Which detergent and additive? 11
How much detergent? 11
Liquid detergent 11
Adding a water softener 11
Information on water hardness 11
How to wash 12
Load the laundry 12
Add detergent and additive 12
Switch the machine on 12
Select the desired wash programme 12
Select the spin speed or NO SPIN option 12
Select the required option(s) 12
Select the DELAY START option 13
Start the programme 13
Cancelling a programme 13
Modification of a programme which is running 13
Opening the door after the programme has started 13
At the end of the programme 13
ENGLISH
3
Contents
132995140.qxd 11/22/01 11:04 AM Pagina 3 (Nero/Process Black pellicola)

The safety of KÜPPERSBUSCH appliances
complies with the industry standards and with legal
requirements on the safety of appliances. However,
as manufacturers, we feel it is our duty to provide the
following safety notes.
General safety
• Repairs to the machine must be carried out only by
qualified personnel. Repairs carried out by
inexperienced persons could cause serious
danger. Contact your local Service Centre.
• Unplug the appliance before carrying out any
cleaning or maintenance operations.
• Never pull the power supply cable to remove the
plug from the socket; always take hold of the plug
itself.
• Never spray the machine with a jet of water.
Danger of electric shock!
• During high temperature wash programmes the
door glass may get hot. Do not touch it!
• Let the water cool down before carrying out
emergency emptying or before opening the door in
an emergency.
Positioning, connection, starting up
• Follow the instructions for positioning and
connection.
• Carry out a first wash without laundry (COTTONS
60, with half the amount of detergent) in order to
remove any manufacturing residue from the tub
and the drum.
• Should the machine be purchased in winter, when
temperatures can be below 0°, leave the appliance
for 24 hours at ambient temperature before starting
it.
Safety instructions
4
Child safety
• Children are often not aware of how dangerous
electrical appliances can be. When the machine is
working, they should be carefully supervised and
not be allowed to play with the appliance - there is
a risk that they could become trapped inside.
• The packaging components (e.g. plastic film,
polystyrene) can be dangerous to children - danger
of suffocation! Keep them out of children’s reach.
• Keep all detergents in a safe place out of children’s
reach.
• Make sure that children or pets do not climb into
the drum.
• When the appliance is to be scrapped, cut off the
electrical supply cable and destroy the plug with
the remaining cable. Disable the door catch in
order to prevent children from becoming trapped
inside while playing.
Proper use
• This appliance is designed for domestic use only. If
the machine is used for any other purposes or is
not used correctly, the manufacturer accepts no
responsibility for any possible damage that might
occur.
• For safety reasons, the appliance must not be
modified.
• Use only detergents suitable for washing machines
and follow the manufacturer’s instructions.
• Garments which have been in contact with
flammable solvents should not be machine
washed.
• Do not use your machine for dry cleaning.
• Dyes and bleaching agents may only be used if
specifically permitted by the manufacturer of these
products. We cannot be held responsible for any
damage.
• Always unplug the appliance and turn off the water
tap after use.
132995140.qxd 11/22/01 11:04 AM Pagina 4 (Nero/Process Black pellicola)

ENGLISH
5
Discarding
Tips for environmental protection
Packaging materials
The materials marked with the symbol are
recyclable.
>PE<=polyethylene
>PS<=polystyrene
>PP<=polypropylene
This means that they can be recycled by disposing of
them properly in appropriate collection containers.
Machine
Use authorised disposal sites for your old appliance.
Help to keep your country tidy!
To save water, energy and to help protect the
environment, we recommend that you follow these
tips:
• Normally soiled laundry may be washed without
prewashing in order to save detergent, water and
time (the environment is protected too!).
• Use the energy saving programme when washing
normally soiled garments.
• The machine works more economically if it is fully
loaded.
• When small loads are washed, use only half to two
thirds of the recommended amount of detergent.
• With adequate pre-treatment, stains and limited
soiling can be removed; the laundry can then be
washed at a lower temperature.
• If the water has a medium or high degree of
hardness (starting from degree of hardness II, see
“Detergents and additives”) water softeners must
be added.
The amount of detergent can then be adjusted to
degree of hardness I (= soft).
132995140.qxd 11/22/01 11:04 AM Pagina 5 (Nero/Process Black pellicola)

Front view
Description of the appliance
• Programme and temperature setting using the
programme selector.
•Energy saving programme for normally soiled
cotton and synthetic items.
•Speed for the final spin can be reduced to 900-
700 or 500 rpm.
•RINSE HOLD can be added: the laundry is left
immersed in the final rinse water to avoid the
formation of creases.
•The possibility of selecting all the other options
offered by this machine gives you truly “customised
washing”.
•Delay timer: programme start can be delayed by 1
to max. 24 hours (e.g. to times with a more
economical power rate).
•Programme progress display showing the
programme steps selected and the programme
phase which is running.
• Because of its gentle washing action, the special
wool cycle washes your garments with extreme
care, without felting them.
•3-compartment drawer for detergent and fabric
softener.
•Unbalance detection device: secure position and
silent operation of the appliance.
Main features of your washing machine
6
IW 1209.1W
1200
900
700
500
95 E
60
40
30
60
40
30
40
30
40
30
O
E
E
Detergent drawer
Control panel
Door
Drain filter
Adjustable feet
132995140.qxd 11/22/01 11:04 AM Pagina 6 (Nero/Process Black pellicola)

ENGLISH
7

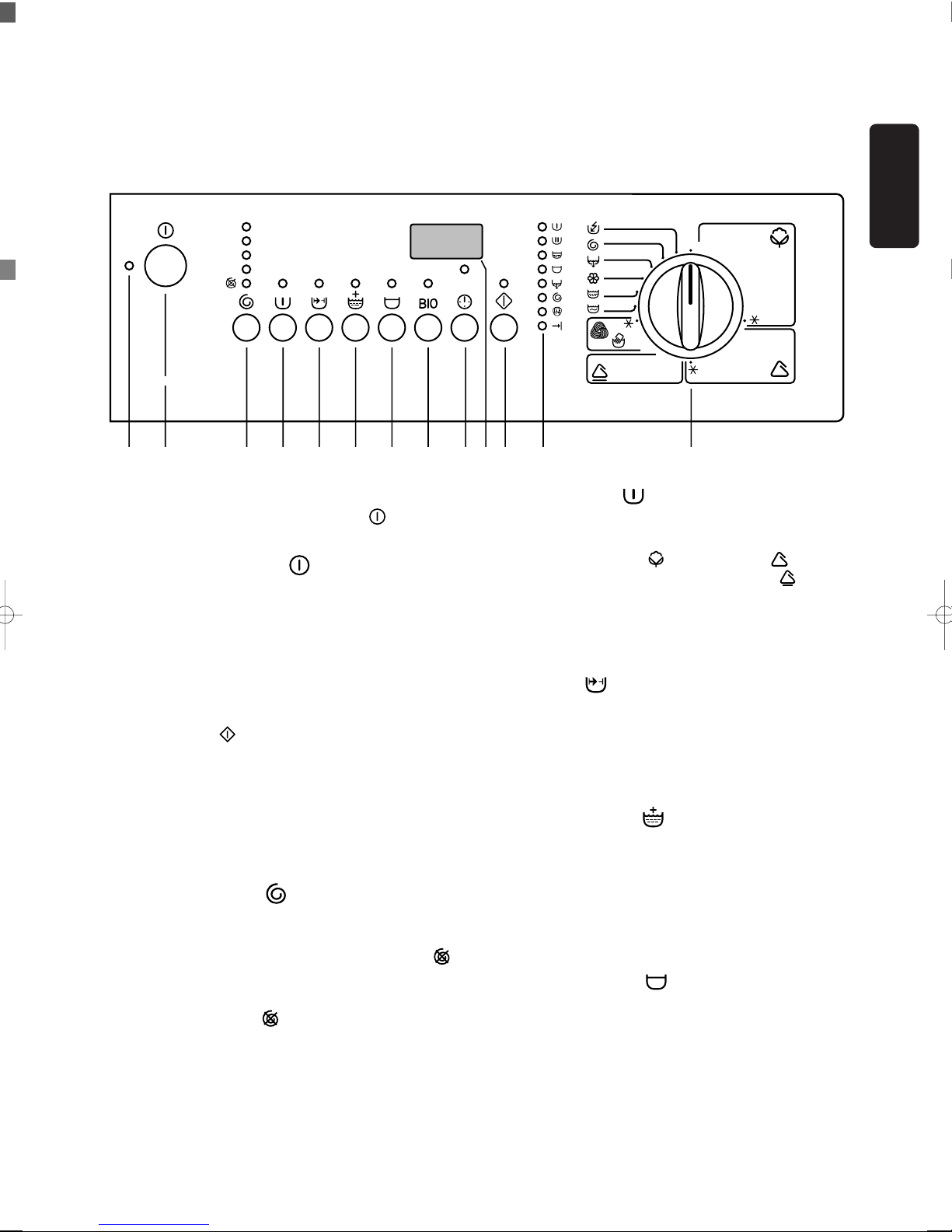

Control panel
1 Mains-on light
This light comes on when the ON/OFF button is
pressed, and goes out when it is pressed again.
2 ON/OFF button
Press this button to switch the machine on. Press it
again to switch the machine off.
Programme Option buttons
Depending on the programme, different functions can
be combined. These must be selected after choosing
the desired programme and before depressing the
START/PAUSE button.
When these buttons are pressed, the corresponding
pilot lights come on. When they are pressed again, the
pilot lights go out.
If an incorrect option is selected, the pilot lights flash
for about 2 seconds and the message Err is displayed.
An acoustic signal rings.
3 SPIN SPEED
Press this button to reduce the maximum speed of
the final speed proposed by the machine for the
selected programme or to select NO SPIN option .
The maximum spin speed for cotton is 1200 rpm, for
synthetics and wool 900 rpm and for delicates 700 rpm.
Select NO SPIN option for extremely delicate
items (curtains, for example).
This option cannot be selected for cotton.
4 PREWASH
The machine performs a prewash cycle at 30°C max.
The prewash cycle ends with a short spin in
programmes for Cotton and Synthetics , and
with emptying of the water only for Delicates .
This option is not available with the wool
programme.
For use when washing heavily soiled laundry.
5 QUICK
By pressing this button the washing time is reduced.
For use when washing lightly soiled laundry.
This option is not available with the wool and Economy
programme.
6 RINSE PLUS
Can be used with all programmes except the wool
programme. The machine performs 4 rinses instead
of 3.
This option is recommended for people who are
allergic to detergents and in areas where the water is
very soft.
7 RINSE HOLD
When this button is pressed, the last rinse water is
not emptied out, to prevent the fabrics from creasing.
When the programme has finished, the
corresponding pilot light on the programme progress
display is on. The light of the START/PAUSE button
flashes to indicate that the water must be emptied
out.
12 3456789101112 13
1200
900
700
500
95 E
60
40
30
60
40
30
40
30
40
30
O
E
E
IW 1209.1W
132995140.qxd 11/22/01 11:04 AM Pagina 7 (Nero/Process Black pellicola)

8
To empty out water:
• press the START/PAUSE button: after emptying,
the machine performs the spin cycle required for
the type of wash selected;
• select the SPIN SPEED and press the
START/PAUSE button;
• select the DRAIN programme to empty out the
water without spinning.
Warning! The programme selector dial must be
turned first to RESET Oand then to the DRAIN
programme .
If the water is not emptied out, the machine
automatically empties itself after 18 hours.
8 “BIO” button
This function can be selected for cotton and
synthetics with a washing temperature of 40 or more
degrees.
The machine will maintain a temperature of 40° for
about 10 minutes to enable the enzymes contained
in the detergent to eliminate the dirt.
To be used for laundry with “stubborn” stains.
9 DELAY START button
This button allows starting of the machine to be delayed
from 1 hour up to a maximum of 24 hours.
The button must be pressed after selecting the
programme and before pressing the START/PAUSE
button.
The figures indicating the required delay appear for
about 3 seconds in the display. The duration of the
selected wash programme is then displayed. After
depressing the START/PAUSE button, the machine
starts its countdown (in hours).
To modify or cancel the preset delay, press the
START/PAUSE button, then press the DELAY START
button until the required value is displayed or, if you wish
to cancel the delay, until the symbol 0h is displayed.
Then press the START/PAUSE button again.
When the delay is cancelled, the display shows the
duration of the wash programme previously selected.
10 Display
The display shows the following information:
• if the programme selector dial is on the RESET O
position, three flashing dashes appear immediately
after pressing the ON/OFF button to indicate that the
machine is ready to receive instructions for the
required wash programme;
•Duration of the selected wash programme,
calculated automatically on the basis of the
maximum recommended load for each type of fabric.
• When the programme has finished, a flashing
zero is displayed;
•Delayed start, programmed using the special
button.
The selected delay (24 hours max.) is indicated in
the display. The countdown is updated every hour.
•Incorrect option selection. If an option which is
not compatible with the set wash programme is
selected, the message Err is displayed for 2
seconds.
•Alarm code indicating a fault in the machine
operation (see pages 18-20).
11 START/PAUSE button
This button has three functions:
a) Start
After having selected the required programme, press
this button to start the machine; the corresponding
pilot light stops flashing.
b) Pause
To interrupt a programme which is running, press the
START/PAUSE button: the corresponding pilot light
will start to flash.
To restart the programme from the point at which it
was interrupted, press the START/PAUSE button
again.
c) Empty out water
At the end of a programme which ends with water in
the drum (RINSE HOLD option), or after the
“soak” programme , press the START/PAUSE
button to empty out the water: after the soak
programme, the machine will empty only; after
RINSE HOLD programmes, the machine will empty
and spin.
Important!
By depressing simultaneously START/PAUSE
and BIO button the acoustic signal which rings when
selecting an incorrect option and at the end of the
cycle is suppressed.
132995140.qxd 11/22/01 11:04 AM Pagina 8 (Nero/Process Black pellicola)

ENGLISH
13 Programme selector dial
The programme selector determines the type of
washing cycle (e.g. water level, drum movement,
number of rinses) and the washing temperature
according to the type of laundry.
The selector is divided into 5 sectors:
• Cotton
• Synthetics
• Delicates
• Wool
• Special programmes and
• RESET programme O.
The selector dial can be turned either clockwise or
anticlockwise.
Position Ecorresponds to the ENERGY
SAVING programme.
Position corresponds to COLD WASH. To be
used for extremely delicate items.
E
95 E
60
40
30
60
40
30
40
30
40
30
O
E
E
9
12 Programme progress display
By selecting the wash programme, the pilot lights
corresponding to the various phases making up the
programme come on.
After the machine has started, only the running
phase pilot light stays on. When the programme has
finished, the END pilot light comes on.
The END pilot light flashes in the event of
operating problems.
At the same time one of the following lights starts to
flash and an alarm code appears on the display.
E10 + = the machine does not fill
E20 + = the machine does not empty
E40 + = the door has not been closed
To eliminate the problem, see paragraph “Something
not working”.
If at the end of the programme the pilot light
illuminates this means that the drain filter must be
cleaned.
PREWASH
WASH
RINSES
RINSE HOLD
DRAIN
SPIN
FILTER
END
132995140.qxd 11/22/01 11:04 AM Pagina 9 (Nero/Process Black pellicola)

Sorting out and preparing the laundry
• Sort out the laundry according to type of fabrics and
care labels (see “Types of fabric and care labels”).
• Empty pockets.
• Remove any metal parts (safety pins, clips, etc.).
• To prevent the laundry from getting damaged and
forming bundles, it is advisable to close zips, button up
pillowcases and quilt covers and tie up loose straps
such as those of aprons.
• Turn double faced items inside out (sleeping bags,
anoraks, etc.)
• Turn coloured knitted fabrics, woollens and fabrics with
trim inside out.
• Wash small and delicate items (baby socks, tights)
inside a laundry net or in a pillow case closed with a
zip, or in larger socks.
• Treat curtains with special care. Remove all metal or
plastic hooks or put them in a net or a bag. We decline
any responsibility in case of damage.
• Whites and coloureds must be washed separately:
white items can loose their whiteness.
• New coloured fabrics often have excess dyes; it is
advisable to wash them separately for the first time.
• Wash small and large items together; this improves the
washing result and the laundry is better distributed
during spinning.
Preparing the wash cycle
10
Compartment for prewash or soak detergent.
The detergent is added at the beginning of the
wash programme.
Compartment for powder or liquid detergent
used for main wash.
It is emptied at the beginning of the wash cycle.
Compartment for liquid additives (fabric
softener, starch).
It is emptied at the last rinse.
The quantity of additive product must not
exceed the «MAX» mark in the drawer.
Detergent dispenser drawer
Before your first wash, we recommend that you run a
cotton cycle at 60°C, without any laundry in the
machine, to remove any manufacturing residue from
the drum and tub.
Before the first wash
Sort of laundry Approximate
dry weights
1200 g
300-600 g
700 g
500 g
100 g
200 g
100 g
200 g
200 g
200-250 g
200-300 g
250 g
Bathrobes
Work shirts
Quilt covers
Sheets
Blouses
Hand towels
Tea towels
Shirts
Pillowcases
Night-gowns/Pyjamas
Tablecloths
Underwear
Pour 1/2 a measure of detergent into the dispenser
drawer and start the machine.
• Shake out garments before putting them into the
machine.
• Insert each garment separately.
Weight of laundry
132995140.qxd 11/22/01 11:04 AM Pagina 10 (Nero/Process Black pellicola)
