KUSSMAUL ELECTRONICS COMPANY, INC.
170 CHERRY AVE., WEST SAYVILLE, NY 11796

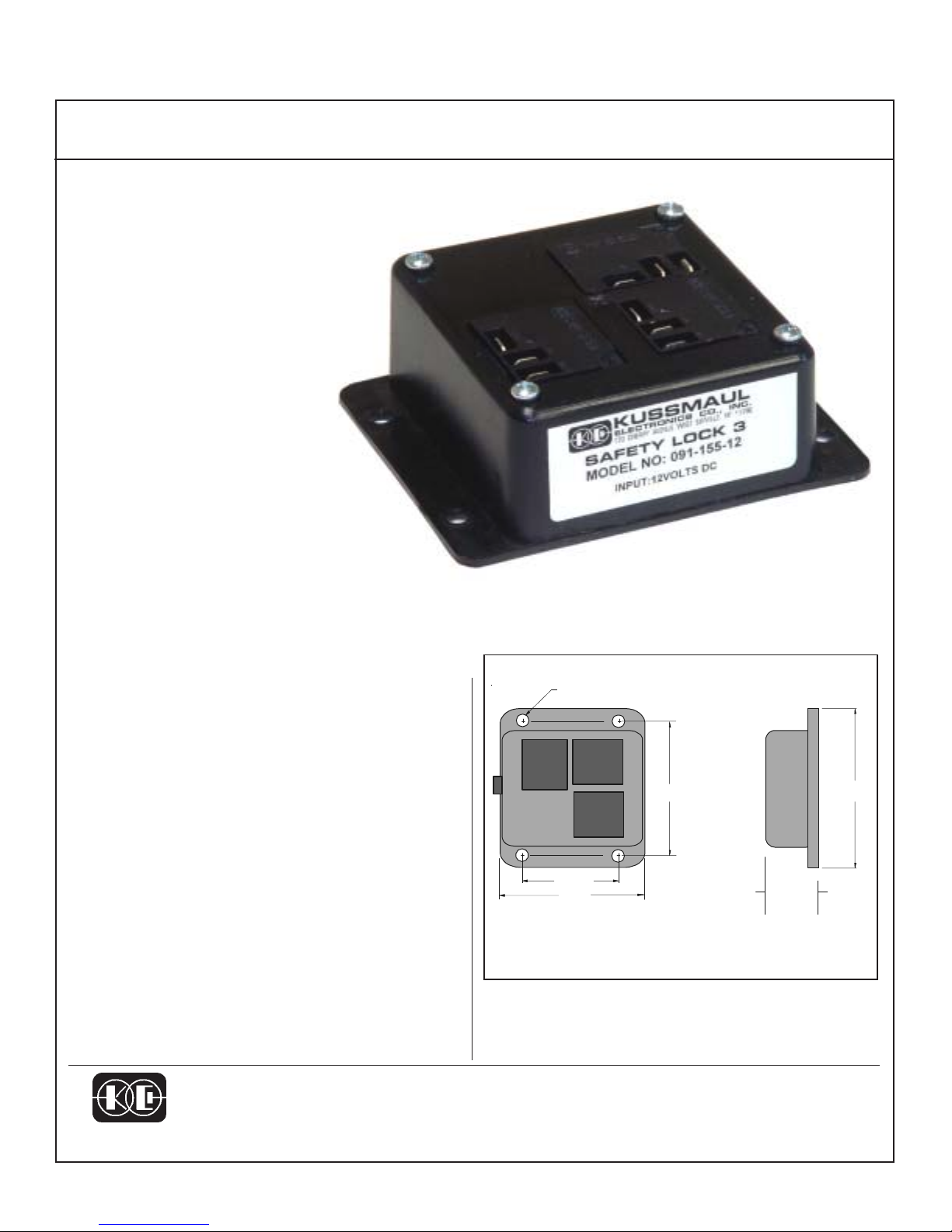

AUTOMATIC SAFETY LOCK, 3 OUTPUTS
SAFETY LOCK 3
MODEL #091-155-12
A CONTROLLER WHICH PERMITS
UNATTENDEDENGINEOPERATION
BUTPREVENTSUNAUTHORIZED
USE OF THE VEHICLE
SIMPLE INSTALLATION
PERMITSENGINE
TORUNWITH THE
IGNITIONKEYREMOVED
ENGINE STOPS AND CANNOT BE
RESTARTED IF ATTEMPT IS MADE
TO DRIVE AWAY
This simple, low cost controller bypasses the ignition
switch when activated by the closure of a momentary
switch. The operator may then remove the ignition key
without shutting the engine down. Movement of the ve-
hicleisprohibitedbyinterlockingtheSAFETYLOCKwith
aswitchoperatedbythe footbrake,a neutralsafetyswitch
onthe gearshiftoraparking brakeoperatedswitch. Oper-
atingany oneofthesewill causetherelays intheSAFETY
LOCK to drop out and interrupt the ignition circuit to stop
theengine. Theauthorizedoperator need only insert the
key and turn on the ignition to operate the vehicle. With
the key in the lock and turned on, the ignition circuit is
completed as normal and the opening of the SAFETY
LOCK relays has no effect on engine operation.This unit
is for vehicles that require 3 independent relays for the
vehiclesignition.
SPECIFICATIONS:
Volts: 12 volts, D.C.
Relay Contacts: NormallyOpen,30Amps.
Weight: 6ounces
Enclosure:unsealed
3/16" DIA.
4.25
2.00
3.50
3.75
1.625
OUTLINEDRAWING

March 11, 2003
KUSSMAUL ELECTRONICS COMPANY, INC.
631-567-5826,FAX:[phone],TEL:170 CHERRY AVENUE, WEST SAYVILLE, NEW YORK, 11796-1221 USA
SINCE 1967, DESIGNERS OF INNOVATIVE PRODUCTS
To Ignition
System
IGNITION SWITCH
+12 volt
Power
Brake
Light
+12 V
Brake
Light
Switch
This line resets
SET
PUSHBUTTON
MODEL 091-155
INSTALLATION AND WIRING INSTRUCTIONS
INSTALLATION:
1.
Mount unit in a suitable location protected from moisture and excessive heat.
2. Wire in accordance with the wiring diagram above
OPERATION:
1. With the engine running depress the momentary SET switch S1. The relay will close, the LED will be
illuminated and the engine will continue to run when the key is removed.
2. Remove the key from the ignition. The LED will continue to be illuminated and the engine will continue
to run.
3. Step on the foot brake. The LED will go out and the engine will stop.
4. Start the engine and repeat step 1.
5. Insert the key, turn ignition switch to ON and verify that the engine continues to run when the brake
pedal is depressed.
S1
(bypasses ignition)
Indicator illuminates when ignition
switch is bypassed
SAFETY LOCK 3
A Controller To Permit Engine Operation With The Ignition Switch Removed
The common terminal of Relay K1
must be connected to the +12 volt
power for the unit to operate
(OPTIONAL)
N.O.
COM.
N.C.
N.O.
COM.
N.C.
N.O.
COM.
N.C.
12345
K1
K2
K3
Output #2
Output #3
LEDIndicator
Observepolarity
Wheninstalling
NOTE: Output 2 and Output 3 provide +12 volts to
accessories when SAFETYLOCK 3 is activated
