Kvaser Memorator Pro 5xHS CB User manual

Kvaser Memorator Pro 5xHS CB User’s Guide
Copyright 2018 Kvaser AB, Mölndal, Sweden
http://www.kvaser.com
Printed Wednesday 16th May, 2018
We believe that the information contained herein was accurate in all respects at the time of printing.
Kvaser AB cannot, however, assume any responsibility for errors or omissions in this text. Also note
that the information in this document is subject to change without notice and should not be construed
as a commitment by Kvaser AB.

Kvaser Memorator Pro 5xHS CB User’s Guide 2 (16)
(This page is intentionally left blank.)
Kvaser AB, Mölndal, Sweden — www.kvaser.com

Kvaser Memorator Pro 5xHS CB User’s Guide 3 (16)
Contents
1 About this manual 4
2 Welcome to Kvaser Memorator Pro 5xHS CB 5
3 Layout 6
4 Connectors 9
4.1 USB connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.2 CAN connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5 LED indicators 11
6 Disposal and Recycling Information 12
7 Legal acknowledgements 13
7.1 Usage warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
7.2 EU Regulatory Compliance . . . . . . . . . . . . . . . . . . . . . . . 14
7.3 Patents, Copyrights and Trademarks . . . . . . . . . . . . . . . . . . 15
8 Document Revision History 16
Kvaser AB, Mölndal, Sweden — www.kvaser.com

Kvaser Memorator Pro 5xHS CB User’s Guide 4 (16)
1 About this manual
This document describes a printed circuit board assembly version of the Kvaser
Memorator Pro 5xHS. It contains a description of the hardware properties, its
physical dimensions and instructions for connecting the device to a CAN bus and a
USB bus. For further information, please refer to the Kvaser Memorator Pro 5xHS
User’s Guide.
Kvaser AB, Mölndal, Sweden — www.kvaser.com

Kvaser Memorator Pro 5xHS CB User’s Guide 5 (16)
2 Welcome to Kvaser Memorator Pro 5xHS CB
Figure 1: Kvaser Memorator Pro 5xHS CB
This guide applies to Kvaser Memorator Pro 5xHS CB devices listed in Table 1.
Device Product Number
Kvaser Memorator Pro 5xHS CB 73-30130-00832-8
Table 1: Kvaser Memorator Pro 5xHS CB devices and their EAN numbers.
Throughout this document, we use the name Kvaser Memorator Pro 5xHS CB to
refer to the product listed in Table 1.
Kvaser AB, Mölndal, Sweden — www.kvaser.com

Kvaser Memorator Pro 5xHS CB User’s Guide 6 (16)
3 Layout
Kvaser Memorator Pro 5xHS CB consists of a printed circuit board (PCB)
populated with components.

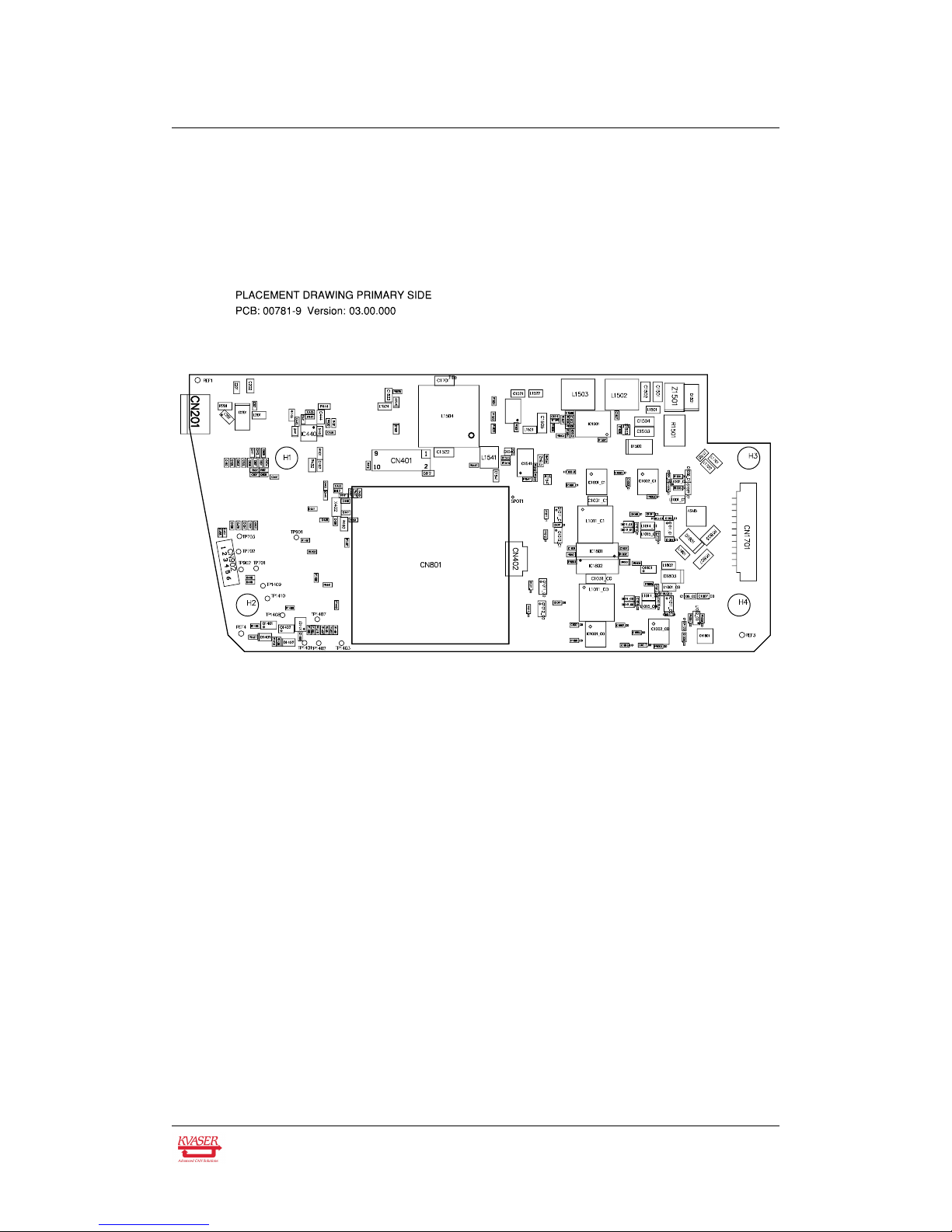

Figure 2: Top view of Kvaser Memorator Pro 5xHS CB
The power LEDs are placed on the bottom right (D401 and D407), with the CAN
LEDs are placed to the left (D402–D406 and D408–D412), see Figure 4 on
Page 7. The USB connector is placed to the left on the top side (CN201) and the
CAN connectors to the right on the top side (CN1701) and to the left on the bottom
side(CN1702). The SD card reader is placed on the top side (CN801).
The outline in Figure 5 on Page 8 also shows the four mounting holes which have a
diameter of 4.5 mm.
Kvaser AB, Mölndal, Sweden — www.kvaser.com

Kvaser Memorator Pro 5xHS CB User’s Guide 7 (16)

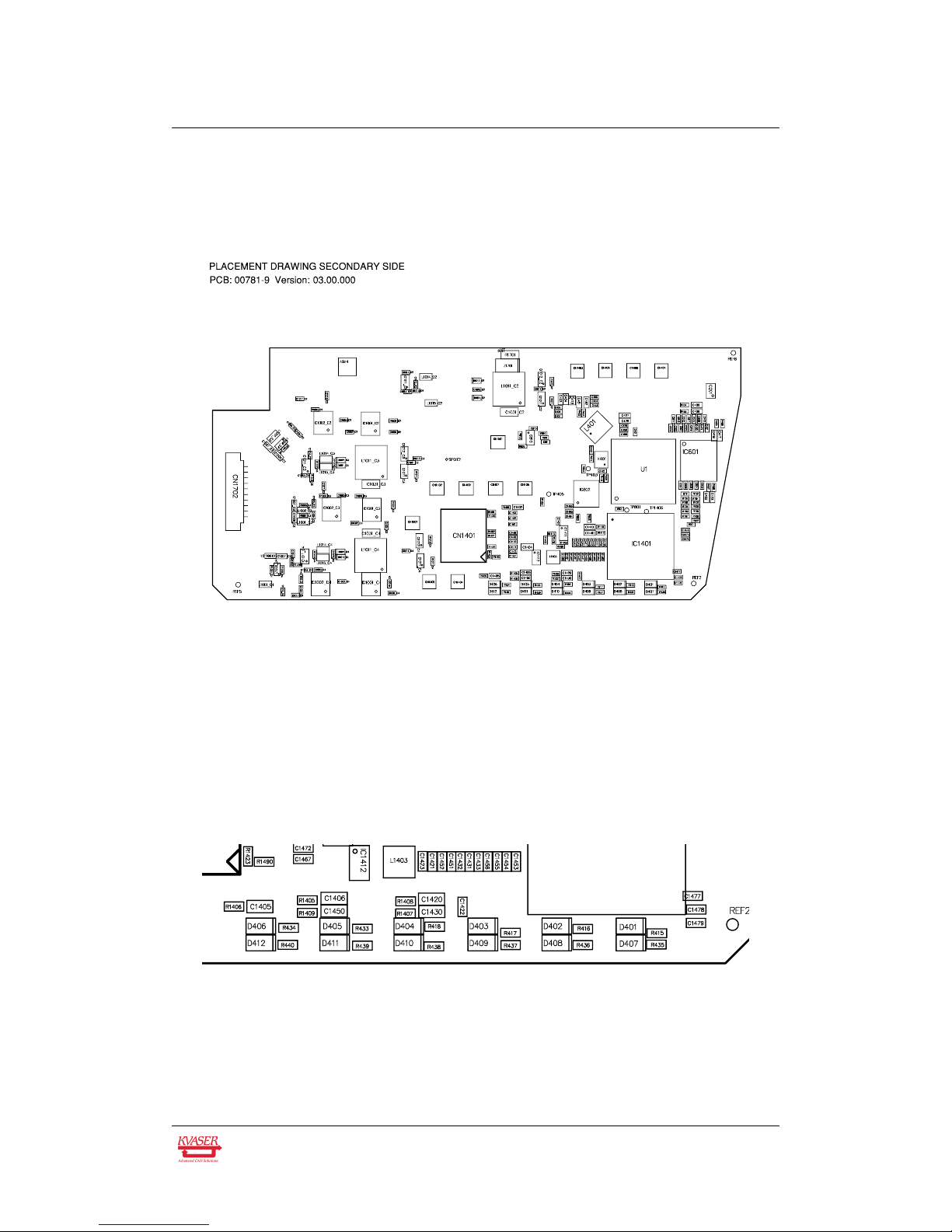

Figure 3: Bottom view of Kvaser Memorator Pro 5xHS CB
Figure 4: Placement of LEDs (D401–D412) in bottom right corner of bottom side.
Kvaser AB, Mölndal, Sweden — www.kvaser.com

Kvaser Memorator Pro 5xHS CB User’s Guide 8 (16)
CAD PROE SHEETS 1(1) FORMAT A3
1
E
D C
B
2 3 4 5 6 7
A
8
Denna handling är vår egendom och får ej utan vårt skriftliga medgi-
vande ändras, kopieras, användas för tillverkning eller delges annan
person eller firma.
This document is our property and shall not without our permission in
writing be altered, copied, used for manufacturing or communicated to
any other person or company.
11.8
0.0
19.8
34.3
35.5
30.0 Battery
28.0 SD-disc
105.7
112.1
114.1
118.5
17.0 0.00 47.0
Battery 14.6
55.0 56.5
10.5°
1.62
8.6
12.8
40.0
1.8
4.5(4x)
No.
Nr.
Qty.
Ant.
Change
Ändring
Date
Datum
Signature
Signatur
Location
Placering
Ritn. -nr. Kundnr. Datum
- - 1:1
PCBA_00832-8 .drw
Konstr. Ritad Kontr. Godkänd Krymp % Skala Vyplac. Filnamn
No.
Nr.
Qty.
Ant.
Change
Ändring
Date
Datum
Signature
Signatur
Location
Placering
Ritn. -nr.
150408
Kundnr. Datum
- - 1:1
PCBA_00832-8 .drw
Konstr. Ritad Kontr. Godkänd Krymp % Skala Vyplac. Filnamn
SD-Card holder
EAN:00832-8 V01.00.000
Kvaser Memorator
Pro 5xHS CB
Molex 53261-1271
Battery
Molex 53261-1071
Micro USB Type B
Figure 5: Physical dimensions of Kvaser Memorator Pro 5xHS CB.
Kvaser AB, Mölndal, Sweden — www.kvaser.com

Kvaser Memorator Pro 5xHS CB User’s Guide 9 (16)
4 Connectors
4.1 USB connector

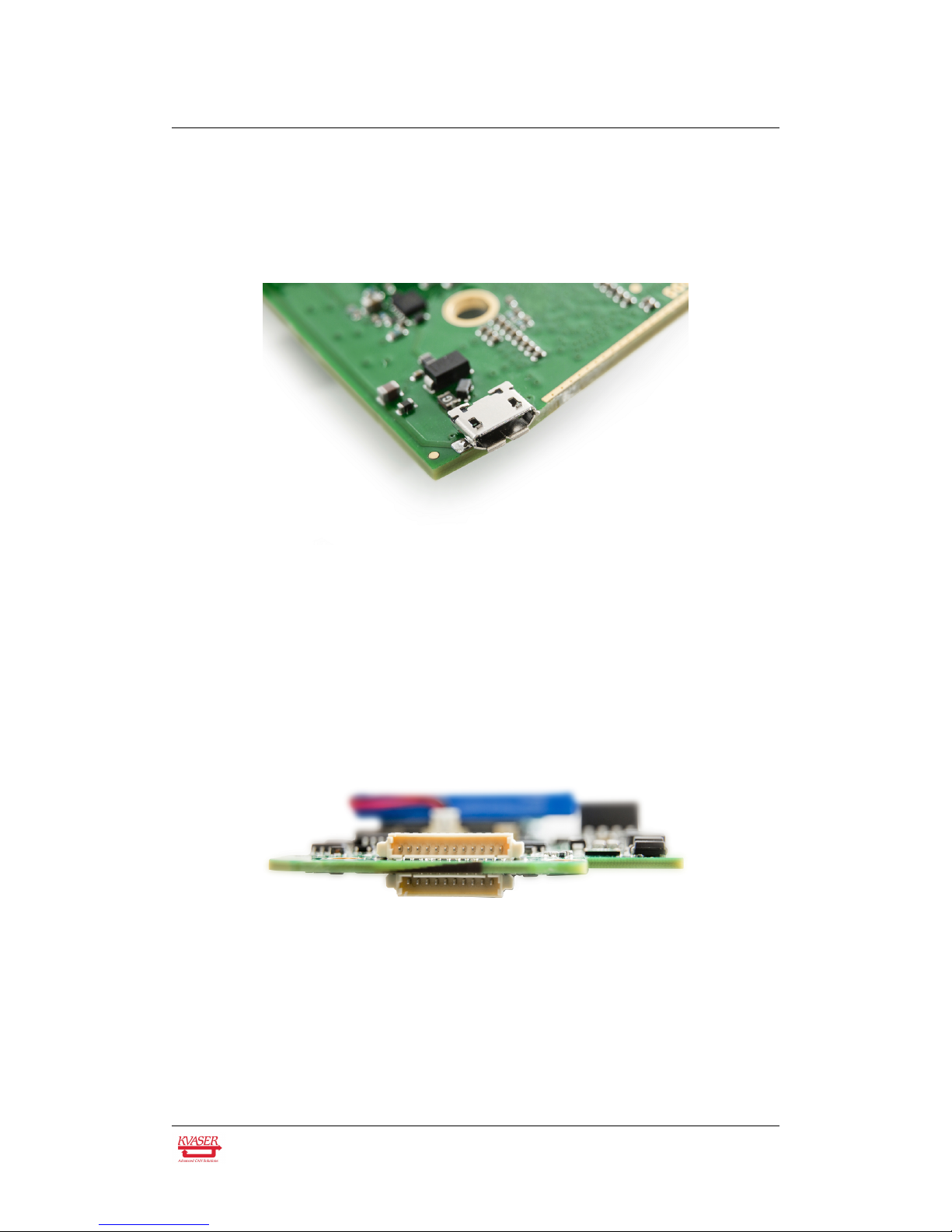

Figure 6: USB connector on Kvaser Memorator Pro 5xHS CB
The Kvaser Memorator Pro 5xHS CB has a standard USB type “Micro-B” female
connector, as seen in Figure 6. Figure 2 on Page 6 and Figure 6 show the
placement of the USB connector.
4.2 CAN connector
Figure 7: CAN connectors on Kvaser Memorator Pro 5xHS CB
CAN is connected using a 12-way (top side) and a 10-way connector (bottom side)
and mate with Molex 51021 PicoBladeTM (housing 51021-1200 and 51021-1000,
with terminal 50079-8000), as seen in Figure 7. Figure 2 on Page 6 and Figure 3
on Page 7 show the placement of the CAN connectors. Table 2 on Page 10 and
Table 3 on Page 10 describe the CAN connectors.
Kvaser AB, Mölndal, Sweden — www.kvaser.com

Kvaser Memorator Pro 5xHS CB User’s Guide 10 (16)
Pin Number Function
1 CAN_L channel 2
2 CAN_H channel 2
3 GND channel 2
4 External trigger output
5 Not connected
6 Not connected
7 External trigger input
8 CAN_L channel 1
9 CAN_H channel 1
10 GND channel 1
11 Power supply to the device
12 Shield
Table 2: Pin configuration of the top-side CAN connector.
Pin Number Function
1 GND channel 3
2 CAN_L channel 3
3 CAN_H channel 3
4 GND channel 4
5 CAN_L channel 4
6 CAN_H channel 4
7 GND channel 5
8 CAN_L channel 5
9 CAN_H channel 5
10 Not connected
Table 3: Pin configuration of the bottom-side CAN connector.
