L3 Aviation Products Lynx NGT-9000+ Manual

Aviation Products
NGT-9000
NGT-9000+
NGT-9000D
Pilot’s Guide for Models
NGT-9000R
NGT-9000R+
NGT-9000RD
APPENDIX E - Pilot's Guide
Rev.4/07-13-2016

Document Precedence
This Pilot’s Guide provides general information about the operation
of the NGT-9000. Refer to your FAA-approved Airplane Flight Manual
(AFM) and its flight manual supplements for information specific to
your aircraft. If there is conflicting information between the AFM and
this guide, the AFM takes precedence over this guide.
Disclaimer
This Pilot’s Guide is subject to change without notice. The illustrations
in this guide are typical for the Lynx NGT-9000.
Screen information may look different on displays interfaced with
the Lynx NGT-9000. Refer to the pilot’s guide for that display for a
description of how information is depicted.
The installation of ADS-B In avionics provides the pilot with
supplemental information and does not replace a pilot’s see-and-avoid
responsibility. This equipment is not approved as a collision avoidance
tool. Any deviation from an air traffic control clearance based on cockpit
information must be approved by the controlling ATC facility prior to
commencing the maneuver. Uncoordinated deviations may place an
aircraft in close proximity to other aircraft under ATC control not seen
on the airborne equipment and may possibly result in the issuance of
a pilot deviation.
ADS-B is currently being deployed throughout the National Airspace
System (NAS). The availability of U.S. ground based transceivers
(GBT) is limited in selected areas. For information regarding the
FAA’s system of ADS-B, TIS-B, ADS-R, and FIS-B refer to the FAA’s
Aeronautical Information Manual sections 4-5-7 to 4-5-10.
Revision Highlights
Add release 1.2 changes which includes new configuration options
to remove TIS-B no coverage indicator, remove FIS-B function.
•
Pilot’s GuideA

Methods and apparatus disclosed and described herein have
been developed solely on company funds. No government or other
contractual support or relationship whatsoever has existed which
in any way affects or mitigates proprietary rights of ACSS®in these
developments. Methods and apparatus disclosed herein may be
subject to U.S. Patents existing or applied for. ACSS® reserves the right
to add, improve, modify, or withdraw functions, design modifications,
or products at any time without notice.
Pilot’s Guide
Product Part No. 9029000-20000 (panel mount)
9029000-40000 (remote mount)
Document Part No. 0040-17000-01 (Revision E)
© Copyright 2015
ACSS ®
Refer to the following for additional copyright information:
https://www.l-3avionics.com/open-source.aspx
https://www.l-3avionics.com/customer-support/
flight-data-info/open-source-software-report.aspx
Trademarks
Lynx ®is a registered trademark of L-3 Avionics Systems
Patent Pending
Pilot’s Guide i
Export Notice
This technical data is controlled under the Export Administration
Regulations (EAR) and may not be exported without proper
authorization by the U.S. Department of Commerce.
L-3 Avionics Systems.
5353 52nd Street, S.E.
Grand Rapids, MI 49512 USA
Customer Support [phone]
International [phone]
FAX [phone]
www.L-3avionics.com
Avionics Systems
Distributed with permission by:

Pilot’s Guideii
Table of Contents
Chapter 1: Description
INTRODUCTION.........................................................................................1-1
SPECIFICATIONS...............................................................................1-2 / 1-3
Pilot Advisory...............................................................................................1-4
Functional Description.................................................................................1-5
Options ..................................................................................................1-6
ADS-B....................................................................................................1-6
ADS-R....................................................................................................1-7
TIS-B System Capabilities .....................................................................1-8
Traffic Awareness System ...................................................................1-10
FIS-B System Capabilities ................................................................... 1-11
Equipment Description ..............................................................................1-14
Standard Equipment ............................................................................1-14
Optional Equipment...................................................................................1-14
GPS Antenna and Internal GPS Receiver ...........................................1-14
L-Band Antenna ...................................................................................1-14
Detachable Configuration Module (DCM)............................................1-14
Directional Antenna..............................................................................1-15
Alternate Displays................................................................................1-15
Personal Electronic Device (PED) .......................................................1-15
WiFi Serial Adapter ..............................................................................1-15
CP-2500 Control Panel........................................................................1-15
Chapter 2: Operation
Introduction..................................................................................................2-1
Power (Remote Mount) ...............................................................................2-1
Normal Operation (Remote Mount) .............................................................2-2
Power (panel Mount) ...................................................................................2-2
Splash Screen .......................................................................................2-2
System Status / Versions Screen ..........................................................2-3
Flight ID Screen (optional) .....................................................................2-4
Normal Operation ..................................................................................2-4
Basic Operation...........................................................................................2-5
Screen Buttons ......................................................................................2-5
Application Screens ...............................................................................2-7
Transponder Operation ...............................................................................2-9
Squawk Code ........................................................................................2-9
Current Pressure Altitude.....................................................................2-10
Flight ID / Call Sign ..............................................................................2-10
Mode Control .......................................................................................2-10
Transponder Reply ..............................................................................2-10
IDENT Button.......................................................................................2-10

Pilot’s Guide iii
Table of Contents (continued)
Squawk VFR Button ............................................................................2-11
MSG Button .........................................................................................2-11
On-GND Indicator ................................................................................ 2-11
System Test Button.............................................................................. 2-11
Traffic Operation........................................................................................2-13
Traffic Screen.......................................................................................2-13
Ownship Symbol .................................................................................2-14
Traffic Symbols ....................................................................................2-14
Traffic Display Priority ..........................................................................2-15
Zoom Buttons ......................................................................................2-15
Range Rings ........................................................................................2-17
Traffic Altitude Mode ............................................................................2-17
TFC Button ..........................................................................................2-18
Transponder Banner............................................................................2-18
MSG Button .........................................................................................2-18
Traffic Mode Indicator ..........................................................................2-19
Traffic Options Button ..........................................................................2-19
Traffic Options Screen ...................................................................2-19
Options - Status .............................................................................2-19
Options - Settings ........................................................................ 2-20
Selected Traffic Button (i) ....................................................................2-21
TIS-B No Coverage Indicator...............................................................2-22
Traffic Information Window ..................................................................2-22
Selected Traffic ID ...............................................................................2-23
Selected Traffic GS..............................................................................2-23
True Track (TRK) .................................................................................2-23
Weather Operation ....................................................................................2-24
FIS-B No Coverage Indicator...............................................................2-24
FIS-B Graphic Application....................................................................2-25
Map Elements ............................................................................... 2-25
Information Button (i) .................................................................... 2-26
TFR Map Elements ........................................................................2-26
AIRMET and SIGMET Map Elements............................................2-26
METAR...........................................................................................2-28
NEXRAD Map Elements ................................................................2-28
Traffic Button..................................................................................2-29
Zoom Buttons.................................................................................2-29
Display Range Indicator.................................................................2-29
Panning..........................................................................................2-29
North Indicator ...............................................................................2-29
Airport ID Indicator .........................................................................2-29
Orientation Button ..........................................................................2-29
Map Options Button .......................................................................2-30
On/Off Option Screen ....................................................................2-30

Pilot’s Guideiv
Table of Contents (continued)
Weather Map Legend Screen....................................................2-30
Banner .......................................................................................2-30
Display Area...............................................................................2-32
Declutter Option Screen.............................................................2-32
Weather Map Text Screen............................................................. 2-33
Display Area...............................................................................2-33
Banner .......................................................................................2-33
Product Select List Window ......................................................2-34
FIS-B Graphic Winds & Temp Application ...........................................2-34
Traffic Button................................................................................. 2-35
Aloft Button ................................................................................... 2-36
Panning......................................................................................... 2-36
Zoom Buttons................................................................................ 2-36
Issue Valid Time Indication ........................................................... 2-36
Ownship Symbol .......................................................................... 2-36
North Indicator .............................................................................. 2-36
Flight Level Selection.................................................................... 2-36
FIS-B Textual Application.....................................................................2-37
Display Area.................................................................................. 2-37
Banner .......................................................................................... 2-37
Traffic Button................................................................................. 2-37
Airport Button ................................................................................ 2-38
Edit Airport ID Window...............................................................2-38
Favorites Button ........................................................................... 2-39
Favorites Pick List Window........................................................2-39
Product Button .............................................................................. 2-40
Product Pick List Window ..........................................................2-40
Maintenance Mode....................................................................................2-40
Chapter 3: Controls and Indicators
Introduction..................................................................................................3-1
Cockpit Switches .........................................................................................3-1
IDENT ....................................................................................................3-1
Indicator lamps ......................................................................................3-1
TAS Alert ..........................................................................................3-1
ADS-B Fail .......................................................................................3-1
Control Panel Options .................................................................................3-2
RS-232 Control Panel............................................................................3-2
RS-422 Control Panel / External Display...............................................3-2
RS-232 WiFi Interface ...........................................................................3-3
Alternate Display .........................................................................................3-2
Other Traffic Symbol .............................................................................3-2
Proximity Advisory Symbol ....................................................................3-2
Off-Scale Traffic Advisory (TA) ..............................................................3-2
Ownship Symbol....................................................................................3-3
Indicators ...............................................................................................3-3

Pilot’s Guide v
WiFi Interface.........................................................................................3-3
Aural Announcements .................................................................................3-3
Extended Audio Callouts........................................................................3-4
Audio Inhibit.................................................................................................3-4
CP-2500 Control Panel................................................................................3-4
Power On/off..........................................................................................3-5
Normal Operation ..................................................................................3-6
Chapter 4 Principles of TAS Operation
Introduction..................................................................................................4-1
Sensitivity Levels.........................................................................................4-1
Sensitivity Level A................................................................................. 4-1
Sensitivity Level B................................................................................. 4-2
Audio Inhibit.................................................................................................4-2
Audio Inhibit (GPWS or EGPWS)................................................................4-4
TA Symbol Duration.....................................................................................4-4
Other aircraft ground Filtering......................................................................4-4
Interference Limiting....................................................................................4-4
Chapter 5: Troubleshooting
Introduction..................................................................................................5-1
General display conditions ..........................................................................5-1
System Status Messages............................................................................5-3
Invalidities....................................................................................................5-4
Appendix A: Record Of Important Information...................................... A-1
Table of Contents (continued)

Pilot’s Guidevi
List of Tables
List of Illustrations
Figure 1-1: Example Of Panel Mount Lynx NGT-9000 ...............................1-2
Figure 1-2: Example Of Remote Mount Lynx NGT-9000............................1-5

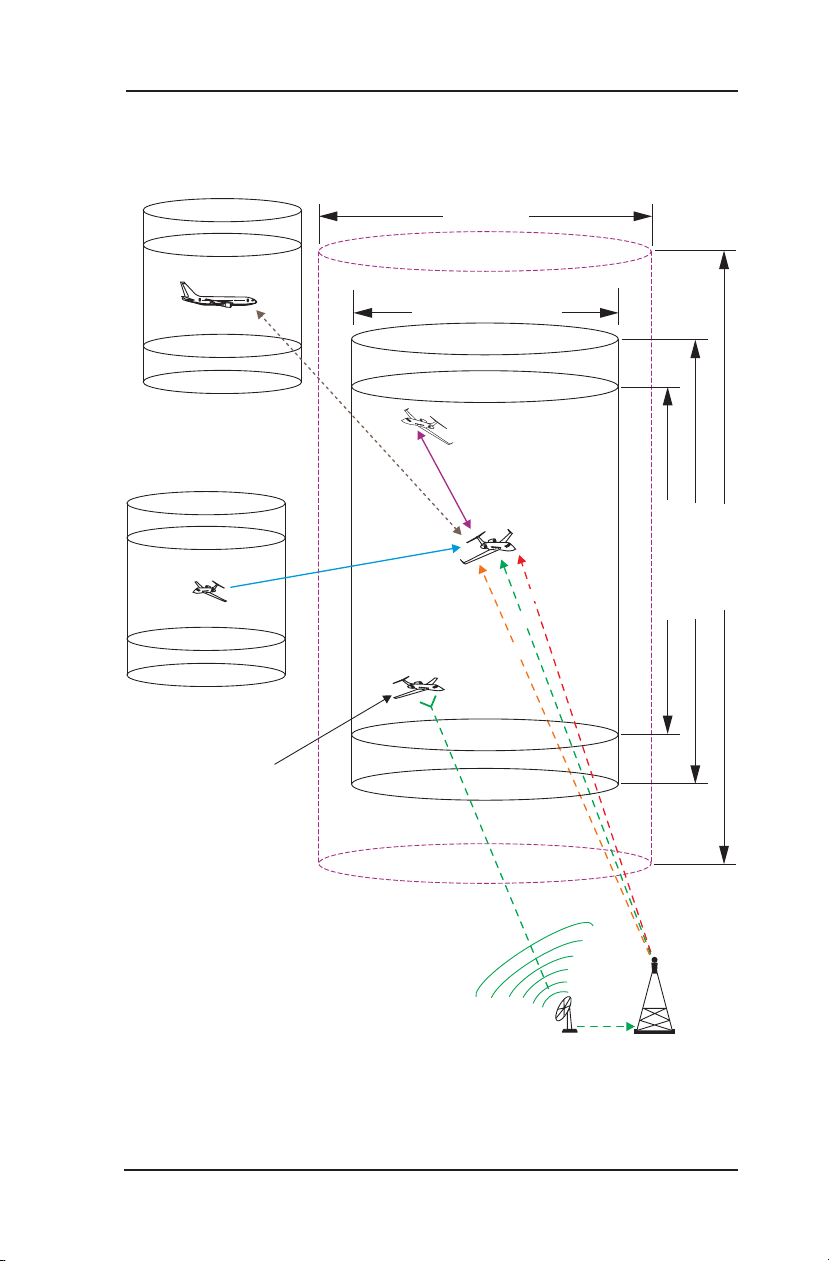

Figure 1-3: Example Of Own Aircraft UAT, 1090ES & TAS Traffic...............1-9
Figure 2-1: Example Of Splash Screen......................................................2-2
Figure 2-2: Example Of System Status / Version Screens..........................2-3
Figure 2-3: Example Of Flight Id Screen .....................................................2-4
Figure 2-4: Example Of Normal Operation..................................................2-4
Figure 2-5: Transponder Application Screen ...............................................2-9
Figure 2-6: Squawk Code Edit Screen ........................................................2-9
Figure 2-7: Example Of System Test Screen ............................................ 2-11
Figure 2-8: Traffic Applications Screen......................................................2-14
Figure 2-9: Traffic Display Modes And Traffic Zones.................................2-18
Figure 2-10: Traffic Options Screen - Status .............................................2-20
Figure 2-11: Traffic Options Screen - Settings...........................................2-21
Figure 2-12: Example Of Traffic Information Window................................2-22
Figure 2-13: FIS Button .............................................................................2-24
Figure 2-14: Weather Map.........................................................................2-25
Figure 2-15: Example Of Nexrad Weather Map ........................................2-28
Figure 2-16: On/Off Options Screen..........................................................2-30
Figure 2-17: Weather Map Legend Screen ...............................................2-31
Figure 2-18: Declutter Option Screen........................................................2-32
Figure 2-19: Weather Map Text Screen.....................................................2-33
Figure 2-20: Product Pick List Window......................................................2-34
Figure 2-21: Aloft Map Screen...................................................................2-34
Figure 2-22: Winds Aloft Map Elements ....................................................2-35
Figure 2-23: FIS-B Textual Application ......................................................2-37
Figure 2-24: Example Of Edit Airport ID Window ......................................2-38
Figure 2-25: Example Of Favorites Window..............................................2-39
Figure 2-26: Example Of Product Pick List Window..................................2-40
Figure 2-27: Maintenance Screens ...........................................................2-41
Figure 3-1: Example of CP-2500.................................................................3-5
Figure 4-1: Traffic Display Mode And Tas Traffic Zone Graphic .................4-5
Table 1-1: Model options .............................................................................1-1
Table 1-2: Description of FIS-B Available Information ............................... 1-11
Table 2-1: Button Functions.........................................................................2-5
Table 2-2: Left Screen Applications .............................................................2-8
Table 2-3: Right Screen Applications...........................................................2-8
Table 2-4: Traffic Symbols .........................................................................2-16
Table 2-5: Airport Symbols.........................................................................2-27
Table 4-1: Traffic Advisory Situations..........................................................4-3
Table 5-1: General Display Conditions for the Panel Mount NGT-9000 .....5-1
Table 5-2: Troubleshooting for the Panel Mount Lynx NGT-9000................5-4
Table 5-3: Troubleshooting for the Remote Mount Lynx NGT-9000 ............5-4

Pilot’s Guide vii
List Of Abbreviations and Acronyms
° Degree
AC Advisory Circular
ABV Above
ADS-B Automatic Dependant Surveillance – Broadcast
ADS-R Automatic Dependant Surveillance – Rebroadcast
AFM Airplane Flight Manual
AGL Above Ground Level
AIRMET Airmen’s Meteorological Information
ALT Altitude
ATC Air Traffic Control
ATCRBS Air Traffic Control Radar Beacon System
BLW Below
BRT Brightness
CDTI Cockpit Display of Traffic Information
CONUS Contiguous United States
CPA Closest Point of Approach
DCM Detachable Configuration Module
DTIF Display Traffic Information File
DO- RTCA Document
EAR Export Administration Regulations
EGPWS Enhanced Ground Proximity Warning System
FAA Federal Aviation Administration
FDE Fault Detection and Exclusion
FIS-B Flight Information Service - Broadcast
fl Foot-Lambert
ft Feet
ft/min Feet Per Minute
GA General Aviation
GBT Ground Based Transceiver
GALT GPS Altitude
GND Ground
GPS Global Positioning System
GS Ground Speed
GPWS Ground Proximity Warning System
HAE Height Above Ellipsoid
HPLSBAS Horizontal Protection Level Using SBAS error estimates
HPLFD Horizontal Protection Level using a weighted FDE algorithm
hPa Hectopascals
Hz Hertz
ICAO International Civil Aviation Organization
ID Identification
IDENT Identification
InHg Inches of Mercury
kt/kts Knot (s)
lbs pounds
max Maximum
METAR Aviation Routine Weather Report
MHz Mega Hertz

Pilot’s Guideviii
List Of Abbreviations And Acronyms (cont.)
MSG Message
MSS Multilink Surveillance System
NACp Navigation Accuracy Category for Position
NAR Non Altitude Reporting
NAS National Airspace System
NEXRAD Regional and Next-Generation Radar
NIC Navigation Integrity Category
NOTAM Notices to Airmen
NM or nmi Nautical Miles
NRM Normal
OT Other Traffic
PA Proximity Advisory
PALT Pressure Altitude
PED Personal Electronic Device (e.g., tablet)
PIREP Pilot Report
P/N Part Number
R Reply
RAIM Receiver Autonomous Integrity Monitoring
REF Reference
RTCA Radio Technical Commission for Aeronautics, Inc.
SBAS Satellite-Based Augmentation System
SIGMET Significant Meteorological Information
SIL Source Integrity Level
SPECI Aviation Special Selected Weather
SPI Special Identification
STBY Standby
SUA Special Use Airspace
SSR Secondary Surveillance Radar
TA Traffic Advisory
TAF Terminal Aerodrome Forecast
TAS Traffic Awareness System
TFC Traffic
TIF Traffic Information File
TRK Track
TFR Temporary Flight Restrictions
TIS-B Traffic Information Service - Broadcast
TSO Technical Standard Order
UAT Universal Access Transceiver
UNR Unrestricted
VFR Visual Flight Rules
VMC Visual meteorological conditions
WAAS Wide Area Augmentation System
Wx Weather
XPDR Transponder

Lynx ®NGT-9000
Pilot’s Guide 1-1
Description
CHAPTER 1
DESCRIPTION
INTRODUCTION
The Lynx NGT-9000 family of products are a Mode S Level 2 dens
Class 1 Transponder with an integrated GPS receiver providing
Automatic Dependent Surveillance-Broadcast (ADS-B) output using
1090ES (Extended Squitter). The Lynx NGT-9000 also receive ADS-B
data via 1090ES and UAT (978 MHz Universal Access Transceiver).
The panel mounted version of the Lynx NGT-9000 has a multifunction
touch screen display that allows the user to view transponder, traffic,
and weather information. The touch screen provides the means to
select screen views and interface with transponder, traffic, and weather
displays. See Figure 1-1.
The remote version of the Lynx NGT-9000 provides the same
functionality as the panel mount, but is controlled using a compatible
alternate display or controller. See Figure 1-2.
In addition to ADS-B surveillance, some models of the Lynx
NGT-9000 include an Active Traffic Awareness System (TAS) as well
as support for antenna diversity. Table 1-1 provides model and part
number information. The TAS and Diversity options are software
activated features.
Model Part nuMber taS diverSity reMote
NGT-9000 9029000-20000 No No No
NGT-9000+ 9029000-20000 Yes No No
NGT-9000D 9029000-20000 No Yes No
NGT-9000R 9029000-40000 No No Yes
NGT-9000R+ 9029000-40000 Yes No Yes
NGT-9000RD 9029000-40000 No Yes Yes
Table 1-1: Model Options
Figure 1-1: Example of Panel Mount Lynx NGT-9000
1200
PALT
120 00ft
ID
IDENT
Mode
ALT
N333TL
-
6
ALT
NRM -01
-08
OUT
+
IN
00
00
Squawk
VFR

Lynx ® NGT-9000
Pilot’s Guide1-2
Description
Part Number: 9029000-20000 (panel mount)
Weight: 2.96 Lbs.
Power
Requirements:
+14.0 VDC nominal or +28.0 VDC nominal.
19.0 watts nominal, 24.0 watts maximum
Display
Luminance:
Range 0.05 fl to 150 fl
Start Up Time On Ground 20 seconds or less
In air 5 seconds or less.
Interfaces: ARINC 429, RS-422, RS-232, Discrete In-
put/Outputs, RF Suppression Bus, and DCM
serial interface .
Functionality: Mode S Transponder
Global Positioning System (GPS)
ADS-B/TIS-B Receive: (1090ES/UAT)
ADS-B Transmit: (1090ES)
FIS-B (UAT)
Mode S Transponder Diversity (optional)
Traffic Awareness System (TAS) (optional)
•
•
•
•
•
•
•
Service Life: Unlimited.
Scheduled
Maintenance:
No scheduled maintenance is required. As a
transponder device, FAA document 91.413 re-
quires testing and inspection of a transponder
every 24 months.
Repairs: Repairs performed at the FAA certificated Re-
pair Station co-located at the OEM (equipment)
facility.
Compliance: The Lynx NGT-9000 has been shown to meet
the requirements in TSO-C166b and meets the
requirements of 14 CFR 91.225a installed in
accordance with the installation instructions.
SPECIFICATIONS

Lynx ®NGT-9000
Pilot’s Guide 1-3
Description
SPECIFICATIONS
Part Number: 9029000-40000 (remote mount)
Weight: 2.75 Lbs.
Power
Requirements:
+14.0 VDC nominal or +28.0 VDC nominal.
17.0 watts nominal, 24.0 watts maximum
Start Up Time On Ground 20 seconds or less
In air 5 seconds or less.
Interfaces: ARINC 429, RS-422, RS-232, Discrete In-
put/Outputs, RF Suppression Bus, and DCM
serial interface .
Functionality: Mode S Transponder
Global Positioning System (GPS)
ADS-B/TIS-B Receive: (1090ES/UAT)
ADS-B Transmit: (1090ES)
TIS-B (1090ES)
FIS-B (UAT)
Mode S Transponder Diversity (optional)
Traffic Awareness System (TAS) (optional)
•
•
•
•
•
•
•
•
Service Life: Unlimited.
Scheduled
Maintenance:
No scheduled maintenance is required. As a
transponder device, FAA document 91.413 re-
quires testing and inspection of a transponder
every 24 months.
Repairs: Repairs performed at the FAA certificated
Repair Station co-located at the OEM (equip-
ment) facility.
Compliance: The Lynx NGT-9000R has been shown to
meet the requirements in TSO-C166b and
meets the requirements of 14 CFR 91.225b
installed in accordance with the installation
instructions.

Lynx ® NGT-9000
Pilot’s Guide1-4
Description
PILOT ADVISORY
The display of ADS-B data only supplements and does not replace
any operational procedure. All pilots/operators are reminded that the
airborne equipment that displays traffic is only for pilot situational
awareness. This equipment is not approved as a collision avoidance
tool and does NOT relieve the pilot of responsibility to “see-and-avoid”
other aircraft. Any deviation from an air traffic control clearance based
on cockpit information must be approved by the controlling ATC facility
prior to commencing the maneuver. Uncoordinated deviations may
place an aircraft in close proximity to other aircraft under ATC control
not seen on the airborne equipment and may possibly result in the
issuance of a pilot deviation.
Occasionally the traffic display may show a “shadow” or duplicate
of your own aircraft on the traffic display. Generally this is caused
by a TIS-B track of you aircraft reported from a ground station. In
most cases, the own aircraft TIS-B tracks are detected and filtered
out by the NGT software. In some cases, own aircraft maneuvers
can cause enough separation of the TIS-B track from own aircraft
that it is treated as a new intruder and displayed. This is not an
error or malfunction in the system. As ground stations improve, the
occurrence of these shadows should be minimized or eliminated.
Ground stations only produce TIS-B intruders for Mode C/S
equipped aircraft that have no ADS-B output. Mode A or non-
transponder equipped aircraft are not reported as TIS-B intruders.
It is the pilots responsibility to “see and avoid”.
Information shown on the display is provided to the pilot as an aid
to visually acquiring traffic. When under ATC control pilots should
maneuver their aircraft based only on ATC guidance or positive
visual acquisition of the conflicting traffic. Maneuver should be
consistent with ATC instructions. ATC should be contacted for
resolution of the traffic conflict.
The transponder signal must be transmitting during all flight
operations. It may be placed in standby only if the system is
inoperable or if advised by ATC to disable ADS-B.
Loss of input data may not cause the NGT-9000 to fail but could
degrade operation. Failure and degraded conditions will be
annunciated by the NGT-9000 to alert the pilot to the operational
status. In many cases, fault conditions will recover if erroneous
data inputs are restored.
Aircraft will be displayed when the information received meets
ADS-B, ADS-R, and TIS-B data integrity requirements.
•
•
•
•
•
•

Lynx ®NGT-9000
Pilot’s Guide 1-5
Description
FUNCTIONAL DESCRIPTION
The panel mount versions of the Lynx NGT-9000 can display and
control the following information:
Flight ID or aircraft Tail Number
Transponder (MODE S) and Traffic Mode of Operation
Derived Altitude Data
ADS-B On/Off status
VFR Select and Squawk Code Input
IDENT
Traffic (graphic and textual)
Weather (graphic and textual)
TAS Mode (model specific)
The remote mount versions of the Lynx NGT-9000 provides the same
functionality as the panel mount, but is controlled using a CP-2500
Control Panel. Display information is shown on a optional compatible
display or PED. See Figure 1-2.
•
•
•
•
•
•
•
•
•
Figure 1-2: Example of Remote Mount Lynx NGT-9000
The Lynx NGT-9000 replies to Mode A, Mode C and Mode S
interrogations on 1030 MHz and transmitting responses at 1090
MHz.
Ground stations can interrogate Mode S Transponders individually
using a 24-bit ICAO Mode S address, which is unique to the particular
aircraft. In addition, ground stations may interrogate the unit for its
transponder data capability and the aircraft’s Flight ID.
Models with the TAS option provide TAS traffic advisories and a voice
audio output that announces Traffic Advisories and relative altitude.
The unit has multiple transmit/receive ARINC 429, RS-422 and RS-
232 data ports used to transmit data to traffic, weather, and PED
displays.

Lynx ® NGT-9000
Pilot’s Guide1-6
Description
Automatic Dependent Surveillance - Broadcast (ADS-B)
ADS-B improves situational awareness and flight safety by providing
real time traffic information. The ADS-B In function is used to
receive ground station supported TIS-B and ADS-R traffic, and
direct communication with nearby like equipped aircraft (with Mode
S or UAT). The ADS-B Out (1090ES) function is used to periodically
broadcast (without interrogation) information about the aircraft that
includes aircraft identification, position, altitude, velocity and other
aircraft status information.
ADS-B is NOT intended to be used as a collision avoidance system
and does NOT relieve the pilot of responsibility to “see-and-avoid”
other aircraft.
No avoidance maneuvers are provided for, nor authorized, as a
direct result of a ADS-B other aircraft being displayed in the cockpit.
Avoidance maneuvers must be based on visually acquiring the
target
•
•
Model Options
The Traffic Awareness System (TAS) option provides the system
the capability to interrogate nearby aircraft transponders and issue
Traffic Advisory (TA) alert to the flight crew. This option requires the
installation of a directional antenna.
The Diversity option offers enhanced traffic awareness via 1090MHz
using the ADS-B service. This option requires the installation of an
additional top mounted UAT (L-Band) antenna.
The unit provides the transponder code, reply symbol and mode of
operation to the display.
The Lynx NGT-9000 provides own aircraft data via ADS-B Out
capabilities. The ADS-B In capabilities include Basic Airborne
Situational Awareness (AIRB) and Enhanced Visual Acquisition
(EVAcq) traffic information that improves situational awareness
and flight safety by providing aircraft position, velocity, and heading
information that is automatically transmitted to other aircraft and
ground stations providing immediate surveillance of air-to-air traffic.
The 1090ES and UAT ADS-B data link have the following capabilities
1090 In - Receives ADS-B, ADS-R and TIS-B
1090ES Out - Transmit ADS-B
UAT In - Receives ADS-B, FIS-B, ADS-R, TIS-B
A description of these functions are provided below. A composite of
UAT / 1090ES traffic (UAT, 1090ES, ADS-R, and TIS-B) is provided
in Figure 1-3.
•
•
•

Lynx ®NGT-9000
Pilot’s Guide 1-7
Description
Automatic Dependent Surveillance – Re-broadcast (ADS-R)
ADS-R is a ground based broadcast service that repeats ADS-B
messages from one link (1090 MHz or 978 MHz) to the other link for
aircraft with ADS-B In.
ADS-R is NOT intended to be used as a collision avoidance system
and does NOT relieve the pilot of responsibility to “see-and-avoid”
other aircraft.
No avoidance maneuvers are provided for, nor authorized, as a
direct result of a ADS-R other aircraft being displayed in the cockpit.
Avoidance maneuvers must be based on visually acquiring the
target.
The actual availability of services depends upon both the availability
of a ground station to support ADS-R source data and aircraft being
within range of the ground station.
ADS-R transmissions are updated at least every 2 seconds on the
surface, 5 seconds in the terminal area, and 10 seconds in the en-
route airspace.
Other aircraft are provided by the ground station if within a 15 nm
horizontal range and +/-5,000 ft of altitude of the receiving aircraft.
ADS-B equipped ground aircraft and vehicles are not displayed to
airborne aircraft.
An aircraft on the ground receiving ADS-R is provided both ground
aircraft and vehicles as well as airborne other aircraft within 5nm
and 2,000 ft above ground level of the airport reference point.
Receiving aircraft must be in both ATC radar coverage and ground
based transceiver (GBT) coverage in a given area to receive ADS-
R service in that area. ADS-R range is larger than the TIS-B range
of 24,000 ft above station.
•
•
•
•
•
•
•
The traffic display shows the relative position of ADS-B or standard
traffic using text, shapes, and colors. ADS-B also provides similar
information on ADS-B equipped ground vehicles.
The effective surveillance range is 60 nmi (ADS-B In) The
passive-mode surveillance range is 160 nmi and maintains
report messages for a minimum of 200 1090ES ADS-B
participants and 300 UAT ADS-B participants simultaneously.
To reduce display clutter a set number of other aircraft of the
highest priority other aircraft are displayed at a time.
•
•

Lynx ® NGT-9000
Pilot’s Guide1-8
Description
Traffic Information Service - Broadcast (TIS-B)
TIS-B is the broadcast from Ground Radio Stations of ATC-derived
traffic information to ADS-B equipped aircraft.
The actual availability of services depends upon the availability of
ground-based radar to support TIS-B source data.
Receiving aircraft must be in both ATC radar coverage and ground
based transceiver (GBT) coverage in a given area to receive
TIS-B service in that area. When ownship is above 24,000 ft, the
ground station will no longer provide TIS-B service. (Targets will be
provided up to 27,500 ft)
Other aircraft are provided by the ground station if within a 15nm
horizontal range and +/-3,500 ft of altitude of the receiving aircraft.
ADS-B equipped ground aircraft and vehicles are not displayed to
airborne aircraft.
Aircraft not equipped with a transponder, or equipped with a Mode
A only transponder are not part of the TIS-B data and will not be
seen on the traffic display.
The ground station will not provide display information for Mode
C and Mode S transponder equipped aircraft that do not provide
altitude information.
An aircraft on the ground receiving TIS-B is provided both ground
aircraft and vehicles as well as airborne other aircraft within 5nm
and 2,000 ft above ground level of the airport reference point.
The TIS-B service is intended to improve the pilot’s ability to visually
see traffic in the air and on the airport surface so that pilots can
more effectively apply traditional “see-and-avoid” techniques.
TIS-B is NOT intended to be used as a collision avoidance system
and does NOT relieve the pilot of responsibility to “see-and-avoid”
other aircraft.
No avoidance maneuvers are provided for, nor authorized, as a
direct result of a TIS-B other aircraft being displayed in the cockpit.
Avoidance maneuvers must be based on visually acquiring the
target.
•
•
•
•
•
•
•
•
•

Lynx ®NGT-9000
Pilot’s Guide 1-9
Description
Figure 1-3: Example of Own Aircraft UAT, 1090ES, & TAS Traffic
70 nm ( )TAS
+/- 10000 (TAS)
+/- 3500 ft (TIS-B)
Own Aircraft
UAT /1090ES
TAS (model option)
+/- 5000 (ADS-R)
30 nm ( / )TIS-B ADS-R
ATC - Ground Station
Other Aircraft
UAT Non-Equipped
Mode A/C Equipped
TIS-B
Other Aircraft UAT
FIS-B
TIS-B
Other Aircraft
TAS
Other Aircraft 1090ES
ADS-R

Lynx ® NGT-9000
Pilot’s Guide1-10
Description
Traffic Awareness System (TAS)
The TAS option is available with model NGT-9000+ and NGT-
9000R+. TAS is an active system that operates as an aircraft-to-
aircraft interrogation device. The unit interrogates transponders in the
surrounding airspace similar to ground based radar; with an effective
active-mode surveillance range of 35 nmi. When replies to these
active interrogations are received, the responding aircraft’s range,
altitude, and closure rates are computed to plot traffic location and
predict collision threats. The NGT-9000+ or NGT-9000R+ alerts the
flight crew to nearby transponder equipped aircraft and assists the
pilot in the visual acquisition of aircraft that may represent a danger.
Traffic information, out to a selected range, is graphically displayed on
the NGT-9000+ or alternate display.
The system display shows the relative position of traffic using text,
shapes (i.e., Traffic Advisory = solid circle; Other Traffic = open
diamond, Proximate Traffic = solid diamond) and colors.
The effective active-mode surveillance range is 35 nmi and
track 35 ATCRBS intruders simultaneously with the other aircraft
bearing relative to the nose of own aircraft.
The tracking of other aircraft is in a cylindrical volume centered
on own aircraft with a maximum radius of 35 nmi and extending
10,000 ft above and 10,000 ft below own aircraft.
The system uses an audio output that announces Traffic Advisory
and relative bearing, relative altitude and range.
Refer to Chapter 4 Principles of TAS Operation for more information.
•
•
•
•
